MONITORING AND ALARM MANAGEMENT FOR SYSTEM

AND NETWORK SECURITY

A web-based comprehensive approach

João Afonso

Informatics and Systems Laboratory, Pedro Nunes Institute, Coimbra, Portugal

Edmundo Monteiro

Department of Informatics Engineering, University of Coimbra, Coimbra, Portugal

Carlos Ferreira

Fisheries Inspection Department, General Direction of Fisheries and Aquiculture, Lisbon, Portugal

Keywords: System and Network Monitoring; Trouble Ticketing systems; Warning Management; Systems

Administration; Internet services, Dial-up networking, bill forecasting .

Abstract: In this work we propose a computer platform that aims to unify the tasks of monitoring, diagnosing, error

detection, alarm management and intrusion detection associated with the administration of a computer

network and related critical services. As main objective, we intend to develop a user-intuitive program that

does not require specialized computer skills from the operators in order to assume full responsibility for the

system. Open-source solutions were used, whenever possible, namely for server operating systems,

application development tools, database engine and integrated Web solution. The project started by

studying the existing solutions, exploring their strengths and shortcomings and iteratively defining the

specific requirements to be implemented. The development phase was conceptually divided in three

different levels: the agents and connectors collecting the data from the different areas being monitored; the

database engine, cataloguing the information and the Web Interface (Security Portal) that allows the

management of all functionalities and guarantees the operationability of the solution. An alarm management

tool should also be developed permitting, according to programmed warnings for certain malfunctions,

trigger the warning messages through the pre-defined medium – E-Mail, SMS (short message service) or

IM (instant messaging), using a Unified Messaging (UM) solution. According to the defined specifications,

the solution to be implemented was designed and a functional analysis was created. Finally the projected

solution was implemented and applied to a case study – the Department of Fisheries Inspection from the

General-Directorate of Fisheries and Aquiculture. The preliminary results from the reliability and user-

friendliness tests were very positive and a decision was made to move into the production phase. The

platform was developed in line with current accessibility requirements and can be operated / consulted by

users with disabilities.

1 INTRODUCTION

Running a computer network today, regardless of

size, requires a set of network equipments, several

servers (possibly running on a number of different

platforms/operating systems) and a large number of

available services (e-mail, www, ftp, newsgroups

and database engines, among others). Crucial to the

work of maintaining such an infrastructure is the

task of monitoring all services and equipment and

subsequently directing the necessary alerts for the

relevant person. The recipient of the message must

be promptly informed of the occurrence regardless

of being on site or not and using his/her preferred

mean of communication.

Despite the extensive range of systems currently

Currently Head of Computing Services, Santa Maria

Hospital, Lisbon.

348

Afonso J., Monteiro E. and Ferreira C. (2005).

MONITORING AND ALARM MANAGEMENT FOR SYSTEM AND NETWORK SECURITY - A web-based comprehensive approach.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 348-356

DOI: 10.5220/0001417103480356

 SciTePress

being marketed (e.g. Hewlett-Packard Openview

, for

equipment management; Quest Big Brother

for

server and services monitoring; Remedy

, for alarm

management and system and network safety) we still

lack a single solution aggregating all required

functionalities. In our opinion those would have to

include: intrusion detection, trouble ticket

management; continuous network survey;

equipment and services monitoring and predicting

telephone bill for WAN networks with dialup

access.

The aim of our work was to propose a solution that

would integrate all these components in an easy to

use Web interface, although admitting that, for the

sake of simplicity, the final solution could not

include the myriad of functionalities presently found

in those systems.

Throughout the project we tried to use as much low

cost solutions as possible. All gateways used are “no

fee” systems, only SMS (Short Messaging Service)

messages have to be paid according to standard

mobile phone operator fees. For e-mail the option

was Qmail and for instant messaging we used Jive

Messenger (server)

and Exodus (client)

, both

respecting and implementing XMPP – Extensible

Messaging and Presence Protocol (P. Saint-Andre,

2004).

In implementing the solution, we resourced as much

as possible to open source solutions and free

binaries implementations. In the cases where this

was an option, the necessary tools had to be fully

developed using a variety of platforms (Java, PHP,

Jsp, etc.). That was the case of the Web portal, the

telephone bill predicting system and the agents for

the Windows and Unix platforms specifically

developed according to the project specifications.

All developed components were implemented in

compliance with the guidelines of the Web Accessibility

Initiative (WAI)

and the Web interface was designed to

be used by users with accessibility limitations.

2 SYSTEM REQUIREMENTS

The following system requirements were considered

for the proposed solution:

- The existence of a relational database

management system (RDBMS) capable of

collecting information from all possible sources,

http://www.openview.hp.com

http://www.quest.com/bigbrother

http://www.remedy.com

http://www.jivesoftware.com

http://exodus.jabberstudio.org

http://www.w3.org/WAI

managing all the services and permitting an

easy access to the data, including cross-

correlation functionalities (Figure 1);

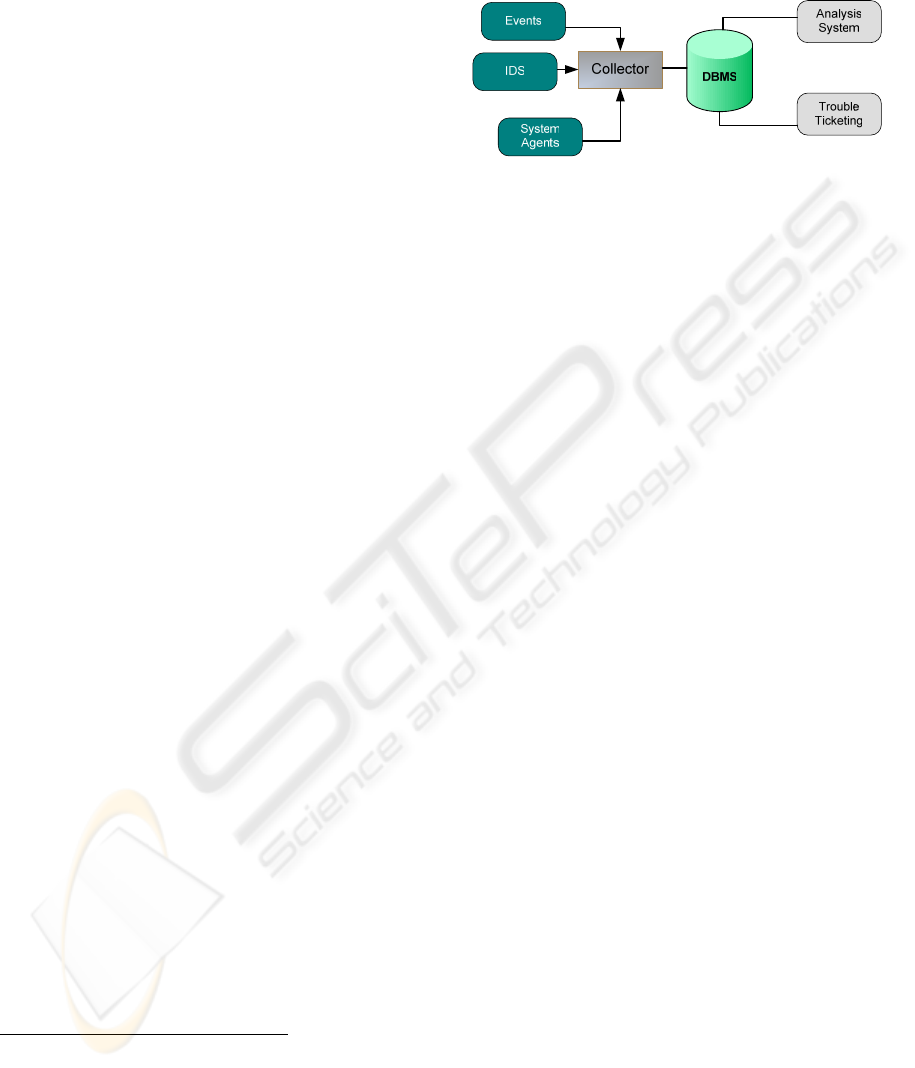

Figure 1: Interaction diagram between the agents,

RDBMS and the analysis systems

- For each system to be monitored, there should

be an agent, running on different platforms and

operating systems. The information collected

from the agents, should be periodically reported

to the RDBMS, in a manner similar to the one

used in Simple Network Management Protocol

(Simões, 2000).

- The ability to implement a trouble ticket

solution (Figure 2), capable of managing the

process of sending the alerts using an integrated

Unified Messaging solution compatible with the

three pre-defined gateways: e-mail, SMS and

Instant Messaging (IM). The system should also

be capable of registering delivery

confirmations, in the cases where that is

possible (e.g., SMS and IM) and also saving the

messages for posterior delivery when the user is

offline. The alerts can be sent to internal staff of

the company/institution or to external technical

support services responsible for maintaining the

equipment (e.g.: Internet Service Providers,

telephone companies, hardware

maintenance/support companies). The system

should also be able to propose a method to

solve the problem, providing a user,

independently of his/her experience, with a

suggested route to solve a problem;

MONITORING AND ALARM MANAGEMENT FOR SYSTEM AND NETWORK SECURITY: A web-based

comprehensive approach

349

1. Intervention

Required

2. Request

Accepted

DBMS

3. Problem

Solved

Intervention requests

analisys system

Calculating

average time

to completion

Determining

most frequent

request

Checking for

most active

technitian

Uptime /

Downtime

calculation

Logging of

unresolved

problems

Figure 2: Trouble ticketing solution

- The capacity to incorporate intrusion detection

mechanisms, capable of logging, in the database

engine, the different forms of potential attacks

and their origin. This information should be

stored in the RDBMS, applying a set of rules

and filters, so they can be easily reviewed, and

correlated with other sources of information

(e.g., firewall), in real time;

- The possibility to centralize in the RDBMS the

logging of events processed via Syslog (Eaton,

2003). For that purpose, the different machines

(servers, independently of platform, or

equipments that can interact with a server, e.g.,

Printers, Access Points, Routers, Firewalls, etc.)

should behave as Syslog clients;

- The possibility of being administered using a

Web browser including tasks such as:

diagnostics (including repetitive attempts to

check for activity and, in case of malfunction,

suggesting a way to correct the fault);

production of reports in Adobe Portable Data

File (PDF) format

; checking the log for

triggered daily alarms; possibility of predicting

telephone bill for dial-up connections; uptime

and downtime statistics, for each server and

service being monitored; Syslog sources event

log; possibility to send messages to users using

UM and associated available gateways; two

groups of users – restricted access and

administrators – with different levels of access

to the system. The portal will also have back

office functionality for advanced administration

options (restricted users only), making possible

http://www.adobe.com

to define witch systems and services to

miniaturize and which users to contact;

- AAA (authentication, authorization and

accounting) system for WAN (wide-area

network) accesses (Laat, 2000). This way, the

validation should use RADIUS (Remote

Authentication Dial-In User Service) (Rigney,

2000) using the user data stored in the RDBMS.

- Access logging should also be located in the

RDBMS, in order to detect unusually long calls,

an excessive number of calls or even the

absence of communication from a remote point.

Can also be important to forecast the cost of

communications, in advance of the phone bill.

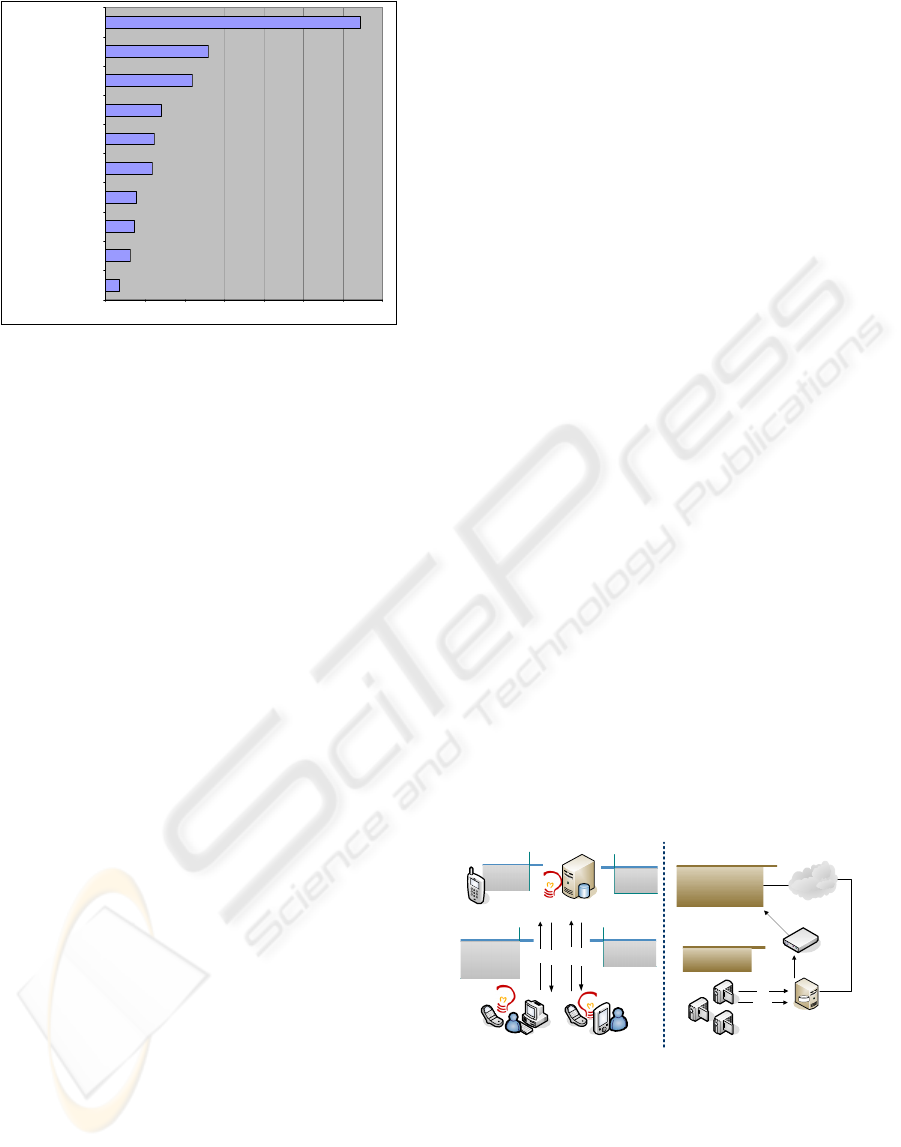

Figure 3: Alarm management

- For alert management, the possibility to

implement a trouble ticket solution that could

allow not only to register a malfunction but also

the moment that the technician assumed the

problem and the time that it took to solve the

problem (Figure 3). Additionally, for the benefit

of less experienced technicians, each alert

should also include a suggested path of action

to correct the problem.

- An autonomous platform has to be created to

continuously analyse the data collected in

RDBMS and act as necessary. There should

also be automatic mechanisms available to test

connectivity over the local area networks and

other connections to branches offices.

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

350

3 PROPOSED SOLUTION

The proposed solution is based in cost-free

applications and specially developed components.

The database engine used was Mysql

– an open

source RDBMS that uses Structured Query

Language (SQL) – based on a Sun Solaris 10

central operative system developed for AMD

platforms on a SUN Fire V20z Server.

The system can handle data collected via Syslog

providing the transport and storage mechanisms for

event notification messages, in the form of log files,

helping the administrator to classify, analyze and

process from a large variety of events (according to

a set of rules).

Syslog is available in Unix systems and some

network components. Events are collected,

according to a set of filters and rules and centralized

in the RDBMS using Msyslog

. This application

works on the same port as the Syslog protocol,

directing the collected data to the database engine.

In Windows systems, that lack the Syslog client, we

used EventReporter

in order to emulate the

behaviour of a Syslog client (replacing the Event

Viewer).

As IDS tool, we used SNORT

(Caswell, 2003) –

an open source platform, that works as a packet

sniffer monitoring network traffic in real time,

scrutinizing each packet closely to detect a

dangerous payload or suspicious abnormality,

according to a group of known signatures. The

implementation is adapted to work with the

RDBMS. In this way, the Web interface can be used

to monitor the system, to correlate the data with

other sources of information or even to generate

alarms according to specific situations. It is also

possible to generate alerts based on information

reported by this solution.

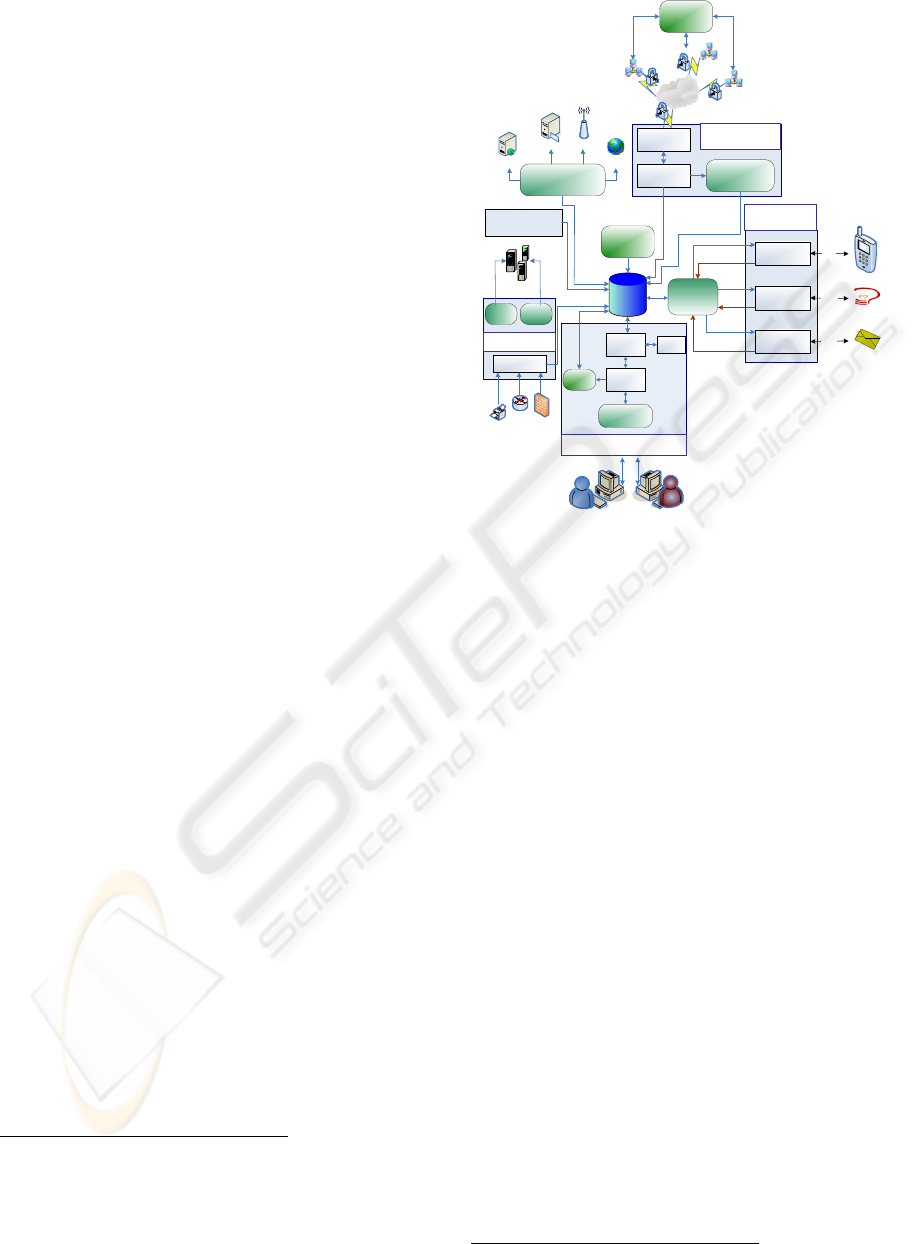

Figure 4 shows a diagram for the proposed solution.

http://www.mysql.org

http://www.sun.com/solaris

http://www.sun.com/servers/entry/v20z/index.js

http://www.sourceforge.net/projects/msyslog

http://www.eventreporter.com

http://www.snort.org

WAN

DBMS

Mysql

SMS Gateway

Memo Directo

Mobile Device

IM Gateway

Jive Messenger

SMTP Gateway

Qmail

E-Mail Client

Sending

Delivery Confirmation

Delivery

Confirmation

WWW

Apache

PHP

Syslog

MSyslog

Radius

(NAS)

Windows

Agent

Unix

Agent

Management

of Alarms

Log

Parsing

PDF

Editor

Intrusion Detection

System

Snort

AAA

Server

Management of

Communications and

Services

Forecast of

Coasts of

Communications

Security

Portal

SMTP

XMPP

GSM

MANAGEMENT OF

COMMUNICATIONS WITH

BRANCH OFFICES

INTERFACE WITH

EQUIPMENT

Servers

Branch

Printer

Branch

Internet

Branch

Router

Firewall

Diagnosis of

Damages

E-Mail

WWW

WWW Server Modules

PROCESSING OF

DAMAGES

Branch

User

Administrator

Diagnóstico

de Avarias

nos Clientes

Jabber

Client

Figure 4: Overview of the proposed solution

The IM gateway was implemented in Jabber

, (an

open source initiative), Extended Markup Language

(XML) using XMPP (an IM protocol) and online

presence detection. On the server side, we used Jive

Messenger and in the client side Exodus. A virtual

user was created – MAM – monitoring and alarm

management, responsible for processing the alert

messages and sending them to the users (local and

remote) and technical services (internal or external).

For validating the authentication, authorization and

accounting operations of the remote users, we use

the RADIUS protocol, also adapted to interact with

the RDBMS engine. This solution is also used to

predict the communication costs.

To complement the information collected a set of

java agents (Unix environments) and services

(Windows systems) was developed. The task of

these agents is to collect system information, namely

disk space, memory usage and to perform service

monitoring. These agents are, at the same time,

sources of information for the central database

engine, with which they interact on a periodic way.

Several java applications run in the background in

the central system – at predefined periods of time –

analyzing the information collected and running a

set of diagnostic tests.

All the information is available through a Web

interface, after good validation of the

each user. This profile will indicate if the user has

http://www.jabber.org

MONITORING AND ALARM MANAGEMENT FOR SYSTEM AND NETWORK SECURITY: A web-based

comprehensive approach

351

administrative rights allowing access to Back Office

operations (such as: programming alerts, monitoring

processes, sending messages, and managing

accounts and contacts).

At the main page the user can see a briefing of all

information, indicating the last events reported, the

state of all communication channels, the state of the

services being monitored and last IDS attacks

reported.

Functions available include searching, running

queries over the data, and running diagnosis to

determine possible problems.

In the Back Office section, an administrator can use

options such as management of users and external

contacts, defining areas to supervise and

programming of alarms.

An important feature of the system is that the data

can be analysed per se or correlated within a certain

time frame. This option can be very useful, for

example, in the cross-evaluation of information

obtained by the IDS solution and the Firewall

(Shearer, A.,

2003).

The settings for the different alerts and the

corresponding users and contacts that are notified

can also be defined using the portal. The Web

interface is also used to define the different areas to

be monitored, indicating which equipment and

services should be checked and with which

periodicity.

The WWW server is based on Apache

technology,

and the application development was done in PHP

(Rehman, 2003).

The integration of the different technologies,

together with the tools created is presented on

Figure 5.

http://www.apache.org

http://www.php.org

The global solution is platform independent so the

technologies we used can be easily exchanged by

others that respect the same functionality: the

RDBMS MySQL could be replaced by

PostgreSQL

, Oracle

or SqlServer

; the Web

server Apache could be replaced by Internet

Information Services

or other and for the IM

solution, Jabber client (Exodus) and server (Jive

Messenger) could be replaced by Rhombus

for the

server side and Gush

or Trillian

for the client

side.

4 CASE STUDY

The Portuguese General Directorate of Fisheries and

Aquiculture

, with a total of 97 branches and a

complex web of local networks - all considered

critical and, consequently, in need of close

monitoring - was chosen for an initial

implementation of the proposed solution.

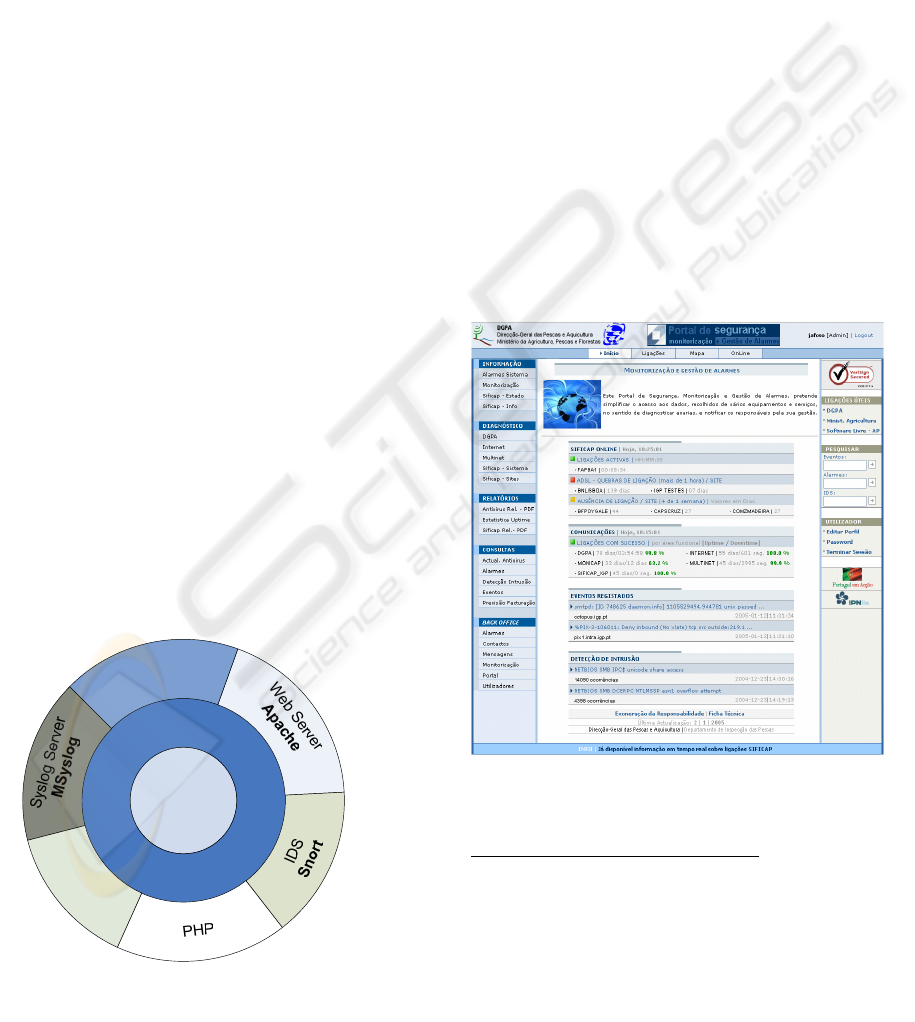

Figure 6 shows a snapshot of the Security Portal.

Figure 6: Security Portal – Global overview

http://www.postgresql.org

http://www.oracle.com

http://www.microsoft.com/sql

http://www.microsoft.com/iis

http://www.rhombusim.com/

http://2entwine.com/

http://www.ceruleanstudios.com/

http://www.igp.pt

Operating

System

Solaris 10

[Intel]

RBDMS

MySQL

Figure 5: Diagram of the technology used

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

352

All the information available at this page is generate

from the RDBMS. The main portion of the window

shows all the critical information regarding the

communications and services being monitored.

The information available, concerns events, recent

alarms triggered, and top IDS attacks detected.

The left panel shows the options menu.

Functionality depends on user privileges

(administrators can access the back office options).

In the right panel users can access the query tools to

search in the repository of data (from alerts, events

and IDS solution). The search can be done by date

limits, server or part of the text used in description.

In Figure 7, we present a diagram of the systems

involved in the solution proposed for the

Directorate.

In total, there are five information sources feeding

the database engine: Intrusion detection system,

WAN network control, system monitoring, events

(Syslog and Eventreporter) and agents (specifically

developed for Unix and Windows environments).

To insure that the Web interface is in compliance

with the Web Content Accessibility Guidelines

(WCAG), the interface have been tested with

Bobby

– accessibility desktop testing tool.

5 PRESENTATION OF RESULTS

The proposed solution is currently being used in the

Portuguese General Directorate of Fisheries and

Aquiculture and initial results are very positive.

As an example we present below the principal

indicators for the first two months of functioning in

the period between 1/10/2004 and 30/11/2004,

collected from the different sources:

Table 1: Main indicators for the initial 2-month period

IDS Events Alarms Radius

45000 776163 147 119885

In addition, a total of 5380 SPAM messages, 974

virus containing e-mail attachments, 354 alerts from

WAN network and 28 message alerts on local

equipment and service failure where also reported

during this period.

The high Radius value, reflects the large number of

calls between the branches and central office, over

the dial-up ISDN channels.

Figure 8 presents the top 10 possible attacks

detected by IDS.

http://www.cast.org/bobby

Figure 7: General diagram of the solution implemented in the

case study

MONITORING AND ALARM MANAGEMENT FOR SYSTEM AND NETWORK SECURITY: A web-based

comprehensive approach

353

100 200 300 400 500 600 700 800

POP3 LIST overflow attempt

(http_inspec t) APACHE

WHITES PA CE ( TA B)

POP3 TOP overflow attempt

SMTP RCPT TO overflow

WEB-MISC apache directory

disclosure attempt

BAD-TRAFFIC loopback

traff ic

ICMP Large ICMP Packet

ICMP PING Cyber Kit 2.2

Window s

(http_inspect) BA RE BYTE

UNICODE ENCOD.

SMTP MAIL FROM over f lo w

attempt

Figure 8: IDS – attacks sorted by number of occurrences

The number of IDS events reported can be

minimized by using appropriate IDS rules to classify

false positive alerts – that can be used maliciously

by an intruder to start a massive attack, obfuscating

small events that could be undetected. Also false

negative alerts can be avoided, when the analysis

system correlate events reported by IDS with other

sources

– firewall, syslog agents, etc – in the same

time frame (Gerg, 2004).

There are currently a total of 30 internal users (with

access to the security portal) and 70 external

contacts (that can be informed about problems

related with the systems under their administration).

6 CONCLUSIONS AND FUTURE

WORK

With the proposed solution we have been able to

administrate a total of 97 branches, over 30 servers

running distinct services such as database engines,

e-mail, proxy, newsgroups and many others. A set

of analysis agents were developed that continuously

monitor the information collected in the RDBMS

and trigger the corresponding alarms according with

a pre-defined set of rules. A Web portal is also

available that permits users to view all the

information, create reports and manage the way

alerts are triggered and distinct areas should be

monitored. A set of diagnostic tests is also available

and, since all reports include a clear path towards a

possible solution, the user does not need be an

expert to solve the problems.

The solution had a considerable impact in the

efficiency of the monitored services notably in

reducing service downtime, improved security, and

increased efficiency of the technical staff as well as

a substantial reduction in communication costs.

In summary, the proposed solution aims to combine

in a single platform the main features that are

present in programs as diverse as service monitoring

systems, IDS, trouble ticketing and AAA.

Additionally, the use of a common RDBMS for data

collection provides an easy way to analyze and

correlate data from different sources therefore

improving the detection and management of critical

conditions. Also considered important is the

inclusion of a trouble ticketing solution, capable not

only of managing events but also of suggesting

solutions for most common errors and problems.

The availability of agents capable to operate in

several operating systems provides the necessary

independence to the platform and the ease-of-use

provided by the web portal developed in line with

current accessibility requirements stands out from

the other existing options.

The operational logic, assigning services,

equipments or even entire areas to a network of

responsible technicians promotes accountability and

improves the overall performance of the

maintenance.

Future work planned includes the expansion of the

portal to allow GSM (Global System for Mobile

Communications)/PDA (Personal Digital Assistant)

access. This way a user could send commands and

receive reports using a mobile terminal (Figure 9, on

the left).

Another interesting addition would to integrate an IP

camera solution to the system that would notify the

security company and create a VPN (Virtual Private

Network) allowing access to the images (Figure 9,

on the right).

VPN

Video surveillance

Alarm

IP Camera

detecting alarm

Syslog

Alarm

FTP

Video Server

The test is

performed

Processing

the Request

Virtual user

IM client on PC

Gateway

SMS

IM client on PDA

The user sends

a Request

(IM or SMS):

“Test Net”

The user gets a

response

GSM

XMPP

GSM

Alarm

Security company is

contacted and a VPN is

created to enable access

to the images

Figure 9: Possible future development with two-way

interaction with mobile terminals

REFERENCES

Caswell, B., Beale, J., Foster, J., Faircloth, J., 2003. Snort

2.0 Intrusion Detection, Syngress.

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

354

Eaton, I., 2003. The Ins and Outs of System Logging Using

Syslog. SANS Institute.

Gerg, C., Cox, K., 2004. Managing Security with Snort

and IDS Tools, O'Reilly.

Laat, C., Gross, G., Gommans, L. Vollbrecht, J., 2000.

Generic AAA Architecture, RFC 2903.

Lonvick, C., The BSD syslog Protocol. RFC 3164.

P. Saint-Andre, Ed., 2004. Extensible Messaging and

Presence Protocol (XMPP): Core, RFC 3920.

P. Saint-Andre, Ed., 2004. Extensible Messaging and

Presence Protocol (XMPP): Instant messagind and

presence, RFC 3921.

Rehman, R., 2003. Intrusion Detection with SNORT:

Advanced IDS Techniques Using SNORT, Apache,

MySQL, PHP ad ACID. Prentice Hall.

Rigney, C., Rubens, A., Simpson, W. and S. Willens,

2000. Remote Authentication Dial In User Service

(RADIUS), RFC 2865.

Rigney, C., 2000. RADIUS Accounting, RFC 2866.

Shearer, A., 2003. Firewall log analysis using ACID.

SANS Institute.

Simões, P., 2000. Gestão distribuída de Redes Baseada

em Tecnologia de Agentes Móveis. Universidade de

Coimbra.

Strebe, M. et al, 2002. Firewalls 24Seven, second edition.

San Francisco: Sybex

MONITORING AND ALARM MANAGEMENT FOR SYSTEM AND NETWORK SECURITY: A web-based

comprehensive approach

355
