CLUSTER AND NETWORK MANAGEMENT INTEGRATION

An SNMP-based Solution

Rodrigo S. Alves, Clarissa C. Marquezan, Philippe O. A. Navaux, Lisandro Z. Granville

Institute of Informatics, Federal University of Rio Grande do Sul, Av. Bento Gonçalves 9500, Porto Alegre,Brazil

Keywords: High Performance Clusters, Network Management, Cluster Management.

Abstract: The management of high-performance clusters, in several situations, needs to be integrated with the

management of computer networks. In order to achieve such integration, a network management

architecture and protocol, such as the SNMP, could be used for cluster management. This paper investigates

the required integration through the implementation of SNMP agents deployed in the cluster infrastructures,

as well as the development of a management system for these SNMP agents.

1 INTRODUCTION

Cluster Computing research has been growing in

recent past years, mainly when clusters are used as

substitutes for supercomputers in some applications

that require high performance processing (Buyya,

1999). The popularization of clusters has occurred

due to their relative low price and their capacity of

easily increase the amount of processing power

through the addition of new worker nodes.

The difficulty in maintain a cluster infrastructure

is usually proportional to the number of nodes that

compose the cluster. Managing a cluster without any

tool that automates the management tasks can be

prohibitive, mainly when the number of nodes is

high. Thus, it is essential the use of management

tools that help the administrator to deal with the

growing number of nodes.

Today, there are some tools that automate cluster

management. However, many of them have their

own associated language and their own way of

work: currently there is no standardized way to

support cluster management procedures.

This problem turns the integration of cluster

management tools and others management tools

hard. This situation is still more difficult because

clusters are network components usually located in

computer networks universities and companies. So,

is not rare the case in which the network

administrator is the same person that administrates a

cluster. Considering the difficulties to integrate

management tools, the network/cluster administrator

is forced to use a set of tools to manage the network,

and other set of tools to manage clusters.

Thus, there is the need of a new approach for

integrated cluster and the network management.

Since the traditional and widely used solution for

network management is based on the SNMP (Simple

Network Management Protocol) framework

(Harrington et al., 2002), the integration with cluster

management could be obtained through the use of

SNMP in the cluster domain. This work presents an

SNMP-based cluster management system used to

manage two clusters of our testing labs. The system

is composed by SNMP agents and one Web-based

management system. The work presented in this

paper is the evolution of the paper (Alves, 2004).

The remainder of this paper is organized as

follows. Section 2 presents related work concerning

common cluster management issues. In Section 3 we

present two cluster MIBs (Management Information

Base) supported by the implemented SNMP cluster

agents. Section 4 shows a case study where the

Web-based cluster management system and its main

operations are presented. Finally, we finish this

paper with conclusions and future work in Section 5.

2 MANAGEMENT OF HIGH

PERFORMANCE CLUSTERS

According to Buyya (Buyya, 1999), a cluster

consists of a collection of interconnected stand-alone

computers (nodes) that work together like a single

integrated computational resource. The front-end is

the cluster node that presents to the user the

integrated and single resource image. The front-end

318

S. Alves R., C. Marquezan C., O. A. Navaux P. and Z. Granville L. (2005).

CLUSTER AND NETWORK MANAGEMENT INTEGRATION - An SNMP-based Solution.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networ ks, pages 318-323

DOI: 10.5220/0001417503180323

 SciTePress

is crucial for the cluster operation because it

implements a single access point from where the

users submit applications to be executed in nodes.

Often, nodes are personal computers interconnected

with each other through the cluster network. This

network is responsible to allow the communication

among processes running in different nodes.

Differently from what happens in the network

management area, there is no consolidated and

widely accepted notion of what cluster management

exactly means. In this scenario, we try to organize

the current cluster management tools in three broad

and general classes: cluster monitoring, user task

management, and administrative tools. Since the

functionalities found in these tools may be very

similar, is not rare that some tools implement

functionalities that would fit in more than one class.

Cluster monitoring tools are used to check the

internal status and utilization of the cluster

resources. Ganglia (Massie, 2005), the most spread

monitoring tool, is a distributed system able to

monitor inter-cluster and intra-cluster information.

Another tool is SIMONE (SNMP-based Monitoring

System for Network Computing) (Subramanyan et

al., 2000), that offers node description, processes

information (e.g. CPU time, memory usage), nodes

information (e.g. percentage of CPU usage, memory

usage, network interfaces) and information about

traffic on each node. Basically, SIMONE

implements most of the management information

that Ganglia does.

User task management tools are designed for job

scheduling. Such tools allow the allocation of a

subset of the cluster nodes for the execution of the

tasks of a user. The most spread tool here is Open

PBS (Portable Batch System) (PBS, 2005). The

basic PBS operation is implemented as a FIFO

queue. It offers mechanisms to view and interact

with the execution queue, and uses policies to

control the abusive use of clusters resources by just

one user, harming others users.

Administrative tools automate cluster operation

tasks such as node image replication and parallel

commands. Basically, the main objective of these

tools is to offer scalable operations for clusters.

System Imager (System-Imager, 2005) is a tool of

this group. It offers functionalities for maintenance

of a same operating system in all cluster nodes.

From a network management perspective, all

these cluster tools may not always be identified as

management tools in the strict word mean, but in

cluster terms it is not rare to find such denomination.

A more critical problem is the fact that these tools

can not be integrated with network management

without complex adaptation work. SIMONE is the

unique cited tool that offers facilities for SNMP

integration, however it is focused in the management

of general distributed systems, and does not deal

with specific cluster issues such as nodes allocation

and internal/external network interation.

3 CLUSTER MANAGEMENT

MIBS AND SNMP AGENT

The developed management system handles SNMP

agents inside clusters. The cluster management

information supported for each SNMP agent is

defined in MIBs for clusters. These defined MIBs

relay on the analysis of information required to

manage a cluster and on the analysis of other

existent MIBs. Two already standardized MIBs were

important in this work: MIB-II (Mccloghrie and

Rose, 1991) and HostResources (Grillo and

Waldbusser, 1993). They allow us to use several

data of these MIBs, instead of redefining them on

the clusters MIBs. From MIB-II we borrowed the

system group, which provides general machine

information. The network information is obtained

from the interfaces group. From the HostResources

MIB we borrowed information from three following

groups: (a) hrSystem: provides information related to

the system status; (b) hrStorage: provides

information about disk and memory usage; (c)

hrDevice: provides data about disk partitions.

Complementarily, the specific information

related to clusters, not covered by MIB-II and

HostResources, were defined in two new MIBs: one

referring to nodes management and the other

referring to front-end management. The

functionalities supported in the current version of

these new MIBs include some features of two

management groups (described in the previous

section): monitoring tools and users tasks

management tools.

3.1 Cluster MIBs Description

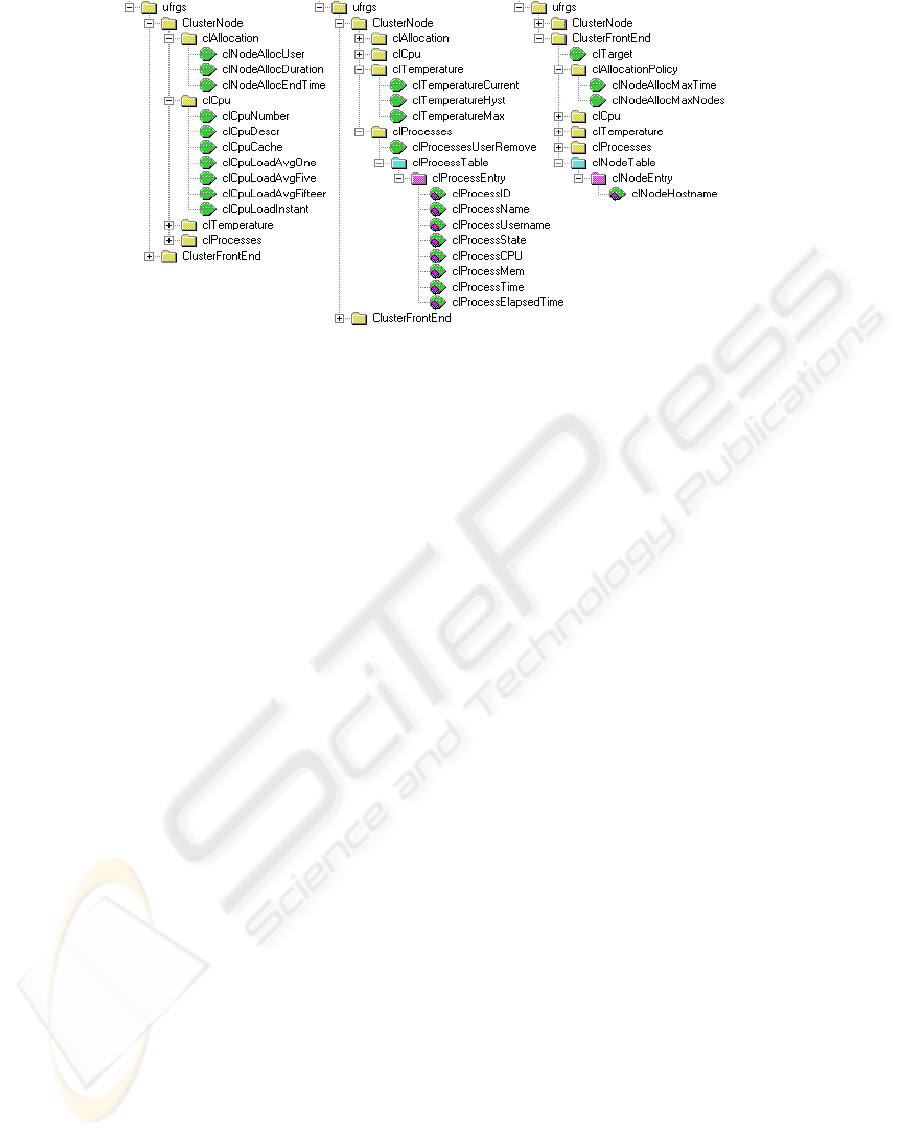

Figure 1 presents the MIBs designed to manage

cluster nodes and front-ends. As showed in Figure 1,

ClusterNode MIB is composed by four groups:

clAllocation, clCpu, clTemperature and clProcesses.

Node allocation and deallocation are performed

through clAllocation group. The read-and-write

object clNodeAllocUser stores the name of the user

who has allocated a node or the special value “ALL”

if the access to the node is free. After allocation, any

user, except the one that allocated the node, is

unable to login in the node. The node deallocation is

performed by the system administrator, whom must

attribute the value “ALL” in clNodeAllocUser

object. The clNodeAllocDuration should be adjusted

CLUSTER AND NETWORK MANAGEMENT INTEGRATION-An SNMP-based Solution

319

to indicate the number of hours the allocation is

valid. Such adjustment must be performed before the

effective allocation. Finally, the reading object

clNodeAllocEndTime inform the date and time that

the allocation will end up according the

clNodeAllocDuration value.

The clCpu group exposes data related to node

CPU(s). clCpuNumber inform the number of CPUs

the node possesses, and clCpuDescr presents a

description of each CPU. The amount of cache

memory of each processor is presented in

clCpuCache. CPU utilization data are obtained with

four objects: (i) clCpuLoadAvgOne, (ii)

clCpuLoadAvgFive, (iii) clCpuLoadAvgFifteen and

(iv) clCpuLoadInstant. The objects (i), (ii), (iii)

present the processing load average in the past

minute, past five minutes and past fifteen minutes,

respectively. The last object (iv) informs the

processing load in a given moment. These data are

computed based on an arithmetic average among the

CPUs usage percent of each node.

The clTemperature group informs the values

obtained through temperature sensors of the node

motherboard. The reading object

clTemperatureCurrent indicates de current processor

temperature in Celsius scale. The reading object

clTemperatureHyst indicates an alert limier, which

over it some proactive actions must be executed.

clTemperatureMax inform the maximum

temperature limier allowed from which the machine

must be turned-off. As temperature limier can be just

changed by complex manual interventions in each

node, clTemperatureHyst and clTemperatureMax

can only be used to obtain such values, but can not

be used to perform changes.

Information related to nodes processes is located

in the clProcesses group, which is composed by

clProcessesUserRemove and clProcessTable. The

leaf clProcessesUserRemove is used to finish all

user processes that are running in a node (specifying

the username) or to finish the processes of all users

that are running some process in the node

(specifying the string “ALL”). The processes can be

finished individually using the clProcessState

object. The clProcessTable contains information

about the processes running in a node. A part of this

information is provided by the HostResources MIB,

however, other important data (e.g. owner of process

and elapsed time the process is running) are not

provided by this MIB. This leads to the necessity to

extend the information contained in HostResources

by defining the clProcessesTable in ClusterNode

MIB. An optimization inserted in this work is based

on the fact that, concerning cluster context, generally

the interest in the running process are related to

users processes and not system processes. Thus, we

decided to implement in ClusterNode MIB data

already supported by HostResources MIB.

Nevertheless, only user processes will be exported in

our MIB, providing an economy in network traffic.

Each line in clProcessTable refers to a process

executing in a node. clProcessID index each process

in the table and gives the process identifier (PID).

The clProcessName object indicates the process

name and clProcessUsername object informs the

username of the process owner. Process status (e.g.

running, IO, stoped or zoombie) is given by the

read/write clProcessState object. It is also used to

enable the ending of a process, when the “kill” value

was set in this object (this is based on

HostResources MIB). In addition, clProcessCPU

and clProcessMem objects inform the percentage of

CPU and memory the process is consuming. The

object clProcessTime indicates the amount of

processor time used by the process, and the

clProcessElapsedTime object indicates elapsed time

the process is running.

Figure 1: ClusterNode and ClusterFrontEnd MIBs.

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

320

The ClusterFronEnd MIB is too similar to

ClusterNode MIB, beging formed by an scalar

object (clTarget), by four groups

(clAllocationPolicy, clCpu, clTemperature,

clProcesses) and by a table (clNodeTable). The

differences between these two MIBs are related to

the existence, in the ClusterFrontEnd MIB, of the

following elements: clTarget object,

clAllocationPolicy group and clNodeTable table.

The clTarget object will be discussed in section 3.2.

The clAllocation group from ClusterNode MIB

was substituted by clAllocationPolicy in

ClusterFrontEnd MIB. That was required due to it

makes no sense allocate the front-end for a user. On

the other hand, it is the front-end responsibility to

store the cluster allocation policy. An allocation

policy is a set of rules that aims to provide a better

sharing of the cluster resources; allowing most users

as possible to use the cluster at the same time and

trying to reduce the waiting time to get access to the

resources. In this way, clAllocationPolicy group

stores the allocation policy and is composed by the

read/write leaves clNodeAllocMaxTime and

clNodeAllocMaxNodes, which indicate, respectively,

maximum hours and maximum nodes per allocation.

Finally, clNodeTable stores in clNodeHostname

object the sysName value from MIB-II of the nodes.

clTarget and clNodeHostname are key objects in the

routing of SNMP messages to target nodes.

3.2 SNMP Agent Implementation

The SNMP agents have been developed in Linux

environment, implemented in C language and using

the facilities of the NET-SNMP package (NET-

SNMP, 2005) to build agents based in SNMPv3

protocol (Blumenthal and Wijnen, 1998), which

enables the support for several security issues, such

as user authentication and data integrity assurance.

Two different, but complementar, SNMP agents

were implemented: (i) one running inside each

cluster node and (ii) another running in the front-

end. In this way, the cluster components (nodes and

front-end) have SNMP agents. Nevertheless, only

the front-end agent is accessible directly through the

management system. Node agents can only be

accessed through the front-end agent. In this case,

the front-end, besides providing support for

managing itself, also acts as an SNMP proxy.

The need to implement an SNMP proxy is

derived from a difficulty intrinsic of most clusters

configurations: generally the single machine

accessible from the external to the cluster is the

front-end, while its nodes are confined inside the

cluster internal network, hidden behind the front-

end. Therefore, the goal of our SNMP proxy is to

allow the front-end to perform the interaction

between cluster internal and external networks.

Figure 2 presents an example of integration

through the SNMP proxy. In this example, a

manager software needs to get the value of

clCpuNumber object from ClusterNode MIB.

However, before performing this operation the

manager needs to manipulate clTarget object from

the ClusterFronEnd MIB to prepare the front-end

SNMP agent to handle SNMP messages designed to

cluster nodes. In this example the manager must set

clTarget to forward the SNMP messages to node 2.

Receiving an SNMP request the front-end agent

must, before proceeding with the standard SNMP

message processing, examine the value of clTarget

object. Whenever the clTarget value is the same of

one of the values stored in clNodeHostname of

clNodeTable, the front-end agent forwards the

SNMP message to the node identified in clTarget

and then waits the reply from the target node, to sent

it back to the management software.

This indicates that the manager software needs,

before interacting with a node, change the clTarget

value in the front-end to inform the node that will

effectively take care of the request. In Figure 2, (1)

the cluster manager asks the writing of “Node 2” in

clTarget object and (2) receives a reply confirming

the operation. After, all SNMP messages arriving in

the front-end will be forwarded to the node 2 of the

cluster. In this example, (3) the manager asks the

value inside clCpuNumber. This request is

forwarded (4) to the agent of node 2 that answers (5)

informing the number of CPUs from node 2. Finally

the reply (6) is sent back to the software manager.

4 THE SNMP-BASED CLUSTER

MANAGEMENT SYSTEM

The SNMP-based cluster management system is

composed by a set of PHP scripts (PHP, 2003) that

Agent

Front-end

(proxy)

1) SetRequest (clTarget.0 = “Nodo2”)

2) Response (clTarget.0 = “Nodo2”)

3) GetNextRequest (clCpuNumber)

6) Response (clCpuNumber.0 = 2)

4) GetNextRequest (clCpuNumber)

5) Response (clCpuNumber.0 = 2)

Management

System

Agent

Node1

Cluster

Agent

Node2

Agent

Node3

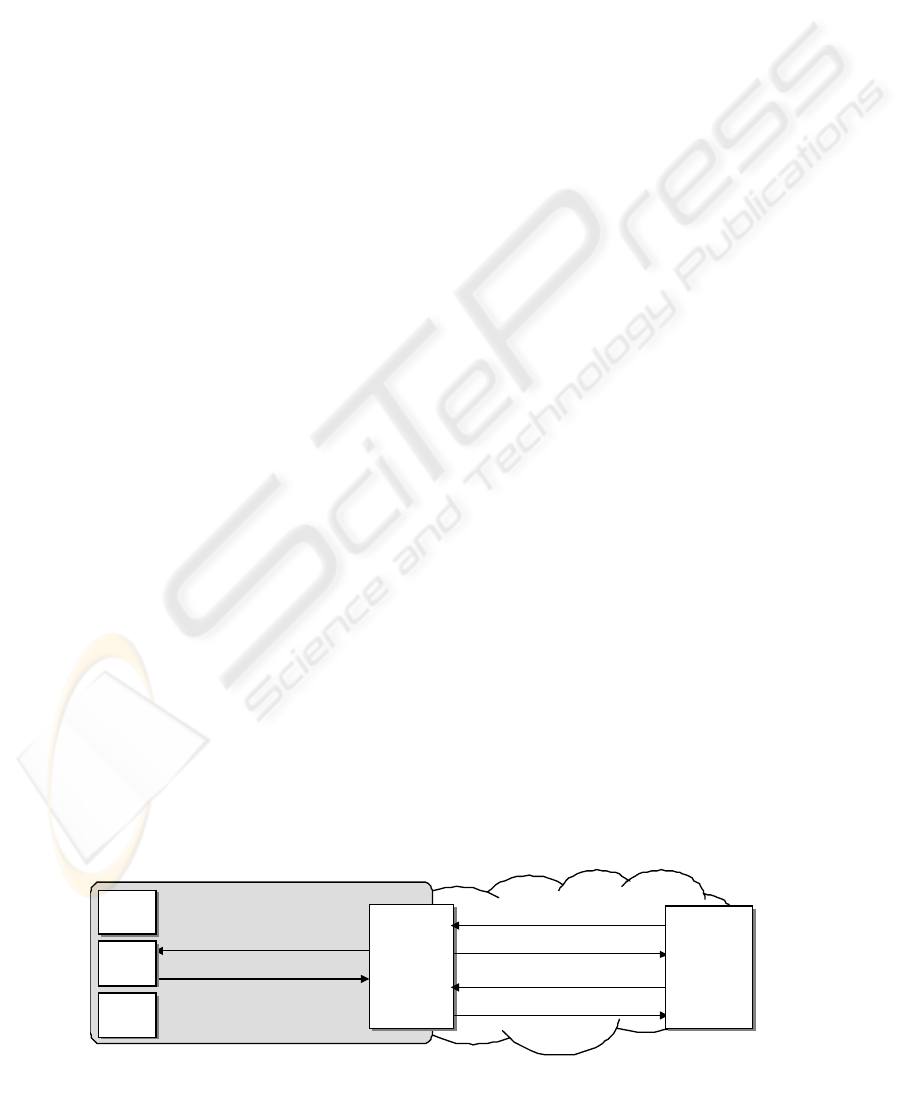

Figure 2: Basic operation schema of SNMP proxy

CLUSTER AND NETWORK MANAGEMENT INTEGRATION-An SNMP-based Solution

321

the cluster administrator can access via a Web

interface. Web-based management is largely

discussed and its advantages are well-known in the

network management area.

The graphical interface allows a progressive

interaction between the administrator and the

system. Initially, information allows the verification

of global cluster data (Figure 3), such as front-end

hostname, the number of nodes and processors

(obtained in clNodeTable from ClusterFrontEnd

MIB and in clCpu from ClusterNode MIB), and the

cluster total amount of memory and hard disk

(obtained via HostResources MIB).

Clicking in the cluster image, the administrator

accesses an HTML page where the nodes are

presented (Figure 4). It presents images that show

two basic information of each node: the running

workload and the allocation status. According with

the node CPU workload, the node image assumes a

different colour (green, yellow or red) that

represents, respectively, a low (fewer than 30%), a

medium (between 30% and 80%) or a high workload

level (higher than 80%). The other information

presented is the node allocation status. If the node is

currently allocated to a user, then the node image

will be changed adding to it the figure of a small

lock. This information is obtained accessing clCpu

and clAllocation groups of ClusterNode MIB.

The “Allocate Nodes” presents a new interface

(Figure 5) where the user can allocate cluster nodes

and obtain allocation status of all nodes, including

the user that has allocated a node and the time when

the allocation will expire. With this information,

obtained from ClusterNode MIB, it is possible to

perform an allocation choosing desired duration and

number of nodes. The allocation duration options are

offered according to the cluster allocation policy,

and the nodes limit is informed below the nodes

table (this information are obtained accessing

clAllocationPolicy group from ClusterFrontEnd

MIB). If an allocation request exceeds the cluster

allocation policy, the request is performed partially.

The user interface is different for cluster

administrator and cluster user, since the first can, for

example, change the cluster allocation policy. Thus,

the button “Change Policy” is available only for

administrators. Selecting it, it is showed a new

interface where it is possible to set the cluster

allocation policy.

In the interface presented in Figure 4 it is also

possible to obtain specific information about nodes

and front-end. Clicking on this figure, an HTML

page is presented with the six main categories of

information offered by the management system.

These categories are: hardware, running processes,

temperature, resources utilization, node allocation

and node disk partitions (Figure 6).

The first option is “Hardware”. In this option,

the user visualizes details of machine hardware and

gets information about CPU nodes; information

about memory, disks and swap memory size, and a

list of the network interfaces available. Through this

interface, the user obtain a global characterization of

the node. These information are obtained from

HostResources MIB and ClusterNode MIB.

The “Processes” option presents a list of user

processes running in the machine. This interface

presents the process name, the owner (user), the

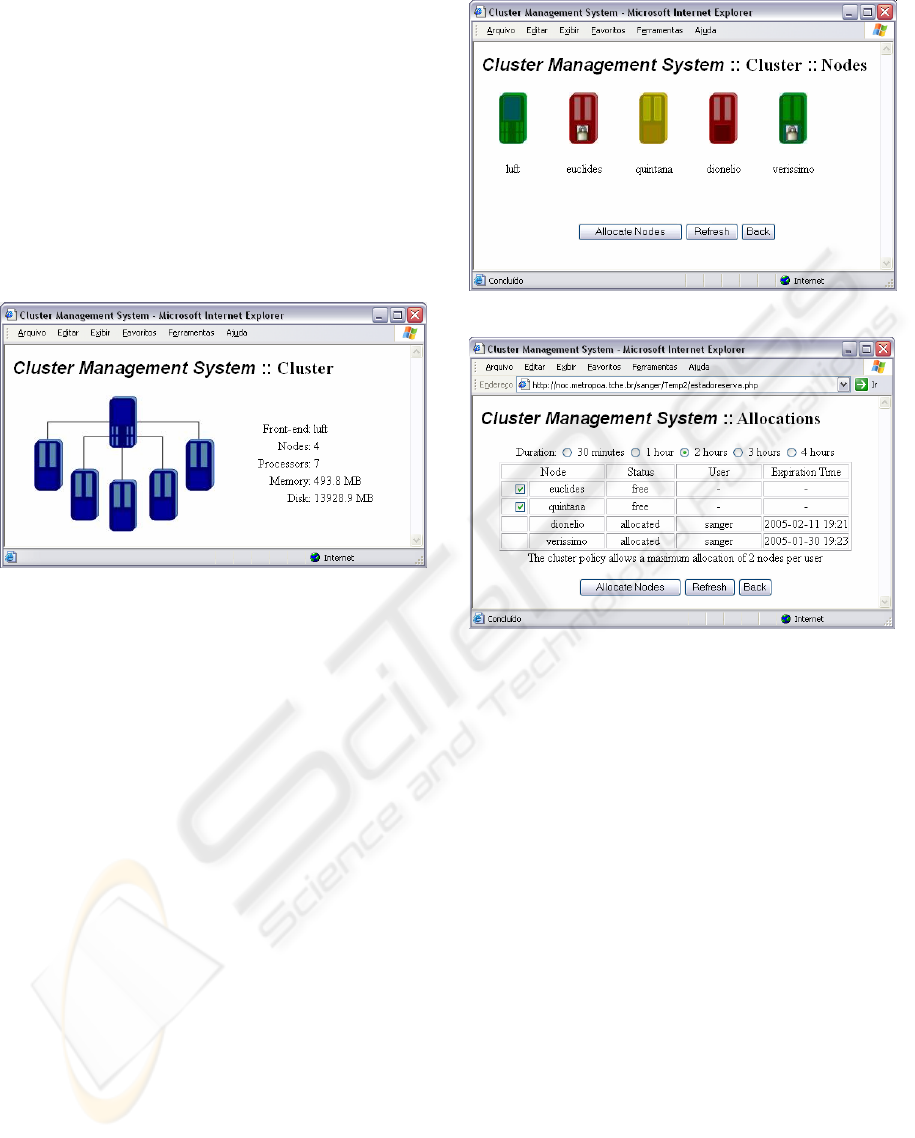

Figure 3: Interface of Management System.

Figure 4: Interface showing front-end and nodes.

Figure 5: Multiple allocation of nodes.

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

322

identifier (PID), the state, the CPU usage

percentage, the memory usage percentage, the time

elapsed since execution started and the execution

time. It is also possible to kill processes, selecting

the correspondent checkbox and clicking on the

“Kill” button. The data presented in this option are

obtained from clProcesses in ClusterNode MIB.

The “Temperature” option presents the current

temperature information of a node, the temperature

threshold from which the node requires care and the

maximum temperature supported by the node,

obtained from the clTemperature group of the

ClusterNode MIB. This group information is

available only for nodes with hardware support for

temperature sensors properly configured.

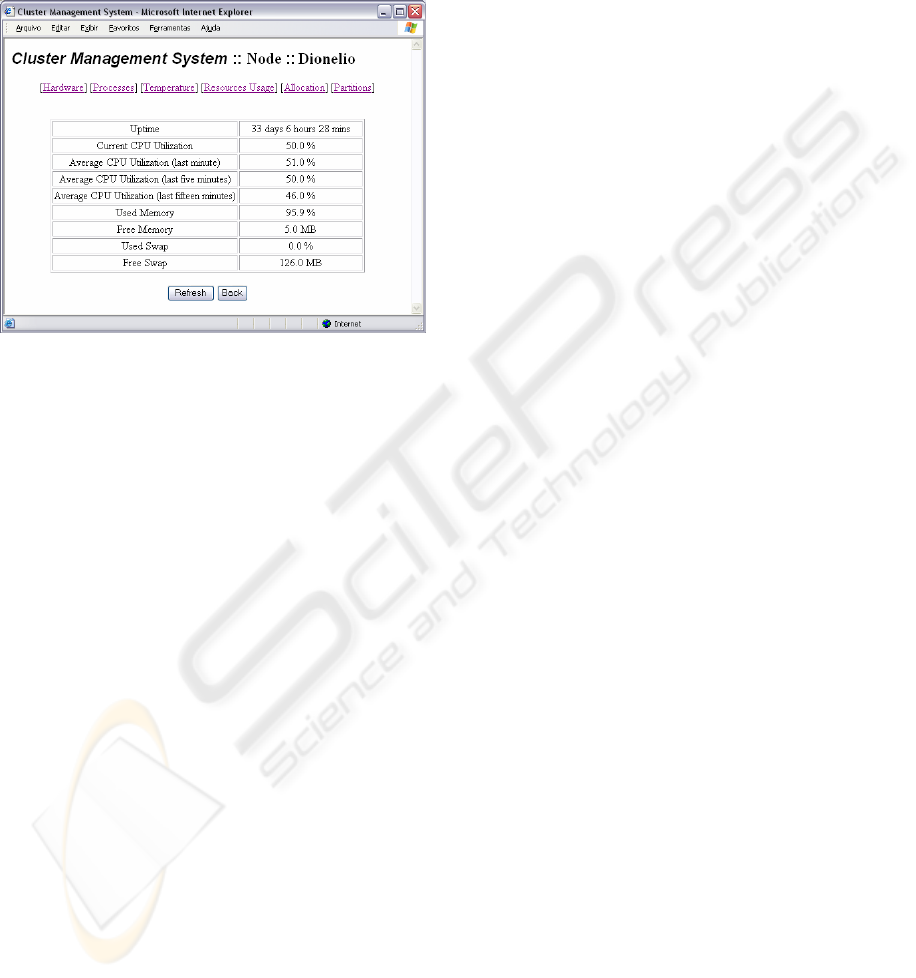

The fourth option is “Resources Usage”. In this

option, the user gets information (obtained from

HostResources and ClusterNode MIBs), about the

nodes resources utilization such as CPU, main

memory usage, hard disk usage and swap memory

usage. Considering the CPU usage, four parameters

are presented: the first indicates the percentage of

CPU usage in that moment and the second, the third

and fourth present the average CPU utilization

(loadavg) during the last one, five and fifteen

minutes, respectively. The free main memory and

free swap memory are presented in terms of

percentage and megabytes.

The “Allocation” option deals with node

allocation individually, instead of global allocation

shown in Figure 5. If the node is already allocated,

the user is notified about the time when the

allocation will expire. Finally, in the “Partitions”

option are presented information about active disk

partitions of the computer. The interface presents,

for each partition, the total length and the partition

usage (kilobytes and percentage), obtained from

HostResources MIB.

5 CONCLUSIONS

The management objects defined by ClusterNode

and ClusterFrontEnd MIBs encloses the necessities

of a cluster manager. Other necessities are covered,

complementally, by MIB-II and HostResources

MIB. The developed solution allows us to conclude

that cluster management can be based in a network

management protocol. The agent proposed allows

the easy integration between cluster and network

management, since it uses SNMP to access devices,

and now, to access clusters as well.

The use of an SNMP proxy imposes a CPU

overhead in the front-end. However, this overhead is

tolerable, since the front-end, in general, has only

administrative functionalities. An important

argument in favor of the SNMP proxy approach is

that it allows the installation of other SNMP MIBs in

the nodes, without changes in the front-end agent.

Finally, the continuous cluster monitoring is a

work in progress. The goal is to verify the resources

usage history through polling-based management.

REFERENCES

Alves, R. S., Marquezan, C. C. and Granville, L. Z., 2004.

“Experiences in the Implementation of an SNMP-

Based High Performance Cluster Management

System”, In: The Ninth IEEE Symposium on

Computers and Communications - ISCC 2004.

Blumenthal, U. et. al., 1998. “User-based Security Model

(USM) for version 3 of the Simple Network

Management Protocol (SNMPv3)”, IETF, RFC 2264.

Grillo, P. and Waldbusser, S., 1993. “HostResources

MIB”, IETF, RFC 1514.

Harrington, D. et. al., 2002. “An Architecture for

Describing Simple Network Management Protocol

(SNMP) Management Frameworks”, IETF, RFC 3411.

Massie, M., 2005. “Ganglia - distributed monitoring and

execution system”. Retrieved April 15, 2005, from

http://ganglia.sourceforge.net.

Mccloghrie, K. and Rose, M., 1991. “Management

Information Base for Network Management of TCP/IP-

based internets: MIB-II”, IETF, RFC 1213.

NET-SNMP, 2005. “The NET-SNMP Project”. Retrieved

April 2, 2005, from http://net-snmp.sourceforge.net.

PBS, 2005. “PBS - Portable Batch System”. Retrieved

April 8, 2005, from http://www.openpbs.org.

PHP, 2005. Retrieved March 12, from http://www.php.net.

Subramanyan, R. et. al., 2000. “Design and evaluation of a

SNMP-based monitoring system for heterogeneous,

distributed computing”, School of Electrical and

Computer Eng, Purdue University, TR-ECE. (00-11).

System Imager, 2005. Retrieved April 8, 2005, from

http://systemimager.org.

Figure 6: Interface for resource usage information.

CLUSTER AND NETWORK MANAGEMENT INTEGRATION-An SNMP-based Solution

323
