SECURING XML WEB SERVICES – A PLUG & PLAY

APPROACH

Cristian Donciulescu, Luminita Vasiu

Westminster University, London, UK

Keywords: XML Web Services, security, Web Services architecture, plug and play architecture

Abstract: XML Web Services have the potential of becoming the underlying technology on which the future of the

Internet is built. However, several hurdles stand in the way before that can happen. Security issues, for one,

are slowing down the rate at which industry adopts the use of Web Services and in spite of the coordinated

efforts made to correct those problems, the actual results can be years away. This paper is aimed at

providing a more immediate solution for Web Services in the form of an architectural design, not only

regarding security aspects, but rather enabling a wider range of e-commerce supporting features which are

of utmost importance for a wide acceptance of this technology within the industry.

1 CONTEXT

The XML Web services technology has been around

for some time now, however, its potential is still

largely unused due to certain problems that were not

addressed by their original specification and by

several additions that have appeared over time. The

biggest such problem was and still is to this day the

lack of security mechanisms available for

developers. Because of this, the vast majority of web

services available now are simple pieces of code,

without the need for security. The few XML Web

Services used commercially in industry have custom

security implementations that usually take more time

to build than the actual service functionality

(Trivendi, 2002; Rosenberg, 2004).

While attempts to solve this stringent problem

have

been made for some time now by big players

on the software market, such as Microsoft and IBM,

the most notable result was the WS-Security

specification. This specification is only the basis for

more than 30 other specifications developed or

under development under the umbrella of Web

Services Interoperability Organisation (WS-I). Every

such standard is designed to cover some particular

aspect of security for XML Web Services.

With the entire standards development effort

oing on, it is small wonder that developers are still

confused and unable to unleash the full potential of

the technology and with much more than one

standard coming up, combining everything into a

comprehensive security solution might be very

difficult (Bergholz, 2004).

Of course, the issue of time is always present.

e delay in adopting the technology on a wide

scale can only erode its credibility in the IT

community. This delay might cause further delays

resulted from the lack of trust in the security that

would be offered as a specification add-on rather

than as part of a comprehensive initial set of

specifications. Technology offers a recent example

on how an initial impression made by the lack of a

sufficient security mechanism carries on even after

the problem was addressed. The WiFi technology is

still avoided by many because of that delay in

implementing strong security in the first place.

This paper presents a solution that could be used

o speed up the wide-scale adoption of the XML web

services technology by providing a straight-forward

way of securing services, as well as opening the way

for further enabling the technology for e-commerce

use.

2 MAIN ISSUES WITH WEB

SERVICES

As discussed above, providing developers some

straight-forward way of securing services is the main

concern at the moment. However, the technology

Donciulescu C. and Vasiu L. (2005).

SECURING XML WEB SERVICES – A PLUG & PLAY APPROACH.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 25-32

DOI: 10.5220/0001419500250032

 SciTePress

has more than one hurdle before it can really become

a fundamental building block of the Internet, as

many IT specialists envisioned it when its

specification was first published.

The main problems that we have identified with

Web Services are:

• Privacy – web services communicate via SOAP

XML documents that are simple text streams

sent over the network.

• Routing/messaging – specifications have been

drafted and are in the final stages of being

approved.

• Transaction handling – there is no implemented

way as of yet to perform any sort of

transactional operations for services, which is an

essential for any business operation.

Specifications are being developed now

(Trivendi, 2002)

• There is no way to do any

performance/tuning/audit on web services.

Developers cannot know which service offers a

better performance and reliability. There is no

planned way of doing this in the near future,

although there is some related research in the

field (Bravetti, 2004)

• Dynamic discovery – there is no way of

automatically discovering which service

performs a specific type of task, nor there is a

way of switching between implementations of

similar web services (Bergholz, 2004). Further,

there is no way of finding a web service based

its functionality rather than its description

• Complexity of the upcoming security model -

the specifications that are now being drafted

under the patronage of WS-I address different

security issues and are built to be used as

modular components added to service messages.

These specifications are supposed to work and

integrate very well with each-other. For

example, a Web Service that needs to have its

users authenticated would use WS-Security

along with higher level standards like

WS-Authorization and maybe WS-Trust.

Making all these standards interact will prove in

our opinion to be a difficult task. Added

complexity means higher chance of failure in

any type of system, and as it stands now, the

complexity of the security policies that will be

applied is very high (Rosenberg, 2004)

Discovering web services is essential, after all a

service that cannot be found by clients is useless.

The problem is that the mechanism available for

service discovery is very basic and does not allow

clients to perform any sort dynamic discovery. A

service is basically embedded in an application at

development time and there is no default way of

changing it after the application is shipped to clients.

There is no way to even switch automatically to

another address if the service moves. While this

issue might not seem security related at all, it proves

to be extremely important regarding service

availability and reliability. We will also show that

while everybody agrees that dynamic discovery is

necessary, the industry hasn’t even agreed to what

we should understand by dynamic discovery

(Bergholz, 2004; Vinosky, 2004). By dynamic

discovery we refer here at the “ability to describe

systems in which clients search through registries to

first discover and then invoke services supporting

the capabilities they require” (Vinosky, 2004).

The architecture that will be presented in this

article proposes some solutions to some of these

problems.

3 THE PROPOSED SOLUTION

The approach proposed here relies on the fact that all

communication involving web services takes place

through the SOAP protocol; therefore the SOAP

message would necessarily be the main engine that

would carry any payload for a potential attack.

Moreover, controlling SOAP message flow, by

identifying the message source and destination as

well as monitoring the specific Web Service to

where each message is addressed can prove to be an

effective way of managing certain services that run

in a controlled environment.

The basic architectural element we rely on

controlling the flow of SOAP messages is the

security context. A security context is meant to

group together a set of security policies that are

applied to all the services that will be managed

inside that context. Each context is administered by

an administrative entity, be it one or more

individuals. A context is set to act as a buffer

between the service provider (Web Service) and

requestor (Web Service Client).

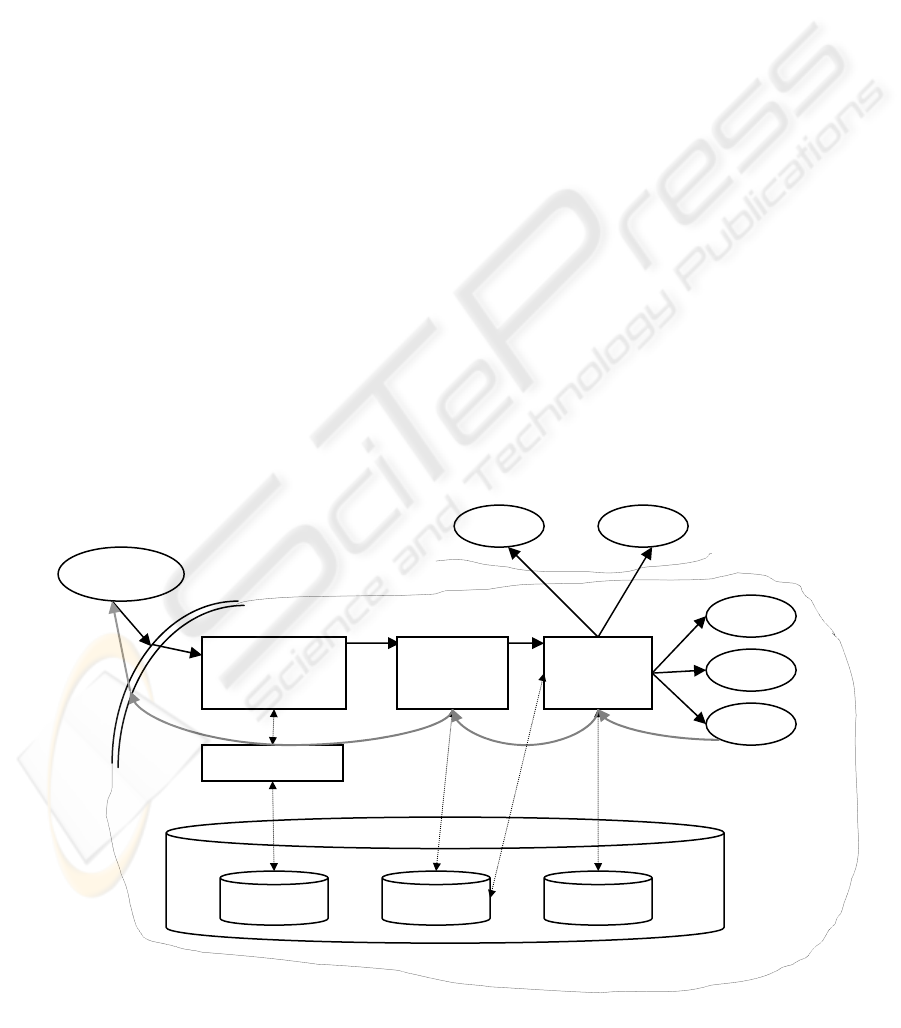

A context is comprised of the following basic

elements, based on the initial design resulted after

the research conducted. They are presented in the

relative order in which an incoming message would

reach them:

• A bidirectional envelope that intercepts the

incoming and outgoing SOAP requests and

responses as they arrive to and from the Web

Services that are managed. The interception

would take place much in the same way a

firewall intercepts packages. There are firewalls

that can already recognize and block SOAP

messages. If needed, the SOAP message would

be decrypted at this level using probably a

private context key. Encryption/decryption

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

would take place here if required. While SSL

could be used here to secure the communication

channel, it is not always feasible, especially

since both endpoints must have a digital

certificate. Due to the relatively high cost of the

digital certificates it is highly unlikely that the

clients will employ them on a large scale

(Cremonini, 2003).

• An access control list which retains permissions

for groups/users (CACL). The administrative

entity of the context has the exclusive right to

modify CACL.

• An authenticator, sitting behind the envelope.

The authenticator receives the messages

intercepted by the envelope and interprets the

information about the message source. Message

authentication takes place here. The

authenticator has access to the security context’s

access control list.

• The message is passed further down to an

audit/logging unit that retains the information

about the requestor, time of request, etc.

• A load balancing unit that forwards the message

to the actual web service that is the intended

destination. There are two ways this mechanism

can be implemented in our opinion (using a

centralized or decentralized approach) and this

issue will be addressed later.

• A database for storing CACL and

logging/auditing information

• Finally, a context manages zero or more web

services belonging into two categories. These

categories will be described when discussing

about context inheritance, for now we will

mention that they are either the managed

services or proxy ones.

A security context can trust another context and

only one. Multiple trust relationships are possible,

however it has been decided that the trust

relationship complexity would be too high, at least

for a first version of the architecture.

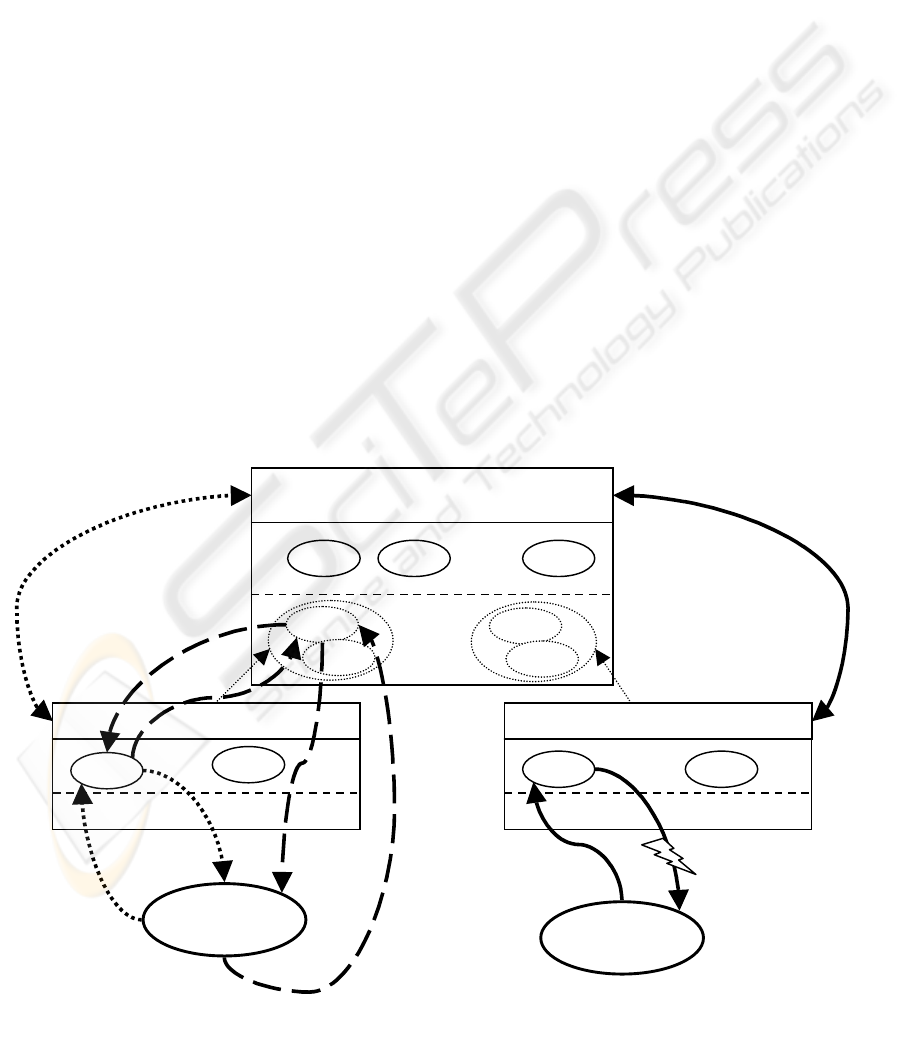

A trust relationship between two contexts allows

the “child” to trust a “parent”. A child-parent trust

relationship implies that the security policies given

by the parent security context are applicable to the

child. That is, the child inherits an ACL from the

parent. The child ACL takes precedence over the

parent ACL.

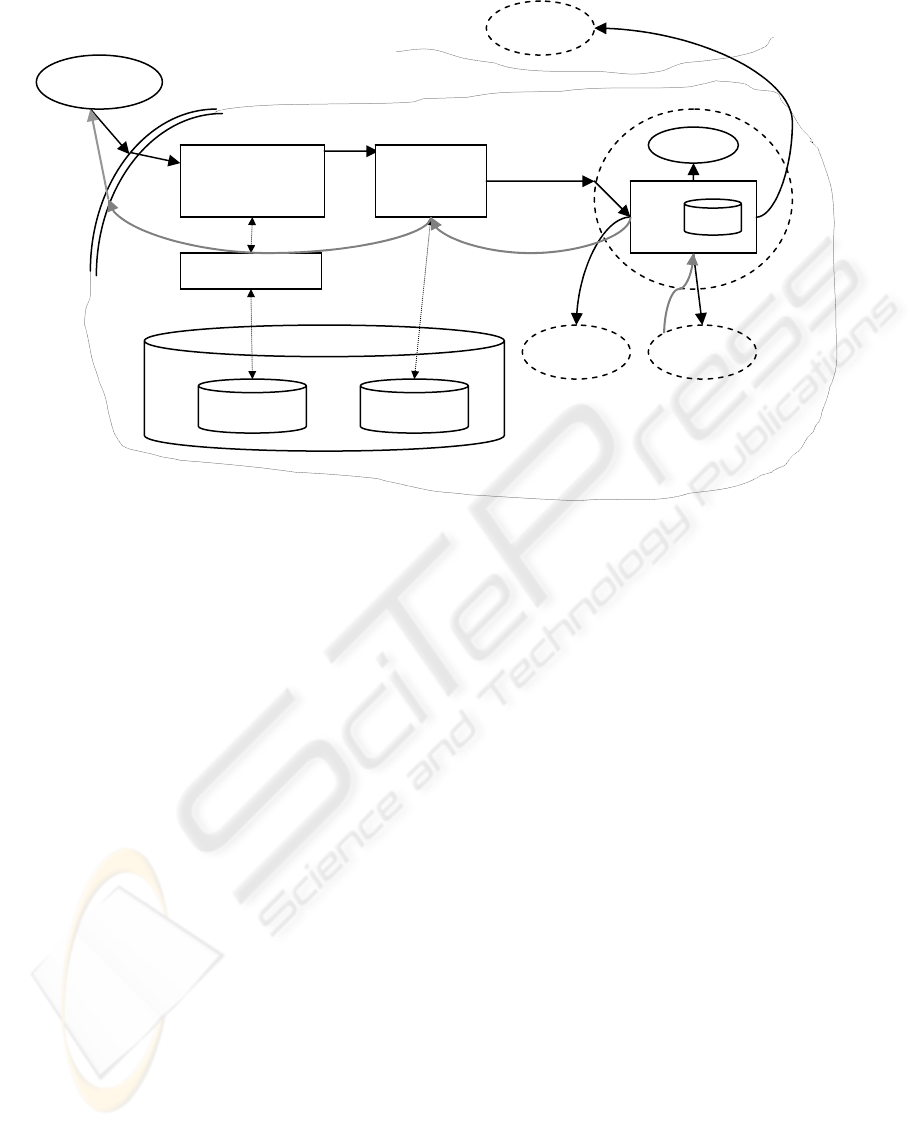

The implementation of such a trust relationship

implies generating proxy web services. A proxy web

service is defined as being a Web Service whose

function is to forward all incoming requests to

another service that has a similar signature (WSDL

contract) as the proxy. It is theoretically possible to

generate proxy services based on the contracts of

real web services because generating proxy objects

from WSDL contracts is basic functionality in all the

Web Service supporting infrastructures. Such a

proxy would be generated by the child context and

published on the parent context in a trust

relationship. The publishing process would require

human supervision at least in the current design

Authenticato

Audi

Logging

Load

balancer

ACL DB Logge

Balance

CACL

WS WS

Clien

Figure 1: Security context architecture with centralized load balance

SECURING XML WEB SERVICES – A PLUG & PLAY APPROACH

phase, in order to minimize the security risks of such

operation. The proxy services will become clients

for the original services, but they will have the right

to make calls to the original services because the

child context in which those reside trusts the context

in which the proxies reside. There are plans to

automate the process completely. The publishing

process would require of course some security

privileges to be given to the child context by the

administrative entity of the parent.

This implication generates a special type of web

service that resides in a parent context: a proxy

service, as described above. This means that a

context can have two types of services: proxies and

regular services. A proxy service can be made

discoverable by clients or not, depending on the

security policies implemented in the security context

it resides in.

As previously mentioned, there are two ways of

implementing a load balancing mechanism. The two

options available are depicted in Figures 1 and 2.

The first method of providing a load balancing

mechanism is depicted in Figure 1. The client sends

a SOAP request to the service which was discovered

before by any means. The message is intercepted by

the envelope and if necessary decrypted using a

context private key. The decrypted message is

passed through to the authenticator unit which

checks the message sender against a context access

control list (CACL). Provided that the CACL

permits the originator to interrogate the given Web

Service, the authenticator passes the message to an

audit/logging unit that will store whatever

information is necessary about the request, the web

service it was addressed to and so forth. The

authentication can be based either on the content of

the SOAP message or on the information that can be

gathered about its origin, although a combination of

the two would provide the most accurate results.

Research is taking place for identifying the best way

of achieving a comprehensive authentication model.

The message is then passed into a central load

balancing unit that decides which service will

actually perform the business logic associated with

the request. This decision can be based on a

multitude of factors, such as:

• The number of identical web services available

to service a request at a certain moment. Using

WS-Addressing it is (theoretically) possible for

a client to make a general request to a service

that has many instances running without having

the knowledge of this. However, the solution is

only provisional since the standard is not final

yet. At the time when this paper is written

(October 2005), the WS-Addressing standard

has been submitted for review (W3C, 2004).

• The information available from the audit unit,

detailing the usage history and present load on a

specific service instance.

• The information available in the balancer

database which typically would describe an

addressing table for each service inside the

context.

This load balancing solution can be very easily

expanded to a pseudo-dynamic discovery solution.

Using an XML equivalence language, either

proprietary (at first) and then a standardized one, the

balancer database can not only hold information

about identical web service instances running in

different points on the network, but also information

about similar services that perform the same

functions but have other contracts. This situation

could be very frequent, the classic example of a

credit card validation service being eloquent. Using

a semantic language, such as OWL-S this

mechanism could be expanded into a fully fledged

dynamic discovery system, where services are

invoked based on their functionality rather then their

description (daml.org, 2004).

Once the message is relayed to the Web Service

that is intended to service it, the service will execute

the business logic required and will return the SOAP

response to the load balancer. The load balancer is

the only client the service will actually answer to.

While this might seem bad practice from a

performance stand-point, it is essential that the

response is returned by the service to the party that

requested it in the first place, for maintaining

compatibility with the basic Web Services

specifications.

The load balancer will forward the message to

the logging/audit unit that will again record

information such as response time and service

instance that performed the business logic if

necessary. This in turn will be used again in routing

further requests. The information will also be useful

for developers in deciding which service to use, if it

will be made public in UDDI registries.

The audit unit will pass the response directly to

the client, but the envelope will again intercept that

request and perform an encryption on it if dictated

by the security policies enforced by the context.

Finally, the response is forwarded to the client.

Evidently, the whole process described above is

transparent for the client, an essential requirement

for maintaining conformance with the Web Services

specification.

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

The second approach for implementing a security

context architecture with load balancing is slightly

different and presented above in Figure 2. In this

approach, each managed service has its own load

balancer. Each service has a repository attached

which stores information about the alternative

services that can perform the same business

processes that it does. The service balancer would

check if the service is available to process a request

and forward it to the service or to an alternative of

that service.

The message path through the security context

would be relatively similar to the previous discussed

approach; however, the audit/logging unit would

pass the request directly to the web service which

was chosen by the client as destination. The message

would then be intercepted again by a secondary

envelope, which would direct it to the service load

balancer. If the service is available, the business

logic would be executed and the response passed

back to the balancer and would follow the path back

to the client similar to the centralized approach. If

the service is unavailable, the request would be

passed to an alternate service (or more than one for

that matter, although that approach would not work

in all cases so we did not take it into account on the

grounds that it cannot be generalized). The process

would repeat itself until a service would eventually

perform the request and return a response.

The advantage of this approach is that the load

balancer becomes decentralized. This means that

given a decent network of services, the request

would travel through the network without problems

until it would be serviced, without the need for a

huge list of alternates for each service. Also, if a

service does not have any alternates specified, in

other words if it is working like a standalone service,

the balancer does not interfere at all in the whole

process, being completely bypassed and reducing

network stress and processing time. Also, each

balancer can decide whether its own service is

available or not to service a specific request, this

functionality being easier to fine-tune on this

approach.

The downside of the security context being

architected this way is that it is more difficult to

manage, although it would provide finer control

detail. Also, the balancer would most probably not

have all the information that a centralized approach

would be able to use. For example, the auditing and

logging information would be more difficult to

access and gather, mostly time-wise. Another

possible downside is that due to this distributed

nature, it would be difficult and unfeasible to use an

actual database for storing the balancer related

information, thus losing the advantages offered by a

modern DBMS. Finally, we believe that it would be

more beneficial to have all the information relating

to a context into the same data source.

Authenticato

Audi

Logging

ACL DB Logge

CACL

Clien

Figure 2: Security context architecture with decentralized load balancing

SECURING XML WEB SERVICES – A PLUG & PLAY APPROACH

Taking into consideration the advantages and

disadvantages presented, it is our opinion that the

first approach is more feasible for implementing,

although the decentralized version would be more

versatile. However, further testing will still be

carried out to determine the feasibility of the

decentralized model, but, at this time we are leaning

towards using the centralized one.

The following diagram (Figure 3) presents a

top-level view of the architecture, above the security

context level. The diagram presents a theoretical and

reduced version of the architecture, with the purpose

of demonstrating the trust relationships between

security contexts. Depicted are three contexts,

marked as WSMC(A) 1, 2 and 3. Each context has

an access control list associated with it.

WSMC2 and WSMC3 trust WSMC1, which

implies that they inherit ACL1.

Each context has a number of managed services,

depicted with a continuous line and context 1 has

some proxy services (dotted lines) which it manages

also, since it is trusted by WSMC 2 and WSMC3.

Of course, the trust-inheritance tree could be and

is desirable to be much larger than this. An optimal

size is difficult to predict, although some testing is

planned on this issue, in later stages of the project.

The following section will describe various

scenarios of security situations in which clients

invoke services residing in the three contexts and the

responses received.

4 CONCLUSION

The architecture described was designed with the

purpose of providing security features for XML Web

Services, features that are not available at present

and that will most probably be missing or hard to

implement in the foreseeable future as well. The

design has been carefully steered towards being

compatible with the XML Web Services basic

standards and future developments. We do believe

that it is compatible with upcoming specifications

and, of course, with the WS-I Basic profile.

This is achieved by not interfering with the inner

workings of the managed web services or the SOAP

request/response messages’ content. The main

advantages that we see available to the technology

once the architecture would be used on a decent

scale are outlined below:

• WSMA basically provides a plug & play

security mechanism for web services. As the

architecture is designed, a service with no

security features whatsoever can be placed into

a context (or more than one) and it would

“inherit” all the security policies defined by the

administrator of that context

• The plug & play functionality would allow

developers to focus on the business logic of

most services, rather than writing complicated,

security-related code which is error-prone and

often leaves security gaps behind and takes up

Client 1

WSMA 1 + ACL1 (Client 1)

WSMA2 + ACL2 (Client 2, ACL1) WSMA 3 + ACL (ACL1)

Client 2

A2 A

Figure 3: Top level view of the WSMA architecture

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

valuable time

• WSMA separates completely the business logic

implementation of the service from the security

related one

• WSMA can be used with any Web Service, both

legacy and new ones being accommodated

• Because of the context-oriented architecture, an

entire business process could be deployed inside

a security context, providing clients access to

the entire range of services that comprise that

process. This allows for the possibility that in a

business process which is composed of many

services, the client must only be authenticated

once, rather than with every service at a time,

decreasing the overall response time for that

business process

• The authenticator can be customized to allow

multiple security policies, depending on the

specific needs addressed by the security context

• The WSMA allows specifying method level

access rights for the web services managed by a

context. This functionality is not possible at

present, nor will it be made available by any of

the upcoming specifications. However, it is

usable and desirable, considering that Web

Services can expose multiple methods at a time,

with different security policies needed on them.

For example, a service that interrogates and

updates a customer database would want to

expose the interrogation methods to a set of its

clients and the update methods to a subset of

those clients. At present, the only way of

implementing this kind of functionality is

providing two separate services

• The architecture is designed in such a way that it

allows for on-the-fly deployment (creation or

update) of web services into a security context.

This means that the services can be updated

without the context being unavailable to the

clients at any time

• The administrative entity of the context can

modify the security policies at any time without

any downtime for the context or the services

managed

• The policies for all the services managed can be

modified all at once, thus allowing for the

access rights on an entire business process to be

modifiable at once

• Each security context has complete control over

the service managed, thus making the

administration of those services an easy task

• WSMA allows a chain of trust to be built,

which, in turn, allows a client to have access to

XML Web Services for which specific security

settings have not been specified. In other words,

a client is not authenticated by the service, but

by the context

• The architecture provides a mechanism for

performing various audits and logging on the

managed Web Services, which gives developers

a benchmarking tool for selecting the proper

web service for their application

• A load balancing mechanism is provided which

helps insure that one service will always be

available to service requests, even at the busiest

times

• A pseudo-dynamic mechanism for discovery is

provided, which allows a request to be serviced

by another service than the one originally

intended, provided that the business logic

performed by the alternate service is similar to

the business logic performed by the original one

• A truly semantic discovery model for web

services can be envisaged subject to integrating

a semantic language such as OWL-S into the

Web Services architecture

• The architecture is open to implementing any of

the specifications related to Web Services as

soon as they would become a WS-I requirement,

thus ensuring interoperability with services and

applications that are not using WSMA

5 CURRENT AND FURTHER

WORK

While the big picture on the WSM architecture

design is relatively finalized, there still are some

problems that need to be addressed, or questions that

need to be answered before starting any

implementation. The issues being worked on now

are listed below:

• It is unclear how the WSMA would behave

when the trust inheritance tree becomes big. The

response time to a request is quite important and

the load balancing mechanism would slow

things down a little. If the request must follow a

long network path until it is answered, the delay

might become significant. It is important then to

determine the actual optimal size of the

inheritance tree, or else the number of forwards

a SOAP message would be allowed to pass

through before the client gets an exception

• Also, in a big trust inheritance tree, every time a

service is updated in a child context, the

publishing of the proxy service triggers an

update that must take place in every parent

context above the child. It is necessary to test

the required resources this update would need in

different context sizes. If this update is too

expensive, resource-wise, a solution should be

found to either reduce its cost, frequency or the

SECURING XML WEB SERVICES – A PLUG & PLAY APPROACH

update should be limited to only a number of

parent contexts.

• There must be a way for the client to receive an

error if the request cannot be serviced for some

reason. This response, if sent, should of course

be an XML SOAP document. It is unclear

whether the client should actually receive the

response or not. There are pros and cons to

either approach. If the client receives a response

every time the request is unavailable, even for

lack of proper credentials, there is a security risk

of favoring denial of service attacks (see Erro!

A origem da referência não foi encontrada.).

Not returning a message implies that a client

must always wait for a timeout error, on a

timeout interval specified locally. There is of

course a middle way of sending messages back

only in certain conditions, but the approach that

will be taken is not clear

• The model of the inheritance system for the trust

tree has not been decided yet. We are oscillating

between a simple approach, in which a service

can be visible or not and a more complex one in

which each service would have a visibility flag

attached which could specify information about

the number of levels the service should be

visible, and related issues. For the first

implementation we are leaning towards the

simple approach

• In the future, we are looking at implementing

support for transactions into the WSM

architecture, which would make WSMA an truly

e-commerce ready deployment platform for web

services

An evaluation of existing implementations of

open source firewalls will be carried out in order to

assess whether one of those could be used for the

building of the security context envelope, since its

functionality resembles that of a firewall quite a lot.

Hope is to find a solution that would be easily

adaptable or convertible for our purposes. However,

if such a solution will not be found, a custom

implementation can be made (Cremonini, 2003).

REFERENCES

Trivendi R., 2002. Professional Web Services Security.

Wrox Press Inc., ASIN: 1861007655

Rosenberg J, 2004. Securing Web Services with WS-

Security: Demystifying WS-Security, WS-Policy,

SAML, XML Signature, and XML Encryption.

Pearson Higher Education. ISBN: 0672326515

Bergholz, A., Chidlovskii, B., 2004. Learning query

languages of Web Interfaces, Proceedings of the 2004

ACM symposium on Applied computing

Bravetti, M., Lucchi, R., 2004. Web Services for E-

Commerce: guaranteeing security access and quality

of service, Proceedings of the 2004 ACM symposium

on applied computing

Vinosky S., IONA technologies, 2004. White paper – Web

Services and Dynamic Discovery -

http://www.iona.com/devcenter/articles/stevev/1101sv.

htm

Cremonini M., 2003. Security for Web Services: An XML

based approach to combine firewalls and web services

security specifications. Proceedings of the 2003 ACM

workshop on XML security

MSDN Library, 2004,

http://msdn.microsoft.com/webservices/understanding/

specs/default.aspx

W3C - Web Services Addressing (WS-Addressing), 2004

-http://www.w3.org/Submission/2004/SUBM-ws-

addressing-20040810

DAML Services, 2004 -

http://www.daml.org/services/owl-s

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES
