DESIGN AND IMPLEMENTATION ASPECTS OF

MANAGEMENT SYSTEMS FOR APPLICATION SERVICE

PROVIDING

Michael Höding

University of Applied Sciences Brandenburg, PF 2132, D-18737 Brandenburg, Germany

Keywords: Application Service Providing, Design Patterns, System Monitoring.

Abstract: This contribution discusses management software for Application Service providing (ASP). For the

development of such software systems numerous specific requirements have to be considered. As examples

we discuss aspects of heterogeneity. Because of this a flexible software engineering approach is necessary,

covering design and implementation. For that we propose design patterns and component technology. The

application of design patterns is demonstrated in examples.

1 INTRODUCTION

Application Service Providing (ASP) is a business

model to support medium scaled enterprises with

highly integrated and complex business software

(Kern and Kreijger, 2001), (Tao, 2001), (Knolmayer,

2002). The Application Service Provider implements

a technical and organisational infrastructure that

guarantees a high degree of data security and system

availability. Several customers share the use of the

computing centre infrastructure (ref. fig. 1).

Enterprise A

Enterprise B

Enterprise K

Application Service Provider

System r

System s

System x

System t

Storage

Backup

Storage

Enterprise A

Enterprise B

Enterprise K

Application Service Provider

System r

System s

System x

System t

Storage

Backup

Storage

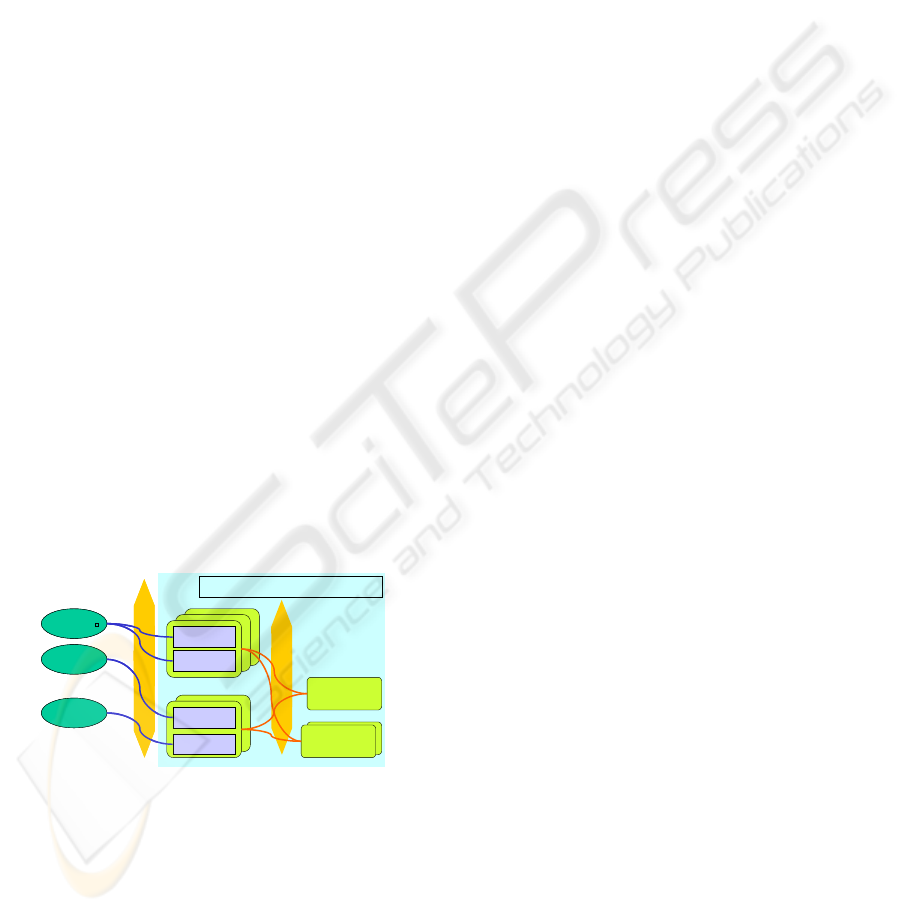

Figure 1: Customers and Components in ASP

The technical administration of a computing

centre for ASP should be supported by an

administration or monitoring software (Hoding and

Faustmann, 2001). This software has to cover a wide

range of hardware and software components. The

design and implementation of such a system is

driven by numerous requirements:

• Distribution: An ASP installation is, by

default, a distributed system, containing

several server computers and specific

devices, e.g. storage or backup. Beside this,

also non-IT-components have to be

covered.

• Multi-tier-architecture: Generally software

hosted with ASP is client/server-based.

Mainly a 3-tier-architecture (user interface,

application server, database server) is used.

• Flexibility of the system (during runtime):

Due to the necessary degree of availability

the ASP installation as well as the

management system has to be enhanced

during runtime. Therefore flexibility of the

management system is a key requirement.

• Different kinds of heterogeneity exist

despite the same software

• Usability needs results in the requirement

of management from global view to in deep

analysis by different representations

(views)

Obviously one has to deal with hardware

heterogeneity. Beside a number of server computers,

different kinds of sharable hardware components,

e.g. storage devices or backup devices have to be

considered. Moreover infrastructural hardware like

air condition enhances this aspect of heterogeneity

which has to be controlled by the management

software.

371

Höding M. (2005).

DESIGN AND IMPLEMENTATION ASPECTS OF MANAGEMENT SYSTEMS FOR APPLICATION SERVICE PROVIDING.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 372-375

DOI: 10.5220/0001419703720375

 SciTePress

Despite of the fact, that sometimes an ASP offers

only one (or a limited number of) standard software,

heterogeneity can be found on different levels of

system distribution. This is caused by different

requirements of the customers, e.g. in workload.

Figure 2shows the distribution of a classical 3-tier-

architecture, consisting of user interface, application

server and database server. Generally the user

interface is running on a dedicated client computer.

A common approach implements application server

and database server on one server computer (1 at 1).

Powerful servers can host more than one application

system (many at 1). Otherwise systems with high

workload can distribute many application servers

and many database servers on dedicated computers

(1 at many). Finally we have to point out, that these

configurations are relevant for the same software.

For example: “many at 1” and “1 at 1” are common

installations of SAP R/3. Another example is web

service providing which is offering variants from

shared server, dedicated server up to server farms.

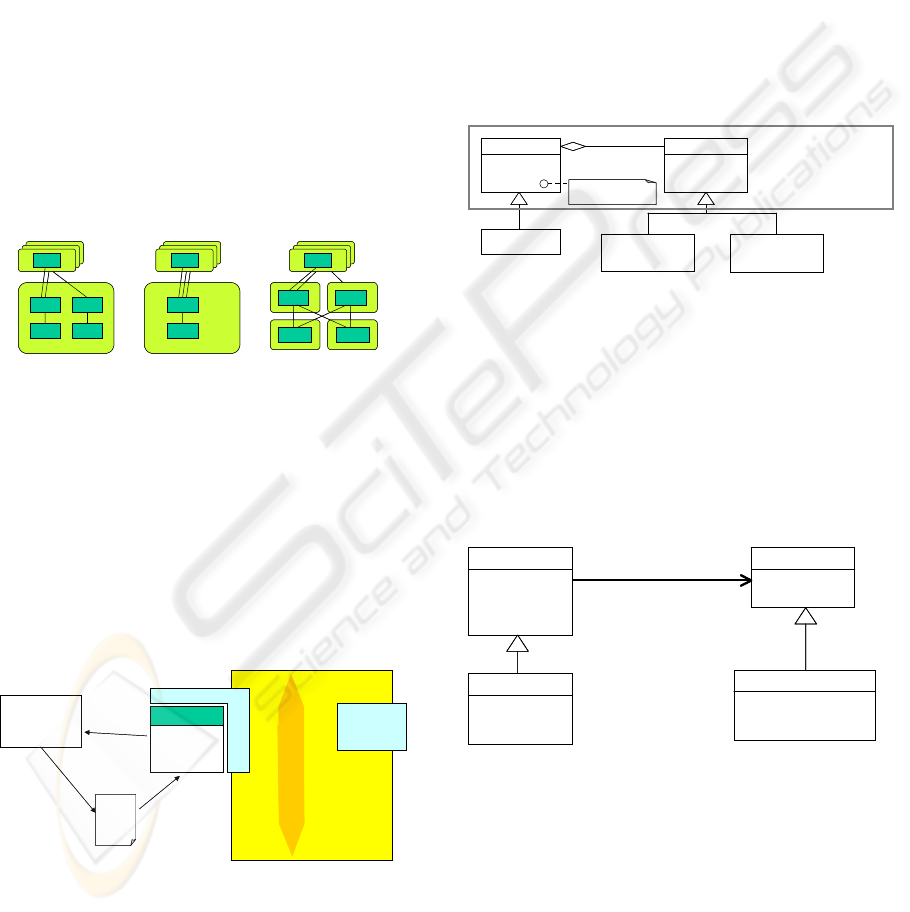

Figure 2: Distribution Variants of a 3-Tier-System

Based on a more detailed and systematic

description of foundations and core requirements of

a distributed administration system for ASP we

discuss the application of object-oriented techniques

for modelling and implementation of such a system.

Therefore first a common approach defines an

interface to non object-oriented monitor modules by

encapsulation into a monitor object (ref. fig. 3). This

is called a wrapper.

Figure 3: Monitoring and Wrapping

2 RELATED WORK

The design of a complex object-oriented system can

be supported by the methodology of design patterns

presented in (Gamma et. al, 1994). In that way, the

requirements can be applied to a pattern catalogue to

design suitable object models.

First we discuss the Bridge pattern (fig 4). The

intention of the bridge is the design of an abstract

interface to one or more concrete implementations.

The loose coupling by a message based notification

algorithm results in advances like flexible activation

of new implementations during runtime or

encapsulation of heterogeneity, i.e. for not object-

oriented monitor kernels.

Figure 4: The Bridge Pattern (Gamma et. al, 1994)

Figure 5 shows the Observer pattern. Here an

observed object (Subject) is loosely coupled with

one or many observing objects (Observer). There the

abstract objects Subject and Observer are specialised

into ConcreteSubject and ConcreteObservers. New

observers register themself with the subject method

attach() during runtime. The subject notifies his

registered observers when its internal state is

changed.

Figure 5: The Observer Pattern (Gamma et. al, 1994)

With respect to the fact of distribution we refer

to patterns for distributed systems, e.g. as presented

in (Brown et. al, 1999). Here specific design patterns

for distributed systems support the aspect of

communication in networked environments.

The implementation of a distributed

administration software for ASP can be done by

available systems e.g. Tivoli (Uelpenich, 1999) or

PATROL (Boeheim, 1997). To avoid the

administration overhead by available software

DBS

AS AS

DBS

many at 1 1 at 1 1 at many

DBS

AS AS

DBS

many at 1 1 at 1 1 at many

Database

System

Monitor

(e.g. perl)

API

triggers

writes

Protocol

File

object-oriented API

Network

Composite

Monitor

Component Framework

Database

System

Monitor

(e.g. perl)

API

triggers

writes

Protocol

File

object-oriented API

Network

Composite

Monitor

Component Framework

Abstraction

operation()

Implementor

operImp()

impl.operImp()

RefinedAbst.

Concrete

ImplementorA

bridge

Concrete

ImplementorB

Abstraction

operation()

Implementor

operImp()

impl.operImp()

RefinedAbst.

Concrete

ImplementorA

bridge

Concrete

ImplementorB

ConcrSubje

getState()

Subject

attach()

detach()

sendNotific()

Observer

update()

notify

ConrceteObserv

upadate()

getState()

ConcrSubje

getState()

Subject

attach()

detach()

sendNotific()

Observer

update()

notify

ConrceteObserv

upadate()

getState()

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

372

products a dedicated implementation for the given

computing center architecture can be suitable. For

such an implementation component frameworks e.g.

Java Beans (Matena and Stearns, 2001) can cover

heterogeneity on hardware and operating system

level.

SOAP is often used for the communication

between heterogeneous components (Apps, 2004).

The automatic generation of communication

interfaces is supported by different component

frameworks, e.g. Java and .net. Hereby monitors,

implemented in C#, can bee accessed by a Java-

Class and vice versa.

3 USE BRIDGE PATTERN TO

ENCAPSULATE SPECIFIC

MONITORS

Often monitors for specific system components are

based on non object-oriented techniques, e.g. parsing

and filtering log files or accessing internal runtime

information by operating system calls. For such

concrete implementations the bridge supports an

abstract interface as illustrated in the figure 6. Here

we depict two concrete monitor implementations for

accessing status logs (FileMonitor) and for accessing

the process table of the operating system

(ProcMonitor). Via the bridge and the abstract

monitor class specific monitors, e.g. for the Oracle

DB software can use the available implementations.

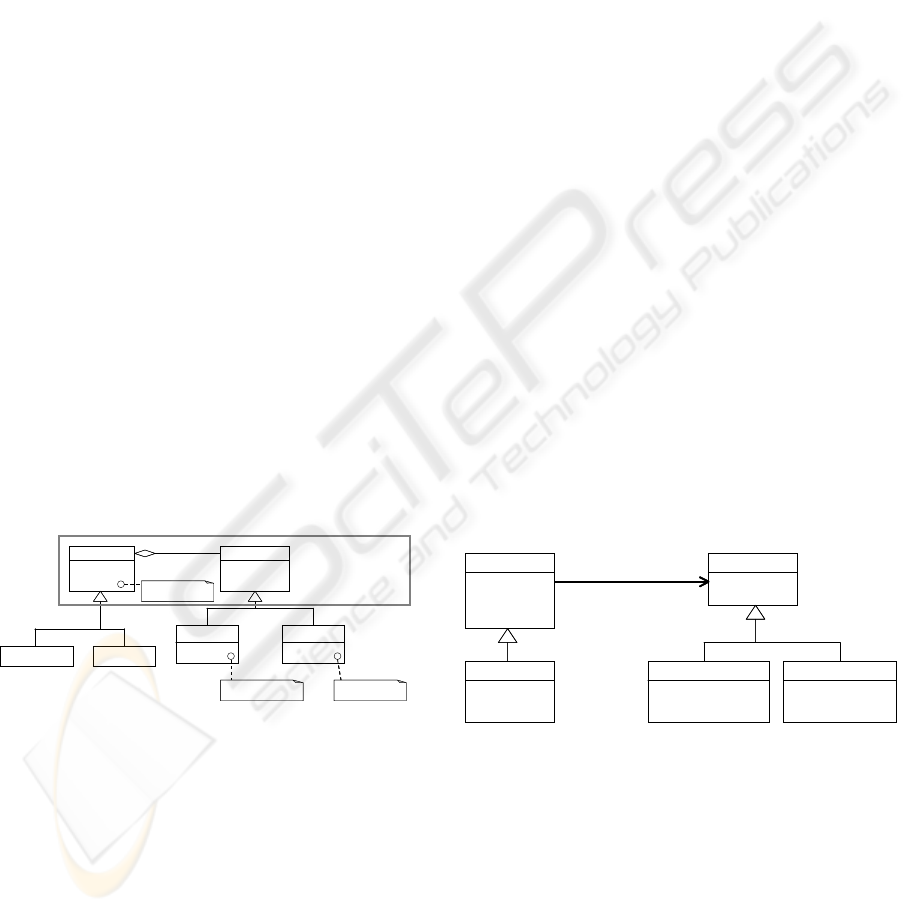

Figure 6: Bridge Pattern for Viewers and complex Monitor

However other patterns should be discussed to

solve this problem. The adapter pattern as well as

the wrapper pattern well-known from CORBA can

support suitable solutions. The application of the

Model-View-Controler pattern (Gamma et. al, 1994)

offers two interesting aspects. First, every monitor

can be designed according to MVC. Here the model

encapsulates the specific request to the observed

system, e.g. reading and matching a log file. The

views support a set of representations in different

granularity. In that way a basic monitor is directly

usable for the administration staff. Second, the

monitor functions primary as a model according to

the MVC pattern. View and controller function is

part of higher levels of the architecture. This

simplifies the implementation (keep it small and

simple) and enhanced the performance. The first

idea we will illustrate in the next section.

4 USE OBSERVER PATTERN TO

CONSTRUCT COMPLEX

MONITORSAs depicted before a Monitor

is a specific software module to control a component

in the system, e.g. the hardware of a server computer

or the database management software. This monitor

is an observed subject. As examples we construct

two types of observers:

• First for every specific monitor one (or

many) viewer represents the state of a

monitor by a graphical user interface. This

is an application of the Model-View-

Controller concept (Gamma et. al, 1994).

• Second a complex monitor aggregates

simple or other complex monitors to

support a more general view to the system.

Figure 7 shows the derivation of a Monitor from

the abstract Subject class. Concrete observers, here

ComplexMonitor and MonitorViewer, are derived

from the abstract Observer.

Figure 7: Use of Observer Pattern to construct complex

Monitors

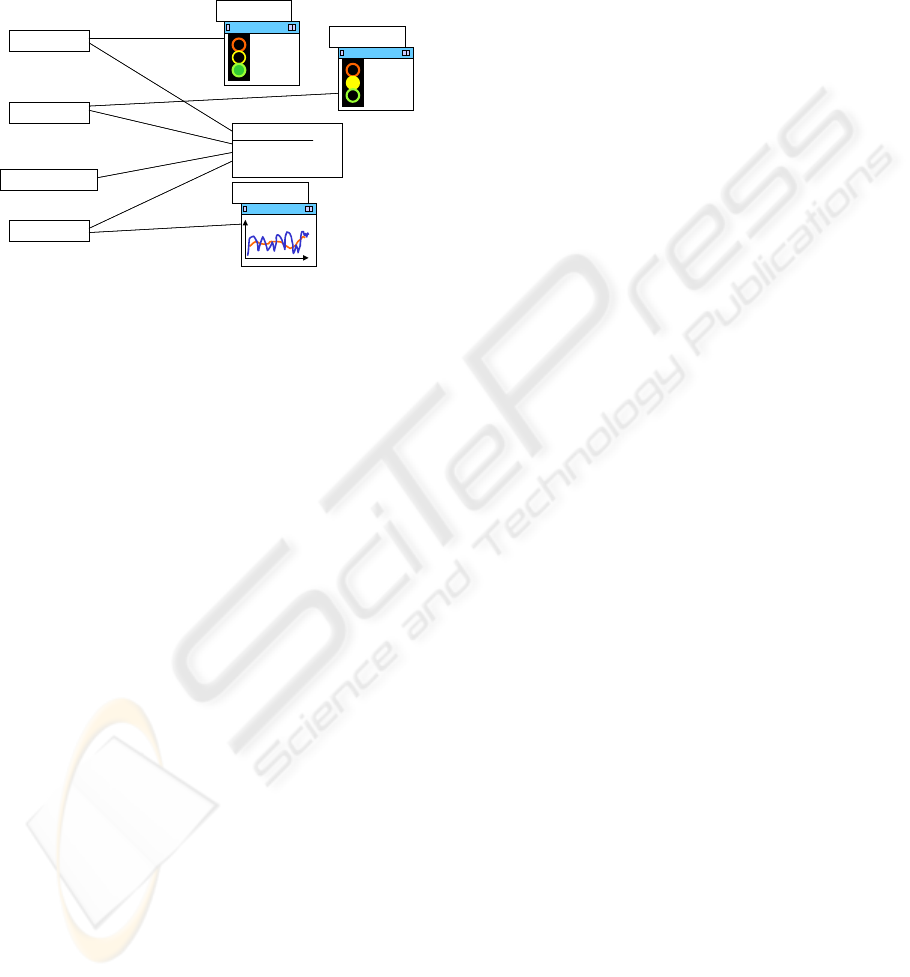

An instance of such implementation is sketched

in figure 8. Here the operating system of one server

computer, the database system Oracle, and two SAP

application servers are monitored by OSMonitor,

OracleMonitor, and two SAPMonitors. For a

SAPMonitor an observing viewer shows the general

state of the monitored systems using a traffic light as

a metapher (Green means OK, Yellow means

warning, Red means critical). For the OSMonitor a

Monitor

getState()

MonitorImp

impl.operImp()

OracleMonitor

ProcMonitor FileMonitor

bridge

getState()

readProcTable() readLogFile()

getState()SAPMonitor

Monitor

getState()

MonitorImp

impl.operImp()

OracleMonitor

ProcMonitor FileMonitor

bridge

getState()

readProcTable() readLogFile()

getState()SAPMonitor

Monitor

getState()

Subject

attach()

detach()

sendNotific()

Observer

update()

notify

ComplexMonitor

upadate()

getState()

MonitorViewer

upadate()

Monitor

getState()

Subject

attach()

detach()

sendNotific()

Observer

update()

notify

ComplexMonitor

upadate()

getState()

MonitorViewer

upadate()

DESIGN AND IMPLEMENTATION ASPECTS OF MANAGEMENT SYSTEMS FOR APPLICATION SERVICE

PROVIDING

373

viewer shows workload aspects by the means of a

diagram. Beside the viewers a ComplexMonitor

aggregates all simple monitors. In that way a flexible

architecture supports different types of controlled

system components. Moreover a general view could

be supported constructing a viewer to the complex

monitor.

Figure 8: Monitor observed by complex Monitors and

Viewers

5 CONCLUSION AND OUTLOOK

This contribution discusses the design of

management systems for complex computing centre

infrastructures, especially for ASP. For that we

propose the application of design patterns. We

sketched the application of design patterns by the

means of two examples. In future work a more

detailed study has to consider additional design

patterns. I. e., the factory pattern should be a good

solution to clone monitor objects or viewers for

distribution. Finally we have to point out, that

patterns help to meet the requirement of flexibility,

also during runtime. For implementation issues a

component framework should be used. Thereby the

requirements distribution and heterogeneity on

platform level can be fulfilled.

Further work is dealing with a classification of

services and components which have to be observed.

There are dimensions e.g. time, time span, volume,

traffic, usage, weather or profile. The multi-

dimensional space of these vectors is associated with

so called system events, e.g. problem situations. To

improve quality approaches like data-mining should

be adopted.

REFERENCES

Apps. A.: zetoc SOAP: A Web Services Interface for a

Digital Library Resource in Proc. Of Research and

Advanced Technology for Digital Libraries, 8th

European Conference, ECDL 2004, Bath, UK, Sept.,

2004.

C. Boeheim Patrol. Sys Admin: The Journal for UNIX

Systems Administrators, 6(2), p. 16-22, February

1997.

K. Brown, P. Eskelin, N. Pryce. A Mini-Pattern Language

for Distributed Component Design. PLoP 1999

Conference. Pattern Languages of Programs, August

1999.

E. Gamma, R. Helm, R. Johnson, an J. Vlissides: Design

Patterns Elements of Reusable Object-Oriented

Software: Addison Wesley, 1994.

M. Höding, A. Faustmann: Administration of data

intensive Application-Hosting-Scenarios (In German).

Foundations of Database Systems 2001: 63-67

T. Kern, J. Kreijger: An Exploration of the Application

Service Provision Outsourcing Option. HICSS 2001

Knolmayer, G., Application Service Providing (ASP), in:

Wirtschaftsinformatik 42 (2000) 5, S.443-446.

V. Matena, B. Stearns. Applying Enterprise JavaBeans:

Component-Based Development for the J2EE

Platform. Addison-Wesley, 2001.

D. C. Schmidt, P. Stephenson: Experience Using Design

Patterns to Evolve Communication Software Across

Diverse OS Platforms. ECOOP 1995: 399-423.

L. Tao: Shifting Paradigms with the Application Service

Provider Model. IEEE Computer 34(10): 32-39 (2001)

S. Uelpenich: Extending the Reach of Tivoli Distributed

Monitoring - Creating a Custom Monitoring

Collection. The Managed View, 3(2), pp. 21-40,

Springer 1999.

SAPMonitor

ComplexMonitor

upadate()

getState()

OracleMonitor

SAPMonitor

OSMonitor

SAPViewer

dpw: ok

btc: ok

abap: ok

SAPViewer

dpw: ok

btc: ok

abap: ?

OSViewer

load avg 12 %

SAPMonitor

ComplexMonitor

upadate()

getState()

OracleMonitor

SAPMonitor

OSMonitor

SAPViewer

dpw: ok

btc: ok

abap: ok

SAPViewer

dpw: ok

btc: ok

abap: ?

OSViewer

load avg 12 %

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

374
