A GENERAL MODEL OF AUTHORISATION FOR COMPLEX

COMPUTING APPLICATIONS

Jim Longstaff, Mike Lockyer, Tony Howitt, Ian Elcoate, Paul Massey

School of ComputingUniversity of Teesside, Middlesbrough TS1 3BA, England

Keywords: Access Contol, Authorisation Models.

Abstract: We present the principles of permissions processing used in the Tees Confidentiality Model (TCM), a

general authorisation model which is suitable for complex web applications in addition to computer systems

administration. In particular, we present new techniques for authorising by multiple concepts, and also for

overriding access restrictions. A database implementation of the TCM is referred to, which can be used to

provide the basis for a general authorisation service. The TCM is an extension of Role-Based Access

Control (RBAC), and has had a significant impact on the development of healthcare computing in the UK.

A demanding scenario from Electronic Health Records is used to illustrate the permissions processing and

the power of the model.

1 INTRODUCTION

An authorisation model, through its

implementation within an identity and access

management system, provides facilities to enable

users, whether they be human end-users or other

computer systems, to use resources in specified

ways. This can range from using sophisticated

application facilities to the simple querying of

data.

Identity and access management systems are

usually perceived as consisting of three parts:

authentication, for establishing the identity of the

user; authorisation, for determining the resources

that the user is permitted to use; and

administration. One application for these systems

is to provide access control for distributed web-

based applications. The Tees Confidentiality

Model (TCM) is a powerful model for

authorisation, and is unique in that it includes

override capabilities (Longstaff, 2003a),

(Longstaff, 2003b), (Longstaff, 2002). The TCM

lends itself to implementation by database systems,

and we discuss elements of its implementation by

Microsoft Transact SQL.

The following sections show how the TCM can be

used to model and implement the kind of

authorisations debated for the national Electronic

Health Record (EHR) development for England,

called the Care Records Service (CRS) (Gaunt,

2005), (NPfIT, 2003), (NPfIT, 2005). We focus on

permissions processing by order of complexity,

defined according to the number of concepts in a

permission type. We have been advised that there

are many applications in eGovernment and

eCommerce that could benefit from the TCM

functionality.

We start by outlining a scenario which

demonstrates the need for powerful authorisation

functionality in healthcare. We assume all

interactions with EHRs will be auditable.

2 HEALTHCARE SCENARIO

2.1 Patient-specified ‘Sealed

Envelope’ Authorisation

This part of the scenario was written by a

Consultant Transplant Surgeon. It concerns a

fictitious patient who we will refer to as Alice, and

her GP, who we will call Fred. Alice is 50; some of

the major events in Alice’s medical history are

summarized as follows

• She had a pregnancy termination when she

was 16

• Was diagnosed diabetic at 25

Longstaff J., Lockyer M., Howitt T. and Elcoate I. (2005).

A GENERAL MODEL OF AUTHORISATION FOR COMPLEX COMPUTING APPLICATIONS.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 74-79

DOI: 10.5220/0001421200740079

 SciTePress

• End Stage renal failure when she was 45

• Renal transplant at 48

• Acutely psychotic at 49

• Crush fracture of T12 aged 50

Let us now suppose, not unreasonably, that Alice

expresses the desire to place the following

confidentiality restrictions on the availability of

her medical records data about two of these

conditions (i.e. she wishes to place them in a

patient’s Sealed Envelope, in CRS terminology):

1. My GP, Fred, can see all my data.

2. Nobody must know about my termination

except my GP, any Gynaecological

Consultant, and the Consultant Renal

Transplant Surgeon who operated on me.

3. My GP, Consultant Renal Transplant Surgeon

and Consultant Orthopaedic Surgeon can see

my psychosis data, but no-one else.

Let us add the following contrived requirement

(but still one which a health records authorisation

system must be capable of implementing):

4. I do not wish the members of the hospital

team who carried out my termination

operation to be ever able to see my psychosis

data, except if they are viewing in a

psychiatric role.

In one of our TCM demonstrators, these

confidentiality requirements can be specified using

electronic consent forms (Longstaff, 2002).

2.2 Health Service Authorisations

Let us also consider the authorisations that Health

Care Practitioners (HCPs) will be entitled to access

data based on their role, and a ‘Legitimate

Relationship’ with the patient, generally meaning

that the patient is registered with them, or has been

referred to them.

The following extracts from the CRS requirements

specification - the ICRS OBS (NPfIT,2003) -

illustrate the complexity of the proposed

authorisation functionality.

730.20.2 A user has a Legitimate Relationship with

a patient if they are currently involved in providing

care to the patient, or are a member of a health

and Social Care team which is providing care to

the patient. For example, a practice nurse in the

same team as the patient's GP would have a

Legitimate Relationship with the patient. If a GP

wished to exclude the nurse from inheriting the

Legitimate Relationship, the nurse would be

excluded from the defined team. In support of this,

it must be possible to establish Legitimate

Relationships with workgroups as well as

individual users.

730.16.2 Health information systems must be

capable of granting access to records based on

workgroups.

2.3 Override Capabilities

We must add to these requirements that they must

be capable of being overridden in carefully

controlled and auditable ways. Override for the

CRS system has been described as ‘breaking the

seal” on a Sealed Envelope. Our original scenario

included the following requirement.

Suppose Alice has been scheduled for a transplant.

Tests lead the surgeon to suspect a previous

pregnancy (if the tissue type of the father is similar

to the graft a very serious rejection may ensue).

However Alice refuses to confirm a previous

pregnancy. The surgeon then elects to use an

override facility (Specific Override, as described

below, section 5.2), which enables him to discover

and view the termination data. A safe treatment

can then be planned.

A further type of override, based on the concept of

Collection, is described below in section 5.4 .

3 A TCM APPLICATION FOR

HEALTHCARE

We now proceed to demonstrate how the access

restrictions described in the scenario can be

handled by a single mechanism, which forms part

of the TCM. To do this, we must firstly introduce

some basic TCM concepts.

3.1 Collections

A collection has elements, which may be members

or other collections. Collections and elements are

uniquely-identified. Collections are inherently

hierarchical in that they can contain sub-

collections, which in turn can have their own sub-

collections. Elements can participate in more than

one collection. Confidentiality permissions (see

below) are defined with inheritance properties in

collections.

A GENERAL MODEL OF AUTHORISATION FOR COMPLEX COMPUTING APPLICATIONS

Collections are used for all structuring purposes in

the TCM, e.g. forming identities into teams, and

positioning roles into role hierarchies. A discussion

of collections, and the use of permissions for

collections, is given in section 5.3 below.

The preferred TCM mechanism for confidentiality

permission assignment is based on the concept of

collection. However, it is possible to assign

confidentiality permissions to Roles using general

and limited role hierarchies in the established

RBAC ways (Ferraiolo, 2001), (ANSI-INCITS),

2005).

3.2 TCM Applications Design

We introduce the following TCM concepts by

indicating their role in application development.

The development of a TCM application involves

the following steps:

• Establishing identities (users), and protected

objects (objects accessed and used).

For the EHR projects, the identities are Health

Care Practitioners (HCPs, e.g. doctors,

nurses), and patients. The protected objects are

patients’ EHRs, with authorisations specified

to the granularity of their constituent parts

(which we call EHRobjects).

• Determining the identifiers for both identities

and protected objects.

Patients in the UK are identified by NHS

Number; HCPs by various national and local

registration codes. Identifiers for EHRobjects

are determined by the designers of EHR

software.

• Specifying authorisation classifiers (or

classifiers), which are criteria to be used in

authorisation.

Authorisations are specified and enforced for

members of collections conforming to

classifiers, by confidentiality permissions.

Names for classifiers are chosen by the

application designer.

The classifiers associated with identities we

will call Identity, Role, and LegRel, and for

protected objects EHRobjectID,

EHRobjectType.

• Defining the practically useful confidentiality

permission types (CPTs), generated from the

full range of previously-specified classifiers

(see below for details)

• Choosing the required overrides from the full

range generated from the previously-specified

confidentiality permission types (see below).

It is also possible to have classifiers for operations

on protected objects, but here we just consider a

single operation classifier corresponding to the

read operation.

3.3 Confidentiality Permissions

Classifiers are used to specify confidentiality

permission types (CPTs), which must contain at

least one Identity Classifier, one Operation

Classifier, and one Protected Object Classifier.

We will now describe an example of a CPT, and its

corresponding instances, which we call

confidentiality permissions (CPs). (Note that we

present an informal description, which assumes

downward inheritance for classifier collections.)

The notation we use for this CPT is as follows:

CPT2 (IdentityID, LegRel || R || EHRobjectID)

A CP which is an instance of the CPT2 type

specifies a read authorisation involving an Identity

Collection (e.g. a clinical team, workgroup or just

a single identity), for which a Legitimate

Relationship exists with the patient, and an

EHRobjectCollection (e.g. psychosis data for this

patient, including any subcollections such as

medication prescribed for psychosis). It therefore

grants or denies access to identities having

Legitimate Relationships to specific collections of

data.

CPs are processed in order of precedence

according to complexity (ie the number of

classifiers present in the CPT specification). If two

CPTs exist with the same number of classifiers,

then the CPT with a higher precedence classifier

(as specified by the applications designer) is

processed first.

Now we are able to suggest a TCM for healthcare.

From the range of all possible CPTs, the following

might be selected as being practically useful as a

base set for the CRS. (Note that a final set of

permissions would only be arrived at following a

detailed TCM design exercise, which is to be

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

funded by the NHS National Programme for

Information Technology). They are listed in the

precedence order in which they are processed.

CPT1 (IdentityID,Role, LegRel

||R||EHRobjectID)

CPT2 (IdentityID, LegRel || R || EHRobjectID)

CPT3 (Role,LegRel || R || EHRobjectID)

CPT4 (Role,LegRel || R || EHRobjectType)

Note that we only consider and explain read

permissions; the TCM generally allows for

multiple operation classifiers to be defined.

4 PERMISSIONS PROCESSING

FOR HEALTHCARE

We now illustrate how the Confidentiality

Permission Types listed in the previous section

may be used to represent the constraints on data

access described in the healthcare scenario.

Query by Fred, for termination data

Suppose that Fred queries Alice’s Electronic

Health Record (EHR), with authorisations

controlled by the TCM. He will see the data for the

termination, because the permissions would be

processed in the following order:

• CPT1: IdentityID, Role, LegRel || R ||

EHRobjectID (none, for Fred)

(no match)

• CPT2: IdentityID, LegRel || R || EHRobjectID

(read, for Fred)

match, data displayed

• CPT3: Role, LegRel || R || EHRobjectID

(denial)

(ignored)

• CPT4: Role, LegRel || R || EHRobjectType

(inherited read)

(ignored)

The CPs are searched by order of type, i.e. CPT1,

CPT2, … CPT4, to find the first CP with classifer

values which match this user (Fred) and protected

object (Termination Data). The first permission to

be found is a CPT2 permission. This causes the

data to be displayed. The search algorithm stops,

which means that all remaining permissions are

ignored, or overridden by search order precedence.

(In our current demonstrator, this is implemented

entirely as database searching, programmed in

Transact-SQL).

Query by a GP other than Fred, for

termination data

• CPT1: IdentityID, Role, LegRel || R ||

EHRobjectID (none for this GP)

(no match)

• CPT2: IdentityID, LegRel || R || EHRobjectID

(none for this GP)

(no match)

• CPT3: Role, LegRel || R || EHRobjectID

(inherited denial, for GPs)

match, data not displayed

• CPT4: Role, LegRel || R || EHRobjectType

(inherited read, for GPs)

(ignored)

The first permission to be found for this user and

data is a CPT3 permission, which denies access to

the user acting in this role, even though he has a

legitimate relationship with the patient.

5 OVERRIDES FOR

HEALTHCARE

A identity would generally need to be authorised to

use an override, and would have to subsequently

justify its use. Electronic notifications would be

sent to appropriate authorities when an override is

used.

5.1 Override Types

There are four types of basic override defined for

the TCM EHR application.

• Specific override, a CPT override which

cancels any negative (denial) effects of CPT1-

CPT3 permissions, leaving CPT4 and

operating. This will enable the enquirer to see

the information he would normally see by

virtue of his role, and any specialist Work

Area authorisation.

• Team override, a Classifier Collection

override (see section 5.3), which enables an

Identity to view data read-authorised to a

higher-level of Identity Collection

• Role Override, a Classifier Collection

override, which enables an Identity to view

A GENERAL MODEL OF AUTHORISATION FOR COMPLEX COMPUTING APPLICATIONS

data according to the Confidentiality

Permissions granted to a higher-level Role

Collection.

• Global Override, which removes all

restrictions on data.

5.2 Overriding Alice’s

requirements by HCP

In the Specific Override example described in

section 2.3, the permissions processing for the

termination data, for the Transplant Surgeon is as

follows:

Transplant Surgeon with Specific override,

for Termination data

• CPT1: IdentityID, Role, LegRel || R ||

EHRobjectID (none for this TS)

(SpecificOverride)

• CPT2: IdentityID, LegRel || R || EHRobjectID

(none for this TS)

(SpecificOverride)

• CPT3: Role, LegRel || R || EHRobjectID

(inherited denial, for TS role)

(SpecificOverride)

• CPT4: Role, LegRel || R || EHRobjectType

(inherited read, for TS role)

Match, data displayed

A CPT4 permission has now provided read access

for the TS role, the denial by the CPT3 permission

having been cancelled by Specific Override.

5.3 Overriding within Collections

We now give an example of overriding within

Identity Collections. In order to do this, we firstly

discuss the concept of Identity Collection and its

associated permission processing.

Generally speaking, collections associated with

Identities, and containing identifiers for Identities,

can be used to model naturally-occurring

team/subteam, or committee structures. The

assignment of Identities to Identity Collections

would mostly be made on the basis of Role – e.g.

an anaesthetist is needed at a certain level in a

team. Teams may have a temporary existence

(being formed for a single task), and may exist in a

succession of versions (members being replaced,

for whatever reason).

Consider a simple abstract team (identity

collection) structure shown in Figure 1. Here we

have a Team T1, with its members M11, M12

(perhaps senior members, team leaders). It also has

subteams, T11 and T111, which in turn have junior

members M111, M1111, etc. An example of a

team might be a Surgeon’s team, formed for the

purpose of carrying out emergency operations

during a fixed time period; subteams could include

an Anaesthetist Team, administration teams, and

also teams of Theatre Nurses and Ward Nurses.

Suppose the situation arises that selective sharing

of data between members of the team is required:

members of T1 and T11 need to have access to

data which is not to be usually made available to

T111: this can be achieved by the assignment of

confidentiality permissions as shown.

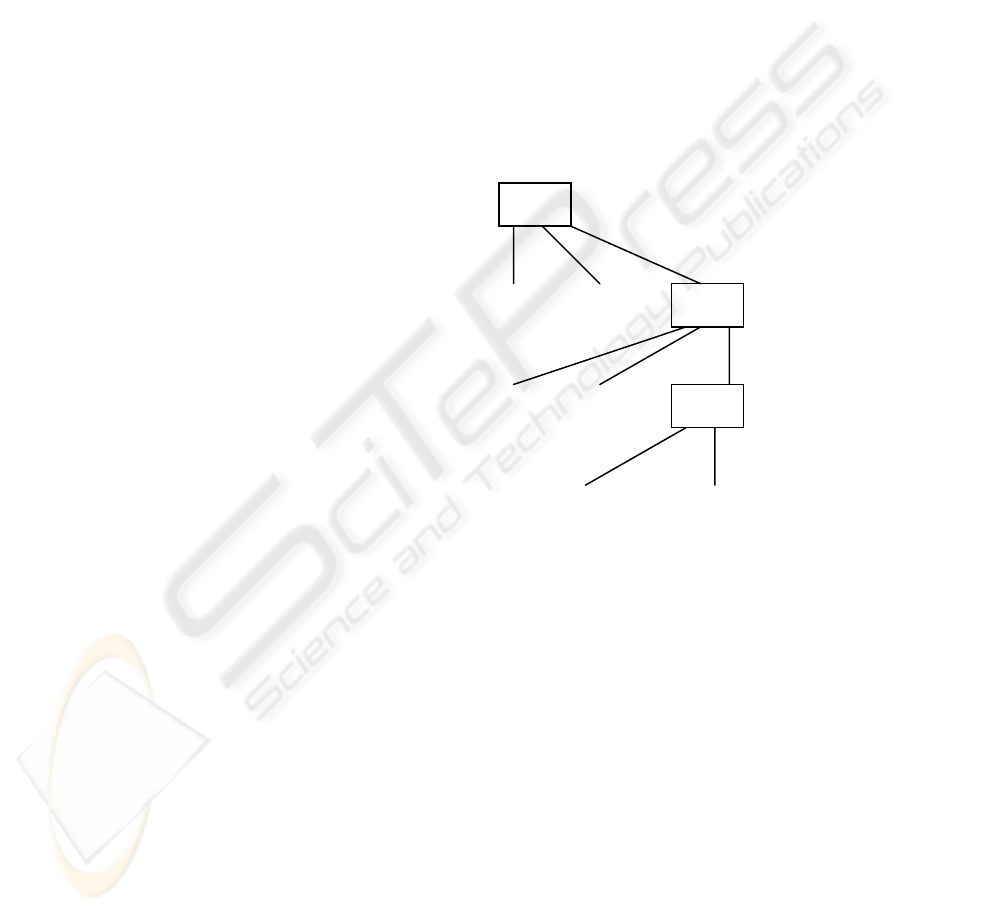

Figure 1: Team/subteam, with permissions, for a

specified EHRobjectCollection

Consider an emergency situation where a junior

member of a team, say M1111, needs to have

access to the clinical data which has been made

available to more senior members. (M1111 might

be the secretary for the Anaesthetist Team, who

has just received an emergency telephone call).

Suppose that M1111 has been granted the privilege

of using Team Override to the level of T11, and

she elects to do so. She will now be able to access

the data, because T11 and its members inherit the

access assigned to this data at level T1.

T11

M11 M12

M111

M112

T111

M1111 M1112

CP2.1 (read, down inherit)

CP2.2 (deny,

down inherit)

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

6 CONCLUSIONS

We have illustrated the TCM authorisation model

with examples from electronic health records. The

TCM has previously influenced the ICRS OBS

(NPfIT, 2003) (the requirements specification for

the EHR for England) and has been implemented

by several suppliers to the NHS as part of the

ERDIP Programme. It is currently being used as

part of a major project to further model and design

the information governance model adopted by the

National Health Service in England (based at the

University of Teesside and funded by the UK

Government). It also forms part of a new location

privacy project, supported by industry, concerning

the monitoring and tracking of individuals and

items. Additionally, it is also being evaluated and

applied within a location privacy project at the

University of Minnesota.

REFERENCES

Longstaff JJ, 2003a. Longstaff JJ, Lockyer MA,

Nicholas J. The Tees Confidentiality Model: an

authorisation model for identities and roles, ACM

SACMAT 2003, Como, Italy, ACM ISBN 1-58113-

681-1.

Longstaff JJ, 2003b. Longstaff JJ, Lockyer MA,

Nicholas J. An Authorisation Model for complex

web applications, ISSE 2003 Conference and

Procedings, www.eema.org/isse.

Longstaff JJ, 2002. Longstaff JJ, Thick MG, Capper G,

Lockyer MA. Eliciting and recording eHR/ePR

Patient Consent in the context of the Tees

Confidentiality Model, HC2002 Conference,

Harrogate, England.

Gaunt N, 2005. UK NHS Care Records Guarantee

http://www.e-health-

insider.com/tc_domainsBin/Document_Library0282/

/nhscr_guaranteev1.pdf

NPfIT, 2003. Integrated Care Records Service, Output

Based Specification. National Programme for IT,

England,

http://www.dh.gov.uk/assetRoot/04/05/50/52/04055

052.pdf

NPfIT, 2005. National Programme for IT, 2005,

www.npfit.nhs.uk

Ferraiolo DF, 2001. Ferraiolo D F, Sandhu R, Gavrila S,

Kuhn D R, Chandramouli R (2001) “Proposed NIST

Standard for Role-Based Acess Control”, ACM

TISSEC, Vol 4, No 3.

ANSI INCITS. 2004. ANSI INCITS 359-2004,

American National Standard for Information

Technology: Role Based Access Control

www.incits.org

A GENERAL MODEL OF AUTHORISATION FOR COMPLEX COMPUTING APPLICATIONS
