BRAIL – SAFETY REQUIREMENT ANALYSIS

Jean-Louis Boulanger

Universite de technologie de compiegne

Laboratoire Heudiasyc centre de recherche de royallieu

compiegne 60205

France

Keywords: Formalization, Level Crossing, Risk analysis, System Requirements, Traceability, UML.

Abstract: In the European railways standards (CENELEC EN 50126, (199

9); EN 50128, (2001); EN 50129, (2000)),

it is required to obtain evidence of safety in system requirements specifications. In the railway domain,

safety requirements are obviously severe. It is very important to keep requirements traceability during soft-

ware development process even if the different used models are informal, semi formal or formal. This study

is integrated into a larger one that aims at linking an informal approach (UML notation) to a formal (B

method) one.

1 INTRODUCTION

Ambiguities and defects in system requirements

specification may have consequences on the whole

system development. We investigate how the Unified

Modelling Language (UML), can be used to formally

specify and verify critical railways systems. A benefit

of using UML is it status as an international standard

(OMG) and its widespread use in the software indus-

tries. The reader interested by more details in syntax

and

semantic aspects can refer to the reference guide

of UML). Even if UML notation is a language in

which models can be represented, it doesn’t define

the making process of these models. Nevertheless,

several dedicated tools have strengthened the popu-

larity of UML. These tools allow graphic notation

and partial generation of the associated code and

documentations. The UML notation is known by

most computer scientists and is now used in several

domains. Using UML class diagrams to define infor-

mation structures has now become standard practice

in industry. Recently, the critical application domains

have used the notation and several questions exist

around this use. Safety invariants can be derived from

hazard analysis and can be supported by a system

model in diagrams of UML.

2 CASE STUDY

To illustrate our approach, we will choose to design a

level crossing. This example is inspired by Jansen, L.

and Schneider, E. (2000). The term level crossing, in

general a crossing at the same level, i.e. without

bridge or tunnel, is especially used in the case where

a road crosses a railway; it also applies when a light

rail line with separate right-of-way crosses a road; the

term "metro" usually means by definition that there

are no level crossings. Firstly, a single-track line,

which crosses a road in the same level, is modelled

(figure 1). The crossing zone is named danger zone.

The most important security rule is to avoid collision

by prohibiting road and railway traffic simultaneously

on level crossing. The railway crossing is equipped

with barriers and road traffic lights to forbid the car

passage. Two sensors appear on the railroad to detect

the beginning (train entrance) and the end (train exit)

of the level crossing protection procedure. The level

crossing is not in an urban zone this implies a sound

signalisation. Traffic lights consist of two lights: one

red and one yellow. When they are switched off, road

users (drivers, pedestrians,…) can cross. When the

yellow light is shown road users (drivers, cyclists,

pedestrians etc.) shall stop at the level crossing if

possible. In the other case, the level crossing is closed

and railway traffic has priority. The yellow and red

light never must be shown together.

108

Boulanger J. (2005).

BRAIL – SAFETY REQUIREMENT ANALYSIS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 108-111

DOI: 10.5220/0002507801080111

 SciTePress

Road

3 REQUIREMENTS ANALYSIS.

3.1 Environnement

It is often difficult to understand requirements if they

are stated as a list. For that reason, functional

requirements (and even some non-functional

requirements) can be expressed by using some ”use

cases”. A use case analysis involves the following

steps:

Determine the actors, i.e. any outside entities (people,

systems, etc.) that interact with the system.

Identification of Use Cases (name, purpose, goal, pre-

and post-condition, ..).

A use case diagram describes and traces the

functional requirements of the system and describe

how the system can and will be used. The use case

diagram gives an overview of the model.

UR3: The railway crossing is equipped with barriers

and road traffic lights. Traffic lights at the level cross-

ing consist of a red and a yellow light.

3.2 Failures

The user requirement gives information concerning

the failures and their direct effects on the system.

UR12 : Possible failure conditions have to be taken

into account for a safe control of the level crossing

and the train.

In our model, failures of yellow or red traffic lights

(to be separately), barriers, the vehicle sensor and the

delay or loss of radio network are considered. Opera-

tional scenarios can be specified by means of se-

quence diagrams of UML.

3.3 Risk analysis

According to EN 50129, (2000) risk analysis essen-

tially consists of four steps:

system definition,

identification of operational hazards,

consequence analysis,

risk assessement.

Collision

Train

doesn’t

respect

signal

Car

doesn’t

respect

signal

Train

access

granted

and not

car

access

denied

Car

access

granted

and not

train

access

denied

Car

access

granted

and

train

access

granted

A B C

Figure 6: Fault Tree Analysis

Barriers

Sensors

Train

Red Li

hts

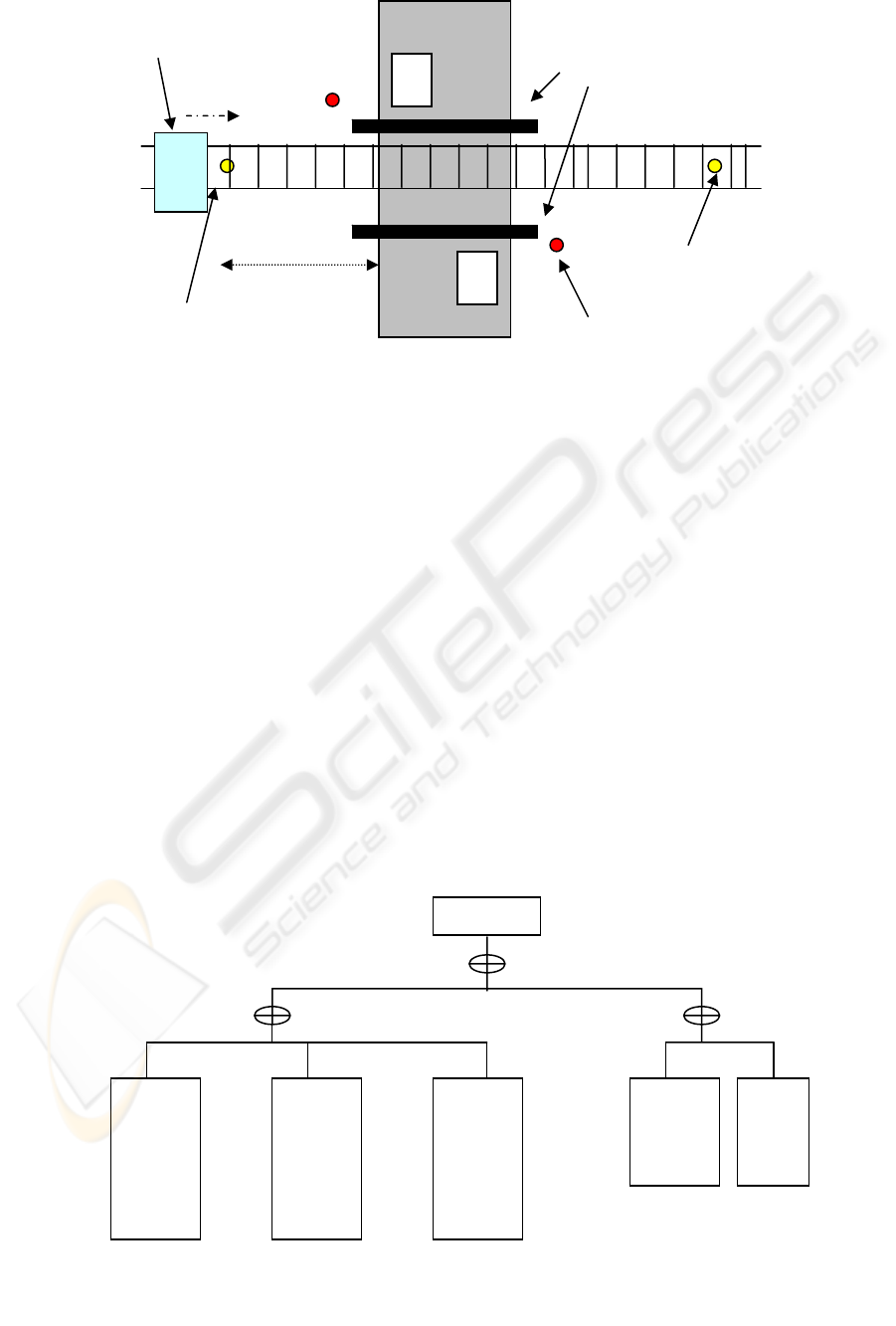

Figure 1: Single-track line level crossing

BRAIL – SAFETY REQUIREMENT ANALYSIS

109

Road Traffic

Train

Access to the danger zone

one access

<<include>>

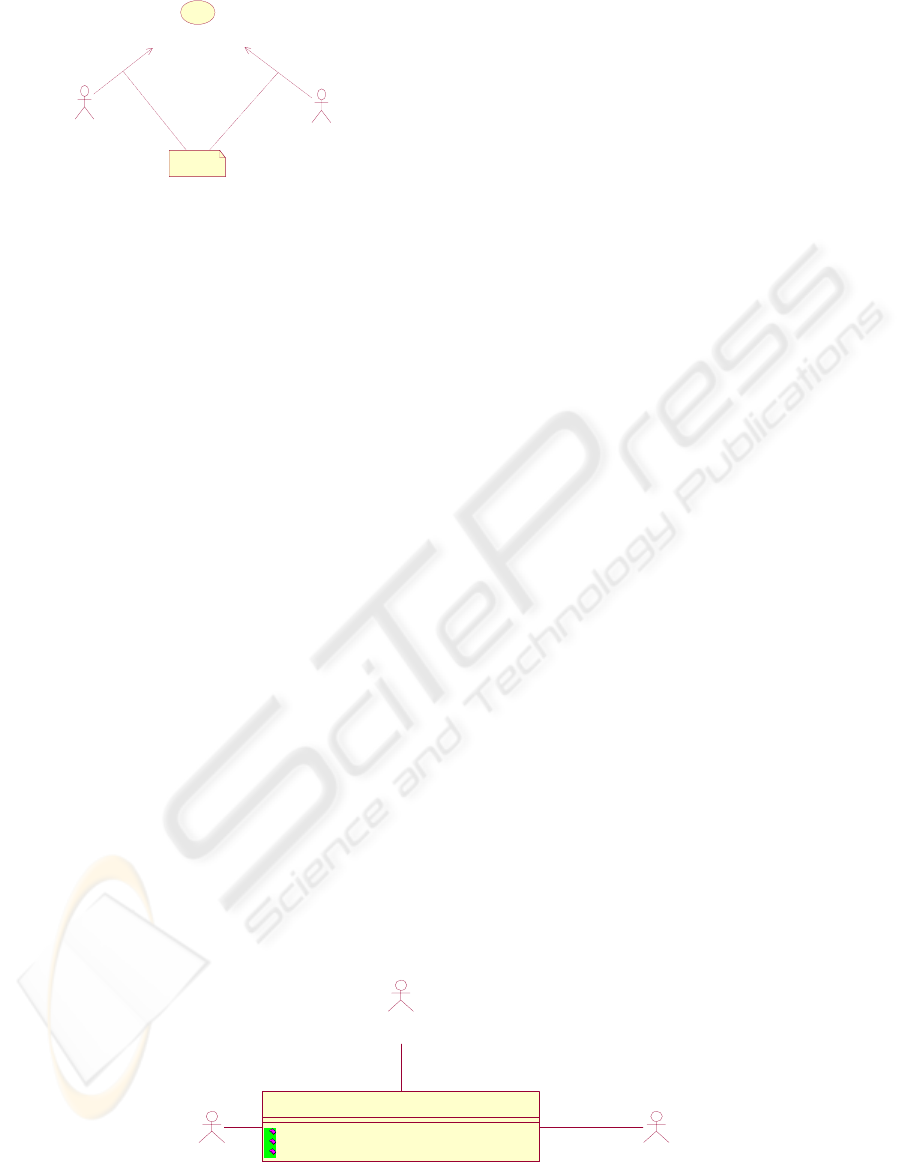

Figure. 2- Use case from UR2

The identification of operational hazards (step 2) can

be done by the analysis the user requirement (UR)

and/or by analysis of classical risk. In our case, the

UR contains:

UR2: The intersection area of the road and the rail-

way line is called danger zone, since trains and road

traffic must not enter it at the same time to avoid

collision.

In figure 2, this UR introduces a use case that intro-

duces the basic risk. In first time, we derive safety

requirement by using FTA (Fault Tree Analysis). A

FTA is a graphical technique that provides a system-

atic description of the combinations of possible oc-

currences in a system, which can result in an undesir-

able outcome. This method can combine hardware

failures and human failures. For safety-critical sys-

tems, the root node of the tree will often represent a

system-wide, catastrophic event taken from an exist-

ing hazards list. From the collision risk we can derive

the next FTA.

The first FTA is split in some part. The D part con-

cerns some human errors. The C part introduces the

principle property for the system: “The system does

not granted access in same time to train and road

traffic”. The A and B part deals with absence and

failures of equipments (barrier, traffic light, commu-

nication, train sensor).

3.4 System Modelling

For modelling the system structure and interfaces

between system objects class diagrams are suitable

(see Figure 8). The class diagram describes the rela-

tionships between classes and shows the logical view

of a system (static view). In respect with safety analy-

sis, the control system provides the capability to

authorise the danger zone access for road traffic or for

train. This system immediately reports the occurrence

and repair of failures to the Operation Center.

3.5 Sub-System Modelling

UR 3: Decentralized radio-based control system

This UR indicates that the system is split in 3 parts:

Communication sub system,

Train control system,

Level crossing system.

Final model purposes a complete class diagram which

introduced some interactions between:

Level crossing control system and physical equip-

ment (barrier, traffic light, train sensors)

Train control system and physical equipment (train

sensor),

Level crossing control system and communication,

Train control system and communication,

Operation center and communication.

Statechart diagrams, also referred to as State dia-

grams, are used to document the various modes

("state") that a class can go through, and the events

that cause a state transition. The state-transitions

graph formalism is not a UML innovation. It has

often been employed in other contexts and a large

consensus, from David Harel’s works, exists around

this notation. It introduces the description of possible

sequences of states or actions which can occur to an

element during its life. Such sequences arise from

element reaction to discrete events.

We coded all properties in UML by using OCL con-

straints attached to classes or sets of associations to

specify safety and operational invariants of reactive

systems in a concise manner.

Train

(from User Requirement)

Operating Center

(from User Requirement)

Road Traffic

(from User Requirement)

control system

OpenedLevelCrossingAndAccessGrantedToRoadTraffic()

ClosedLevelCrossingAndAccessGrantedToTrain()

sendMessage()

(from User Requirement)

Figure. 8: First Class diagram

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

110

4 CONCLUSIONS

The main difficulty to specify railway case study is

the less of harmonisation between the different Euro-

pean systems. The level crossing modelling presented

here gives a first step to a computerised management

of level crossing. In this paper, we purpose a method

for modelling a safety railways application. But the

precondition to use UML diagrams for system speci-

fication, which is usable for formal correctness proofs

and refutation checks, is that the UML has to be used

with a precise semantics. This is possible by defini-

tions of translation rules for the conversion of UML

notation in a formal language. Our global project (see

Jean-Louis Boulanger, Philippe Bon et Georges

Mariano (2004)) purposes to transform a semi formal

modelling (UML model) to a formal specification (B

method).

REFERENCES

Abrial, JR. (1996). ”The B Book - Assigning Programs to

Meanings”. Cambridge University Press, August 1996.

Jean-Louis Boulanger, Philippe Bon et Georges Mariano

(2004) ”From UML to B - a level crossing case study”,

COMPRAIL 2004, 17-19 May 2004, Dresden

Germany.

EN 50126, (1999).”Railways Application – The

specification and demonstration of Reliabilty,

Availibility, Maintenabiliy and Safety (RAMS)”, 1999.

EN 50128, (2001).”Railways Application –

Communication, signaling and processing systems –

Software for railway control and protection systems”,

2001.

prEN 50129, (2000).”Railways Application – Safety related

electronic systems for signaling”, 2000.

Einer, S.; Schrom, H.; Slovák, R.; Schnieder, E. (2002) ”A

railway demonstrator model for experimental

investigation of integrated specification techniques”,

In: Ehrig, H.; Grosse-Rhode, M., Hrsg.: ETAPS 2002 -

Integration of Software Specification Techniques, S.

84-93, TU Berlin, DFG, Grenoble 2002.

Jansen, L. and Schneider, E. (2000) « Traffic Control

Systems Case Study: Problem Description and a Note

on Domain-Based Software Specification », Institute of

Control and Automation Engineering, Technical

UNIVERSITY of Braunschweig, 2000.
