A SYSTEM TO INTERPRET AND SUMMARISE SOME

PATTERNS IN IMAGES

Hema Nair

Faculty of Engineering and Technology, Multimedia University, Jalan Ayer Keroh Lama, Melaka 75450, Malaysia

Ian Chai

Faculty of Engineering, Multimedia University, Jalan Multimedia, 63100 Cyberjaya, Selangor, Malaysia

Keywords: Data mining, pattern recognition, fuzzy sets, genetic algorithm, linguistic summary, intelligent systems.

Abstract: In this paper, a system that is designed and implem

ented for automatic interpretation of some patterns in

satellite images is described. Some natural patterns such as land, island, water body, river, fire in remote-

sensed images are extracted and summarised in linguistic terms using fuzzy sets. A new graphical tool

(Multimedia University’s RSIMANA-R

emote-Sensing Image Analyser) developed for image analysis,

which is part of the system is also described in this paper.

1 INTRODUCTION

Knowledge discovery and data mining systems draw

upon methods and techniques from the field of

pattern recognition, as well as related topics in

database systems, artificial intelligence, machine

learning, statistics, and expert systems, where the

unifying goal is extracting knowledge from large

volumes of data (Friedman, Kandel, 1999). Pattern

recognition can be considered as a form of data

mining because both concentrate on the extraction of

information or relationships from data (Kennedy et

al., 1997). Many pattern classification techniques

have been proposed in literature. These include

neural nets, genetic algorithms (GA), Bayesian

methods, statistical methods, decision tables,

decision trees etc. A multimedia database system

(Thuraisingham, 2001) is an example of a

heterogeneous database system because it manages

heterogeneous data types such as audio, images,

video etc. Such data is typically unstructured in

format. In the past, many techniques for

representing, storing, indexing and retrieving

multimedia data have been proposed. However, the

area of multimedia mining has seen few results

(Zaine et al., 1998a), (Zaine et al., 1998b). This is

mainly due to the fact that multimedia data is not as

structured as relational data (Zaine et al., 1998b).

There is also the issue of diverse multimedia types

such as images, sound, video etc. While one method

of data mining may find success with one type of

multimedia such as images, the same method may

not be well suited to many other types of multimedia

due to varying structure and content. In (Zaine et al.,

1998a), (Zaine et al., 1998b), the objective is to mine

internet-based image and video. The results

generated could be a set of characteristic features

based on a topic (keyword), a set of association rules

which associate data items, a set of comparison

characteristics that contrast different sets of data, or

classification of data using keywords. Most of the

other related studies are confined to the data-filtering

step of the knowledge discovery process as defined

by (Shapiro et al., 1996). (Czyzewski, 1996) shows

how KDD methods could be used to analyse audio

data and remove noise from old recordings. In

(Chien et al., 1997), knowledge-based AI techniques

are used to assist image processing in a large image

database generated from the Galileo mission. In

(Bhandari et al., 1997), the authors combine a data

mining application with multimedia resources. They

use video clips to support the knowledge discovered

from a numerical database. (Blaschke et al., 2000)

describe some possible object-oriented segmentation

techniques in an integrated GIS/remote-sensing

environment. From another perspective, (Barnard et

283

Nair H. and Chai I. (2005).

A SYSTEM TO INTERPRET AND SUMMARISE SOME PATTERNS IN IMAGES.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 283-290

DOI: 10.5220/0002509902830290

 SciTePress

al., 2003a), (Barnard et al., 2003b) describe the

approach involved in matching images to text. Their

work describes models used for automatic image

annotation, browsing support and auto-illustration of

blocks of text. Such models are focussed on

prediction of words (from an available pool) that

match with specific image regions. This is a form of

labelling and requires assistance from training data

and manually annotated images.

This paper describes a system that classifies and

automatically interprets natural patterns such as

land, island, water body, river, fire in remote-sensed

images and utilises fuzzy logic (Nair, 2003), (Nair,

Chai 2004), (Nair, 2004) to describe these patterns.

Some feature descriptors such as area, length etc., of

such patterns are extracted and stored in a relational

database. Data mining techniques that employ

clustering and genetic algorithms are then used to

develop the most suitable linguistic summary of

each pattern/object stored in the database. This paper

is organised as follows. Section 2 describes the

system architecture, section 3 describes the

approach, section 4 discusses the implementation

issues, and section 5 discusses the conclusions and

future work.

2 SYSTEM ARCHITECTURE

The system architecture is shown in Figure 1. The

input image is analysed using the graphical tool

developed as part of this research (RSIMANA) and

some feature descriptors extracted. These descriptors

are stored thereafter in a relational table in the

database. The knowledge base uses geographic facts

to define feature descriptors using fuzzy sets. It

interacts with a built-in library of linguistic labels,

which also interacts with the summariser as it

supplies the necessary labels to it. The summariser

receives input from these components and performs

a comparison between actual feature descriptors of

the image patterns stored in the database with the

feature definitions stored in the knowledge base.

After this comparison, the summariser uses the

linguistic labels supplied by the library to formulate

some possible summaries for each pattern/object in

the database. From among these summaries, the

most suitable one describing each pattern is selected

by interaction with the engine (genetic algorithm).

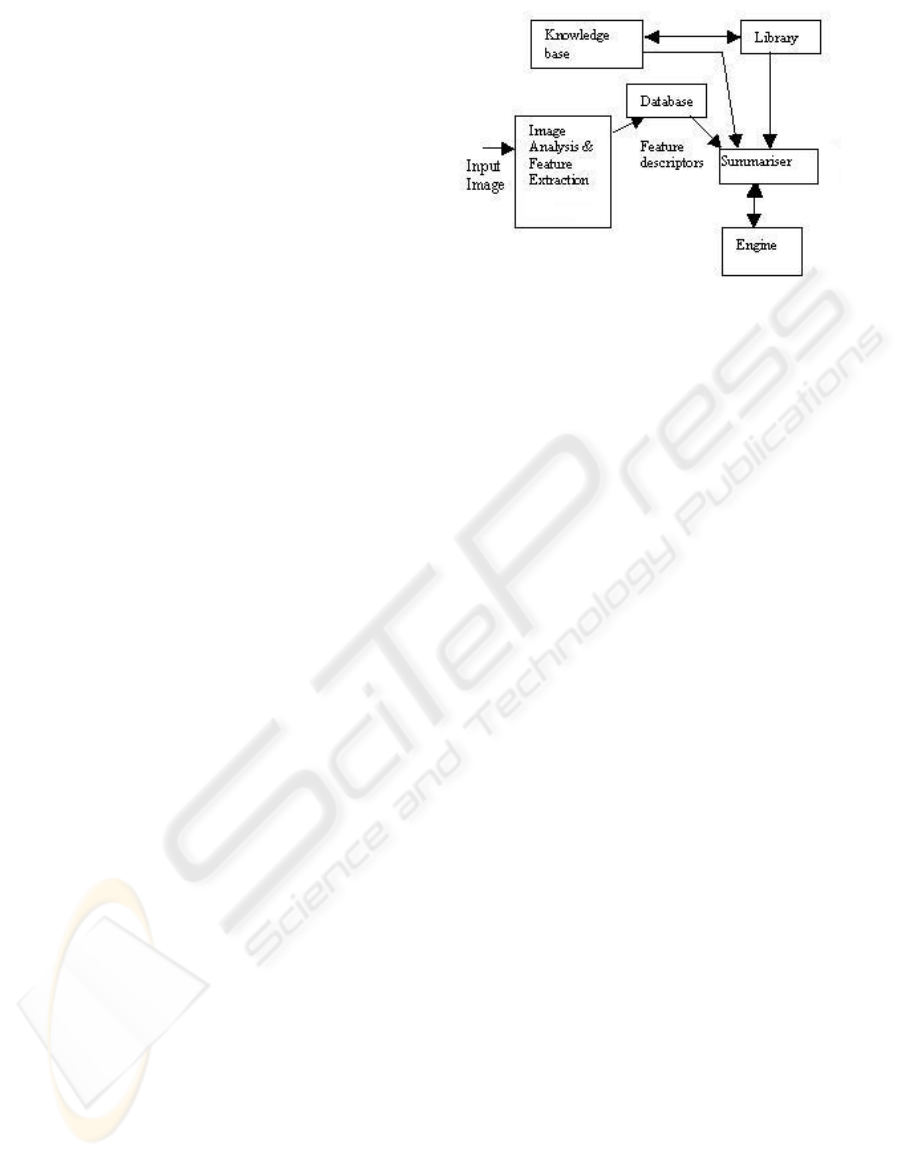

Figure 1: System architecture

RSIMANA is developed in Java®. Some of the

classes and algorithms developed as part of this tool

are described next. Euclidean distance measure is

used to calculate feature descriptors such as length

and perimeter. Area is calculated by means of a

pixel-counting algorithm. A morphology algorithm

is included to implement erosion of the binary-

thresholded image. Erosion can be used to locate the

centroid of an object/pattern, which is recorded for

use with the remainder of the system. The tool

includes a histogram feature to construct histogram

for a selected region of interest. Additional user-

friendly features are implemented such as zoom and

also scale to convert pixel area, length, and

perimeter to appropriate units.

The tool also aims to identify or classify patterns

such as river, land, island, other water body

(excluding river), fire in remote-sensed images

based on the attributes of their envelopes in the

image. Some of the attributes being considered are

grey level values, colour density slicing, histogram

distribution etc. This research focuses on analysing

multi-band (RGB) satellite images. The tool

implements only unsupervised pattern classification

at this stage. The following set of rules is developed

to perform pattern classification in multi-band

satellite images.

1. If a pattern/object is to be classified as an

island, it should have a water envelope

surrounding it such that it has a uniform

band ratio at at least eight points on this

envelope (corresponding to directions E,

W, N, S, NE, NW, SE, SW). Also grey

level values on the envelope could be lower

than the grey level values on the object.

2. If an object does not have an envelope in all

directions as described in rule (1) above,

then it is classified as land.

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

284

3. If an object is to be classified as water body

(expanse of water, river), it is necessary

that it should have a uniform band ratio.

4. Fire is classified as a separate pattern. It is

identified by applying colour density

slicing to the image and by viewing the

histogram of the affected area. The

histogram would show a majority of pixels

at lower intensity for the burnt scar area

near the fire.

This tool can analyse images in standard formats

such as tif, jpg, bmp, gif, png and generate the

recorded feature descriptors in delimited ASCII text

format.

3 APPROACH

Area, length and location (X, Y pixel co-ordinates of

centroid of pattern in image), and Additional

Information or Pattern Id, are the attributes of the

patterns/objects that are used to develop their

linguistic summaries. Area, length and location are

extracted automatically by RSIMANA. Additional

information contains the pattern’s id, which is

obtained by using the classification rules described

in the earlier section. The linguistic summary of

patterns/objects is evaluated as follows.

(1)

p21

y,...y,yY =

then

truth(y

isF)=µ

):i=1,2,...,p, (2)

where µ

) is the degree of membership of y

the fuzzy set F and 0 ≤ µ

) ≤ 1. The linguistic

proposition y

is F could be instantiated as for

example, Island is small. Thus referring to equations

(1) and (2), y

could be island or area of land or

expanse of water or river. For each object y

, the

degree of membership of its feature descriptor such

as area or length in corresponding fuzzy sets is

calculated. An example of a typical linguistic

summary for land generated by the system in this

paper would be:

A fairly large area of land at the centre of the image.

In order to generate such summaries, it is necessary

to formulate fuzzy sets that quantify area/length

attributes of the object/pattern. Trapezoidal fuzzy

sets formulated for area are large, fairly large,

moderately large, and small and fuzzy sets for

length are long, relatively long, fairly long and short.

The linguistic description is calculated as follows:

njj2j1j

m...mmT ∧∧=

, (3)

where m

is the matching degree (Kacprzyk,

Ziolkowski, 1986) of the ith attribute in the jth tuple.

∈[0,1] is a measure of degree of membership of

the ith attribute value in a fuzzy set denoted by a

fuzzy label. The logical AND (∧) of matching

degrees is calculated as the minimum of the

matching degrees (Kacprzyk, Ziolkowski, 1986).

(4)

0mTT

≠∀=

∑

T in equation (4) is a numeric value that represents

the truth of a possible set of summaries of the k

objects in the database. The next section discusses

how the GA evolves the most suitable linguistic

summary for all the objects by maximising T.

4 IMPLEMENTATION ISSUES

This section explains the genetic algorithm approach

and then discusses the results from applying this

approach to analysing images.

4.1 GA Approach

A genetic algorithm emulates biological

evolutionary theories as it attempts to solve

optimisation problems (Filho et al., 1994),

(Goodman, 1996), (Smith et al., 1994). Each binary

chromosome string in a population represents a

possible linguistic summary for a pattern. Such a

population of strings is manipulated by selection,

cross-over and mutation operators in the GA (Filho

et al., 1994) such that as the GA evolves through

several generations, only those strings with highest

fitness survive. The evaluation or fitness function for

the linguistic summaries or descriptions of all

objects in the table is

f=max(T), (5)

where T is evaluated as shown in the previous

section and f is the maximum fitness value of a

particular set of linguistic summaries that has

evolved over several generations of the GA.

4.2 Results and discussion

In general, image objects/patterns are classified at

the highest level into land, water or fire. Land is

further classified into island and other land. Water is

A SYSTEM TO INTERPRET AND SUMMARISE SOME PATTERNS IN IMAGES

285

further classified into river and other water body.

The fuzzy sets that quantify area or length are

defined with reference to geographic facts such as:

• Largest continent is Asia with area of

44579000 km

• Largest freshwater lake is Lake Superior

with area of 82103 km

• Smallest continent is Australia/Oceania

with area of 7687000 km

• Longest river is the Nile with length 6669

A total of 29 fuzzy sets have been formulated in this

research. Formulation of these fuzzy sets is based on

the universal geographic facts given earlier. Only

some of the trapezoidal fuzzy sets formulated are

shown here due to space limitation. The fuzzy sets

for large expanse of water, fairly large expanse of

water and small expanse of water are formulated as

shown in equation (6), (7), and (8).

seofwaterlargeexpan

(x)=1, for 82103≤ x

=x/2203 – 36.27, for 79900≤x≤ 82103

=0,x<79900 (6)

Probability of mutation = 0.001

watereexpanseoffairlylarg

=1-(100-x)/91, for 9≤ x≤ 100

(x)=1, for 100≤ x≤900

=1-(x-900)/100, for 900≤ x≤ 1000

=0, x< 9

=0,x>1000 (7)

(x) = 1, 0≤x≤ 100

seofwatersmallexpan

=-x/900 +1.11, for 100≤x≤1000

=0,otherwise (8)

An example SPOT Multi-spectral satellite image to

be analysed is shown in Figure 2. Table 1 shows the

data collected from the image to perform k-means

clustering (Mather, 1999) in order to cluster the

pixels in the image. The feature vector used consists

of X, Y, R, G, B values. Table 2 shows a small

sample data set of feature descriptors

calculated/collected from the patterns in the image

using RSIMANA. The R band grey level at centroid

location of pattern is shown in the table, as this band

shows all patterns clearly. Area of each pattern is in

sq km. Length is in km. Pattern id attribute denotes

numbers as follows: 0=River, 1=Water Body,

2=Island, 3=Land, 4=Fire. Location is indicated by

X, Y pixel co-ordinates of centroid of pattern/object.

The additional information or pattern id attribute of

each object in Table 2 is calculated automatically

using the classification rules in Section 2, which

hold for multi-band images. For land, island, and

water body (expanse of water), area is the most

significant parameter in calculations and therefore

their length is ignored. A river’s length is its most

significant parameter in calculations and therefore

its area is ignored. This analysis uses only

unsupervised classification algorithms. In order to

extract more patterns such as different types of

vegetation, supervised classification is necessary for

which observational ground data is required for

training. Such data could not be afforded in this

research.

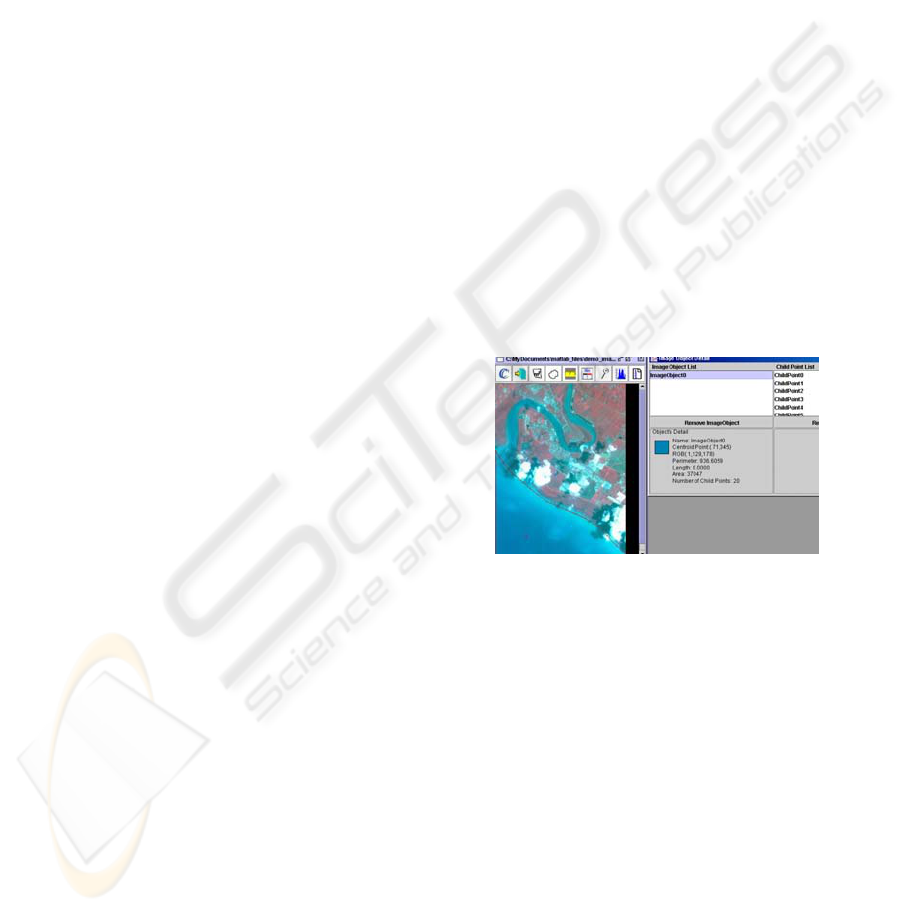

In Figure 2, the pattern or object that is selected as

ROI is the water body at the lower left. The frame

on the right shows the area and perimeter of the

pattern in pixel units and other information about the

pattern, which is collected/calculated by RSIMANA.

Thus data is calculated and collected for all the

patterns in the image in table 2.

The GA is run with following input parameter set.

These parameter values are set after several trial

runs.

Number of bits in a chromosome string of the

population = 10

Generations per cycle = 27

Population size = 200 strings

Probability of cross-over = 0.53

Figure 2: SPOT Multi-spectral image analysed by

RSIMANA. Approximate scale of image 1: 0.0194 sq km

After 216 generations, the linguistic summaries

generated for the data in Table 2 are:

• A short river at the centre

• A small area of land at the top left

• A small area of land at the right

• A small expanse of water at the lower left

Figure 3 shows another sample SPOT Multi-spectral

image, which is analysed by the system. The k-

means clustering table is Table 3 and the data

collected/calculated by RSIMANA is shown in table

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

286

Table 1: Data collected from image in Figure 2 for

clustering. The header of the table denotes data from left

to right as follows: X

object,

envelope,

object,

envelope,

envelope.

The corresponding output linguistic summaries from

the system are also shown.

Figure 3: SPOT Multi-spectral image analysed by

RSIMANA. Approximate scale of image 1: 0.0003764 sq

km. Image acquired on March 6, 1998

Table 2: Data calculated and collected from image in

Figure 2 using RSIMANA

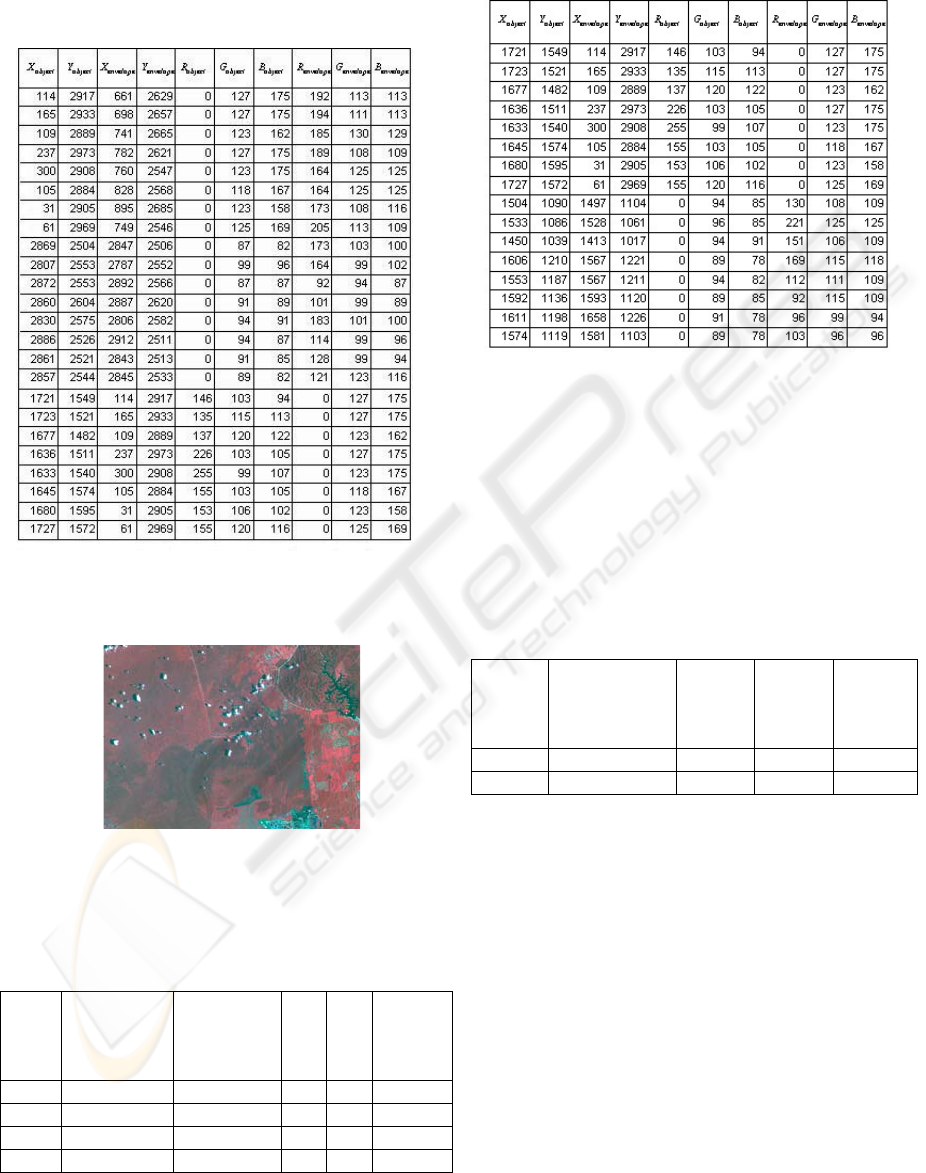

Table 3: Data collected from image in Figure 3 for

clustering

For the data in Table 4 corresponding to image in

Figure 3, the GA is run with following input

parameter set. These parameter values are set after

several trial runs.

Number of bits in a chromosome string of the

population = 10

Generations per cycle = 26

Population size = 200 strings

Probability of cross-over = 0.53

Probability of mutation = 0.001

Table 4: Data calculated and collected from image in

Figure 3 using RSIMANA

R-

band

grey

level

Approximate

Area in sq

X Y Pattern

150 3300.84 1606 1457 3

0 6.683 1546 1132 1

After 208 generations, the linguistic summaries

generated are:

• A small area of land at the centre.

• A small expanse of water at the top right.

Figure 4 shows yet another sample SPOT Multi-

spectral image of the same geographic area as in

Figure 3 but acquired on a later date, which is

analysed by the system. The k-means clustering

table is Table 5 and the data collected/calculated by

RSIMANA is shown in Table 6. The corresponding

output linguistic summaries from the system are also

shown.

R-

band

grey

level

Approximate

Area in sq km

Approximate

Length in km

X Y Pattern

7 0 8.94 174 150 0

141 17.93 - 243 224 3

126 4.18 - 68 20 3

0 13.4 - 48 341 1

A SYSTEM TO INTERPRET AND SUMMARISE SOME PATTERNS IN IMAGES

287

Figure 4: SPOT Multi-spectral image analysed by

RSIMANA. Approximate scale of image 1: 0.0003764 sq

km. Image acquired on July 10, 2001

The GA is run with following input parameter set.

These parameter values are set after several trial

runs.

Number of bits in a chromosome string of the

population = 10

Generations per cycle = 27

Population size = 200 strings

Probability of cross-over = 0.53

Probability of mutation = 0.001

After 216 generations, the linguistic summaries

generated for the data in Table 6 are:

• Bluish white smoke indicating fire at the

left

• A small expanse of water at the top right

• A small area of land at the centre

If the number of fuzzy labels and fuzzy sets are

increased, then the number of possible summaries

generated could also be increased. The GA can

search for an optimal solution among these

descriptions within a very short time.

The colour density sliced image corresponding to the

fire and smoke region in Figure 4 is shown in Figure

5. It shows the smoke plume from the fire

prominently. Figures 6 and 7 show the R-band

histograms corresponding to the area in Figures 3

and 4 where fire is detected (image in Figure 4

acquired on a later date). It can be seen clearly from

the histogram (Figure 7) that majority of the pixels

are of lower intensity corresponding to the burnt scar

near the fire, while this phenomenon is not indicated

in the histogram of the image of the same area

before the fire (Figure 6).

The summaries produced by this system have been

verified to be correct using topographic maps of the

areas in the images. The system thus generates the

same summaries automatically as would be obtained

by manual interpretation. In general, as RSIMANA

is a user-interactive tool, it is limited by the accuracy

of the user’s point and click action

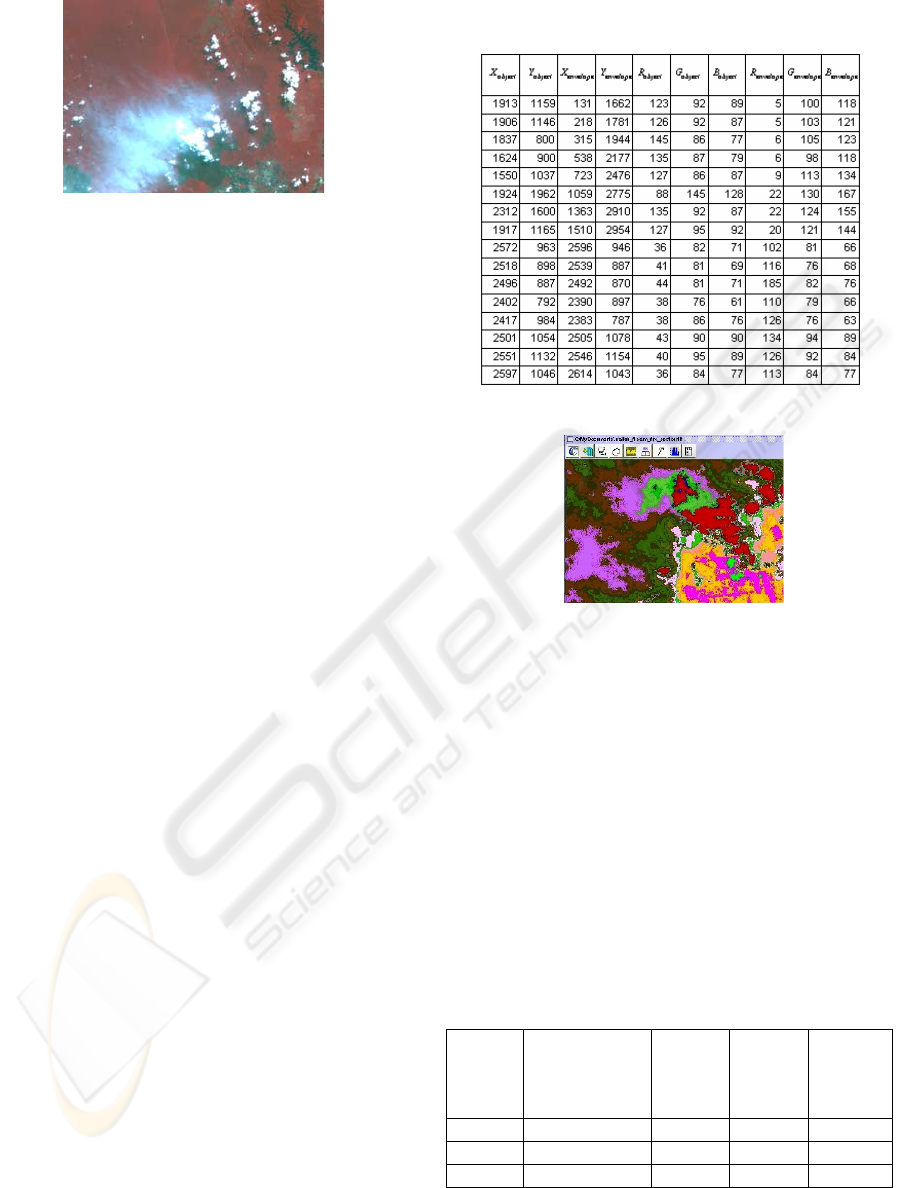

Table 5: Data collected from image in Figure 4 for

clustering

Figure 5: Colour density sliced image corresponding to

Figure 4

5 CONCLUSIONS AND FUTURE

WORK

This paper has presented a new system for automatic

interpretation of multi-band remote-sensed images

by extracting and classifying some natural patterns

such as land, island, water body, river, fire and

describing these patterns using linguistic summaries.

A genetic algorithm technique has been employed to

evolve the most suitable linguistic summary that

describes each object/pattern

Table 6: Data calculated and collected from image in

Figure 4 using RSIMANA

R-

band

grey

level

Approximate

Area sq km

X Y Pattern

150 2874.38 1899 1150 3

27 6.683 2506 976 1

166 - 1550 1587 4

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

288

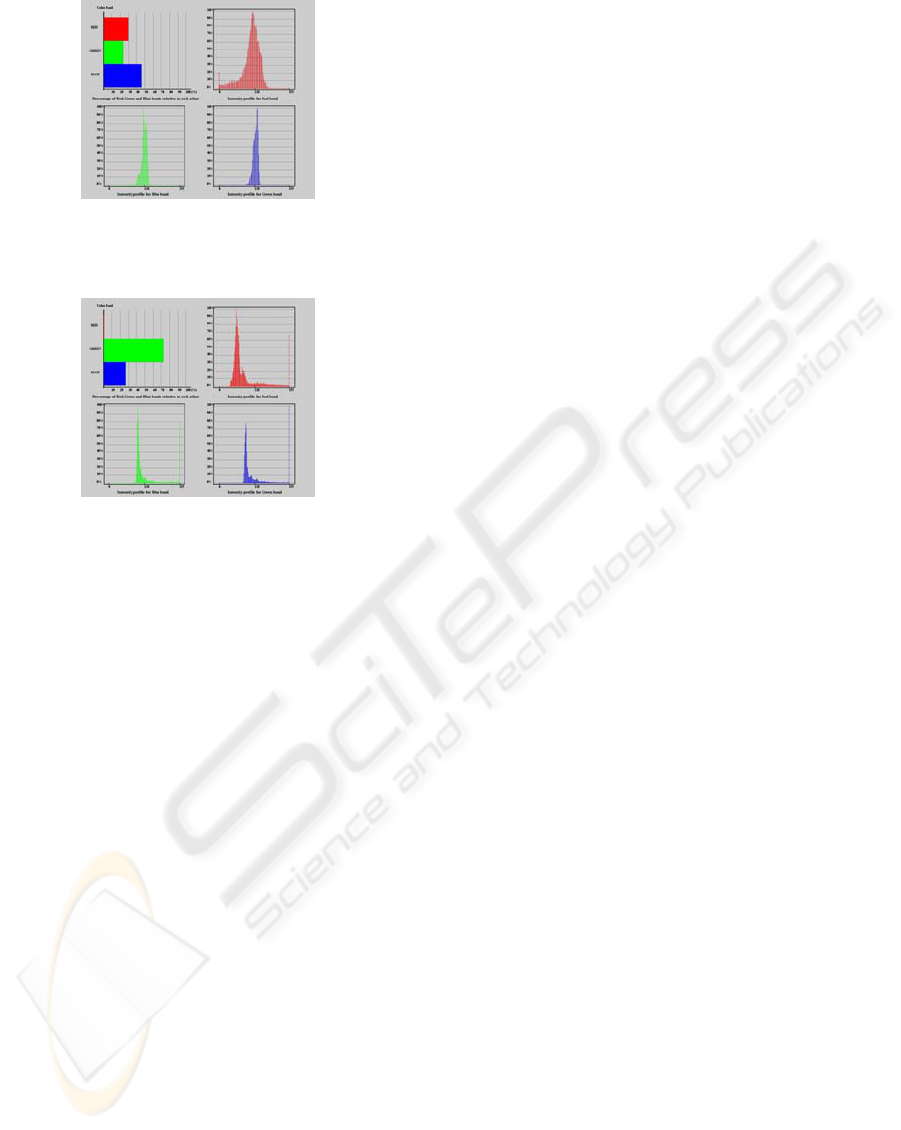

Figure 6: Histogram of area near fire before the fire

occurred corresponding to image in Figure 3

Figure 7: Histogram of area near fire and smoke

corresponding to image in Figure 4

in the database. This method can be extended to an

array of images of the same geographic area, taken

over a period of several years, to describe many

interesting and unusual patterns that emerge over

time. Some directions for future work include:

1. Adding the provision to upload ground data

in order to help classify more patterns such

as vegetation using supervised

classification techniques. Currently only

unsupervised classification is used.

2. Adding enhancements to image analysis

functions in RSIMANA.

3. As a future application, it would be

possible to construct an index for an image

database using the linguistic summaries

developed here.

4. Adding more fuzzy sets and corresponding

labels in knowledge base and library

respectively to have a system that is richer

and can generate a wider variety of

linguistic summaries.

5. Adding a scripting feature that allows the

user to program a sequence of image

analysis instructions in RSIMANA in a

user-friendly language.

6. Expanding the system to test application

domains other than remote-sensing

REFERENCES

Barnard, K., Duygulu, P., Forsyth, D., De Freitas, N., Blei,

D.M., Jordan, M.I., 2003a. Matching words and

pictures. Journal of Machine Learning Research, Vol

3, pp. 1107-1135.

Barnard, K., Duygulu, P., Forsyth, D., 2003b. Recognition

as translating images into text. Internet Imaging IX,

Electronic Imaging.

Bhandari, I., Colet, E., Parker, J., Pines, Z., Pratap, R.,

1997. Advanced scout: Data mining and knowledge

discovery in NBA data. Data Mining and Knowledge

Discovery, 1(1), pp. 121-125.

Blaschke, T., Lang, S., Lorup, E., Strobl, J., Zeil, P., 2000.

Object-oriented image processing in an integrated

GIS/remote-sensing environment and perspectives for

environmental applications, Cremers A, Greve K, eds,

Environmental Information for Planning, Politics and

the Public, pp. 555-570, Metropolis-Verlag, Marburg,

Volume 2.

Chien, S., Fisher, F., Mortenson, H., Lo, E., Greeley, R.,

1997. Using artificial intelligence planning to

automate science data analysis for large image

databases. In Proceedings Third International

Conference on Knowledge Discovery and Data

Mining, pp. 147-150.

Czyzewski, A., 1996. Mining knowledge in noisy audio

data. In Proceedings Second International Conference

on Knowledge Discovery and Data Mining, pp. 220-

225.

Filho, J.L.R., Treleaven, P.C., and Alipi, C., 1994. Genetic

Algorithm programming environments. In IEEE

Computer, pp. 28-43

Friedman, M., Kandel, A., 1999. Introduction to pattern

recognition – Statistical, structural, neural and fuzzy

logic approaches, World Scientific.

Goodman E.D., 1996. An Introduction to Galopps-the

Genetic ALgorithm Optimized for Portability and

Parallelism System(Release 3.2). Technical Report

No. 96-07-01, Genetic Algorithms Research and

Applications Group, Michigan State University.

Kacprzyk, J., Ziolkowski, A., 1986. Database queries with

fuzzy linguistic quantifers. In IEEE Transactions on

Systems, Man and Cybernetics, pp. 474-479.

Kennedy, R.L., Roy, B.V., Reed, C.D., Lippman, R.P.,

1997. Solving Data Mining problems through Pattern

Recognition, Prentice Hall.

Mather, P. M., 1999. Computer Processing of Remotely-

Sensed Images, Wiley.

Nair, H., 2003. Developing linguistic summaries of

patterns from mined images. In Proceedings of

International Conference on Advances in Pattern

Recognition, pp. 261-267.

Nair, H., Chai, I., 2004. Linguistic description of patterns

from mined images. In Proceedings of 6

A SYSTEM TO INTERPRET AND SUMMARISE SOME PATTERNS IN IMAGES

289

International Conference on Enterprise Information

Systems, Vol 2, pp. 77-83.

Nair, H., 2004. Linguistic summaries of image patterns.

Ruan D., D’hondt P., De Cock M., Nachtegael M.,

Kerre E.E., eds, Applied Computational Intelligence,

pp. 246-249, World Scientific.

Shapiro, G.P., Fayyad, U., Smith, P., 1996. From data

mining to knowledge discovery: An overview. Fayyad

U. M., Shapiro G.P, Smith P, Uthurusamy R, eds,

Advances in Knowledge Discovery and Data Mining,

pp. 1-35, AAAI/MIT Press.

Smith, R.E., Goldberg, D.E., Earickson, J.A., 1994. SGA-

C:A C-language implementation of a Simple Genetic

Algorithm. TCGA Report No.91002.

Thuraisingham, B., 2001. Managing and Mining

Multimedia Databases, CRC Press.

Zaine, O.R, Han, J., Ze-Nian, L., Hou, J., 1998a. Mining

Multimedia Data. CASCON’98 : Meeting of Minds,

pp. 83-96

Zaine, O.R., Han, J., Ze-Nian, L., Chee, S.H., Chiang,

J.Y., 1998b. MultimediaMiner : A System Prototype

for Multimedia Data Mining. In Proceedings of ACM-

SIGMOD International Conference on Management of

Data (SIGMOD ’98).

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

290
