DWG2XML: GENERATING XML NESTED TREE STRUCTURE

FROM DIRECTED WEIGHTED GRAPH

Kate Y. Yang, Anthony Lo, Tansel Özyer, and Reda Alhajj

Department of Computer Science

University of Calgary

Calgary, Alberta, Canada

Keywords: XML, directed graph, nested structure, constrained conversion, relational database.

Abstract: The overall XML file length is one of the critical factors

when we need to transfer a large amount of data

from relational database into XML. Especially in the nested tree structure of XML file, redundant data in

the XML file can add more cost on database access, network traffic and XML query processing. Most

previous automated relational to XML conversion research efforts use directed graphs to present relations in

the database and nested trees in the XML structure. However, they all ignore that different combinations of

tree structures in a graph can have a big impact on the XML data file size. This paper addresses this nested

structure data file size problem. It proposes a module that can find the most convenient tree structure for the

automated relational to XML conversion process. It provides a plan generator algorithm to list all the

possible tree structures in a given directed weighted graph. Also it analyzes the data size of each plan and

shows the convenient tree structure to the user. It can finally create the targeted XML documents for the

user.

1 INTRODUCTION

XML is becoming one of the most widely used

technologies for data exchange over the internet. But

most business data is currently stored in relational

database systems, which have been well developed

for a long time. So, there are large demands for

transforming such relational databases into XML

documents. Considerable amount of work has been

done to help people in this area. Basically, we can

group those studies into two categories based on the

amount of data to be transferred from relational

database to XML.

The first covers the case when only part of the

dat

abase is of interest. Specific database queries are

needed in order to fetch the target data. XML

Extender (

Chaudhuri, 2003), SilkRoute (Fernandez et

al, 2002) and DB2XML (Shanmugasundaram et al,

2001) are all under this category. However, all these

tools need human experts working on mapping from

the relational schema to the XML schema.

Therefore, when large amount of relational schemas

and data need to be translated into XML documents,

a significant investment of human effort is required

to initially design the target schema. The second

group of approaches concentrates on automatically

inferring XML schema out of the relational database

schema using semantic constraints, such as Net &

CoT (Lee et al, 2002a; Lee et al, 2002b; Lee et al

2001), ConvRel & Con2XMl (Duta, 2004) and the

reverse engineering based approach for converting

Legacy RDB to XML (Wang et al, 2004; Lo et al,

2004). They can convert data from the relational

database to XML without human input. Finally,

VIREX (Lo et al, 2004) is an approach capable of

handling both strategies.

In this paper, we propose a method which

focuses on t

he second group of approaches. To

justify for the motivation of our method, we start

with a brief introduction for each recent approach in

this group; we mainly address the nested XML tree

structure problem in those approaches. Then we

propose our DWG2XMl method which extends

existing studies. It has an algorithm that can

generate all possible XML nested tree plans from a

given directed graph. We provide each plan’s data

file size and compact rate to help choosing a good

nested structure and then we generate XML

document for the selected plan.

The rest of the paper is organized as follows.

Sect

ion 2 is an overview of three different

approaches for conversion from relational databases

Y. Yang K., Lo A., Özyer T. and Alhajj R. (2005).

DWG2XML: GENERATING XML NESTED TREE STRUCTURE FROM DIRECTED WEIGHTED GRAPH.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 19-26

DOI: 10.5220/0002512500190026

 SciTePress

into XML, including their contributions and

drawbacks. Our DWG2XML method is presented in

Section 3. Section 4 is the conclusions.

2 OVERVIEW OF THE EXISTING

APPROACHES

2.1 Reverse engineering approach

Alhajj (2003) presents a reverse engineering

approach that extracts the entity-relationship (EER)

schema from the relational schema. The concepts

and mechanism provided contribute to legacy

database maintenance, re-engineering or updating to

another database technique. Based on the analysis of

the relationships between tables in a legacy

database, a relational intermediate directed (RID)

graph consistent with the EER diagram is derived to

express all possible unary, binary and nary

relationships between the given relations. Then, it

develops algorithms to eliminate the symmetry and

transitivity in RID, if exist. It also identifies is-a

links in the RID graph to deliver an optimized RID

as the final outcome, which can be used to derive the

XML schema. Such a conversion approach has been

implemented by Wang, et al (2004). Then they

translate the RID graph into XML schema in a

process called forward engineering. A flat XML

schema is automatically derived from the RID

graph. Our DWG2XML approach can be easily seen

as an extension to complete RID to nested XML

schema translation; this is all described in Section 3.

2.2 CoT and NeT

Lee, et al (2002a; 2002b; 2001) proposed an

approach for creating both flat and nesting XML

structures from the relational database schema. The

Flat Translation (FT) converts each table into a flat

element structure. The Nesting-based Translation

(NeT) derives nested structures from a flat relational

model by the use of the nest operator. This nest

operator process is applied to a single table at a time

and it can create nested structures only for non-

normalized tables in normalized databases. Net is

useful to decrease data redundancy in non-fully

normalized relational databases. But it only works

on tables one by one and depends on the relational

schema as well as the actual data stored in the

database.

Then Lee et al extended the nesting approach to

multiple tables, using Constraints-based Translation

(CoT) algorithm. It is one of the first approaches

that deal with relationships. The source database

contains several interconnected tables and based on

the cardinality of the binary relationships, two types

are identified one-to-one (1:1) and one-to-many

(1:M). A directed Inclusion Dependency (IND)

Graph of tables is created from which an empirical

way to nest XML structures is identified. However,

a table can only have one child. If there are more

children relations for a particular parent table, these

relationships are simulated by using reference key

expression.

2.3 ConvRel and Conv2XML

Conv2XML and ConvRel are two algorithms

proposed by Duta, et al (2004) for converting

relational schema to XML Schema, focusing on

preserving the source relationships and their

structural constraints.

ConvRel analyzes each type of relationship and

determines a set of candidate XML structures

capable of representing the analyzed relationship

type. The possible XML structures are classified as

Parent-Child, Child-Parent nested structures, flat

structure using keyref references and combination

nested with keyref structure. Those structures are

filtered depending on criteria such as the nested and

compact structure, and the size of XML data file.

ConvRel classifies each type of possible relationship

in the database into the best XML structure spot. But

this approach only works with a single relationship

at a time; it is not applicable for relationships

involving more that two tables.

Conv2XML algorithm extends ConvRel to

create a nested structure for the entire database. It

uses a graph representation that combines all

structures discovered previously in ConvRel. In this

graph, the vertices are tables and edges represent

connections between tables as defined by ConvRel.

Two categories of edges exist in this directed graph:

1) full edges representing nested structures; and 2)

dotted edges representing relationships for the

reference key. The ConvRel algorithm is thereby

transformed into the problem of discovering trees in

a directed graph.

Compared to the NeT and CoT approach,

ConvRel and Conv2XML approach solved the unary

relationship problem between tables. It also can

present multiple tables as a tree structure. However,

from the directed graph, there exist different nested

tree structures. The method proposed by Duta et al

is depth-first algorithm, which ends up with only

one tree structure solution. As a result, DWG2XML

as described in this paper is more comprehensive; it

considers all possible tree structures instead.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

3 THE DWG2XML APPROACH

3.1 The motivation

In Section 2, we briefly discussed three different

approaches for automatically converting relational

database to XML structure. Even though those

systems vary in terms of the kind of database

(legacy versus catalog-based) they can convert, they

all share a common feature of using the directed

graph to capture the relationships in the database.

The directed graph is different from the XML tree

structure we need. In a directed graph, for any given

node there is no restriction on the number of parent

and child nodes. But in the XML tree structure, a

node can have only one parent. So when

relationships between tables in the database are

presented as a directed graph, there can be different

ways to construct nested tree structures. Selecting a

particular one as the most appropriate choice for the

XML structure will have impact on the overall XML

data file length and on the database query access

time. This problem has not received enough

attention in the literature yet.

As a result, DWG2XML approach presented in

this paper may be considered as extending the

previous work that concentrates on the directed

graph. In particular, our approach focuses on

analyzing the given directed graph, finding all

possible nested tree structures that can be used to

construct the XML document and selecting the most

appropriate one to generate an XML document.

DWG2XPG

Plan Generator

Plans &

Analysi s

JTree

nested

expressio

XML

Document

Database

DWG Graph

Base on

Con2XML

or RID

DWG2XML

View & Select

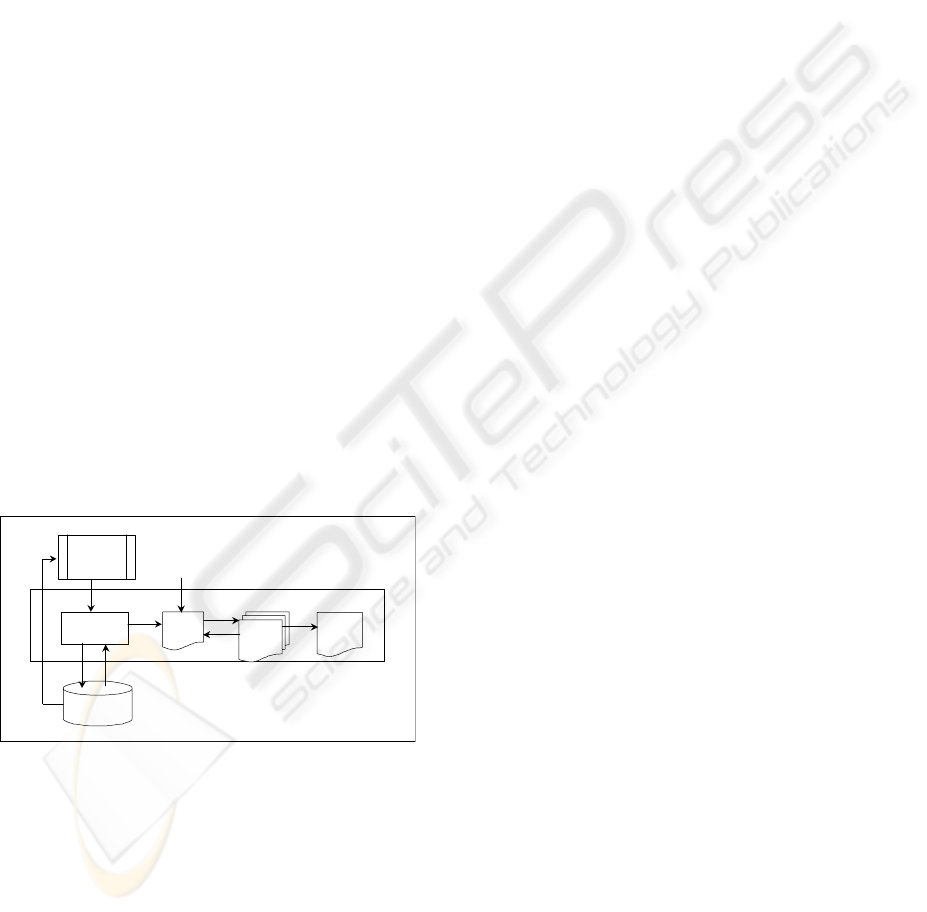

Figure 1: DWG2XML System Architecture

3.2 DWG2XML overview

The architecture of DWG2XML is shown in Figure

1. The DWG graph is generated by the Con2XML

algorithm. It can be either RID graph from reverse

engineering, or a directed graph from Net with some

minor changes. An example RID graph is shown in

Figure 2. DWG2XPG plan generator finds all tree

structure combinations for the input DWG graph

and saves each combination as a tree structure plan.

Then, it queries the database to analyze each plan’s

data file size and data compactness rate; the results

are summarized and displayed to the user as a plan

data table. Users can view the tree structure of each

plan as a JTree expression. From plans with the

same data file length and compactness rate, the user

can always pick the one that has more semantics.

DWG2XML: GENERATING XML NESTED TREE STRUCTURE FROM DIRECTED WEIGHTED GRAPH

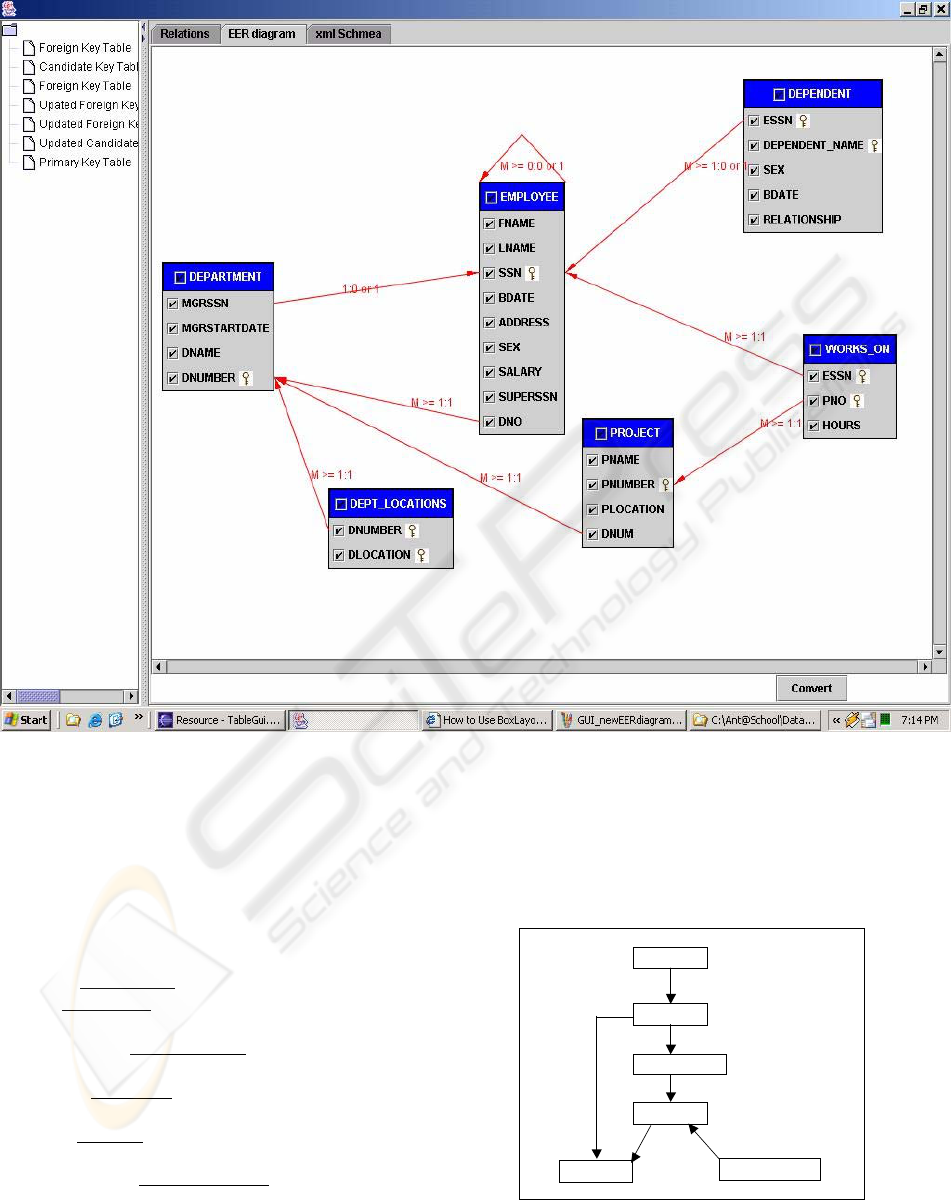

Figure 2: Example RID graph generated by VIREX (Lo et al, 2004)

3.3 An example database and the

corresponding DWG graph

There are six tables in our example database from a

time schedule system; it has the following relational

schema in which primary keys are underlined and

foreign keys are italic:

Groups (

groupName)

Users(

loginName, name, email, accessLevel,

password, groupName)

Appointments(

appointmentId, loginName, sDate,

startTime, endTime, note, meetingId)

Meetings(

meetingId, type, chairLoginName,

meetingRoomNum)

Notices(

noticeId, loginName, meetingId, readMark,

message)

MeetingRooms(

meetingRoomId, seatNumber,

projector, multimedia)

The structural constraints of all relationships that

exist in the example relational schema are:

Groups (1; 1): (1; M) Users

Users (1; 1): (0; M) Appointments

Users (1; 1): (0; M) Notices

Appointments (1; M): (0; 1) Meetings

Meetings (1; 1): (1; M) Notices

MeetingRooms (1; 1): (0; M) Meetings

Groups

Users

Appointments

Meetings

Notices

MeetingRooms

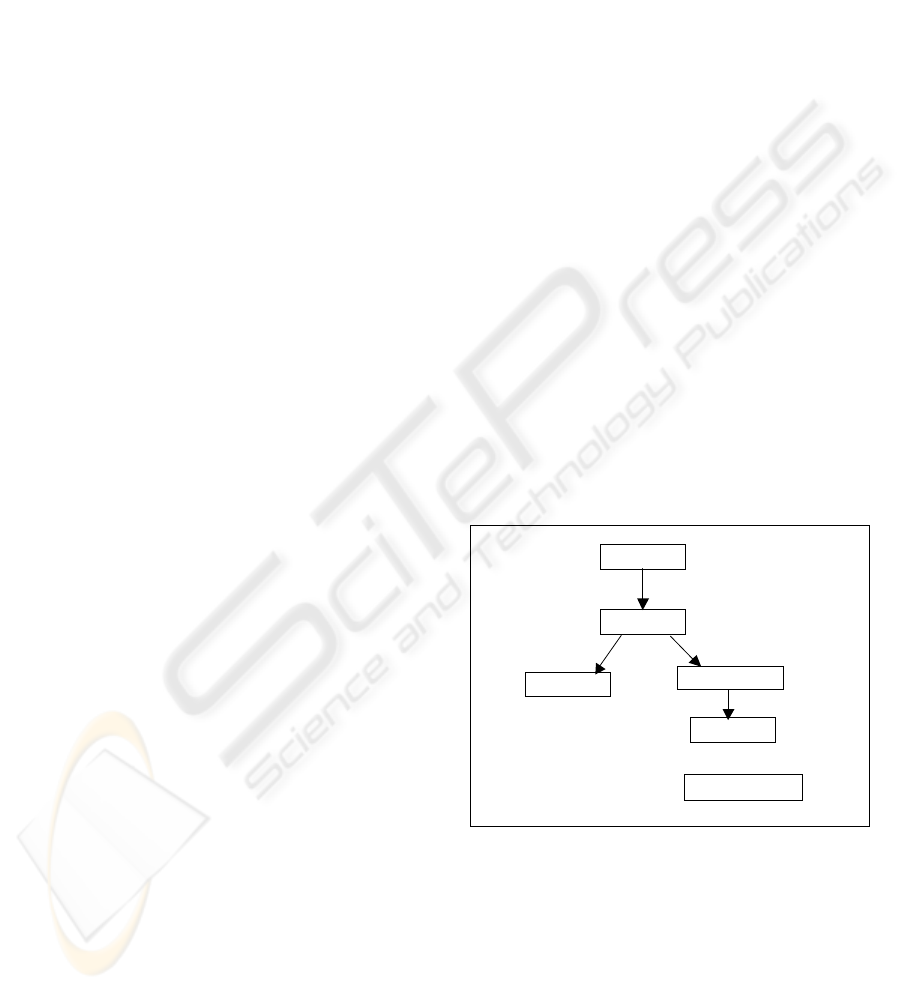

Figure 3: Input DWG graph

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

We can generate a corresponding directed graph

(shown in Figure 3), which includes all the above

relationships. We implement this graph as a directed

weighted graph (DWG), which has the following

properties:

1. It is a directed graph; implemented by

having each edge connecting source node to

target node. Here, source represents the

relation of the primary key and target is the

relation that contains the corresponding

foreign key.

2. Weight has predefined values based on the

relationship type. In this implementation,

one-to-one relationships get the weight 1,

one-to-many relationships get the weight 2,

and dotted (keyref) relationships are

assigned the weight 3.

3. It is possible to have several un-connected

trees in one DWG graph

3.4 Plans generating algorithm

In this section, we present the plan generator

algorithm, which generates all possible nested tree

XML structures. We analyze the incoming edges of

a node. Having more than one incoming edge for a

node means that there is more than one path to reach

this node in the graph. So, we have to list all

possible paths to reach each node in the graph.

Steps of the plans generation algorithm are given

Input: DWG graph

Output: Vector Plans, each plan has nested tree

XML structure.

Variables: - Plans[ ] is DWG graph Vector

- processingNodeQ[ ] is a vector to keep

all nodes waiting for process;

- unprocessingNodeQ[ ] is for the

unconnected nodes in the graph.

It is initialized with all nodes in DWG

Steps:

1. Select a starting node, push it into

processingNodeQ, and mark it as a working

node.

2. For each outgoing edge of the working node,

get the target node of the outgoing edge, i.e., the

child of the working node. Add the child node

and connecting edge into the corresponding

DWG graph to Plans [ ]. For the first node,

create a DWG graph and add to Plans [ ]. Push

each child node into a processing Queue.

3. For each incoming edge of the working node,

get the source node of the incoming node, i.e.,

the parent node. Push this source node into

processingNodeQ.

a. If there are more than two incoming edges,

for each plan in the plans vector, make a

new copy.

b. In the existing old plan, add the source node

in plan, add the incoming edge as weight 3,

presenting no parent-child relationship.

c. In the duplicated new plan, add source node

in the plan, add outgoing edge as edge with

weight 2, and mark all other outgoing edges

as weight 3.

4. After checking both incoming and outgoing

edges of the working node, remove it from the

processingNodeQ and unprocessingNodeQ; pop

up the next node from processingNodeQ; mark

it as the new working node; and go to Step 1.

5. If unprocessingNodeQ is not empty, pop the

next node from unprocessingNodeQ, if any, and

go to Step 1.

Step 3 of the plan generator algorithm

guarantees only one parent for each node. Step 5

guarantees that all disconnected nodes have been

processed.

After we apply the plan generator algorithm to

the example input graph, we can generate the four

plans shown in Figures 4-7. As we can see, the

nested structure plan 3 (Figure 6) has the most

nested structure. MeetingRooms table has no

nested data. It will be converted to a flat structure

in the XML document.

Groups

Users

Appointments

Meetings

Notices

MeetingRooms

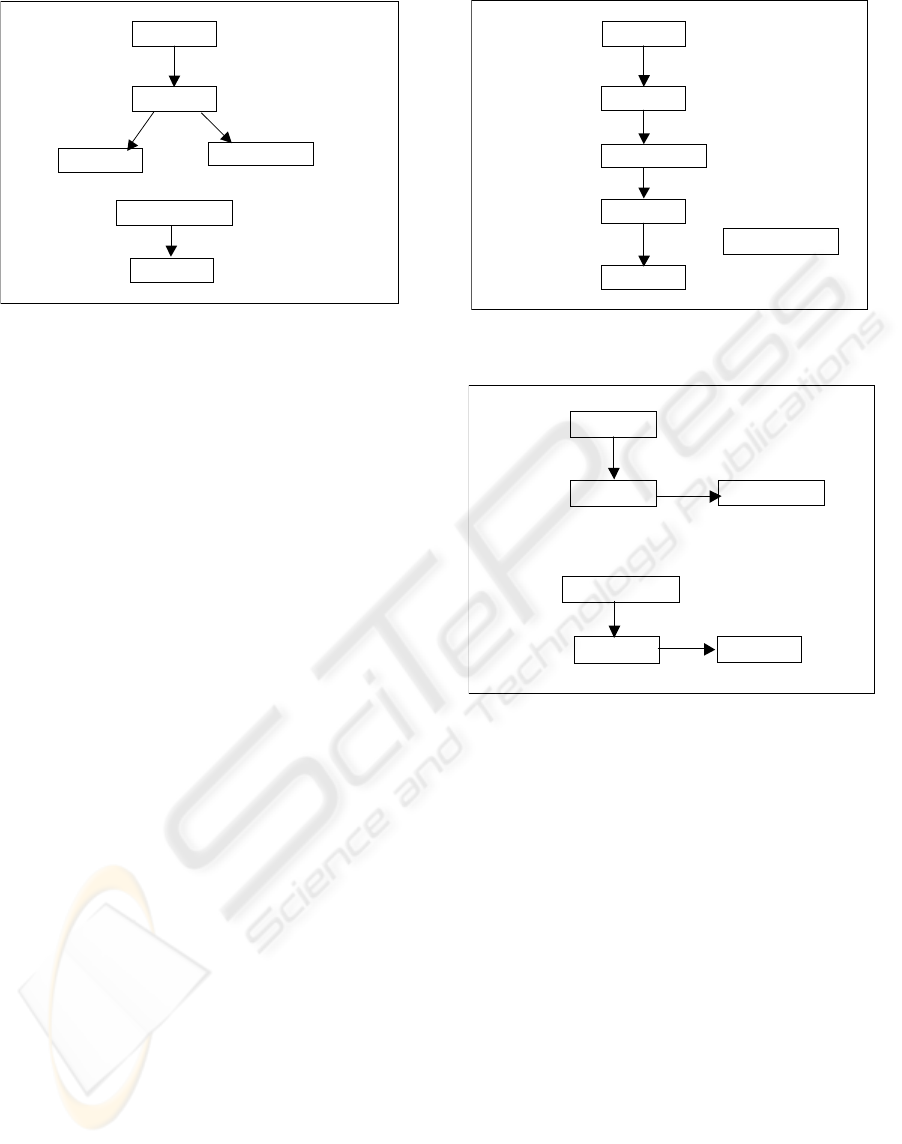

Figure 4: Nested structure plan 1

DWG2XML: GENERATING XML NESTED TREE STRUCTURE FROM DIRECTED WEIGHTED GRAPH

Groups

Users

Appointments

Meetings

Notices

MeetingRooms

Figure 6: Nested structure plan 3

Groups

Users

Appointments

Meetings

Notices

MeetingRooms

Figure 7: Nested structure plan 4

Groups

Users

Appointments

Meetings

Notices

MeetingRooms

Figure 5: Nested structure plan 2

In nested structure plan 1 (Figure 4), Users data

has Notices data set and Appointments subtree. In

plan 2 (Figure 5), Users data has two nested datasets

and MeetingRooms data has one data set. The last

plan (Figure 6) has two trees with equal number of

nodes. These different nested plans have different

data file sizes and compactness rates. This is

analyzed in more details in the next section.

3.5 Find a good plan

After we have all the possible solutions for XML

nested structures. We have to choose the best one to

convert to XML document. The XML data file size

is one of the most important factors for choosing the

good plan. Since we convert the whole database into

XML, the smallest the data file size is, the less are

duplicated data and relational database query/access

time. Considering the participation ratio we have for

each given relationship, if all parents and their

children nodes have all mandatory one-to-one and

one-to-many relationships, then all plans can have

almost the same data file size. However, if there is -

Parent(0,1):(1,M)Child- kind of relationship, then

the data in the child branch can have a heavy

duplication, depending on the number of levels

below this child node.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

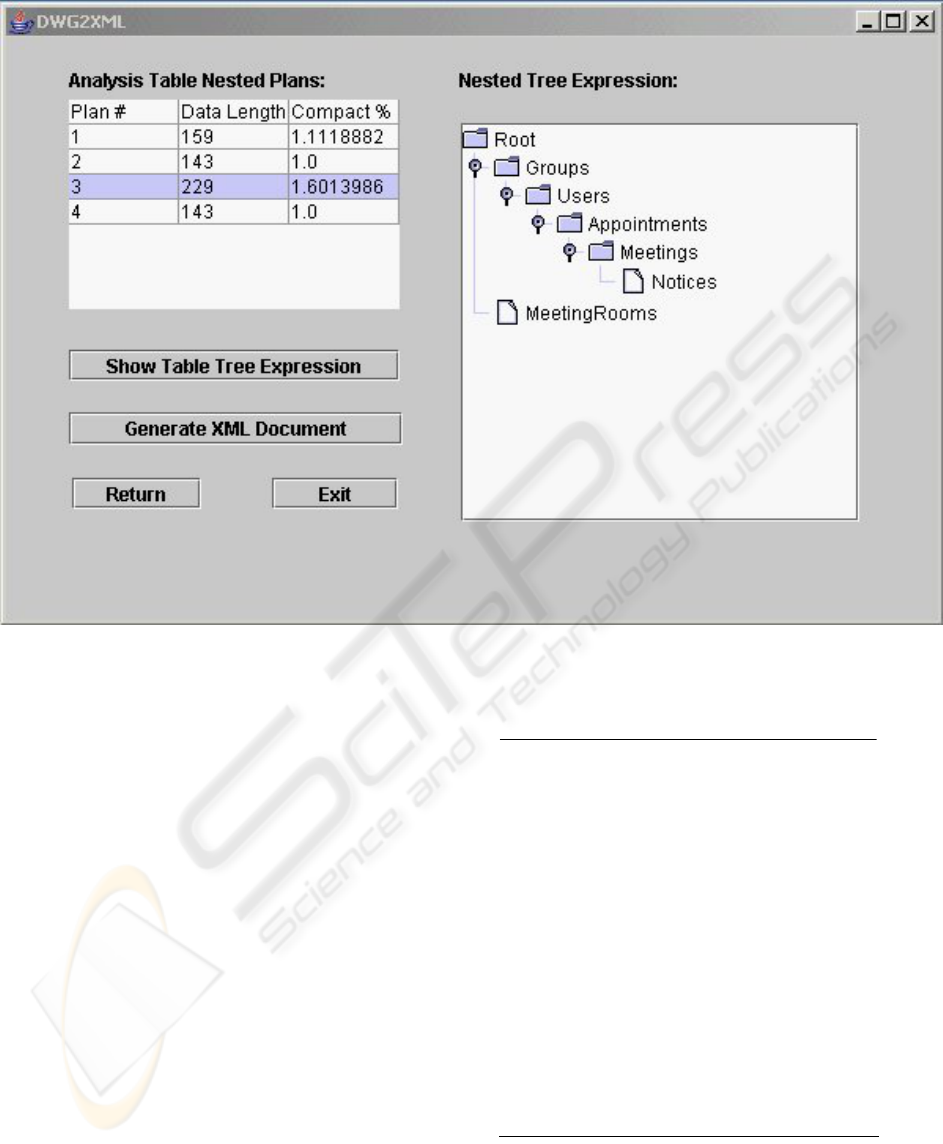

Figure 8: User interface

In our implementation, we use three hash tables

to keep all the metadata we need from the relational

database, including primary keys, foreign keys, and

columns for each table. We only query the metadata

once to save the database access time. By using this

information, we can calculate simple data file size

for one-to-one relationship. For partially duplicated

nested tables, we can compose SQL query from

primary-foreign keys set constraint and query the

data file size from the database.

One of the screen from the developed approach

is shown in Figure 8; it displays the data files size

and compactness rates for the different plans

produced by our approach. The right hand panel has

a JTree expression for the nested XML structure

plan 3 (Figure 6). In our example, one appointment

can have zero or one meeting and one meeting can

involve more than one appointment in the relational

database. So the Meetings table data are duplicated.

Table 1: Pseudo-code of extend post order traversal

algorithm

ExtandPostOrderTravers (parentNode, tableTag)

{

for (each outgoing edge of the working node)

{

workingNode=outgoing edge.getTargetNode()

sqlQuery=composeQuery (parentNode, workingNode)

dataset=queryDataSet(sqlQuery, workingNode)

while(dataset is not empty)

{

rowData=getNextRowData (dataset)

workingTableTag=createNewTag( )

for (each column in the rowData)

{

columnTag=createNewTag( )

workingTableTag.appandChild(columnTag)

}

ExtandPostOrderTravers (workingNode, workingTag)

parentTableTag.appandChild(workingTableTag)

}

More over, in plan 3, all duplicated data in

Meetings table have duplicated data in Notices table.

Note that plan 2 and plan 4 have the same data file

size without any duplicated data in our example. At

this point, we can make decisions based on the

DWG2XML: GENERATING XML NESTED TREE STRUCTURE FROM DIRECTED WEIGHTED GRAPH

semantic meaning of the data. From Figure 5 and

Figure 7, we can see that Notices data can be

grouped under different nested trees. In this case, the

one which is more meaningful to the user is the one

that can be the best candidate to be selected.

3.6 XML data process

When we have a good plan, we can transform all

content of the relational database into XML

document according to the tree structure in the plan.

We extend the post order traversal algorithm using

recursion to tag table data in an XML file.

As shown in Table 1, we create a table tag for

each tuple of the data in the relation, and query the

dataset from its nested relation until we reach the

leaves. Then when we return to the upper level, we

attach the data to the tag as well as we close the tag

until we reach the root.

4 CONCLUSIONS

We have presented our DWG2XML approach that

can derive all possible nested XML structure plans

from a given directed graph in order to minimize the

XML file size and database access time. This

approach extends and completes previous work on

relational database to XML conversion. It improves

the performance of the conversion technique by the

ability of finding the smallest data file size nested

XML structure for a relational database. The

DWG2XML approach presented here has been

implemented in Java with JDBC driver for MSDE

database. It is capable of handling unary, one-to-

one, one-to-many, many-to-many and nary (n>2)

relationships. Using our approach, it is possible to

produce the desired XML schema and document

ranging from flat to nested structures.

REFERENCES

Fernandez M., Kadiyska Y., Suciu D. and Tan W.,

“SilkRoute: A Framework for Publishing Relational

Data in XML,” ACM Transactions on Database

Systems, Vol.27, No.4, pp.438-493, 2002.

Shanmugasundaram J., el al, “Efficiently Publishing

Relational Data as XML Documents,” The VLDB

Joural, Vol.10, pp.133-154, 2001.

Chaudhuri S., Kaushik R. and Naughton J., “On

Relational Support for XML Publishing: Beyond

Sorting and Tagging,” Proceedings of ACM SIGMOD

Conference on Management of Data, San Diego, CA,

June 2003.

Alhajj R., “Extracting the Extended Entity-Relationship

Model from a Legacy Relational Database,”

Information Systems, Vol.28, No.6, pp.597-618, 2003.

Wang C., Lo A., Alhajj R. and Barker K., “Converting

Legacy Relational Database into XML Database

through Reserve Engineering,” Proceedings of the

International Conference on Enterprise Information

Systems, Porto, Portugal, Apr. 2004.

Duta A., Barker K., and Alhajj R., “ConvRel:

Relationship Conversion to XML Nested Structures,”

Proceedings of the ACM Annual Symposium on

Applied Computing, Cyprus, Mar. 2004.

Lo A., Alhajj R. and Barker K., “Flexible User Interface

for Converting Relational Data into XML,”

Proceedings of the International Conference on

Flexible Query Answering Systems, Springer-Verlag,

Lyon, France, June 2004.

Lee D., Mani M. and Chu W.W., “Effective Schema

Conversions between XML and Relational Models,”

Proceedings of the European Conference on Artificial

Intelligence (ECAI), Knowledge Transformation

Workshop (ECAI-OT), Lyon, France, July 2002.

Lee D., Mani M., Chiu F. and Chu W.W., “NeT & CoT:

Translating Relational Schemas to XML Schemas

Using Semantic Constraints,” Proceedings. of ACM

International Conference on Information and

Knowledge Management, McLean, VA, Nov. 2002.

Lee D., Mani M., Chiu F., and Chu W.W., “Nesting-based

Relational-to-XML Schema Translation,” Proceedings

of the International Workshop on the Web and

Databases, Santa Barbara, CA, May 2001.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION
