A RECURRENT NEURAL NETWORK RECOGNISER FOR ONLINE

RECOGNITION OF HANDWRITTEN SYMBOLS

Bing Quan Huang and Tahar Kechadi

Department of Computer Science, University College Dublin,

Belﬁeld, Dublin 4, Ireland

Keywords:

Recurrent neural network, gradient descent method, learning algorithms, Markov chain model, fuzzy logic,

feature extraction, context layers.

Abstract:

This paper presents an innovative hybrid approach for online recognition of handwritten symbols. This ap-

proach is composed of two main techniques. The ﬁrst technique, based on fuzzy logic, deals with feature

extraction from a handwritten stroke and the second technique, a recurrent neural network, uses the features

as an input to recognise the symbol. In this paper we mainly focuss our study on the second technique. We

proposed a new recurrent neural network architecture associated with an efﬁcient learning algorithm. We

describe the network and explain the relationship between the network and the Markov chains. Finally, we

implemented the approach and tested it using benchmark datasets extracted from the Unipen database.

1 INTRODUCTION

A recogniser model is very important for any pat-

tern classiﬁcation system. For handwriting recogni-

tion, most recogniser systems have been built based

on rule based methods or statistical methods, such

as motor model (Plamondon and Maarse, 1989;

Schomaker and Tteulings, 1990), primitive decompo-

sition (S. Bercu, 1993), elastic matching (C.C.Tappet,

1984), time-delay neural network (M. Schnekel and

Henderson, 1994; Seni and Nasrabadi, 1994), and

hidden Markov models (J.Hu and W.Turin, 1996;

S. Bercu, 1993). However, these systems analyse ab-

stract descriptions of handwriting to identify symbols

or words. The problem with these methods is that it

is in most cases impossible to design an exhaustive

set of rules that model all possible ways of forming a

letter (Subrahmonia and Zimmerman, 2000).

Generally, the performance of a recognizer that em-

ploys statistical methods is more ﬂexible and reliable.

The common static methods – curve/feature matching

(C.C.Tappet, 1984), Markov Model based approach

and Neural Network based approaches, have their

own disadvantages. The difﬁculty of the curve/feature

matching approach is that they are computationally

intensive and impractical for large vocabulary of

handwriting (C.C.Tappet, 1984) (e.g. elastic match-

ing (M. Schnekel and Henderson, 1994; C.C.Tappet,

1984)). Hidden Markov Models (HMMs) (Rabiner,

1989) have been successfully applied ﬁrstly to speech

recognition (L.R. Bahl and Mercer, 1983; S.E. Levin-

son and Sondhi, 1983) and have recently been used

to solve sequence learning problems, including online

handwriting recognition (J.Hu and W.Turin, 1996;

T.Wakahara and K.Odaka, 1997). However, HMMs

suffer from a weak discriminative power and requires

a human expert to choose a number of states with ini-

tial estimates of the model parameters and transition

probability between the states (Rabiner, 1989). Time

delay neural network (TDNN) (M. Schnekel and Hen-

derson, 1994; Seni and Nasrabadi, 1994) trained

with Back-propagation algorithm (R.J.Williams and

Zipser, 1995) require the setting of less parameters.

However, the limitation of TDNN is that the input

ﬁxed time window can cause it to be unable to deal

with varying the length of sequences.

Based on another type of dynamic neural networks,

called recurrent neural networks, which successfully

deals with temporal sequences such as formal lan-

guage learning problems (Elman, 1999), it overcomes

the problem of TDNN and it is easy to use as a recog-

nizer. The two common types of recurrent networks

are the Elman network and fully recurrent networks

(Williams and Zipser, 1989) (RTRL). However, El-

man networks face difﬁculties due to their architec-

ture: the network’s memory consists of one context

Quan Huang B. and Kechadi T. (2005).

A RECURRENT NEURAL NETWORK RECOGNISER FOR ONLINE RECOGNITION OF HANDWRITTEN SYMBOLS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 27-34

DOI: 10.5220/0002514200270034

 SciTePress

layer (relatively small), the direct connection of hid-

den layer to the output layer, and the computation

cost, which heavily depends on the size of the hid-

den layer. The main difﬁculty with the fully recurrent

network with real time recurrent learning is its com-

putational complexity.

Therefore, a new recurrent network architecture

with a new dynamic learning algorithm is proposed.

It is shown that this network is computationally more

efﬁcient than RTRL. In addition, the overhead of

its dynamic learning algorithm is much smaller than

the overhead of RTRL computations. We use semi-

discrete features which are extracted by using fuzzy

logic techniques to reduce the technique overhead and

to improve its accuracy

The recognition process begins with feature extrac-

tion. For each handwritten symbol, a set of features

is generated whereby each feature is one of three

types: Line, C-shape or O-shape. We believe that

the most intuitive way to describe any symbol is as

a combination of these basic feature types. Fuzzy

logic (L.A.Zadeh, 1972) is used to extract the fea-

tures, which is more appropriate given the amount

of imprecision and ambiguity present in handwritten

symbols and also to reduce the amount of data to be

processed during the recognition phase. The feature

extraction result is encoded and used as the input to

the network. The isolated digit data base of UNIPEN

(Guyon and Janet, 1994) Train-R01/V07 is used to

train and test the network.

The paper is organised as follows. Section 2 gives

an overview of the feature extraction phase. In sec-

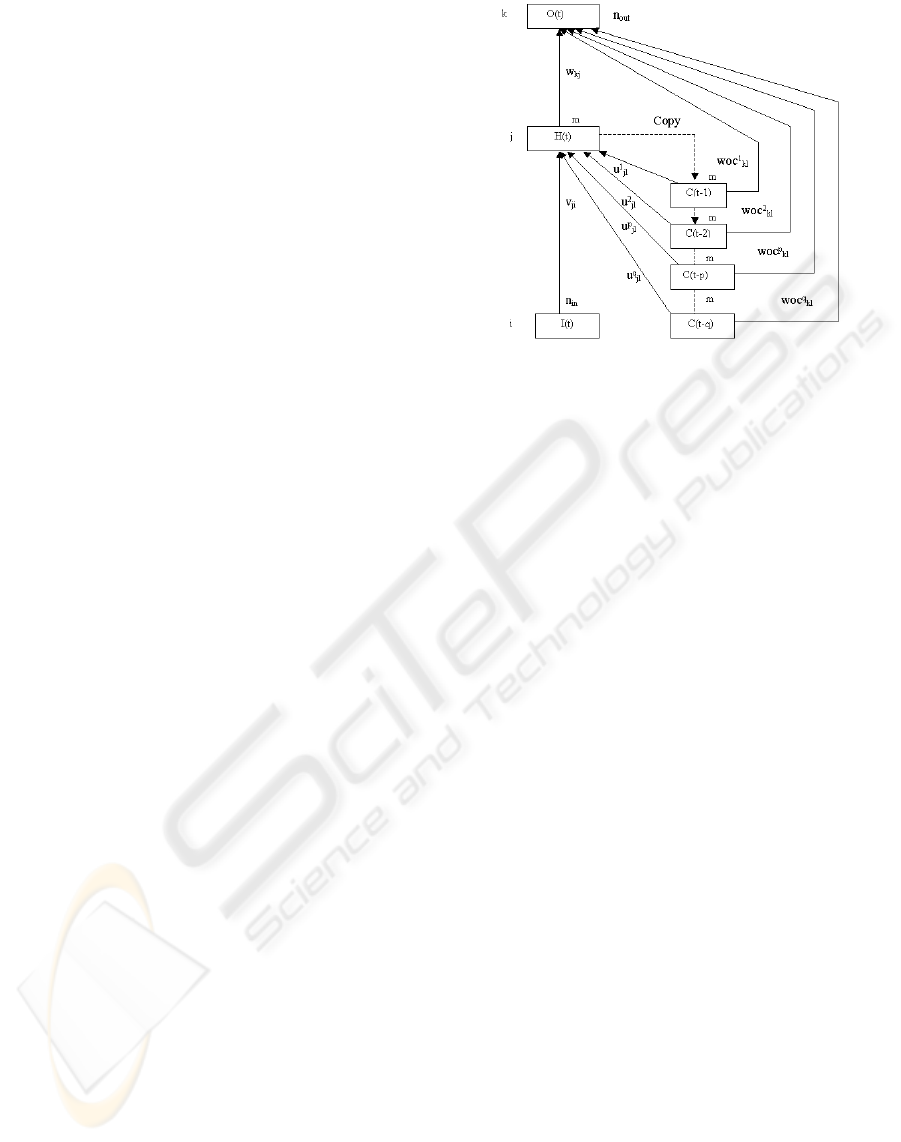

tion 3 the network architecture is presented. Section

4 describes the network learning algorithm. Section

5 shows experimental results and section 6 contains

conclusions and prospects for future work.

2 FEATURE EXTRACTION

Feature extraction is a process, which transforms the

input data into a set of features, which characterise the

input, and which can therefore be used to classify the

input. This process has been widely used in attempts

at automatic handwriting recognition (O. D. Trier and

Taxt, 1996). Due to the nature of handwriting with

its high degree of variability and imprecision, obtain-

ing these features is a difﬁcult task. A feature ex-

traction algorithm must be robust enough that for a

variety of instances of the same symbol, similar fea-

ture sets should be generated. Here we present a fea-

ture extraction process in which fuzzy logic is used

(J.A.Fitzgerald and T.Kechadi, 2004). Fuzzy logic is

particularly useful for extracting features from hand-

written symbols (Gomes and Ling, 2001) (Malaviya

and Peters, 1997), because a greater understanding

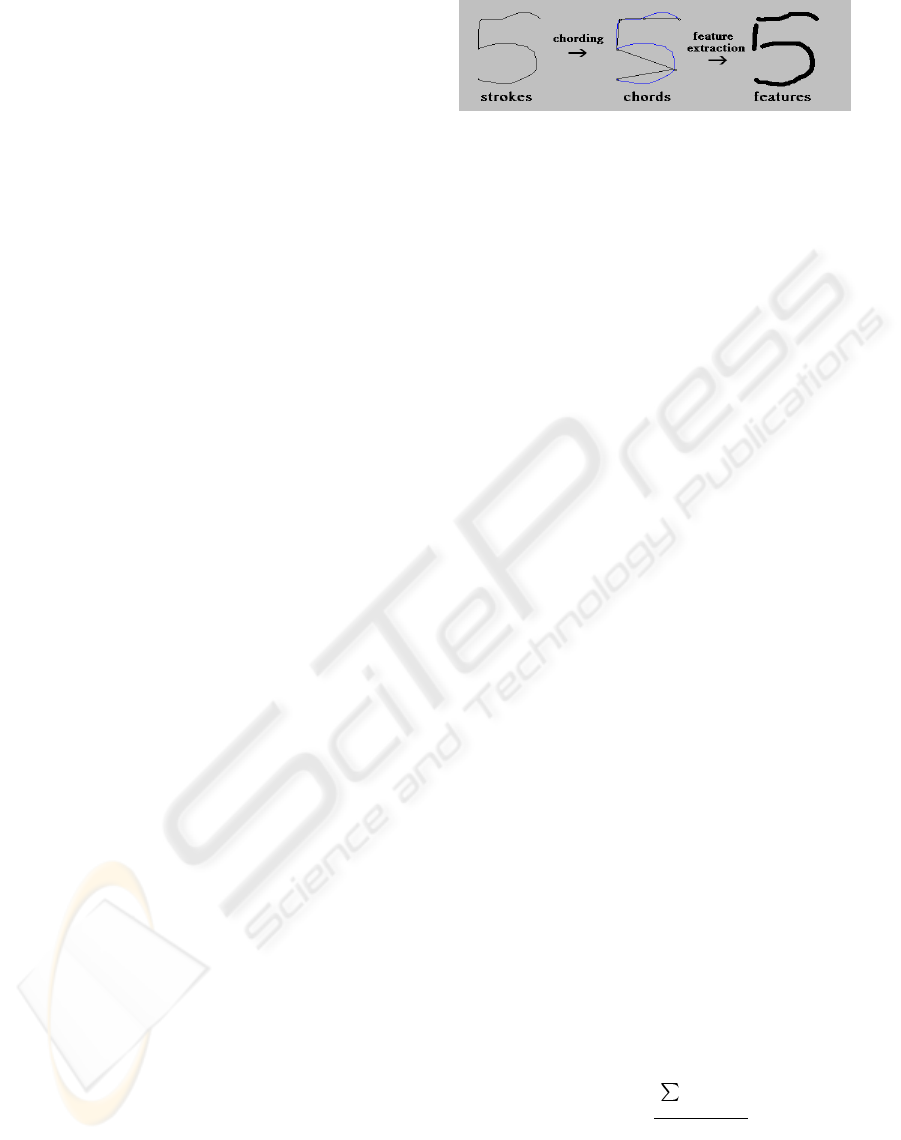

Figure 1: Example of a feature Extraction Process applied

on a digit 5

of what is present in the symbol is achieved and ul-

timately a more informed decision can be made re-

garding the identity of each symbol.

Chording Phase: Each handwritten symbol is rep-

resented by a set of strokes {s

, . . . , s

}, where each

stroke is a sequence of points. This raw input data

is rendered more suitable for feature extraction by

a pre-processing phase called chording. Chording

transforms each stroke s into a chord vector

−→

C =

, . . . , c

n−1

i, where each chord c

is a section of s

which approximates a sector of a circle. This phase

simpliﬁes the input data so that feature extraction

rules can be written in terms of chords rather than se-

quences of points. Furthermore, chording identiﬁes

the locations in the stroke where new features may

begin, so the number of sections of the stroke which

need to be assessed as potential features is reduced.

Feature Extraction Phase: The chord vectors

−→

, . . . ,

−→

i are the input to the feature extraction

phase, in which the objective is to identify the fea-

ture set for the symbol. The feature set will be the

set of substrokes F = {̟

, . . . , ̟

m−1

} encompass-

ing the entire symbol which is of a higher quality than

any other possible set of substrokes. Each substroke

is a sequence of consecutive chords {c

, . . . , c

}

from a chord vector

−→

= (c

, . . . , c

n−1

), where

0 ≤ a ≤ b ≤ n and 0 ≤ i ≤ v.

The quality of a set of substrokes, represented by

ζ(F ), is dictated by the membership of the substrokes

in F corresponding to feature types. We distinguish

three types of feature: Line, C-shape and O-shape.

The membership of a substroke ̟

in the set Line,

for example, is expressed as µ

Line

(̟

) or Line(̟

and represents the conﬁdence that varpi

is a line. In

the deﬁnition of ζ(F ) below, Γ is whichever of the

fuzzy sets Line, C-shape or O-shape ̟

has highest

membership in.

ζ(F ) =

m−1

j=0

(̟

)

(1)

Fuzzy Rules: The membership of a fuzzy set is

determined by fuzzy rules. The fuzzy rules in the

rule base can be divided into high-level and low-level

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

rules. The membership of a fuzzy set correspond-

ing to feature types is determined by high-level rules.

Each high-level fuzzy rule deﬁnes the properties re-

quired for a particular feature type, and is of the

form:

Γ(Z) ← P

(Z) ∩ . . . ∩ P

(Z) (2)

This means that the likelihood of a substroke Z be-

ing of feature type Γ is determined by the extent to

which the properties P

to P

are present in Z. The

membership of a fuzzy set corresponding to proper-

ties is determined by low-level fuzzy rules. In each

low-level rule the fuzzy value P

(Z) is deﬁned in

terms of values representing various aspects of Z. To

express varying degrees of these aspects we use fuzzy

membership functions such as the S-function (Zadeh,

1975).

The strength of our feature extraction technique

is therefore dependent on an appropriate choice of

requisite properties for each feature type, and low-

level fuzzy rules which accurately assess the extent

to which these properties are present. These proper-

ties and rules were continually updated and improved

over time until the memberships being produced for

the feature types were deemed accurate.

Algorithm: The fuzzy rules form the basis of a fea-

ture extraction algorithm, which determines the best

feature set using numerous efﬁciency measures. For

example, initial detection of the sharp turning points

in the symbol can lead to a signiﬁcant reduction in the

number of substrokes to be evaluated, on the basis that

such points usually represent boundaries between fea-

tures. Also, the investigation into a substroke being a

particular feature type halts as soon as an inappropri-

ate property is identiﬁed.

Example: For the symbol shown in Figure 1, the

effect of feature extraction is a partition of the in-

put

−→

C = {c

, . . . , c

} into a set of features F =

{(c

, c

), (c

, c

)}, where µ

Line

, c

) = 0.66,

Line

) = 0.98, and µ

Cshape

, c

) = 0.93.

Encoding the Feature Extraction Result: The

feature extraction result F must be encoded before

it can be used as input to the network. Each feature

̟ is represented by ﬁve attributes: type, orientation,

length, x-center and y-center, which are explained be-

low.

• Type: Whichever of the sets Line, C-shape or O-

shape ̟ has highest membership in. The numeric

value is 0 if ̟ is of type O-shape, 0.5 if its of type

Line and 1.0 if its of type C-shape.

• Orientation: If ̟ is of type Line, its orientation

is the direction in which it was drawn (between 0

◦

and 360

◦

). If ̟ is of type C-shape, its orientation

Figure 2: The network architecture

is the direction in which it is facing. Features of

type O-shape are assigned an orientation of 0

◦

• Length: The length of ̟ as a fraction of the sym-

bol length.

• X-centre: This value represents the horizontal po-

sition of ̟ within the symbol. The closer it is to

the right, the higher the value.

• Y-centre: This value represents the vertical posi-

tion of ̟ within the symbol.

3 THE RECURRENT NETWORK

A new recurrent neural network has been proposed by

(B.Q. Huang and Kechadi, 2004). It is based on the

Elman network type architecture (Elman, 1999). This

network is characterised by two key features. The net-

work is provided with a multi-context layer (MCL)

(Wilson, 1996), which plays a role of the network

memory. It allows the network to store more appli-

cation states. The second feature is the feed-forward

connectivity between the MCL and the output layer,

which can reduce the number of neurons in the hidden

layer (B.Q. Huang and Kechadi, 2004). The architec-

ture of this network is shown in Figure 2.

3.1 Basic notations and deﬁnitions

The following notations and deﬁnitions are used to

explain our network functionality.

• Net inputs and Outputs: Let n

, n

out

and m de-

note the number of input, output, and hidden layer

units respectively. Let n

con

be the number of active

context layers, and let the total number of context

A RECURRENT NEURAL NETWORK RECOGNISER FOR ONLINE RECOGNITION OF HANDWRITTEN

SYMBOLS

layers be denoted by q. The number of units in each

context layer is the same as in the hidden layer.

Let t be the current time step. I

(t) is the input

of neuron i in the input layer,

(t) is the input

of neuron j in the hidden layer, and ˜o

(t) is the

input of neuron k in the output layer. The output

of the hidden and output layers are H(t) and O(t)

respectively. The output of neuron l of a context

layer p is denoted by C

(t − p), and d

(t) is the

target of neuron k in the output layer.

• Connection weights: Let v

be the weight con-

nection from the input layer to the hidden layer and

be the weight connection from the p

context

layer to the hidden layer. Let woc

be the weight

connection from the p

context layer to the output

layer and w

be the weight connection from the

hidden layer to the output layer.

The selection of the network activation function

according to the application (Lawrence et al., 2000)

is very important for a successful implementation of

the network. For the symbol recognition the softmax

function and logistic function are selected as the ac-

tivation functions for the output layer and the hidden

layer respectively, written below:

) =

′

f(x

) =

1 + e

where x represents the i

net input, and N is the

total number of net inputs. The derivatives of the ac-

tivation functions can be written respectively as fol-

lows:

′

) = (1 − f

))f

)

′

) = (1 − f (x

))f(x

)

According to the architecture of the network, the

output of the hidden layer and the output layer are

calculated at every time step, while the outputs of the

context layers are obtained by shifting the information

from p to p + 1 for (p = 1 to q). The ﬁrst context

layer is updated by the hidden layer, as shown in Fig.

1. This is done in a feed-forward fashion:

1. The net input and output of the hidden layer units

are calculated respectively as follows:

(t) =

i=1

(t)v

(t)+

con

p=1

l=1

(t−p)u

(t) (3)

(t) = f(

(t)) (4)

where C

(t − p) are the outputs of the context

layers obtained by copying the output of its prede-

cessor. The context layer gets the previous output

of the hidden layer. The following equations sum-

marise this operation:

(t − p) = C

(t − p + 1), p = 2, ..., q (5)

(t − 1) = H

(t) (6)

2. The net input and output of the output layer are

given respectively as follows:

˜o

(t) =

j=1

(t)w

(t) +

con

p=1

l=1

(t − p)woc

(t)

(7)

(t) = f

(˜o

(t)) (8)

3.2 The Network and Markov Chain

Any system based on our network architecture pre-

dicts the current state depending on the previous states

window [(t − 1) → (t − p)]. When p = 1,

the network expresses a Markov chain model that

predicts the current state based only on the pre-

vious one. However, the Markovian assumption

of conditional independence is one of the limita-

tions. The network tries to predict a more accu-

rate current state based on more historical states.

Thus, the network expresses an extended probabil-

ity model based on Markov chain. The main fo-

cus is on the recurrent part of the network because

it plays a magic role when the system deals with se-

quence modeling tasks (Lawrence et al., 2000). In

an m-states Markov model (MM) (Rabiner, 1989)

for which the transition matrix is A = {a

} and

the distribution probability vector is Ξ([Obsq, t)) =

{ρ

(Obsq, t), ρ

(Obsq, t), · · · , ρ

(Obsq, t)]}, where

n is the length of the observation sequence Obsq, the

Markov chain equations can be written as

(Obsq, t + 1) =

i=1

(Obsq, t), j = 1, · · · , m. (9)

Ξ(Obsq, t + 1) = AΞ(Obsq, t), (10)

where A ≥ 0,

= 1. Let I(t) =

(t), · · · , I

(t)}, H(t) = {H

(t), · · · , H

(t)},

C(t − p) = {C

(t −p), · · · , C

(t −p)}, and O(t) =

(t), · · · , O

out

(t)}. We write the state-transition

and output functions, deﬁned by (3), (4), (7), and (8),

as:

H(t) = f (I(t), C(t − 1), · · · , C(t − p))

= f (I(t), H(t − 1), · · · , H(t − p))

(11)

and

O (t) = f

(H(t), C(t − 1), · · · , C(t − p))

= f

(H(t), H(t − 1), · · · , H(t − p))

(12)

According to the formulaes (3), (4), (5), (6) and

(11), the state-transition map f can be written as a

set of maps parameterised by input sequence s as fol-

lows:

(x) = f(φ

(s), · · · , φ

(s), x) (13)

Given an input sequence S = {s

, s

, · · · , s

}, the

current state after t step is

H(t) = f

···s

(H(0)) = f

(H(0)) (14)

When p = 1, the above formulae (11), (12), (13),

and (14) are re-written respectively as follows:

H(t) = f(I(t), H(t − 1)) (15)

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

O (t) = f

(H(t), H(t − 1)) (16)

(x) = f(φ

(s), x) = f(φ

(s), x) (17)

H(t) = f

···s

(H(0)) = f

(H(0)) (18)

For p = 1, the current state (at time t) of the sys-

tem depends only on the previous state (at time t − 1).

The equations (15), (17), and (18) express the prop-

erty of a Markov chain (see equations (9) and (10)).

However, when p > 1 the current state (at time t) de-

pends on more historical states, which are stored in

the previous states window [(t− 1) → (t −p)], which

is out of the Markovian assumptions of conditional

independence. Therefore, for p > 1, the system is ex-

pressed as a general probability or stochastic model,

within a given time window.

3.3 The Network Dynamics

The network is designed such that, given a set of fea-

tures it attempts to predict the associated symbol. It-

eratively, for each input symbol an ordered sequence

of features are fed to the network. For each feature,

the network generates ten outputs expressed as pre-

diction rates for all the associated symbols. Note that

if probabilities of each feature are used to track the

procedures of the digit prediction, and the maximum

output probability of the last feature is used to identify

the digit, then the network works in a similar fashion

to Markov chains to solve grammar problem. Firstly,

according to a given feature, the network estimates a

score for each digit (see Table 1). When the last fea-

ture was presented, the output symbol was identiﬁed

according to the highest score that results in ﬁring its

corresponding neuron. The Table 1 shows an exam-

ple of how the symbol 5, with three features, is recog-

nised. The scores were given, in percentage, for each

symbol (or output neuron) expressing if the feature is

present. When the last feature was presented to the

network the highest score is returned by the neuron

number 5, recognising the digit 5.

Table 1: The output conﬁdence levels of the tested symbol

The output probabilities with associated all digits (%)

0 1 2 3 4 5 6 7 8 9

0 4.2 10.9 34.4 0 5.3 0 44.9 0 0.3

0 7.7 4.4 3.1 0 73.8 0 10.3 0.1 0.7

0.4 25.8 1.4 1.7 0 67.3 0 0.4 3.0 0

4 THE NETWORK LEARNING

ALGORITHM

The common training algorithms usually used for re-

current network (RNN) are based on the gradient de-

scent method to minimise the error output. With

Back-propagation through the time (BPTT) (Wer-

bos, 1990; R.J.Williams and Zipser, 1995) one needs

to unfold a discrete-time RNN and then applies the

back-propagation algorithm. However, BPTT fails to

deal with long sequence tasks due to the large mem-

ory required to store all states of all iterations. The

RTRL learning algorithm established by (Williams

and Zipser, 1989) for a fully recurrent network com-

putes the derivatives of states and outputs with re-

spect to all weights at each iteration. It can deal

with sequences of arbitrary length, and requires less

memory storage proportional to sequence length than

BPTT. The recognition of handwritten symbols is a

lengthy task, therefore we update the learning algo-

rithm (B.Q. Huang and Kechadi, 2004) which is simi-

lar to RTRL, according to the gradient descent method

for this network.

The choice of a cost function for the cross-entropy

measure should be based on the type of classiﬁcation

problem (Lawrence et al., 2000). When classifying

handwritten symbols the network output is a range of

conﬁdence values, so this is a multinomial classiﬁca-

tion problem. Therefore, the cross-entropy error for

the output layer is expressed by the following:

E(t) = −

out

k=1

(t) ln O

(t) (19)

The goal is to minimise the total network cross-

entropy error. This can be obtained by summing the

errors of all the past input patterns:

total

t=1

E(t) (20)

Up to this point we have introduced how the net-

work works and is evaluated. Now, we use the gradi-

ent descent algorithm to adjust the network parame-

ters, called the weight matrix W . Firstly, we compute

the derivatives of the cross-entropy error for each net

input of the output layer, the hidden layer, and the

context layer. These are called local gradients. The

equations for the output layer, hidden layer, and con-

text layer are written respectively as follows:

(t) = d

(t) − O

(t) (21)

(t) =

out

k=1

(t)w

(t) (22)

(t) =

out

k=1

(t)woc

(t) (23)

The partial derivatives of the cross-entropy error

with regard to the weights between the hidden and

output layers (w

(t)) and the weights between out-

put layer and multi-context layer (woc

(t)) are as fol-

lows:

∂E(t)

∂w

(t)

= LG

(t)H

(t) (24)

∂E(t)

∂woc

(t)

= LG

(t)C

(t − p) (25)

A RECURRENT NEURAL NETWORK RECOGNISER FOR ONLINE RECOGNITION OF HANDWRITTEN

SYMBOLS

The derivation of the cross-entropy error with re-

gards to the weights between the hidden and multi-

context layer is

∂E(t)

∂u

(t)

= −

′

(t)

∂H

′

(t)

∂u

(t)

con

′

r=1

′

(t)δ

′

∂H

′

(t − p

′

)

∂u

(t)

(26)

where

∂H

′

(t)

∂u

(t)

= f

′

(

′

(t))

′

con

′′

(t − p

′′

) +

con

′

′′

′

(t)δ

′

′′

∂H

′′

(t − p

′

)

∂u

(t)

(27)

and δ is the Kronecker symbol deﬁned by

0 when a 6= b

1 when a = b

The partial derivative of the cross-entropy error

for the weights between hidden layer and input layer

∂E(t)

∂v

(t)

can be expressed by:

∂E(t)

∂v

(t)

= −

′

(t)

∂H

′

(t)

∂v

(t)

con

′

l=1

′

(t)δ

′

∂H

′

(t − p

′

)

∂v

(t)

(28)

and

∂H

′

(t)

∂v

(t)

= f

′

(

′

(t))

′

(t) +

con

′

′′

l=1

′

∂H

′′

(t − p

′

)

∂v

(t)

(29)

Note that C

′

(t − p

′

) is equal to H

′

(t − p

′

). The

initial conditions are deﬁned at t = 0;

∂H

′

(0)

∂u

(0)

∂H

′

(0)

∂v

(0)

= 0

The momentum technique (Fausett, 1994) is invoked

to avoid the system to be trapped in local minimums

by re-estimating the change weights as follows:

△w

(t) = µ

∂E(t)

∂w

(t)

+ β∆w

(t − 1) (30)

where µ and β are the learning rate and momentum

respectively. At time t = 0, all the change weights

are set to zero (∆w

(0) = 0). The weights are then

adjusted accordingly.

(t + 1) = w

(t) + ∆w

(t) (31)

According to this model, the computation cost of

the overall updating weights is Θ(q(mn

out

+ m

) +

) for each t. The complexity depends mainly

on the number of hidden units. The number of con-

text layers also affects the complexity, however, this

is usually kept reasonably small. If q = 1, m = n

out

and n

= n

out

, the network complexity is Θ(3n

out

which is less than Θ(n

out

) of RTRL.

5 EXPERIMENTAL RESULT

We evaluated the network’s performance on handwrit-

ing recognition application. This evaluation was car-

ried out in two steps. In the ﬁrst step, we compared

our network to Elman network on a small handwriting

recognition problem. The goal here is to ﬁnd out how

this new network performs at a smaller scale with re-

gards to other networks. We compare out network to

Elman one because they share some important archi-

tectural features. The new network was trained using

the new proposed learning algorithm, while the El-

man network was trained with truncated gradient de-

scent technique (M.A. Castao, 1997), which is suited

for it and for this application. In the second step, we

evaluated our network performance on a larger prob-

lem and studied some of its parameters such as the

size of hidden layer. The problem is to recognise ten

digits symbols (0, · · · , 9). We extracted the training

and testing dataset from section ”1a” of Unipen Train-

R01/V07 (Guyon and Janet, 1994).

For this comparative and performance studies, both

networks are composed of ﬁve input neurons, which

correspond to the ﬁve attributes of a stroke feature de-

termined in feature extraction phase. These attributes

were normalised and assigned to input neurons (one

per input neuron). The number of output neurons

is equal to the number of classiﬁcations that should

be made, so that the neuron is ﬁred only if its corre-

sponding target (symbol) is recognised. As discussed

in section 3, a softmax function (3) is used as an acti-

vation function for the output layer and the error func-

tion (19) is used for the cross-entropy error measure

of the network. The number of neurons in each con-

text layer is equal to the number of the neurons in

the hidden layer. The optimal number of context lay-

ers and the number of hidden neurons depends on the

extracted features, practical experience, and the ap-

plication. The number of hidden neurons is always a

crucial parameter that can affect directly the network

performance in terms of accuracy and architecture op-

timisation. Generally, more hidden neurons the net-

work has, higher is the recognition rate (see Table 1).

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

However, the computing overhead also increases dur-

ing the training phase. This parameter depends highly

on the application and features. For this application,

the number of context layers is 1 or 2, due to the small

number of extracted features using our fuzzy feature

extraction technique.

In order to compare the two networks, we trained

both networks on the same training set and tested

them on the same test set. The problem is to recognise

(classify) any input symbol into one of three symbols

used for this purpose. The learning rate was 0.1, mo-

mentum parameter was 0.02. The size of the training

set was 271×3 and the size of the test set was 472× 3

handwritten symbols. Our network is trained faster

and more stable because the generated mean square

errors, decrease faster and are smoother than Elman

network (see Figure 3); Our network generates higher

recognition rates than Elman network does (see Table

2). Note that the number of hidden units is 15 for both

networks. This corresponds to the minimum number

of hidden units for a recognition rate of 90% average

(B.Q. Huang and Kechadi, 2004).

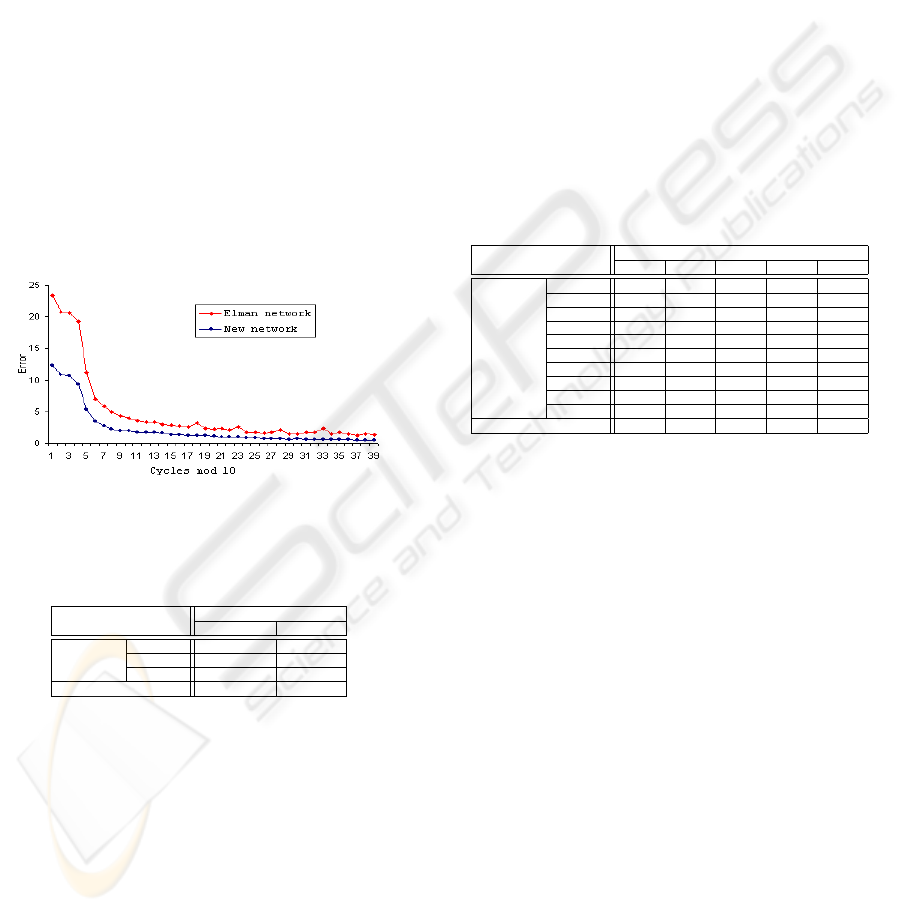

Figure 3: The error tracks of trained Elman network and our

network

Table 2: The recognition rate of both networks for 3 digits

15 hidden neurons

Elman NET. new NET.

Digit 0 89.14 92.30

rec. 1 83.51 85.50

rate(%) 2 97.37 99.54

Ave. Rec Rate(%) 90.01 92.45

In this experiment we wanted to study the effect

of the number of hidden units on the network per-

formance on a bigger problem. The problem here is

to recognise a symbols between 0 to 9. The size of

the training set is 695 × 10 symbols taken from sec-

tion ”1a” in Unipen Train-R01/V07. The network is

trained step by step; e.g. for every 50 training cy-

cles we add another set of digits, until all the training

data has been added. The selected range of learning

rate is from 0.01 to 0.8, and the momentum range

is from 0.002 to 0.09. Their initial values are set to

the maximum allowed and during the training phase

they were decreased according to the learning algo-

rithm used. For instance, for the ﬁrst 50 cycles of the

training phase, the learning rate is varied from 0.3 to

0.1, and the momentum is changed from 0.03 to 0.01.

Thus, the local minima are avoided, and the network

is trained faster.

The test set is of the same size of the training set

(695 × 10). The network with different layer con-

ﬁgurations is tested and the results are presented in

table 3. We notice that when the network used more

hidden units, the recognition rate is slightly higher.

This is because that the network has no control on

the pre-processing phase (feature extraction phase).

Some features were not optimised and therefore the

error is propagated to the network. When the features

are very represented the network achieves 100% ac-

curacy. We can notice also that 20 hidden neurons

are sufﬁcient to reach an accuracy of 91% and a 40

hidden neurons to get an extra 5% accuracy.

Table 3: The recognition rate of each digit and the average

recognition rate of all the digits from each network conﬁg-

uration

Hidden neurons

20 25 30 35 40

0 92.80 95.68 94.10 95.54 96.26

1 90.93 93.38 93.52 95.10 94.10

2 88.20 91.94 91.08 96.40 96.12

Digit 3 92.09 95.25 97.98 96.12 96.98

Rec. 4 91.80 92.52 93.53 94.53 95.11

Rate 5 89.49 92.66 94.53 90.94 92.23

(%) 6 94.96 93.09 94.82 97.41 97.12

7 93.24 92.66 94.10 94.10 95.97

8 88.20 89.93 93.53 94.10 91.08

9 87.91 93.09 91.08 93.52 93.52

Ave. Rec Rate(%) 90.96 93.02 93.82 94.77 94.85

6 CONCLUSION & FUTURE

WORK

We presented an innovative approach for handwriting

recognition. This approach is composed of two main

techniques tackling different problems present in pat-

tern recognition applications. The ﬁrst technique

deals with feature extraction, in which the output is

fed to the second which is the recognition process.

The ﬁrst technique is based on fuzzy logic and the sec-

ond is a recurrent neural network, whose advantages

are strong discriminative power for pattern classiﬁ-

cation and less computational overhead than RTRL.

This hybrid technique is proven to be very powerful

and efﬁcient. In this paper we focussed on the second

process.

The network uses a dynamic learning algorithm

based on the gradient descent method. Experimen-

tal results, using benchmark datasets from Unipen,

show that the network is very efﬁcient for a reason-

able number of hidden units. We believe that the

recognition rate will be improved if network architec-

ture is optimised and the features are generated taking

A RECURRENT NEURAL NETWORK RECOGNISER FOR ONLINE RECOGNITION OF HANDWRITTEN

SYMBOLS

into account the network architecture. There are also

some other issues that we will be our main focus in

the near future, such as the recognition of a bigger

set of symbols. The technique was implemented and

tested only for digits and we would like to study its

scalability with regards to the number of symbols to

be recognised and its computational overhead. Fur-

thermore, we will continue to explore and implement

different context layers and study their behaviour.

REFERENCES

B.Q. Huang, T. R. and Kechadi, T. (2004). A new mod-

ifed network based on the elman network. In Proc. of

IASTED Internation Conferance on Artiﬁcial Intelle-

gence and Application, Innsbruck, Austria.

C.C.Tappet (June 1984). Adaptive on-line handwriting

recognition. In Proc. 7th Int. conf. on Pattern Recog-

nition, pages 1004–1007, Montreal, Canada.

Elman, J. (1999). Finding structure in time. Cognitive Sci-

ence, 14(2):179–211.

Fausett, L. (1994). Fundamentals of Neural Networks. En-

glewood Cliffs, NJ: Prentice Hall.

Gomes, N. and Ling, L. L. (2001). Feature extraction based

on fuzzy set theory for handwriting recognition. In

ICDAR’01, pages 655–659.

Guyon, I., S. L. P. R. L. M. and Janet, S. (Oct, 1994).

Unipen project of on-line data exchange and recog-

nizer benchmarks. Proc. of the 12th International

Conference on Pattern Recognition,ICPR’94, pages

29–33.

J.A.Fitzgerald, F. and T.Kechadi (May 2004). Feature ex-

traction of handwritten symbols using fuzzy logic. In

The Seventeenth Canadian Conference on Artiﬁcial

Intelligence, pages 493–498.

J.Hu, M. and W.Turin (Oct, 1996). Hmm based on-line

handwriting recognition. IEEE Trans. Pattern Analy-

sis and Machine Intelligence, 18(10):1039–1045.

Lawrence, S., Giles, C. L., and Fong, S. (2000). Natural

language grammatical inference with recurrent neural

networks. IEEE Trans. on Knowledge and Data Engi-

neering, 12(1):126–140.

L.A.Zadeh (1972). Outline of a new approach to the analy-

sis of complex systems and decision processes. In

Man and Computer, pages 130–165.

L.R. Bahl, F. and Mercer, R. (March 1983). A maximum

likelihood approach to continuous speech recognition.

IEEE Trans. Pattern Analysis and Machine Intelli-

gence, 5(3):179–190.

M. Schnekel, I. G. and Henderson, D. (April 1994). On-line

cursive script recognition using time delay networks

and hidden markove models. In Proc. ICASSP’94,

volume 2, pages 637–640, Adelaide,Australia.

M.A. Castao, F. C. (1997). Training simple recurrent net-

works through gradient descent algorithms. In Lecture

Notes in Comp. Sci.: Biological & Artiﬁcial Computa-

tion: From Neuroscience to Technology, volume 1240,

pages 493–500. Springer Verlag.

Malaviya, A. and Peters, L. (1997). Fuzzy feature descrip-

tion of handwriting patterns. Pattern Recognition,

30(10):1591–1604.

O. D. Trier, A. K. J. and Taxt, T. (1996). Feature extrac-

tion methods for character recognition - a survey. In

Pattern Recognition, pages 641–662.

Plamondon, R. and Maarse, F. J. (May 1989). An evaluation

of motor models of handwriting. IEEE Trans. systems

Man, and Cybernetics, 19:1060–1072.

Rabiner, L. (Feb 1989). A tutorial on hidden markov models

and selected applications in speech recognition. Proc.

of the IEEE, 77(2).

R.J.Williams and Zipser, D. (1995). Gradient-based learn-

ing algorithms for recurrent networks and their com-

putational complexity. In Chauvin, Y. and Rumelhart,

D. E., editors, Back-propagation: Theory, Architec-

tures and Applications, chapter 13, pages 433–486.

Lawrence Erlbaum Publishers, Hillsdale, N.J.

S. Bercu, G. L. (May 1993). On-line handwritten word

recognition: An approach based on hidden markov

models. In Proc. 3r Int.Workshop on frontiers in

Handwriting Recognition, pages 385–390, buffalo,

New York.

Schomaker, L. R. B. and Tteulings, H.-L. (April 1990). A

handwriting recognition system based on the prop-

erties and architectures of the human motor system.

In Proc. Int. Workshop on frontiers in Handwriting

Recognition, Montreal, pages 195–211.

S.E. Levinson, L. R. and Sondhi, M. (April 1983). An into

the application of the theory of probabilistic functions

of a markov process to automatic speech recognition.

Bell System Technical Joural, 62(4):1035–1074.

Seni, G. and Nasrabadi, N. (1994). An on-line cursive word

recognition system. In CVPR94, pages 404–410.

Subrahmonia, J. and Zimmerman, T. (2000). Pen comput-

ing: Challenges and applications. In Proc. ICPR 2000,

pages 2060–2066.

T.Wakahara and K.Odaka (Dec. 1997). On-line cursive

kanji character recognition using stroke-based aﬁne

transformation. IEEE Trans. Pattern Analysis and Ma-

chine Intelligence, 19(12).

Werbos, P. J. (1990). Backpropagation through time: what

it does and how to do it. In Proc. of the IEEE, vol-

ume 78, pages 1550–1560.

Williams, R. and Zipser, D. (1989). A learning algo-

rithm for continually running fully recurrent neural

networks. Neural Computation, 1(2):270–280.

Wilson, W. H. (1996). Learning performance of networks

like elman’s simple recurrent netwroks but having

multiple state vectors. Workshop of the 7th Australian

Conference on Neural Networks, Australian National

University Canberra.

Zadeh, L. (1975). Calculus of fuzzy restrictions. In Fuzzy

Sets and Their Applications to Cognitive and Decision

Processes, pages 1–39, Academic Press, NY.

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS
