ASPECT IPM: TOWARDS AN INCREMENTAL PROCESS

MODEL BASED ON AOP FOR COMPONENT-BASED SYSTEMS

Alexandre Alvaro, Eduardo Santana de Almeida , Silvio Romero de Lemos Meira

Federal University of Pernambuco and C.E.S.A.R – Recife Center for Advanced Studies and Systems

Daniel Lucrédio, Vinicius Cardoso Garcia, Antonio Francisco do Prado

Computing Department – Federal University of São Carlos, Brazil

Keywords: Incremental Process Model, Reuse, Components, Aspect-Oriented Programming.

Abstract: In spite of recent and constant researches in the Component-Based Development area, th

ere is still a lack for

patterns, processes and methodologies that effectively support either the development “for reuse” and “with

reuse”. This paper presents Aspect IPM, a process model that integrates the concepts of component-based

software engineering, frameworks, patterns, non-functional requirements and aspect-oriented programming.

This process model is divided in two activities: Domain Engineering and Component-Based Development.

An aspect-oriented non-functional requirements framework was built to give support in these two activities.

1 INTRODUCTION

One of the most compelling reasons for adopting

component-based approaches is the premise of

reuse. The idea is to build software from existing

components primarily by assembling and replacing

interoperable parts. The implications for reduced

development time and improved product quality

make this approach very attractive (Krueger, 1992).

In this sense, one of the most important approaches

for achieving reuse is the Component-Based

Development (CBD).

In order to make reuse effective, it must be

con

sidered in all phases of the software development

process (Krueger, 1992), (Jacobson, et al., 1997),

(Heineman, et al., 2001), (Szyperski, 2002).

Therefore, CBD must offer methods and techniques

that support different activities, from the

components identification and specification to their

design and implementation in a component-oriented

language. Besides, CBD must use interrelations

among components already in existence, which has

been previously tested, aiming to reduce the

complexity and the development costs.

Another important point to reach these benefits is

he Non-Functional Requirements (NFRs) treatment.

Unfortunately, NFRs many times are not considered

in components development activities. There are

some reasons that can help us to understand why

these requirements are not explicitly dealt with

(Rosa, 2001). In particular, developers find it very

difficult to deal with different NFRs because they

often compete with each other and with the

functional requirements. When proper treatment is

not given to NFRs, these conflicts may lead to

several problems, such as low modularity and code

interlacement.

To help to overcome the difficulties of treating

fferent NFRs, Aspect-Oriented Programming

(AOP) (Kiczales, et. al., 1997) may be a good

choice. With AOP it is possible to create, for the

functional requirements, a group of components

expressed in a programming language (e.g. Java),

and for the NFRs, a group of aspects, related to the

properties that affect the application’s behaviour.

Using AOP, the NFRs can be easily manipulated,

without causing impact in the business code, since

these codes are not interlaced in several units of the

system. Besides, AOP can facilitate the reuse of the

NFRs, requiring little or no modification, since they

are isolated from the rest of the code.

In order to aid the Software Engineer in the

tegration of the NFRs into design decisions during

the software development process, a framework may

be used to represent, organize and analyze NFRs

226

Alvaro A., Santana de Almeida E., Romero de Lemos Meira S., Lucrédio D., Cardoso Garcia V. and Francisco do Prado A. (2005).

ASPECT IPM: TOWARDS AN INCREMENTAL PROCESS MODEL BASED ON AOP FOR COMPONENT-BASED SYSTEMS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 226-232

DOI: 10.5220/0002514302260232

 SciTePress

(Mylopoulos, et. al., 1992), increasing quality and

reducing time and costs.

In this context, motivated by ideas of reuse, CBD,

NFRs and AOP, this work proposes and evaluates

Aspect IPM, an Incremental Process Model based on

AOP for Component-Based Systems.

2 ASPECT IPM

In order to enable CBD with aspect-oriented support

for NFRs, an Incremental Process Model (Aspect

IPM) was defined. An overview of this process

model can be found in (Alvaro, et al., 2004).

The Aspect IPM is divided in two activities. In

the first activity, Domain Engineering (DE), the

problem domain requirements are identified and

organized in a series of reusable information.

Software components are specified, designed –

including the NFRs design, which were performed

through aspect-oriented NFRs framework support –

and tested, being then stored into a repository. In the

next activity, Component Based Development

(CBD), the software engineer may build applications

that reuse these components, consulting the

repository to find and reuse them. Still, the aspect-

oriented NFRs framework aids the software engineer

in the application development.

2.1 Domain Engineering (DE)

Domain Engineering (DE) has been one of the most

used approaches to enable reuse-based development

(Griss, et al., 1998). It involves the identification and

development of reusable assets within an application

or a domain (Griss, 1997).

The software development based on DE allows

the production of applications through accumulated

knowledge (i.e. activity of collecting, organizing,

and storing past experience in building systems) in a

particular domain, as well as providing an adequate

means of reusing these assets (i.e. retrieval,

dissemination, adaptation, assembly, and so on)

when building new systems (Jacobson, et al., 1997).

In Aspect IPM, the Domain Engineering is

performed in four phases: Domain Analysis, Domain

Design, Domain Implementation and Domain Tests

and Deployment, according to Figure 1. Each phase

contains some steps that aid the Software Engineer

in the DE. A detailed description of each phase of

the Domain Engineering activity is presented next.

2.1.1 Domain Analysis

In this first phase, emphasis is placed on

understanding the problem domain and specifying

“what” the components must do to solve the

problem. All the possible information, including any

kind of textual specifications, such as informal

requirements descriptions and interviews

transcriptions, is identified and organized to become

more reusable in new developments (Prieto-Diaz,

1990), creating a well defined reuse infra-structure

that allows the specification and the implementation

of applications inside a defined scope (Arango,

1988). As shown the Figure 1, some techniques and

models are used in this step in order to modeling, in

a high abstraction level, the domain problem.

2.1.2 Domain Design

In this second phase, the software engineer refines

the specifications from the previous steps, aiming to

obtain the components specifications, but without

worrying with the implementation details. As shown

the Figure 1, some techniques and models are used

to improve the problem understanding, looking for a

solution for the problem.

Until this moment, the components with their

interfaces were specified and the components

contain only specifications about the functional

requirements. Next, the NFRs must be specified. To

facilitate this task, an Aspect-Oriented NFRs

Framework was constructed. Next, this framework is

presented.

2.1.2.1 Aspect-Oriented Non-Functional

Requirements Framework

Given the problems related to NFRs, described in

Section 1, an Aspect-Oriented NFRs Framework

was constructed for dealing with NFRs in the

software development process, reducing time and

costs, and helping to achieve the main quality

Figure 1: Domain Engineering Activity

ASPECT IPM: TOWARDS AN INCREMENTAL PROCESS MODEL BASED ON AOP FOR COMPONENT-BASED

SYSTEMS

227

attributes wanted by the customer, such as reliability

and performance.

Another motivation is the need to avoid the code

interlacement between functional and non-functional

requirements. To accomplish that, the Separation Of

Concerns (SOC) (Kiczales, et. al., 1997) principles

was applied, through AOP, in the framework

development.

The constructed framework deals with six NFRs:

exception handling, distribution, persistence, fault

tolerance, caching and security. Although there are

others important requirements that are not

considered in this work, such as concurrence control

and load balance, these six are quite common in

most of the software systems, being therefore

essential to a NFRs framework.

This framework is still under construction, and

some packages are not fully implemented. More

information can be found in (Alvaro, et. al., 2003).

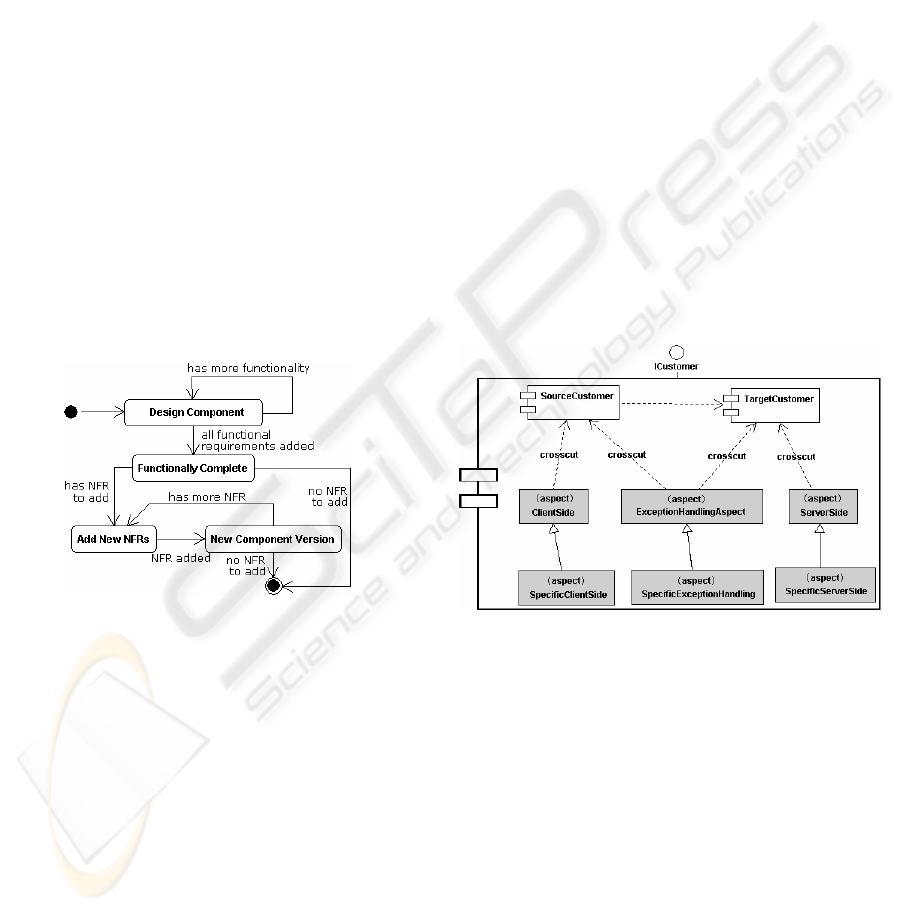

To integrate the NFRs, the packages of the

framework are added in an incremental way. First

the functional requirements are designed. Once the

component is functionally complete, if there are any

NFRs to be added, each one is designed and added

to the component, generating new component

versions until it is complete, as shows Figure 2.

Once all the components are designed, with the

functional and NFRs defined, it is necessary to

describe them, in order to provide a good basis for

their reuse. The objective is to provide to the

software engineer enough information so that the

components are correctly reused. This includes some

information, such as the name of the responsible

engineers and developers, the key words to aid in

component search, information related to the

modifications occurred in the component, the NFRs

integrated with the component, etc. All these

information is stored together with the component in

the repository. After all components are described

and implemented, the domain may be then

implemented in an executable language.

2.1.3 Domain Implementation

In this phase, the software engineer defines the

programming language to perform the components

codification, and the distribution technology – if

required. The code related to the functional and non-

functional requirements is separately constructed.

Since Aspect IPM is based on AOP, it is easy to

integrate these different-purpose codes.

Figure 3 shows an example of a component that

implements distribution and exception handling

NFRs, to deal with operations related to a generic

customer. To implement the aspects, an aspect-

oriented language, such as AspectJ (Eclipse Project,

2003), was used. According to Figure 3, the

Customer component involves aspects that isolate

the distribution technology and the exception

treatment. Before, an important point to consider is

the AOP notation presents in the Figure 3 (and in

Figure 7). As not exists a well-define notation to

adopt in literature (Clarke, et. al., 2002), we will

represent aspects through UML stereotypes.

However, our research group is defining an AOP

notation for UML that will be aids the software

engineer in this kind of representation.

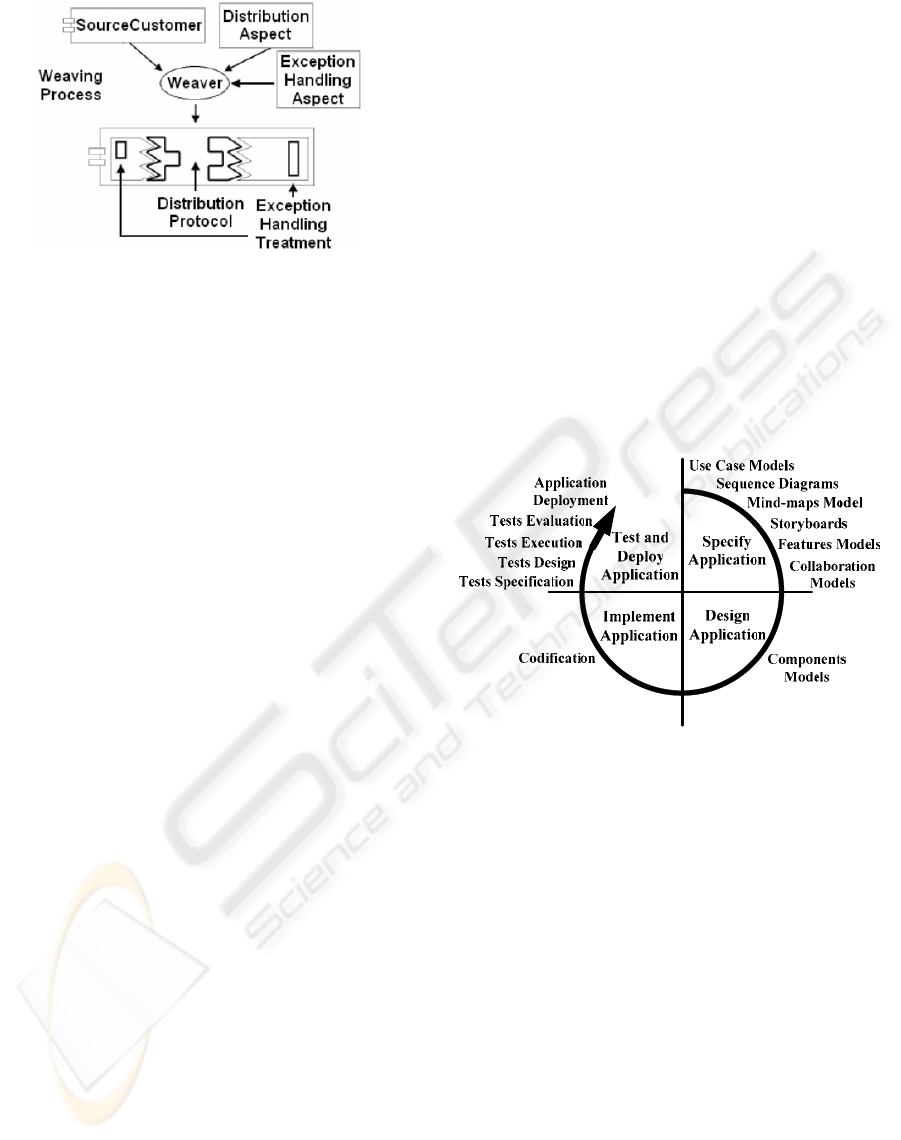

Using AOP it is possible to modularize the NFRs,

keeping their code separated from the functional

code. It is also possible to introduce changes without

modifying the source code. For example, to change

from CORBA to RMI, it is only necessary to

develop a new aspect and integrate it with the

functional code. This integration is automatically

performed, through the process called weaving

(Kiczales, et. al., 1997), shown in Figure 4.

Figure 2: Adding NFRs.

Figure 3: Customer Component

The weaver is a compiler that, given the

functional code (SourceCustomer) and a group of

aspects (Distribution and Exception Handling

aspects), a version of the component with these

aspects is generated.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

228

2.1.4 Domain Tests and Deployment

Testing is an important concern to assure software

quality. However, in this case, we will take in

consideration the fact that aspects affect the

component behavior. In order to determine whether

an aspect is hostile or not, there needs to be some

concept of what constitutes correct behavior for a

component. Any aspect that interferes with the

correctness of an underlying component can then be

deemed hostile.

To ensure correct behavior, a component needs to

be checked conforms its pre- and post-conditions to

establish the range of acceptable behavior. When an

aspect intercept the component execution flow, the

component needs to test its pre- and post-conditions

before the message returns, looking for to ensure

that the component behavior still holds.

In order to reach this objective, the component

tests are performed at two levels: individual

components with their aspects and consistency

within a domain.

i. Within a domain, each component with their

aspects is individually tested by building tests

application around the component that allows the

component’s and aspect’s functionalities to be

exercised. Thus, whatever time that the aspect

intercept or returns the execution flow to a

component is verified the pre- and post-conditions in

order to analyze if the component behavior was kept.

ii. Then, tests to verify the internal consistency

between components of a domain are accomplished.

After the domain tests, the last step is to release

the component to the repository. This task has to

assure that the component is packaged in a form to

be used on applications development in the future,

together with all the information needed for reuse.

In this moment, the components are ready to be

deployed in an execution environment. In the second

activity of the Aspect IPM, the software engineer

may develop applications, reusing the components

that were built in this first activity.

2.2 Component-Based Development

(CBD)

This second activity guides the software engineering

during the construction of an application that reuses

the components developed in the first activity.

Figure 5 presents the phases for CBD activity. It

starts with the application requirements and

proceeds with the normal life cycle development.

The application is constructed in an incremental

way, with the functionalities being added during the

iterations of the process. To implement these

functionalities, the software engineer consults the

repository, which contains the constructed

components of the problem domain. Next, each

phase is briefly discussed.

Figure 4: Weaving process

Figure 5: Application Development.

2.2.1 Specify Application

In this first phase, specifications are created in order

to understand the problem and “what” should be

made to solve the problem. Use case models,

sequence diagrams and informal textual descriptions

are created to understand the application

requirements.

To aid in this task, the domain models that were

built in the first activity of Aspect IPM can be

reused. Mind maps, features model, storyboards,

collaboration models and use case models contain

much of the knowledge related to the domain, and

constitute an important information basis for the

software engineer. These models may be reused and

modified to help in specifying the application.

Once the application is specified, the software

engineer moves to the next step, where the design is

performed.

ASPECT IPM: TOWARDS AN INCREMENTAL PROCESS MODEL BASED ON AOP FOR COMPONENT-BASED

SYSTEMS

229

2.2.2 Design Application

In this second phase, emphasis is put on “how” to

solve the problem that was defined in the previous

phase. Here, the components of the domain can be

reused to perform the design. Figure 6 shows how

the components are integrated into the design.

In the first step (1), the software engineer

searches for available components that are likely to

be used in the application being designed. Several

techniques can be used to aid in the search for

components, ranging from mechanisms based on key

words or introspection, to more complex

mechanisms based on ontologies (Braga, 2000) and

software agents (Ye, et. al., 2002).

In the second step (2), the software engineer

verifies the applicability of the components, since

not all the components recovered in the first step can

be applied to the situation. Consequently, they have

to be analyzed to allow an effective reutilization. If

the component is directly applicable, it goes to the

last step (4), without any adaptation.

Normally the components stored in the repository

require some adaptations or customizations (3). In

this step, the software engineer identifies and

performs the necessary changes in the components.

The last step (4) consists in the components

composition. After the first three steps are

accomplished, the software engineer defines the

dependencies and establishes the inter-relationship

between the components. If needed, the software

engineer may return to the first step to identify more

components to compose the application.

After the existing components are identified and

composed, the software engineer completes the

design with new application-specific components.

As happens in the first activity of Aspect IPM, the

NFR Framework may be used to design the NFRs.

The components model of Figure 7 shows the

architecture of an application to maintain a record of

customers. The reused elements are shaded, and new

elements are represented in white. The Customer

component (in the left), which already implements

the distribution NFR, was completed with database

persistence, using the Persistence package of the

NFRs framework (in the right). The

PersistObjAspectCustomer aspect was created to

store the customer data. ServletAddCustomer,

ServletDeleteCustomer, and

ServletConsultCustomers are responsible for

obtaining data from the user, via Web, and passing

them to the Customer component.

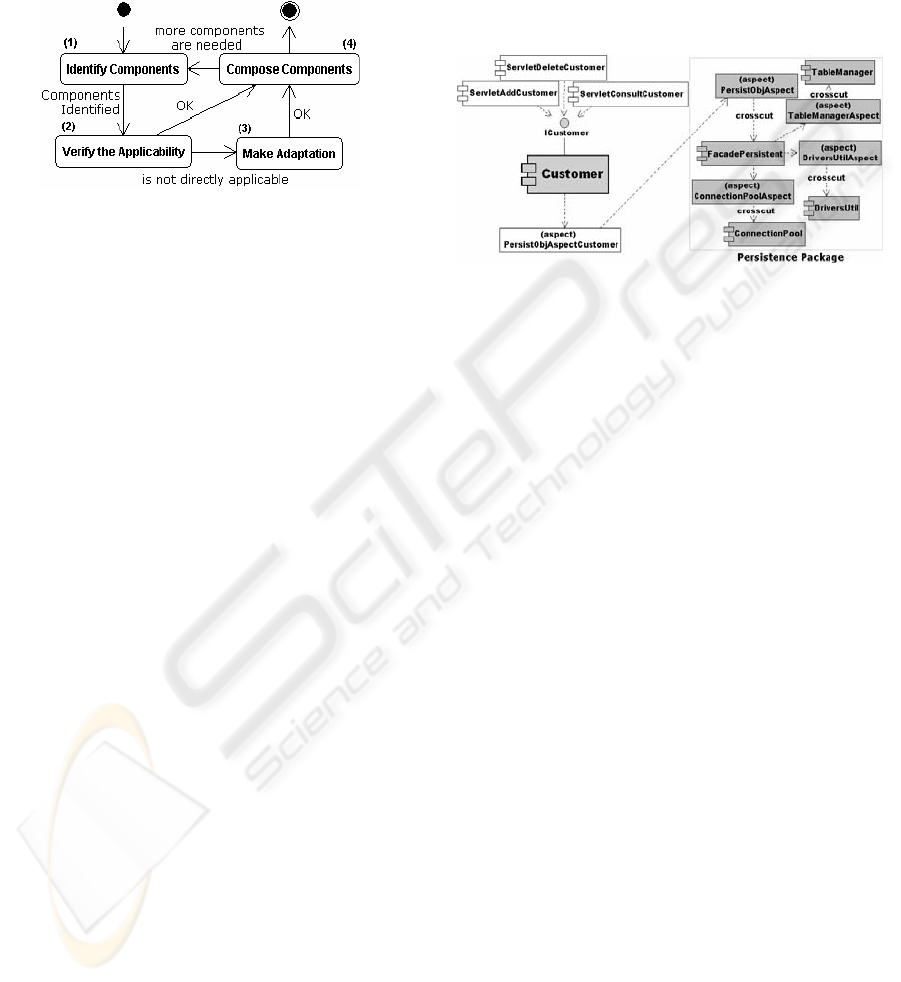

Figure 6: Analyse the appropriated

components.

Figure 7: Design of Customer Application

2.2.3 Implement Application

At last, based on the design, the software engineer

creates the code of the application. In order to

accomplish this, the weaving process described in

section 2.1.4 is used. In this case, software engineer

builds the servlets and weaves them in the structure

shown in Figure 7. The servlet can not just

compiling (e.g. java compiler), in another words,

when using AOP, every new components built must

be integrated to the system using the weaving

process because if just compiled with another

compiler, all join points previously defined wouldn’t

be understandable by these new components. For

example, the ServletAddCustomer needs to initialize

the SourceCustomer component, though its

interface, and after its initialization, the distribution

aspect crosscuts the component to register its

interface in the naming service, as already explained

in section 2.1.3. Only then the ServletAddCustomer

could use the services available.

2.2.4 Application Test and Deployment

As happens in domain test, the application test is

performed in two levels: individual components

modified by the software engineer in the Design

Application phase and application development

reusing components and aspects.

i. If a component is modified, it is individually

tested by building a tests application around the

component that allows its functionality to be

exercised. Still, its necessary perform again the tests

to verify if the component behavior was kept (i.e.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

230

check if the aspect does not affect the component

behavior). For this, the first test step of the Domain

Test phase is performed again.

ii. The last form of testing is at the level of the

application. The application is submitted to a long

series of tests before taken into production. Here, in

the case of the software engineer choose to use some

components and aspects of the NFRs framework is

necessary to do the test looking for maintain the

application behavior. However, in this case, the

software engineer chooses only reuse the persistence

framework and, thus, does not affect the behavior of

the application development.

Tests help to verify the quality of the new parts

inserted in the components, analysing if the

component behaviour was kept, and to assure that

the constructed application fulfils its requirements.

At the end, the application can be deployed.

According to the component model that was used,

this process may involve several issues, such as

distribution, database access, installation,

reconfiguration and adaptation of the components.

An intelligent deployment tool may be used to

manage, package, and deploy the component-based

application, obtaining better performance and result.

3 CONCLUSION AND FUTURE

WORKS

The main contribution of this work is to propose an

Incremental Process Model based on AOP for

Component-Based Systems, providing a high

reutilization degree, guiding the software engineer

during the development and reuse of software

components.

Our studies have shown that it is possible to

incrementally add these common NFRs into

components and applications, through a framework.

However, for other kinds of NFRs, such as

performance issues and concurrency control, this

may not be true. In future works, we intend to treat

the NFRs from the beginning of the requirements

elicitation. We believe that the features model may

be a good choice. This may help to determine

whether or not it is possible to adopt an incremental

approach for adding any kind of NFRs.

Finally, tools to facilitate the usage of Aspect

IPM are currently being developed. This includes

tools to facilitate the search and recovery of software

artifacts, aiming to minimize the effort of locating

reusable assets (Lucrédio, 2004).

REFERENCES

C.W. Krueger, 1992. Software Reuse, In ACM Computing

Surveys, v. 24, no. 02, June, pp. 131-183.

I. Jacobson; M. Griss; P. Jonsson, 1997.

Software Reuse:

Architecture, Process and Organization for Business

Success

. Addison-Wesley-Longman.

G.T. Heineman; W.T. Councill, 2001. Component-Based

Software Engineering, Putting the Pieces Together.

Addison-Wesley. USA.

C. Szyperski, 2002. Component Software: Beyond Object-

Oriented Programming. Addison-Wesley. USA.

N.C. Rosa, 2001. Nfi: An Architecture-Based Approach

for Treating Non-Functional Properties of Dynamic

Distributed Systems. PhD Thesis, Federal University

of Pernambuco (UFPE), Brazil.

G. Kiczales; J. Lamping; A. Mendhekar; C. Maeda; C.V.

Lopes; J.M. Loingtier; J. Irwin, 1997. Aspect-

Oriented Programming (AOP). In 11th European

Conference on Object-Oriented Programming

(ECOOP) - LNCS, Springer-Verlag, Finland.

J. Mylopoulos; L. Chung; B. Nixon, 1992. Representing

and Using Non-Functional Requirements: A Process

Oriented Approach. In IEEE Transaction on Software

Engineering, v. 18, no. 6, June, pp. 483-497.

A. Alvaro; D. Lucrédio; A.F. Prado; E.S. Almeida, 2004.

Towards an Incremental Process Model based on AOP

for Distributed Component-Based Software

Development. In: International Symposium on

Distributed Objects and Applications (DOA), Poster

Session, Cyprus. Lecture Notes in Computer Science

(LNCS), Springer-Verlag.

M. Griss; J. Favaro; M. D’Alessandro, 1998. Integrating

Feature Modeling with RSEB. In 5th International

Conference on Software Reuse (ICSR), IEEE Press.,

Canada, June.

M. Griss, 1997. Domain Engineering and Variability in

the Reuse-Driven Software Engineering Business.

Fusion Newsletter, February.

R. Prieto-Diaz, 1990. Domain Analysis: An Introduction.

In ACM SIGSOFT Software Engineering Notes. v. 15,

no. 2, April, pp. 47-54.

G. Arango, 1988. Domain Engineering for Software

Reuse. Ph.D. Thesis, Department of Information and

Computer Science, University of California, Irvine.

A. Alvaro; D. Lucrédio; E.S. Almeida; A.F. Prado; L.C.

Trevelin, 2003. A Framework of Components to Non-

Functional Aspects. (in portuguese). In Third

Component-Based Development Workshop, São

Carlos, Brazil.

S. Clarke; R. Walker, 2002. Towards a Standard Design

Language for AOSD. In Proceedings of the 1st

International Conference on Aspect-Oriented

Software Development (AOSD), ACM Press, NY.

Eclipse Projects, 2003. AspectJ – Aspect-Oriented

Programing (AOP). Available in

http://eclipse.org/aspectj Consulted in November.

ASPECT IPM: TOWARDS AN INCREMENTAL PROCESS MODEL BASED ON AOP FOR COMPONENT-BASED

SYSTEMS

231

R. Braga, 2000. Search and Recover of Components in

Software Reuse Environments.(in portuguese) PhD.

Thesis, Federal University of Rio de Janeiro, Brazil.

Y. Ye; G. Fischer, 2002. Supporting Reuse by Delivering

Task-Relevant and Personalized Information. In 24th

International Conference on Software Engineering

(ICSE), USA.

D. Lucrédio, 2004. Extension of MVCASE tool with

Remote Services for Storage and Recovery of Software

Artifacts (in portuguese), On going MSc. Dissertation,

Federal University of São Carlos, Brazil.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

232
