SIMULTANEOUS QUERYING OF XML

AND RELATIONAL CONTEXTS

Madani Kenab

IRIT, 118, Route de Narbonne 31062 Toulouse

Tayeb Ould Braham

MSI, 83, Rue d’Isle 87000 Limoges

Keywords: Relational schema, XML schema, XML view

, XQuery language, SQL language

Abstract: The presentation of the results of relational queries is fl

at. The prime objective of this work is to query an

XML view of relational data in order to have nesting results of data implemented in the form of flat data. The

second objective is to combine, in query results, structured data of a relational database and semi-structured

data of an XML database. A FLWR expression (For Let Where Return) of the XQuery language can be

nested at various levels in another FLWR expression. In our work, we especially are interested in the nesting

of a FLWR expression in the Return clause of another FLWR expression in order to imbricate data in the

result. In this paper, we will describe all necessary stages in order to carry out these two objectives.

1 INTRODUCTION

Still today, much of data are stored in relational

databases. The relational model is constrained by the

normal forms that prohibit the existence of attributes

having aggregate values. XML schemas offer a richer

set of data type than that which is proposed in the

relational model. Contrary to the relational model,

XML schemas enable to define personal and

eventually recursive types. The relational model use

only structured data, on the other hand, the XML

model can use structured or semi-structured data

according to the utilization or not of an XML schema

and according to the contents of the used XML

schema. This possibility brings flexibility to the

XML model. The XQuery language uses the Xpath

language to identify the different elements and/or

attributes from an XML document in order to handle

them according to the needs. Contrary to the XQuery,

the SQL language provides results in the form of

tuples and does not allow nesting results. All these

advantages of the XML model encourage to use it as

a pivot model in the systems integrating

heterogeneous databases.

In this paper, we present a system of integration of

het

erogeneous databases that we carried out in the

form of a software layer on an XQuery engine and a

relational engine contrary to the studied systems

which use only one engine (CLIO (Hernandez,

2001), SilkRoute (Fernandez 2002, Fernandez 2000),

XTABLES (Fan, 2002), AGORA (Manolescu, 2000)

and LeSelect (INRIA, 1998)). Our system offers two

graphic interfaces: one allowing to generate and

visualize an XML schema describing a relational

database according to the choice of the user (Kenab,

2004a) and the other allowing to query

heterogeneous databases (relational database RDB

and documentary database DDB) by using the

XQuery language. The XML schema generated in the

first interface is built from information concerning

the relational schema of the database to integrate.

The translation of the Xquery requests, intended to

the relational engine, in SQL requests is based on

XML schema without using intermediate

representation such as it is made in the studied

systems. The results coming from the query of

heterogeneous data are converted and displayed in

the form of a persistent XML document. In order to

improve the presentation of these results, we enable

to display these results in the form of an XHTML

document. This last is obtained by using an XSLT

processor and an XSL stylesheet. This XSL

stylesheet is generated automatically from the XML

document corresponding to the result and its XML

schema (Kenab, 2004b). This XML schema is

generated automatically from the metadata

concerning these results. The XML document result

353

Kenab M. and Ould Braham T. (2005).

SIMULTANEOUS QUERYING OF XML AND RELATIONAL CONTEXTS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 353-358

DOI: 10.5220/0002515403530358

 SciTePress

with its XML schema become an XML entity that we

can query.

This paper is structured in the following way. In

the first section, we present a method allowing to

obtain an XML schema describing an XML view on

a relational database. In the second section, we model

the translation of an Xquery request to an SQL

request in a functional way. The transformation of

the results of an SQL request, in the form of tuples,

to an XML document is presented in the third

section. In the fourth section, we present the

possibility of querying heterogeneous databases

(documentary and relational) in the same query.

2 INTEGRATION OF A

RELATIONAL SCHEMA INTO

AN XML CONTEXT

A relational database consists of a set of tables. Each

table contains fields (attributes). This database can be

described by the following relational schema:

Relational_schema=(table

(Attribute

:Attribute_Typ

,…,Attribute

:Attribute_Type

),…,

table

(Attribute

:Attribute_Type

, …,

Attribute

:Attribute_Type

), Primary_Keys,

Reference_Links)

We chose to offer a view of this relational

database through an XML schema that is made up of

three levels. In this XML schema, at a first level we

declare a compound global element, which contains

the various tables of the database. Then, at a second

level for each table, we define a compound element,

which contains a set of simple elements of third level

which are attributes belonging to this table. This

XML schema corresponds to the model without

nesting in element oriented mode with key and

keyref clauses to express keys and reference links.

This XML schema enables to avoid the drawbacks of

the update as well as the cases of associations with

minimal cardinality equal to zero (Kenab, 2004a).

The construction of this XML schema can be

modelled by the following functional expression:

XML_Schema(

Compound_global_element(

XML_RDB,

Compound_element(

table

Simple_element(Attribute

Attribute_Type

…,

Simple_element(Attribute

Attribute_Type

)

…,

Compound_element(

table

Simple_element(Attribute

Attribute_Type

…,

Simple_element(Attribute

Attribute_Type

)

…,

Compound_element(

table

Simple_element(Attribute

Attribute_Type

…,

Simple_element(Attribute

Attribute_Type

)

Key(table

, Attribute

…

Key(table

, Attribute

Link(table

, Attribute

, table

…

Link(table

, Attribute

, table

)

with : i = 1..n, c

∈ {1, ..., m

}, j

∈ {1, …, m

}, k

∈

{1, …, n} and n being the number of tables in the

database and m

the number of fields (attributes) of

the table table

XML_schema is a function which tags a

parameter with <xs:schema

xmlns:xs="http://www.w3.org/2001/XMLSchema">

and </xs:schema>. Compound_global_element is a

function allowing to define the compound global

element which contains the XML elements

corresponding to the tables, the keys and the

reference links of the relational database.

Compound_element is a function allowing to define a

compound XML element corresponding to a table of

the relational database. Simple_element is a function

allowing to define a simple XML element

corresponding to a table attribute of the relational

database. Key is a function allowing to define a key

corresponding to a table key attribute of the relational

database. Link is a function allowing to define a

reference link corresponding to a table foreign key

attribute of the relational database.

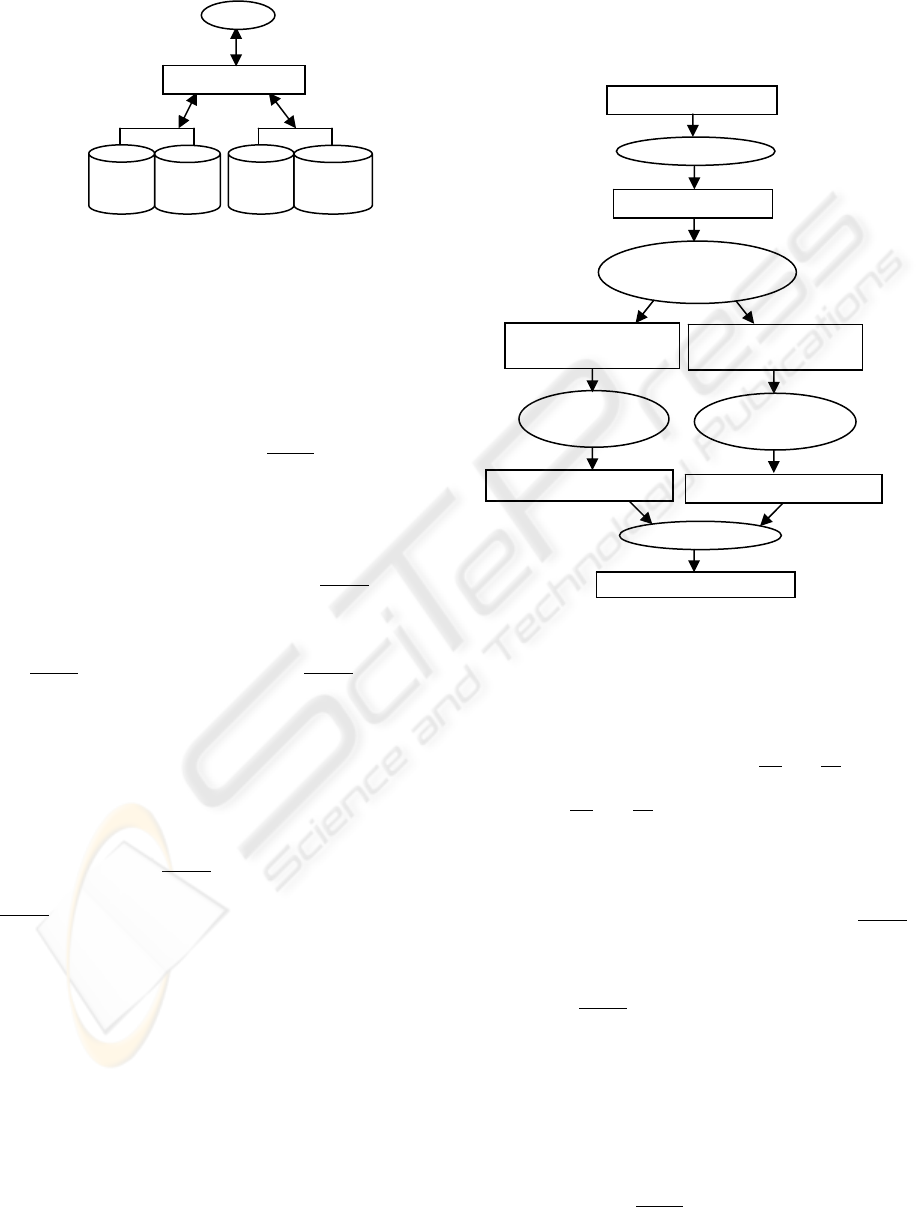

The realization of this integration of the relational

schema into an XML schema (XML view) is made

according to the schema of Figure1. The two

principal stages of this integration are:

• The querying of the relational engine in

order to obtain the relational schema

(metadata).

• The transformation of the relational schema

into an XML schema as view on the

relational database thanks to the functional

expression described previously.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

354

3 TRANSFORMATION OF AN XML

REQUEST (XQUERY) INTO A

RELATIONAL REQUEST (SQL)

In this section, we use an Xquery request to query an

XML view on a relational database (Figure2). Before

being translated into an SQL request, the consistency

of this request, with the XML schema describing an

XML view, is checked. The result of the SQL

request, in the form of table, is converted into an

XML document as it will be described in next

section.

A general R Xquery request is a FLWR

expression which we can model in the following

form:

for $f_var

in f_exp

(: f_ for for :)

...

for $f_var

in f_exp

let $l_var

:= l_exp

(: l_ for let :)

...

let $l_var

:= l_exp

where condition(BFs, JFs)

return XML_doc(Results, SRs)

Where:

• f_exp

and l_exp

are simplified Xpath

expressions (without condition between [ ]

and without wildcard) used respectively in

the

for and let clauses.

• BFs are boolean expressions expressed

thanks to Xpath expressions, each one

containing f_var

or l_var

variable.

• JFs are boolean expressions of joint

expressed thanks to Xpath expressions ,

each one containing f_var

or l_var

variable.

• condition is a boolean function returning the

value of a logical expression made up of

logical expressions built from the results of

the BFs and JFs functions passed in

parameters.

• XML_doc is a function which models an

XML document from the tags provided by

the user and parameters having various

types according to the context. In this

precise context, the parameters correspond

to Results and nested FLWR expressions

SRs.

• Results are Xpath expressions expressed

thanks to f_var

and l_var

variables of the

for and let clauses of the XQuery request R.

• SRs are nested FLWR expressions (XQuery

Sub-Requests) of the

return clause having

the same format than R, they enable to

formulate nested sub-requests of the same

level. The other levels of nesting will be

generated recursively.

The Tran(R) function of the above R FLWR

expression will return an SQL request which we can

model in several stages and in a recursive way. The

contents of the

select part (S function) and the from

part (F function) of Tran(R) will be built from the

return clause and from the for and let clauses of the R

Xquery request. The contents of the

where part (W

function) of Tran(R) will be built from the

where

clause and from the

for and let clauses of the R

Xquery request. The transformation of the XML

element into relational attributes or tables is related

to the structure of the XML schema resulting from

the integration of the relational schema. In our case,

it is the XML schema without nesting, element

oriented mode with keys and reference links

expressed respectively thanks to key and keyref

clauses. For that reason, an Xpath expression

indicating an attribute will have the following form

/XML_RDB/Named_tuple/Attribute.

The result of the function Tran(R) which will

have the following shape:

select S(Tran(R)) from

F(Tran(R))

where W(Tran(R)) will be an SQL

request where the S(Tran(R)) part will be a sequence

of C

attributes, prefixed by the variable names f_var

and l_var

which have been used to specify each

attribute, followed by S(Tran(SRs)) parts of the sub-

requests SRs. The C

attribute is the third level

element of the Xpath expression obtained by

replacing the f_var

or l_var

occurrence of Results by

the corresponding Xpath expression f_exp

or l_exp

Querying of a

relational engine

Results in the form of a table

SQL reques

Checking and Translation to SQL

Xquery reques

Conversion into

an XML document

XML document resul

Figure 2: Querying of an XML view

on a relational database

Figure 1: Integration of a relational schema into an XML schema

RDB

XML

schema

Relational

Schema

Transformation

Querying

SIMULTANEOUS QUERYING OF XML AND RELATIONAL CONTEXTS

355

The F(Tran(R)) part of this SQL request will be a

sequence of f_var

and l_var

of the for and let

clauses, which have prefixed the attributes of the

S(Tran(R)) part, preceded by the relational table

names followed by F(Tran(SRs)) parts of the sub-

requests SRs. Each relational table name is the

second level element of the Xpath expression

obtained by replacing the f_var

or l_var

occurrence

of Results by the corresponding Xpath expression

f_exp

or l_exp

The W(Tran(R)) will be obtained by replacing, in

the condition function of the R XQuery request, the

Xpath expressions of the BFs and JFs boolean

expressions by a sequence of B

attributes, prefixed

by the variable names f_var

and l_var

of these

Xpath expressions, followed by W(Tran(SRs)) parts

of the sub-requests SRs. The B

attribute is the third

level element of the Xpath expression obtained by

replacing the f_var

or l_var

occurrence of the Xpath

expression of the BFs and JFs boolean expression by

the corresponding Xpath expression f_exp

or l_exp

4 TRANSFORMATION OF THE

RESULTS OF A RELATIONAL

REQUEST INTO AN XML

DOCUMENT

The result of an SQL request corresponding to

Tran(R) consists of a set of tuples. These tuples

contain redundant information due to the absence of

nesting in the relational model. The results of each

sub-request are repeated as often as the number of

existing values in the next sub-request result. We

assume that the SRs sub-requests are ordered

according to their position in the

return clause of the

R XQuery request. The construction of the XML

document corresponding to the tuple of the Tran(R)

SQL request result, is done in two stages. The first

one consists at first to extract, for each sub-request of

SRs, the corresponding results by eliminating the

redundancy due to the flat nature of the relational

tuples, then to extract the result corresponding to the

Xpath expressions of Results of the

return clause of

R XQuery request. In the second stage, we built the

XML document by tagging, thanks to the XML_doc

tagging function of the

return clause of the R XQuery

request, each result corresponding to Xpath

expressions of Results followed by the SRs sub-

request results linked to this result. The SRs sub-

request results are tagged, at their turn, thanks to

thanks to the XML_doc tagging function of their

return clauses. The final XML document is obtained

by tagging the previously obtained XML document

by <Global_result> and </Global_result>.

The XML schema associated with the XML

document result corresponding to the result provided

by the relational engine will be generated

automatically. The construction of this XML schema

will be made, thanks to the XML_schema function,

from the

return clause of the R Xquery request and

the table schemas used by the relational engine. At

the first level, this XML schema will contain the

opening tag <xs:schema

xmlns:xs="http://www.w3.org/2001/XMLSchema">

and the closing tag </xs:schema>. These tags will

cover a second level which will contain the definition

of a compound global element named Global_result

generated by the Compound_global_element function

(first section). The building of the XML schema

continues by replacing each opening tag <tag> of the

return clause of the R XQuery request, except the

tags of the last level elements, by the following

declaration tags of the XML schema language:

<xs:element name="tag">

<xs:complexType>

<xs:sequence>

Then each closing tag </tag> of the

return clause of

the R XQuery request will be replaced by the

following corresponding closing tags of the XML

schema language:

</xs:sequence>

</xs:complexType>

</xs:element>

The last level tags of the

return clause and their

contents will be replaced by description tags of

simple elements generated by the Simple_element

function (first section). The building of the XML

schema will continue recursively in the same way for

the sub-requests SRs.

Note: The information on keys and reference links do

not appear in the XML schema of the results. Their

meaning depends on the original relational database

from which the results are extracted.

5 QUERYING OF XML AND

RELATIONAL CONTEXTS

In this section, we present an extension of the Xquery

request use such as it was formulated in the second

section in order to query two heterogeneous

databases: a documentary database and a relational

database as it is shown in Figure3. The $f_var

and

$l_var

variables will be used to reach either the

documentary database by specifying the name of the

XML document (document.xml) or the relational

database by specifying the name of the XML schema

(schema.xsd) which describes an XML view on this

relational database. In this case, the Xquery request

will be broken up into two sub-requests: one

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

356

concerning the relational database and the other the

documentary database.

The various stages which enable us to obtain the

final result of the Xquery request querying the

relational database and the documentary database are

illustrated in Figure4. The querying of the relational

engine is done as it is described in Figure2 (second

section). In the synthesis stage, the results of the two

sub-requests will be transformed into an XML

document corresponding to the

return clause of the

initial R Xquery request. When it is necessary, a

rewriting stage precedes the decomposition of the

Xquery request in order to facilitate the latter. The R

Xquery request, which was modeled in the second

section, will be rewritten into an Rt Xquery request

by modifying only the contents of the

where clause.

The rewriting of the R Xquery request is done in two

phases. The first one consists in gathering boolean

expressions BFs into BF_Es on the same variable in

the

where clause. The contents of the where clause of

the Rt Xquery request, after the first phase, will have

the following form:

condition_t1(BF_Es, JFs)

The second phase of the rewriting stage consists

in gathering the FB_Es boolean expressions and the

JFs joint boolean expressions on the variables which

query the same database (relational or documentary).

The rewriting stage will apply recursively in the

same way on the

where clauses of the SRs sub-

requests. After the second phase, the contents of the

where clause of the Rt Xquery request will have the

following form:

condition_t2(RDB_Es, DDB_Es, JF_SYNs)

Where:

• RDB_Es is the gathering of the BF_Es

boolean expressions and the JFs joint

boolean expressions relating to the variables

which refer to the relational database.

• DDB_Es is the gathering of the BF_Es

boolean expressions and the JFs joint

boolean expressions relating to the variables

which refer to the documentary database.

• The JF_SYNs expressions are joint boolean

expressions of synthesis relating to two

variables: one which refers to the relational

database and the other which refers to the

documentary database. For synthesis

reasons of the results coming from the

relational database and the documentary

database, there must be at least one joint

boolean expression of this last type.

The stage of decomposition consists in breaking

up the Rt Xquery request obtained at the rewriting

stage into two sub-requests: the first one intended for

the relational database and the second one intended

for the documentary database. The

for and let parts of

the XQuery sub-requests RDB_R and DDB_R will

contain the

for and let parts of the XQuery request Rt

concerning the variables referencing respectively the

RDB and DDB. This distinction will be done

according to the name of the XML document (.xml)

or the name of the XML schema (.xsd) referenced in

the f_exp

or l_exp

Xpath expressions. The where

parts of the XQuery sub-requests RDB_R and

DDB_R will be constituted respectively by RDB_Es

and DDB_Es expressions obtained after the rewriting

stage. The

return parts the XQuery sub-requests

RDB_R and DDB_R will be the result of the

decomposition of the XML_doc tagging function into

two parts which are respectively: the tags concerning

variables which refer the RDB and the tags

concerning variables which refer the DDB. This

decomposition will apply recursively on the SRs sub-

requests.

If the attributes of the synthesis joint are not

mentioned in the

return clause of an Rt Xquery

XQuery sub-reques

on XML documents

XQuery sub-reques

on XML view

Decomposition of R

in two sub-requests

R Xquery reques

Rt Xquery reques

Rewriting stage

Querying of the

XQuery engine

Querying of the

relational engine

Figure 4: Query plan of a documentary database

and a relational database

Synthesis stage

Final XML document

XML document resul

Figure 3: Querying of two heterogeneous databases

(documentary and relational)

XML

Schema

DDB

XML

View

RDB

XML interface

Use

SIMULTANEOUS QUERYING OF XML AND RELATIONAL CONTEXTS

357

request, these attributes must be added in the

return

clauses of the two sub-requests by tagging them in

order to be able to identify them. In the same way if

after the decomposition, each one of DDB_R and/or

RDB_R has at least one nested sub-request with a

joint condition between one of its attributes and one

of the enclosing request and if this attribute does not

appear in the

return clause then we must to add it in

the

return clauses of the request and the sub-request.

The results of the two DDB_R and RDB_R sub-

requests will be stored respectively in the two XML

documents: res1.xml and res2.xml which has

respectively as compound global element:

DDB_global_result and RDB_global_result. The

synthesis joints will be treated after obtaining the

results of the two DDB_R and RDB_R sub-requests

by using the SYN_R synthesis sub-request which is

generated automatically.

The SYN_R synthesis sub-request will be

constituted by two

for clauses with two variables $r

and $r

in order to query respectively the two result

XML documents res1.xml and res2.xml. These two

variables $r

and $r

specify the XML element

corresponding respectively to the first tags of the

return clauses of the DDB_R and RDB_R sub-

request. The

where part of SYN_R sub-request will

contain the synthesis joint expressions SYN_JFs. The

return parts the XQuery sub-requests SYN_R will be

constituted by the XML_doc tagging function of Rt

applied, for each Results Xpath expression of the Rt

XQuery request

return clause, to the equivalent

Xpath expression in the DDB_R or RDB_R sub-

request. The building of SYN_R will continue

recursively in the same way on the SRs sub-requests.

The XML schema describing the structure of the

XML document result of the SYN_R synthesis sub-

request will be built from the XML schema

describing the XML view on the relational database,

the XML schema of the documentary database and

the

return clause of the XQuery request R. The types

of the simple elements making up the XML

document result are deduced from the original

schema. In the case of a simple element coming from

the XML view of the relational database, the type of

this element is deduced form the XML schema

describing this view. If this element is coming from

an XML document of the documentary database, the

type of this element depends on the existence of the

document XML schema. If the document does not

possess an XML schema, the type of the simple

element will be anyType. The building of the XML

schema of the synthesis sub-request SYN_R result

will be done according to a similar method than that

used for the building of the XML schema of the

document created from the tuples returned by the

relational engine thanks to the XML_Schema function

described in the third section.

6 CONCLUSION

Our system takes advantage of relational systems

which are powerful for the management of structured

data and it takes advantage of XML systems for the

management of non-structured or semi-structured

data. It is in this meaning where our work is different

from the systems which store XML documents in the

shape of tables. In these systems, it is often non-

optimal to reconstitute the document. Our system

enables us to build results made up of non-structured

data, coming from documentary database, and

structured data, coming from relational database, in

the shape of an XML document. These results could

then be consulted as persistent documents thanks to

an Xquery request.

This work is intended to be extended to a

distributed system where relational and documentary

data could be on geographically distributed sites. In

this distributed system, the XML schema will be the

pivot schema and the Xquery language will be the

pivot language.

REFERENCES

Fan, C., Funderburk, J., Lam, H.I., Kiernan, J., Shekita, E.,

Shanmugasundaram J., 2002. XTABLES : Bridging

Relational Technology and XML. IBM Corporation.

Fernandez, M., Kadiyska, Y., Morishima, A., Suciu, D.,

Tan W.C., 2002. SilkRoute : a framework for

publishing relational data in XML. ACM Transactions

on Database Technology.

Fernandez, M., Tan, W.C., Suciu D., 2000. SilkRoute :

Trading between relations and XML. International

Conference WWW'00.

Hernandez, M., Miller, R. J., Haas L. M., 2001.

Clio: A

Semi-Automatic Tool For Schema Mapping.

International conference SIGMOD'01. ACM Press.

INRIA., 1998. LeSelect (CARAVEL project).

http://www-caravel.inria.fr/~leselect/

Kenab, M., Ould Braham, T., Bazex P., 2004. Evaluation

of a document database description by different XML

schemas. International conference IASTED: DBA'04.

Acta Press.

Kenab, M., Ould Braham, T., Bazex P., 2004.

Parameterized Formatting of an XML document by

XSL rules. International conference ADVIS'04.

Springer-Verlag.

Manolescu, I., Florescu, D., Kossmann, D., Olteanu, D.,

Xhumari F., 2000. Agora: Living with XML and

relational.

International conference VLDB. Morgan-

Kaufmann.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

358
