SCENARIO-BASED EVALUATION OF ENTERPRISE

ARCHITECTURE

A top-down approach for chief information officer decision making

Mårten Simonsson, Åsa Lindström, Pontus Johnson, Lars Nordström, John Grundbäck,

Olof Wijnbladh

Department of Industrial Information and Control Systems,

Royal Institute of Technology, KTH, Stockholm, Sweden

Keywords: Decision Making Support, Enterprise Architecture, Chief Information Officer.

Abstract: As the primary stakeholder for the Enterprise Architecture, the Chief Information Officer (CIO) is

responsible for the evolution of the enterprise IT system. An important part of the CIO role is therefore to

make decisions about strategic and complex IT matters. This paper presents a cost effective and scenario-

based approach for providing the CIO with an accurate basis for decision making. Scenarios are analyzed

and compared against each other by using a number of problem-specific easily measured system properties

identified in literature. In order to test the usefulness of the approach, a case study has been carried out. A

CIO needed guidance on how to assign functionality and data within four overlapping systems. The results

are quantifiable and can be presented graphically, thus providing a cost-efficient and easily understood basis

for decision making. The study shows that the scenario-based approach can make complex Enterprise

Architecture decisions

understandable for CIOs and other business-orientated stakeholders

1 INTRODUCTION

Historically, business operations of large companies

were supported by a number of isolated software

systems performing diverse specific tasks, from real-

time process control to administrative functions.

Today, many companies possess a truly complex

enterprise IT system; in large organizations

thousands of interconnected systems may be

employed.

Typically, the emerging enterprise IT system has

not

evolved through a careful and holistically

planned approach, rather each business unit has

developed and acquired the IT systems they need.

The system support provided may very well be

optimal to the individual business units, but for the

enterprise as a whole it can results in higher costs

and lower quality. A poorly planned (or non-

existent) overall architecture is the harbinger of hard

times to come; problems with inconsistencies will

become inevitable as the IT systems become

increasingly wild-grown (Bracket, 1994),

(Linthicum 2000), (Mc Govern 2003), (Ruh 2001),

Zachman, 1987).

One example of this is overlap, m

eaning that

similar functionality can be found within different

systems and that multiple versions of the same data

are stored within the enterprise IT system. An

increased functionality and data overlap leads to

higher costs for operation and maintenance, because

of the larger number of systems and databases

(Land, 2003). For data overlap, the master/slave

dilemma is one central aspect. It can be hard to find

original (master) data among the multiple versions

(masters or slaves) stored in numerous places deep

inside the system jungle. Inconsistent naming of data

is another common issue; the same piece of data

may have many different names within the

enterprise IT system, and different data sometimes

are given the same name (Bracket, 1994) (Mc

Govern 2003), (Ruh 2001), (CIO Council, 1999).

To complicate the situation further, general

nowledge of the systems within the enterprise is

often quite poor. The IT systems are known on a

superficial level, but there is a lack of overview

regarding how the systems are interconnected, which

protocols are employed, how the functionality is

allocated, etc. In-depth information does exist on

individual systems, but the knowledge is scattered

among individuals.

130

Simonsson M., Lindström Å., Johnson P., Nordström L., Grundbäck J. and Wijnbladh O. (2005).

SCENARIO-BASED EVALUATION OF ENTERPRISE ARCHITECTURE - A top-down approach for chief information ofﬁcer decision making.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 130-137

DOI: 10.5220/0002517301300137

 SciTePress

1.1 Decision Making for the Chief

Information Officer

As responsible for the enterprise IT system, the role

of the Chief Information Officer (CIO) covers a

broad technical and organizational scope, including

areas such as IT-business alignment (Brown, 1993)

(Cassidy, 1998) (Gottschalk, 1999), IT investment

decisions (The Open Group, 2004), IT system

quality assessment and improvement (Kirkpatrick

2002). All these issues may result in architectural

changes (Brown, 1993) (Cassidy, 1998) (Gottshalk,

1999) (Spewak, 1992).

There are plenty of questions that the CIO needs

to answer in order to make decisions. These include,

for instance, what IT system supports a particular

business process, what are the possibilities for

system consolidation, what is the current security

level, how will a new system affect the system

complexity, etc.

The difficulties in finding relevant information

described in the previous section makes decision-

making a complicated task. Since the CIO constantly

lacks time, it is necessary that decisions can be made

quickly and to a small cost. Ad hoc decisions

without direct linking to a uniform IT strategy

should, however, be avoided. Rather, all decisions

should be based on a consistent IT strategy to ensure

a cost-efficient enterprise IT system (Brown, 1993)

(Cassidy, 1998) (Gottshalk, 1999).

Finding adequate information for decision-

making is however often quite problematic, since the

CIO rarely has all the information needed at hand.

The information is spread throughout different

sources within the enterprise. In order for the CIO to

make correct decisions, support is needed to

identify, gather and evaluate this scattered

information. Enterprise Architecture Frameworks,

specifically developed to serve as a controlling

blueprint for the enterprise IT system, has been

proposed as such support (CIO Council, 2001)

(Clinger-Cohen Act, 1996).

1.2 Enterprise Architecture

Frameworks

In order to understand and manage the chaotic real

world of enterprise IT systems, as well as support

the identification, gathering and evaluation of the

scattered information needed for decision making,

the discipline of Enterprise Architecture has

emerged. It has emerged from the need for taking a

holistic approach to IT-system management. This

means that the discipline focuses on not only the

technical aspects but also on the organizational

context in which the IT systems operate. Enterprise

Architecting is thus both a technical and an

organizational undertaking (CIO Council, 1999)

(DoD, 2003) (The open Group, 2003) (Spewak,

1992) (Zachman, 1987).

Enterprise Architecture is a model-based

management and planning approach for the

evolution of enterprise IT systems; it has been

proposed mainly as a response to the ever-increasing

significance and complexity of business-supporting

information systems (CIO Council, 1999) (DoD,

2003) (The open Group, 2003) (Spewak, 1992)

(Zachman, 1987).

The methods and models of Enterprise

Architecture are often presented in frameworks.

Today there exist ten or so well-known architectural

frameworks for management of enterprise IT

systems (CIO Council, 1999) (DoD, 2003) (The

open Group, 2003) (Spewak, 1992) (Zachman,

1987).

However, current Enterprise Architecture

Frameworks, propose that a plethora of models

should be developed and maintained. However, it is

rarely evident when and why a particular model is to

be preferred over others and what questions they are

created to answer. By trying to cover all aspects of

Enterprise Architecture, contemporary frameworks

get too extensive and are therefore difficult to

penetrate in search for relevant information. When it

comes down to hands-on support for decision

making, the current frameworks fall short and

information gathering becomes a time-consuming

and costly issue. This is unfortunate since a model

should be able to answer specific questions.

2 A SCENARIO-BASED APPROACH

FOR DECISION MAKING

As discussed previously, the existing Enterprise

Architecture Frameworks have a different focus and

fall short in providing decision-support to the CIO

(Lindström 2005). In order to be cost effective, the

approach must be goal oriented, i.e. start with what

is to be decided upon, and gather relevant

information to support the decision making. By

questioning the CIO about the information needed to

make a specific decision, a structured gathering of

relevant architectural information can be made. The

CIO should continuously work towards adhering to

the overall IT strategy; therefore the CIO decision

making can be viewed as a problem of selecting the

solution that has the highest degree of fulfilment

towards the IT strategy.

The scenario-based approach for CIO decision

making outlined here (and used in the case study

SCENARIO-BASED EVALUATION OF ENTERPRISE - A top-down approach for chief information officer decision

making

131

described in Chapter 3) was originally described by

Johnson, and consists of three steps described in

sections 2.1 to 2.3 (Johnson, 2004). The power of

the approach lies in its use of hypothetical (what-if)

situations, i.e. scenarios, which implies that the CIO

can play with different ideas without suffering the

cost of actually implementing all solutions. By using

scenarios, the decision-maker and other stakeholders

can discuss possible solutions, their strengths and

weaknesses, in a way understandable for all

stakeholders. On a conceptual level, the approach

mimics the scenario-based Architecture Tradeoff

Analysis Method (ATAM), described by Kazman in

(Kazman, 1998). The approach used here differs

from the ATAM by considering the Enterprise

Architecture as the object of study and by using a

prioritization technique for trade off analysis. In

comparison, the ATAM approach focuses on the

architecture of one single IT system.

2.1 Formulation of scenarios

Firstly, the CIO needs to consider what possible

solutions are available with respect to the future

structure of the enterprise IT system and the problem

at hand. The scenarios must be well delimitated and

easy to separate in order to be understandable and

analyzable for all stakeholders. These hypothetical

solutions, scenarios, are formulated in images and

text to give an easily understood overview of

possible solutions to present problems. In ATAM,

the word architectural option is used in line with the

ATAM approach, where scenarios are elicited from

stakeholders of the system (Kazman, 1998),

scenarios for the Enterprise Architecture are elicited

from stakeholders of the entire Enterprise

Architecture. The scenarios serve both for describing

possible future states of the architecture, as well as

facilitating communication among stakeholders and

analysts of the architecture.

2.2 Identification of evaluation

criteria and indicators

The next step is to identify relevant criteria and

measurable indicators for evaluation of the

scenarios. A good evaluation criterion provides

answers to the questions of the CIO; the more

important questions it answers, the better it is. In

order to be more concrete indicators must be

employed. Indicators are measurable properties such

as number of systems or a yes or no answer. As the

real world is complex, multiple evaluation criteria

and indicators can be found for each decision. The

relation between the criteria and the indicator is

called architectural theory and can be simple rules of

thumb or more strict and precise presumptions.

Using IT-security as an example, one

architectural theory is that a system with a firewall

has higher security than one without. In this case,

high IT-security is the criteria, and an indicator

might be simply counting the number of systems not

protected by a firewall.

Again conceptually similar to the ATAM

approach, where system requirements are used as

criteria, the approach proposed here relies on criteria

or architectural theory to evaluate the architecture.

Though, the scenario-based approach differs in the

scope of the criteria. In ATAM, the requirements are

relatively detailed, while the criteria proposed here

are more in line with the indicators used in e.g.

Balanced Score Card approaches (Kaplan, 1996),

used to evaluate business strategies and measure

business performance.

2.3 Analysis and selection of scenarios

Analysis is the application of evaluation criteria and

indicators on scenarios for evaluation purposes.

Usually only a subset of the available criteria and

indicators are analyzed, since using all of them is a

time consuming task for the CIO.

The selection of indicators is based on how much

effort must be spent on finding the needed

information, the usefulness of the indicator, the

relevance for the CIO and the credibility of the

theory issuing party (Johnson, 2004).

Furthermore, because of company policies and

goals, some criteria are more important than others.

Therefore, the CIO is given the opportunity to

prioritize among the criteria, which results in

weighted criteria. Another reason for the

prioritization is to manage trade offs between

contradicting criteria. The prioritization of

evaluation criteria and choice of indicators are two

of the major advantages with the scenario-based

approach.

For the prioritization, a web-based tool for

prioritizing requirements is proposed since it is easy

to use. The prioritization technique is built on AHP

(Karlsson, 1998). The prioritization tool picks two

criteria and lets the respondent perform a pair-wise

comparison. Each criterion is compared multiple

times. A nine-grade scale is used for the

prioritization, and results in a prioritization ladder

with the respective weight of each criterion

represented as a fraction of 100 %.

Different views, showing only a subset of the

indicators, are employed in order to simplify the

analysis. A system-activity view, for example,

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

132

illustrates the alignment between IT systems and

business process activities.

The indicators are applied on and measured for

each scenario. In order to be able to compare the

different indicators, the measures are normalized.

Each scenario is presented to the CIO along with

the measurements performed at it, thus serving as

basis for a discussion on the results of the

architectural analysis. Finally, the CIO may select

one of the scenarios to be implemented.

3 APPLICABILITY TESTING: CASE

STUDY

A case study was carried out to test the general

applicability of the scenario-based approach

described in the section above. Empirical data was

collected from one of the largest electric utilities in

Europe, with an annual turnover of $14.5 billion

(2003). According to CIOs at the utility, 350 major

software systems are employed in order to run core

processes and administrative functions.

An increased integration of formerly stand-alone

systems over the past decade and acquisition of new

systems has resulted in a likewise augmented

occurrence of overlap in terms of functionality and

data. The main focus of the case study is thus a

matter of defining how functionality and data should

be allocated between existing systems. There are, of

course, numerous solutions to this problem, which

entails the necessity of a proper analysis basis for

choosing the most adequate solution.

This case comprises

four main systems in the service process, which

manages repairs and extensions of the power

distribution grid. The systems are the Enterprise

Resource Planning system (ERP), the Distribution

Management System (DMS), the combined Network

Information System and Geographical Information

system (NIS/GIS) and the Customer Information

System (CIS). All these systems, except for the CIS,

provide some amount of unique functionality, but

also overlap in that some functionality is shared

between two or more systems. See Figure 1.

The case study was conducted as collaborative

work between the individuals within the CIO

function at the utility and the authors.

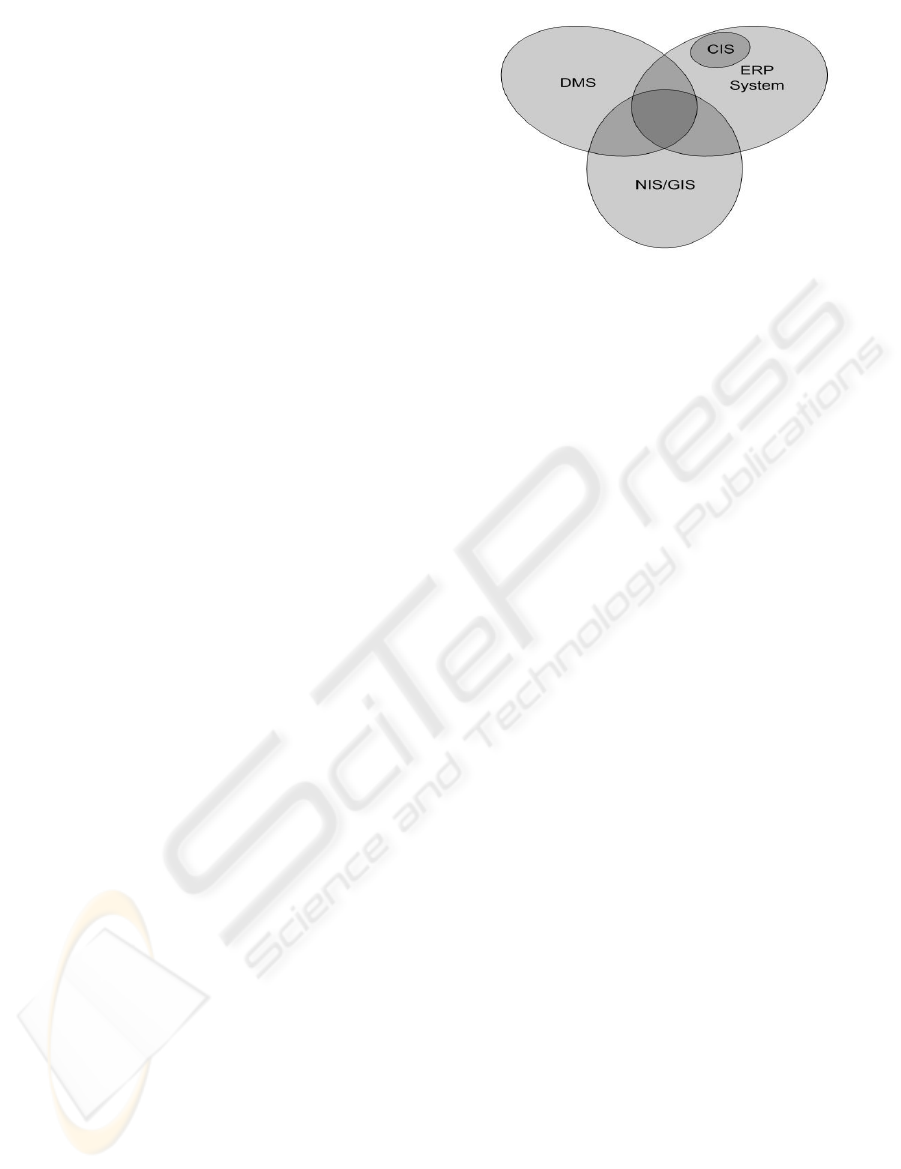

Figure 1: The overlap dilemma

3.1 Formulation of scenarios

The systems involved in the current service process

were studied to obtain an understanding of the

situation. A total of 37 activities were identified

within the process. About 35% of these were

affected by an overlap. It was found that the main

overlap exists between the ERP System and the

DMS. These two can, independently, control the

workflow of the process apart from a few specific

activities. The ERP System and the DMS are,

however, not completely replaceable. No matter

which one is chosen to supervise the process; the

other system is still needed to perform certain tasks.

Furthermore, an overlap in managing customer

related data and asset data were identified. The first

can be located in either one of the CIS or ERP

systems whilst the latter can be stored in the

NIS/GIS or in the ERP system. To summarize, the

overlap dilemma for the service process at the

electric utility comprises an overlap in the process

workflow and an overlap in managing customer and

asset data.

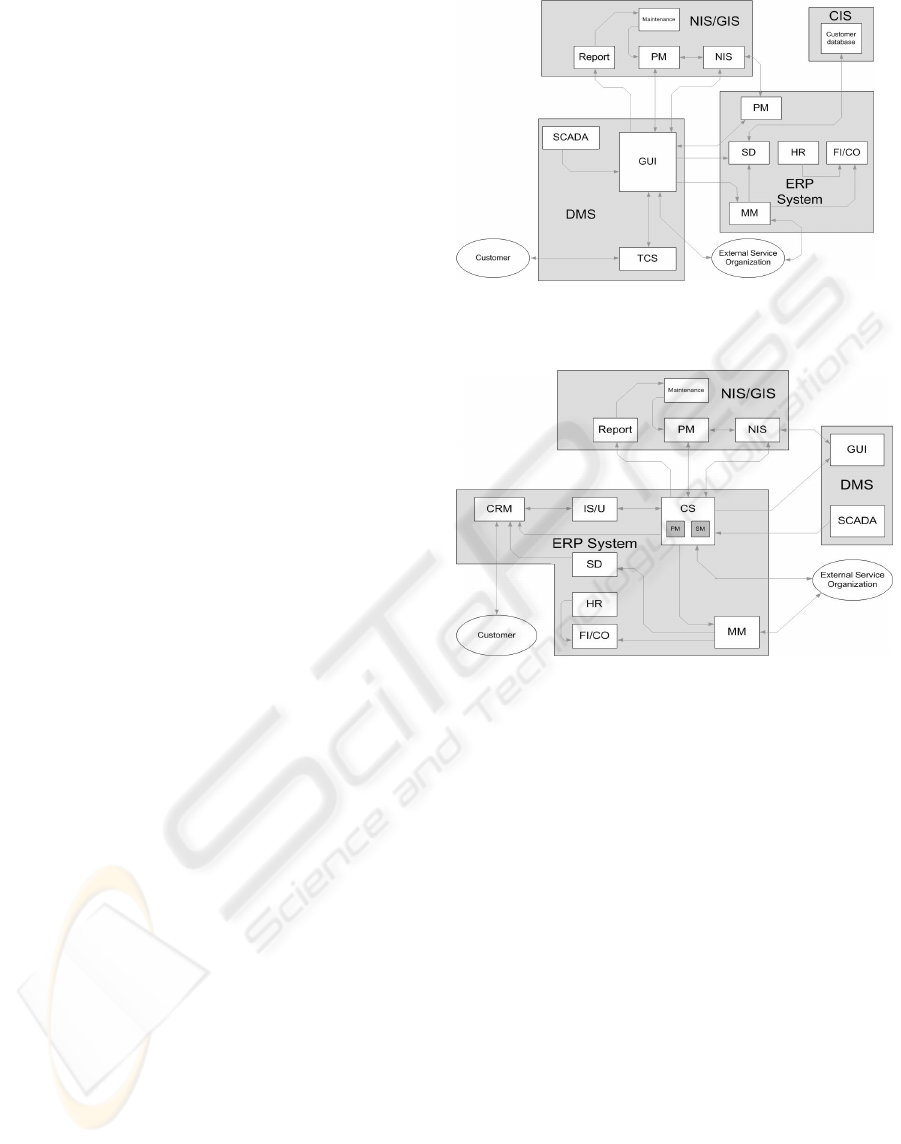

Six scenarios for the automation of the service

process were found. Simplified illustrations for the

system-data view for two of the scenarios are

presented in this paper; see Figure 2 and Figure 3.

The main difference between these two scenarios is

that the system in control of the workflow (as in

managing the flow of information between different

entities) varies. Figure 2 shows a scenario where the

DMS is in control of the workflow. All four main

systems, the CIS included, are employed to run the

process. In the ERP System scenario depicted in

Figure 3, the ERP System manages the workflow.

Just three software systems are employed for

running the process. The CIS is removed and all

customer related data is incorporated into the CS

module of the ERP system.

Please observe that the total amount of modules is

not constant between the two scenarios. This is due

SCENARIO-BASED EVALUATION OF ENTERPRISE - A top-down approach for chief information officer decision

making

133

to the fact that when the ERP System takes control

over the workflow, some modules become obsolete,

and vice versa.

3.2 Identification of evaluation

criteria and indicators

As stated, the approach outlined here is conceptually

similar to other scenario-based architectural

evaluation methods, e.g. ATAM (Kazman, 1998).

However, when evaluating entire Enterprise

Architectures, quality attributes used in such

methods, fall short in providing a sound basis for

evaluation. Other criteria and architectural theory

must be found as well, due to the broader scope.

Finding the architectural theory is the work of

researchers since the credibility of the theory issuing

part should be high.

As is the case for measures used in e.g. the

Balanced Score Card, the indicators used in the

scenario-based approach must be aligned with the

strategic goals of the enterprise (Kaplan, 1996). The

CIO can therefore evaluate the scenarios based on

their fulfilment of the corporate IT strategy. For the

case study on allocation of functionality and data

across a number of IT systems, the indicators need

only to reflect a subset of the entire corporate IT

strategy.

The set of indicators used in the case study

emanates from strategy fulfilment measures used by

the CIOs at the studied utility and a compilation of

indicators to judge function allocation taken from

literature. The opinions of the CIOs, as

knowledgeable stakeholders for the applied

Enterprise Architecture, were stressed. When

appropriate architectural theory was not found in

literature, rules of thumb and common sense had to

be applied to define measurable indicators.

For example, a suitable indicator for the

Modifiability criterion is to measure the number of

modules in a particular solution (Oskarsson, 1981).

Again, for Complexity, a suitable measure is the

number of systems and modules involved

(Linthicum, 2000). Interestingly, as can be seen

from the above, the indicators may require a tradeoff

analysis since some may be contradictory. This latter

point stresses the fact, that although evaluation

criteria can be measured, the optimal solution to the

problem will require more analysis than merely

adding up the measures.

A set of nine criteria was used. Below is a short

description of the criteria (bold) and indicators

(italic) used in the case study. Please note that the

same indicator might be used for measuring several

criteria, as mentioned earlier in this section.

Architectural changes – The number of changes

that are made to the original architecture. The

number of databases relocated and the number of

systems added or removed were used as indicators

for measuring this criterion.

Accessibility of data – The ease with which the

user can access the data. For the ease of access, data

should be located as close to where it is needed as

possible (CIO Council, 1999). The indicator used for

measuring this was the number of data transfers

between systems needed on a per function basis.

IT-Business alignment – How well the IT

systems support the business processes (Cassidy,

1998) (CIO Council, 1999) (Luftman, 2000). Here, a

rule of thumb is provided by (Luftman, 2000), who

states that the more use of an ERP system, the better

the alignment. The architectural guidelines of the

electric utility equally advocate that functionality

should preferably be implemented in the ERP

system. The indicator used for measuring this was

the number of functions controlled by the ERP

system.

Efficiency – The CIO function defined efficiency

as a low total dataflow between the systems. The

indicator that was used in order to measure

efficiency was the number of data transfers between

systems.

Modifiability – The ease with which a system

can be changed (internally). A system is considered

modifiable if existing modules easily can be

replaced and new ones can be added (Bass, 1998)

(Kazman, 1998) (Oskarsson, 1981). Two indicators

were used to measure the modifiability: The number

of modules per system and the number of standards

that each software system supports.

Quality of data – Quality of data is a broad term.

To ensure that the data meets the businesses needs, it

shall be accurate, complete, consistent, timely and

flexible (Bracket, 1994) (Linthicum, 2000). The CIO

function focused on the number of data transfers

needed to carry out the process as an indicator for

measuring quality of data.

Accuracy of data – All handling of data can

result in decreased accuracy, since data might

become corrupt during the conversions related to the

handling (Boehm, 1978). Two different indicators

were used to measure accuracy: The number of times

that databases have to be updated in order to run

the process and the number of data transfers

between systems needed on a per function basis.

Scalability – The ability to grow/shrink the

capacity/performance of a system according to the

demand of the environment in which it operates. A

scalable system should therefore be highly

structured and comprise many fully separable

modules (Kazman, 1998) (Linthicum, 2000) (The

Open Group, 2003). The indicator used for

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

134

measuring scalability was the average number of

modules per system.

System complexity – A complex architecture is

difficult to understand, verify and change. System

complexity both refers to the software architecture

and the environment in which it operates

(Linthicum, 2000) (Zachman, 1987). Two indicators

were used for measuring system complexity, the

number of systems involved in the process and the

number of suppliers involved in realisation and

support of the scenario.

3.3 Analysis of scenarios

Each scenario was illustrated with a set of views,

showing certain relationships between entities. As an

example of how the views were employed in the

case study, simplified versions of the system-data

views for two of the scenarios are presented in

Figure 2 and Figure 3. The views show relationships

and data transfers between the systems and their

modules respectively. Grey boxes represent the

systems and white boxes symbolize lower-level

system modules, i.e. Human Resources System,

Graphical User Interface, and so on. The arrows

illustrate data transfers, flow directions are indicated

by the arrow heads.

Apart from the system-data view, a process-

system view, showing relationships between process

activities and systems, and a process-data view

depicting relationships between activities and data

flows, were applied for each of the six scenarios.

These views are not necessary for showing the

applicability of the approach and are therefore not

presented in this paper.

An unweighted score, representing for example

the number of modules or data connections in a

certain view, the grade of fulfilment to a security

policy, etc., was then obtained for each indicator,

and the same score was used for the corresponding

criterion. For instance, the number of systems

employed in each scenario served as an indicator for

measuring the system complexity criteria. As can be

seen in the simplified Figure 2 and Figure 3, the

ERP System scenario employs fewer systems than

the DMS scenario and was therefore considered

having less system complexity. Please note that the

figures presented in this paper are extremely

simplified and cannot be used for repeating the

measurements with accurate results.

Figure 2: DMS scenario, DMS manages the workflow

Figure 3: ERP System scenario, ERP System manages the

workflow

In order to normalize the scores, the best

scenario for each criterion was allotted 10 points.

The other five were normalized against it, resulting

in unweighted scores between 1 and 10 for each

indicator and scenario. When multiple indicators

were used for measuring a single criterion, average

scores was calculated.

Prioritization of criteria was conducted with

key personnel at the utility, aiming for an

identification of the most important criteria, seen

from the utility’s point of view. The evaluation was

tailored so that it would bring out the system

qualities regarded as most vital. The participants

were asked to weigh criteria in a pair-wise

comparison. A prioritization ladder was then

obtained with the respective weight of each criterion

represented as a fraction of 100%.

A weighted score could be calculated by

multiplying the score of a criterion by its respective

weight. The total weighted score is the sum of the

weighted score for all criteria in one scenario. It

comprises the final result of the study.

SCENARIO-BASED EVALUATION OF ENTERPRISE - A top-down approach for chief information officer decision

making

135

3.4 Results

When studying the total unweighted scores only, it

showed that the results varied with less than 15

percent between the six scenarios.

Table 1 shows the results for two of the scenarios.

However, when looking at the unweighted scores for

specific criteria, it showed that they varied heavily

between scenarios.

Table 1: Prioritized criteria with unweighted and weighted

scores for two scenarios

Criterion (Priority) ERP System

score

(unweighted/

weighted)

DMS

score

(unweighted/

weighted)

Quality of Data (21%) 10 (210) 7 (147)

IT-Business Alignment

(18%)

7,5 (135) 4 (72)

Accuracy of Data (15%) 10 (150) 8 (120)

Accessibility (11%) 10 (110) 8 (88)

Efficiency (9%) 10 (90) 8 (72)

Scalability (8%) 8 (64) 9 (72)

System complexity (8%) 9 (72) 8 (64)

Modifiability (7%) 8 (56) 8,5 (60)

Architectural changes (4%) 8.5 (34) 10 (40)

Total score: 81 (921) 70,5 (735)

All scenarios were individual and had distinctive

strengths and weaknesses. It could also be concluded

that each scenario did better on at least one criterion

than any other. For example, the DMS scenario

depicted in Figure 2 was generally better at

modifiability and scalability (even though the

differences were small), while the ERP System

scenario depicted in Figure 3 did better on Quality of

Data and IT-Business alignment. No scenario was

without merit and therefore no clear winner could be

identified by using the total unweighted scores only.

The CIO inevitably should consider trading one

quality for another in order to make a decision on

which scenario is the better of the six.

The differences between the scenarios increased

when the prioritization of the criteria was taken into

account. As can be seen in Table 1, some criteria

were deemed twice as important as others. Given the

fact that Quality of Data, IT-Business alignment,

Accuracy of Data, and Accessibility were considered

the most important criteria, it was clear that the ERP

System scenario by far exceeded the DMS scenario.

The suggestion given to the utility was therefore to

implement the former solution.

4 DISCUSSION AND CONCLUSIONS

To minimize the frequency of architectural ad-hoc

decisions made by CIOs, tools are needed. Since

many CIOs today serve as human fire extinguishers

instead of having the strategic and proactive role

they should, these tools must be sharp, easy to use

and time saving. The contribution of this study is a

well-defined approach to identify and evaluate

possible solutions to any given Enterprise

Architecture-related problem.

Today, the available tools include different

Enterprise Architecture Frameworks, which are hard

to apply in the real world because of their

extensiveness. If the proposed top-down approach is

used, the question that the CIO needs answers to do,

together with a set of criteria, provide guidance for

collecting adequate information. Merely a minimum

of views, containing relevant information, are

created and used for analysis purposes. The

approach stresses that criteria should be prioritized

and that only the most relevant criteria and

indicators should be used. The aim is to have just

enough information to make the right decision. This

serves four purposes:

1. Less time is spent on searching for

information that is not needed.

2. The general soundness of the architectural

theory for the particular question, according

to the CIO, is taken into account.

3. Tradeoffs between criteria are identified

and evaluated.

4. The relative importance of each criterion

will influence on which scenario that will

be selected.

The case study showed that all scenarios were

individual and had distinctive strengths and

weaknesses. It could also be concluded that each

scenario did better on at least one criterion than any

other. It was thus a matter of trading off benefits and

disadvantages arbitrary between the scenarios. Thus,

the differences between the scenarios increased

when the prioritization of the criteria was taken into

account. Without a structured tradeoff between

properties, a scenario that scores high on a property

with low priority may receive he highest total score.

After a consultation with CIOs at the utility, the

scenario that best fitted the requirements was

selected. In order to carry out a scenario-based

evaluation of Enterprise Architecture with a reliable

result, evaluation criteria must be taken from widely

accepted sources. It is therefore a task for academia

to provide the industry with general architectural

theory.

The evaluation criteria used in the case study can

be refined by digging deeper into literature. Relying

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

136

on a solid base of theory from multiple and well-

known sources, the evaluation criteria can be trusted.

The case study also showed that finding indicators

for measuring criteria can be quite hard. Rules of

thumb and common sense had to be applied in

certain cases.

The results, being quantifiable and illustrated,

provide a search cost-efficient (using only relevant

criteria for evaluation), high-quality (based on

multiple and well known sources) and easily

understood (explained at a high level of abstraction)

basis for decision making. This was confirmed by

interviewing several CIOs at the electric utility a few

months after the original study was committed. They

all agreed on the usefulness of the scenario-based

approach, and the different scenarios served as a

basis when deciding upon the future of their IT

systems. According to the CIOs, an analysis could

be made rapidly and in a structured manner. The

views served well in explaining complex cross-

dependencies between systems. The study shows

that this scenario-based approach can make complex

Enterprise Architecture decisions

understandable for

both CIOs and stakeholders with poor IT

knowledge.

ACKNOWLEDGEMENTS

The authors would like to thank Georg Karlén, Chief

Information Security Officer (CISO) at Vattenfall

AB for providing valuable input to the case study.

REFERENCES

Bass, L., Clements P., Kazman R., 1998, Software

Architecture in Practice, Reading, Massachusetts,

Addison-Wesley.

Boehm, B. W., et al, 1978, Characteristics of software

quality, North Holland.

Brown, C., 1993, “The Successful CIO: Integrating

Organizational and Individual Perspectives”,

Proceedings of SIGCPR ´93.

Brackett, M., 1994, Data Sharing: Using a Common Data

Architecture, John Wiley & Sons Inc.

Cassidy, A., 1998, Information Systems Strategic

Planning, Boca Raton, Florida, St Licie Press.

Chief Information Officer Council, 1999, The Federal

Enterprise Architecture Framework, CIO Council.

Chief Information Officer Council, 2001, The Federal

Enterprise Architecture, CIO Council.

Clinger-Cohen Act of 1996 (formerly known as the

Information Management Reform Act), 1996, Division

E National Defense Authorization Act for FY,

February 10.

Department of Defense, 2003, The Department of Defense

Architecture Framework, Department of Defense.

Gottschalk, P., 1999, “Strategic Management of IS/IT

Functions: The Role of the CIO in Norwegian

Organizations”, International Journal of Information

Management, Vol 19, pp. 389-399.

Johnson, P., Ekstedt, M., Silva, E., Plazaola, L., 2004,

Using Enterprise Architecture for CIO Decision-

Making: On the importance of theory, In the

Proceedings of the 2nd Annual Conference on Systems

Engineering Research (CSER).

Kaplan R., Norton D., 1996, The Balanced Scorecard,

Boston, Massachusetts, HBS Press.

Karlsson, J., Wohlin, C., Regnell, B., 1998, On Evaluation

of Methods for Prioritizing Software Requirements,

Information and Software Technology, 39(14-15):939-

947.

Kazman, R., Klein, M., Barbacci, M., Longstaff, T.,

Lipson, H., Carriere, J., 1998, The Architecture

Tradeoff Analysis Method, Proceedings of the Fourth

IEEE International Conference on Engineering of

Complex Computer Systems (ICECCS), Monterey,

CA.

Kirkpatrick, K.A., 2002, “CIO Role Survey (350

American senior IT executives)”, CIO Insight

Magazine.

Land, R., Crnkovic, I., 2003, Software System Integration

and Architectural Analysis – A Case Study,

Proceedings of the International Conference on

Software Maintenance.

Lindström, Å., Johnson, P., Johansson, E., Ekstedt, M.,

Simonsson, M., 2004, A Study on CIO Concerns: Do

Enterprise Architecture Frameworks Support Them?,

Submitted to Information Systems Frontiers.

Linthicum D., 2000, Enterprise Application Integration,

Upper Saddle River, New Jersey, Addison Wesley.

Luftman, J., 2000, Assessing Business-IT alignment

maturity, Communications of the Association for

Information Systems, Vol. 4.

Mc Govern, J., et al, 2003, A practical Guide to Enterprise

Architecture

, Prentice Hall, Upper Saddle River.

The Open Group homepage, 2004, www.opengroup.org,

February 20.

The Open Group, 2003, The Open Group Architectural

Framework, Version 8, The Open Group.

Oskarsson, Ö., 1981, Mechanisms of Modifiability in

Large Software Systems, Dissertation, Software

Systems Research Center, Linköping University.

Ruh W., 2001, Enterprise Application Integration, Wiley.

Spewak, S., 1992, Enterprise Architecture Planning –

Developing a Blueprint for Data, Applications and

Technology, New York, John Wiley & Sons Inc.

Zachman, J.A., 1987, A Framework for Information

Systems Architecture”, IBM Systems Journal, Vol. 26,

No 3.

SCENARIO-BASED EVALUATION OF ENTERPRISE - A top-down approach for chief information officer decision

making

137
