SERVICE BROKERAGE IN PROLOG

Cheun Ngen Chong, Sandro Etalle, and Pieter Hartel

University of Twente

P.O. Box 217, 7500 AE Enschede, The Netherlands.

Rieks Joosten and Geert Kleinhuis

TNO Telecom Groningen

P.O. Box 15000, 9700 CD Groningen, The Netherlands.

Keywords:

Service brokerage, rights expression language, conceptual modelling, service management.

Abstract:

Service brokerage is a complex problem. At the design stage the semantic gap between user, device and system

requirements must be bridged, and at the operational stage the conﬂicting objectives of many parties in the

value chain must be reconciled. For example why should a user who wants to watch a ﬁlm need to understand

that due to limited battery power the ﬁlm can only be shown in low resolution? Why should the user have to

understand the business model of a content provider? To solve these problems we present (1) the concept of

a packager who acts as a service broker, (2) a design derived systematically from a semi-formal speciﬁcation

(the CC-model), and (3) an implementation using our Prolog based LicenseScript language.

1 INTRODUCTION

A service is a combination of an application and its

maintenance. The application implements the func-

tionality required, e.g. making available a communi-

cation channel, playing a song. The maintenance en-

sures availability e.g. fast delivery, high bandwidth,

24 hour access. Services are characterized by a wide

variety of parameters, for example the capability of

the service delivery (e.g. bandwidth), and the restric-

tions on the service usage (e.g. device limitation).

These parameters make service brokerage a complex

problem.

Users have a wide variety of service demands (e.g.

to use their services anywhere and anytime); on the

other hand, service providers have their own require-

ments (e.g. to control user’s access rights). We present

the concept of a packager who acts as a service broker,

and we present an implementation as part of the Resi-

dential Gateway Environment (RGE) project (Joosten

et al., 2003). Our contribution is two-fold: (1) Dur-

ing the design stage, we show how to derive the com-

plex infrastructure for the service management from

a semi-formal high-level description: the “Calculat-

ing with Concepts” (CC) method (Dijkman et al.,

2001). We encode all aspects of service brokerage

in LicenseScript (Chong et al., 2003). (2) During the

operational stage, we show how LicenseScript han-

dles the diverse requirements of all parties involved.

LicenseScript is based on Prolog and multiset

rewriting and allows one to express licenses, i.e. con-

ditions of use on dynamic data. Prolog has the advan-

tage of combining an operational semantics (needed,

e.g., in negotiations) with a straightforward declara-

tive reading. Our addition of multiset rewriting to

Prolog allows to encode in an elegant and semanti-

cally sound way the state of a license. The semantics

of LicenseScript is given in terms of traces (Chong

et al., 2003).

Section 2 introduces the overall infrastructure of

the RGE service management and its CC model. Sec-

tion 3 derives LicenseScript from the CC model. The

last section concludes and presents future work.

2 CC MODEL OF RGE

We present the overall infrastructure of RGE service

management together with the CC method. The RGE

architecture supports three main roles: the residen-

tial gateway (RG), the packager (P) and the service

providers (SP). Service providers provide services

(S), e.g. access to music, videos, but also bandwidth.

The packager behaves as a service broker, being able

to manipulate and integrate the services provided by

the various SPs. The residential gateway is where the

services actually run. A power user (PU) of the RG

is allowed to (un)subscribe to services. All users (U)

409

Ngen Chong C., Etalle S., Hartel P., Joosten R. and Kleinhuis G. (2005).

SERVICE BROKERAGE IN PROLOG.

In Proceedings of the Seventh International Conference on Enter prise Information Systems, pages 409-412

DOI: 10.5220/0002517804090412

 SciTePress

are allowed to use the services.

RG

C

LD

s

u

p

i

p

o

P

r

e

q

hbrw2

S

h

a

s

1

c

p

l

p

PU

has2

r

u

n

i

s

t

U

SP

a

p

t

u

s

e

p

r

o

v

hbrw1

Service Model

Contract Model

Service

Provisioning Model

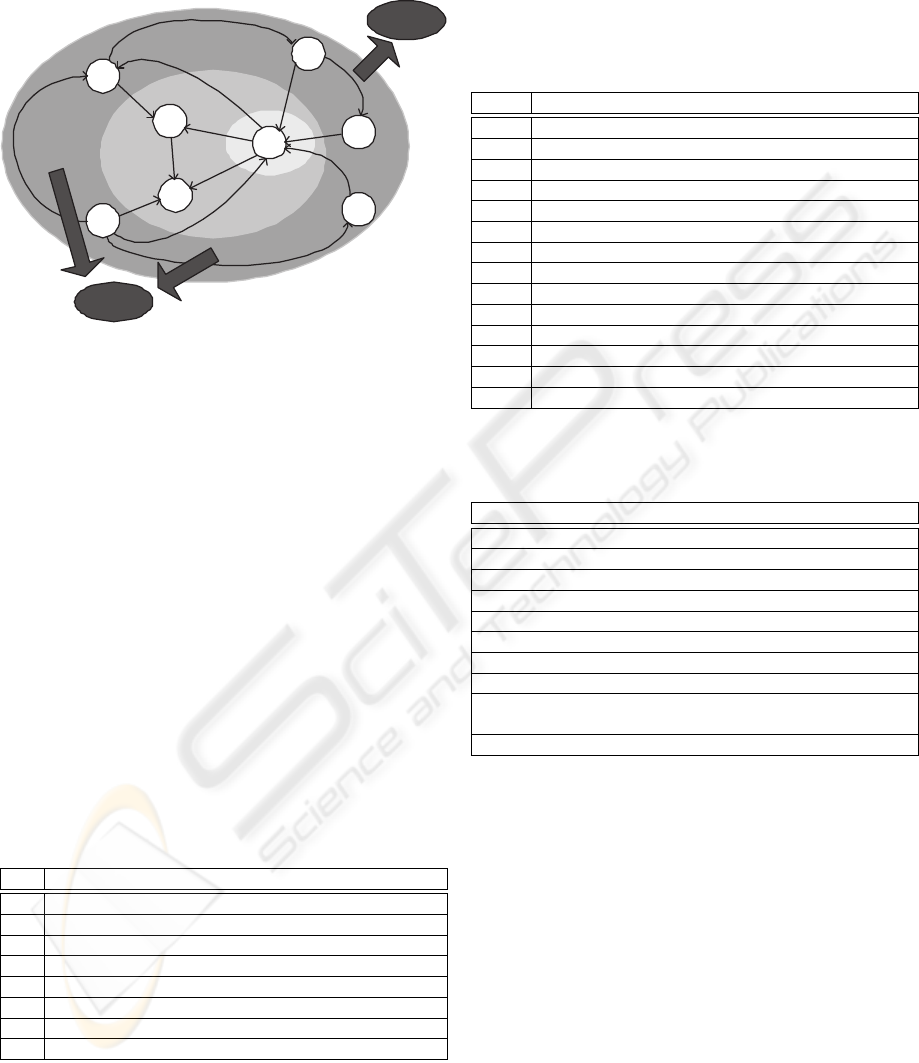

Figure 1: Three of many CC models of the RGE service

management infrastructure.

To develop the RGE infrastructure, den Hartog et

al. (den Hartog et al., 2004) use the Calculating with

Concepts (CC) method, which can be seen as an

extension of Entity-Relationship diagrams. The ba-

sic ingredients of a CC model are (a) entities, (b)

relations and (c) restrictions. The rationale behind

the CC-method is that every engineer involved in a

project has a different interpretation of the system re-

quirements. The CC method is then used in group

discussions to iron out these differences, and thus help

to develop a consistent frame of reference. Figure 1

presents a simpliﬁed CC-model for the RGE architec-

ture centered on service brokerage. There are many

other, similar models centering on other, relevant as-

pects. The models are related through the use of a

common vocabulary for entities, relations and restric-

tions.

Table 1: The CC entities of the Service Model

Entity

C Service characteristic, e.g. the quality, etc

LD List of demands, which a service must comply with

P Packager

RG Residential gateway

S Service

SP Service provider

U Normal user who uses the service

PU Power use who possesses the administrative power on RG

The roles of the RGE service management in-

frastructure are represented by the CC entities (see

Table 1). These roles interact through the entities ser-

vice (S), characteristics (C), and list of demands (LD).

Relationships and restrictions are described in further

detail in 2 and 3, respectively. The restrictions listed

in Table 3 largely determine the semantics of the CC

model (Joosten et al., 2003).

Table 2: The relations between the entities of the Service

Model

Abbr. Relation

apt Power user assigns permission(s) to user.

cpl Service complies with list of demands.

has1 Service has characteristic.

has2 Residential gateway has (is owned by) power user.

hbrw1 Packager has a business relation with service provider.

hbrw2 Packager has a business relation with residential gateway.

ipo Characteristic is part of list of demands.

ist Power user has subscribed to service.

p Packager permits service.

prov Service provider provides service.

req Packager requires list of demands.

run Service runs on residential gateway.

sup Residential gateway supports characteristic.

use User uses service.

Table 3: The CC restrictions of the Service Model

Restrictions

Every user is created by one and only one power user.

Every user has been assigned permissions by one and only one power user.

Every residential gateway has one and only one power user.

Every packager permits at least one service.

Every packager has a business relation with at least one service provider.

Every packager has a business relation with at least one residential gateway.

Every service is provided by at least one service provider.

Every service has at least one characteristic.

For every list of demands, there is at least one characteristic that is part of

that list of demands.

Every packager requires at least one list of demands.

3 LICENSESCRIPT DERIVATION

We now brieﬂy introduce the LicenseScript language,

then we will show how to derive a LicenseScript spec-

iﬁcation from the CC model just presented. Licens-

eScript (Chong et al., 2003) is a formalism that can

be used to specify access control and manipulation

of licenses on digital content like music, video, soft-

ware etc. The unique feature of LicenseScript is that

licenses actually carry Prolog code (representing ac-

cess and usage conditions) together with bindings,

that can be used to store the state of the license.

In LicenseScript we work with objects (licenses)

and rules. Objects have the form:

object_name(Content,Clauses,Bindings)

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

410

Here object name is the name of the object;

Content is a content identiﬁer which is associated

to this object; Clauses is a set of Prolog clauses,

and Bindings is a set of attributes pertaining to the

object. Rules have the form:

rule_name(arguments):

lhs -> rhs <== Condition

Here, lhs and rhs are multisets of objects.

Condition is a logical formula that may refer to

the clauses deﬁned in the objects contained in lhs.

Because of this, rules are second-order constructs; ob-

jects are ﬁrst order.

Intuitively, objects are pieces of enhanced (mobile)

Prolog code, while rules are there to manipulate the

objects and to query the code they carry. Rules are not

mobile, and can be thought of as being the interface

between the devices and the mobile code. The use

of multiset rewriting allows us to model in a logical

yet effective way the presence of mutable resources

that not only can be modiﬁed, but also created and

destroyed.

We now show how to derive LicenseScript code

from the CC model. We propose a set of informal

derivation rules to map the various CC components

onto LicenseScript objects and rules, and/or the con-

tent, clauses and bindings of the objects:

1. We start from the service (entity S, inside the inner-

most circle of Figure 1) because this is the central

entity in RGE service management. Each instance

of S is then mapped onto the content part of an ap-

propriate LicenseScript object.

2. Entities are split into two groups:

• Objects, i.e., the entities on which actions are be-

ing performed (C and LD in the middle circle).

These are mapped onto LicenseScript objects.

• Subjects, i.e., the entities that perform actions

upon the objects (RG, P, SP, U, and PU in the

outer circle). These are mapped onto License-

Script bindings.

3. Relations between the entities are mapped onto Li-

censeScript clauses, the body of which must reﬂect

the cardinality restrictions of the relation.

4. Restrictions are captured by LicenseScript multiset

rewrite rules.

Objects LD becomes demands(S,C,B) while C

is mapped onto characteristics(S,C,B). In

addition, to communicate with the external world,

(Contract Models and Service Provisioning Models,

in Figure 1), we use the objects license(S,C,B)

and contracts(S,C,B), where S represents the

service; C denotes a set of clauses; and B is a set of

bindings.

Clauses In principle, derivation rule #3 maps each

CC relation onto a separate clause. To improve ef-

ﬁciency, we map more than one CC relation onto

a single clause. For instance, we use the clause

cangrant(·) to capture both relations has2 and

apt. This clause allows the power user to assign the

license (i.e. grants the usage permissions) to normal

users:

cangrant(Blic1,Blic1’,Blic2,Poweru,User) :-

get_value(Blic1,power_user,Pu),

authenticate(Pu,Poweru),

set_value(Blic1,user,User,Blic1’).

Here Blic and Blic1’ are bindings. To ac-

cess these bindings we use the primitives below to

get (resp. set) the value associated with Name in

Bindings:

get_value(Bindings,Name,Value)

set_value(Bindings,Name,Value,NewBindings)

As a second example, the clause canuse(·) al-

lows to capture the relations run and use. canuse

authenticates and checks that the service actually runs

on the residential gateway (the binding enabled):

canuse(Blic,Blic’,User) :-

get_value(Blic,user,U),

get_value(Blic,enabled,E),

E == true, authenticate(U,User).

We conclude this part by showing a more complex

example. canpermit(·) authenticates the pack-

ager to ensure its genuineness, before enabling the

service to the residential gateway; relations p and ist

are captured here.

canpermit(Bdem,Bdem’,Blic,Clic,Pack) :-

get_value(Bdem,packager,P),

get_value(Bdem,service_provider,S),

get_value(Bdem,license_clauses,Clic),

authenticate(Pack,P),

set_value(Bdem,enabled,true,Blic).

Rules Rules provide the necessary interface be-

tween the outside world and the LicenseScript ob-

jects. The simplest example of rule is use, which

is invoked by the user to actually use a service. The

rule just has to check for the presence of a license:

use(Service,U) :

license(Service,Clic,Blic1)

-> license(Service,Clic,Blic2)

<= Clic |- canuse(Blic1,Blic2,U)

canuse(Blic1,Blic2,U) is queried in Clic

(a failure of the query would indicate that the license

is no longer valid; e.g. it might have expired); after

successful completion of the query, the license is re-

placed by another one with a the new set of bindings

Blic2.

A more complex rule is grant, which duplicates

a license. The power user would execute grant to

grant some permissions/rights to a normal user:

SERVICE BROKERAGE IN PROLOG

411

grant(Service,U1,U2) :

license(Service,Clic,Blic1),

-> license(Service,Clic,Blic1’),

license(Service,Clic,Blic2)

<= Clic |- cangrant(Blic1,Blic1’,Blic2,U1,U2)

This rule generates a new license(·) for the

user.

Finally we present the rule permit, with which

the packager generates a license for some service to

be run on the residential gateway:

permit(Service,P,S) :

demands(Service,Cdem,Bdem),

characteristics(Service,nil,Bcha)

-> demands(Service,Cdem,Bdem’)

characteristics(Service,nil,Bcha’),

license(Service,Clic,Blic)

<= Cdem |- canpermit(Bdem,Bdem’,Blic,Clic,P),

Cdem |- cancomply(Bdem,Bdem’,Bcha,Bcha’)

The object demands(Service,Cdem,Bdem)

indicates that a user has requested Service; Cdem

and Bdem are respectively a set of clauses and a set

of bindings that – combined – specify extra side con-

ditions such as the maximum bandwidth, the price the

user is willing to pay, etc. By calling canpermit,

the packager checks if permission can be granted.

canpermitalso returns the clauses that will be used

in the new license. On the other hand, cancomply

validates the service request (See below).

3.1 Service Requirements Validation

We now deﬁne how the packager validates a ser-

vice request, ﬁrst using a simpliﬁed version of the

cancomply(·) clause:

cancomply(Bdem,Bdem’,Bcha,Bcha’) :-

get_value(Bdem,bandwidth,X1),

get_value(Bcha,bandwidth,X2),

get_value(Bdem,quality,Y1),

get_value(Bcha,quality,Y2),

get_value(Bdem,billing,Z1),

get_value(Bcha,billing,Z2),

X1 >= X2, Z1 = Z2, Y1 =< Y2.

The last line shows the use of constraints to en-

sure that the maximum bandwidth of the user’s de-

vice meets the minimum bandwidth required for the

service; that the billing status of the user meets the re-

quirement of the service provider; and that the quality

measure required by the user does not exceed the of-

fered quality.

Alternatively, one can use a parametric approach,

in which the list of requirements to be complied with

is stored in the license:

cancomply(Bdem,Bdem’,Bcha,Bcha’) :-

get_value(Bcha,requirements,Reqs),

meets_requirements(Reqs).

meets_requirements([]).

meets_requirements([[Reqn,Reqv]|Reqs]):-

check_requirement(Reqn,Reqv),

meets_requirements(Reqs).

Recall that (see rule permit above) the

query cancomply is ﬁred in the set of

clauses Cdem speciﬁed in the user’s demand

demands(Service,Cdem,Bdem). Therefore

cancomply can check that the service speciﬁcation

meets the the constraints set out in the user’s demand.

4 CONCLUSIONS AND FUTURE

WORK

We present one of the central concepts of the

LicenseScript-RGE demonstrator, i.e. the packager,

which acts as a service broker. We derive its im-

plementation in our Prolog based LicenseScript lan-

guage, using a systematic derivation from a semi-

formal speciﬁcation (the CC-model).

The combination of Prolog and multiset rewriting

proves to be a very suitable platform for implement-

ing a complex broker such as the one we have pre-

sented, in particular: (1) To represent complex ser-

vices in a ﬂexible and efﬁcient manner one needs to

employ executable (mobile) code of some kind. (2)

To manipulate services it is therefore necessary to em-

ploy a second-order system. Prolog is perfect for this.

REFERENCES

Chong, C. N., Corin, R., Etalle, S., Hartel, P. H., Jonker,

W., and Law, Y. W. (2003). LicenseScript: A novel

digital rights language and its semantics. In Ng, K.,

Busch, C., and Nesi, P., editors, 3rd International

Conference on Web Delivering of Music (WEDEL-

MUSIC), pages 122–129, Los Alamitos, California,

United States. IEEE Computer Society Press.

den Hartog, F. T. H., Baken, N. H. G., Keyson, D. V.,

Kwaaitaal, J. J. B., and Snijders, W. A. M. (2004).

Tackling the complexity of Residential Gateway in an

unbundling value chain. In Proceedings of XVth In-

ternational Symposium on Services and Local AccesS

(ISSLS 2004), page Published Electronically. IEE.

Dijkman, R. M., Pires, L. F., and Joosten, S. M. M. (2001).

Calculating with Concepts: a technique for the de-

velopment of business process support. In Evans,

A., France, R., Moreira, A., and Rumpe, B., editors,

Proceedings of the UML 2001 Workshop on Practi-

cal UML-Based Rigorous Development Methods, vol-

ume 7 of Lecture Notes in Informatics, pages 87–98.

GI-Edition.

Joosten, R., Knobbe, J.-W., Lenoir, P., Schaafsma, H., and

Kleinhuis, G. (2003). Speciﬁcations for the rge secu-

rity architecture. Technical Report Deliverable D5.2

Project TSIT 1021, TNO Telecom and Philips Re-

search, The Netherlands.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

412
