JDSI: A SOFTWARE INTEGRATION STYLE FOR

INTEGRATING MS-WINDOWS SOFTWARE APPLICATIONS IN

A JAVA-BASED DISTRIBUTED SYSTEM*

Jim-Min Lin, Zeng-Wei Hong, Guo-Ming Fang

Department of Information Engineering and Computer Science, Feng Chia University,

Taichung City 40724, Taiwan, ROC

Keywords: COTS software reuse, Software integration, Java-based distributed system, Architecture style

Abstract: Developing software systems by integrating the existing applications/systems over the network is becoming

mature and practical. Microsoft Windows operating systems today support a huge number of software

applications. It may accelerate the construction of components, if these commercial software applications

could be transformed to software components. This paper proposes an architectural style to support a 3-

phases process for migrating MS-Windows applications towards a distributed system using Java

technologies. This style is aimed to provide a solution with clear documentation and sufficient information

that is helpful to a software developer for rapidly integration of MS-windows applications. In final, an

example parking lot management system that assembles two MS-Windows applications was developed in

this work to demonstrate the usage of this style.

1 INTRODUCTION

Distributed computing has been an important trend

for developing software systems. Client/server

programming, distributed object systems and

Internet/WWW are distributed computing

technologies enabling a software system developed

by integrating different software components across

the boundaries of the network, operating systems,

and languages. The research on the integration of

distributed commercial off-the-shelf (COTS)

software applications is becoming mature and

practical. One of the important features of reusing

COTS software is that software developers can

rapidly integrate the well-established functionality in

the new system rather than developing one from

scratch. There have been a large number of COTS

software applications running on a variety of

Microsoft operating systems. It would facilitate the

software component construction, if the software

developers could utilize the functions of an existing

MS-Windows application.

Nowadays Java is already a popular distributed

computing paradigm widely adopted over industries,

marketplace, and the Internet. An important feature

of a Java program is that it can be deployed on

heterogeneous OSs and platforms. It would be

significant to assemble heterogeneous software

components including diverse MS-Windows

software applications using Java technologies. On

the achievement of the above goal, a lot of Java-

based services could be easily developed with the

existing MS-Windows applications. Moreover, the

diverse legacy applications under Microsoft OSs

could be reused and included into a new Java-based

software system.

In this study, we found it the major difficulty to

obtain the source code and technical support from

various vendors when reusing MS-Windows

software applications. Therefore, it would be a key

issue to overcome the incompatibility between MS-

Windows application’s operational interface and

Java application’s programmable interface.

Therefore, an architectural style named as Java-

based Distributed Software Integration (JDSI) in this

paper provides a migration process consisted of a

bottom-up three phases: encapsulation, gluing, and

interfacing. We firstly construct a server-side Java

object by wrapping MS-Windows application(s) in

the encapsulation phase. In this phase, a software

wrapper will be used to overcome interface

incompatibility. Then in the gluing phase, a

coordinator program is used to coordinate the server-

side wrapped objects and to integrate them into a

client-server system. Finally, in the interfacing

* This research was partly supported by National Science

Council, Taiwan, ROC under Grant NSC92-2213-E-035-044.

449

Lin J., Hong Z. and Fang G. (2005).

JDSI: A SOFTWARE INTEGRATION STYLE FOR INTEGRATING MS-WINDOWS SOFTWARE APPLICATIONS IN A JAVA-BASED DISTRIBUTED

SYSTEM.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 449-452

DOI: 10.5220/0002518904490452

 SciTePress

phase, we refer to the Model-View-Controller

(MVC) pattern (Schmidt 1999) to construct the user-

interactive system for the client-user’s manipulation

in the integrated software system.

By referring to the JDSI style, lots of valuable

information, like design issue-solution pairs,

participants’ specification, and implementation

strategy could be obtained to create applications

with similar problem issues. To demonstrate the

usage of the proposed style, a graphic parking-lot

system that reuses and integrates MS-Windows

software applications will be reported in this paper.

2 RELATED WORKS

Many researches have proposed the means to

migrate the existing applications to a distributed

system. However, most of them focused the source-

available legacy applications.

De Lucia et al. (De Lucia 1997, Cimitile 1998,

Canfora 1998, Aversano 2001) proposed a six-step

process to decomposing the existing source code of

COBOL systems into user interface component,

application logic, and database. These components

could be integrated into a Web-based information

system (Aversano 2001). Serrano et al. (Serrano

2002) encompassed data mining and evolutionary

migration techniques into reengineering a legacy

program. They also proposed a feasible

reengineering methodology to migrating non-object-

oriented systems into the CORBA platform .

The main difficulty raised in De Lucia’s work is

how to efficiently decompose an existing system

(Cimitile 1998), Canfora 1998). However, lots of

COTS MS-Windows software applications are

seldom decomposable and even non-decomposable.

Therefore, we prefer to wrap an entire MS-Windows

software application through the simulation of a

sequence of I/O operations. By this way, we need to

write the new application logic as the job control

program to call the wrapped application, and new

user interfaces.

Sneed (Sneed 1998) had experiment on

encapsulating the legacy system in five levels: job,

transaction, program, module, and procedure.

Similar to job and transaction level, our software

wrapping is not to alert the source. But there are still

little differences from Sneed’s method. Sneed’s job

wrapper is a job control program. Compare with

Sneed’s wrapper in job level, our component

wrapper is the glue between MS-Windows

application and component interface. Sneed’s

transaction wrapper is applied on database system

only, but our component wrapper is applied on MS-

Windows applications with I/O simulation rather

than limited to database systems.

3 JDSI ARCHITECTURAL STYLE

UserInterface

view

TaskCoordination

Controller

<<event-driven>>

call service

<<system>>

Coordinator

<<Interface>>

port

JWin object

I/O adaptor

MS-Windows

application

<<Java RMI>>

uses

Component wrapper

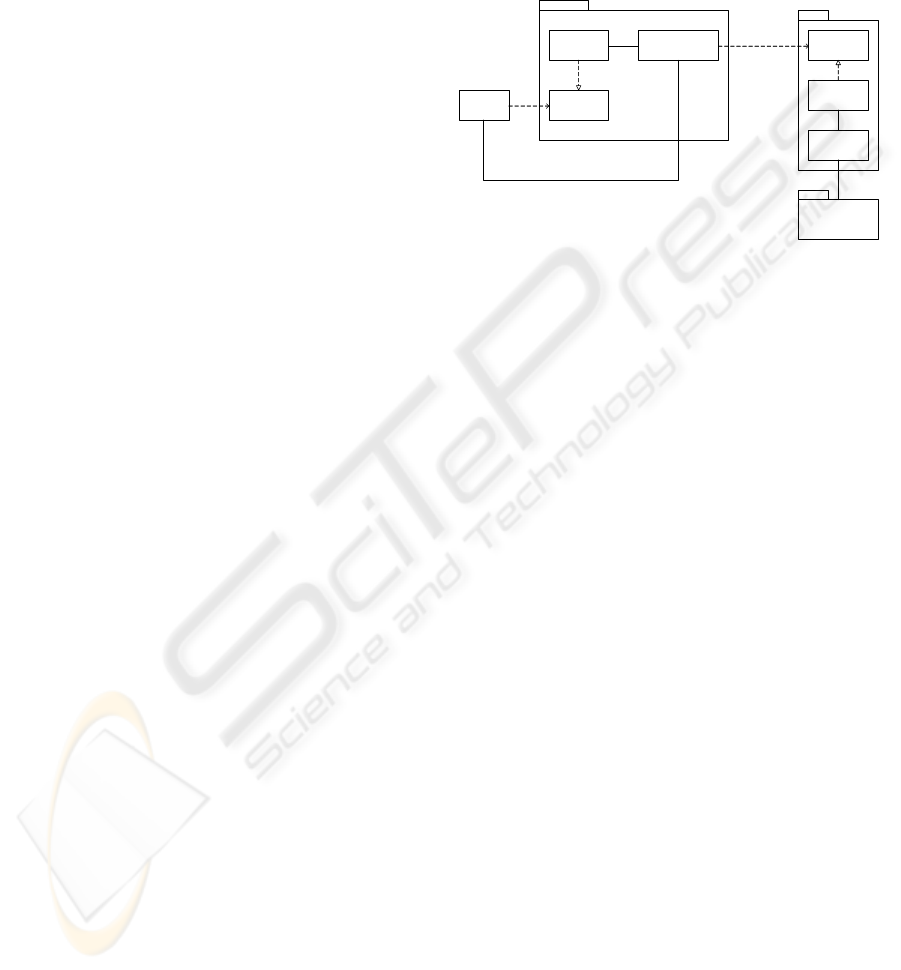

Figure 1: Structure of JDSI style

The structure of JDSI is shown in Fig.1. JDSI

contains three main architectural components,

Component Wrapper, Coordinator, and UI

Controller. These components will accomplish the

responsibility for three phases in JDSI respectively.

• Encapsulation phase. Lots of MS-Windows

software products do not provide a programmable

interface. A component wrapper has capability to

provide a set of I/O interception/redirection

functions to access a MS-Windows application

(Lin 2004). The component wrapper also is used

to encapsulate the wrapped COTS MS-Windows

applications into Java objects.

• Gluing phase. JDSI style specifies a coordinator

which actually plays the application logic that

abstracts the functionality of this new software

system. Coordinator is also a Java program

controlling and interoperating with server-side

MS-Windows software applications.

Interfacing phase. This integrated software system

may commonly need a convenient operational user

interface to the users. JDSI style adopts the concept

of Model-View-Controller (MVC) model in

designing user-machine interactive function.

3.1 Phase 1: Encapsulation Phase

The designated component wrapper defined in JDSI

style (see Figure 2) has two participants to deal with

encapsulation:

• I/O adapter. It supports I/O interception and

redirection technique to transform a MS-

Windows application’s into a programmable

component.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

450

• JWin. This is an adaptee Java class that abstracts

the functionality of the wrapped MS-Windows

application. To deal with Java object

encapsulation, JWin has a set of methods exposed

on the interface and each method can invoke the

corresponding procedures of I/O adapter.

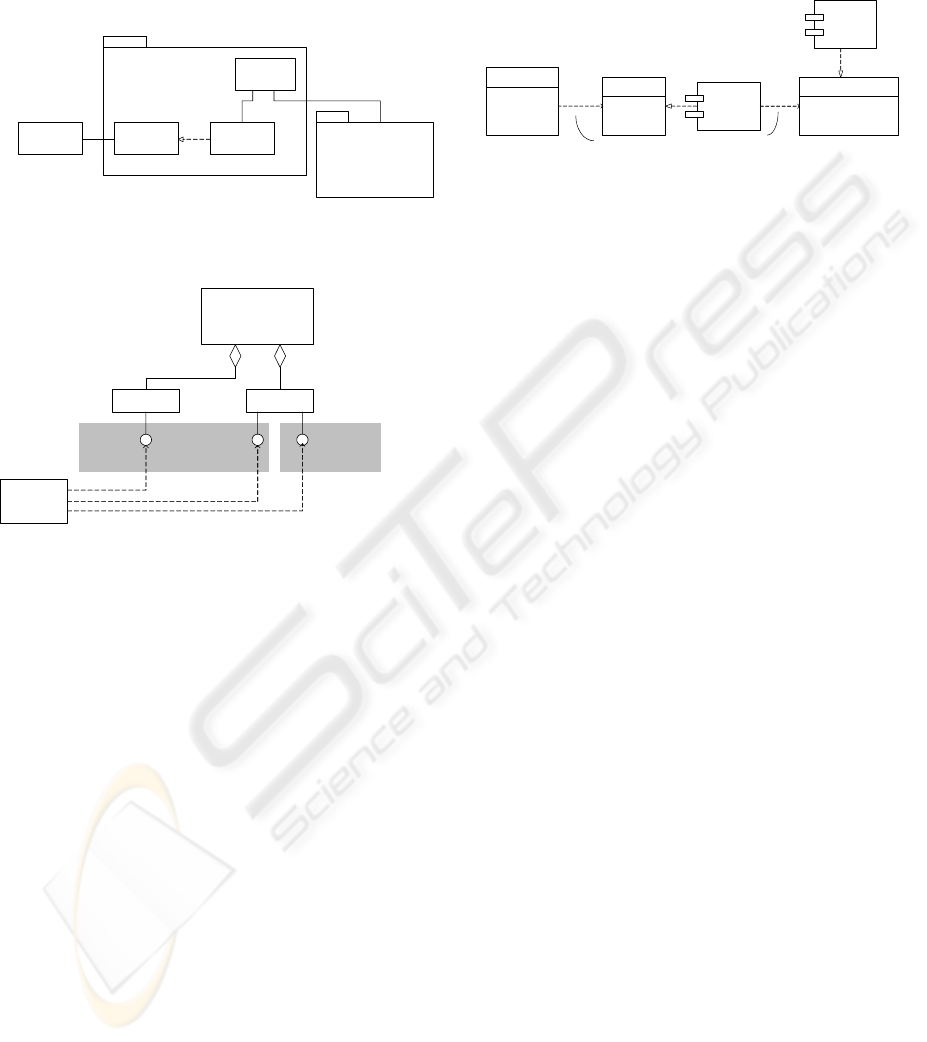

Figure 2: Structure of component wrapper

3.1.1 I/O Interception and Redirection

Figure 3: I/O interception and redirection

An MS-Windows application shown in Figure 3

could be regarded as a software component which

has two ports including System Message Queue and

Clipboard Space. Three important APIs provided in

Microsoft SDK, keybd_event(), SetClipboardData(),

and GetClipboardData(), are the procedures for

other program’s invocation.

For input interception/redirection, there exists a

system message queue to store external events such

as keyboard and mouse events. Once the keyboard is

clicked on a window, this window becomes active

and receives the program focus. A thread will

receive event messages in system message queue

only as this thread receives focus. The API,

keybd_event(), provided by MS-Platform SDK can

send keyboard events to an active MS-Windows

software application. If the inputs are not device

events, Microsoft supports clipboard mechanism

used to intercept input data. Another API in MS-

SDK, SetClipboardData(), can be used to

intercept/redirect input data from I/O adapter.

For output redirection, the MS-Windows

Clipboard mechanism is also applied. First, the I/O

adapter triggers the wrapped COTS MS-Windows

application to save the output data in the clipboard

space. Then the I/O adapter acquires the output data

from the clipboard space through the API,

GetClipboardData().

3.1.2 Java Object Encapsulation

<<application>>

COTS

MS-Windows

APP

<<DLL>>

I/O adapter.dll

<<I/O redirection>>

Keybd_event(ScanCode, Ch,

KEVENTF_EXTENDEDKEY,0)

SetClipboardData()

GetClipboardData()

<<interface>>

Ports

Startup()

Key()

Hotkey()

inputString()

ports

<<client>>

Java program

JWin Interface JWin adaptee

I/O adapter

MS-Windows application

Component wrapper

Figure 4: Collaboration of Java and I/O adapter in object

encapsulation

JWin is an adaptee class which exposes the existing

interface to abstract the wrapped MS-Windows

software application. A set of methods on this

interface would serve the functionality of the MS-

Windows application.

In the encapsulation phase, the I/O adapter is

firstly programmed in Microsoft Visual C++

language with MS-SDK APIs and formed into the

Dynamic Linking Library (.dll) file format. This I/O

adapter.dll provides procedures like startup(), key(),

hotkey(), inputString() and so on as the imports.

These import procedures would call the

keybd_event(), SetClipboardData(), and

GetClipboardData() to access the COTS MS-

Windows application. Then JWin uses its Java

methods to call the procedures provided in I/O

adapter.dll as shown in the Figure 4 After these step,

a COTS MS-Windows application seems to be

wrapped and encapsulated in Java class.

Language incompatibility is however a problem

in this step. Fortunately, Java provides JNI (Native

Invocation) technique to invoke methods written in

other programming languages, like C++.

3.2 Phase 2: Gluing Phase

To assemble the server-side wrapped MS-Windows

applications, JDSI style defines a coordinator which

has two responsibilities to deal with the integration.

First, the designated coordinator is used to

interoperate individual MS-Windows applications in

performing user requests. Second, coordinator

provides a user-interactive system for client users’

manipulation.

The coordinator defined by JDSI is illustrated in

Figure 5. Coordinator has two counterparts:

TaskCoordination and UserInterface.

TaskCoordination is a Java class which abstracts

the new integrated software system.

TaskCoordination is also an application logic which

exposes software services designed by the software

va_Method1()

va_Method2()

JWin

<<Java Native Invocation>>

COTS

MS-Windows APP

System message

queue

clipboard

Keybd_event() SetClipboardData()

I/O Adapter

GetClipboardData()

Input redirection Output redirection

<<port>> <<port>>

<<procedure call>>

JDSI: A SOFTWARE INTEGRATION STYLE FOR INTEGRATING MS-WINDOWS SOFTWARE APPLICATIONS IN

A JAVA-BASED DISTRIBUTED SYSTEM

451

integrator for client-side users, but these services are

implemented by remotely calling the JWin’s

methods in the server-side.

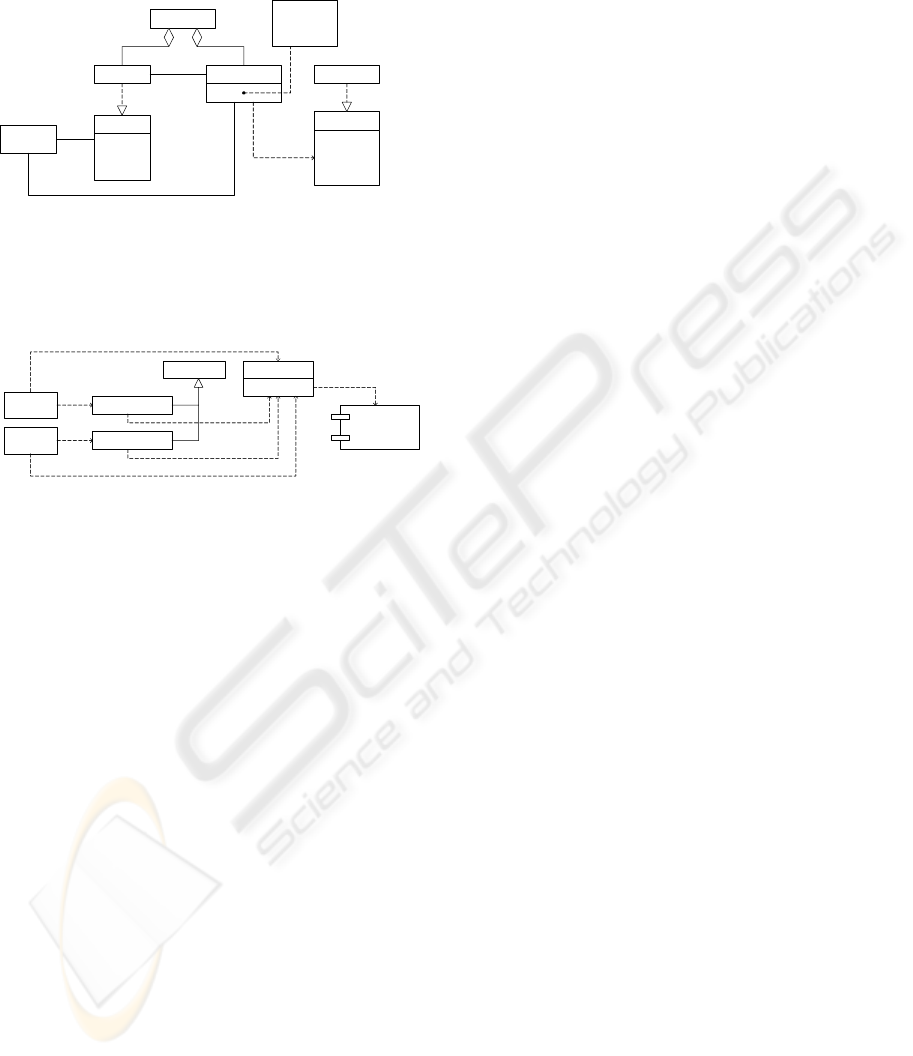

Figure 5: Structure of coordinator

3.3 Phase 3: Interfacing

Figure 6: MVC pattern in JDSI

A new integrated software system may commonly

need a operational interface such as GUI for client-

side users. Due to the old user interface of the

wrapped MS-Windows application is hardly

separated. We prefer to build a new one for client

users rather than reusing the old one.

JDSI style includes a Model-View-Controller

(MVC) pattern into coordinator. UserInterface in

coordinator provides user interface (i.e.

OPI_Windows in Figure 5) for end-user’s operation

through UI_Controllers, such as monitor, mouse,

keyboard, and other I/O devices. Each operation

would call the services of TaskCoordination to

request the sever-side MS-Windows applications.

According to MVC pattern, the UserInterface

could be regarded as an abstract UI_Factory (see

Figure 6), which declares an interface for operations

that create concrete OPI-Windows for users.

The TaskCoordination in coordinator could be

regarded as the “Model” component in MVC,

because it implements the functionality of the

integrated system. However, TaskCoordination is

not a concrete Model, because each of services in

coordinator is operated by remotely calling the

server-side wrapped MS-Windows software

applications.

4 CONCLUSION

JDSI style specifies a software wrapper for wrapping

MS-Windows applications as Java objects. JDSI

style could be applied to COTS-based system

development and even for legacy system

reengineering. The valuable design knowledge could

help a software engineer to deal with the related

problems when reusing COTS-based systems and

legacy systems. Our current work is focused on how

to promote the performance and robustness in JDSI

style.

Coordinator

UserInterface TaskCoordination JWin

<<Interface>>

port

Method_1()

Method_2()

Method_n()

Service()

Remote Method

Invocation

OPI_Window

getData()

Input()

Call_service()

Display()

<<client>>

I_Controller

getData

Service() {

Method_1()

Method_2()

Method_n()

}

<<method invocation>>

Call service

manipulate

REFERENCES

Aversano, L., Canfora, G., Cimitile A., De Lucia, A.,

2001. Migrating Legacy Systems to the Web: An

Experience Report. Proceedings of the 5

European

Conference on Software Maintenance and

Reengineering, 148 –157.

Canfora, G., Cimitile, A., De Lucia, A., Di Lucca, G.A.,

1998. Decomposing Legacy Programs: A First Step

towards Migrating to Client-Server Platforms.

Proceedings of the 6

International Workshop on

Program Comprehension, 136 –144.

Cimitile, A., De Carlini, U., De Lucia, A., 1998.

Incremental Migration Strategies: Data Flow Analysis

for Wrapping. Proceedings of the 5

IEEE Working

Conference on Reverse Engineering, 59 –68.

De Lucia, A., Di Lucca, G.A., Fasolino, A.R., Guerra, P.,

Petruzzelli, S., 1997. Migrating Legacy Systems

towards Object-Oriented Platforms. Proceedings of

IEEE International Conference on Software

Maintenance, 122 –129.

Lin, J.M., et. al., "Reengineering Windows Software

Applications Into Reusable CORBA Objects”, Journal

of Information Software and Technology, Vol.46, No.6,

pp. 403-413, May 2004.

Schmidt, D., Stal, M., Rohnert, H., Buschmann, F., 1999.

Pattern-Oriented Software Architecture: Volume 2.

Reading, MA: Addison-Wesley.

Serrano, M., Carver, D., Montes De Oca, C., 2002.

Reengineering Legacy Systems for Distributed

Environments. Journal of Systems and Software, 37-55.

Sneed, H.M., 1998. A Case Study in Software Wrapping.

Proceedings of the International Conference on

Software Maintenance, (1998), 86-94.

UI_Factory

<<ConcreteView_A>>

OPI-Window for userA

<<ConcreteView_B>>

OPI-Window for userB

<<AbstractModel>>

Task coordination

Service()

<<ConcreteModel>>

Wrapped MS-Windows

APP

<<Controller>>

userA

Controller>>

userA

manipulation

Call service

Get data

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

452
