DYNAMIC USER INTERFACES FOR SEMI-STRUCTURED

CONVERSATIONS

James E. Hanson, Prabir Nandi, Santhosh Kumaran

IBM T. J. Watson Research Center, Yorktown Heights, NY, USA

Paul Foreman

IBM Software Group, Austin, TX, USA

Keywords: Software architecture and engineering, Computer-mediated communication, Interaction design

Abstract: The growing complexity of application-to-application interactions has motivated the development of an

architectural model with first-class support for multi-step, stateful message exchanges—i.e.,

conversations—and a declarative means of specifying conversational protocols. In this paper, we extend this

architectural model to encompass UI-enabled devices, thereby enabling it to cover human-to-application

conversations as well. This permits either participant to be human-driven, automated, or anywhere in

between, without affecting the nature of the interaction or of the other participant. The UI-enabled

conversational model also reduces the difficulty of developing conversational applications, providing

significant benefits both for UI and for application developers. We describe the architecture of a UI-enabled

conversational system that supports a variety of user devices, and includes a means by which UI markup

may be automatically generated from the conversational protocols used. We go through a sample

application currently implemented using a commercially available application server, and further describe a

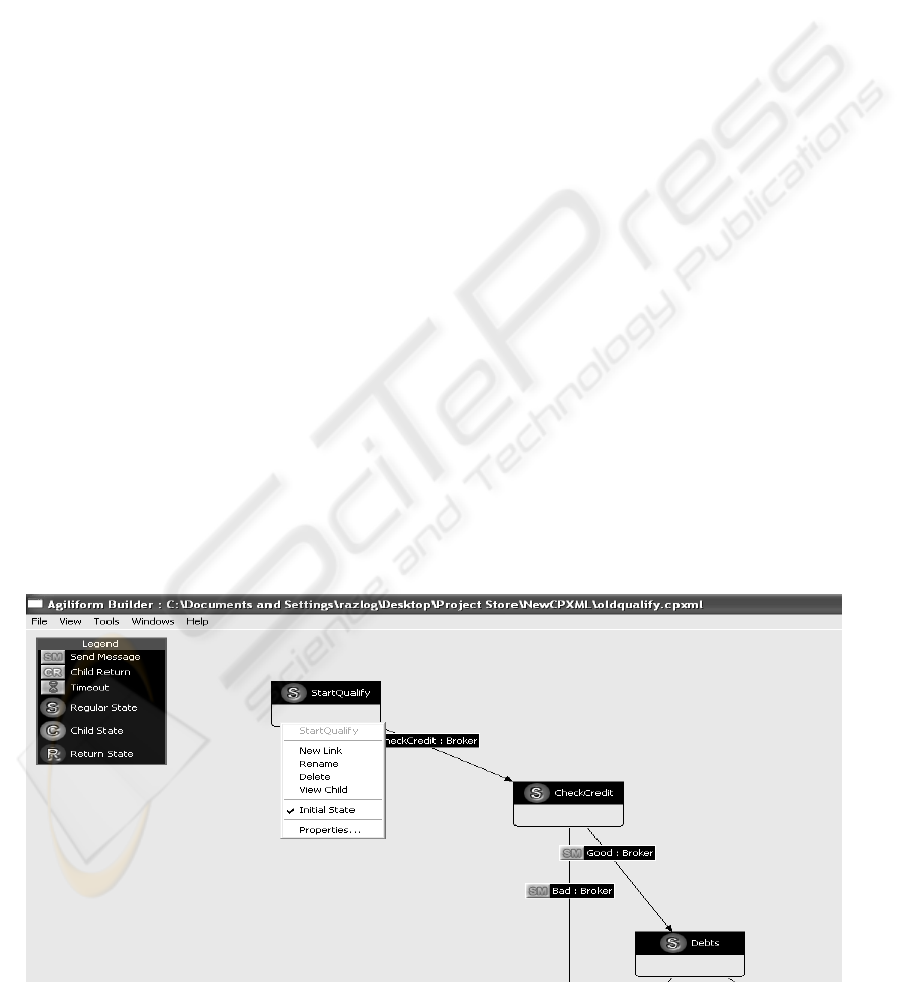

graphical tool for editing and testing conversational protocols, that significantly eases the protocol

development process.

1 INTRODUCTION

Increasingly, interactions between servers and

clients in the World Wide Web are taking the form

of conversations—i.e., multi-step, stateful, bilateral

(or multi-lateral), correlated sequences of messages

(for example, consider any mature e-commerce

storefront). The same is true of interactions between

applications in which no human is involved; and the

growth of Web Services seems likely to accelerate

this trend. This in turn led us to propose in (Hanson

et al., 2002) an explicit conversational model for

application interaction.

The present paper builds on that approach,

extending the model to cases in which one (or both)

of the “applications” is a human operating a UI-

enabled device such a browser, PDA, or Web phone.

In doing so, we show that a single model of

interactions can be used across an extremely wide

variety of applications from human-facing to fully

automated, as well as hybrid cases in between.

We will be taking full advantage of the semi-

structured nature of conversations specified in the

model. By this is meant the feature that

conversations frequently follow common, reusable

patterns which can be expressed in terms of formal

structural constraints on message exchange, but the

number and character of these patterns is not known

a priori; in fact, the patterns are continually

evolving.

It was argued in (Hanson et al., 2002) that the

use of explicitly declared conversational structures is

a key enabler for complex application-to-application

interactions. As we will see, it is also a powerful tool

for simplifying the creation of markup for complex

application-to-human interactions. Thus an

additional benefit of the conversational model of

interactions, and the architecture and programming

model that it implies, is that it simplifies the

development and maintenance of interactive Web

sites. Since patterns of message exchange are first-

class entities, they can be added, modified, replaced,

etc., as a single unit.

E. Hanson J., Nandi P., Kumaran S. and Foreman P. (2005).

DYNAMIC USER INTERFACES FOR SEMI-STRUCTURED CONVERSATIONS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 48-58

DOI: 10.5220/0002519100480058

 SciTePress

In the next section, we review the conversational

model in which the UI is operating. Section 3 then

turns to the UI architecture itself. In section 4, we

describe an example scenario we have implemented.

Subsequent sections draw relationships to other

work and conclude with a sketch of future work.

2 CONVERSATION MODEL

In this section, we briefly review the conversational

model of interacting applications. More detail may

be found in (Hanson et al., 2002).

2.1 Summary of the Architecture

The conversational model is a high-level

architecture appropriate for applications that carry

on multi-step, stateful interactions with other

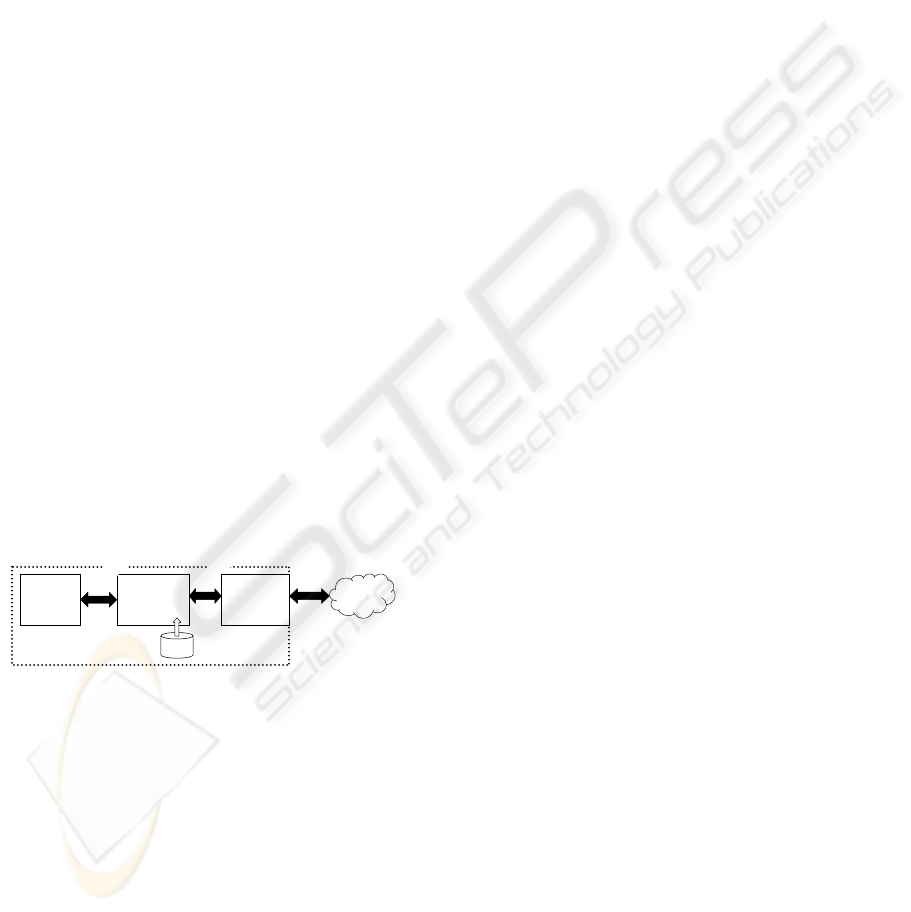

applications. As shown in Figure 1, it consists in

essence of connected subsystems: a messaging

endpoint, a conversation management subsystem,

and decision logic. The messaging endpoint supports

the sending and receiving of messages using one or

another messaging protocol. The conversation

management subsystem takes care of conversational

session information and state information, and the

decision logic performs the remainder of the

processing necessary to drive the application

through the conversation. The only constraints we

make on the messaging endpoint and the decision

logic are that they must be able to interact with the

conversation management system in the specified

way; beyond that, they may be anything.

Decision

logic

Conversation

management

CPs

Application

ssa

ges

Messaging

endpoint

deci

data

Network

Figure 1: High-level view of the application architecture

embodying the conversational model, (Only one of the

conversing applications is shown.)

The conversation management subsystem is at

base an engine for executing conversational

protocols (cf. below). Each inbound message

received at the messaging endpoint is passed into the

conversation management subsystem. There, the

conversation to which it applies is identified, it is

validated against the currently-executing

conversational protocol for that conversation, the

protocol’s state is updated as appropriate, and the

relevant data is unpacked from the message. The

new conversational state and the data unpacked from

the message (which in Figure 1 are together referred

to as "decision data") are then passed on to the

decision logic for processing. For example, at some

point in a bilateral negotiation, the decision data

might give the conversational state as “counter-offer

pending” and, as the data unpacked from the

message, provide the contents of the counteroffer

just received.

The inverse of this sequence is performed for

outbound messages. The decision logic passes to the

conversation management component an identifier

of the decision made and any additional data

associated with that decision (e.g., in response to the

“counter-offer pending” input above, the decision

logic might pass in “accept”, or might pass in “make

counter-offer” along with the contents of the new,

outgoing counter-counter-offer). The conversation

management subsystem validates these inputs from

the decision logic against the conversational

protocol, updates the conversational state, generates

an appropriate message, and passes the message on

to the messaging endpoint for delivery.

In this way, the decision logic is presented with

an orderly sequence of validated inbound decision

data that conforms to the conversational protocol in

use (and, where an inbound message violates the

protocol, it supplies a detailed context for error

diagnosis and recovery); and it provides, for the

decision logic developer, a rich, general-purpose

interface for use in all conversations.

The notable feature of this architecture is that it

separates the management of the interactions from

the operation of the decision logic. This has a

number of attractive properties, including:

• It factors out the conversation protocol support

(which must be consistent between the conversing

parties) from the agent’s own internal business

process (which will be different for each party).

• It permits an open-ended variety of decision-

logic architectures to be plugged in. Thus the

application developer can plug in virtually any kind

of decision logic: e.g., workflow system, a software

agent, or, as we describe in this paper, a person with

a GUI. This is particularly attractive from the

emerging Web Services/Service Oriented

Architecture (SOA) perspective. Complex decision

logic can be expressed as a service and discovered

and plugged in dynamically to the conversation

support system at runtime.

• It enables significant advances in conversation

management, by means of meta-level conversational

protocols (for conversations about the state of the

conversation) to be treated in the same way as

ordinary protocols. Thus reconnecting after a failure,

resynchronizing, restarting after a pause, or handing

a conversation off to a third party are all just

DYNAMIC USER INTERFACES FOR SEMI-STRUCTURED CONVERSATIONS

instances of conversational interactions, needing no

special treatment.

• It promotes reuse of small, standardized

messages as the bottom-level speech-act elements

out of which complex interactions are assembled.

(The conversational model does not of course

prevent developers from taking a kitchen-sink

approach, in which a single message carries with it a

great deal of information that would more naturally

be kept as conversational state; rather, it obviates the

necessity for it.)

2.2 Conversational Protocols

Conversational protocols (CPs) are declarative

specifications of message exchange sequences,

giving, for example, schemas of messages that the

conversing applications may send or receive at

different points in the conversation. CPs are

intentionally open-ended: that is, a given CP defines

a set of messages that may be exchanged, without

prescribing what messages will be exchanged. CPs

as we use them here draw inspiration from the Pi-

calculus (Milner, 1999) and from work in the

software agents community (e.g., Greaves and

Bradshaw, 1999).

One straightforward approach to CP

specification is to express them as state machines, in

which the states of the machine represent the

different states of the conversation, and the

transitions between states represent messages sent

by one or the other participant (cpXML, 2002). This

is the approach taken here.

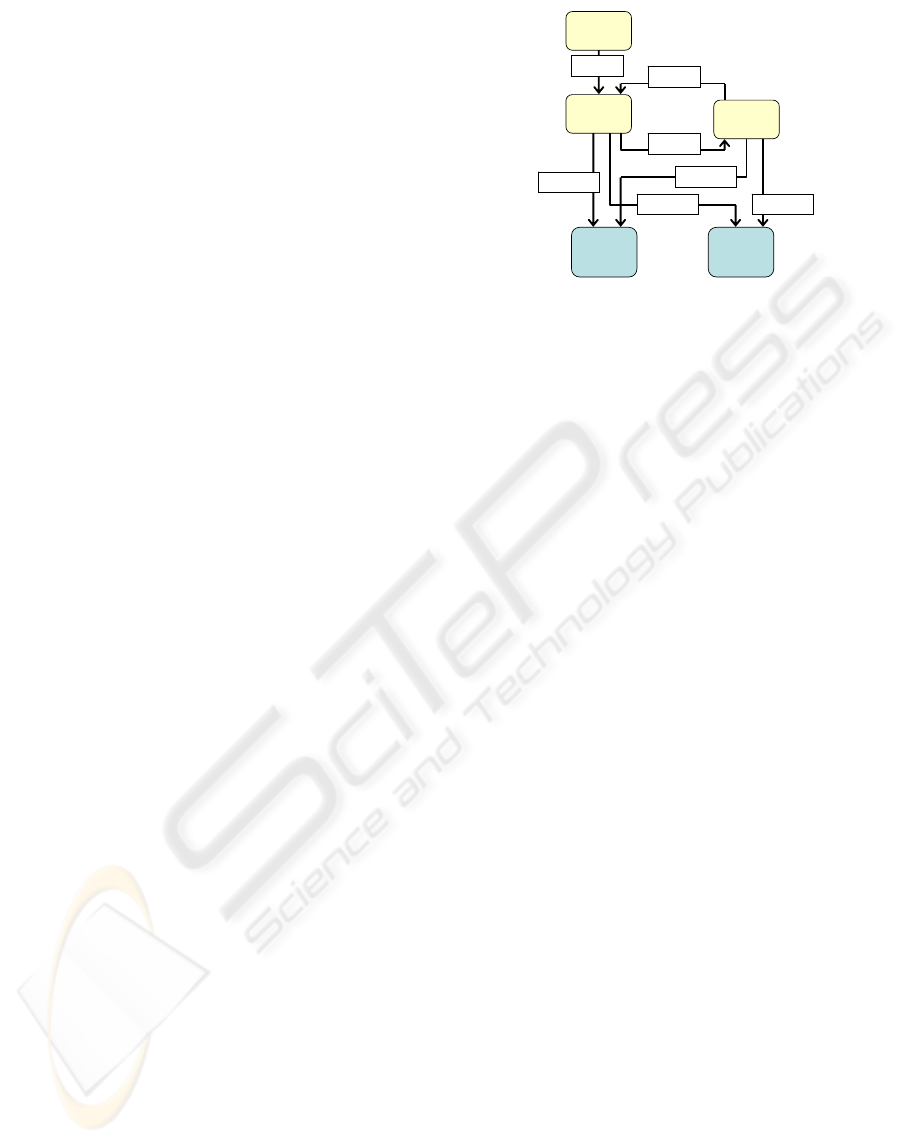

Figure 2 shows an example of a conversational

protocol, the “Haggle” CP, in the form of a state-

chart diagram. In this CP, two participants (one

playing role “A”, the other “B”) exchange offers and

counteroffers until one or the other participant

accepts the current offer, or cancels the negotiation.

Execution of the CP begins in the state labelled

“<<initial>>”, and follows any sequence of the

transitions until one of the states labelled

“<<terminal>>” is reached. Transitions between

states represent messages sent by one or the other

participant, and are labelled “sender-role: message-

name” (labels are in boxes). The different message-

names are shorthand for detailed message schema

information, such as WSDL portType and operation

names (W3C, 2001) or URIs of XML Schema

instances, in the CP itself. The Haggle CP is used in

the scenario described in Section 4.

<<initial>>

Ready

CounterOffer

Open

Offer

Open

<<terminal>>

Negotiation

Complete

<<terminal>>

Negotiation

Cancelled

A: Offer

B: Offer

B: Cancel

B: Accept

A: Offer

A: Cancel

A: Accept

Figure 2: The Haggle CP.

Another key feature of cpXML, also illustrated in

Section 4, is nestability—i.e., the ability to assemble

complex protocols out of other, simpler, separately

specified protocols. This is done by means of a

special state type, the “in-child” state. When a CP

enters an in-child state, the current state of the

current CP is saved while another CP is loaded and

executed. The “parent” CP forms the context in

which the messages exchanged in the “child” CP are

interpreted.

3 DECISION LOGIC

ARCHITECTURE

The conversation support architecture extends

naturally to encompass human users participating on

one side of the conversation. Instead of being

processed automatically (e.g., by a node in a

workflow), the outputs of the conversation

management component are transformed into

markup for rendering on a human computing device.

Similarly, the user’s decisions (and attendant data)

are extracted from the user device and transformed

into decision-data inputs to the conversation

management subsystem. (Note that this seemingly

inverts the usual way of thinking about user devices:

we are treating them as part of the “back end”

decision logic subsystem.) The overall architecture

is as shown in Figure 3.

Inbound decision-data (from the conversation

management system) is transformed into appropriate

markup (HTML, WML, VoiceML etc.) for

rendering on the user-chosen device. Prompts at

decision points defined by CPs are transformed in

the same way. User supplied data is likewise

transformed into a message format readable by the

conversation support system.

The UI Controller provides the ability to plug-in

markup specific translation engines. When the

ICEIS 2005 - HUMAN-COMPUTER INTERACTION

conversation session is first established, the user

device is automatically detected and the appropriate

translation engine is selected. In addition the

corresponding device-specific presentation policy is

retrieved from the presentation policy repository.

The presentation policies contain mapping rules to

transform between the message schemas used in a

given CP and the particular markup to be used to

deal with those schemas.

HTML Translation

Engine

WML Translation

Engine

VoiceXML

Translation Engine

“Decisions”

Presentation

Policy

Repository

Controller

markup

HTML

Policy

WML

Policy

Conv.

Mgmt.

Msg.

Endpt.

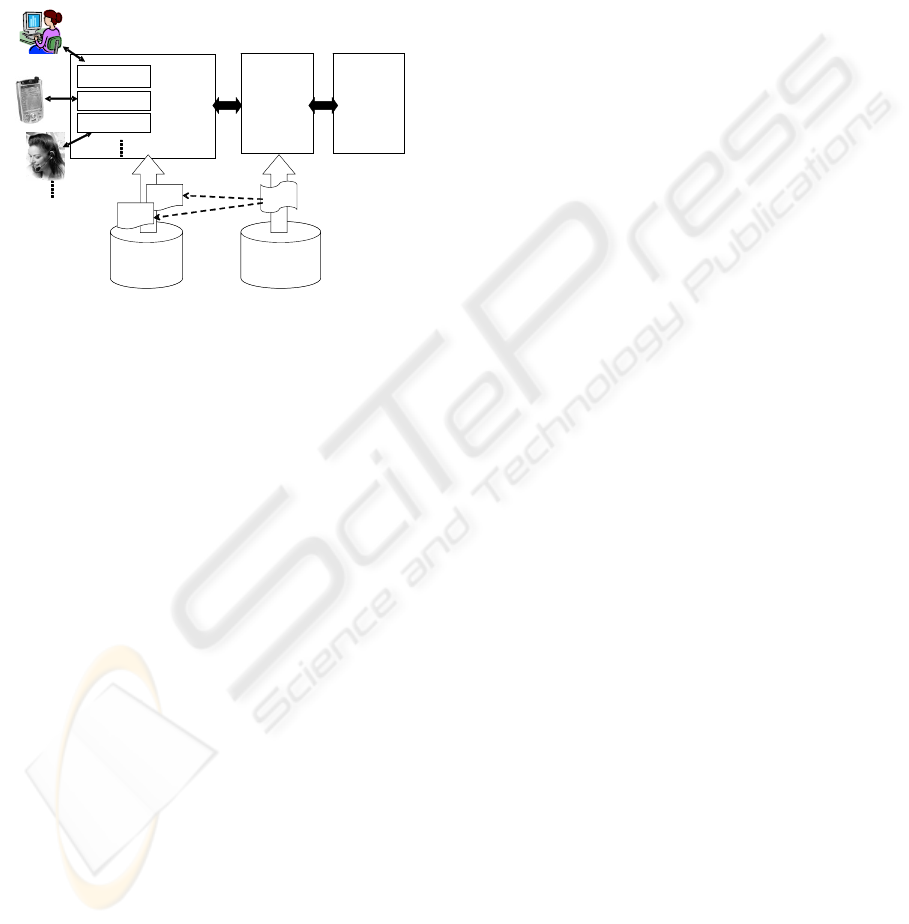

Figure 3: High-level architecture of the UI-enabled

decision logic.

Separating the rendering of content (presentation

policies) from its production (conversational

protocols) allows the capability of extending support

for additional devices simply by using the device

specific presentation policy.

The structure defined by a CP, as executed by

the conversation management subsystem, is

invaluable for the generation of the markup. The

current state of the CP gives the current

conversational context. That context determines

whether information is to be gathered from the user,

and, if so, what the nature of that information is.

Thus, for example, when the conversation enters a

state in which the user may or must send a message,

the transitions from that state give the names of the

alternative messages that may be sent, and the

schema associated with each transition gives the

message-content that must be supplied by the user. It

is straightforward to map the set of alternative

message-names to a UI list-selection element; and

possible (though not always aesthetically pleasing)

to map the message-contents to a form to be filled

out.

3.1 Presentation Policies

As discussed in the previous section, Presentation

Policies contain the logic of translating between CP

messages and its device specific markup. This

approach is made practical by the semi-structured

nature of the conversation, That is, for any given CP,

there is a predefined and—usually—relatively small

set of messages for which a presentation policy is

needed to supply transformation information. It also

helps that the use of CPs encourages the use of

simple, reusable messages, for which the same

transformation information may be reused.

There are 3 types of translation encoded in a

presentation policy:

• mapping received messages to the markup

• markup to generate form screens to gather user

data

• mapping and transforming user data from the

screens to the message formats defined in the

CPs

The logic of using screen real-estate optimally is

a key function of the presentation policies, second of

course, to its message translation chores. But a key

feature of the system is the ability for the UI to

operate in cases where no special presentation policy

is available. This means that the minimum

information required to carry on a human-to-

application conversation is the CP or CPs used by

the application—which are likely to be available

from the application itself. In our current

implementation, the default UI is automatically

generated in the translation engines, which provide a

default mapping if a presentation policy is

unspecified. This default mapping is workable, if

somewhat deficient in aesthetics and convenience,

especially in cases where the messages are relatively

small and simple. Further sophistication, for

example, to enforce corporate branding,

guaranteeing a consistent look-and-feel, etc., is

accomplished by overriding the default rendering.

Just like CPs, presentation policies may be

downloaded anytime, from anywhere. Conversation

partners may supply their own PPs for look-and-feel

customization, but user can also reuse the same PPs

across different partners.

3.2 Architecture Variations

The architecture illustrated in the previous section

can be adopted in a variety of ways.

Thin Client. In this case the conversation

support and the UI Controller live on a server, with

which the user devices communicate in the usual

way. The server might, for example, be operated by

an ISP, and conversation-support services might be

part of its value-add for customers. The ISP would

take care of downloading CPs and PPs as needed, as

well as managing conversational state for its users,

as shown in Figure 4.

DYNAMIC USER INTERFACES FOR SEMI-STRUCTURED CONVERSATIONS

Users subscribe to services offered by the ISP

and interact via ordinary web browsers. ISP’s can

maintain preferred PP’s as part of the user’s profile.

The ISP can also embed the conversation-UI as a

frame in a partner-supplied page. This would be

appealing to retail partners, since they could reuse

their storefront & navigation templates. The served

page could support automatic updates using

JavaScript with META_REFRESH (refresh enabled

in an invisible frame) or invisible applet with live

connect etc. Alternatively, sophisticated pub-sub

infrastructure can be employed to push received

messages to the user.

Controller

Conv.

Mgmt.

PPs CPs

ISP

Msg.

Endpt.

Conv.

Mgmt.

CPs

Retail Store

Msg.

Endpt.

Decn.

Logic

Conv.

Mgmt.

CPs

Telco

Msg.

Endpt.

Decn.

Logic

Conv.

Mgmt.

CPs

Bank

Msg.

Endpt.

Decn.

Logic

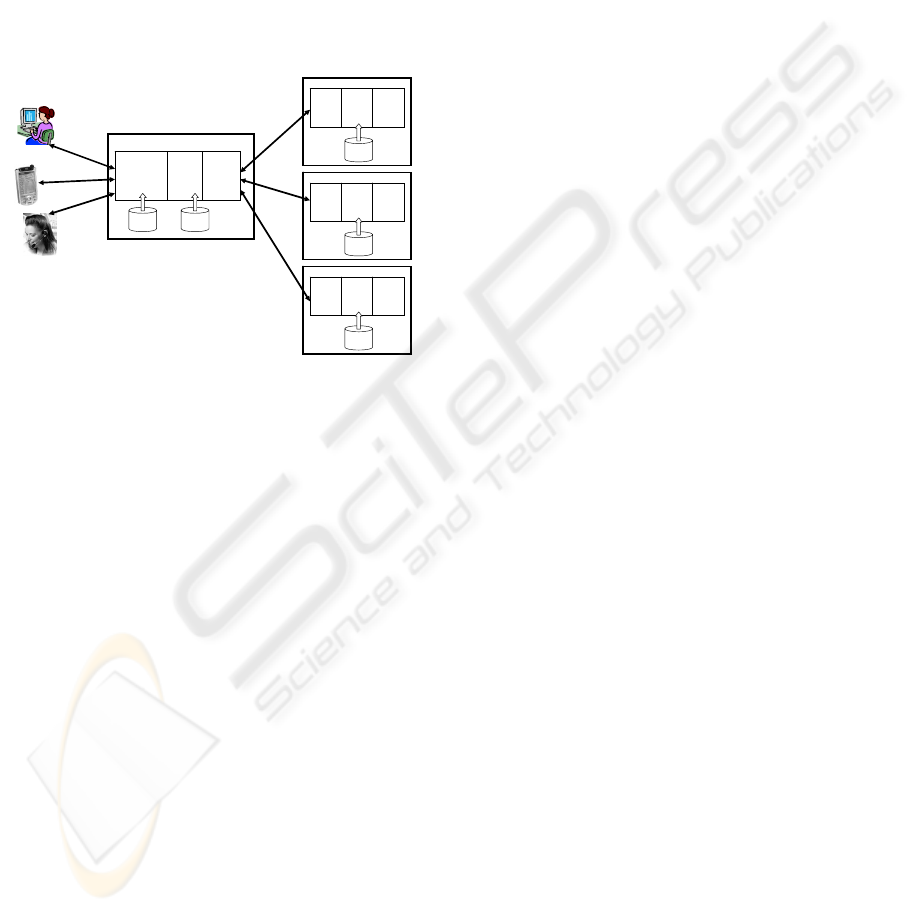

Figure 4: Thin client. Connections between the ISP and

the providers’ messaging endpoints on the right, and

between the ISP and the user devices on the left, are over

the network.

Thick Client. In this configuration, conversation

support and the UI Controller are implemented as

plug-in on the user device. Unlike the thin client

configuration, the UI Controller is configured with a

single markup translation engine: for example,

simple Web browsers only require support for

HTML markup translation. Thick clients seem more

practical in managed environments where the

necessary plugins can be effectively distributed on

all user devices. Users download CPs and PPs of

their choice from repositories maintained by their

enterprise, or from individual department web sites.

Users on the WWW, similarly, can download CPs

and PPs from anywhere and have the freedom to do

business with services providers of their choice.

Intelligence can be added to the UI Controller,

making it an agent rather than just a UI-generator.

e.g., pre-fill mailing address. This permits single-

point change (to mailing address) regardless of

conversational partner. The thick client model,

introduces a paradigm shift of sorts, moving

transaction power closer to the user and making it

possible for them to influence the way e-business

transactions are organized and delivered, though at

the cost of requiring more complex functionality at

the user’s end.

Collapsed Conversation Management. It is

also of course possible for the conversation

management to be hosted by the other party—e.g.,

the bank, Telco, etc., with which the user is

conversing. This can be done in the obvious way, in

which the user’s conversation management system is

connected directly to that of the service provider

(thereby cutting out the intermediate step of

messaging); or, alternatively, it is straightforward to

implement a hybrid conversation management

system that can simultaneously play both roles—i.e.,

that exchanges decision data with both sides of the

conversation, foregoing the messaging endpoints

entirely. This architecture is possibly closer to

current practice than either the thin client or thick

client (cf. Section 5). Because of that, it may be the

easiest architecture to deploy initially. Note,

however, that it realizes none of the advantages of

reusability and user-customizability that the thin or

thick clients provide.

Hybrid human-agent systems. There is a large

body of research on software agents that specialize

in user assistance, for which the natural place is as

part of a hybrid decision logic component

containing, as its human-facing part, the UI

Controller. For example, (Hanson and Milosevic,

2003) discusses a hybrid system for CP-governed

contract negotiation that contains automated

validation of the contract’s formulation. Other

simple enhancements include pre-filling recognized

fields in forms with values taken from a database of

user preferences or from a history of previous user

input; just-in-time search and download of CPs and

PPs; etc. Because the ISP is inherently motivated to

provide value-add services to its subscribers, the

thin-client implementation in particular would seem

to offer a promising path for the evolution of such

enhancements. Furthermore, since the thin client and

thick client implementations are under the control of

the user (as opposed to being provided by the other

party in the conversation), there is significantly less

concern over privacy of user information.

4 PROTOTYPE

IMPLEMENTATION

In this section, we describe a prototype

implementation of the UI architecture, into which an

example application has been implemented:

obtaining a home loan.

The prototype uses a modified version of the

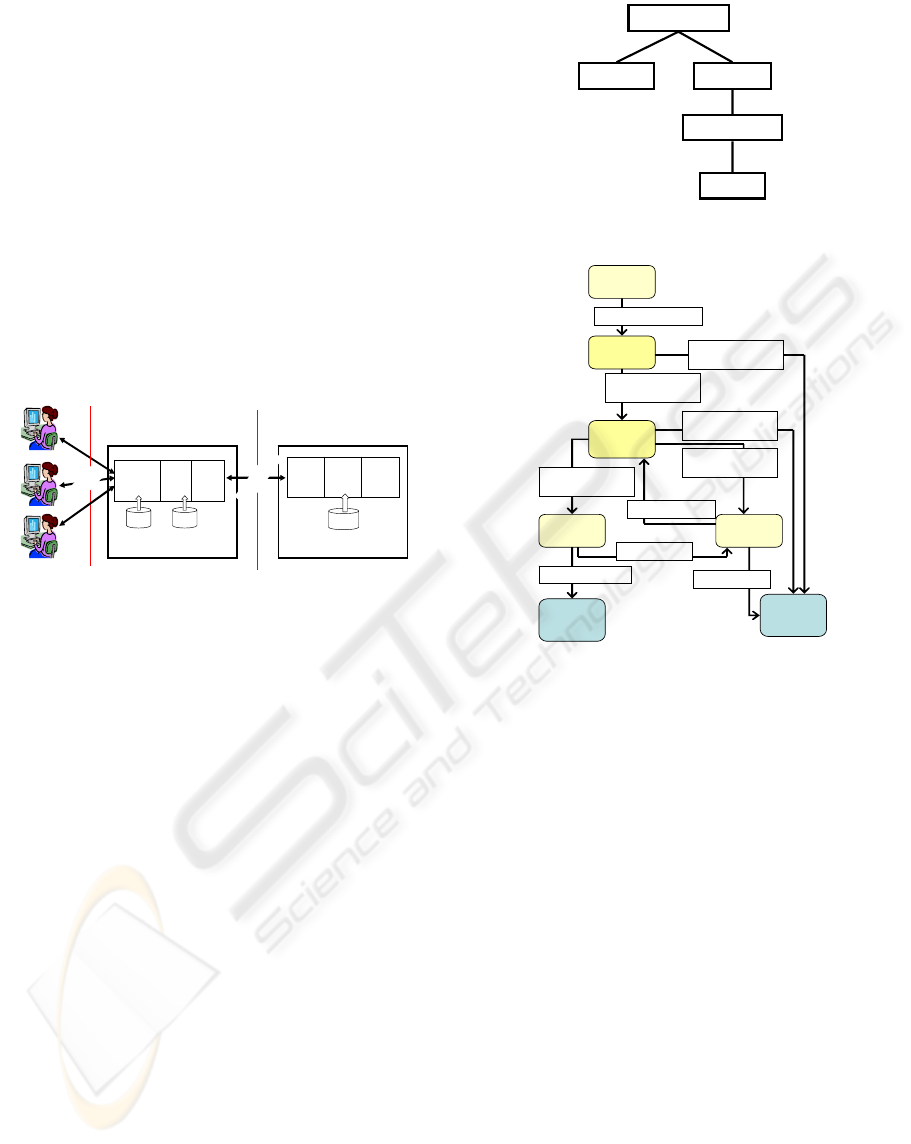

Thin Client implementation, as shown in Figure 5.

The Conversation Support for Web Services toolkit

ICEIS 2005 - HUMAN-COMPUTER INTERACTION

(CS-WS, 2002), available from IBM alphaWorks,

provides the conversation management runtime. It

uses two machines for the two sides of the

conversation, each running IBM's WebSphere

Application Server (WebSphere, 2004). The two

vertical lines represent firewalls. One of the

machines is deployed in the company's DMZ (De-

militarized Zone), processing the customer side of

the conversation, while the other is deployed in the

intranet connecting the mortgage application's

business logic. The UI Controller is implemented as

a servlet and deployed as a web application on the

customer-side server. Customers use simple Web

Browsers and HTTP to communicate with the

servlet engine. Connectivity between the two

conversation support machines is achieved with

Web Services protocols.

Controller

(Servlet)

Conv.

Mgmt

(CS-WS).

PPs CPs

Customer-side server

(IBM WebSphere)

Web

Services

Conv.

Mgmt.

(CS-WS)

CPs

Web

Services

Mortgage

Application

Broker-side server

(IBM WebSphere)

CUSTOMERS

Figure 5: Deployment of the sample application

4.1 The scenario

A customer wants to obtain a loan for the purchase

of a new home. The customer initiates a

conversation with a mortgage broker, and

immediately sees a form to fill out, with fields for

name, address, etc.

What has happened is that, upon establishing the

conversation, the conversation managers for both the

customer and the broker loaded the first CP they will

use.

Figure 6 shows the set of CPs that will come into

play in the scenario and their parent-child

relationships; the CPs themselves will be described

in detail as we encounter them. The Mortgage Loan

CP is the protocol describing the entire process. It

makes use of the Qualify CP to establish whether the

customer qualifies for a loan, and the Best Rate CP

to settle on the parameters of the loan (here

represented by only two parameters, the term and the

interest rate). The Best Rate CP, in turn, makes use

of the Negotiate Rate CP to settle on the interest

rate; and the Negotiate Rate CP uses the Haggle CP

of Figure 2 for the actual exchange of offers.

MortgageLoan

BestRateQualifying

Haggle

NegotiateRate

Figure 6: Conversational protocols used in the scenario.

<<initial>>

Ready

<<in-child>>

Qualifying

<<in-child>>

BestRate

Hold ID

30 days

Lock &

Wait

<<terminal>>

Loan

Complete

<<terminal>>

Loan

Rejected

C: ApplicationForm

<<timeout>>

<<child-return>>

C: Renegotiate

<<child-return>>

Not Qualified

<<child-return>>

Cancel

<<child-return>>

Qualified

C: ExecuteLoan

<<child-return>>

Hold

<<timeout>>

Figure 7: The MortgageLoan CP

In Figure 7 we see the MortgageLoan CP. The

two roles for this and the following CPs are B and C,

which are always played by the broker and the

customer, respectively. Note also the two states

labelled “<<in-child>>”: when the conversation

reaches these states, the given child CP is loaded and

executed, while the parent waits. When the

execution of the child CP is done, the parent CP is

reactivated, and, based on the terminal state reached

in the child CP, the appropriate “<<child-return>>”

transition is taken.

As Figure 7 shows, the transition from the

Mortgage Loan’s initial state corresponds to an

ApplicationForm message sent by the consumer. In

our scenario, this has caused the customer-side

conversation manager to send a decision request to

its UI controller, which in turn has generated the

form and sent it to the customer’s browser.

The customer submits the form to the customer-

side server, which (via the UI controller) translates it

into decision data and submits it to its conversation

manager. The conversation manager then updates

the CP’s state to Qualifying, which in turn causes it

DYNAMIC USER INTERFACES FOR SEMI-STRUCTURED CONVERSATIONS

to load the Qualifying CP, shown in Figure 8, as a

child CP.

<<initial>>

Start

Check

Credit

<<terminal>>

Not Qualified

<<terminal>>

Qualified

Debts

B: Check Credit

B: Bad

B: Good

C: High

C: Low

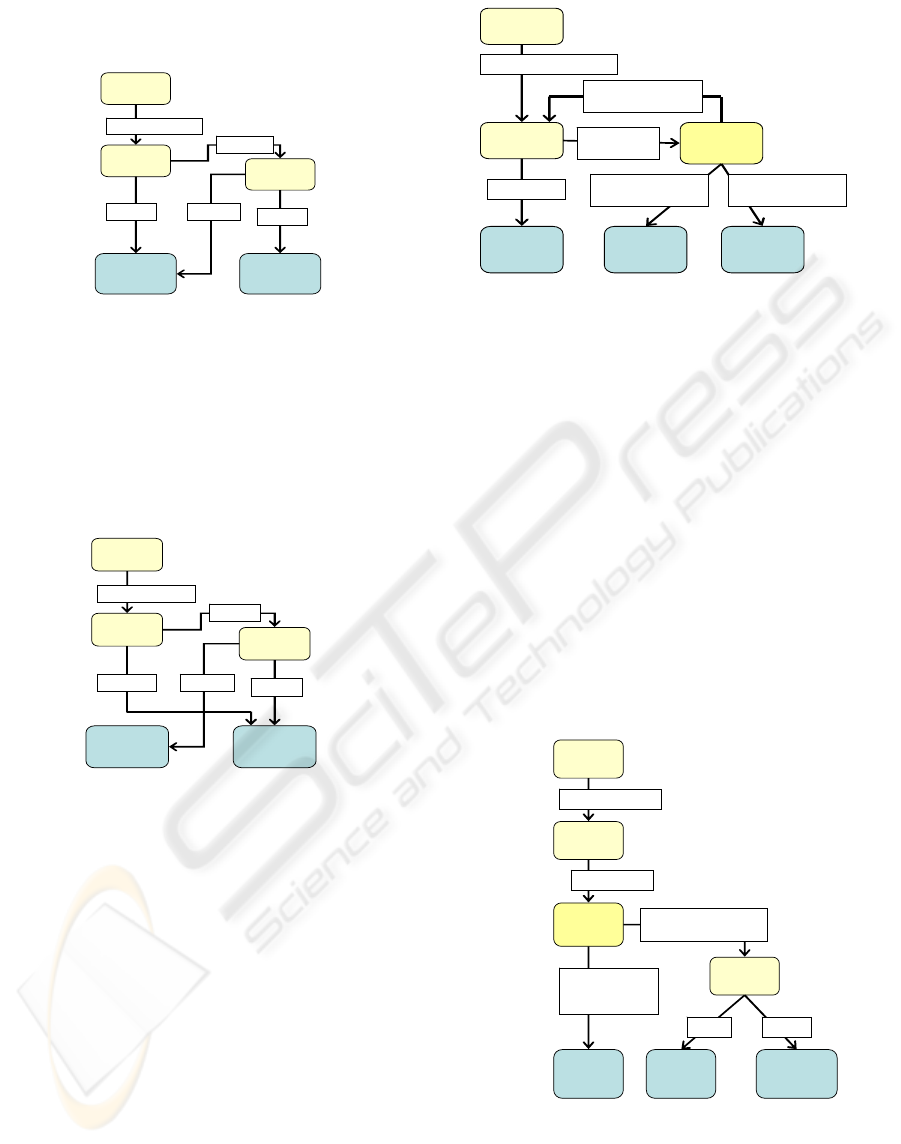

Figure 8: The Qualifying CP, version 1.

As specified, the broker sends a message to the

consumer, indicating that a credit check is in

progress. Note that the credit check itself is nowhere

evident in the CP. Thus, the way in which the broker

does the credit check (or even whether the broker

does it at all) is invisible to the customer, as it

should be.

<<initial>>

Start

Checking

Credit

<<terminal>>

Not Qualified

<<terminal>>

Qualified

Debts

B: Check Credit

B: Bad

C: High

C: Low

B: Good

Figure 9: The Qualifying CP, version 2.

Having obtained the results of the credit check,

the broker communicates them to the consumer by

means sending either “Good” or “Bad” message.

The consumer-side server converts this to markup

for the customer’s browser. As shown in Figure 8,

the “Good” message also triggers a query for the

customer to answer: is the customer’s debt high or

low? As per the presentation policy associated with

the Qualifying CP, this shows up in the browser as a

question, followed by a user-input area pre-filled

with the options “High” and “Low”. The user selects

one of the options, which drives the CP to one of its

terminal states.

<<initial>>

Start

<<in-child>>

Negotiate

Rate

<<terminal>>

Hold

<<terminal>>

Cancel

<<terminal>>

Select

term

<<child-return>>

Reject

C: 15Term

C: 30Term

C: Amount Request

<<child-return>>

Change term

C: Cancel

Figure 10: The BestRate CP.

One of the advantages of having a separate CP

for the qualification phase is that it can be easily

replaced with a new version. E.g., suppose that the

broker decides to replace the Qualifying CP of

Figure 8 with the version shown in Figure 9. For

each server, this can be done simply by replacing the

CP file; or, alternatively, by modifying, in the parent

CP (Mortgage Loan), the URI for the child CP to

load in the “Qualifying” state. The broker-side

server can communicate this change to the customer-

side server at any time prior to the execution of the

Qualifying CP, for example by using a meta-level

CP. Note also that the substitution is particularly

simple in this case, since the messages used (and,

therefore, the presentation policy needed to generate

and to parse the markup) are the same for both

versions.

<<initial>>

Start

<<in-child>>

Haggle

<<terminal>>

Change Term

<<terminal>>

Cancel

<<terminal>>

Awaiting

Lender Rate

B: Obtaining rate

Option to

change term

<<child-return>>

Negotiation

Complete

<<child-return>>

Negotiation Cancelled

C: No

B: Initial offer

C: Yes

Figure 11: The NegotiateRate CP.

ICEIS 2005 - HUMAN-COMPUTER INTERACTION

Figure 12: Screenshot of the application in action. The conversation is in state “Offer Open” of the Haggle CP (cf. Fig. 2),

with the customer playing role B. The Message History column keeps a running commentary of messages exchanged.

Once the broker has decided to proceed with

giving the customer a loan, they enter the BestRate

CP, shown in Figure 10. In this CP, the customer

names an amount for the loan, and then selects a

term. (Note that a pair of parallel transitions labelled

“C: 15Term” and “C: 30Term” are shown in a single

box with a single arrow.) Once the term is selected,

the broker and customer load the NegotiateRate CP,

shown in Figure 11. This CP, in turn, loads the

Haggle CP of Figure 2.

At the same time as it loads the NegotiateRate

CP, the broker starts a backend process that

negotiates with several lenders to determine the best

rate available for that term. This conversation

happens on the side and the customer is never aware

of it; all the customer sees is a message saying that

the broker is obtaining a rate. This gives the broker

more bargaining power by hiding the lender

negotiations from the customer. Each lender enters

into a negotiation with the broker using the Haggle

CP to make offers and counter offers over rates.

Once the best rate is collected, the broker resumes

the conversation with the customer and provides a

rate.

At this point, the customer and broker enter into

a negotiation using the Haggle CP, with the

customer playing role A and the broker playing role

B. In our scenario, the customer and broker at this

point do not come to an agreement on rate and the

conversation is suspended while the customer seeks

other offers.

When the customer suspends the conversation,

the customer-side server stores the conversation’s

state information, including the conversation IDs,

the CPs in use, the current state and role played by

the consumer of each CP, and the history of the

messages exchanged. (In the present

implementation, the broker does not suspend its side

of the conversation, but leaves it “live”; however

there is no impediment to having the broker suspend

the conversation as well.) Later, when the customer

reconnects with the customer-side server, he is

offered the option of resuming a suspended

conversation or starting a new one. If the customer

chooses the first option, the stored conversation state

information is reloaded into the conversation

management subsystem, and the customer and

broker resume where they left off.

DYNAMIC USER INTERFACES FOR SEMI-STRUCTURED CONVERSATIONS

The customer returns to the conversation after

two days have passed and renegotiates with the

broker. This time the customer logs in and sees that

the Best Rate CP has been modified: in parallel with

the transitions for 15 and 30 year terms, there is a

new transition labelled “C: 20 Term”, corresponding

to a 20 year term. The customer decides to select this

new term and restarts the negotiation. The broker

has also added a new lender to his list with very

competitive rates and this lender is able to come up

with a rate that allows the broker to present an offer

that the customer accepts. The customer signs a

lock with the broker for 30 days and leaves the

conversation.

4.2 The User Experience

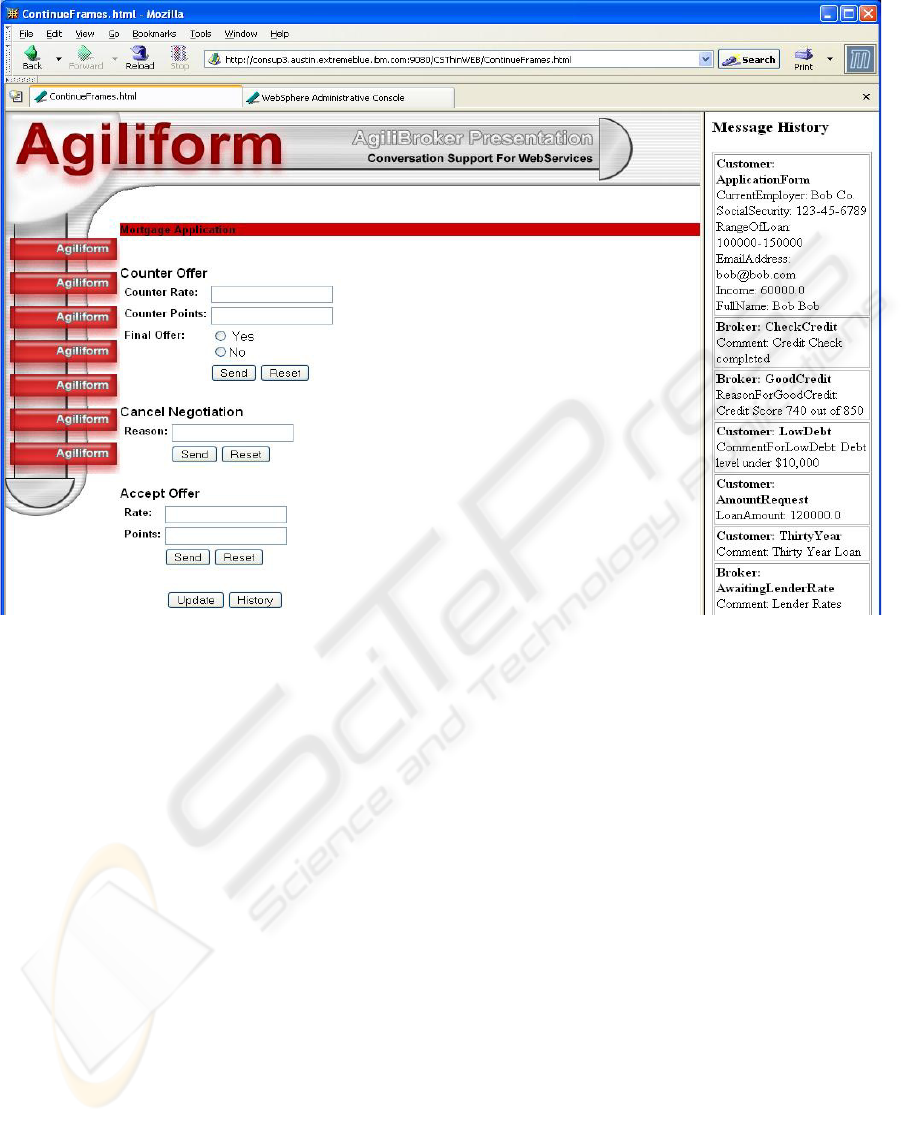

Figure 12 shows a screenshot of the application in

action, at the point in the scenario when the broker

and customer are negotiating the details of the loan.

The screenshot shows what would be displayed in

the customer’s browser. The conversation is in the

Haggle CP, in the “B’s Offer Pending” state—i.e., it

is the customer’s turn either to make a new

counteroffer, to cancel the negotiation, or to accept

the broker’s offer. These three options, as defined by

the transitions from the current CP state, are

presented to the customer as three exclusive options.

The customer must decide which option to choose,

fill in the data associated with that choice, and click

“Send”. For example, to make a counteroffer, the

customer enters values for “Counter Rate” and

“Counter Points”, selects the appropriate button to

indicate whether he wants to assert that this is his

final offer, and then clicks the “Send” button

immediately below.

This figure illustrates the user’s experience

throughout the conversation. Each time the

conversation reaches a decision point for the

consumer—that is, each time the consumer has the

opportunity for sending a message—the UI

controller running on the customer-side server

generates markup similar to that shown in Figure 12,

in which the options open to the customer, which are

determined by the current state of the CP being

executed, are presented in the form of a set of

mutually exclusive options, optionally with

additional parameters. The user determines which

option he wishes to choose, fills in the parameters

and clicks the “Send” button for that option.

Running down the right side of Figure 12 is the

history of the conversation. This is automatically

updated every time the state changes. In each box is

the name of the message that was sent (as given by

the CP), and the values of the associated parameters.

Note that the history shows the messages sent by

both the customer and the broker.

The message history and the user input area are

framed by the Agiliform logo and a simulated

navigation bar. Agiliform is the name for this

project, chosen by the IBM “ExtremeBlue” team

that made it a reality. In practice, a vendor or ISP

would supply markup for these areas, thus

preserving the vendor’s brand identity, navigation,

etc.

In an earlier prototype, we also implemented a

real-time graphical display of the stack of CPs

currently in use (from parent to child to grandchild,

etc.), and the state-transition graphs of each CP, with

the current state highlighted. This was extremely

useful in debugging, but was felt to be too complex

to expose to the average user.

Figure 13: Screenshot of the CP authoring tool. The Qualify CP is being edited

ICEIS 2005 - HUMAN-COMPUTER INTERACTION

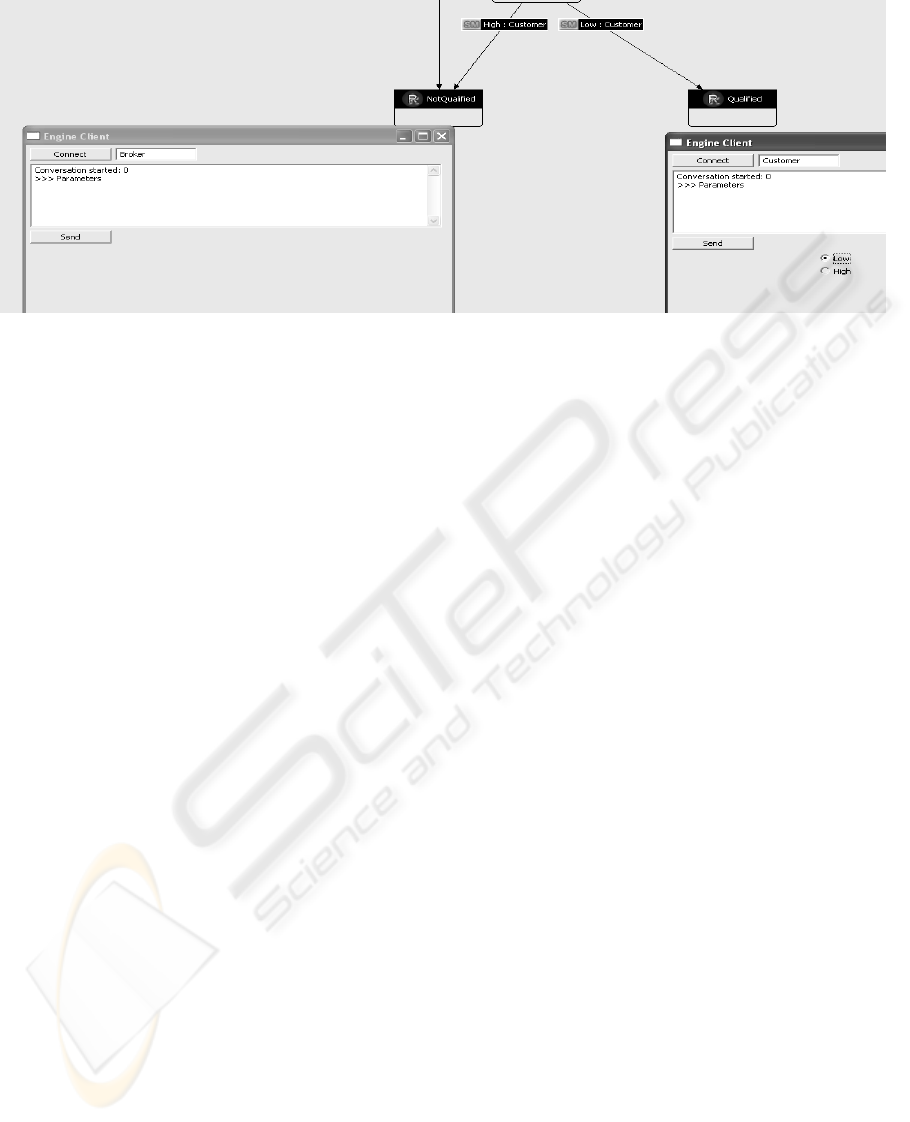

Figure 14: Screenshot of the CP authoring tool during a test of the Qualify CP. On the left is the window for the broker; on

the right is that for the customer.

4.3 CP Authoring and Testing

In addition to the sample application, the Agiliform

team created a CP authoring and testing tool. With

the tool, protocol developers may create and modify

CPs graphically by drawing their state-transition

diagrams and filling in the necessary parameters on

the states and transitions. The tool both reads and

generates cpXML files; the CPs so generated are

ready for deployment on the server. Figure 13 shows

a portion of a screenshot of the authoring tool, with

the Qualify CP loaded.

The authoring tool also has a testing facility.

This permits the CP developer to manually play both

sides of the conversation, and watch as the decisions

of both parties exercised the CP through its states. A

screenshot of such a test is shown in Figure 14.

Here, the Qualify CP is being tested, and the

conversation is at the point where the customer must

specify whether he has a low or high amount of debt.

5 RELATED WORK

Most of the conversation-related work in the UI field

is concerned with natural language processing and

speech recognition techniques embedded in the UI.

Thus a “conversational UI” is frequently understood

to be a voice-activated UI, providing a mapping

between the human voice and text (W3C, 1998).

This work forms the core technology on which one

of the translation engines plugged into the UI

controller is based (cf. Section 3.1) and therefore is a

powerful enhancement to the system we discussed in

this paper; but is of course not to be confused with

the notion of conversation used here.

The Struts framework (Apache.org, 2004) uses

an XML configuration file to specify page sequences

and the data shared and/or transferred across pages.

There are also some browser-based products that

drive interactions with a user using a decision script

(Vanguard, 2003). Their applicability is primarily in

the area of providing customer support. The script

runs on the server and guides the customer through

the troubleshooting process. These are in some

important respects similar to the Collapsed

Conversation Management architecture described in

Section 3.2.

There is an extensive body of work on model-

based UI development in which a high level

specification language is used to describe the

interface design. This specification would then be

automatically or semi automatically translated to

platform specific executable code or interpreted at

runtime to generate the appropriate interface. This

work may be usefully applied to improve the quality

of the automatically generated UIs used in cases

where a presentation policy has not been specified.

A comprehensive overview of the architectural

elements and their evolution within the UI

community is detailed in (Szekely, 1996).

Conversational protocols could provide the task

and/or the domain model required for such tools and

create highly sophisticated presentation policies.

6 CONCLUSION AND FUTURE

WORK

In this paper we have described a way in which

humans operating UI-enabled devices can be

integrated into a world of application-to-application

conversations. This integration hinges on a model of

DYNAMIC USER INTERFACES FOR SEMI-STRUCTURED CONVERSATIONS

application interactions in which conversations

follow semi-structured, nameable, explicitly

described protocols. As a consequence of this

integration, applications of all types (human-

operated, wholly automated, hybrid) may coexist as

peers in the same overall system.

This simplifies the job of the back-end decision

logic developer, since he can focus on the actual

decision-making logic without being concerned with

whether the user of the application is a human or

another application.

It also simplifies the job of the UI programmer.

In the CP authoring tool, we have seen an indication

of the degree to which programming of complex

interactions is simplified by the use of the

conversational architecture. Multi-step stateful

message exchanges can be designed with great ease

using a simple graphical tool, tested immediately,

and deployed effortlessly. The Conversation

Protocol Builder can be easily integrated with one or

other Model-based UI tools (e.g., Paterno, 2002) to

automate the process of generating highly

sophisticated , multi-modal UI to drive the human

end of the conversation.

These two observations suggest that using the

conversational model can significantly reduce the

difficulty of developing even very complex Web

applications, including both the UI and the back-end

decision logic.

We close with a sketch of a possible direction for

future work. Businesses providing manual user

support typically tape interactions for later review.

These audio records have proven to be extremely

useful for training customer support personnel,

determining customer and/or market demands,

tracking customer relationships, etc. However, the

cost and difficulty of extracting such information

from the raw audio data puts it out of the reach of

many small businesses. The conversation-aware user

interfaces described in this paper, in addition to

providing a viable means of automating user-facing

operations, allows for easy storage, retrieval, and

processing of past conversations. In addition to the

messages themselves, conversation histories giving

the paths that actual conversations take among the

states of the CPs they use are particularly useful for

this purpose. For example, in the mortgage loan

application, the broker can use standard statistical

tools to discover where (i.e., in which CP state)

negotiations break down most frequently, and in

what circumstances (e.g., is the rate too high?).

Corrective measures can then be adopted.

Developing innovative ways to store and analyze

conversation data will be one of our major research

directions for the future.

ACKNOWLEDGEMENTS

The authors would like to gratefully acknowledge

the contributions of the IBM ExtremeBlue team in

making the Agiliform application a reality: John

Baggett, Anand Srinivasan, Philip E Light, Razvan

Loghin, David Barnes, David P Greene, Ronald

Woan, and Vishwanath Narayan. The authors also

thank Yasodhar Patnaik and Terry Heath for their

work on an earlier version of this paper.

REFERENCES

Hanson, J., Nandi, P., and Levine, D., 2002. Conversation-

enabled Web Services for Agents and E-business, in

Proc. 3rd Intl. Conference on Internet Computing (IC-

02), CSREA Press, pp.791-796.

Milner, R, 1999. Communicating and Mobile Systems: the

pi-calculus, Cambridge Press, Cambridge, UK.

Greaves, M., Bradshaw, J. M., (eds.), 1999. Proc.

Autonomous Agents '99 Workshop on Specifying and

Implementing Conversation Policies.

cpXML, 2002. Conversation Policy XML,

www.research.ibm.com/convsupport/papers/cpXML-

v1.htm

W3C World Wide Web Consortium, Web Services

Description Language (WSDL) 1.1, 2001.

www.w3.org/TR/wsdl

Hanson, J., and Z. Milosevic, Z., 2003. Conversation-

oriented Protocols for Contract Negotiations, in Proc.

7th IEEE Intl.Enterprise Distributed Object

Computing Conference (EDOC-2003), IEEE Press.

CS-WS, 2002. Conversation Support for Web services,

www.alphaworks.ibm.com/tech/cs-ws

WebSphere Application Server homepage, IBM

Corporation, 2004.

www.ibm.com/software/webservers/appserv/was

The W3C Voice Browser Workshop

www.w3.org/Voice/1998/Workshop/papers.html

Apache.org, 2004. Jakarta Struts Framework,

jakarta.apache.org/struts/

Vanguard Corporation, Smart Servers,

www.vanguardsw.com/DecisionScript/SmartServers.h

Szekely, P., 1996. Retrospective and Challenges for

Model-Based Interface Development,

www.idi.ntnu.no/emner/tdt12/szekely-retrospective-

CADUI96.pdf

Paterno, F. and Santoro, C., 2002. One Model, Many

Interfaces, giove.cnuce.cnr.it/teresa/pdf/Paterno-

CADUI2002.pdf

ICEIS 2005 - HUMAN-COMPUTER INTERACTION
