METRIC SUITE FOR DIRECTING THE FAILURE MODE

ANALYSIS OF EMBEDDED SOFTWARE SYSTEMS

Guido Menkhaus, Brigitte Andrich

Computer Science Department

University of Salzburg, Austria

Keywords:

Failure mode and effects analysis, software metrics, software design.

Abstract:

Studies have found that reworking defective requirements, design, and code typically consumes up to 50

percent of the total cost of software development. A defect has a high impact when it has been inserted in

the design and is only detected in a later phase of a project. This increases project cost, time and may even

jeopardize the success of a project. More time needs to be spent on analysis of the design of the project.

When analysis techniques are applied on the design of a software system, the primary objective is to anticipate

potential scenarios of failure in the system. The detection of defects that may cause failures and the correction

is more cost effective in the early phases of the software lifecycle, whereas testing starts late and defects found

during testing may require massive rework. In this article, we present a metric suite that guides the analysis

during the risk assessment of failure modes. The computation of the metric suite bases on Simulink models.

We provide tool support for this activity.

1 INTRODUCTION

The success of mission-critical applications depends

very much on the correctness of the contributing em-

bedded software systems. To ensure correctness, such

software systems are developed in accordance with

strict standards that dictate the steps to be taken in

its development process, the objectives that must be

accomplished, the reviews to be performed, and the

documents that are required to be produced (Pasetti,

2002). Systems that fail and cause catastrophic

consequences on the system are said to be safety-

critical (Kopetz, 1997).

The workload in the design and implementation

of embedded systems is shifting continuously from

hardware to software. At the same time the complex-

ity is growing due to the increasing functionality pro-

vided by embedded systems. Validating the correct-

ness of the software systems in mission-critical ap-

plications with series of tests is paramount to show

that hardware and software failures cannot place the

application in an unsafe state (Goddard, 2000). How-

ever, testing has its limits: The deviation between the

operational and the testing environment and the dif-

ﬁculty to reproduce those operational environments

limits the failure rates that can be veriﬁed empirically

and thus the detection of the number of risky compo-

nents of a system. This can lead to a misunderstand-

ing of the systems reliability properties.

To reduce the risk of software failures, an early and

thorough analysis identifying critical components in

the design is necessary. The Failure Mode and Effects

Analysis (FMEA) is a reliability analysis method that

aims at eliciting and evaluating potential risks by

identifying failure modes of system components. It

determines their effects and inﬂuence on the system

and recommends actions to suppress these effects and

eliminate the causes of the failure modes (Pentti and

Atte, 2002). A FMEA on the design level assessing

the risks can be performed early in the software de-

velopment process. The objective is to minimize the

impact of failure modes resulting from the analysis

at a time when changes to the software system can

be made cost effectively (Goddard, 2000). The de-

sign phase is a critical phase in the lifecycle of a soft-

ware system, since reworking a defective design and

resulting code can consume 40 to 50 percent of the to-

tal cost of software development (McConnell, 1996).

This indicates the necessity to analyze the design of

a software system thoroughly prior to construction

and testing. A FMEA is applied in regular inter-

vals and checks whether the recommended actions

266

Menkhaus G. and Andrich B. (2005).

METRIC SUITE FOR DIRECTING THE FAILURE MODE ANALYSIS OF EMBEDDED SOFTWARE SYSTEMS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 266-273

DOI: 10.5220/0002519902660273

 SciTePress

were taken and successfully implemented to guaran-

tee constant improvement of the system under analy-

sis. This makes the FMEA tedious, laborious and

time-consuming to carry out. Therefore it is neces-

sary to be focused when conducting a FMEA (Parkin-

son et al., 1998; Montgomery et al., 1996).

In this article we present a suite of metrics that

guide the analysis team during the risk assessment of

failure modes during a FMEA. Metrics are computed

in the design process as soon as models of the soft-

ware system exist. They identify the most complex

and instable and thus most error-prone parts of a soft-

ware system. Their results support the analysis team,

which performs the FMEA, in their decision-making

process and let them focus the analysis on the risky

parts of a software system.

The remaining of the paper is structured as follows:

Section 2 discusses related work. The FMEA method

is reviewed in Section 3 and Section 4 discusses a

metric suite providing support to perform a FMEA.

Results are presented in Section 5 and Section 6 con-

cludes the article with a brief talk about our future

work.

2 RELATED WORK

Analysis techniques can broadly be divided into three

categories. Formal veriﬁcation, simulation and in-

formal analysis processes. Formal veriﬁcation is a

model-based technique. Models are built from system

and software speciﬁcations. Simulation uses models

that are built during the development process to ver-

ify the design of the software and informal analysis

processes build models during the analysis process.

• Formal veriﬁcation. Formal veriﬁcation requires

models that can be mathematical exploited to show

correctness of a system (Yovine, 1998). For the

models to be correct, they must be built from un-

ambiguous speciﬁcations (Hohmann, 2004). How-

ever, complete and unambiguous speciﬁcations are

difﬁcult to attain. Any simpliﬁcation or abstraction

may hide details that may be critical to the correct

veriﬁcation of the application (Hailpern and San-

thanam, 2002). This is the reason why only speciﬁc

aspects are formally veriﬁed. For example, the reli-

ability of a system does not necessarily depend on

the complete correctness of the system, but rather

on a set of aspects and features (such as timing

constraints) that the system should exhibit (Amnell

et al., 2002; Halbwachs, 1997; Yovine, 1997).

• Simulation. Rapid prototypes can be viewed as

simulating systems. The simulation allows early

validation of the system. Ideally, production code

can be generated from the simulated systems to

avoid wasting resources and the risk of introduc-

ing new defects during the reimplementation of the

code (Burnard, 2004; MathWorks, 2004). Goseva

et al. present a risk analysis on the architectural

level using UML models (Goseva-Popstojanova

et al., 2003). UML models are developed early in

the development process. A Markov model is con-

structed to obtain risk factors for speciﬁc scenarios

that are used to estimate the overall system risk fac-

tor.

• Informal analysis. Most analysis techniques are in-

formal and use the insight of the system architect.

The failure mode and effect analysis (FMEA) is an

analysis method that has been traditionally applied

at the hardware level. The FMEA methodology is

here applied to software system. Goddard proposes

different techniques for a software FMEA (God-

dard, 2000).

The architecture tradeoff analysis method (ATAM)

is used to base architectural design decisions on ra-

tional goal-based attributes (Kazman et al., 1999).

Quality attributes such as modiﬁability, reliability,

and security are measured using inspections. Sce-

narios guide the analysis in the identiﬁcation of

risks, non-risks, sensitivity and tradeoff points in

the architecture.

We present an approach that uses simulation mod-

els that are later used for production code generation.

Metrics help identifying critical components that are

candidates to careful informal analysis, and design,

implementation, and testing.

3 OVERVIEW OF FMEA

The FMEA was originally developed for the system

and hardware level, where potential risks and failure

modes are known due to the natural limits of the world

of engineering and immutable physical laws. US Mil-

itary, for example, applied the method to evaluate the

reliability of system and equipment and to predict the

impact of their failure on the military mission’s suc-

cess. It was adopted by the aerospace and automo-

tive industry and incorporated into their quality con-

trol plans.

The FMEA helps determining failure modes, pro-

jecting their effects, identifying their causes, design-

ing detection and prevention mechanisms, and ad-

vising recommended actions (SAE, 2002). Figure 1

shows the line of causal relationship between faults,

errors and failures. The FMEA is developed along

that line of cause and effect (Doerenberg, 2004).

• Fault. The cause of a failure is a fault that ranges

from speciﬁcation and design defects to physical or

human factors.

METRIC SUITE DIRECTING THE FAILURE MODE ANALYSIS OF EMBEDDED SOFTWARE SYSTEMS

267

causes

Fault

propagates

Failure Fault

activates

Error Error

...

leads to

Figure 1: Causal relationship between faults, errors, and failures.

• Error. An error is a design ﬂaw or a deviation from

the desired or intended state of a system.

• Failure. A failure mode is deﬁned as the manner

in which a component, subsystem, or system could

potentially fail to meet or deliver the intended func-

tion.

• Failure Effect. The actual consequences of a sys-

tem behavior in the presence of a failure.

• Screening Questions. Screening questions (Kaz-

man et al., 1999) aim at detecting design deﬁcien-

cies for speciﬁc quality requirements, such as per-

formance, safety, or robustness that the software

system requires to meet.

• Recommended Actions. Actions that are rec-

ommended for implementation to identify failure

modes and to reducing the probability of their oc-

currence.

• Risk priority number. Failure modes are ranked

according to the risk priority number (RPN). The

RPN of a failure is computed as the product of (1)

the severity of the failure’s effect, (2) the likelihood

of the detection of the error leading to the failure

and (3) the frequency of the occurrence of the error

cause.

When conducting an FMEA, the following four

steps need to be performed:

1. Identiﬁcation of the system and its subsystems and

components.

2. Determination of failure modes, effects, and possi-

ble causes, associated with the subsystems and its

components.

3. Assessment of the risk of the failure modes.

4. Documentation and risk reduction activities.

3.1 FMEA in the Software System

Lifecycle

The software system lifecycle can be represented by

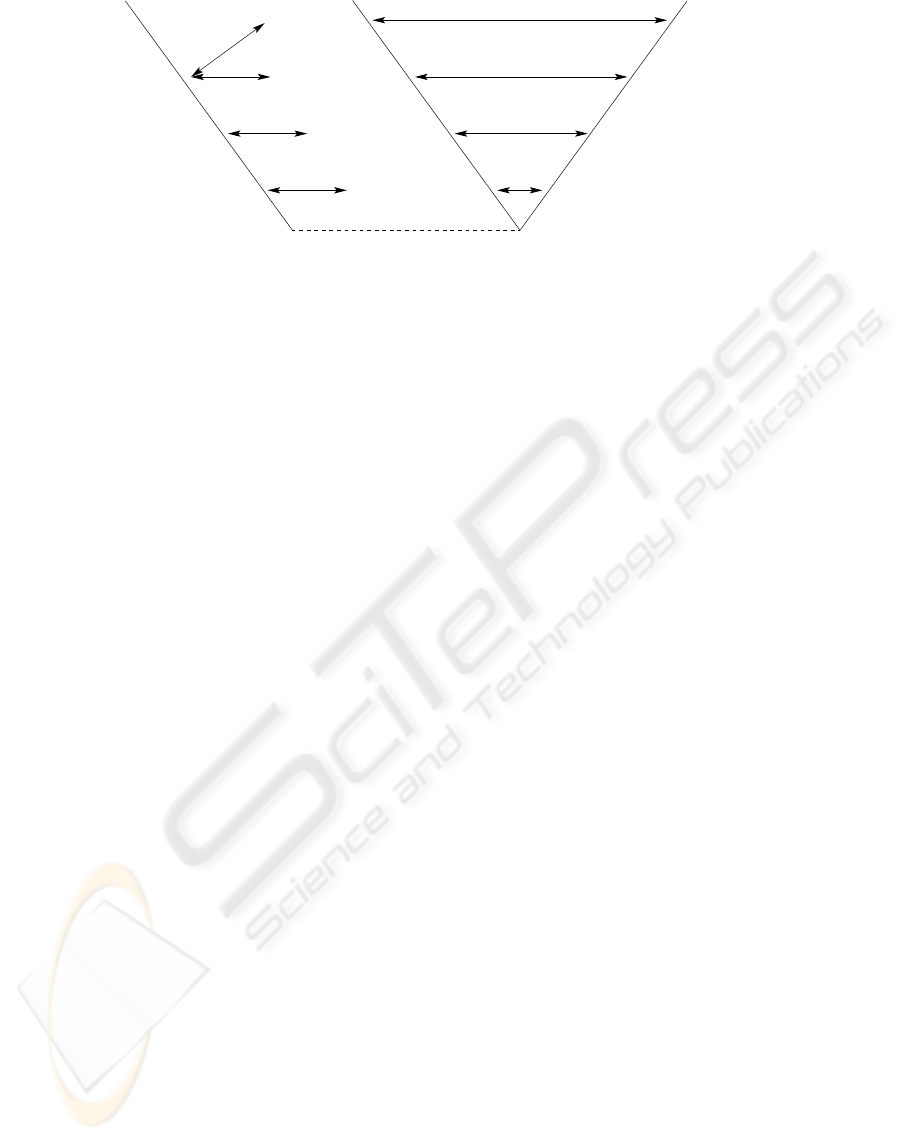

the V-model (Figure 2) (Burnard, 2004). The left side

of the V describes the design process for the construc-

tion of the system, starting from the requirements de-

ﬁnition, followed by the system design and becom-

ing more detailed at every step until the implementa-

tion phase, where the code is created. The implemen-

tation phase lies between decomposition and design

(left side of the V) and the integration and veriﬁcation

(right side of the V). The right side of the V covers

the different testing phases, which relate to speciﬁc

design phases of the left side of the V. The Design

FMEA is applied in parallel to the decomposition and

design phase of the software system lifecycle and cov-

ers the analysis process performed during the speciﬁc

design phases.

Both approaches, analysis and testing, aim at pro-

ducing more reliable and safe software (Doerenberg,

2004). For the comparison of the two different ap-

proaches a taxonomy of analysis and testing is estab-

lished (Fenelon et al., 1994). The taxonomy in Table 1

Table 1: Taxonomy of analysis and testing

Known Unknown

causes causes

Known Testing: Testing:

effect Behavioral Deductive

analysis analysis

Unknown Inductive Exploratory

effect analysis analysis

distinguishes four different categories, which are rep-

resented as behavioral, deductive, inductive, and ex-

ploratory analysis. Each of the categories is identi-

ﬁed by two characteristics, whether causes and effects

are known or unknown. Referring to the taxonomy of

analysis, software testing and analysis techniques are

each mapped onto two categories.

• Behavioral Analysis. If software testing validates

the software system behavior, the causes and the

effects are known.

• Deductive Analysis. If software testing is used as

deductive analysis to ﬁnd defects and remove their

faults, the causes are unknown and the effects are

known.

• Inductive Analysis. The FMEA is reliability analy-

sis method that deals with known causes and un-

known effects. The FMEA aims at fault avoidance.

• Exploratory Analysis. Using lists of failure modes

and screening questions, neither causes nor effects

are known and the analysis process is exploratory.

The results of a FMEA include failure modes, ef-

fects, causes, and detection and protection mecha-

nisms. The analysis team identiﬁes design prob-

lems, analyzes them and improves test design. Failure

modes are prioritized using the RPN that is computed

for each failure mode. The failure modes with the

highest ranking RPN are selected and recommended

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

268

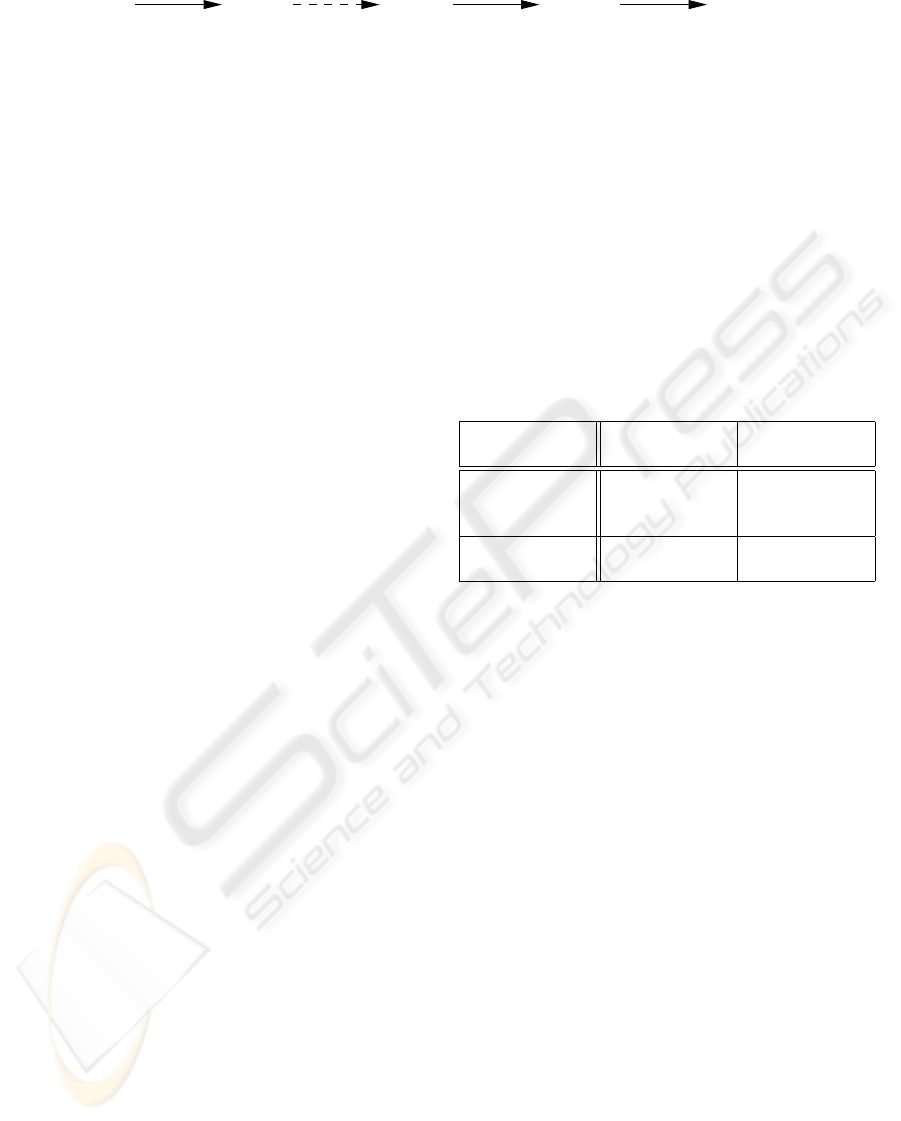

Design

Unit Test

System Test

Integration Test

Implementation

Requirements

Component, Module

Design FMEA

System Design

Definition

applied to

subsystems

Design FMEA

FMEA

applied to

components

system

applied to

Acceptance Test

Subsystem

Figure 2: FMEA applied to the software system lifecycle.

actions are determined, such as changes in the design

that reduce the probability of the occurrence of a po-

tential failure.

The implementation of a FMEA demands team ef-

fort. Performing and controlling a FMEA in regular

intervals is laborious and time-consuming. Therefore,

the analysis requires focusing on components that are

more likely to cause failures. Identifying those com-

ponents allows for redesigning them early in the soft-

ware system lifecycle and directing intensive testing

effort towards those components. The use of met-

rics early in the design process guides the analysis

team during the risk assessment with RPNs, which is

the most exigent part of the FMEA. Metrics are used

to identify the most complex, instable and thus most

error-prone parts of the system. This reduces the time

spent on the assessment of failure modes and their re-

lated components for the analysis team.

4 METRICS IN MODEL-BASED

DEVELOPMENT

Model-driven architecture speciﬁes a system using a

set of models. Models separate the speciﬁcation of

system functionality from the speciﬁcation of the im-

plementation of that functionality on a speciﬁc tech-

nology platform (Mukerji, 2001). The trend to spec-

ifying a system using models as a representation of

the system is growing in the embedded industry. The

increase of the computing power of microprocessors

has been reinforcing the beneﬁts of implementing em-

bedded control functionality in software (Horowitz

et al., 2003). As the complexity of embedded con-

trol applications increases, it is essential to introduce

means to master the complexity of the application

and to deﬁne adequate methods and tools for building

such control applications (Kopetz and Bauer, 2003;

Menkhaus et al., 2004).

Models provide abstractions of a system that al-

low for reasoning about that system by ignoring ex-

traneous details while focusing on relevant ones. All

forms of engineering rely on models to understand

complex, real-world systems. Models are used in

many ways: to predict system qualities, reason about

speciﬁc properties and provides characteristics of the

overall conﬁdence in the behavioral software proper-

ties. The models may be developed as a precursor

to the implementation of the physical system, or an

implementation can be derived from the model auto-

matically (Brown, 2004). However, models are likely

to become complex and instable as the model is de-

veloped, extended and modiﬁed. The quality of the

model suffers as the complexity increases (Lehmann,

2003).

Analysis activities are means to improve the de-

sign of a model and help decreasing design deﬁcien-

cies. Metrics guide the analysis activities. They can

broadly be classiﬁed into two categories: Source code

based syntactic metrics and semantic metrics:

• Syntactic metric. Syntactic metrics are computed

on the basis of source code. They are applied to

identify the most complex and therefore most error-

prone and hard to test parts of a system. However,

source code-based metrics are subject to distortion

due to the programmer’s style and they can only be

applied after the implementation phase (Stein et al.,

2004a).

• Semantic metric. Semantic metrics assess the qual-

ity of software (Stein et al., 2004b). Because se-

mantic metrics do not rely on the syntax or struc-

ture of source code, they can be computed early

in the software system lifecycle from requirements

or design speciﬁcations before the system has been

implemented. However, semantic metrics lack of a

common and universal representation and are based

on the vague notion of ideas and concepts. There-

fore, semantic metrics cannot be automatically

computed. Worse, in most projects requirements

and speciﬁcations are incomplete, change often and

most completed systems have implemented only a

small fraction of the originally-proposed features

METRIC SUITE DIRECTING THE FAILURE MODE ANALYSIS OF EMBEDDED SOFTWARE SYSTEMS

269

and functions speciﬁed in the requirements (Group,

2004).

Automatic computation is possible only if the no-

tion of concepts and ideas are mapped onto a nota-

tion of models for software system representation.

We have speciﬁed and implemented a metric suite

that is computed from hierarchical Simulink mod-

els (MathWorks, 2004).

Simulink was originally designed for the simula-

tion of control laws, but has recently established itself

as standard modeling tool for embedded software de-

velopment. For modeling, Simulink provides a graph-

ical user interface for building models as block dia-

grams. It includes a comprehensive block library of

sinks, sources, components, and connectors. Blocks

interact via connectors and input and output ports de-

ﬁne logical points of interaction between blocks. Af-

ter the model has been deﬁned it can be simulated and

code can be produced automatically using a code gen-

erator. Using the generated code, syntactic based met-

rics could be applied, but the code generator produces

unreachable code, which represents inefﬁciency in the

code generators implementation of the model that fal-

siﬁes the results of the metrics (Burnard, 2004). Us-

ing metrics, design models that cannot even be simu-

lated but are developed already early in the software

system lifecycle, can be submitted to analysis.

We compute metrics for two categories of design

aspects: Complexity and instability of models. The

metrics implemented in our Simulink Model Metrics

Calculator (SMMC) are the following:

• Cyclomatic Complexity (CC). CC measures the

complexity of the control ﬂow graph of a sys-

tem (Watson and McCabe, 1996).

• Instability of block (IOB). A block in a system is in-

stable if there is a high probability that it is subject

to changes and modiﬁcations (Martin, 1995).

• Instability of system (IOS). IOS is closely related

to the IOB metric, except that the complete system

(current system or subsystem of the model) inﬂu-

ences the metrics computation.

Simulink models are directed graphs and the met-

ric calculations are based on directed graphs, repre-

senting simpliﬁed Simulink models. Simulink models

consist of a set of subsystems S. A subsystem con-

tains a set of other subsystems and blocks. Consider-

ing a Simulink model as a directed graph, Simulink

blocks are denoted as vertices, and connectors are

considered as edges. Two vertices are connected to

one another if there is an edge directly connecting the

two vertices. Formally, a directed graph

−→

G = (V,

−→

E )

is a pair consisting of a vertex set V and a set of di-

rected edges

−→

E ⊆ V × V =:

−→

∗

where

−→

∗

is the set

of all possible directed edges.

Cyclomatic Complexity. The cyclomatic complex-

ity is based on the structure of a software control ﬂow

graph and measures its complexity. It is the min-

imum number of paths that can, in (linear) combi-

nation, generate all possible paths through the mod-

ule (Watson and McCabe, 1996). In a Simulink model

the control ﬂow graph is already given.

Each ﬂow graph of a Simulink subsystem s ∈ S

consists of vertices (blocks) v ∈ V and edges (con-

nectors) e ∈ E. The vertices represent computational

statements or expressions, and the connections repre-

sent transfer of control and data between vertices. The

cyclomatic complexity is deﬁned for each subsystem

s to be:

CC(s) = e

− v

+ 2,

where e

and v

represent the number of edges and

vertices in the control ﬂow graph of a Simulink sub-

system. The normalized CC (CC

) of a subsystem

is obtained by normalizing the CC with respect to the

sum of complexities of all subsystems in a model

(s) =

CC(s)

t∈S

CC(t)

The cyclomatic complexity measure correlates with

defects in software modules. Complex software is

error-prone, hard to understand, to modify and to test.

With the CC

metric complex parts of a software sys-

tem are identiﬁed.

Instability of Blocks. Blocks that are stable are

both independent and highly responsible. Blocks are

independent, if they do not depend upon the results

of other blocks. Blocks are called responsible, if

changes of this block have a strong and wide-ranged

impact on other blocks (Martin, 1995). The responsi-

bility, independence and stability of a category can be

computed by measuring the interaction of blocks with

other blocks.

The number of connections between blocks

(CBB) represents the number of blocks to which a

block is connected. A block v has a set of connected

blocks that include the number of source blocks

(S(v)) and the number of destination blocks (D(v)).

Source blocks are blocks from which the output is

used as input for the block under analysis. Destina-

tion blocks use the output of the block under analysis

as input.

Efferent CBB counts the number of source blocks

for each block, i.e. the number of blocks on which

the block under analysis depends: CBB

(v) =

S(v). Afferent CBB counts the number of destina-

tion blocks for each block, i.e. the number of blocks

that depend on the block under analysis. CBB

(v) =

D(v). The IOB of a block v is then deﬁned as the

number of blocks the block v depends on divided by

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

270

the number of blocks v depends on plus the number

of blocks that depend on v:

IOB(v) =

CBB

(v)

CBB

(v) + CBB

(v)

IOB is an indicator of the blocks resilience to

change. A value of zero means maximal stability and

a value of one means maximal instability. Instable

subsystems are generally undesirable and are recom-

mended for careful design, implementation and test-

ing.

Instability of System. The IOS is closely related

to the IOB and draws identical conclusions. How-

ever, its computation is more global and it accounts

for inﬂuences of the complete system (i.e., current

system or subsystem of the model) on a block. The

IOS of a block v is deﬁned as

IOS(v) =

BET

(v)

BET

(v) + CLO

(v)

where BET

denotes the normalized betweenness

metric and CLO

the normalized closeness metric.

The closeness metric was originally deﬁned

by Sabidussi for strongly connected networks

in (Sabidussi, 1966) and has been generalized

in (Gulden, 2004). The betweenness metric was de-

ﬁned by Freeman in (Freeman, 1977).

• Closeness. The closeness is a measurement of

responsibility that assigns high values to blocks

from which a multitude of other blocks can be

reached within a short average distance. The hori-

zon hor(v) of a block v ∈ V is deﬁned as

hor(v) = {r ∈ V | there is a path from v to r}.

Let R(v) be the number of reachable blocks from

v (excluding v),

R(v) = |{r ∈ hor(v) − {v}}|

and D(v) the sum of the shortest distances to reach-

able blocks

D(v) =

r∈hor(v)−{v}

(v, t).

The outgoing distance d

(s, t) of a block t from a

block s in a network

−→

G = (V,

−→

E ) is deﬁned by the

minimum length of all paths from s to t. Then the

closeness for block v is deﬁned as follows:

CLO(v) =

(

R(v)

D(v)

if D(v) > 0

0 otherwise

The normalized closeness is obtained by normal-

izing the closeness with respect to the sum of the

closeness measures for all vertices:

CLO

(v) =

CLO(v)

u∈V

CLO(u)

A high CLO

value of a block reﬂects responsi-

bility and points out that many other blocks can be

reached within a short average distance. In case of

an error originating in a faulty block the error prop-

agation correlates to the CLO

value of the faulty

block. A high CLO

value means that a possible

error reaches many other blocks in a short time.

• Betweenness. The betweenness is a measurement

that assigns high values to blocks on which other

blocks are most dependent. For the calculation of

betweenness the dependency (DEP) is computed.

Let SP (s, t) be the number of the shortest paths

from s to t, and let SP (s, t|v) be the number of the

shortest paths from s to t using v as an inner block.

The dependency of a block s on a single block v is

then deﬁned as follows:

DEP (s|v) =

tǫV



SP (s,t|v)

SP (s,t)

if SP (s, t) > 0

0 otherwise

The betweenness is calculated according to:

BET (v) =

sǫV

DEP (s|v)

The normalized betweenness is then deﬁned as

BET

(v) =

BET (v)

u∈V

BET (u)

A high BET

value of a block indicates a high av-

erage dependency on that block of all other blocks

in the model. The calculation of this metric iden-

tiﬁes blocks that are most important to the model

and for which the most analysis and testing effort

should be spent.

5 RESULTS

The automated computation of metrics fosters per-

forming a focused and effective FMEA. It supports

the analysis team during the application of a FMEA.

We have developed the Simulink Model Metrics Cal-

culator (SMMC) that computes the metric suite on

Simulink models. The SMMC parses Simulink mod-

els and stores the information in a database. Based

on this information, the SMMC computes the metric

suite and presents the results in a graphical user inter-

face.

We show the computation of the metric suite on

the well-known Simulink Automotive Engine Tim-

ing Model (Figure 3). It presents a model of a four-

cylinder spark ignition engine from the throttle to the

crankshaft output. Within this simulation, a triggered

subsystem models the transfer of the air-fuel mixture

from the intake manifold to the cylinders via discrete

valve events. This takes place concurrently with the

METRIC SUITE DIRECTING THE FAILURE MODE ANALYSIS OF EMBEDDED SOFTWARE SYSTEMS

271

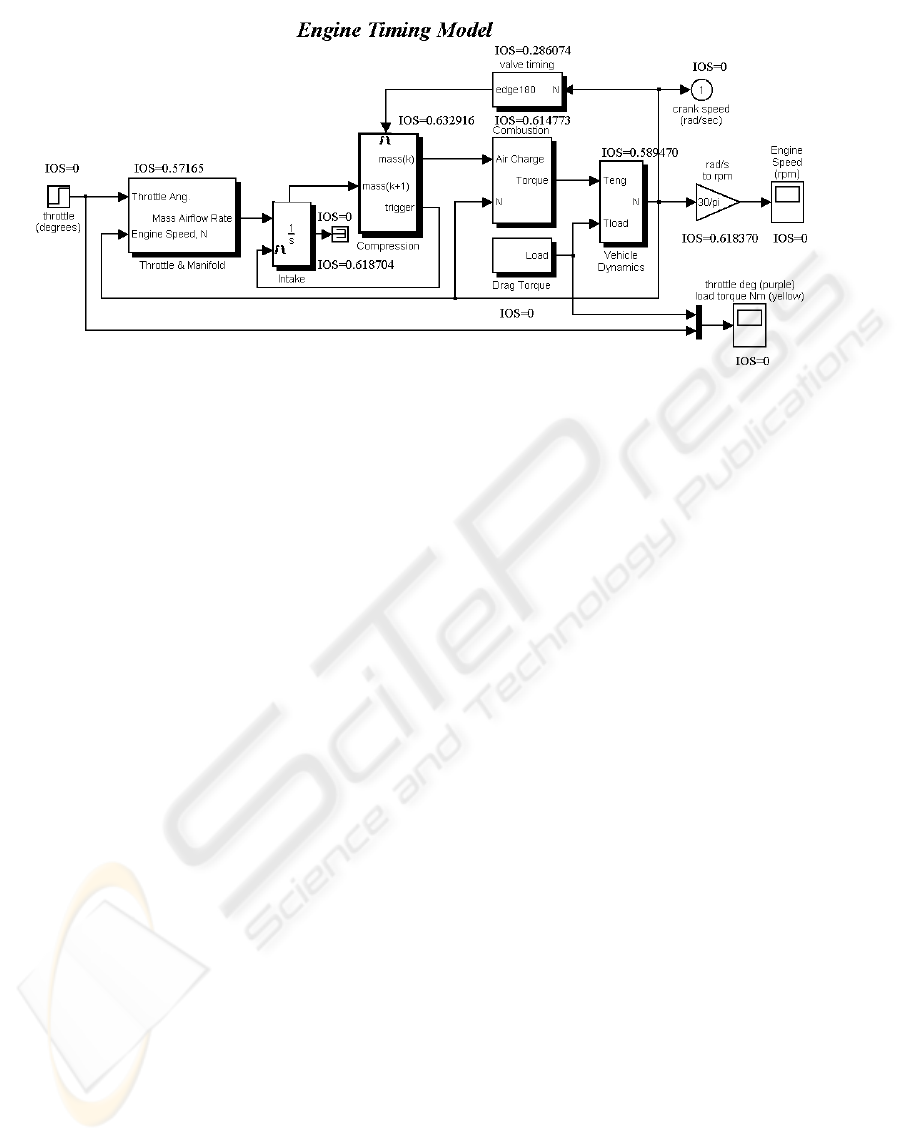

Figure 3: Instability of system metric for the top-level subsystem of the Simulink Engine Timing Model.

continuous-time processes of intake ﬂow, torque gen-

eration and acceleration (MathWorks, 2004).

The results of the computation of CLO

, BET

and IOS for the Engine Timing Model are shown in

Figure 3. Figure 3 shows that the results for the IOS

recommend the Compression and the Intake subsys-

tem as candidates for detailed analysis and testing ef-

fort. They account for the two highest IOS metric

values. The two subsystems are central to the Engine

Timing Model having a multitude of input and output

ports and their outputs inﬂuence several other blocks.

6 CONCLUSION

The Failure Mode and Effect Analysis (FMEA) is

a projective analysis method. It helps determining

failure modes, effects, causes, and recommended ac-

tions suggesting additional detection and prevention

mechanisms. The FMEA is an analytical technique

utilized to analyze systems, subsystems, and com-

ponents. It focuses on failure modes caused by de-

sign deﬁciencies and is applied in the design phase of

the software system lifecycle. The risk priority num-

ber (RPN) computation helps prioritizing the failure

modes, identifying the most critical ones, and deter-

mining recommended actions that could eliminate or

reduce the likelihood of potential failures to occur.

Design deﬁciencies uncovered by the FMEA might

cause a change of the current design. Changing the

design is least expensive if the project is still in the de-

sign phase. Metrics are essential in guiding the analy-

sis team during the risk assessment of failure modes.

They are applied to identify the most complex and in-

stable and thus most error-prone parts of a software

system. Useful information is elicited automatically

with the help of the Simulink Model Metric Calcula-

tor.

In our future work we will reﬁne the risk priority

quality statement to allow its application to arbitrary

Simulink models. We will extend the computation of

metrics on Simulink models and investigate how met-

rics can be used to derive test data and test cases from

models automatically.

ACKNOWLEDGEMENTS

This work was supported by MagnaSteyr

Fahrzeugtechnik and the FIT-IT Embedded Sys-

tems initiative of bmvit, Austria via the project

Model-Based development of Distributed Embedded

Control Systems (MoDECS). It is the result of the

ongoing work on ”Embedded System Quality and

Safety Analysis - Failure Mode and Effects Analysis

(FMEA) applied to Embedded Software”.

REFERENCES

Amnell, T., Fersman, E., Mokrushin, L., Pettersson, P., and

Yi, W. (2002). Times - A Tool for Modelling and Im-

plementation of Embedded Systems. In Proceedings

of 8th International Conference, TACAS 2002, volume

2280 of LNCS Springer, pages 460 – 464.

Brown, A. (2004). An Introduction into Model Driven Ar-

chitecture. Technical report, IBM.

Burnard, A. (2004). Verifying and Validating Automatically

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

272

Generated Code. In Proc. of International Automotive

Conference (IAC), Stuttgart, Germany.

Doerenberg, F. (2004). Analysis and Synthesis of Depend-

able Computing and Communication Systems, chapter

Dependability Impairments: Faults, Errors and Fail-

ures. www.nonstopsystems.com. to be published.

Fenelon, P., McDermid, J., Nicholson, M., and Pumfrey,

D. (1994). Towards Integrated Safety Analysis and

Design. ACM Computing Reviews, 2(1):21 – 32.

Freeman, L. (1977). A set of measures of centrality based

on betweenness. Sociometry, 40:35 – 41.

Goddard, P. L. (2000). Software FMEA Techniques. In

IEEE Proceedings Annual Reliability and Maintain-

ability Symposium.

Goseva-Popstojanova, K., Hassan, A., Abdelmoez, A.

G. W., Nassar, D., Ammar, H., and Mili, A. (2003).

Architectural-Level Risk Analysis Using UML. IEEE

Transaction on Software Engineering, 29(10):946 –

960.

Group, T. S. (1994 – 2004). CHAOS: A Recipe for Success.

Technical report, The Standish Group.

Gulden, C. (2004). Algorithmic analysis of large net-

works by computing structural indices. Technical re-

port, Fachbereich Mathematik und Statistik, Univer-

sit

at Konstanz, 78457 Konstanz, Germany.

Hailpern, B. and Santhanam, P. (2002). Software debug-

ging, testing and veriﬁcation. IBM Systems Journal,

41(1):4–12.

Halbwachs, N. (1997). Synchronous Programming of Reac-

tive Systems. Kluwer.

Hohmann, W. (2004). Supporting Model-Based Develop-

ment with Unambiguous Speciﬁcations, Formal Veri-

ﬁcation and Correct-By-Construction Embedded Soft-

ware. Technical report, Esterel Technologies.

Horowitz, B., Liebman, J., Ma, C., Koo, T. J., Sangiovanni-

Vincentelli, A., and Sastry, S. (2003). Platform-

Based Embedded Software Design and System Inte-

gration for Autonomous Vehicles. IEEE Transaction,

91(1):100 – 111.

Kazman, R., Klein, M., and Clements, P. (1999). Evalu-

ating Software Architectures for Real-Time Systems.

Annals of Software Engineering, 7:71 – 93.

Kopetz, H. (1997). Real-time Systems: Design Program-

ming for Distributed Embedded Applications. Kluwer.

Kopetz, H. and Bauer, G. (2003). The Time-Triggered Ar-

chitecture. IEEE Special Issue on Modeling and De-

sign of Embedded Software, 23(1).

Lehmann, M. (2003). Software evolution - cause and ef-

fects. In Proceedings of the 9th International Stevens

Awards at IEEE ICSM.

Martin, R. (1995). OO Design Quality Metrics (An Analy-

sis of Dependencies). ROAD.

MathWorks (2004). Simulink. www.mathworks.com.

McConnell, S. (1996). Software Quality at Top Speed.

http://www.stevemcconnell.com/articles/art04.htm.

Menkhaus, G., Holzmann, M., and Fischmeister, S. (2004).

Time-triggered Communication for Distributed Con-

trol Applications in a Timed Computation Model. In

Proceedings of DASC04.

Montgomery, T., Pugh, D., Leedham, S., and Twitchett, S.

(1996). FMEA Automation for the Complete Design

Process. In IEEE Proc Annual Reliability and Main-

tainability Symposium, pages 30 – 36.

Mukerji, J. (2001). Model driven architecture. Technical

Report ormsc//01-07-01, OMG.

Parkinson, H., Thomson, G., and Iwnicki, S. (1998). The

development of an FMEA methodology for rolling

stock remanufacture and software quality. ImechE

Seminar Publication, 20:55 – 66.

Pasetti, A. (2002). A Software Framework for Satellite Con-

trol Systems Methodology and Development. Springer,

LNCS Serie.

Pentti, H. and Atte, H. (2002). Failure mode and effects

analysis of software-based automation systems. Tech-

nical Report STUK-YTO-TR 190, STUK, Helsinki.

Sabidussi, G. (1966). The centrality index of a graph. Psy-

chometrica, 31:581 – 603.

SAE (2002). Surface vehicle recommended practice. Tech-

nical Report SAE-J1739, Society of Automotive En-

gineers, Warrendale, USA.

Stein, C. et al. (2004a). A new suite of metrics for object-

oriented software. Computer Science Department,

University of Alabama in Huntsville, Huntsville, AL

35899 USA.

Stein, C., Etzkorn, L., and Utley, D. (2004b). Comput-

ing Software Metrics from Design Documents. In

ACMSE.

Watson, A. H. and McCabe, T. J. (1996). Structured Test-

ing: A Testing Methodology Using the Cyclomatic

Complexity Metric. Technical Report NIST Spec.

Publ. 500-235, National Institute of Standards and

Technology, Gaithersburg.

Yovine, S. (1997). A veriﬁcation tool for real-time systems.

International Journal of Software Tools for Technol-

ogy Transfer, 1(1/2):123 – 133.

Yovine, S. (1998). Embedded Systems, chapter Model-

checking timed automata. LNCS. Springer.

METRIC SUITE DIRECTING THE FAILURE MODE ANALYSIS OF EMBEDDED SOFTWARE SYSTEMS

273
