VISUAL SVM

François Poulet

ESIEA – Pôle ECD, 38, rue des Docteurs Calmette et Guérin, 53000 Laval, France

Keywords: Visual Data Mining, Support Vector Machine, High Dimensional Datasets, Cooperative Approach

Abstract: We present a cooperative approach using bo

th Support Vector Machine (SVM) algorithms and visualization

methods. SVM are widely used today and often give high quality results, but they are used as "black-box",

(it is very difficult to explain the obtained results) and cannot treat easily very large datasets. We have

developed graphical methods to help the user to evaluate and explain the SVM results. The first method is a

graphical representation of the separating frontier quality (it is presented for the SVM case, but can be used

for any other boundary like decision tree cuts, regression lines, etc). Then it is linked with other graphical

methods to help the user explaining SVM results. The information provided by these graphical methods can

also be used in the SVM parameter tuning stage. These graphical methods are then used together with

automatic algorithms to deal with very large datasets on standard personal computers. We present an

evaluation of our approach with the UCI and the Kent Ridge Bio-medical data sets.

1 INTRODUCTION

The size of data stored in the world is constantly

increasing but data do not become useful until some

of the information they carry is extracted.

Furthermore, a page of information is easy to

explore, but when the information reaches the size of

a book, or library, or even larger, it may be difficult

to find known items or to get an overview.

Knowledge Discovery in Databases (KDD) can be

defined as the non-trivial process of identifying

valid, novel, potentially useful, and ultimately

understandable patterns in data (Fayyad et al., 1996).

In this process, data mining can be defined as the

articular pattern recognition task. It uses different

algorithms for classification, regression, clustering

or association. In usual KDD approaches,

visualization tools are only used in two particular

steps: in one of the first steps to visualize the data or

data distribution, in one of the last steps to visualize

the results of the data mining algorithm, between

these two steps, automatic data mining algorithms

are carried out.

Some new methods have recently appeared

ong, 1999), trying to involve more significantly

the user in the data mining process and using more

intensively the visualization (Shneiderman, 2002),

this new kind of approach is called visual data

mining. We present some graphical methods we

have developed to increase the visualization part in

the data mining process and more precisely in

supervised classification tasks.

The first method is used to evaluate the quality

d interpret or explain the results of Support Vector

Machine (SVM) algorithms used in supervised

classification. Very few papers have addressed this

topic (Caragea et al, 2003), (Poulet, 2002). In

supervised classification SVM algorithms have

shown to be very efficient but they are used as "a

black box". We have an accurate model of the data,

but no explanation about this model and most of the

time this is what the end-user is waiting for. The

SVM is able to classify a new data point in class +/-

1, but we do not know why.

A first graphical method is used to give the user

evaluation of the quality of the obtained

separating surface. This first graphical method is

then linked with another one to try to explain what

are the attributes having an important part in the

classification.

Then we show how we can also use the

nformation given by this kind of visualization

method to help the user in tuning the SVM algorithm

parameters. Parameter tuning is a very important

part of the data mining task (with SVM algorithms

and with many other ones), but here again the

process is nearly never described. Our approach

doesn't solve the whole problem but only avoid

parsing all the possibilities and when we are dealing

with very large datasets (one million data points or

more) this can be really time saving.

309

Poulet F. (2005).

VISUAL SVM.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 309-314

DOI: 10.5220/0002521003090314

 SciTePress

One restriction of the data visualization methods

is well known: they usually cannot treat very large

data sets. At last, we present a cooperative approach

using both the previous graphical method and

automatic algorithms to efficiently deal with very

large datasets.

2 SVM ALGORITHMS

SVM algorithms (Vapnik, 1995) are kernel-based

methods used for supervised classification,

regression or novelty detection and have been

successfully applied to a large number of

applications. Let us consider a linear binary

classification task, with m data points in the n-

dimensional input space R

, denoted by the x

(i=1,…, m), having corresponding to labels y

= ±1.

For this problem, the SVM try to find the best

separating plane, i.e. furthest from both class +1 and

class -1. It can simply maximize the distance or

margin between the support planes for each class

(x.w – b = +1 for class +1, x.w – b = -1 for class -1).

The margin between these supporting planes is

2/||w||. Any point falling on the wrong side of its

supporting plane is considered to be an error.

Therefore, the SVM has to simultaneously maximize

the margin and minimize the error. The standard

SVM formulation with linear kernel is given by the

following quadratic program (1) where slack

variables z

≥ 0 and constant C > 0 is used to tune

errors and margin size.

Min f (w, b, z) = (1/2) ||w||

+ C Σ z

s.t. y

(w.x

– b) + z

≥ 1 (1)

≥ 0 (i=1, …, n)

The plane (w,b) is obtained by the solution of the

quadratic program (1). And then, the classification

function of a new data point x based on the plane is:

f(x) = sign (w.x – b).

SVM can use some other classification

functions, for example a polynomial function of

degree d, a RBF (Radial Basis Function) or a

sigmoid function. To change from a linear to non-

linear classifier, one must only substitute a kernel

evaluation in (1) instead of the original dot product.

More details about SVM and others kernel-based

learning methods can be found in (Cristianini, 2000).

Recent developments for massive linear SVM

algorithms (Fung and Mangasarian, 2001)

reformulate the classification as an unconstraint

optimization and these algorithms require thus only

solution of linear equations of (w,b) instead of

quadratic programming. If the dimensional input

space is small enough (less than 10

), even if there

are millions of data points, the new SVM algorithms

are able to classify them in minutes on a PC (Poulet

and Do, 2003). The algorithms can deal with non-

linear classification tasks however the m

kernel

matrix size requires very large memory size and

execution time. Reduced support vector machine

(RSVM) (Lee and Mangasarian, 2000) creates a

rectangular kernel matrix of size mxs (s << m) by

using a small random data points S being a

representative sample of the entire dataset and

reduces the size problem. The authors have proposed

some possible ways to choose S from the entire

dataset. However, most of existing SVM algorithms

have two disadvantages: they are used as "black-

box", it may be difficult to explain the results

obtained and they need a important parameter tuning

stage before to give the expected accuracy.

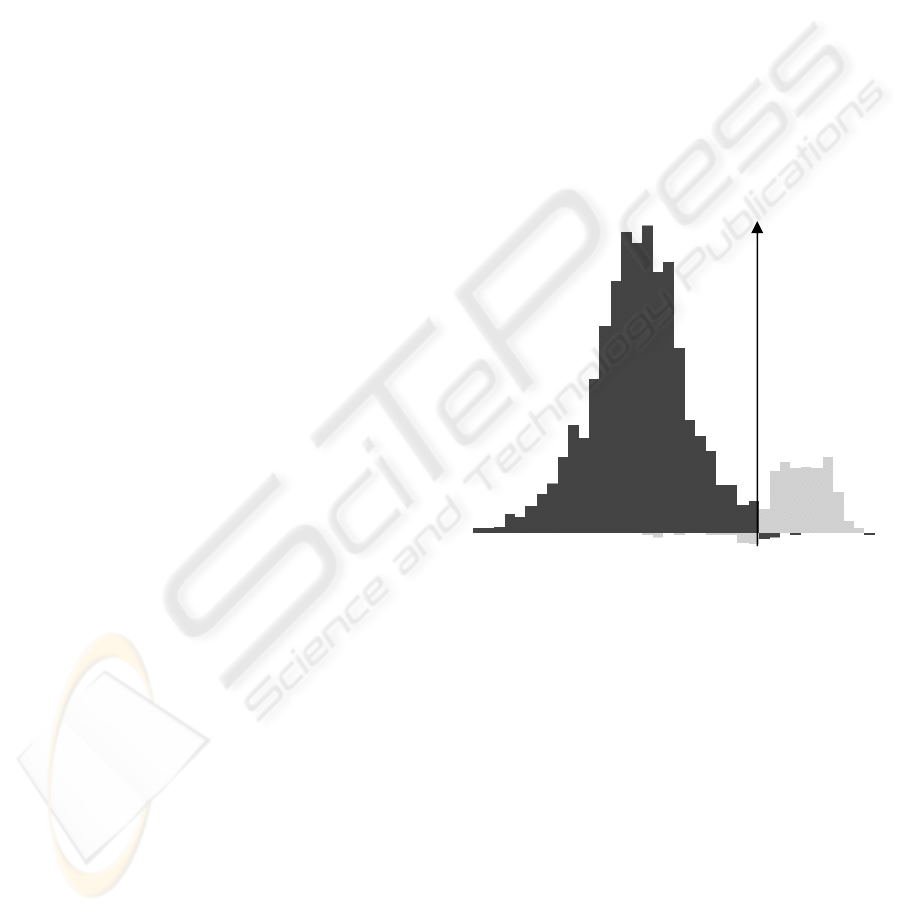

Figure 1: Distribution of the segment data points, class

5 against all.

3 GRAPHICAL INTERPRETATION

OF SVM RESULTS

We have developed a graphical method in order to

try to explain the SVM results and evaluate their

quality. The first step of our algorithm is to compute

the data distribution according to the distance to the

separating surface. While the classification task is

performed we also compute this distance for every

data point.

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

310

For each class, the positive distribution is the set

of correctly classified data points, and the negative

distribution is the set of misclassified data points.

Then we display this distribution by the way of a

simple histogram. We can use this single tool to

evaluate the quality of the separating frontier. It can

be used for SVM separating boundary or any other

separating feature (like a cut in a decision tree

algorithm or a regression line). Figure 1 shows an

example of such a distribution with the class 5 of the

Segment data from the UCI Machine Learning

Repository (Blake and Merz, 1998).

We can see the separating frontier (here a plane

because we used a linear kernel) is a good one: there

are only some misclassified data points (negative

distribution) near the separating frontier (the vertical

axis). Another possibility is to use this tool linked

with other data representations, for example a set of

two-dimensional scatter plot matrices (Becker et al,

1987) or parallel coordinates (Inselberg and Avidan,

1999). Figure 2 shows an example of a set of scatter-

plot matrices. They are the 2-dimensional

projections of the data according to all possible pairs

of attributes. One of the two-dimensional matrices is

selected and displayed in a larger size in the bottom

right part of the visualization.

When the user selects a bar in the graphical

distribution, the corresponding data points are

selected in the other graphical tools too. For example

if we select the bars nearest from the separating

plane, the corresponding points are selected in the

scatter plot matrices too. This allow the user to have

some interesting information about the boundary

between the two classes: what are the important

attributes for the classification, is it a straight

frontier or is it a complex one, etc.

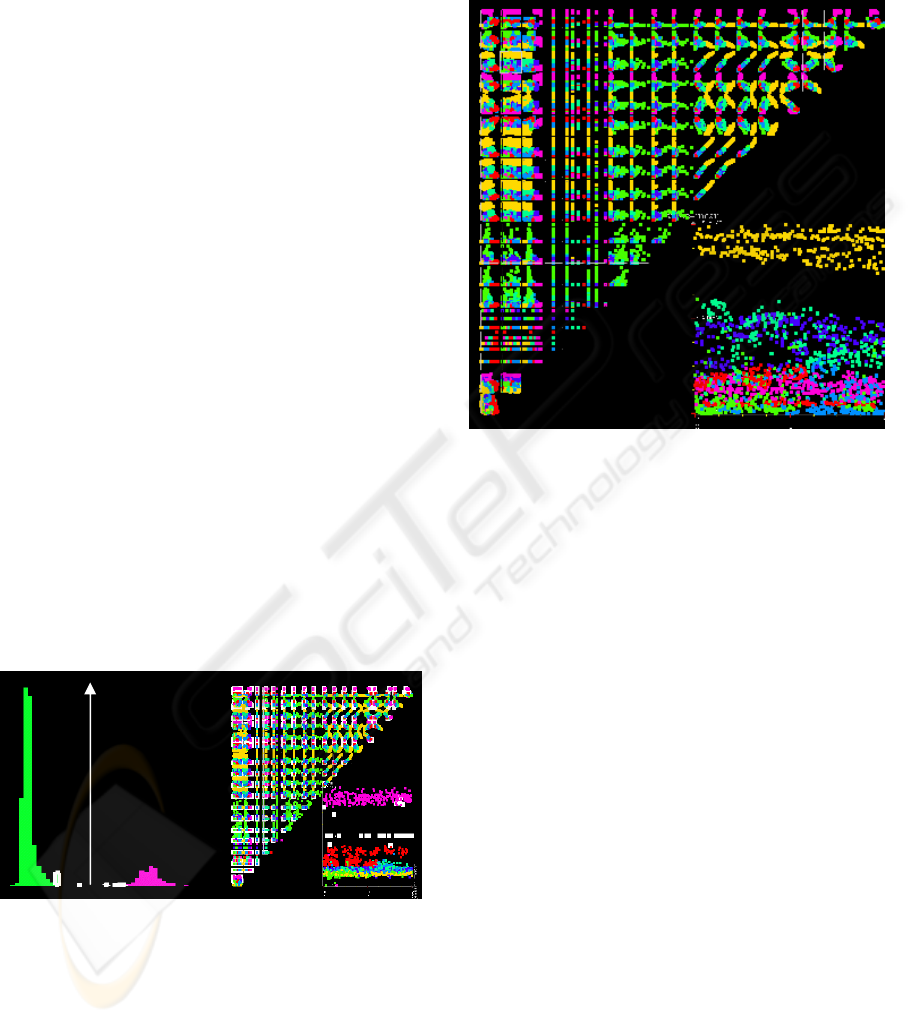

Figure 2: Scatter-plot matrices display of the Segment

dataset.

Figure 3 shows an example of a straight frontier

between the class 7 and the other ones (always in the

Segment dataset). We can see on the distribution of

the data according to their distance to the separating

hyper-plane, there is no data point near the

boundary. We select the nearest from the boundary,

and these points are automatically selected in the set

of scatter plot matrices in the right of Figure 3 (the

selected elements are in bold white). We find again

the same information as in the distribution display:

there is no point near the boundary (there is a wide

empty space between the class 7 and the other ones).

Figure 3: Visualization of the separating hyper-plane

between class 7 and the other ones in the Segment dataset.

But we have more information than the quality

of the boundary, we have also information about its

shape and about the attributes important for the

current class. Figure 3 shows the boundary between

the class 7 and the other ones is a straight line. And

we can also infer from the visualization that the two

attributes corresponding to the x and y axes in the

bottom right part of the visualization are the ones

deciding the membership of class 7. In this particular

case it is even simpler, the boundary is a horizontal

line: only the attribute corresponding to the y-axis

(hue-mean) is important for the class 7 (in a decision

tree, we would have a node like: (if (hue-mean < x)

then class=7).

It is possible to link the graphical distribution

with any other graphical representation.

This simple graphical tool allows us to explain

the results obtained by a SVM algorithm. The

graphical representation of the data distribution

according to their distance to the separating frontier

gives a good idea of its quality. It is true for a SVM

separating hyper-plane and for any other frontier

(like a cut in a decision tree or a regression line,

etc.).

Furthermore, when linked with another graphical

data representation (for example the scatter-plot

matrices or the parallel coordinates), the distribution

can help the user in interpreting the frontier: he is

able to explain what is the attribute(s) that make(s) a

VISUAL SVM

311

point belonging to a given class. One must not forget

nearly all SVM algorithms only give the accuracy

and the support vectors (n-dimensional vectors for a

n-dimensional dataset). With this kind of results it is

impossible to explain anything in the obtained

classification (even if it gives a high quality

accuracy). The comprehensibility and confidence in

the result are never used in algorithm evaluation but

an end user will not use a model if he has not a

minimum comprehension and confidence in it.

The scatter-plot matrices and parallel-

coordinates are only useful if the number of

dimensions (database columns) and the number of

items (database rows) are limited to some dozens of

dimensions and some thousands of items. We will

address this point in section 5.

4 GRAPHICAL SVM PARAMETER

TUNING

Parameter tuning is a very important part of the

SVM algorithms even if very few papers explain

how to perform this task. We call parameter either

the tuning of the algorithm input parameter, either

the choice of the kernel function.

One paper (Fung et al, 2002) explains how to

perform this task. This is an exact citation from this

paper:

"Following the methodology used in prior work,

we tested our algorithm on this dataset together with

the knowledge sets, using a "leave-one-out" cross-

validation methodology in which the entire training

set of 106 elements is repeatedly divided into a

training set of size 105 and a test set of size one. The

values of

and

associated with both KSVM and

SVM1 were obtained by a tuning procedure which

consisted of varying them on a square grid: {2

-6

, 2

,…, 2

}x{2

-6

, 2

-5

,…, 2

}."

For someone who is not a SVM expert (and even

sometimes for the experts), the only way to get high

quality results is to perform several classification

tasks with parameters varying in the good range

values.

We can use the information obtained by the

visualization tools described in the previous section

to help the user.

A first possibility is to use the results of the data

distribution according to their distance to the

separating frontier. In the example shown in Figure

3 (left part), we can see there is no data point near

the frontier. This gives the user the following

information: at least one parameter has not to be

tuned finely. This simple information can really

reduce the time needed for the classification task.

This will not change the classification accuracy,

only the time needed to perform it.

Another possibility is to use the data

visualization to help the user choosing the kernel

function. In the examples shown in figure 2 and

figure 3, we can see a linear boundary between the

elements of the class 2 and class 7. So a linear kernel

function will be sufficient to get good results.

Conversely we cannot conclude anything if we

cannot see a linear boundary: if the frontier between

two classes is an n-dimensional hyper-plane, any

projection on two attributes will not show this

frontier. But the visualization of the data distribution

according to their distance to the separating hyper-

plane can give us this kind of information: if for

example, there are several misclassified data points

near the boundary, another kernel function may be

more suitable.

Another interesting feature is to use these tools

for the multi-class case. SVM algorithms are only

able to deal with two classes. When the dataset has

more than two classes the most used approaches are

the one-against-all and the one-against-one. A set of

classifiers is built and then the classification of a

new item is performed with a vote mechanism. The

same kernel function and the same parameters

tuning are used for the whole treatment. Here, we

can use the visualization methods to help the user to

tune parameters and to choose a kernel function for

each class and so use sophisticated (with often high

computational cost) kernel function only when

needed. The visualization is used to guide the user in

his choices and reduce the number of classification

algorithms to run.

We have seen how simple visualization methods

can help the user to evaluate the quality of the result

obtained by an automatic SVM algorithm and

interpret or understand this result on one hand, and

to help him to choose the parameters or kernel

functions to use to get great results without having to

execute several times the classification algorithm on

the other hand.

5 COOPERATIVE METHODS

As mentioned in section 3, the scatter-plot matrices

and parallel-coordinates are only useful if the

number of dimensions (database columns) and the

number of items (database rows) are limited to some

dozens of dimensions and some thousands of items.

In order to be able to deal with larger datasets, we

combine automatic algorithms and visualization

algorithms to get a cooperative method able to deal

with large datasets.

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

312

5.1 Dimensionality reduction

Some applications have to deal with datasets having

very large number of dimensions (for example in

text-mining or bioinformatic). Most existing

classification algorithms cannot deal with such

datasets and use a pre-processing step to reduce the

dataset dimensionality.

To deal with these datasets, we use a feature

selection method with the 1-norm linear SVM

proposed by (Fung and Mangasarian, 2004) as data

preprocessing. The 1-norm linear SVM algorithm

maximizes the margin by minimizing 1-norm

(instead of 2-norm with standard SVM) of plane

coefficients (w). This algorithm provides results

having many null coefficients. The corresponding

dimensions are removed, this can efficiently select

few dimensions corresponding to non-null

coefficients without losing too much information.

We have evaluated the performances of the

algorithm on the bio-medical datasets from the Kent

Ridge Bio-medical Data Set Repository (Jinyan and

Huiqing, 2002).

After a feature selection task with the 1-norm

linear SVM, we have used the LibSVM to classify

these datasets. The results concerning the accuracy

are shown in table 1: the accuracy is equal or

increased for four datasets and reduced in only one

case. So may be, we can talk about dimensionality

selection (like for the nested cavities described in

(Inselberg and Avidan, 1999)) instead of

dimensionality reduction. And then, visualization

tools are able to work on these datasets.

This cooperative approach allows the user to

interpret the results of SVM algorithms dealing with

datasets having a very large number of attributes.

5.2 Data reduction

In order to deal with datasets having large number of

items (rows of the database) we use the same kind of

approach as the RSVM algorithm.

First, we use a k-means algorithm to create

clusters and then we sample data points from the

clusters. The resulting small dataset is then

displayed with scatter-plot matrices and the user

interactively selects the subset S of points (used as

support vectors in input of the RSVM algorithm).

These points are the points closest to the separating

boundary between the two classes.

We illustrate our approach with the UCI Forest

cover type dataset (581,012 data points, 54

dimensions and 7 classes). This dataset is known as

a difficult classification problem for SVM

algorithms. (Collobert et al, 2002) trained the

models with SVMTorch and a RBF kernel using

100,000 training data points and 50,000 testing data

points. The learning task needed more than 2 days

and 5 hours with an accuracy being 83.24 %. We

have also classified the class 2 against all, we have

used 500,000 data points for training and the rest to

test. LibSVM was not able to finish the learning task

after several days. To use our cooperative approach

with this dataset, about 1 hour was needed to create

200 clusters (100 for each class) and sampling 5,000

data points (25 points/cluster). Then, we have

interactively selected support vectors from the

reduced dataset in a set of scatter-plot matrices as

shown in figure 4. A rectangular RBF kernel was

created in input of RSVM. The learning task needed

about 8 hours for constructing the model with an

accuracy equal to 83.77%. This is a first promising

result of our tool on large datasets.

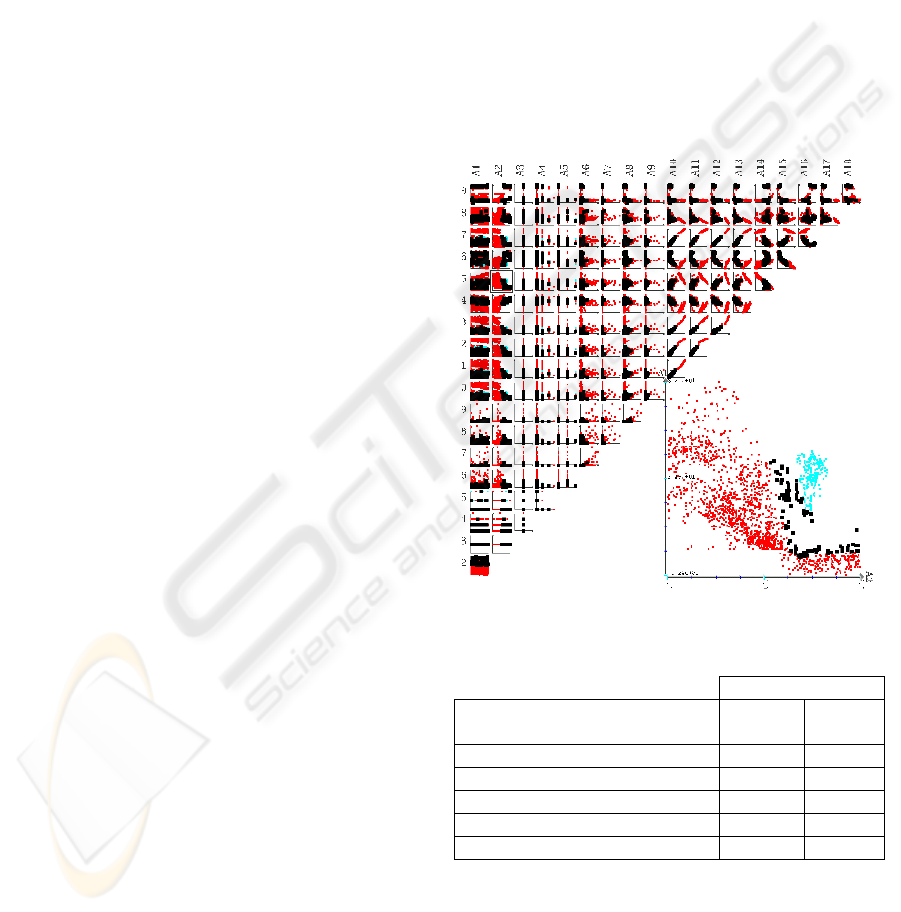

Figure 4: Interactive support vector selection for the

Segment class 6

Table 1: Accuracy with and without feature selection

Accuracy (%)

dataset (# dim. used / # dim) Feature

selection

AML-ALL Leukemia (5 / 7129) 94.12 94.12

Breast Cancer (10 / 24481) 78.95 73.68

Colon Tumor (19 / 2000) 96.77 90.32

Lung Cancer (9 / 12533) 96.64 98.66

Ovarian Cancer (13 / 15154) 100 100

This cooperative approach using both automatic

algorithms (k-means, sampling and RSVM) and an

interactive selection of the vector supports, by the

way of a graphical representation (the scatter-plot

matrices), allows us to deal with datasets having a

very large number of items.

VISUAL SVM

313

6 CONCLUSION AND FUTURE

WORK

We have presented new graphical or cooperative

(using both a graphical and an automatic part)

methods useful for classification tasks in data

mining.

The first method is a graphical evaluation of the

quality of the SVM result by the way of a histogram

displaying the data distribution according to the

distance to the separating surface. This method is

very useful to evaluate the quality of the frontier. It

has been presented to evaluate the results of SVM

algorithms but it can be used for any other type of

frontier (like a cut in a decision tree, a regression

line, etc) and for any dataset size.

Then this tool is linked with scatter-plot matrices to

try to explain the results of the SVM. Today, all

SVM algorithms are used as "black-box", they give

good results (high accuracy) but it is impossible to

explain them. We use a set of two-dimensional

projections to try to explain these results. The same

linked views can also be used to help the user in the

parameter tuning step (for example by avoiding fine

tuning when the margin is very large, or avoiding to

tune parameters with a wrong kernel function). Here

the accuracy will not be increased, it is only the time

needed to perform the classification that is reduced.

And last cooperative algorithms, using both

automatic and interactive parts, are used to deal with

very large (either in row or column) datasets. This

allows us to increase the accuracy and the

comprehensibility of the obtained models and to

reduce the time needed to perform the classification.

We have started to use the same kind of approach

for the unsupervised classification (clustering) and

outlier detection tasks in high-dimensional datasets.

REFERENCES

Becker R., Cleveland W. and Wilks A., 1987. Dynamics

Graphics for Data Analysis, Statistical Science, 2:355-

395.

Blake C. and Merz C., 1998. UCI Repository of Machine

Learning Databases.

http://www.ics.uci.edu/~mlearn/ML-Repository.html.

Caragea, D., Cook, D. and Honavar, V., 2003. Towards

Simple, Easy-to-Understand, yet Accurate Classifiers,

in proc. of VDM@ICDM’03, the 3rd Int. Workshop on

Visual Data Mining, Melbourne, USA, pp. 19-31.

Collobert, R., Bengio, S. and Bengio, Y., 2002. A parallel

Mixture of SVMs for Very Large Scale Problems, in

proc. of Advances in Neural Information Processing

Systems, NIPS’02, Vol. 14, MIT Press, pp. 633-640.

Cristianini, N. and Shawe-Taylor, J., 2000. An

Introduction to Support Vector Machines and Other

Kernel-based Learning Methods, Cambridge

University Press.

Fayyad U., Piatetsky-Shapiro G., Smyth P., Uthurusamy

R., 1996. Advances in Knowledge Discovery and Data

Mining, AAAI Press.

Fung, G. and Mangasarian O., 2001. Proximal Support

Vector Machine Classifiers, in proc. of the 7th ACM

SIGKDD, Int. Conf. on KDD’01, San Francisco, USA,

pp. 77-86.

Fung G., Mangasarian O. and Shavlik J., 2002.

Knowledge-Based Support Vector Machine

Classifiers, in proc. of Neural Information Processing

Systems, NIPS'2002, Vancouver.

Fung G. and Mangasarian O., 2004. A Feature Selection

Newton Method for Support Vector Machine

Classification, Computational Optimization and

Applications, 28(2):185-202.

Inselberg A. and Avidan T., 1999. The Automated

Multidimensional Detective, in proc. of IEEE

Infoviz'99, 112-119.

Jinyan, L. and Huiqing, L., 2002. Kent Ridge Bio-medical

Data Set Repository.

http://sdmc.lit.org.sg/GEDatasets.

Lee, Y-J. and Mangasarian, O., 2000. RSVM, Reduced

Support Vector Machines, Data Mining Institute

Technical Report 00-07, Computer Sciences

Department, University of Wisconsin, Madison, USA.

Poulet F., 2002. Cooperation between Automatic

Algorithms, Interactive Algorithms and Visualization

Tools for Visual Data Mining, in proc.

VDM@ECML/PKDD'2002, the 2nd Int. Workshop on

Visual Data Mining, Helsinki, Finland.

Poulet, F., 2004, Towards Visual Data Mining, in proc. of

ICEIS'04, the 6th Int. Conf. on Enterprise Information

Systems, Porto, Portugal, Vol. 2, pp. 349-356.

Poulet, F. and Do, T-N., 2004. Mining Very Large

Datasets with Support Vector Machine Algorithms, in

Enterprise Information Systems V, Camp O., Piattini

M. and Hammoudi S. Eds, Kluwer, 177-184.

Poulet F., 2002. FullView: A Visual Data Mining

Environment, in International Journal of Image and

Graphics, 2(1):127-143.

Shneiderman B., 2002. Inventing Discovery Tools:

Combining Information Visualization with Data

Mining, in Information Visualization 1(1), 5-12.

Vapnik V., 1995,

The Nature of Statistical Learning

Theory, Springer-Verlag, New York.

Wong P., 1999. Visual Data Mining, in IEEE Computer

Graphics and Applications, 19(5), 20-21.

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

314
