AN MDA-EDOC BASED DEVELOPMENT PROCESS FOR

DISTRIBUTED APPLICATIONS

Rita Suzana Pitangueira Maciel, Bruno Carreiro da Silva

Faculdade Ruy Barbosa, Rua Theodomiro Batista, Salvador-BA, Brazil

Carlos André Guimarães Ferraz, Nelson Souto Rosa,

Centro de Informática, Universidade Federal de Pernambuco, Recife-PE, Brazil

Keywords: MDA, EDOC, Distributed Application Development

Abstract: With the proposal of MDA by OMG, the modelling of systems, in development process of distributed

applications, has become a central point, therefore software models go beyond system documentation.

EDOC - MDA profile for modelling distributed application - uses as conceptual framework the RM-ODP.

These elements, although very useful, are insufficient for a software development process; therefore they

are not followed by development methodologies. In this article is presented a MDA-based development

process for distributed applications that utilize EDOC and the RM-ODP. The process is described as a

sequence of steps and a set of diagrams that should be specified to provide a MDA-based system

description.

1 INTRODUCTION

Distributed applications are inherently complex,

from their design, development and testing through

to maintenance (Bernstein, 1996). The Object

Management Group (OMG) has been constantly

investing in proposals to facilitate the development

of distributed applications. To improve their

applicability, middleware environments

incorporating the components concept (ex.

CORBA/CCM (OMG, 2002a) and J2EE/EJB

(Shannon, 2003)) and specific services, which cater

to a given application category, are being proposed.

One of the most recent initiatives from this scenario

is OMG MDA (Model Driven Architecture) (OMG,

2003).

MDA is a framework for systems development,

based on stabilized grounds of software engineering,

which separate the specification of the functionality

of a system, from the modeling and mapping of this

functionality in a specific technological platform.

MDA uses abstract models to specify all the logic of

the application, where concepts referring to

languages or platform are irrelevant – platform

independent model (PIM). This high level model is

subsequently used to create new models that express

the requirements of the system in a specific platform

- platform specific model (PSM).

These models are not only used for systems

documentation, but also as a tool for

implementation. Each activity of the development

process requires a number of input models that

produce other models as an output. Accordingly, the

construction process of an application can be seen as

a set of transformations that lead to the final system.

The system and its requirements, as well as the

domain of the application, can be seen through these

models that describe it through different views and

levels of abstractions.

To manage the models, OMG provides a series

of UML profiles. These include EDOC (Enterprise

Distributed Object Computing Specification) (OMG,

2002b), which is a profile for specifying distributed

systems based on components. EDOC, which

consists of various sub-profiles, uses (Reference

Model of Open Distributed Process) RM-ODP (ISO,

1995) as a conceptual framework to specify the PIM

of applications.

The use of modeling techniques and

methodologies facilitates the construction of

applications. Although EDOC and the RM-ODP

framework offer a set of tools that permit the

Suzana Pitangueira Maciel R., Carreiro da Silva B., André Guimarães Ferraz C. and Souto Rosa N. (2005).

AN MDA-EDOC BASED DEVELOPMENT PROCESS FOR DISTRIBUTED APPLICATIONS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 3-10

DOI: 10.5220/0002521300030010

 SciTePress

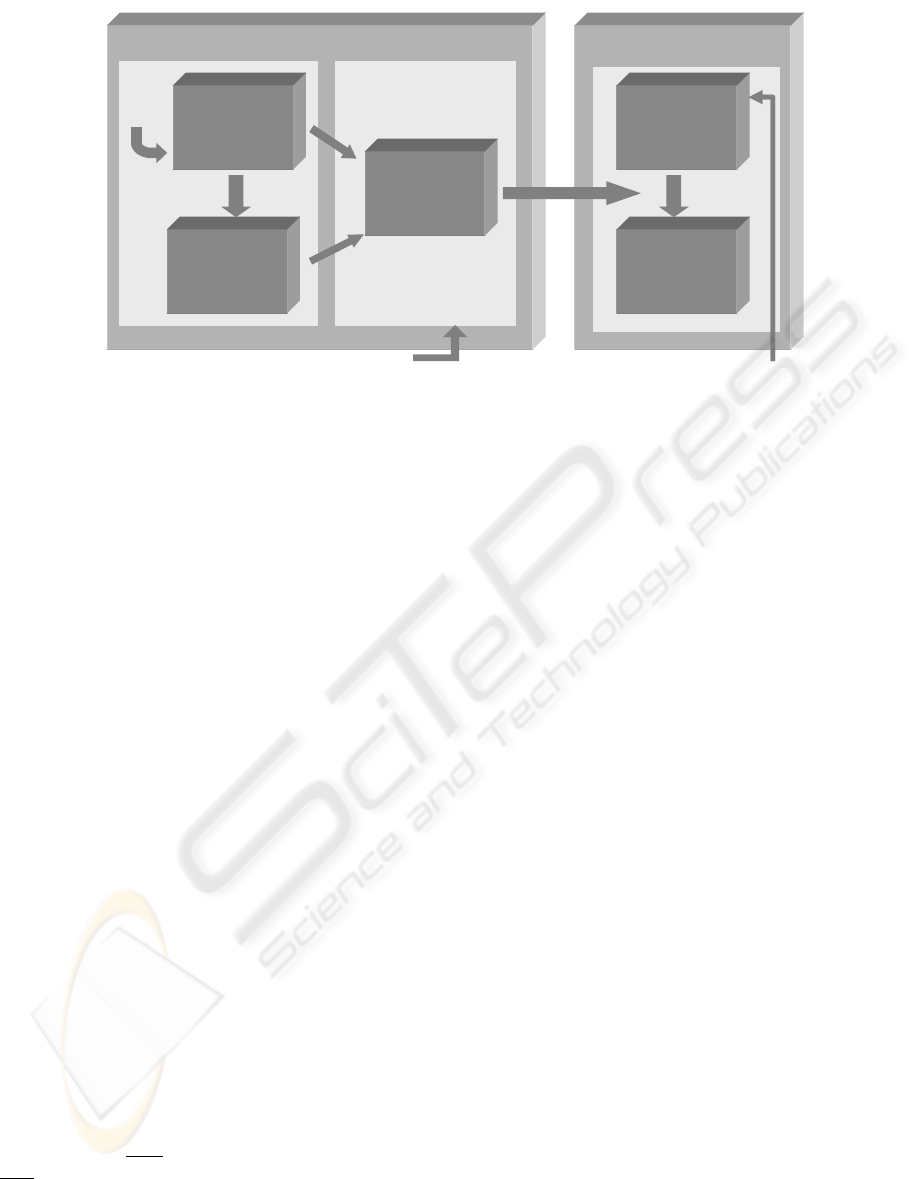

Figure 1: RM-ODP views in MDA PIM and PSM

specification of a system based on high abstraction

models, they do not offer a guide to orient

developers in the application of these concepts.

Together they provide a set of definitions and

notations, but not a process with well defined steps

to be followed (Gervais, 2002).

Some proposals are being drawn up to assist

developers in the construction of distributed

applications through MDA. In (Wang, 2003) a

specific application development process is

proposed for the educational domain. This proposal

does not use EDOC. In (Gervais, 2002) the ODAC

methodology is proposed for the development of

applications through MDA. Although ODAC is

based on the conceptual framework of RM-ODP, it

does not yet use EDOC. The use of the profiles

proposed by OMG guarantees, in a more extensive

fashion, the interoperability of models proposed by

MDA. Methodologies and tools that assist in the

development of applications and use EDOC or other

sub-profiles proposed by OMG, will have the same

conceptual and notational framework. This aspect

facilitates the reading of models both by

development teams and by process automation tools,

besides which EDOC allows the application to be

seen through high level components as of the initial

models, facilitating the application decomposition

from the perspective of components.The objective of

this article is to present a development process

proposal for distributed applications through MDA

and the EDOC profile. This process was applied to

the development of the InterDoc ((Environment for

Supporting the Inter

operability among Collaborative

Doc

ument Authoring Tools) (Maciel, 2004). Based

on the experience with the development of InterDoc,

the process is being applied in other environments

for the specification of a complete development

methodology based on EDOC.

The rest of this text is organized as followed: the

next section presents the proposed process overview.

Section 3 presents the main steps for PIM

specification. In the conclusion, we summarize the

contribution of the work presented in this paper.

2 THE DEVELOPMENT PROCESS

OVERVIEW

The process is based on the concept of views

proposed by RM-ODP and its notation originates

from EDOC. A viewpoint is a subdivision of a

complex system specification. It corresponds to a

particular perspective, allowing the system to be

“viewed” from a particular angle, focusing on

specific concerns. Views permit the structuring of

modeling activities for an application. RM-ODP is

an architectural framework and not a methodology,

i.e. it is not prescriptive enough and does not provide

tools such as a notation or a sequence of steps to

specify the viewpoints that would help the software

designers to build the system specification. Three

categories of model should be specified: Domain,

Project and Operational (fig 1).

The Domain model corresponds to the

specification of the Enterprise and Information’s

Views. The scope and responsibilities of the

application are defined in this model via the

functional requirements initially established for the

application. The services to be offers and the

information handled by the application should be

defined in this model. The Project Model describes

the Computational view for the specified Domain

model. This model identifies the components that

will fulfill the requirements established in the

domain model, independently of the platform. The

PIM

Domain Model Design Model

PSM

Operational Model

Engineering

View

Technology

View

Mapping

Rules

Enterprise

View

Information

View

Computational

View

Application

Functional

Requirements

Process

Information’s

Necessity

Information

Model

Business

Process Model

Application Non-Functional Requirements

Component

Structures Models

Platform Facilities Specification

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

non-functional requirements of the application

should be observed on this occasion to identify

elements for the performance thereof. The Domain

and Project models form PIM as described in MDA.

The Operational Model describes the application

execution environment on a specific platform and

corresponds to the specification of Engineering and

Technology Views. The characteristics of the

implementation platform chosen are considered in

this model to reflect the real execution environment.

The Operational Model form PSM as described in

MDA.

Table 1 presents a suggestion of a set of

diagrams that should be made to specify the RM-

ODP views and consequently the proposed models.

The EDOC presents several UML sub profiles;

however our process just uses the Business, Entity

and CCA profiles. The application’s objectives,

politics and restrictions specification, that is part of

the Engineering view concepts, should be specified,

respectively, through use case diagrams and a simple

text. These mechanisms are not part of the EDOC

proposal, but they are suggested in the EDOC

specification annexes (OMG, 2002c).

able 1: Process Diagrams

Engineering View Standard UML and

Business Profile

Objective Definition Use Case Diagram

Main Policies and

Restriction

Text

Business Process

Identification

Collaboration Diagram

Activity Definition Class Diagram

Information View Entity Profile

Entities Data Definition Class Diagram

Composite Data

Definition

Class Diagram

Computational View CCA Profile

Architecture Structure Collaboration Diagram

Component Structure Class Diagram

Protocol Specification Class Diagram

Protocol Structure Class Diagram

Protocol Description Activity Diagram

Protocol Choreography Activity Diagram

3 THE PROCESS GUIDELINES

FOR PIM

The development process was applied to describe

reference architecture and development of the

InterDoc environment. InterDOC should allow the

various asynchronous activities of the authoring

process to be executed in different tools. InterDOC

should be made available as middleware domain-

specific service layer, which when positioned

between collaborative authoring supporting

applications (CASA) and their repositories,

promotes interoperability among these

environments. Groups of authors can hold

synchronous or asynchronous sessions for the

planning, drafting, revision and editing of a

document in their favorite environment. In any

phase of the authoring process, the document can be

made available through InterDOC to another group

of authors that uses another environment, or even an

individual work tool, to perform an activity. For

InterDOC, collaborative authoring is divided into

two large phases: Planning and Writing. The

Planning phase is when an author from the group

provides the basic information for the description of

the authoring project of a document: group of

authors, roles of authors in the group, location of the

repository of shared information etc. The Writing

phase is when authors make versions of the

document available for other authors to execute

activities.

We will use InterDoc, more precisely the

planning phase, to illustrate how the methodology

can be applied. The example focus will be the PIM

specification

3.1 Enterprise View

In this view the communities must be identified,

their business-oriented objectives, processes and the

main constraints. The Enterprise view describes

interactions among the different InterDocs and

interactions between the applications, repositories

and the InterDocs.

Step 1. Objective and Constraints Definition.

InterDoc has just one community type: the

Authorship community. The Authorship community

involves the authors and the applications used for

writing documents. The main InterDoc’s constraints

refer to the community that registers a project to be

the same that hosts the repository of documents for

the group.

The EDOC does not specify a notation to identify

the objectives of a community. One use case

diagram was used and ten use cases were identified:

Design a Project, Define a Group, Define Author,

Define Role, Define Activity, Delegate an Activity,

Documents, Communication with other Domains.

Step 2. Business Process and Activity

Identification. In this step should be identified and

detailed the processes that accomplish the objectives

of the application defined in the step 1.

AN MDA-EDOC BASED DEVELOPMENT PROCESS FOR DISTRIBUTED APPLICATIONS

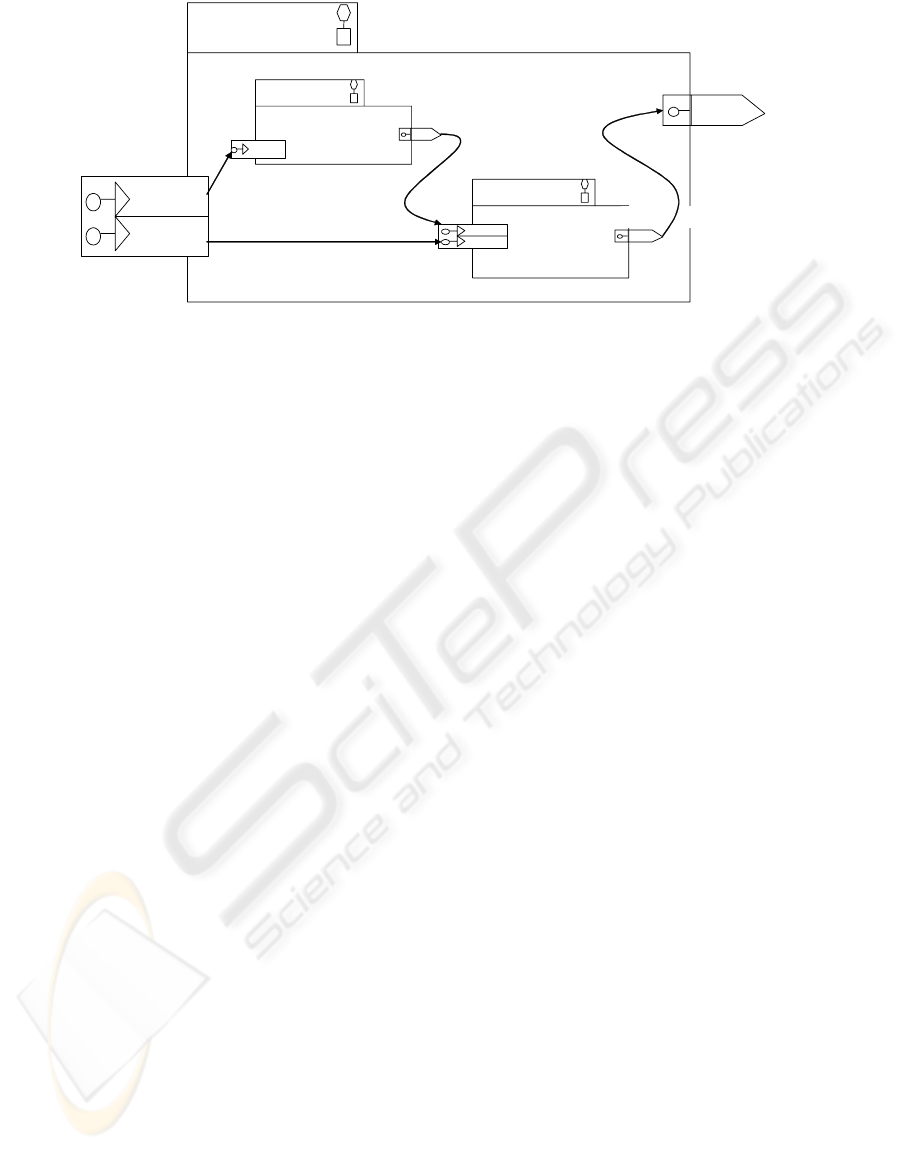

Figure 2: Business Process Design a Project

The Business Process Profile was the EDOC

sub-profile used to model the Enterprise view. This

sub-profile permits design models that present the

structure and behavior of the application in the

environment where it is inserted. The functionalities

that InterDoc realized are described in terms of

Business Process (BP) that specifies a complete

business task. A BP may contain Activities, which

are the pieces of work required to complete a task.

Data flows connect different BPs, and Activities in a

BP, defining temporal and data dependencies

between this elements. These data are modeled as

communication ports. InterDOC has two major BPs:

Design a Project and Writing that specify the

situations described in the beginning of this section.

Figure 2 presents the diagram of Design a Project.

Design a Project has two Activities: Form a

Group and Register a Project. To initiate this

process, first it is necessary to define a group with

the authors’ information and the roles they will play

in the project. The Port Authors and Role

Information fulfill these data. This process is

finished when a group reference, that identifies the

group uniquely, is generated. To initiate the Register

of a Project, it is necessary the group reference and

the information about the workspace that will store

the shared information. The activities are

decomposed up all the objectives specified in the

Enterprise View (use cases) were reached.

3.2 Information View

The Information view models data (Entity) and their

relationships. Entities represent concepts of the

problem domain. The resulting models present the

structure of used objects that represents the concepts

of the business in the computational environment.

The description of objects that InterDoc will handle

internally was provided.

The Entities Profile was the EDOC sub-profile

used. A central concept of the Entities Profile is an

EntityData. An EntityData is a structure of data that

represents one definitive concept of the problem

domain, or either an Entity. An EntityData is

equivalent to an entity or a relation in the relational

model. CompositeData are derived from the

EntityData to group data used in the component’s

ports.

Step1 – Entity and Composite Data

Identification. EntityData and their relationships

should be specified though a class diagram (Figure

3).For the InterDoc was defined the following

Entitydata: Project - a certain authorship project;

Repository - storage of the project information; File

- file stored in the repository; Document and

Comments - specializations of File to represent

documents and their respective comments; Activity -

activities that the authors accomplish in a document;

Author – user-author; Group - authors' group and

Role - the authors' role in a group.

A project has a repository of associated files and

belonging to a certain group of authors. These

authors can play different roles in different projects.

The role has associated to them certain actions.

Actions will be registered in the environment. After

revising a document, an author can save in the

repository a new version of these documents.

Authors revise documents producing comments (or

annotations) or versions of these documents.

Therefore, a document can be a version of another

one, and a comment is associated to a document.

3.3 Computational View

The Computational view is a viewpoint on the

system and its environments that enable distribution

through functional decomposition of the system into

components that interact at interfaces. Component

Collaboration Architecture (CCA) was the EDOC

sub-profile used for modeling this view.

Design a Project

Form a Group

Authors – Role

Informations

Workspace

and Project

Information

Group Reference

Project Reference

Project

Reference

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

Activity

<<EntityData>>

Author

<<EntityData>>

Repository

<<EntityData>>

File

<<EntityData>>

0..* 0..*0..* 0..*

edit

Group

<<EntityData>>

0..*

1..*

0..*

1..*

form

Project

<<EntityData>>

1..*1..*

store

0..*0..*

has

1..*1..*

belong

Action

<<EntityData>>

Role

<<EntityData>>

1..*

permit

Comments

<<EntityData>>

Document

<<EntityData>>

is related

is version

RealizedDelegated

Figure 3: InterDoc Information Model

Step 1. Arquitecture Definition (Component

Overview Definition). The structure of the

component in terms of communication that will form

InterDOC, as well the interfaces and the data that

these components handle, are described in the

models of this view. Figure 4 shows an overview of

the InterDoc’s component structure model in terms

of Process Components (PC). A PC represents an

active processing unit that has a group of ports to

interact with another PC. Each PC will execute one

or more Activities identified in the Enterprise

View. Activities with correlate information were

grouped into only one PC. InterDOC has six major

PCs:

• DocumentSharingService: manages the

access to the information that is stored in the

repositories;

• ProjectManagerService: manages the

access to the project’s information.

• AuthoringActivitiesService: manages the

delegation and registration of authoring

activities;

• ActivitiesNotificationService: performs

the notification of an author’s activity to the

members of a group;

• AuthorGroupService: manages access to

authors and groups information.

• InterDomainCommunicationService: is a

wrapper service component that formats

messages for the interoperability protocol

used by the domain.

The InterDOC reference architecture also

describes two client-side components that use its

services: the CASA components and the Repository

component. These components are, respectively,

ApplicationClient and RepositoryClient

ProcessComponent.

The interfaces are conceived through the Facade

design pattern. The IApplicationService is a

generalization of all the communication interfaces

among ApplicationClient the InterDoc. The same

design is applied to IRepositoryService that

generalized the communication between the

InterDoc and repositories; and IInterDomainService

that generalized the communication among different

InterDoc.

Step 2. Protocol and Component Structure

Specification. A protocol specifies what messages

the component sends and receives when it

collaborates with another component. For each

activity that a PC performs, a protocol was defined.

Figure 5 describes the RegisterProjectProtocol.

AN MDA-EDOC BASED DEVELOPMENT PROCESS FOR DISTRIBUTED APPLICATIONS

IRepositoryService

AplicationClient

<<ProcessComponent>>

RepositoryClient

<<ProcessComponent>>

IAplicationService

InterDoc

<<ProcessComponent>>

IInterDomainService

ActivitiesNotificationService

(f ro m I n te rDo c)

<<ProcessComponent>>

AuthorGroupService

(from InterDoc)

<<ProcessComponent>>

AuthoringActivitiesService

(f ro m I n te rDo c)

<<ProcessComponent>>

DocumentSharingService

(from I nterDoc)

<<ProcessComponent>>

InterDomainsComunicationService

(from InterDoc)

<<ProcessComponent>>

PlanningService

(from InterDoc)

<<ProcessComponent>>

Figure 4: InterDoc Components Structure Overview.

Planning Server

<<ProcessComponent>>

ReceiveProjectInformation

<<Protocol Port>>

<<Responds>>

ApplicationClient

<<Process Component>>

SendProjecInformation

<<Protocol Port>>

<<Initiates>>

RegisterProjectProtocol

<<Protocol>>

Figure 5: Register Project Protocol Specification (external view).

This protocol specifies the interaction among the

components PlanningServer and ApplicationClient

for the accomplishment of the activity Register a

Project of BP Design a Project. In this diagram type

it is specified which component initiates

(<<initiates>>) the protocol and which component

answers (<< responds>>) though Protocols Ports.

So this diagram describes the protocol’s external

view.

The Protocol structured diagram details the

protocol’s internal view. It describes the data

involved in a Protocol and the ports type. Each port

has an association to a Composite Data derived from

the Entities Data defined in the Information View.

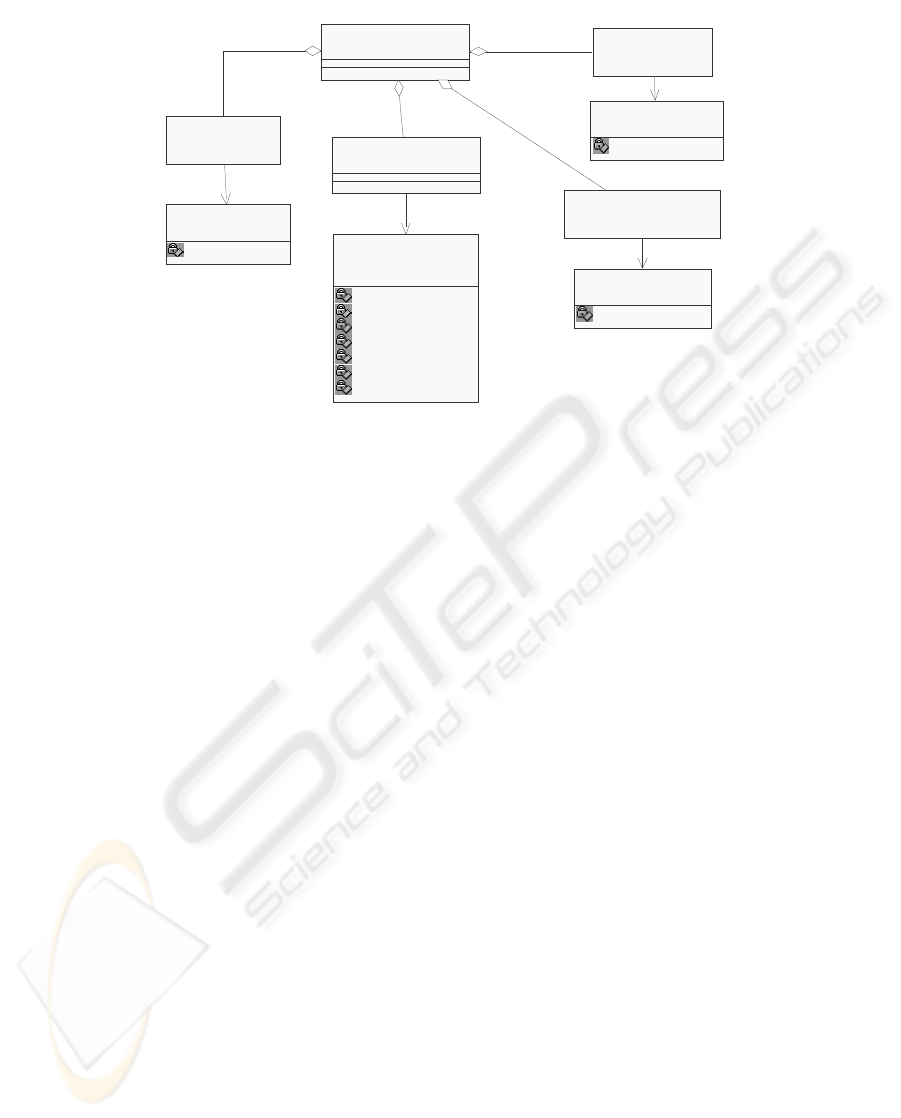

Figure 6 shows the protocol structure for the

RegisterProjectProtocol. The Protocol Port

ReceiveProjectInformation (fig 5) is composed of

two Flows Ports: GroupReference and Project

Information (fig 6). SendProjectInfo Protocol Port

is composed of ProjectReference and

ProjectDeclinedType Flow Ports. A Flow Port is

port that which defines a data flow in or out of a port

on behalf of the owning component or protocol.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

Project_Identification

Project_ID

<<CompositeData>>

Group Identification

Group_ID

<<CompositeData>>

Registration Project

Informations

Project Name

Project Description

StartDate

FinishDate

Project_Owner_ID

Supported Extensions

Project Workspace

<<CompositeData>>

Group Reference

<<FlowPort>>

Project Reference

<<FlowPort>>

Project Information

<<FlowPort>>

RegisterProjectProtocol

<<Protocol>>

<<Responds>>

<<Initiates>>

<<Responds>>

Project Denied Reference

<<FlowPort>>

<<Initiates>>

Project Denied Type

ProjectDeniedData

<<CompositeData>>

Figure 6: Register Project Protocol Structured (internal view)

Each component is detailed in terms of ports and

a set of protocols it implements. Figure 7 describes

the PlanningService component structure. This

component answers to seven protocols through the

specified interfaces. These interfaces are

IApplication Interface specializations (fig 4). An

Interface is a protocol (protocol stereotype)

constrained to match the capabilities of the typical

object interfaces. PlanningService begins two other

protocols: Notify Information and Comunication

InterDomain. The protocol Notify Information

establishes a communication with the component

ActivitiesNotification for notification of delegated

and realized activities in a text. The protocol

Comunication InterDomain links two

InterComunicationDomain components for

communication establishment with different

InterDocs.

Two activity diagrams describe the dynamic

aspects of a protocol (not shown in this text). One of

this activity diagrams describes the protocol

choreography to sequence the actions of the ports

within one component. Another one describes the

messages sequence between two or more

components.

4 CONCLUSIONS AND FUTURE

WORKS

This article presented a proposal for the distributed

application development process through the MDA

approach. The process was applied to the

development of the InterDoc environment that is

implemented in CORBA/CCM. The main activity of

the application development approach through MDA

is the production of system models through UML

profiles. The MDA profiles only make elements

available for the specification of applications, which

do not track methodologies for the software.

Methodologies leverage productivity as similar

development processes can be applied to various

systems. Developers need methodologies to

facilitate their work, leaving them free to focus their

attention on the functional requirements of the

application.

The use of EDOC as a sub-profile for the

production of models proved helpful in the process

of breaking down a system into standalone

components, since InterDoc was designed as a set of

components from the initial phases of the project.

Accordingly, the mapping of components for the

CCM platform was facilitated due to the use of the

same approach. At the same time EDOC provides

sundry sub-profiles that can be combined in different

ways. The combination of the profiles used, as well

as the diagrams chosen to comprise the process,

resulted in a smooth process that does not

overburden the developer.

AN MDA-EDOC BASED DEVELOPMENT PROCESS FOR DISTRIBUTED APPLICATIONS

<<Interface>>

Search Group Interface

<<Interface>>

Search Project Interface

<<Interface>>

Define Author-Role

Int erfac e

<<Interface>>

Form Group Interface

<<Interface>>

Define Role Interface

<<Interface>>

Searh Role Interface

<<Interface>>

Notification Protocol

<<Protocol>>

SearchGroupInformation

<<Protocol Port>>

SearchProjectInformation

<<Protocol Port>>

SearchRoleInformation

<<Protocol Port>>

De fi ne Ro leIn fo r ma t i on

<<Protocol Port>>

Form Group

<<Protocol Port>>

DefineAuthorRoleInformation

<<Protocol Port>>

Notify Information

<<Protocol Port>>

Pl anni ngS er vi ce

<<ProcessComponent>>

<<Responds>>

<<Initiates>>

Comunication InterDomain

<<Protocol Port>>

<<Initiates>>

Comunication

Inter-Domain Protocol

<<Protocol>>

Figure 7: PlanningService Component Structure.

The report on the development process, through a

sequence of steps and guides to the mapping of

concepts, is a stage for the specification of an

application development methodology based on

components that utilize EDOC as a conceptual

framework. These steps and guides are being used in

other applications for review and consolidation of

the development methodology. After consolidation,

the methodology will be applied in the development

of applications using MDA tools that support the

automation of the application development process.

REFERENCES

Bernstein, P., 1996. Middleware: A Model for Distributed

System Services. Communication of the ACM. New

York. v 39. n 2. p 86-98. February.

ISO, 1995. Basic Reference Model of Open Distributed

Process, ISO/IECIS 10746. Partes 1-4.

Gervais, M., 2002. Towards MDA-Oriented Methodology.

In: Annual International Computer Software and

Applications Conference, England, August, p 265-270.

Maciel, R.; Ferraz, C.; Rosa, N., 2004. INTERDOC:

Interoperable Services in Collaborative Writing

Environments. In: 8

IASTED International

Conference on Software Engineering and Application -

SEA, Cambridge,Ma -USA.

OMG, 2002. CORBA Component Model v3.0 full

specification. OMG Adopted Specification (formal/02-

06-05).

OMG, 2002. UML Profile for Enterprise Distributed

Object Computing Specification. OMG Adopted

Specification (ptc/02-02-05).

OMG, 2002. UML Profile for Enterprise Distributed

Object Computing Specification – Part II. Supporting

Annexes. OMG Document (ad/2001-08-20).

OMG, 2003. MDA Guide Version 1.0. OMG Document.

Shannon, B., 2003. Java 2 Platform Enterprise Edition

Specification v 1.4. [s.l.]. Sun Microsystems.

Wang, H.; Zhang, D., 2003. MDA-based Development of

E-Learning System, In: 27th International Computer

Software and Applications Conference, IEEE Press,

Nov., p. 684-689.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
