APPROACHES OF WEB SERVICES COMPOSITION

Comparison between BPEL4WS and OWL-S

Daniela Barreiro Claro

1 2

, Patrick Albers

4 rue Merlet de la Boulaye, BP 30926 49009 Angers cedex 01, France

Jin-Kao Hao

University of Angers Faculty of Sciences – LERIA 2, Boulevard Lavoisier, 49045 Angers Cedex 01 - France

Keywords: Web Services composition, semantic web, owl-s,

bpel4ws

Abstract: Web Services technologies allow interaction between applications. Sometimes a single service given alone

does not meet user’s needs. In this case, it is necessary to compose several services in order to achieve the

user’s goal. For composing web services, we developed an example using two main approaches: the first

one is BPEL4WS, a Business Process composition, and the other is OWL-S, an ontology specifically for

web services composition. In this paper we explain and compare the features of these two approaches and

the manner of each one does a web service composition.

1 INTRODUCTION

Many services are available around the Web and

people start using them to achieve their goals and

facilitate interaction between systems.

A web service can be characterized as a method

at is available on Internet and that does not have

any graphics interface. For instance we can

enumerate many web services like: zip code web

service in which an user sends a zip code, and it

returns the streets name; booking a flight, in which a

user gives the day periods and the web service

returns the flight numbers; a fiscal note integration

between e-business negotiations, in which an

enterprise A sends a purchase note to enterprise B,

and this enterprise B can check online the amount

and the quantity available and do the payment as

soon as possible, minimizing time between e-

business (Schroeder, 2004).

Nevertheless there are many

services around the

web, each one, taken alone, has a limited utility. For

example, if a user wants to travel, it is not only

sufficient to book a flight, but also to care about

reserving a hotel, renting a car, getting entertained,

and so on. The user needs to execute all these

services manually and these tasks can take long time

and effort.

For that reason, the notion of composite services

starts being us

ed as a collection of services in order

to achieve a particular goal. Indeed, this composition

may utilize as many web services as necessary to

achieve one goal (Berargi, 2003).

In order to integrate complex services, industry

roposed, at first, technologies such as: WSCI (Web

Service Choreography Interface), XLANG, WSFL

(Web Service Flow Language), WSCL (Web

Service Composition Language) and more recently

BPEL4WS (Business Process Execution Language

for Web Service) (Curbera, 2003). The later is a

combination of Microsoft’s XLang and IBM’s Web

Service Flow Language (Peltz, 2003).

On the other hand, the semantic web approach

has i

ncreased and has taken a considerable position

in web services composition. The advance of OWL-

S allows an unambiguous web service description

avoiding problems of retrieving wrong services

(

OWL-S, 2004) (McIlraith, 2001).

As far as composing web services, we have

plemented an example in which an airplane ticket

and hotel can be booked and a car rented through a

travel agency. Indeed, we have three autonomous

web services, each independently executing an

activity. In our composition, we compose these

services in a special way: the first two services,

bookAirplane and bookHotel will be executed in

parallel because the inputs given by the user will be

the same for both services. Thus, we can execute

them at the same time and profit from a quicker

208

Barreiro Claro D., Albers P. and Hao J. (2005).

APPROACHES OF WEB SERVICES COMPOSITION - Comparison between BPEL4WS and OWL-S.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 208-213

DOI: 10.5220/0002522202080213

 SciTePress

execution. Conversely, the third service for renting a

car needs to be executed after the bookHotel service.

This is mandatory because we consider that anybody

that will rent a car does not want to reach the car

rental company. Thus, thinking like that, we

proposed that the service bookHotel will have as

output the area where it is located. The rentCar

service will have as input this area parameter, so the

company’s car will be located in the same area as

the hotel. As a result, the bookHotel service and

rentCar service in our composition must be executed

in sequence to assure that the output “area” will be

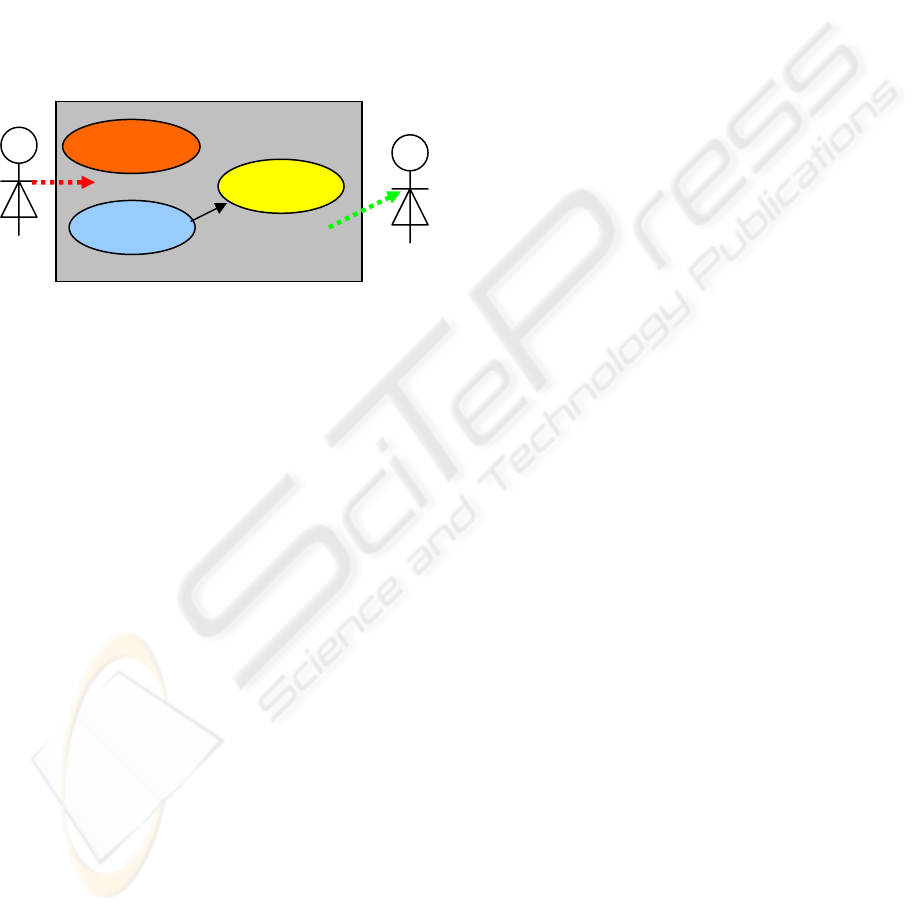

available and passed correctly. The figure 1 shows

this schema.

In this paper we propose a web service composition

schema in order to show the characteristics between

composing using the two ongoing processes:

BPEL4WS and OWL-S.

This paper is organized as follow: the second

section describes a composition using BPEL4WS.

The third one shows this composition using OWL-S,

including semantic effects. The fourth section

explains the comparison between these technologies.

Finally we show our conclusions.

2 COMPOSING USING BPEL4WS

The web services composition using BPEL4WS

allows the manipulation of services as activities and

processes. Actually, the BPEL4WS language is a

merge between Microsoft’s XLang and IBM’s

WSFL, but all of them are considered as a web

service flow language (van der Aalst, 2003).

As an executable process implementation

language, the role of BPEL4WS is to define a new

web service by composing a set of existing ones.

The interface of the composite service is described

as a collection of WSDL PortTypes.

A BPEL4WS process defines the roles involved

in a composition as abstract processes. A buyer and

a seller can be represented by two roles. They are

expressed using partner link definitions. We can

have a role for each web service that is composed

and does some activity. In order to integrate

services, they are treated as partners that fill roles

(Mandell, 2003). BPEL4WS depends directly on the

WSDL of the service. A business process defines

how to coordinate the interactions between a process

instance and its partners. Thus, a BPEL4WS process

provides one or more WSDL services. The

BPEL4WS process is defined only in an abstract

manner, allowing only references to service

portTypes in the partnerLink (Andrews et al, 2004).

Each partner is characterized by a partner link and a

role name. In summary, the main idea of business

process is to create an organizer that points to each

service endpoint that will be actually executed.

2.1 Characteristics

WS Composition

Airplane

The distinction between roles and partners in a

business process is an important characteristic of

BPEL4WS. This allows more simple and intuitive

integration between enterprises. Another important

characteristic of BPEL4WS is the fault handlers.

Faults handlers have the ability to catch errors in

BPEL4WS. Another characteristic from BPEL4WS

is message correlation that allows processes to

participate in stateful conversations. It can be used to

match returning or known customers to long-running

business process. Furthermore, correlation

mechanisms allow interaction between a service

instance and a partner. BPEL4WS addresses

correlations scenarios by providing a declarative

mechanism to specify correlated groups of

operations within a service instance (Andrews et al,

2004).

RentCa

area

Hotel

ure 1: WS Com

osition exam

In a BPEL4WS process we define the interactions

between these activities that compose the service.

Thus, there are some types of interaction like

sequence, flow, switch, pick, moreover, each one

can be combined.

2.2 Implementation

We developed a prototype using BPEL4WS. We

created our composition based on our model defined

in the introduction. Our composed service has three

services: bookAirplane, bookHotel and rentCar. In

our example, we have merged our activities

execution. We put the sequence (each service is

executed in a sequence way) with the flow (the

services are executed in parallel). We chose this

approach, because two activities could be executed

in parallel (S1, S2), but the last one needs a

dependency response from one of these two, so it

must be executed in sequence (S3 depends on S2).

We have defined four partners: the client, the

airplane company, the hotel and the car rental

APPROACHES OF WEB SERVICES COMPOSITION - Comparison between BPEL4WS and OWL-S

209

company. Thus, airplane company (S1) and the hotel

(S2) could be executed in parallel because they have

the same input types given by the client. However,

the rentcar (S3) service needs one of the hotels

output called “area” as mentioned earlier. In

BPEL4WS we define a service, such as Travel by

describing which others services it contains.

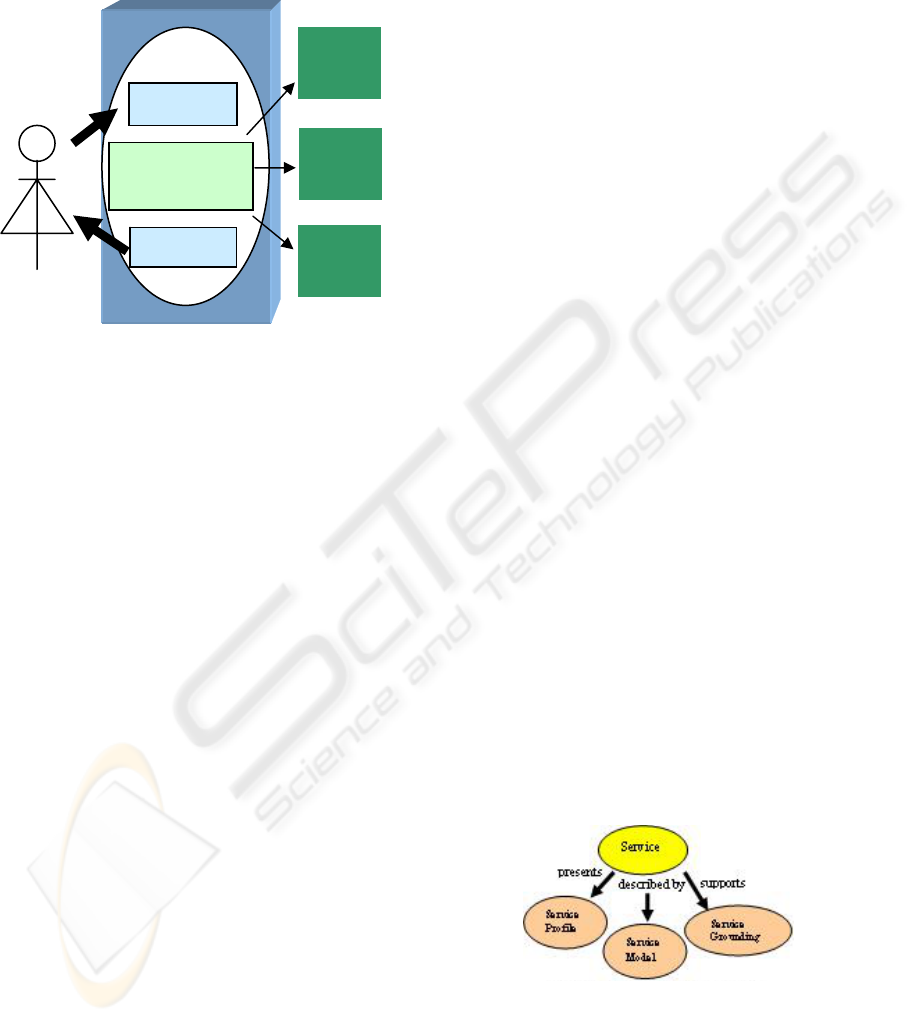

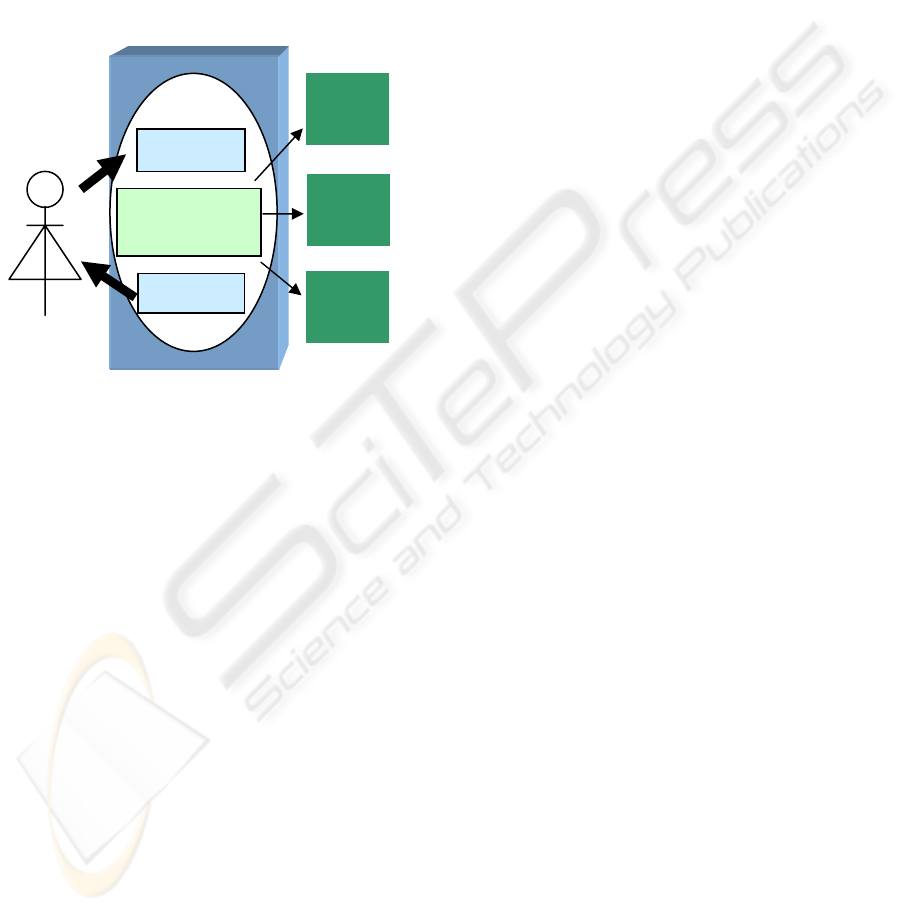

Figure 2, adapted from (Khalaf, 2004), shows

the relation between the Travel service and the

others that compose it.

After constructing the composition, we need to

deploy our travel service; making it available for

execution. At this moment, the deployment engine

will require the WSDL files that were related on

partner’s links. As we have an interaction with each

service developed, we must have a WSDL for each

one. We have to mention in each WSDL the

grounding tag in order to actually find the service.

Additionally, we invoke the composition using an

API created by IBM called BPWS4J1.1 (BPWS4J,

2004). Using this API to execute our composite

service, we call a broker, “axisengine”, and we use

the endpoint given by the Travel deployment to do

the connection between the client and services’

providers. Using the endpoint, the broker can find

the service, and then it can pass the first parameters

that are sent by the client.

3 COMPOSING USING OWL-S

The process of composing services using a semantic

web language like OWL-S increases the automatic

discovery and composition process. In fact, OWL-S

is based on ontology and OWL. This means that

OWL-S is also based and constructed using

resources and hierarchical concepts. With such a

language, software agents can find services based on

their computer-interpretable description.

The main motivating task for OWL-S was the

ability to automatically discover web services. Other

motivating tasks are automatic invocation of a

service, with which a software agent can interpret

markup to understand what input is necessary for the

service call, what information will be returned and

how to execute the service.

Travel Service

Additionally, the composed web service is

actually an abstract service. In fact, the composition

file has only the service calls. In OWL-S each

service that is part of composition has the same

structure of the composed one.

uence

Airplane

Service

3.1 Characteristics

OWL-S is composed of three other structures called:

service Profile, service Model and service

Grounding, used to describe different aspects of the

service, see figure 3 (OWL-S, 2004).

The service Profile is responsible for presenting the

service to other services or agents that want to use it.

It describes the service in order to facilitate the

search process, specifying what organization

provides the service and what functions the service

provides. The service Model describes the service

with regards to its inputs, outputs, effects and

preconditions parameters. Furthermore, the process

model is the core of OWL-S architecture, it defines

how the process will be executed. Services can be

composed using a combination of atomic, simple or

composite services. This implies that a composition

can have services that are themselves composed.

Additionally, in the service model we can say how

the services will be executed: in a sequence manner

(sequence) or in a parallel manner (split/split+join)

or some other way (OWL-S, 2004).

The service grounding is responsible for giving

the endpoint of a service. A service grounding can

be thought of a mapping between an abstract and a

concrete specification (OWL-S, 2004). It is also in

the grounding that we put the reference to each

WSDL document.

3.2 Implementation

In our implementation using OWL-S composition,

we defined the Travel service as being composed of

three atomic services called Airplane, Hotel and

Figure 2: Internal view of T

avel Service

Client

receive

repl

Hotel

Service

invoke

RentCar

Service

ure 3: To

level of service ontolo

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

210

RentCar services. We have also determined that the

first two services will be executed in parallel using a

“split+join”, but the last one should be executed on a

sequence form.

We must define the OWL file for each atomic

service. Furthermore, in these files we must put the

grounding reference positioning exactly where the

service is running. The Travel.owl file is only an

abstract service where we define the input/output

parameters and also which service will effectively

do the tasks. Figure 4 shows the internal view of

Travel service.

Furthermore, we can pass parameters between the

services that compose the abstract service, for

example, the “area” parameter is passed from the

hotel service to the RentCar service.

After creating the OWL-S file containing the

three services above, we need to execute the travel

service, sending it the parameters: date_arrival,

date_departure, destination_city and country. As a

result we will obtain the flights, hotels and car rental

information. In order to execute the travel service,

we have used OWL-S API (Mindswap, 2004). For a

client side, we defined an endpoint called Travel as

the name of our service. Continue the execution, we

invoke the Travel service and the OWL-S works on

executing the others services that belongs to this

composition.

4 COMPARISON BETWEEN

BPEL4WS AND OWL-S

Nowadays the ongoing approaches for composing

web services are: BPEL4WS and OWL-S. There are

some differences between them concerning

composition. However, many concepts that are used

in these two implementations are similar. Here, we

compare them based on the way used to compose

web services. To create a composite service we must

first create the services that will actually execute or

do the tasks. The same services of the composition

can be used from BPEL4WS or OWL-S without any

changes. In fact, the manner how the service was

actually created does not matter. After that, we can

create an abstract service that will coordinate these

services. However the process is executed, with both

approaches we have an API that invokes the abstract

service and the other invocations will be done by

each one of the technologies used. We have used for

executing web services composition an API but in

fact, any user can create her/him own manipulation

form.

Travel Service

In order to make a distinction between what is or

is not a service, in BPEL4WS we use the notion of

activities to represent a service while implementing.

In BPEL4WS the activity that actually calls a

service is invoke. For instance, the activity invoke

has the partner link, actually the service’s point, as

mentioned in the second section of this paper.

However, in BPEL4WS invoke, receive, reply are

also considered as activities. Conversely with OWL-

S, a service could be seen as an AtomicProcess,

because it is where we put the service’s resource

invocation. As a result, we consider that a service in

BPEL4WS is a set of activities including invoke. On

the other hand, in OWL-S, we consider that a service

is represented by atomicProcess or derivations. In

the section above we will highlight some features

that are different in both approaches.

Airplane

4.1 Semantic features

The semantic feature is characterized as giving the

resource meaning interpreted by a hierarchical

structure. Moreover, using semantic description, we

can allow automatic discovery of services by agents.

Many features from the service are described in

OWL-S using the service profile (as described

earlier), containing information as functional

description, enterprise contacts, category that the

service belongs to. Using this feature or more, using

a language that has this characteristic we can avoid

problems like similar service descriptions that use an

ambiguous word, like bank, standing for its

economical meaning, or bank, sand accumulated on

a river (Claro, 2004). In other words, related to

semantics features, the OWL-S approach treats and

allows automatic web services discovery.

Conversely, BPEL4WS using BPWS4J does not

allow that. Indeed, there are some works increasing

the functionalities of BPEL4WS semantic features,

as seen in (Mandell, 2003) that enable automatic

semantic discovery automatic. However, it is clear

that this is an add-on to BPEL4WS specification.

Figure 4: Internal view of Travel Service.

Client

Travel Input

Travel Output

process:composedOf

process:AtomicProces

processModel

Service

Hotel

Service

RentCar

Service

APPROACHES OF WEB SERVICES COMPOSITION - Comparison between BPEL4WS and OWL-S

211

4.2 Correctness

In order to increase the discovery process of

BPEL4WS, augmenting services probability to be

adequate to a specific task, we have proposed to

improve the quality model proposed by many

authors (Sreenath, 2004) (Zeng, 2004). Correctness

is quality criterion that measures how adequate the

service is to execute a specific task. We can treat

that using a probability that measures how many

times an s service was invoked and was appropriate

to be executed. Indeed, we measure if the service

executed correctly the task that was determined for

it. In fact, this criterion is necessary only when using

BPEL4WS for composing web services, because it

does not treat semantics concepts. As a result we

measure the success of the service’s execution for a

limited time. Our criterion can be defined as:

where x

is 0 or 1 if service s executes task t. The

measure of how adequate a service is for a task is

given by f

which means the integral of the success

frequency. And l is the minimal boundary of

adequate measure, normally given by a system

administrator.

4.3 Fault Handler

Fault handler is a BPEL4WS characteristic that is

very important concerning developing compositions.

It means the ability to catch errors that have

occurred for any reason when executing the process

or when services are being invoked. The handling of

some situations usually affects a set of activities that

are associated with each other. In BPEL this is done

by enclosing them in a scope structure activity. A

scope provides the context for the activities nested

within it and is where fault handlers are defined

(Khalaf, 2004). A handler must contain a reply

activity to notify a partner if an error has occurred.

As explained above, this feature is not yet

implemented in OWL-S.

4.4 Compensation

The compensation mechanism is present in

BPEL4WS composition and can undo some

committed task when we need to cancel some

procedures. In fact, some activities that have been

completed might later be undone because they

belong to a long transaction. This can be easily

compared to the rollback function in a transactional

database environment. It is implemented as an

activity that we have to put into our block where we

probably want to assure that if something occurs, the

others will be undone. Indeed, compensation

features work also with the notion of scope. We can

define a scope of activities and then we say that the

compensation will work in this scope. It is important

that the scopes that might be undone have a name

because that is how the compensate activity

identifies them (Khalaf, 2004) (Khalaf & Nagy,

2004). When a compensation activity is reached, it

runs the compensation handlers on a specified scope.

4.5 IOPE

The IOPE (Input, Output, Preconditions and Effects)

is one important feature present in OWL-S as

process’ parameters. The input and output specifies

the data transformation produced by a process. The

input specifies the information that the process

requires for its execution. For atomic process this

information must come from the client. Concerning

composed services, some inputs come directly from

the client but others come from previous services

execution. If a process has a precondition, it cannot

be performed successfully unless the precondition is

true. Additionally, the performance of a process may

result in changes of the world’s state (effects). And

the acquisition of information by the agent

performing it (output). Thus, effects describe

conditions in the world while output describes

information (

OWL-S 1.1beta, 2004). In BPEL4WS

we do not have the concept of preconditions and

effects, we only work using inputs and outputs.

∑∑

≥

stst

lfx

4.6 Basic structures

Structured activities (BPEL4WS), also called control

constructs (OWL-S) are the mechanisms used to

order the service calls and thus their executions.

Using these structures, it is possible, for instance, to

determine if a service will be executed in sequence

or in parallel. Some of these structures are similar in

OWL-S and in BPEL4WS, for instance, Sequence

which represents the fact that the services will be

performed sequentially in the same order they are

listed. The While (BPEL4WS) and Repeat-While

(OWL-S) have similar functionalities, both test the

condition before executing the loop. OWL-S offers

another similar structure Repeat-Until which

executes the loop and then tests the condition. In

spite of parallel executions, OWL-S offers

Split+Join and BPEL4WS treats it using Flow, but

both provide concurrency and synchronization.

Another structure that we can compare is Choice

(OWL-S) and Switch (BPEL4WS) which each call a

structure from a given set of possibilities.

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

212

5 CONCLUSION

In this paper we have exposed the two ongoing

approaches used to compose web services, also we

have explained their features and compared their

main characteristics. We have created an example

that we developed using BPEL4WS and OWL-S

allowing the comparison between these two

languages. We have highlighted some important

points from each approach giving a user the notion

of what and how he/she can use and which features

are present or not. Although they are evolving

technologies, the BPEL4WS has some features not

envisioned by OWL-S Coalition and vice-versa.

This is because, even though, both languages have

the same goal concerning composition, they have

different goals about the manner to compose. In our

opinion, OWL-S is more worried about automatic

service discovery for composition whereas

BPEL4WS is more concerned about composition

process and how the composition is actually done.

Additionally, we have proposed some new features

to compensate the missing one in each language,

such as our correctness characteristic.

As future works, we have planned to further

develop and increase the quality model. Another

work envisioned is to measure the execution time of

each approach.

ACKNOWLEDGEMENT

Daniela Barreiro Claro is supported by a research

scholarship given by the Région des Pays de la Loire

(2003-2006).

REFERENCES

Andrews, T.,Curbera, F., Dholakia, H. et al. 2003.

Specification: BPEL4WS Version 1.1. Retrieved

November 26, 2004, from http://www-128.ibm.com/

developerworks/webservices/library/ws-bpel/.

Berargi, D., Calvanese, D., De Giacomo, G. & Mecella,

M.,2003. Reasoning about actions for e-Services. In

ICAPS Workshop on Planning for Web Services,

Trento, Italy.

BPWS4J, 2002. BPWS4J API. Retrieved November 26,

2004, from http://www.alphaworks.ibm.com/tech/

bpws4j.

Claro, D.B., Albers, P., Hao, J-K. 2004. Web Services

Composition using Reactive Planning. In ICKEDS’04

International Conference on Knowledge Engineering

and Decision Support, Porto, Portugal.

Curbera, F., Khalaf, R., Mukhi, N., Tai,S. &

Weerawarana, S. 2003. The next step in Web Services.

In Communication of the ACM, October, Vol.46, Nº10.

Khalaf, R., 2004. Business Process with BPEL4WS:

Learning BPEL4WS, Part2. Retrieved October 27,

2004, from http://www-128.ibm.com/developerworks/

webservices/library/ws-bpelcol2/

Khalaf, R.; Nagy, W.A. 2004. Correlation, Fault Handler

and Compensation: Business Process with BPEL4WS,

Learning BPEL4WS Part 6. Retrieved October 27,

2004, from http://www-106.ibm.com/developerworks/

webservices/library/ws-bpelcol6

Mandel, D.J., McIlraith, S.A.2003. Adapting BPEL4WS

for the Semantic Web Bottom-up Approach to Web

Service Interoperation. In proceedings of the Second

International Semantic Web Conference(ISWC 2003),

Sanibel Island, Florida.

McIlraith, S., Son; T.C., Zeng, H. 2001. Semantic Web

Services. In IEEE Intelligent Systems, Stanford

University .

Mindswap G., 2004. Maryland Information and Network

dynamics lab semantic web agents projects. Retrieved

October 28, 2004, from http://www.mindswap.org/

2004/owl-s/api/index.shtml

OWL-S, 2004. OWL-S: Semantic Markup for Web

Services. OWL Services Coalition. Retrieved

November 08, 2004, from http://www.daml.org/

services/owl-s/1.0/.

OWL-S 1.1beta: Semantic Markup for Web Services,

Retrieved November 08, 2004, from

http://www.daml.org/services/owl-s/1.1B/owl-s/owl-

s.html.

Peltz, C., 2003. Web Services Orchestration and

Choreography. Computer Magazine, Octobre 2003,

Volume 36, Number 10, pages 46-52.

Schroeder, R., Claro, D. B., Matarazzo, C., 2004. ERP

Systems Integration using Web Services. UDESC –

State University of Santa Catarina. Joinville, Brazil(in

portuguese).

Sreenath, R.M., Singh, M.P., 2004. Agent-based service

selection. In Web Semantics: Science, Service and

Agents on the World Wide Web, pp.261-279.

van der Aalst, W.M.P.,2003. Don't go with the flow: Web

services composition standards exposed. IEEE

Intelligent Systems, 18(1):72-76.

Zeng, L.,Benatallah,B., Dumas,M., Kalagnanam,J., Sheng,

Q.Z., 2003. Quality Driven Web Services

Composition, In proceedings of the Twelfth

International Conference of WWW, May 20-24,

Budapest, Hungary.

APPROACHES OF WEB SERVICES COMPOSITION - Comparison between BPEL4WS and OWL-S

213
