TRANSFORMING SA/RT GRAPHICAL SPECIFICATIONS INTO

CSP+T FORMALISM

Obtaining a formal specification from semi-formal SA/RT essential models

Manuel I. Capel and Juan A. Holgado

Department of Software Engineering, Granada University, Periodista Daniel Saucedo Aranda, 18071 Granada, Spain

Keywords: Formal analysis tools, modular and s

ystematic design, process algebras, real-time systems, structured analy-

sis.

Abstract: A correct system specification is systematically obtained from the essential user requirements model by

applying a set of rules, which give a formal semantics to the graphical analysis entities of SA/RT. The aim

of the systematic procedure is to establish the methodological infrastructure necessary for deriving a com-

plete system specification of a given real-time system in terms of CSP+T processes. A detailed complete so-

lution to the Production Cell problem is discussed, showing how the method can be applied to solve a real-

world industrial problem.

1 INTRODUCTION

We present a complete bottom-up systematic

method to derive a correct system specification from

a semi-formal system requirements specification in

SA/RT (Hatley 1988, Ward 1985, Svensson 1991)

by systematically applying a set of transformation

rules. The method integrates two complementary

approaches to describe a real-time system: (1)

SA/RT based notations, and (2) CSP+T process

terms (Žic, 1994) to model real-time processes, in-

cluding the specification of their timing require-

ments.

The approach takes advantage of the long tradi-

ion of SA/RT graphical notations and development

methodologies in the industry and, at the same time,

aims to foster the use of Process Algebras as an ade-

quate way to overcome the intrinsic imprecision that

SA models present in describing real-time systems.

Many proposals have tried to overcome the lack

formal semantics of SA notations. Noteworthy

among these is the formalization of SA through Z

and Larch (Semmens, 1990), the translation from

SA to Communication Processes formalism (Fen-

cott, 1994) and the set of rules to give SA an inter-

pretation by using High-Level Petri nets (Elmstrom,

1993). However, as Baresi and Pezzè stated

(Baressi, 1998), all of these proposals irremediably

damage the flexibility of SA by assuming a given

interpretation to the ambiguity of analysis entities,

some of which should only have a weak semantics in

order to remain useful as constructs of a process

description language.

The objective of our approach follows the guide-

lin

e proposed in the latter reference, namely to over-

come the imprecision and ambiguities that the dif-

ferent families of SA notations present in describing

real-time systems. However, the proposed method

does not determine a particular semantics when there

are several possible ways to solve a given ambiguity

in an SA analysis entity. It is left up to the analyst to

select the most appropriate notation semantics, de-

pending on the system that needs to be specified.

This feature of the method is a result of the flexibil-

ity provided by the CSP+T design notation for real-

time systems.

The proposed systematic derivation technique

d the transformational rules can be easily inte-

grated into state-of-the-art SA/RT software tools and

the complete derivation process can be fully imple-

mented in Java with the support of CTJ (Hilderink,

2000) or JCSP (Welch, 2001) libraries. The rest of

this paper is structured as follows: first, we give

some background on SA models, which is necessary

to understand the transformation rules. In section 3,

we describe the system specification method. In sec-

tion 4, using the example of the Production Cell, we

present a complete system specification. Finally, the

conclusions and ongoing work lines are presented.

I. Capel M. and A. Holgado J. (2005).

TRANSFORMING SA/RT GRAPHICAL SPECIFICATIONS INTO CSP+T FORMALISM - Obtaining a formal speciﬁcation from semi-formal SA/RT

essential models.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 65-72

DOI: 10.5220/0002523800650072

 SciTePress

2 REAL-TIME STRUCTURED

ANALYSIS

The methodologies and notations referred to under

the generic denomination of Structured Analysis

(SA) are mainly directed towards specifying the sys-

tem behaviour as a set of data transformations or

processes, which describe the basic functions of the

target system. The first was proposed by Ward and

Mellor (Ward, 1985) and the second by Hatley and

Pirbhai (Hatley, 1988). A third variation, called the

Extended System Modeling Language (ESML)

(Svensson, 1991) is an attempt to combine these two

approaches to the structured analysis of real-time

systems.

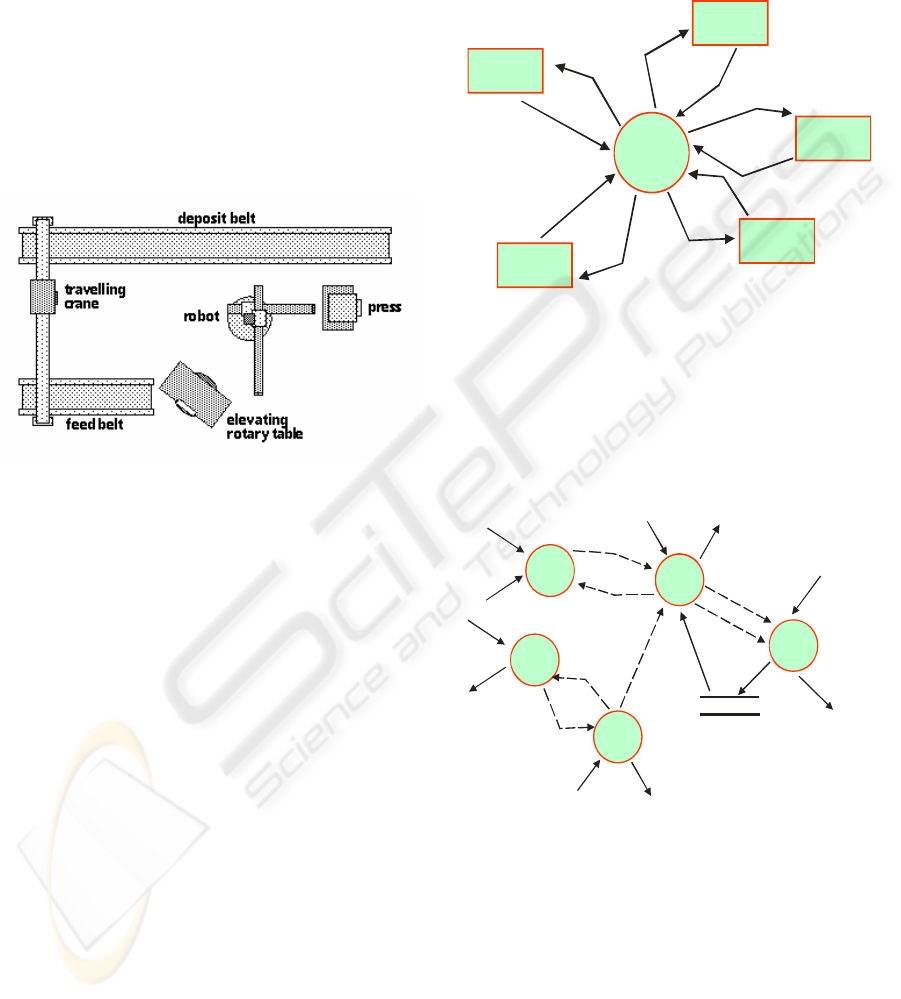

Figure 1: The Production Cell.

2.1 Production Cell Example

This well-known case study (Lewerentz, 1995),

Fig.1, presents a realistic industry-oriented problem,

where safety requirements play a significant role and

can be met by the application of formal methods. In

the fundamental configuration, the production cell

processes metal blanks that are conveyed to a press

by a feed belt. The first robot arm takes each blank

from the feed belt and places it in the press. Because

the belt and the robot are at different heights, there is

an elevating rotating table which is designed to give

blanks to the robot. The press forges a new metal

blank and opens again. Forged metal plates are taken

out of the press and put on a deposit belt by a second

robot arm. Since the robot is fitted with two arms,

the utilization of the press is enhanced, thus making

it possible for the first arm to pick up the next blank

while the press is forging another plate with the pre-

vious blank.

2.2 System Requirements Model

The model consists of a hierarchy of transformation

schemes rooted on the System Context Diagram

(SCD). Each scheme “explodes” into a State Transi-

tion Diagram (STD) or into a Data Flow Diagram

(DFD). The scheme denoted as SCD defines the

border between the system and the environment,

comprising the external entities (or terminators) to

the system. Fig. 2 shows an example of SCD. DFDs

may explode into new, more detailed DFDs.

Production

Cell

Control

Feeding

Belt

Rotaring

Table

Deposit

Belt

Robot

Press

press status_

fb move_

fb status_

table status_

table commands_

db move_

db status_

robot commands_

robot status_

press commands_

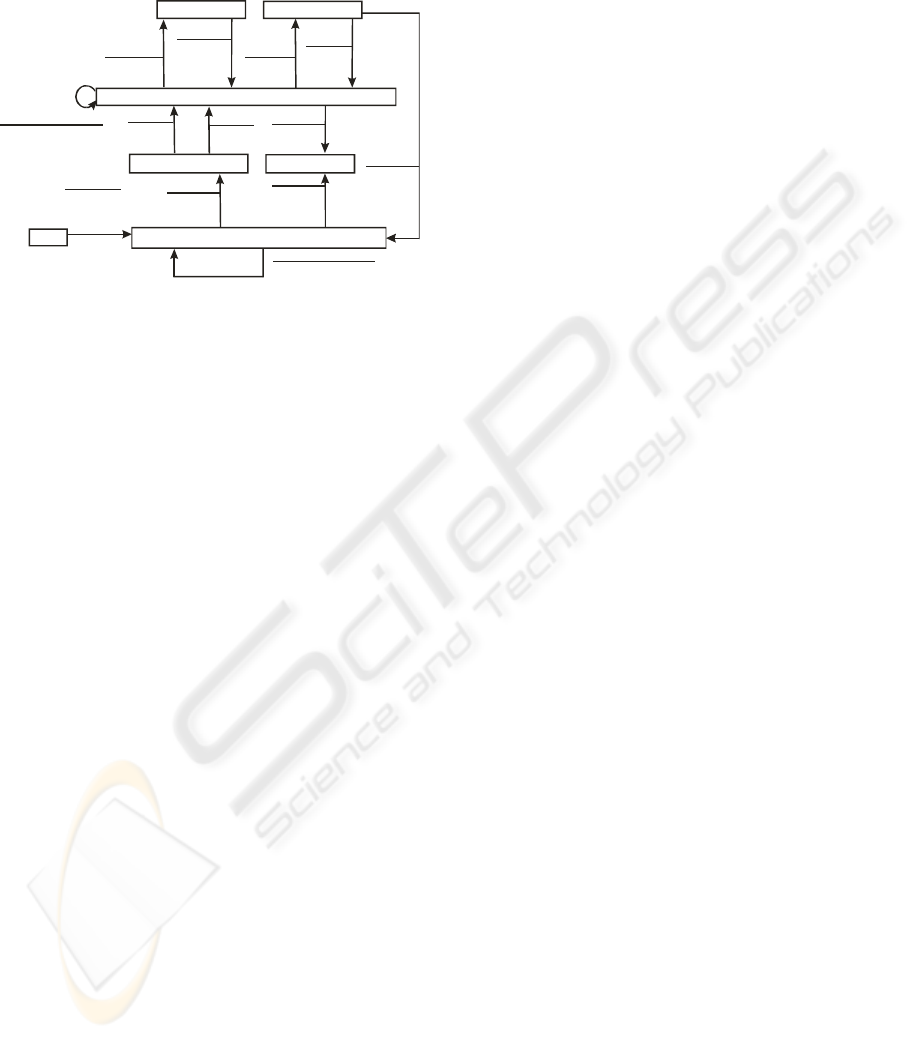

Figure 2: Production Cell SCD.

The DFD transformation scheme in the SA/RT

notations must include at least one Data Transfor-

mation Process (DTP), whose role is to change the

input data or event flows (control) into output flows

with no relation between the number of inputs and

outputs. The same output can be sent to several

analysis entities and a DTP must have at least one

output flow.

Feeding

Belt

Control

Table

Control

Press

Control

Robot

Control

Deposit

Belt

Control

db move_

db status_

db_w_robot

plate_dropped

plate_picked

table_w_fb

table_w_robot

blank_loaded

blank_dropped

blank_picked

fb_move

fb_status

press_sensors

press_move

table_commands

robot commands_

robot status_

table_status

Press Status

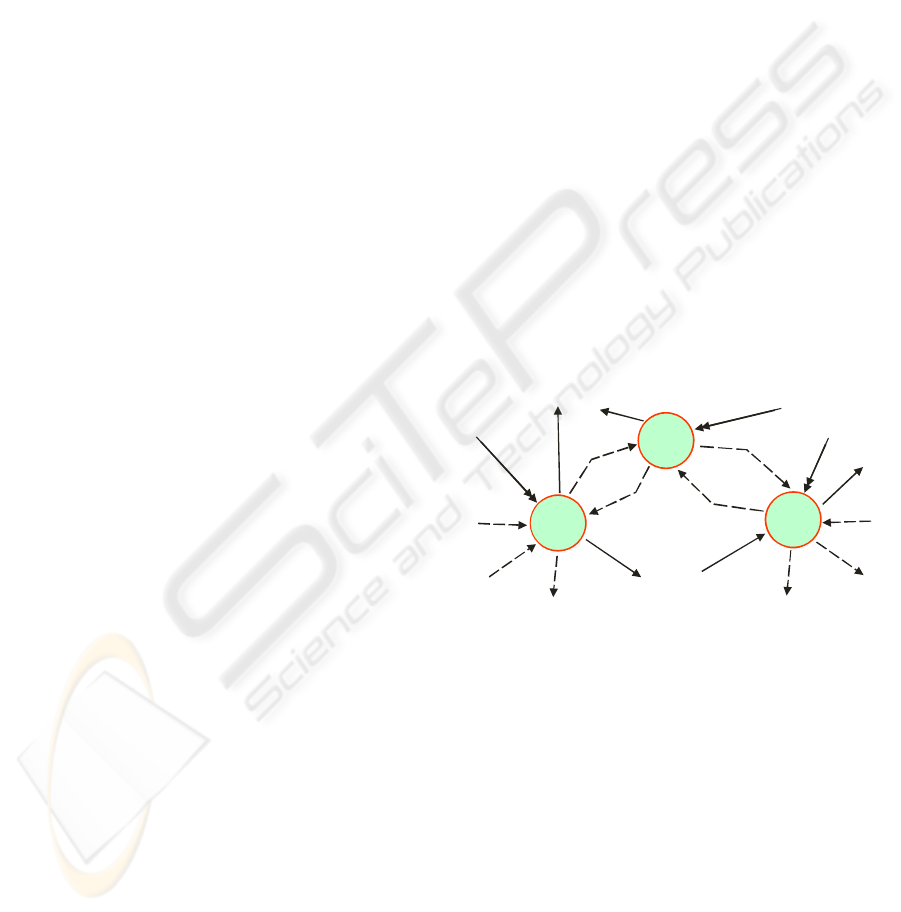

Figure 3: First level Production Cell DFD.

Control Transformation Processes (CTPs) serve

to transform inputs into output event flows. They

cannot accept or generate any type of data flow and

are formally specified by means of a State Transi-

tion Diagram (STD). STDs should be deterministic

Moore or Mealy automata, and they describe a se-

quence of state transitions of the system that cause

the execution of DTPs to be triggered. Different out-

put events can be specified in an STD to activate the

DTPs it controls. Enable/disable events indicate that

the DTP will execute between the enable and disable

signals. Trigger events indicate that the time needed

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

by the DTP to perform its action is unknown. These

types of events cannot be used to model terminator

activation, since event flows towards them must

only be signals that switch on the device. Data

stores (DS) loosely represent data of a certain type

that cannot be considered structured. Destructive

readings over a DS cannot be assumed and DS can-

not be directly inter-connected, since the movement

of data is only performed by the DTP in diagrams.

The DFD for the complete Production Cell Control

System is shown in Fig. 3.

2.3 Flaws of SA/RT as a Specification

Notation for RTS

Some WM and HP analysis entities do not have a

concrete semantics, thereby causing imprecision in

the specification, which may confer non-

predictability on a final real-time system at a later

development stage:

a) Lack of any rule for defining primitive process

specifications (PSPECs) in DTP schemes. PSPECs

are purely functional descriptions. However, in re-

alistic applications, DTPs not only describe the

purely functional behaviour of processes but often

also include control and timing information.

b) The enabling conditions of processes are not

fixed. The SA rationale is that processes are en-

abled whenever “sufficient data” appear in any of

their input flows. Nevertheless, the rules do not

clearly indicate the expected behaviour of a proc-

ess when more than one of its input flows have

values.

c) Execution time requirements for processes are

excluded. These requirements, when applied to

practical cases, are used to specify a maximum or

minimum time to be associated with the execution

of a process.

d) The number and the type of the input flows enter-

ing a process are described in vague terms. To ob-

tain predictability in real-time applications, when

there are multiple input flows entering a process, it

is necessary to define whether all the inputs (syn-

chronous) or only a subset (asynchronous case) are

needed.

e) Simultaneous events awakening more than one

transition. This possibility is excluded from

SA/RT notations. However, there should be no ob-

jection to allowing nondeterministic selections of

transitions in notations for soft real-time systems.

Such imprecisions can be solved by giving a se-

mantic interpretation to the SA entities that ex-

clude any of these ambiguities. These interpreta-

tions can be easily programmed in CSP+T by us-

ing a set of rules which translate each SA entity

into a pattern that defines a CSP+T process.

2.4 Real-time Systems Specification

with CSP+T

Many proposals have tried to overcome the problem

of SA imprecision by complementing it with formal

methods. The use of extensions of algebraic process

description languages, such as CSP (Hoare, 1985),

CSP+T (Žic, 1994), the standard specification lan-

guage LOTOS (Eijk, 1989), can give a precise and

flexible interpretation to SA entities.

In the group of CSP derivatives to describe time

intervals, we could mention Timed CSP (Hoare,

1985) and CSP+T, the latter being a simpler ap-

proach, although still powerful enough to formally

describe a set of deterministic processes with time

constrained behaviour. The syntax of CSP+T has

been adapted to our method so as not to include

nondeterministic operators for the moment, since

real-time controllers are deterministic pieces of

software, due to predictability is preferred to pro-

grammability in these systems. The adapted notation

is described as follows:

-Every process P defines its own set of commu-

nication symbols, termed the communication alpha-

bet

(P). These communications represent the

events that the process P receives from its environ-

ment or that occur internally, such as the event

that

is not visible in the environment. Any type of event

causes a change of state of the process.

-The communication interface comm_act(P) of a

given process P contains all the CSP-like (Hoare,

1978) communications ({?, !}) in which P can en-

gage and the alphabet

(P).

-A new operator

(star) denotes process instan-

tiation. Given P’, the timed version of P, which is

instantiated at time 1, s is a time stamp associated to

a, and the specification of P’ is,

P’= 1.

Ë→

s.a

→

STOP, where s

∈

[1,

∞

)

The instantiation event is unique in the system,

since it represents the origin of time at which the

processes can start their execution.

-A new event operator >< is introduced, to be

used jointly with a marker variable to record the

time instant at which the event occurs. ev

means that the time at which ev is observed is in the

variable v. The value of time stamps is taken from

the set of positive real numbers, so that successive

events form a non-decreasing monotonic sequence.

P= 1.

Ë→

var

→

STOP

For each execution of P, the time stored in the

variable will always satisfy var

≥

1. The scope of

marker variables is limited to one sequential process.

-Each event is associated with a time interval,

which is called the event-enabling interval.

P= 0.

Ë→

[1,2] a

→

STOP

TRANSFORMING SA/RT GRAPHICAL SPECIFICATIONS INTO CSP+T FORMALISM - Obtaining a formal

specification from semi-formal SA/RT essential models

The value of the marker variable v satisfies the

inequality 1

≤

2. Only during this continuous

time interval is the event available to the process and

its environment. A process is considered to be the

STOP process if it cannot engage in any communi-

cation or synchronize in any event within the inter-

val that precedes the event.

-The enabling intervals can also be defined in

terms of functions over a set of marker variables,

P = ... E.P’ . E = {s | s

∈

rel(x, v)}

The bound variable x sets the upper limit of the

interval. If the preceding event occurs at time t

, then

rel(x,v) = [v-t

x+v-t

, ], since the times for events

are absolute and the times for intervals are relative to

the preceding event. When there are no marker vari-

ables referenced, the enabling interval is defined

relative to the immediate preceding event.

-Finally, it should be noted that only determinis-

tic processes can be described in CSP+T formal de-

scription language.

In order to obtain a CSP+T model of the system,

it is necessary to represent every analysis entity of

the System Requirements Model (SRM) by a class

of CSP+T processes. Following this approach, we

intend to write a process CSP+T prototype for every

DTP, CTP, DS, CS, continuous data flow, etc.

3 A FORMAL SPECIFICATION

FROM THE SRM

A series of transformation rules will allow us to cre-

ate a CSP+T model for every transformation scheme

that appears in any diagram of the SRM.

Definition 1. Given the set of SA/RT analysis

entities E, proc an injective application, such that

P= proc(E) ∈ CSP +T, we define,

Interface(P)

⊆

comm_act(P) – {

as a set of actions that model the data or control

flows on which the analysis entity interacts with its

environment. P is a syntactically correct process

term of CSP+T that models the entity E.

Modelling process interface (rule 1). inter-

face(P) is made up of an input communication sym-

bol for every entity O, which is the origin of a com-

munication towards P, and, vice-versa, of an output

communication for every destination entity D, where

O and D are analysis entities with the only limitation

being that both of them cannot be of type DS.

Renaming is obviously necessary when several

entities D

, D

, …, D

on a DFD accept the same

input flow and, vice-versa, when several entities, O

, …, O

accept the same output flow, as otherwise

the CSP communications could deadlock. The con-

trol transformation process (CTP) interface is mod-

elled in the same way by including events with a

special meaning in comm_act. These are called e, d,

t, after the SA/RT synchronization events enable,

disable, trigger, that a CTP uses to control its DTPs.

Modelling continuous data flows (rule 2). Con-

tinuous data flows cannot be directly modelled by

means of communication events in CSP+T, since in

the latter the communication is understood to be a

synchronous message passing between 2 processes

and a continuous flow of data denotes an uninter-

rupted communication between different processes.

It is therefore necessary to write an extra process

(termed S in the rule) for each continuous data flow.

Modelling State Transition Diagrams (rule 3).

Every CTP, called P, of the lower level in the SRM

hierarchy is represented by a unique STD from the

point of view of control specification. An STD can

be defined as a tuple (Q, C, A, T, q) in which:

− Q is a set of states.

− C is a set of conditions, i.e., every condition

denotes the occurrence of an external event, which

corresponds to an input flow of control in P, or to

the occurrence of an internal event which is different

from any internal control flow in P, such as the in-

ternal action τ.

− A is a set of actions. An action causes the exe-

cution of an activity in the system. It can be easily

identified since it corresponds to an output control

flow in a DTP, or to the occurrence of an internal

event of an STD.

− T is a set of transitions. A transition is a tuple

of the form (q

, c, a, q

) in which q

, q

∈

Q, c

∈

C or

is null, a

∈

A or is null, and its interpretation is: if in

state q

, condition c is satisfied, then action a will be

performed and also a change to state q

will occur.

Either c or a can be nul.

− q is the initial state of the STD and q

∈

The transition concept can be extended to spec-

ify timing constraints in the system by describing

enabling intervals and marker events.

Timing constraints. These constraints can be

described as a set R of tuples (e

, I, e

) in which e

∈

(C ∪A), and e

receives the name of the marker

event, I is a real number interval of the form [

where

∈

, and

α≤β

or I is an interval relative

to the preceding event or to the event e

. I(e

) de-

notes the interval I in the following text and e

∈

or e

∈

A receives the name of a restricted event.

The interpretation of a timing constraint R is as fol-

lows: event e

can only occur within the interval of

time I from the occurrence of event e

, where both

events can represent the satisfaction of a condition c

or the execution of an action a.

If the restricted event coincides with condition c,

this means that the condition is satisfied during the

time interval I to which it is restricted, the satisfac-

tion of the condition outside the interval not being

considered. In the case of the restricted event being

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

action a, the system is forced to carry out this action

within the interval I to which it is restricted, or oth-

erwise the process in which the restricted event is

programmed fails.

Modelling timed Control Transformation

Processes.

A timed STD is therefore considered as

the tuple (Q,C,A,T,q,R), i.e. an initial STD plus the

timing constraints imposed on the system. The proc-

ess that models the STD is the process associated to

the initial state of the system, i.e. it is activated when

the system starts. According to the SA/RT rationale,

transitions exiting the same state are associated with

different events. The deterministic choice operator |

is used to represent different outgoing transitions

from a given process state.

Modelling data and control storages (rule 4).

A Data Store (DS) in the SRM is simply a class of

entities capable of storing pieces of information for

which we cannot assume any structure or formal

definition. Therefore, no mechanism to specify data

or to retrieve/insert data from/into a DS has been

anticipated in the SRM of a system.

In our system specification model, a DS or a CS

is modelled as a CSP+T process capable of accept-

ing information by communicating with other proc-

esses, or capable of offering its stored data through

another communication.

Modelling of Transformation Specifications

(rules 5 and 6).

There is no agreement on how to

perform the correct specification of a PSPEC (primi-

tive DTP) in SA/RT. The specification of PSPECs is

usually carried out in pseudocode, structured Eng-

lish, pre/post-conditions, etc. In this respect, we as-

sume that the functionality of primitive DTPs is sim-

ple enough to allow us to obtain a model for each

DTP as a single CSP+T process. There is, therefore,

room for the analyst to set the concrete semantics

that any primitive DTP should have, according to the

system being modelled.

A primitive CTP in a DFD is specified by means

of an STD, in such a way that any flow of events

that occur in a CTP results in a condition or action in

its associated STD.

Hierarchic integration of the entities of a dia-

gram (rule 7).

Since we follow a bottom-up design

method, we begin by applying the above rules to the

lower level schemes of the SRM of the system.

When all the entities in which a diagram explodes

have been modelled from its component processes,

we are able to obtain the complete diagram repre-

sented by a complex CSP+T process term.

The defi-

nition of the interface is not recursive, since the term

interface (CTP) on the right side of the equation is

previously calculated by rule 1.

The functioning of

the method is based on an iterative composition of

the constituent processes and on the abstraction of

their internal communications. The iterative process

finishes when the context diagram of the system is

obtained.

Systematic derivation process

The above set of transformation rules are the ba-

sis of our complete top-down systematic specifica-

tion technique, and are listed in Table I. In general,

the following steps are taken:

1) Prepare the analysis schemes for carrying out the

transformation. It may be necessary to rename

some analysis entities to avoid conflicts (i.e., un-

wanted synchronizations) when constructing their

model in CSP+T.

2) Transform the control transformation (CTP) and

data transformation (DTP) schemes of the lower

level, i.e. those that do not explode into other

schemes, into CSP+T processes.

3) Select the other schemes in ascending order, i.e. a

CSP+T process for each Data Storage (DS), Con-

trol Storage (CS), Continuous Flow of Data, DTP

or CTP that appears in the scheme, and build a

CSP+T process for each entity within the scheme.

4) Once the CSP+T model has been obtained for all

the entities in a scheme, one CSP+T process is de-

fined to model the complete scheme. If this

scheme is already included in a CTP or a DTP of a

higher level, repeat from step (3), thus progres-

sively integrating the CSP+T model of the system

in an ascending way.

Robot

Arm 1

Control

Robot

Arm 2

Control

Robot

Tur n

Control

a2_ready

a1_finish

a1_ready

a2_finish

plate_picked

blank_picked

plate_dropped

blank_dropped

db_w_robot

table_w_robot

pos_arm1

arm1_move

press_status

pos_arm2

arm2_move

robot pos_

robot tur

Figure 4: 2nd level DFD for a generic Robot Control P.

5) The process of hierarchic integration of transfor-

mation schemes finishes when the model of the

System Context Diagram is obtained.

4 SPECIFICATION EXAMPLE:

THE PRODUCTION CELL

Let us first present a detailed modelling of the Robot

Control Process (RC) of the Production Cell Control

System, since it is the process with the richest func-

tionality among those conforming its design. We

assume that table, press and belt control processes

are already modelled, since they do not contribute

additional design strategies to the general compre-

TRANSFORMING SA/RT GRAPHICAL SPECIFICATIONS INTO CSP+T FORMALISM - Obtaining a formal

specification from semi-formal SA/RT essential models

hension of the method. Finally, the integration of all

the derived schemes is obtained to show that the

interface of the unique process coincides with the

data+control flows shown in the SCD of Fig. 2.

pos_2

pos_1

pos_3

pos_4

robot_turning_ccw

robot_pos=read_turn_(pos)

robot_turning_cw

robot_pos=2

press=full

robot_pos=1

a2_finish

now-t >T

a1_finish

robot_pos=3

a2=full

robot_pos=4

a1=full

a2_finish

a1=full

a2=empty

a:turn(ccw)

d:a2_ready

a:turn(stop)

e:a2_ready

a:turn(stop)

e:a1_ready

t=gettime()

a:turn(stop)

e:a1_ready

a:turn(stop)

e:a2_ready

a2=full

press=empty

a:turn(ccw)

d:a2_ready

a1=empty

press=full

a:turn(cw)

d:a1_ready

a1=empty

a2_finish

a2=empty

a:turn(cw)

d:a2_ready

a:turn(ccw)

d:a1_ready

a:turn(ccw)

d:a1_ready

Idle

a1=empty

a2=empty

press=empty

a:turn(cw)

start

Figure 5: STD for Robot Turn Control.

Robot Turn Control (RTC)

The flows accepted by this process, Fig. 4, en-

sure that the robot arms are able to reach the posi-

tions established as safety positions in the produc-

tion cell specification (Lewerentz, 1995), i.e., there

are no collisions between robot arms and belts,

blanks cannot fall from the table or the press, etc.

The robot’s safe positions are named in the sequel,

robot_pos_0 (initial position with arms retracted),

robot_pos_1 (arm 1 is placed in front of the rotating

table and is prepared to extend and pick up a blank),

robot_pos_2 (arm 2 points towards the press and is

prepared to initiate picking up a plate), robot_pos_3

(arm 2 points to the deposit belt to place a plate on

it), finally robot_pos_4 (arm 1 is prepared to extend

and deposit the blank on the press). The latter robot

arms positions are specified by the STD shown in

figure 5.

Firstly, we need to identify the marker event, i.e.

robot_pos_1, of the syntactic CSP+T term named

RTurnCW. The latter represents the subprocess of

RTC controlling the clockwise (CW) movement of

robot arm 1; then the event a1__finish in the term

POS_1 reports that arm 1 is positioned and has

reached the point POS_1. On reaching this point,

there are two alternative cases to consider: either a

blank is on the table and the arm 1 gripper picks it

up within the deadline T, or no new blanks have

prompted before the deadline expired and therefore

there needs to be a timeout. Since we must model a

process with 2 alternatives, rule 3 must be applied in

order to construct it,

Robot_Turn_Control

→

RTC

RTC=start

→

actions(start)

→

RTurnCW

RTurnCW=(robot_pos_1

→

ac-

tion(RturnCW)

→

POS_1

| robot_pos’?robot_pos

→

RTurnCW)

POS_1=(I

(robot_pos_1, a1_finish)

→

actions(POS_1_CCW)

→

RTurnCCW

| I

(robot_pos_1, a1_finish)

→

action(blank_timeout)

→

RTurnCCW

Its associated enabling intervals are defined as fol-

lows,

(robot_pos_1, a1_finish) = [t, t+T]

// the robot arm 1 has picked up a

blank from the table.

(robot_pos_1, a1_finish)= (t+T,

∞

)

// there was no blank to pick up

within time T.

action(event) is a notation used to summarize all the

actions associated with a transition, event represents

the condition or the process term in which it is de-

fined, for instance, action(RturnCW)= acti-

vate_stop_turn; t:=gettime().

After arm 1 picks up a blank from the table, we

use the syntactical term RTurnCCW to indicate that

the rotation of robot arms then becomes counter

clockwise (CCW),

RTurnCCW=

(robot_pos_2_&_press_full

→

action(POS_2)

→

POS_2

| robot_pos_3_&_a2_full

→

action(POS_3)

→

POS_3

| robot_pos_4

→

action(POS_4)

→

POS_4

| robot_pos’?robot_pos

→

RTurnCCW)

POS_2=a2_finish

→

action(POS_2_CCW)

→

RTurnCCW

POS_3= (a1_full_&_a2_finish

→

action(POS_3_CCW)

→

RTurnCCW

| a1_empty_&_a2_finish

→

action(POS_3_CW)

→

RTurnCW)

POS_4= a1_finish

→

action(POS_4_CW)

→

RTurnCW

Having reached the control position described by

the RTurnCCW process term, the robot enters into

POS_2 only if there is a forged plate on the press,

otherwise it goes directly into position 4. The com-

munication robot_pos’?... representing the flow of

the same name in Fig. 4 continuously informs the

control process of the current position of both arms.

After picking up a forged plate from the press, arm 2

turns towards the belt and gets the state given by

POS_3. The first alternative of POS_3 represents the

case in which there is also a blank in arm 1. In this

case, it continues to turn CCW so that arm 2 can put

the plate on the deposit belt and arm 1 can then drop

the new blank on the press; the second alternative

addresses the case in which there is no blank in arm

1, in which case the plate in arm 2 is dropped onto

the deposit belt and the robot turning state changes

to clockwise (CW) in order to return both robot arms

to the control state given by RTurnCW, i.e. the state

previous to entering into POS_1.

In position 4, only arm 1 has a blank to drop

onto the press, turning afterwards to position 1 when

it finishes the dropping action, thereby preventing an

unnecessary turn (CCW) towards the deposit belt of

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

arm 2 that would have been compulsory if arm 2 had

held a forged plate in this position.

Robot Arms Control (RA1, RA2)

As in the specification of the above control proc-

ess, we also need to apply rules 3.1 and 3.2 to derive

these processes, which model the robot arms’ exten-

sion, contraction and actions on the electromagnet to

pick up blanks from the belts.

Robot Control (RC)

Following the ascending order of the hierarchy

of schemes within the SR model, we must now

model the higher abstraction scheme, the SA/RT

Robot Control entity in Fig. 3, from its integrating

processes in Fig. 4. RC must offer its users a simpler

communication interface than the union of the inter-

faces of RTC, RA1C and RA2C. Rule 7 addresses

this case in order to obtain the parallel compounded

CSP+T term named RC and its interface from its

subprocesses. This rule takes advantage of the com-

positionality of process terms and their algebraic

properties in order to obtain new processes seam-

lessly from their parts. All the internal events (start,

aX_finish, aX_ready, robot_pos’, pos_armX’) of the

RC process term must be hidden, so that the inter-

face of RC coincides with the flows in Fig. 3.

Robot_Control

≡

RC = (RTC\{start, a1_finish, a1_ready,

a2_finish, a2_ready, robot_pos’} ||

RA1\{start, a1_finish, a1_ready} ||

RA2\{start, a2_finish, a2_ready } ||

RTP\{robot_pos’} || RAP1\{pos_arm1’}

|| RAP2\{pos_arm2’})

As fig.4 shows, the above control processes (RAC1,

RAC2, RTC) receive three continuous data flows

(robot_pos, pos_arm1 and pos_arm2) reporting the

current robot position and the horizontal positions of

the arms, respectively, it is therefore necessary to

write 3 synchronization processes (RTP, RAP1,

RAP2), in addition to the above ones, to model the

continuous data flows, according to rule 2.

Table, Press, Feeding Belt, Deposit Belt Con-

trol (TC, PRC, FBC, DBC)

The same transformational approach can be ap-

plied to the Table Control Process (TC) and to its

components, i.e. the Press Control (PRC), the Feed-

ing Belt Control (FBC) and the Deposit Belt Control

(DBC) process.

The Production Cell

The complete system is finally obtained by inte-

grating all the elements, together with a PS

(PressStatus) process. The PS process is used to

keep updated the press position that is received as a

continuous data flow by the robot arm control proc-

esses. Finally, we can integrate the entire Production

Cell Control System by parallel composition of the

derived process terms,

Production_Cell

≡

PC=(FBC\{failure, start } ||

TC\{start, table_turn, turn_stop, ta-

ble_move, move_stop } || RC\{ start}

|| PRC\{start} || DBC\{start} ||

PS\{start} )

The bottom-up design process is completed by

defining the following instantiated CSP+T process

that models the whole system and is derived from

the previous PC term,

Production_Cell_Context=PCC

PCC=0.

Ë→

PC\{start, db_w_robot,

plate_dropped blank_dropped,

plate_picked, table_w_robot,

blank_picked, table_w_fb,

blank_loaded}

in which the hidden events correspond to internal

communication flows between the processes appear-

ing on the DFD of Fig. 3. By applying rule 7, these

events must appear hidden in the final process de-

scribing the whole system, so that only the flows

connecting the system and its environment remain in

PCC, according to the system context diagram, as

shown in Fig. 2. As this latter condition is the final-

ization condition of the proposed method, we can

conclude that a consistent and detailed design of the

Production Cell Example has been derived.

5 CONCLUSIONS

We have presented a systematic transformation pro-

cedure to obtain a correct system specification of a

real-time system (The Production Cell) from a semi-

formal SA/RT system user requirements essential

model. Our methodological scheme is based on a set

of rules that are able to transform SA/RT entities

into a formal specification made up of CSP+T proc-

ess terms. This system specification is used to over-

come the intrinsic imprecision that SA models pre-

sent in describing real-time systems, by giving a

formal modelling framework that permits the analyst

to define the expected behaviour and functionality of

all the primitive processes in a system design, and

also to define the time requirements for processes by

making use of the enabling interval and marker

event. Our method complements the SA/RT methods

modelling facilities by using ad hoc CSP+T con-

structs, so that hard timing constraints on the execu-

tion of a target system under development can be

reflected in its formal specification. The method has

been defined in such a way that it can be easily inte-

grated within current Automated Software Engineer-

ing (ASE) environments and/or formal tools based

on SA/RT.

TRANSFORMING SA/RT GRAPHICAL SPECIFICATIONS INTO CSP+T FORMALISM - Obtaining a formal

specification from semi-formal SA/RT essential models

Table I: Transformation rules for RT/SA entities

rule SA/RT entities CSP+T model

1.1

1.2

Discrete data flow f of x, with

origin O and target D.

Or discrete event flow e.

(interface(proc(O)) ∪ {f ! x})∧( interface(proc(D)) ∪ {f ? x})

(interface(proc(O)) ∪ {e})∧( interface(proc(D)) ∪ {e})

2 Continuous flow f of x, with

origin O and destination D

P= proc( f )

P= f ? x → S ; S=( f ? x → S | f ! x → S)

3.1

3.2

STD defined as (Q, C, A, T, q),

∀ (q

, c, a, q

)∈ T, c ∈ C

∪

{

}, a

∈ A

∪

{

}

a and/or c are marker events

with marker variables m

, m

P= proc(q

) , Q= proc(q

)

P= c→ (a→Q) or P= a→Q, c=λ or P= c→Q, a=λ

P= c>< m

→ (a>< m

→Q) or P= a>< m

→Q, c=λ

or P= c>< m

→Q, a=λ .

Data storage DS with input

flows {f

, ...f

} and output flows

, ...., f

}

P= proc(DS)

interface (P)= {f

,... f

, f

..., f

}

5 Data Transformation Process

DTP

P=proc (DTP) (a DTP can explode in additional entities).

interface (P)= interface (DTP)

6 Control Transformation Proc-

ess CTP

Q= proc (CTP)

∨

Q= proc (STD) (Q can model the STD associated to

a primitive CTP or its explosion)

interface (CTP)= Q\{alphabet (Q)-interface (CTP)}

7 E

, E

,..., E

, SA/RT entities in

the same scheme S

interface(S)= E

\{alphabet(E

)-interface(S)}|| E

\{alphabet(E

interface(S)}|| ... E

\{alphabet(E

)-interface(S)}

ACKNOWLEDGEMENT

This work is funded by the research project

MAT2004-06872-C03-03 of the Spanish Ministry of

Science.

REFERENCES

Baressi, L., Pezzè, M., 1998. Towards Formalising Struc-

tural Analysis. ACM Transactions on Software Engi-

neering and Methodology, 7, 1, pp.80-107.

Capel, M.I., Balsas, J.R., Holgado, J.A., 2004. Systematic

Design of Real-Time Systems Based on CSP+T Proc-

ess Algebra, pp. 81-83. In 2

International Workshop

on Verification and Validation of Enterprise Informa-

tion Systems, VVEIS 2004, In conjunction with ICEIS

2004. INSTICC PressSoftware

Eijk, P. H. J. van, Vissers, C. A., Diaz, M. (editors), 1989.

The formal description technique LOTOS. Elsevier

Science Publishers B.V.

Elmstrom, R., Lintualampi, R., Pezzè, M., 1993. Giving

Semantics to SA/RT by Means of High-Level Timed

Petri Nets. Journal of Real Time Systems, 5, 2/3,

pp.249-271.

Fencott, P.C., Galloway, A.J., Lockyer, M.A., O’Brien,

S.J., Pearson, S., 1994. Formalising the Semantics of

Ward-Mellor SA/RT Essential Models Using Process

Algebra, pp.681-702. In: FME’94: Industrial Benefit

of Formal Methods. LNCS 873, Springer-Verlag.

Hatley, D.J., Pirbhai, I.A., 1988. Strategies for Real-Time

Systems Specification, Dorset House, New York.

Hilderink, G.H., 2000. A Distributed Real-time Java Sys-

tem Based on CSP, pp.400-407.

In Third IEEE Inter-

national Symposium on Object-Oriented Real-Time

Distributed Computing

, ISORC 2000, Newport Beach,

California, March 15-17.

Hoare, C.A.R., 1978. Communicating Sequential Proc-

esses, Prentice-Hall, Englewood Cliffs (N.J.).

Lewerentz, C., Lindner, T., 1995. Formal Development of

Reactive Systems: Case Study Production Cell, LNCS

891, Springer-Verlag.

Semmens, L.T., Allen, P.M., 1990. Using Yourdon and Z:

An Approach to Formal Specification, pp.228-253. In:

Z-Users Workshop, Oxford, U.K., 1990.

Svensson, I., 1991. ESML: An Extended System Modeling

Language Based on the Data Flow Diagram Appendix

B, NASA Contract Report 187526.

Ward, P.T., Mellor, S., 1985. Structured Development of

Real-Time Systems, Prentice-Hall, Englewood Cliffs

N.J., USA.

Welch, P., 2001. Process Oriented Design for Java: Con-

currency for All. In Parallel and Distributed Process-

ing Techniques and Applications, PDPTA 2001, Las

Vegas, Nevada, USA.

Žic, J.J., 1994. Time-Constrained Buffer Specifications in

CSP+T and Timed CSP. ACM Transactions on Pro-

gramming Languages and Systems, 16, 6, pp.1661-

1674.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
