EVALUATION AND COMPARISON OF ADL BASED APPROACHES

FOR THE DESCRIPTION OF DYNAMIC OF SOFTWARE

ARCHITECTURES

Mohamed Hadj Kacem, Mohamed Jmaiel, Ahmed Hadj Kacem

University of Sfax, laboratory LARIS-FSEGS

B.P. 1088 Sfax, Tunisia

Khalil Drira

LAAS-CNRS

7 Avenue du Colonel Roche 31077 Toulouse, France

Keywords:

ADL, dynamic conﬁguration of architectures, behaviour of applications, component, conﬁguration.

Abstract:

This paper presents an evaluation study of Architecture Description Languages (ADL) which allows to com-

pare the expressive power of these languages for specifying the dynamicity of software architectures. Our in-

vestigation enabled us to release two categories of ADLs: conﬁguration languages and description languages.

Here, we address both categories, and we focus on two aspects: the behaviour of software components and the

evolution of the architecture during execution. In addition, we explain how each ADL handles these aspects

and demonstrate that they are generally not or not enough dealt with by most of the ADLs. This motivates

future extensions to be undertaken in this domain. Throughout this paper, we illustrate the comparison of these

two aspects by describing an example of a distributed application for collaborative authoring support.

1 INTRODUCTION

Software applications are more and more distributed,

large and complex. Such applications are made up

of a generally signiﬁcant number of software entities,

scattered on the network, which cooperate in order

to provide services to their users. This complexity is

related to the great geographical and structural disper-

sion of the entities constituting the application, to the

material and software heterogeneity, and the abundant

interaction between them. Moreover, these applica-

tions must usually undergo various modiﬁcations dur-

ing their life cycle in order to face new requirements

of the users and / or the new technologies.

In our study, we mainly deal with distributed col-

laborative applications, such as the collaborative au-

thoring of research papers. This kind of applications

is characterized by a dynamic architecture which may

evolve during system execution. The evolution of an

architecture is generally expressed in terms of recon-

ﬁguration operations which correspond to the addi-

tion/removal of a component or a connection between

components. In addition, a reconﬁguration can be in-

duced by an internal (component) event or by an ex-

ternal (user) event. Accordingly, many reconﬁgura-

tions can not be known in advance and many others

may depend on the behaviour of some components.

Hence, the design of such systems becomes an in-

tricate task requiring rigourous approaches. Accord-

ingly, it is necessary to have a speciﬁcation language

which support the description of dynamic software ar-

chitectures allowing reconﬁgurations induced by in-

ternal and external events. In our approach, we made

recourse to ADLs and we tried to select the most suit-

able ADL for the speciﬁcation of our applications.

The investigation of most existing ADLs enabled us

to evaluate them with respect to the above mentioned

aspects. This paper presents the main results of this

comparative study.

In our study of ADLs, we focus on specifying the

dynamic of architectures as well as the behaviour of

components. Indeed, we measure for each language

its expressive power according to these two aspects.

It should be stressed that few works considered these

aspects while evaluating ADLs. The majority of them

were interested rather in classifying ADLs with re-

spect to static aspects. The most outstanding one is

the work of Medvidovic and Taylor (Medvidovic and

Taylor, 2000) that tried to classify existing ADLs.

This work identiﬁes the main characteristics which

have to be present in an ADL. Riveill and Senart

(Riveill and Senart, 2002) and Barais (Barais, 2002)

essentially sought to classify ADLs in two classes:

conﬁguration languages and description languages.

They evaluate the ability of these languages to de-

scribe reconﬁguration. Finally, other works like the

189

Hadj Kacem M., Jmaiel M., Hadj Kacem A. and Drira K. (2005).

EVALUATION AND COMPARISON OF ADL BASED APPROACHES FOR THE DESCRIPTION OF DYNAMIC OF SOFTWARE ARCHITECTURES.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 189-195

DOI: 10.5220/0002524701890195

 SciTePress

one of Allen and al. (Allen et al., 1998) consist in

extending Wright so that it supports the run-time re-

conﬁguration.

Our study has enabled us to identify several weak

points in ADLs. These weak points are in several or-

ders. Indeed, the dynamic of architectures is not well

supported by ADLs although there are some propos-

als which are interesting (Darwin (Dulay et al., 1993)

and Olan (Bellissard et al., 1996)). Moreover, the dy-

namic of software architecture is not much expressed.

ADLs are interested only in the systems having a ﬁxed

number of conﬁgurations which have to be known in

advance (Wright (Allen et al., 1998)). Thus, it is not

possible to perform arbitrary reconﬁguration opera-

tions and particularly those which are external dur-

ing the application execution. Finally, the behavioural

aspect is almost absent in the majority of ADLs ex-

cept for some such as Rapide (Rapide, 1997) which

allows to describe the behaviour using process alge-

bra. However, the behaviour description expresses

only communicating events and does not consider re-

conﬁguration operations.

This article is organized as follows. Section 2 de-

ﬁnes basic ADLs concepts. In Section 3 we introduce

our case study: an application for collaborative au-

thoring support. Sections 4 and 5 present the ADLs

studied and evaluate their ability of describing the dy-

namic of an architecture and the behaviour of compo-

nents. Finally, in Section 6, we present a synthesis of

the obtained results.

2 WHAT IS AN ADL?

An ADL (Accord, 2002), (Medvidovic and Taylor,

2000) is deﬁned as a textual or graphic notation, for-

mal or semi-formal. It allows to specify software ar-

chitectures and it is generally accompanied with spe-

ciﬁc tools. In our study, we noted a large variety of

notations offered by ADLs. Nevertheless, the three

concepts of component, connector and conﬁguration

are considered essential.

A component represents the basic unit of a system.

We ﬁnd among them clients, servers, data bases, ob-

jects, modules, etc.

A connector is an architectural entity which models

the interactions between components. Components

and connectors are generally accessible only through

interfaces (which we often call ports for the compo-

nent and roles for the connector).

A conﬁguration or architecture is an arrangement,

a topology, or a graph of components and connectors

which describes how the components are connected

to each others.

Based on the ability of an ADL to describe the evo-

lution of an architecture at run-time, we distinguish

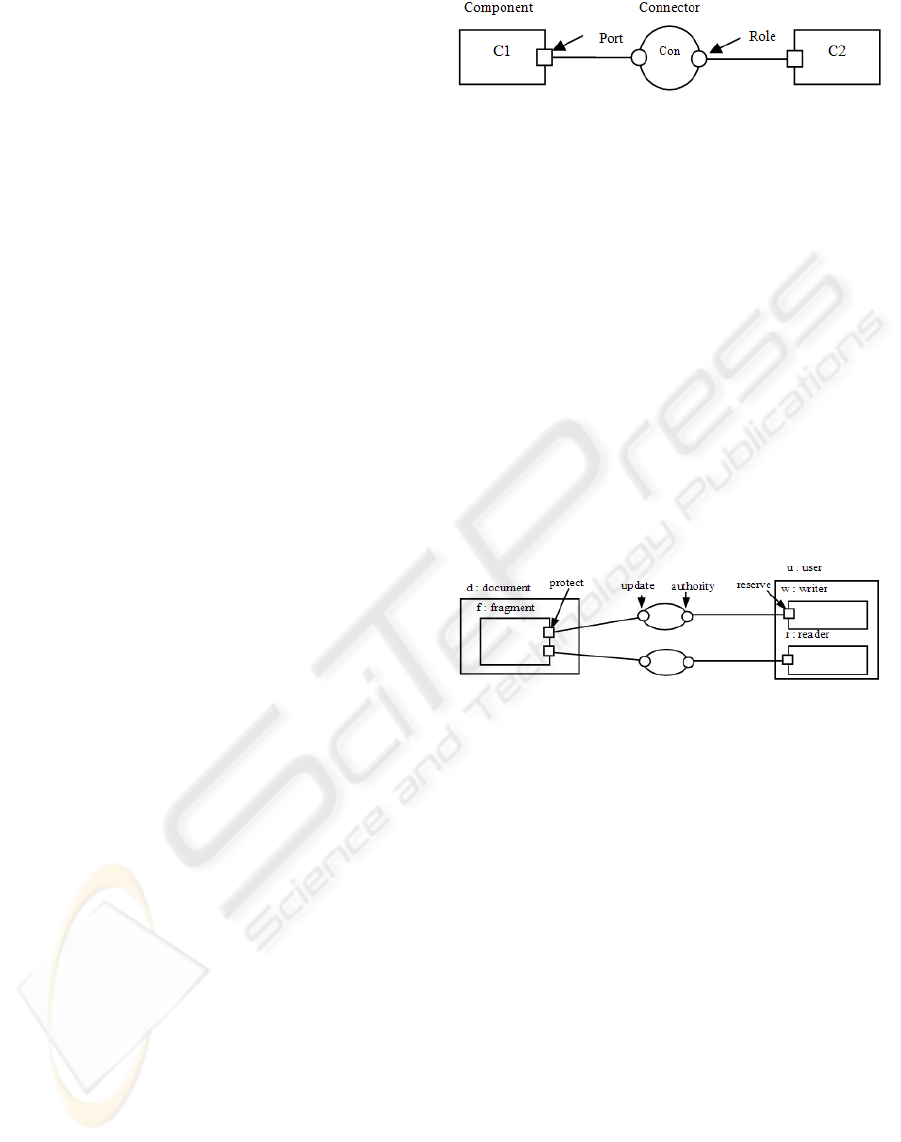

Figure 1: Conﬁguration of an application

two classes of ADLs: conﬁguration languages and

description languages. Contrary to description lan-

guages, conﬁguration languages permit to specify op-

erations like adding a new component/connector or

removing a component/connector.

3 CASE STUDY:

COLLABORATIVE

AUTHORING

We consider in this paper an applicative example: the

collaborative authoring (Pinheiro et al., 2002). It is

a cooperative application enabling a set of authors to

cooperate in order to draft a common document.

Figure 2: The collaborative authoring conﬁguration in ADL

This illustration allows, to compare the similari-

ties and the differences between these ADLs. This

application illustrates an example of a system which

owns a dynamic architecture. During execution a new

component: reader or writer may be connected to the

application without disturbing its functioning. This

modiﬁcation in the architecture is controlled by the

rules stating that two writers must never access simul-

taneously to the same fragment. Adding a new writer

component it is induced by an external (user) event. In

addition, we may consider internal events which may

also change the architecture at the run-time. For ex-

ample, a writer component may be disconnected from

the application when the time allocated for him is ex-

pired.

4 CONFIGURATION

LANGUAGES

The conﬁguration languages (Accord, 2002), (Riveill

and Senart, 2002) provide a model of notation to spec-

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

190

ify the application conﬁguration. In these languages,

a component is considered as an instantiate entity.

Several instances of the component can be created and

can coexist during the execution. Conﬁguration lan-

guages allow to describe an application with the aim

of its deployment and of its execution. They belong

to a family of languages which are accompanied with

tools of modelling, parsers and code generators.

We present in the following sections the main prop-

erties of the languages Darwin, ArchJava and Olan

and measure for each one its ability of describing the

dynamic of architectures and the behavioural of com-

ponents.

4.1 The Darwin language

Darwin (Dulay et al., 1993) uses the three basic con-

cepts i.e. the component, the connector and the con-

ﬁguration but only the component is explicitly ex-

pressed. It allows a partial speciﬁcation of the dy-

namic of architecture in terms of component creation

during the execution of an application.

Darwin provides two mechanisms to specify the

component instantiation: lazy and dynamic instanti-

ation. Thanks to these two mechanisms, the archi-

tecture of an application is not considered any more

as a set of components ﬁxed at the design phase. It is,

then, possible to specify when and where the dynamic

creation of software components can take place.

Lazy instantiation: Lazy instantiation (Accord,

2002) enables to declare components which will not

be immediately instantiated. These components will

be indeed created when the service which they pro-

vide is requested. This type of mechanism enables

to instantiate only one component by interconnec-

tion and allows describing structures whose number

of components can be determined only dynamically.

component Edition {

inst

writer : Writer;

fragment : dyn Fragment;

bind

writer.reserve -- fragment.protect;

}

Figure 3: Lazy instantiation in Darwin

Contrary to traditional components which will be

created at the application installation, the component

fragment: dyn Fragment is not instantiated as

long as the user does not reach the service provides

by the component. In this example, the component

fragment will be instantiated and protected with the

ﬁrst call of the fragment.protect. Lazy instan-

tiation enables to instantiate only one component by

interconnection clause (Barais, 2002) and this cannot

always be used. So, Darwin proposes the dynamic

instantiation concept.

Dynamic instantiation: Unlike lazy instantiation,

multiple instances can be dynamically created from

only one interconnection clause. Dynamic instantia-

tion (Riveill and Senart, 2002) allows to specify the

connection for a component type rather than for an

instance of this type. So, it enables multiple instan-

tiations through only one clause of interconnection.

The declaration of this instantiation dyn Fragment

is achieved in the interconnection clause bind (Fig-

ure 4).

component Edition {

inst

writer : Writer;

bind

writer.reserve -- dyn Fragment ;

writer.update -- Fragment.protect;

}

Figure 4: Dynamic instantiation in Darwin

The difference between this example and the pre-

vious one is that the component Fragment is instanti-

ated writer.reserve -- dyn Fragment; in the

interconnection clause bind. So, the user can create

several instances of the component Fragment in only

one interconnection clause.

To conclude, we can deduce that the description of

the dynamic of an architecture using Darwin is lim-

ited. Indeed, Darwin does not allow expressing differ-

ent reconﬁguration actions usually desired by the ap-

plication administrator. In addition, it is not possible,

for example, to remove nor to designate dynamically

created components. Thus, a primitive component

cannot communicate with dynamically created com-

ponents (Barais, 2002). Furthermore, Darwin does

not offer the basis for analysing application behav-

iour, because its model does not enable to describe

the features of a component and of its services (Allen,

1997). Indeed, a component is considered as a black

box.

4.2 The ArchJava language

ArchJava (Aldrich et al., 2001) aims to improve the

programs comprehension, to guarantee and to allow a

better evolution of the application architecture.

In order to create and connect dynamically some

components, ArchJava offers functions to create, de-

stroy and connect new components. The dynamic

component creation is done using the operator new.

A component can be connected using the operator

connect with a port instance. The component de-

struction is not managed explicitly. When a compo-

nent is neither referred nor connected to other com-

ponents, its memory will be released by the garbage

EVALUATION AND COMPARISON OF ADL BASED APPROACHES FOR THE DESCRIPTION OF DYNAMIC OF

SOFTWARE ARCHITECTURES

191

collector. It may be necessary, in some applications,

to connect several components to the same port with-

out knowing their number in advance. ArchJava, then,

enables to deﬁne a port interface. A new port instance

will then be created with each connection (Barais,

2002).

We return to our example and we suppose that a

writer can reserve several fragments at the same time.

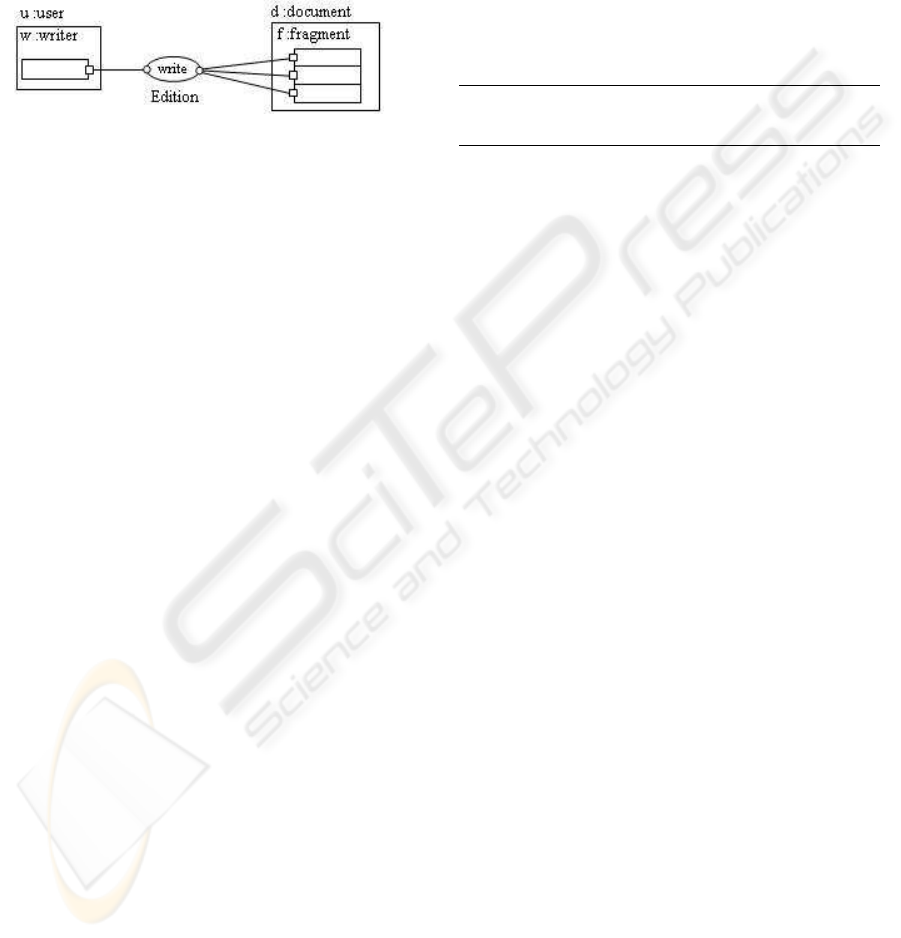

Figure 5: Fragment reservation in ArchJava

At the architectural level (Figure 5), when a request

arrives (for example a request for fragment reserva-

tion), the component writer asks for a new connec-

tion. The component Edition creates, then, a new

component Fragment using the operator new and con-

nects it to the component writer thanks to the opera-

tor connect. Then, the writer communicates with the

component Fragment via its port reserve.

According to our experimentation with ArchJava

we can conclude that this language is an easy ADL

thanks to its syntax similar to java. It allows to

describe the dynamic of architectures in terms of

creation, connection and destruction of components.

However, this description is very limited since exter-

nal (user) events are not taken into account. More-

over, ArchJava does not allow to specify the behav-

iour of components. Like in Darwin, in ArchJava a

component is considered as a black box.

4.3 The Olan language

Olan (Bellissard et al., 1996) aims principally to pro-

vide a complete environment for construction, con-

ﬁguration and deployment of distributed applications

built on the assembly of heterogeneous components.

Basically, Olan is a formalism which does not sup-

port the update of architectures at runtime. This lan-

guage has been augmented with an OCL (Object Con-

straint Language) enabling then to describe opera-

tions changing the architecture. The obtained lan-

guage is based on a set of rules of the form (Event,

Condition, Action). Like Darwin, Olan offers lazy and

dynamic instantiation. However, Olan provides a new

schema of dynamic instantiation called collection.

Collection: The collection concept (Accord, 2002;

Riveill and Senart, 2002) has been introduced to fa-

cilitate the use of multiple components with the same

type. When it is created, a collection does not con-

tain any component. A collection has two operators

new and delete allowing to create or destroy dynam-

ically a component instance.

The clause fragment = Collection [0..n]

of Fragment; deﬁnes a collection of fragments in a

document. The component designation can take two

forms. First, the collection members can be dynami-

cally identiﬁed through some properties related to its

attributes. In this case, components are managed im-

plicitly. It is the designation mode by association. The

second designation form is rather explicit. It consid-

ers a component as a member of the collection and it

is designated with its index in the collection.

Writer.reserve(request,idf) => fragment.update(request)

where fragment.idf = idf using authority;

Figure 6: Component designation from a collection

This example considers designation by association.

In the clause below, Writer indicates a fragment (iden-

tiﬁed by its idf) from a collection in order to modify

it. It cannot modify the fragment only if it is autho-

rized. Thus, the main advantage is to create sets of

components having the same functions but with vari-

able number of components.

Accordingly, we can say that Olan architectural

model is similar to the Darwin’s one extended with

the concept of collection. Thanks to this concept,

Olan allows to express the dynamic of architectures

with more precision than Darwin. Indeed, Olan en-

ables to describe a component by separating interface

description from its implementation and its conﬁgura-

tion. Thus, when one of the parts evolves, the others

are not modiﬁed. In addition, Olan offers a kind of

adaptation form, since it is possible to modify the sys-

tem in reaction to some events. However, events taken

into account in the model are not external. The mod-

iﬁcation types allowed are too limited. Like Darwin,

Olan does not offer the basis for analysing component

behaviours.

5 DESCRIPTION LANGUAGES

Description languages (Accord, 2002) allow to de-

scribe the application evolution and to specify modiﬁ-

cations which are to be carried out on the initial archi-

tecture. They offer the possibility to validate architec-

ture by checking speciﬁc constraints or by simulation.

They belong to language families which are accompa-

nied with tools for modelling, code generation, code

execution or simulation.

We present in the following sections the mecha-

nisms offered by the languages Rapide, Wright and

Acme to describe the dynamic of architectures and

behaviour of components.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

192

5.1 The Rapide language

Rapide, (Rapide, 1997) aims to check validity of soft-

ware architectures by simulation. Rapide provides

tools for dynamically updating the software architec-

ture of an application. We demonstrate this, on the

collaborative authoring application:

We suppose that the interface types of Writer, Con-

trolCentre, and Msg are already deﬁned. The inter-

face for Writer, for example, deﬁnes all functions al-

lowing to create, reserve, and modify a Fragment.

The interface for EditionCenter declares two actions

called in and out to allow an EditionCenter to accept

or reject Writer. The ArchEdition architecture (an ar-

chitecture generator) deﬁnes the communications be-

tween the interfaces of Writers and ControlCenter us-

ing connection rules. For example, the ﬁrst connec-

tion links a component Writer whenever an accepted

event with that Writer is received.

Example Edition

type Writer is ... type Fragment is ... type Msg is ...

W : Writer; ?F : Fragment; ?d : Data;

type EditionCenter is interface

action in Accept(X: Writer);

out Hnadoff(X: Writer);

behaviour

Start ⇒ Send (d);

(?d in Data) Replay (?d) where Authority ⇒ update(?d);

end EditionCenter;

architecture ArchEdition return EditionCenter is

SFO: ControlCenter; ...

connections

Accept(?W) ⇒ link(?W);

?W.Update(?d) where ?W.Authority(SFO) k > SFO.Receive(?d);

Handoff(?W) ⇒ unlink(?W);

constraint

observe from W.Send, SFO.Receive

match ((?d in data)

(W.Send(?d) → (SFO.Receive(?d) or Empty)))↑(

∽

*);

End; end ArchEdition;

Figure 7: Dynamic architecture in Rapide

The rule states that if a Writer (a match for ?W)

sends a request containing a message ?d, then ?W is

bound to the Writer and ?d to the message. The con-

nection is made only when the Writer is accepted. If

the ArchEdition refuses a Writer, then it unlinks from

it. From now, no communications from the Writer

are received. This is a dynamic interface connec-

tion architecture. It deﬁnes communication between

a variable numbers of Writers components. The sec-

ond connection rule deﬁnes a conditional broadcast

between all Writers and the ControlCenter.

Accordingly, Rapide allows to describe the dy-

namic of architectures in terms of components cre-

ation, dynamic nomination of participants and essen-

tially a fan-in connection. It describes the behaviour

of components in the behaviour clause. However, this

description expresses only communicating events and

does not consider reconﬁguration operations.

5.2 The Wright language

Wright (Allen, 1997) is focused on the architecture

speciﬁcation. It is mainly interested in rigourous rea-

soning about protocols. For this purpose it uses the

CSP language.

The ﬁrst version of this language (Allen, 1997) al-

lows the description of static architecture only. en-

abled to describe only static architectures. In 1998,

Wright was extended to support the dynamic archi-

tectures description: conﬁguration program. To il-

lustrate this, we return to our example and we con-

sider a conﬁguration in which a server is composed

of two components managing the access in reading

and writing documents. The system is composed of

a client and a server (Primary: FlakyServer) inter-

connected via a connector. This server can frequently

run out. The idea consists in enabling the system to

change conﬁguration by replacing the primary server

with (Secondary: SlowServer) until the latter is ready

to function again.

Conﬁgurator Edition

new.U : User

→ new.Primary : FlakyServer

→ new.Secondary : SlowServer

→ new.L : FaultTolerantLink

→ attach.U.p.to.L.u

→ attach.Primary.p.to.L.s WaitForDown

where

WaitForDown = Primary.control.serverDown → detach.Primary.p.from.L.s

→ attach.Secondary.p.to.L.s → WaitForUP

 §

WaitForUp = Primary.control.serverUp → detach.Secondary.p.from.L.s

→ attach.Primary.p.to.L.s → WaitForDown

 §

Figure 8: Dynamic Wright speciﬁcation

In this conﬁguration program, the initial sequence

of actions (new and attach) builds the initial con-

ﬁguration. Then WaitForDown describes two situa-

tions: the system can run and successfully terminate

(§) or a fault can occur. If the primary server goes

down, the secondary server is in state on and the link

connector is reconﬁgurable, the primary server is de-

tached and is replaced by the secondary server. The

new conﬁguration then resumes its execution until it

terminates or the primary server comes up. Wait-

ForUp speciﬁes when the secondary server is off and

the connector is reconﬁgured. In this case, the sec-

ondary server is detached and is replaced with the pri-

mary server.

In order to dynamically manage the changes of an

architecture, Wright uses the conﬁguration program.

This makes the correspondence between the submit-

ted events and the reconﬁgurations to be performed

(Riveill and Senart, 2002). Hence, Wright allows to

specify, in an abstract and formal way, the dynamic

aspect: creation, connection, and remove of compo-

nents. However, in Wright, the speciﬁcation of recon-

EVALUATION AND COMPARISON OF ADL BASED APPROACHES FOR THE DESCRIPTION OF DYNAMIC OF

SOFTWARE ARCHITECTURES

193

ﬁgurations is limited. Indeed, Wright allows to spec-

ify only conﬁgurations which are known in advance.

5.3 The Acme language

Acme (Garlan et al., 1997) is a simple, generic soft-

ware architecture description language, provides in

part, a common interchange format between other

ADLs. The concepts offered by Acme (component,

connector, system, etc.) are sufﬁcient to describe the

architecture structure but are insufﬁcient to specify

precise information such as the dynamic of architec-

ture or the behaviour of components.

We consider again the collaborative editing ex-

ample. Here, we consider two components (Writer

and Fragment) bound by Rpc connector. The

Writer sends its requests via the reserve port and

the Fragment receives its requests via the protect

port. The Rpc connector has two roles callee

and caller. For to describe the dynamic of ar-

chitecture, Acme allows the translation of a com-

pletely static language toward a more dynamic lan-

guage such as Darwin and Rapide. In this exam-

ple (Figure 9), some properties were added. For

example, the property Aesop-style:style-id =

client-Server; shows that the writer in Acme is

deﬁned as a style in Aesop (Aesop is an ADL).

System Edition = {

Component writer = {

Port reserve;

Properties {

Aesop-style : style-id = client-Server;

source-code : external = "writer.c";

}} ... }}

Connector rpc = {

Roles {caller, callee}

Properties { ... }}

Attachments {

writer.reserve to rpc.caller ;

fragment.protect to rpc.callee

}}

Figure 9: Architecture with properties consideration

To summarize, we can say that Acme does not pro-

pose any new concept for describing the dynamic as-

pect. Acme allows to describe only the static aspect.

In addition, the concepts offered by Acme are insufﬁ-

cient to specify the behaviour of components.

6 EVALUATION RESULTS

ADLs can be divided into two classes. The conﬁgura-

tion languages and the description languages. Every

ADL has a particularity. Darwin and Olan emphasize

the dynamic aspect whereas Wright and Rapide em-

phasize the behavioural aspect.

With regard to the conﬁguration languages, we can

say that: Darwin’s lazy instantiation does not respond

to all of dynamic architecture needs. Whereas the dy-

namic instantiation has a major drawback: it is im-

possible to call dynamically created instances. The

collection concept offered by Olan allows to add and

delete components during execution. ArchJava en-

ables component creation, connection and destruction

but it does not allow to specify the behaviour of com-

ponents.

With regard to the description languages, we can

mention that: Rapide allows to describe the behav-

iour of components. However, this description ex-

presses only communicating events and does not con-

sider reconﬁguration operations. In Wright, the archi-

tectural changes are managed inside the conﬁguration

program. But these changes must be known in ad-

vance.

Finally, we can say that the dynamic aspect is not

well supported by ADLs. In spite of the great num-

ber of interesting proposals, these solutions are not

enough thorough. The majority of ADLs, are able to

manage only systems having a ﬁnite number of con-

ﬁgurations and known in advance. Then, it is impos-

sible to arbitrarily execute reconﬁguration operations

during run-time. Concerning the behavioural aspect,

we noted that even if the behaviour is described, this

emphasizes only the communication between compo-

nents and does not consider the events causing recon-

ﬁgurations.

7 CONCLUSION

In this paper, we have presented an overview of differ-

ent architecture description languages and their prop-

erties. We classiﬁed them according to conﬁguration

and description languages, and we focused in partic-

ular on their support for specifying the dynamic of

architectures and the behaviour of components. We

have noted that the majority of ADLs are concentrated

on the static description of architectures but the dy-

namic of architecture and the behaviour of component

are not enough expressed. Generally, the choice of the

appropriate ADL is difﬁcult and crucial. Such a lan-

guage must at the same time be intuitive and formal.

Many approaches based on the formal speciﬁcations

have also been used to describe the distributed sys-

tem behaviours. However, although they facilitate the

description of communications, they do not allow to

describe the components and their attributes.

UML2.0 is a promising notation to describe the

architecture of application. Moreover, it is a stan-

dard which includes various diagrams and notations

mastered through the majority of software architects.

Rather than building a new ADL, an interesting re-

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

194

search project consists to develop a generic environ-

ment around UML2.0 allowing to specify and design

a complete system. It allows to describe the static and

the dynamic aspect of architecture and the behaviour

of components.

REFERENCES

Accord (2002). Assemblage de composants par contrats en

environnement ouvert et r

eparti, etat de l’art sur les

langages de description d’architecture (adls). Projet

ACCORD, Technical Report Livrable 1.1-2, RNTL,

France.

Aldrich, J., Chambers, C., and Notkin, D. (2001). Archi-

tectural reasoning in archjava. In Proceedings of the

OOPSLA ’01 Workshop on Speciﬁcation and Veriﬁca-

tion of Component-Based Systems, pages 33–48, Sin-

gapore.

Allen, R. (1997). A Formal Approach to Software Archi-

tecture. PhD thesis, School of Computer Science,

Carnegie Mellon University.

Allen, R., Douence, R., and Garlan, D. (1998). Speci-

fying and analysing dynamic software architectures.

Journal of Fundamental Approaches to Software En-

gineering, 11(6):21–37.

Barais, O. (2002). Approche statique, dynamique et

globale de l’architecture d’applications r

eparties.

Master report, Ecole Mine de Douai, Laboratoire

d’Informatique fondamentale de LILLe.

Bellissard, L., Atallah, S. B., Boyer, F., and Riveill, M.

(1996). Component-based programming and applica-

tion management with olan. In Proceedings of Work-

shop on Distributed Computing Systems, pages 579–

595.

Dulay, J., Kramer, N., and Magee, J. (1993). Structuring

parallel and distributed programs. IEEE Software En-

gineering Journal, 8(2):73–82.

Garlan, D., Monroe, R., and Wile, D. (1997). Acme: An

architecture description interchange language. In Pro-

ceedings of CASCON’97, pages 169–183.

Medvidovic, N. and Taylor, R. (2000). A classiﬁcation and

comparison framework for software architecture de-

scription languages. IEEE Transactions on Software

Engineering, 26(1):70–93.

Rapide (1997). Guide to the rapide 1.0 language reference

manuals. Technical report, Group Computer Systems

Lab Stanford University.

Riveill, M. and Senart, A. (2002). Aspects dynamiques

des langages de description d’architecture logicielle.

L’Objet RTSI - L’objet. Coop

eration et syst

emes

a ob-

jets, 8(3).

EVALUATION AND COMPARISON OF ADL BASED APPROACHES FOR THE DESCRIPTION OF DYNAMIC OF

SOFTWARE ARCHITECTURES

195
