TABLE-DRIVEN PROGRAMMING IN SQL FOR ENTERPRISE

INFORMATION SYSTEMS

∗

Hung-chih Yang

UCLA Computer Science Department

4732 Boelter Hall, Los Angeles, CA 90095, USA

D. Stott Parker

UCLA Computer Science Department

4732 Boelter Hall, Los Angeles, CA 90095, USA

Keywords:

Table-Driven Programming, Object-Relational Databases, Dynamic Method Dispatch.

Abstract:

In database systems, business logic is usually implemented in the forms of external processes, stored proce-

dures, user-deﬁned functions, components, objects, constraints, triggers, etc. In this paper, we advocate the

idea of storing business logic – in the form of functions – as data in tables. This idea gives a basis for applying

the software-engineering methodology of table-driven programming in SQL. The query evaluation process

then needs only to be extended with mechanical evaluation of “joined” data and functions. This approach can

make understanding and maintenance of stored business logic transparent as relational data. In short, data and

functions are integrated in a relational manner. Using a common enterprise application as an example, we

demonstrate this methodology with an existing ORDBMS capable of storing polymorphic objects. We also

discuss this approach’s shortcomings and alternatives.

1 INTRODUCTION

One of the authors once participated in a decision-

support project that involved thousands of forecasting

models. These models were straightforward mathe-

matical formulas generated by a statistical software

package and stored in a relational database. They

were routinely joined with a set of data relations,

then evaluated to produce important business fore-

casts. The formulas were originally created in text

ﬁles, and a parser was used to separate coefﬁcients,

variables, and function calls from the formula struc-

tures. The separated formula components were then

stored in several normalized relations in the forms of

numbers, strings, and IDs. Formula structures were

stored in a relation as BLOBs. An external fore-

casting process routinely joined several data relations

with the formula relations and rebuilt forecasting for-

mulas with plugged-in variable values. Forecast val-

ues were then computed in the external process and

stored back in a relation. In order to reduce network

communication, function relations and data relations

were queried separately and a C++-implemented fore-

∗

This research was supported by NIH Grant

1P20MH065166-01, NIH Grant 1U54RR021813, and

the UCLA Center for Computational Biology (CCB), an

NIH Center of Excellence.

casting process had to simulate a nested loop join in

order to put data and reconstructed functions together.

This experience made us wonder: why can’t a rela-

tional database store formulas in a relation directly,

therefore formula tuples can be joined with data tu-

ples to generate results?

In fact, this functionality that is missing in RDBMS

is a programming methodology called table-driven

programming. This methodology is popular in script

programming and in parsers. Its basic principles are

(a) storing data and instructions in tables, and (b) con-

trolling programming logic by using conditions (or

states) that select data and instruction out of the ta-

bles for execution. The mechanism of selecting data

and instuctions is a general-purpose, straightforward,

and mechanical process. Each individual part of pro-

gramming logic can be easily replaced through updat-

ing values in tables. If only data is used to direct the

program logic, then the term data-driven is a more

precise description. For applying table-driven pro-

gramming in SQL, relational databases could provide

a vast repository for business logic and SQL queries

then offer transparent evaluation of business logic.

In this paper we ﬁrst discuss a methodology called

table-driven programming in SQL and present a

common enterprise database application that would

greatly beneﬁt from it. Later we discuss how to use

424

Yang H. and Stott Parker D. (2005).

TABLE-DRIVEN PROGRAMMING IN SQL FOR ENTERPRISE INFORMATION SYSTEMS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 424-427

DOI: 10.5220/0002526004240427

 SciTePress

ORDBMS to implement table-driven applications and

the drawbacks of this approach.

2 TABLE-DRIVEN

PROGRAMMING IN SQL

One great beneﬁt brought by relational databases is

the clear representation of data and their relationships,

but this beneﬁt does not extend to traditional stored

procedures and functions. Unlike relational tables,

the imperative nature of stored procedures is naviga-

tional. Convoluted subroutines calls make a program

hard to understand and maintain, and business logic

can be hidden beyond recognition, while Object-

Oriented (or Object-Relational) programming hides

meandering navigational behavior behind communi-

cations among objects. In order to make business

logic more transparent, we advocate the introduction

of table-driven programming in relational databases.

The goal is to transform the communications among

functional modules from explicit navigations in stored

procedures to declarative joins in a relational manner.

The design process of a table-driven system in-

cludes two stages: factor and assemble (or join).

Since this two-stage process is to apply the relational

model on programming code, we call it relational

programming as well.

• The Factor Stage

In this stage, a monolithic system of rules is split

into simple rules and formulas that can be stored

in attributes of normalized relations. After being

stored in a relation, they can be easily located and

manipulated just like other data. By contrast, main-

taining formulas in a lengthy procedure like the one

in ﬁgure 1 could be quite tedious and cumbersome.

• The Assemble (or Join) Stage

In the assemble stage, users can write declarative

queries to join tables of rules, formulas, and data

together to ﬁnd results. The query shown in ﬁgure 2

needs only join operations and evaluation of stored

functions.

Notice that in both stages, we utilize only SQL

constructs: functions of SQL expressions in the fac-

tor stage for storing granular business logic and SQL

queries in the assemble stage for a table-driven com-

puting process.

Developers may start a software project following

the traditional database design and analysis process.

During the design process, some of the relations

may contain function attributes. Once a schema is

ready, developers can build business logic working

on queries and views that join data and functions

together, rather than coding complicated imperative

stored or external procedures. Individual rules and

Table 1: Schema for a bonus computation system

Employees

EmployeeID EmployeeName Department BaseSalary

EmployeeBonus

EmployeeID BonusName BonusArgument

formulas can be easily replaced and redeﬁned dynam-

ically, while the overall picture of the business logic

stays unchanged in easy-to-understand queries. In a

traditional database design, the whole business logic

and subroutines may require rewriting if there is any

speciﬁcation change (even a minor one) and only data

can be dynamically changed (because data is deﬁned

relationally, not code).

3 EXAMPLE: COMPUTING

YEAR-END BONUS

Computing an employee’s pay has become more and

more complicated. Many kinds of deductions, re-

imbursements, direct transfers, and bonuses can be

added to an employee’s paycheck before or after tax.

Also there are a lot of company and government regu-

lations and ever-changing tax laws to consider. Worst

of all, all these factors can differ from person to per-

son because of the positions they have and the loca-

tions of their work, and those conditions are never

static. A common way of dealing with this pay-

check computing problem is to store numbers of rates,

bonuses, deductions, and direct transfers in relations

and use one or more stored or external procedures

to query these relations and calculate the ﬁnal pay-

check amount. In order to achieve correctness, great

scrutiny is needed for the ﬂowchart of the computing

process, and the procedures need to be reexamined,

maintained, and reloaded frequently for any change –

even a minor one.

In this section we will present an enterprise bonus

computation system implemented in both traditional

monolithic and table-driven manners. The nature

of bonus calculation is quite similar to the forecast-

ing process described at the beginning of this paper

– there are lots of straightforward rules dictating how

computing should be done.

3.1 A Monolithic Implementation

A common way to compute values like bonuses is to

store business logic in one or a small number of com-

plicated internal or external procedures – thus it is

monolithic. We start by implementing a couple of ta-

bles for this application: Employees, EmployeeBonus

(see table 1). In order to calculate a year-end bonus

for every employee, we also deﬁne a stored function

TABLE-DRIVEN PROGRAMMING IN SQL FOR ENTERPRISE INFORMATION SYSTEMS

425

CREATE OR REPLACE FUNCTION

GetBonus(EmployeeID IN INTEGER,

Department IN VARCHAR,

BaseSalary IN NUMBER,

BonusName IN VARCHAR,

BonusArgument IN NUMBER)

RETURN NUMBER AS

BEGIN

IF(Department=’CEO’)

THEN RETURN 2000000; END IF;

IF(BonusName=’Bonus for managers’) THEN

RETURN BaseSalary

(0.10 +

(CASE WHEN BonusArgument >= -0.05

THEN BonusArgument ELSE 0 END));

END IF;

IF(BonusName=’Bonus for Sales personnel’)

THEN RETURN BonusArgument; END IF;

IF(BonusName=’Bonus for Production personnel’)

THEN RETURN BaseSalary

(0.02 +

(CASE WHEN BonusArgument >= -0.005

THEN BonusArgument ELSE 0 END));

END IF;

IF(BonusName=’Bonus for R&D personnel’)

THEN RETURN 1000

BonusArgument; END IF;

IF(BonusName=’Bonus for HR personnel’)

THEN RETURN 500; END IF;

IF(BonusName=’Personal Achievement Bonus’)

THEN RETURN 1000; END IF;

RETURN NULL;

END GetBonus;

Figure 1: The GetBonus stored function.

called GetBonus. This function takes several argu-

ments which can be used for different scenarios. The

bonus computing process is then a query that joins

Employee and EmployeeBonus and applies GetBonus

on their attributes.

3.2 An ORDBMS Table-Driven

Implementation

An alternative design is to follow the table-driven

methodology. Besides the tables deﬁned in section

3.1, another table named Bonuses (see table 3) is cre-

ated to store bonus information that includes a func-

tion attribute called BonusFunction. It has a type of

(NUMBER, NUMBER) → NUMBER which means

that a bonus formula takes two NUMBER arguments

and returns a NUMBER as the result. However, if

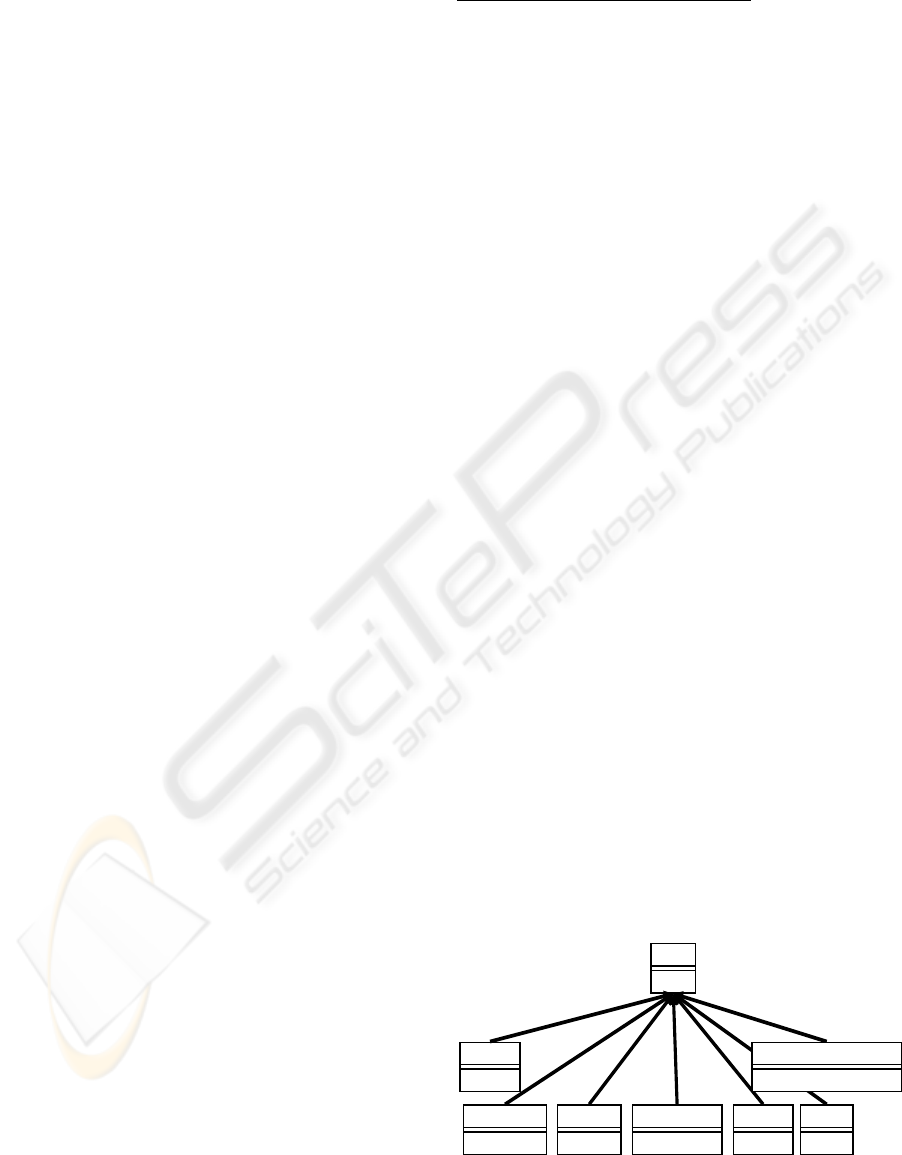

we use object types to emulate function attributes

(see section 4 and ﬁgure 3), then the business logic

is wrapped in object instances. For this emulation,

the base object type, Bonus, contains a method called

eval. During computing, a query will choose actual

arguments to join with bonus formulas. In this de-

sign, we stipulate that the ﬁrst argument is the base

salary of an employee (from Employees.BaseSalary)

and the second is an additional factor (from Employ-

eeBonus.BonusArgument). Some sample data for

Bonuses is listed in table 2. From the sample data,

a great diversity of bonus formulas can be devised

for employees in different positions and departments.

The formulas can also be easily modiﬁed through

DML operations. Finally, the qeury deﬁned in ﬁgure

2 is used to compute bonuses. It is a simple aggregate

that joins Employees, EmployeeBonus, and Bonuses

Table 3: Table Bonuses

Bonuses

BonusName BonusFunction Description

SELECT

Employees.EmployeeID EmployeeID

,SUM(Bonuses.BonusFunction.eval(

Employees.BaseSalary,

EmployeeBonus.BonusArgument)) BonusSum

FROM Employees

LEFT JOIN EmployeeBonus ON

Employees.EmployeeID = EmployeeBonus.EmployeeID

LEFT JOIN Bonuses ON

EmployeeBonus.BonusName = Bonuses.BonusName

GROUP BY Employees.EmployeeID;

Figure 2: A table-driven query to compute bonuses.

and applies BonusFunction.eval on attributes.

Comparing the monolithic implementation (section

3.1) and table-driven implementation (section 3.2), it

is quite obvious that the table-driven design can pro-

vide real great advantage in modeling and mainte-

nance – data and functions are integrated in a rela-

tional manner.

4 TABLE-DRIVEN

PROGRAMMING IN ORDBMS

In section 3.2, we have seen an enterprise application

implemented in the table-driven style. A natural ques-

tion is: how can we implement this application in an

existing relational database? To support table-driven

programming, a relational database must be able to

store business logic – in the form of function – as an

attribute of a table. As alluded in section 3.2, one

answer is to use an ORDBMS that supports dynamic

method dispatch (or polymorphism). Among com-

mercial and publicly available ORDBMS systems, we

found that ORACLE (ORACLE et al., 2003) and IBM

DB2 (IBM et al., 2002), to our best knowledge, are

the only two supporting dynamic method dispatch.

The ﬁrst step of implementing table-driven program-

ming in an ORDBMS is to create an object hierarchy.

Taking the object hierarchy of ﬁgure 3 as an exam-

ple, a base object type Bonus is created with a method

Bonus

eval()

CEOBonus

eval()

ManagerBonus

eval()

SalesBonus

eval()

ProductionBonus

eval()

R&DBonus

eval()

HRBonus

eval()

PersonalAchievementBonus

eval()

Figure 3: An object hierarchy for computing year-end

bonuses for a table-driven payroll system.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

426

Table 2: Sample data for the Bonuses table

Bonus Name Bonus Formula ((NUMBER, NUMBER)−→NUMBER) Description

Bonus for the CEO (DummyArgument0, DummyArgument1) −→ 2,000,000 The year-end bonus for the CEO is $2,000,000.

Bonus for managers (BaseSalary, Performance) −→ BaseSalary × (0.10 + (CASE WHEN Per-

formance ≥ -0.05 THEN Performance ELSE 0 END))

The year-end bonus for a manager is determined by a function of

their Performance.

Bonus for Sales personnel (DummyArgument0, Commission) −→ Commission The year-end bonus for Sales personnel is a lump sum commission

Bonus for Production person-

nel

(BaseSalary, Performance) −→ BaseSalary × (0.02 + (CASE WHEN Per-

formance ≥ -0.005 THEN Performance ELSE 0 END))

The year-end bonus for Production personnel is determined by a

function of their Performance.

Bonus for R&D personnel (DummyArgument0, NumberOfProjectsCompleted) −→ 1000 × Num-

berOfProjectsCompleted

The year-end bonus for R&D personnel is determined by a function

of the number of completed research projects.

Bonus for HR personnel (DummyArgument0, DummyArgument1) −→ 500 The year-end bonus for a HR personnel is $500.

Personal Achievement Bonus (DummyArgument0, DummyArgument1) −→ 1000 The personal achievement bonus is $1,000.

called eval. The overriding child implementations of

this method can be dynamically dispatched and used

for table-driven programming.

Using ORDBMS’s dynamic method dispatch is a

natural solution to implement table-driven program-

ming in SQL. However, object types were not de-

signed speciﬁcally for table-driven programming and

thus there are some limitations with this approach:

• Object type is quite heavy. Object types are cre-

ated and maintained in data deﬁnition language

(DDL) and stored in system catalog. A table-driven

application may possess thousands or even millions

of items of business logic. Creating millions of ob-

ject types to wrap this business logic can create a

great burden on the database system catalog.

• Code wrapped in objects is still not data. Be-

cause code wrapped in methods are attached to ob-

jects, they are not data (Gray et al., 2003) in the

sense that they cannot be accessed or manipulated

like ordinary data.

• Dynamic dispatch process is complex. To dy-

namically look for a pertinent method in an ob-

ject type hierarchy, an ORDBMS execution engine

would search either from the root object (DB2’s

approach) or from leaf objects (ORACLE’s ap-

proach). Either way is quite complex.

5 RELATED WORK

The idea of storing functional expressions (not func-

tions) as data values has been proposed before. Stone-

braker’s “Quel as a Data Type” (Stonebraker et al.,

1984; Stonebraker et al., 1987) treated QUEL queries,

statements and commands as a specialized kind of

string. A stored query could be used to represent a

set of records. The paper appeared just as the object-

oriented database movement started to gain momen-

tum, and perhaps for this reason failed to be imple-

mented in commercial systems.

The work of SQL Spreadsheets (Witkowski et al.,

2003) introduces spreadsheet-like computations into

RDBMS through SQL extensions. It provides an

efﬁcient alternative to simplify complicated OLAP

queries that otherwise are implemented in nested

views, subqueries, and complex joins. However

spreadsheet formulas are statically embedded in new

SQL clauses, making it difﬁcult to handle either dy-

namically changing formulas or a large number of

business formulas.

6 CONCLUSIONS

In this paper, we discuss the idea of applying the

table-driven programming methodology in SQL for

enterprise database applications. The main goal is to

integrate data and functions within a RDBMS in a re-

lational manner. Using an existing ORDBMS, devel-

opers can use a ﬂat object type hierarchy with poly-

morphic methods embedded in child types to emulate

this table-driven design. However, code wrapped in

an object is still not data and heavy – management of

object methods relies on DDL statements, instead of

DML. To avoid ORDBMS limitations, we currently

work on putting lightweight functions in RDBMS to

allow direct table-driven programming in SQL.

REFERENCES

Gray, J. et al. (2003). The Lowell Report. In Halevy, A. Y.,

Ives, Z. G., and Doan, A., editors, SIGMOD 2003,

page 680. ACM.

IBM et al. (2002). IBM DB2 Universal Database SQL Ref-

erence Volume 1 Version 8. IBM.

ORACLE et al. (2003). Oracle Database Application De-

veloper’s Guide - Object-Relational Features 10g Re-

lease 1 (10.1). Oracle.

Stonebraker, M., Anderson, E., Hanson, E. N., and Ruben-

stein, W. B. (1984). Quel as a Data Type. In Yor-

mark, B., editor, SIGMOD 1984, pages 208–214.

ACM Press.

Stonebraker, M., Anton, J., and Hanson, E. N. (1987). Ex-

tending a Database System with Procedures. TODS,

12(3):350–376.

Witkowski, A. et al. (2003). Spreadsheets in RDBMS for

OLAP. In Halevy, A. Y., Ives, Z. G., and Doan, A.,

editors, SIGMOD 2003, pages 52–63. ACM.

TABLE-DRIVEN PROGRAMMING IN SQL FOR ENTERPRISE INFORMATION SYSTEMS

427
