SOFTWARE MAINTENANCE EXPERT SYSTEM (SM

xpert

)

A Decision Support Instrument

Alain April, Jean-Marc Desharnais, Ph.D.

École de Technologie Supérieure, 1100 Notre-Dame West, Montreal, Canada

Keywords: Knowledge-based system, software maintenance, maturity

model, ontology, decision support.

Abstract: Maintaining and supporting the software of an organization is not an easy task, and software maintainers do

not currently

have access to tools to evaluate strategies for improving the specific activities of software

maintenance. This article presents a knowledge-based system which helps in locating best practices in a

software maintenance capability maturity model (SM

). The contributions of this paper are: 1) to

instrument the maturity model with a support tool to aid software maintenance practitioners in locating

specific best practices; and 2) to describe the knowledge-based approach and system overview used by the

research team.

1 INTRODUCTION

Knowledge transfer of a large number of best

practices, described in a maturity model, has proved

difficult (Abran et al., 2004) . This is especially true

during the training stage for an assessor or a new

participant in a process improvement activity. It is

also challenging to quickly refer to, or access, the

right practice, or subset of practices, when trying to

answer specific questions during or after a maturity

assessment.

The maturity model SM

contains a large

number of concepts and information which are

structured in many successive levels (April et al.,

2004b, 2002, April et al., 2004a). The first is called

the process domains level, and reflects the main

process knowledge areas of a maturity model. In the

, there are 4 process domains (process

management, maintenance request management,

software evolution engineering and support to

software engineering evolution). Each process

domain is broken down into one or more key

process areas (KPAs). These KPAs logically group

together items which conceptually belong together.

A KPA is further divided into roadmaps with one or

more best practices, spanning five SM

maturity

levels. The complete SM

has 4 domains, 18

KPAs, 74 roadmaps and 443 best practices.

It would be beneficial to have a knowledge-

based

system (KBS) to help access this complex

structure and large amount of information. A

potential solution to this problem would be to

develop a knowledge-based system for the SM

The proposed modeling of a software maintenance

KBS is based on the van Heijst methodology (Van

Heijst et al., 1997), which consists of constructing a

task model, selecting or building an ontology

(Uschold and Jasper, 2001), mapping the ontology

onto the knowledge roles in the task model and

instantiating the application ontology with this

specific domain knowledge. According to van

Heijst, there are at least five different types of

knowledge to be taken into account when

constructing such a system: tasks, problem-solving

methods, inferences, the ontology and the domain

knowledge

. For van Heijst, domain knowledge

refers to a collection of statements about the domain

(Van Heijst et al., 1997). The domain of this

specific research is software maintenance, and it is

divided into 4 process domains. Examples of

statements are presented in section 3. At a high

level, the ontology refers to a part of the software

maintenance ontology proposed by (Kitchenham and

et al., 1999) presented in section 4. The inferences,

problem-solving methods and tasks are described at

length in section 5. The tool environment and

conclusion, as well as future work, are presented in

sections 6 and 7. Section 2 begins by presenting the

goals of the SM

architecture.

van Heijst uses the different types of knowledge in a

more generic way than we do in this document, and these

have been adapted for us by Desharnais, J.-M.,Application

de la mesure fonctionnelle COSMIC-FFP: une approche

cognitive,, UQAM,2004 Montréal

142

April A. and Desharnais J. (2005).

SOFTWARE MAINTENANCE EXPERT SYSTEM (SMxpert) - A Decision Support Instrument.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 142-148

DOI: 10.5220/0002526601420148

 SciTePress

2 GOALS OF THE SM

ARCHITECTURE

The SM

was designed as a customer-focused

benchmark for either:

• Auditing the software maintenance capability

of a service supplier or outsourcer; or

• Supporting the process improvement activities

of software maintenance organizations.

To address the concerns specific to the

maintainer, a distinct maintenance body of

knowledge is required . The SM

is also designed

to complement the maturity model developed by the

SEI at Carnegie Mellon University in Pittsburgh

(CMMi, 2002) by focusing mainly on practices

specific to software maintenance. The architecture

of the model locates the most fundamental practices

at a lower level of maturity, whereas the most

advanced practices are located at a higher level of

maturity. An organization will typically mature from

the lower to the higher maturity level as it improves.

Lower-level practices must be implemented and

sustained for higher-level practices to be achieved.

3 SM

AND KNOWLEDGE

STATEMENTS

Software maintainers experience a number of

problems. These have been documented and an

attempt made to rank them in order of importance.

One of the first reported investigations was

conducted by Lientz and Swanson (Lientz and

Swanson, 1981). They identified six problems

related to users of the applications, to managerial

constraints and to the quality of software

documentation. Other surveys have found that a

large percentage of the software maintenance

problems reported are related to the software

product itself. This survey identified complex and

old source code which was badly documented and

structured in a complex way. More recent surveys

conducted among attendees at successive software

maintenance conferences (Dekleva, 1992) ranked

perceived problems in the following order of

importance (see Table 1). These are also examples

of knowledge statements about the domain of

software maintenance. Key to helping software

maintainers would be to provide them with ways of

resolving their problems by leading them to

documented best practices.

Table 1: Top maintenance problems (Dekleva, 1992)

Rank Maintenance problem

1 Managing fast-changing priorities

2 Inadequate testing techniques

3 Difficulty in measuring performance

4 Missing or incomplete software

documentation

5 Adapting to rapid changes in user

organizations

6 A large number of user requests in waiting

7 Difficulty in measuring/demonstrating the

maintenance team’s contribution

8 Low morale due to lack of recognition

9 Not many professionals in the field,

especially experienced ones

10 Little methodology, few standards,

procedures or tools specific to maintenance

11 Source code complex and unstructured

12 Integration, overlap and incompatibility of

systems

13 Little training available to personnel

14 No strategic plans for maintenance

15 Difficulty in meeting user expectations

16 Lack of understanding and support from IT

managers

17 Maintenance software running on obsolete

systems and technologies

18 Little will for reengineering applications

19 Loss of expertise when employees leave

There is a growing number of sources where

software maintainers can look for best practices, a

major challenge being to encourage these sources to

use the same terminology, process models and

international standards. The practices used by

maintainers need to show them how to meet their

daily service goals. While these practices are most

often described within their corresponding

operational and support processes, and consist of

numerous procedures, a very large number of

problem-solving practices could be presented in a

KBS which would answer their many questions

about those problems. Examples are presented in

section 5. When using the software maintenance

ontology in the KBS, it was necessary to consider

the structure of the maturity model relationship

between the many process domains, roadmaps and

practices. This problem is addressed next.

SOFTWARE MAINTENANCE EXPERT SYSTEM (SMxpert) - A Decision Support Instrument

143

Method

constrains

Client organisation

Client Human Resources

Process

Procedure

Modification Activity

Maintenance Activity

Maint. Manager

Management activity

Change Control

Event Management

Human Resource

SLA

approves

Technique

Paradigm

Users

Resource

uses

is used in

Maint. Human Resources

performs

CustomerMaint. Engineer

negotiates_with

Maintenance Management

Maintenance Planning

performs

Maintenance Training

informs

trains

Method

constrains

Client organisationClient organization

Client Human Resources

Process

Procedure

Modification Activity

Maintenance Activity

Maint. Manager

Management activity

Change Control

Event Management

Human ResourceHuman Resources

SLA

approves

Technique

Paradigm

Users

Resources

uses

is used in

Maint. Human Resources

performs

CustomerCustomerMaint. EngineerMaint. Engineer

negotiates_with

Maintenance Management

Maintenance PlanningMaintenance Planning

performs

Maintenance TrainingMaintenance Training

informs

trains

Method

constrains

Client organisationClient organisation

Client Human Resources

Process

Procedure

Modification Activity

Maintenance Activity

Maint. Manager

Management activity

Change Control

Event Management

Human ResourceHuman Resource

SLA

approves

Technique

Paradigm

Users

Resource

uses

is used in

Maint. Human Resources

performs

CustomerCustomerMaint. EngineerMaint. Engineer

negotiates_with

Maintenance Management

Maintenance PlanningMaintenance Planning

performs

Maintenance TrainingMaintenance Training

informs

trains

Method

constrains

Client organisationClient organization

Client Human Resources

Process

Procedure

Modification Activity

Maintenance Activity

Maint. Manager

Management activity

Change Control

Event Management

Human ResourceHuman Resources

SLA

approves

Technique

Paradigm

Users

Resources

uses

is used in

Maint. Human Resources

performs

CustomerCustomerMaint. EngineerMaint. Engineer

negotiates_with

Maintenance Management

Maintenance PlanningMaintenance Planning

performs

Maintenance TrainingMaintenance Training

informs

trains

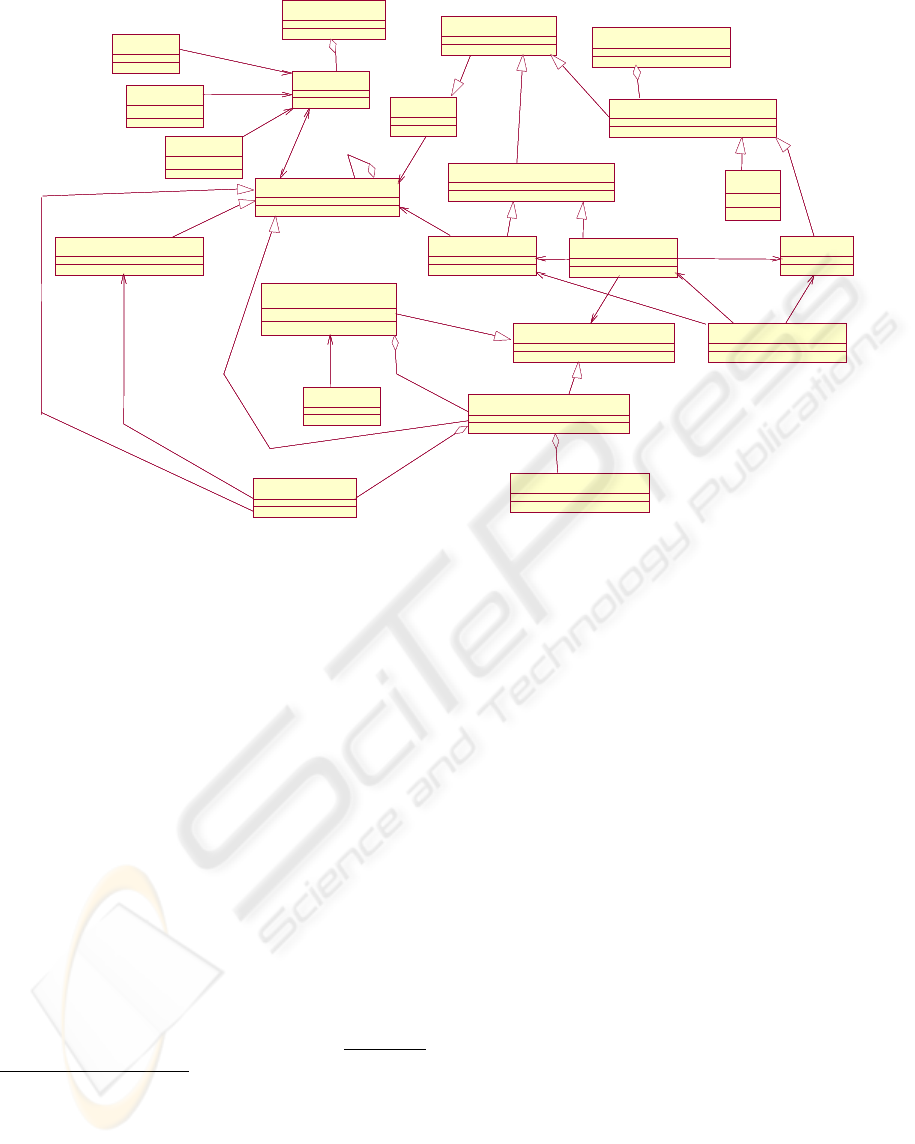

Figure 1: Part of the software maintenance ontology of (Kitchenham and et al., 1999)

4 ONTOLOGY OF THE

SOFTWARE MAINTENANCE

BODY OF KNOWLEDGE

We elected to implement only a subset of the

ontology developed by Kitchenham et al. (1999) for

the initial trial of this research project. The

Kitchenam ontology was chosen because its author

is well known in Software Engineering maintenance,

The following authors also write on the subject

(Vizcaíno et al., 2003), (Ruiz et al., 2004) and (Dias

et al., 2003) from the point of view of the

knowledge system. Figure 1 describes the different

maintenance concepts considered surrounding a

software maintenance activity. Software

maintenance is highly event-driven, which means

that some maintenance activities are unscheduled

and can interrupt ongoing work. This subset of the

ontology represents many, but not all, the concepts

involved in responding to the questions related to

the first problem identified by Dekleva: ‘Managing

fast-changing priorities.’ Maintainers agree that this

is the most important problem they face. How can

they handle the fast-changing priorities of the

customer? Solutions to this problem are likely to be

found by using many paths through the maintenance

concepts of the ontology. Navigation through these

concepts should lead to associated concepts which

are conceptually linked and likely to contribute to a

solution, like the need for better event management,

change control, maintenance planning, Service

Level Agreements, maintenance manager

negotiation, training, procedures, and so forth. Many

more concepts must be involved to contribute to all

aspects of the solution, but our purpose is to show

the utility of a KBS in the software maintenance

domain, and it therefore starts with a constrained

number of concepts. Maturity models typically

include the detailed best practices that could be of

help in solving this type of problem. The main issue

is that the best practice locations and their

interrelationships are hidden in the layered

architecture of the maturity model, specifically in its

process domains, KPAs and roadmaps. It is

therefore necessary to find a way to link this layered

architecture with the maintenance concepts of the

ontology and proceed to analyze the tasks required

to build a KBS to support the maintainers in their

quest for solutions. The next section describes the

navigation concepts that have been implemented in

xpert

. The user of the KBS navigates using a

sequence of tasks that will lead him through a

further sequence of tasks.

5 TASK ANALYSIS

According to (Van Heijst et al., 1997), the first

activity in the construction of a KBS is the definition

of task analysis. Task analysis begins, at a high

level, with a definition of an index of terms. This

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

144

index includes words commonly used in software

engineering (see Figure 2). From this index, a subset

of more restrictive words is identified. This subset is

a list of keywords recognized specifically in

software maintenance. Each keyword is then

connected to one or more maintenance concepts. A

maintenance concept, in software maintenance, is a

concept found in the Software Maintenance Body of

Knowledge and ontology (see Figure 2). Using the

software maintenance ontology, every software

maintenance problem identified by Dekleva has

been linked to themes (questions) which help the

user of the KBS to navigate to the part of the

maturity model that will propose recommendations

in the form of best practices.

Expanding the 5 high-level tasks in Figure 2, we

propose 15 detailed tasks (see Table 2) which will

help identify a best practice related to the SM

The link between the maintenance concepts and the

maturity model is made in the themes concept.

Themes are questions which have been developed to

hop from node to node in the ontology. A close look

at Figure 1 reveals that the themes concept can send

the user to another theme, to another maintenance

concept (up arrow), or, finally, to a recommendation

of the maturity model (down arrow). In Table 2, step

11, a number of themes, in the form of questions, are

presented to the user to guide him through the

network of maintenance concepts. For every best

practice, there are a number of themes (or choices)

from which the user can select (also called facts)

which will lead to a specific recommendation. There

are also a number of sub-tasks related to the

maintenance processes and the maintenance best

practices. (see Table 2). This step-by-step process

corresponds to the establishment of a diagnosis on

the basis of the identification of symptoms. It

indicates probabilities of occurrence of a specific

software maintenance problem. No symptom is

sufficient by itself to confirm the existence of a

specific problem. This is why we should use the

word “diagnosis”. The task model is used to help

“diagnose” the current maintenance practice and

map it to the maintenance model.

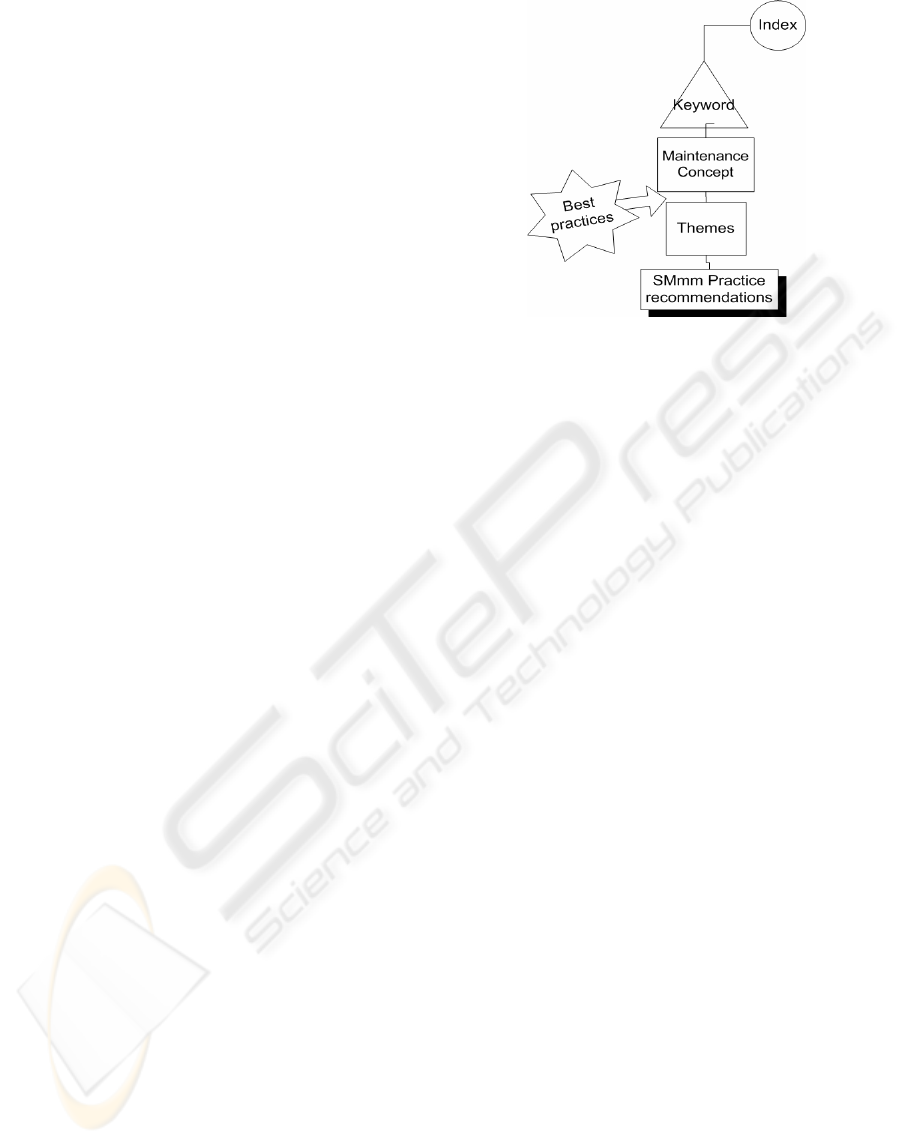

Figure 2: High-level view of SM

xpert

Appendix A shows how the KBS helps the user

answer the following question: How do we accept or

reject a new maintenance request?

6 TOOL ENVIRONMENT

The SM

xpert

KBS was built using Java script and

XML, and supports the SM

. The architecture,

design and implementation details of this KBS are

similar to those of the COSMIC KBS (Desharnais,

2003) which was developed as a diagnostic tool to

help IT personnel in the estimation of functional

size. The design of the KBS is based on using both

the case-based and ruled-based approaches

(Desharnais et al., 2002). The SM

xpert

KBS was

developed by two Master’s degree students from the

University of Namur, Belgium, during a research

exchange program with our university (Desharnais

et al., 2004). There is still a great deal of work

required to populate the knowledge base for all the

practices to allow users to obtain answers to

all the software maintenance problems identified by

Dekleva. Figure 3 shows an example of the user

layout. In this case, the user requests a

recommendation in a case where the service request

is very costly. A number of questions (themes) are

asked by the system. According to the answers,

there will be a specific recommendation which could

either suggest further research or provide an

opinion. There are also interfaces for both the

administrator and the expert. The administrator

interface manages access to SMXpert, while the

expert interface gives the expert the option of adding

new keywords, concepts, cases, themes and

recommendations.

SOFTWARE MAINTENANCE EXPERT SYSTEM (SMxpert) - A Decision Support Instrument

145

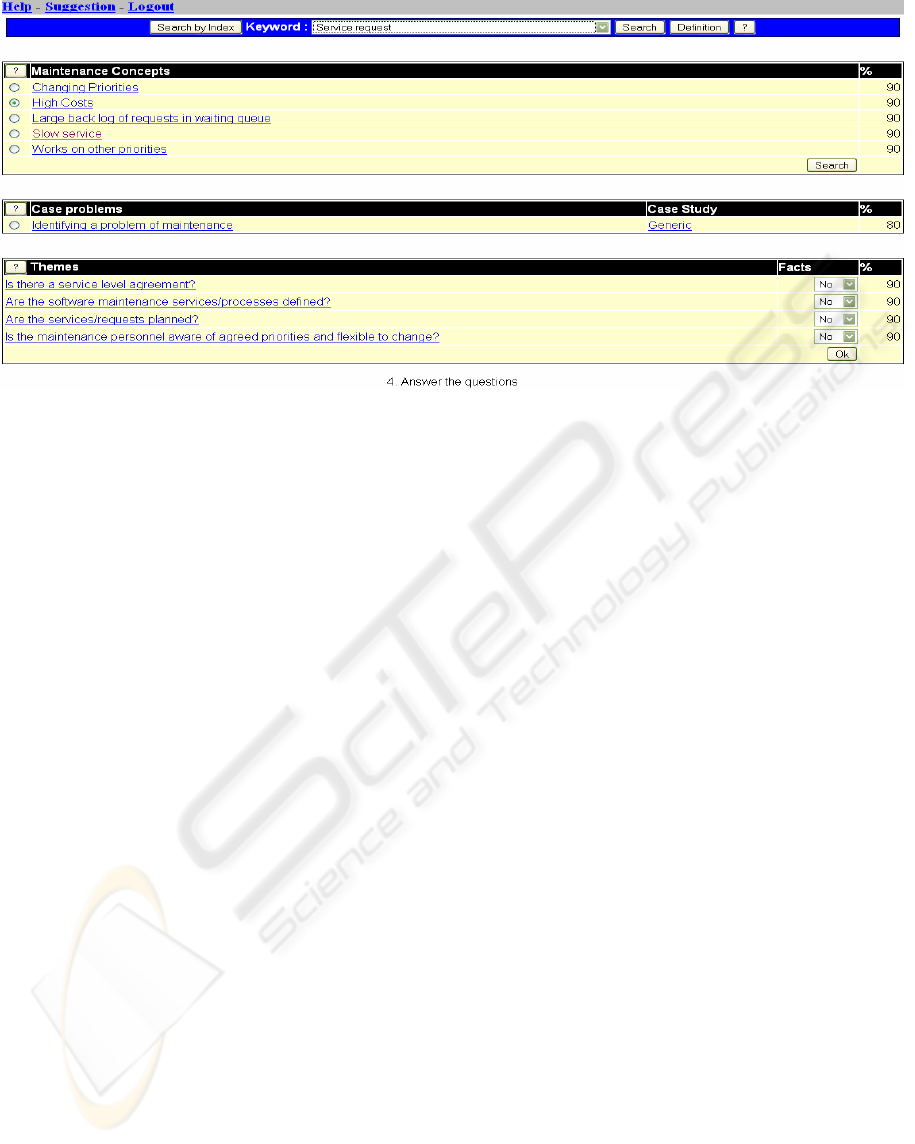

Figure 3: SM

xpert

user interface layout

7 CONCLUSION AND FUTURE

WORK

Identifying the best practices in a maturity model is

a difficult task, considering their number and the

multiple appropriate answers associated with each of

them. Our hypothesis is that a KBS could help in

finding an appropriate recommendation. The next

step in this research project is to populate the KBS,

validate the results with experts in the domain and

determine whether or not the KBS is a useful

support tool for training on the content of the

maturity model. It will be also necessary to improve

the interface, mainly for the sake of the expert.

REFERENCES

Abran, A., Moore, J. W., Bourque, P., Dupuis, R. and

Tripp, L.,Guide for the Software Engineering Body of

Knowledge (SWEBOK), Ironman version, IEEE

Computer Society Press: Los Alamitos CA,2004; 6-1-

6-15, Montréal, http://www.swebok.org [27 January

2005].

April, A., Abran, A. and Dumke, R. SMCMM Model to

Evaluate and Improve the Quality of the Software

Maintenance Process: Improvements, traceability and

conformity to standards, CSMR 2004 8th European

Conference on Software Maintenance and

Reengineering, (2004a) Tampere (Finland)

April, A., Abran A. and Dumke, R. Assessment of

Software Maintenance Capability: A model and its

Design Process, IASTED 2004, Conference on

Software Engineering (2004b), Innsbruck (Austria)

CMMi (Ed.) (2002) Capability Maturity Model

Integration for Software Engineering (CMMi),

Version 1.1, CMU/SEI-2002-TR-028, ESC-TR-2002-

028, Carnegie Mellon University.

Dekleva, S. M. Delphi Study of Software Maintenance

Problems, International Conference on Software

Maintenance (CSM 1992) (1992) IEEE Computer

Society Press: Los Alamitos CA

Desharnais, J.-M., Application de la mesure fonctionnelle

COSMIC-FFP: une approche cognitive, UQAM,

Montréal, 2003

Desharnais, J.-M., Application de la mesure fonctionnelle

COSMIC-FFP: une approche cognitive, UQAM,

Montréal, 2004

Desharnais, J.-M., Abran, A., Mayers, A., Buglione, L.

and Bevo, V. Knowledge Modeling for the Design of a

KBS in the Functional Size Measurement Domain,

KES 2002, IOS Press, Crema, Italy

Desharnais, J. M., Abran, A., Mayers, A., Vilz, J. and

Gruselin, F. (2004), Verification and validation of a

knowledge base system, KI, Special Issue on Software

Engineering for Knowledge-based Systems, Germany,

Dias, M. G., Anquetil, N. and Oliveira, K. M. (2003),

Organizing the Knowledge Used in Software

Maintenance, Journal of Universal Computer Science,

9, 7 64-658.

Durkin, J. (1994) Expert system: Design and

Development, Prentice Hall, New York.

Kitchenham, B. and et al. (1999), Towards an Ontology of

Software Maintenance, J. Softw. Maint:Res. Parct.,

11(6):365-389.

Lientz, B. and Swanson, E. (1981), Problems in

Application Software Maintenance, Communications

of the ACM, 24, 11, 763-769.

Ruiz, F., Vizcaino, A., Piattini, M. and Garcia, F. (2004)

International Journal of Software Engineering and

Knowledge Engineering, 14, 3 323-349.

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

146

Uschold, M. and Jasper, R. (2001), An ontology for the

management of software maintenance projects, In

Industrial Knowledge Management: a micro-level

approach,Bedford (UK), pp. 549-563.

Van Heijst, G., Schreiber, A. T. and Wielinga, A.,Using

Explicit Ontologies in KBS Development, 2003

University of Amsterdam, Department of Social

Science Informatics, Amsterdam, 1997

Vizcaíno, A., Favela, J. and Piattini, M. A multi-agent

system for knowledge management in software

maintenance, KES 2003 (2003), Springer Verlag,

Oxford, UK

SOFTWARE MAINTENANCE EXPERT SYSTEM (SMxpert) - A Decision Support Instrument

147

Appendix A: Task description of the KBS using Dekleva’s first problem

NO. TASK EXAMPLE

Accessing the index

The user enters a word that will identify a suggested keyword. As an example, the

user enters: Change in Priority

Choosing a resulting

keyword

The user will enter a keyword that will help the KBS find the most closely related

KPA and roadmap concepts. The system presents the following keywords: Change

Management, Change Control, Staff Rotation, Event and Service Request, Service

Level Agreement. The user chooses: Event and Service Request

Searching for a related

software maintenance

concept

The KBS presents the maintenance concepts (which are related to the KPA and

roadmap) to the user.

Giving priority to

concepts

The KBS will present the concepts in order of priority to the user. A percentage is

related to each concept. The expert has previously established this percentage. As an

example: 1) Event, 2) Process, 3) SLA, 4) Resource, 5) Change Control and 6)

Maintenance Manager.

Choosing a maintenance

topological concept

The user chooses one or multiple maintenance concepts, Event in our example

Displaying themes

With Event, there are 5 themes presented to the user in the forum of questions:

A) Is there a Service Level Agreement ?

B) Are the software maintenance services/processes defined ?

C) Are the services/requests planned ?

D) Are the maintenance personnel aware of agreed priorities and amenable to

change?

Choosing the status of

each theme

The user will find facts for each practice (theme). He can answer yes or no to any of

the themes.

Rating the status (facts)

An algorithm based on Bayesian Theory (Uschold and Jasper, 2001) is used to

calculate the rate (MYCIN approach). The algorithm rates the facts chosen.

Displaying the results

The resulting percentage relating to the best request management is shown to the user.

10.

Assessing the results

The formula is based on Bayesian Theory, as explained by (Durkin, 1994).

Case 1 – CF(CP) = CF(Theme1) = q_choice_perc*P_Q_perc

Case 2 – CF(CP) = CF(Theme1) *CF(Theme2)

Case 3 – CF1(Theme) = CFcombine[CF(Theme1, CF(Theme2)]

CF(CP) = CFcombine[CF1(Theme), CF(Theme3)]

Etc.

11.

Recommendation/explan

ation

no Æ Service Level Agreement

A yes Æ B yes Æ C yes Æ D Æ Improvement

no Æ Process

no Æ Maintenance Training

no Æ Maintenance Planning

no Æ Service Level Agreement

A yes Æ B yes Æ C yes Æ D Æ Improvement

no Æ Process

no Æ Maintenance Training

no Æ Maintenance Planning

The KBS will recommend the following solution (simplified for this paper):

12.

Displaying other best

practices

Another part of the recommendation will show a different option, like: route request

to account manager, interrupt work and insert in list of work, insert minor

enhancement in list of work.

13.

Displaying an

explanation

There is also the possibility of an explanation. In our case, the explanation takes up

one page and could not be presented here due to lack of space (April et al., 2004b)

14.

Acceptability

Depending on the case that the user has to solve, the recommendation/explanation

will be accepted or rejected. In our case, the user accepted the recommendation

because it was not necessary to refer the change request to another group based on the

criteria.

15.

Choosing best practices

(new)

The process could start again. In this example, the user decided to stop because he

considered he had enough information about the case. In a more complex situation,

more choices could be necessary.

ICEIS 2005 - ARTIFICIAL INTELLIGENCE AND DECISION SUPPORT SYSTEMS

148
