QUALITY OF SERVICE IN FLEXIBLE WORKFLOWS

THROUGH PROCESS CONSTRAINTS

Shazia Sadiq, Maria Orlowska

School of Information Technology and Electrical Engineering

The University of Queensland, St Lucia, Brisbane, Australia

Joe Lin, Wasim Sadiq

SAP Research Centre, Brisbane, Australia

Keywords: Flexible Workflows, Workflow Modelling, Process Constraints

Abstract: Workflow technology has deliv

ered effectively for a large class of business processes, providing the

requisite control and monitoring functions. At the same time, this technology has been the target of much

criticism due to its limited ability to cope with dynamically changing business conditions which require

business processes to be adapted frequently, and/or its limited ability to model business processes which

cannot be entirely predefined. Requirements indicate the need for generic solutions where a balance

between process control and flexibility may be achieved. In this paper we present a framework that allows

the workflow to execute on the basis of a partially specified model where the full specification of the model

is made at runtime, and may be unique to each instance. This framework is based on the notion of process

constraints. Where as process constraints may be specified for any aspect of the workflow, such as

structural, temporal, etc. our focus in this paper is on a constraint which allows dynamic selection of

activities for inclusion in a given instance. We call these cardinality constraints, and this paper will discuss

their specification and validation requirements.

1 INTRODUCTION

Process enforcement technologies have a dominant

role in current enterprise systems development. It

has been long established that automation of specific

functions of enterprises will not provide the

productivity gains for businesses unless support is

provided for overall business process control and

monitoring. Workflows have delivered effectively in

this area for a class of business processes, but typical

workflow systems have been under fire due to their

lack of flexibility, i.e., their limited ability to adapt

to changing business conditions. In the dynamic

environment of e-business today, it is essential that

technology supports the business to adapt to

changing conditions. However, this flexibility

cannot come at the price of process control, which

remains an essential requirement of process

enforcement technologies.

Providing a workable balance between flexibility

and c

ontrol is indeed a challenge, especially if

generic solutions are to be offered. Clearly there are

parts of the process which need to be strictly

controlled through fully predefined models. There

can also be parts of the same process for which some

level of flexibility must be offered, often because the

process cannot be fully predefined due to lack of

data at process design time. For example, in call

centre responses, where customer inquiries and

appropriate response cannot be completely pre-

defined, or in higher education, where study paths

resulting from individual student preferences cannot

be entirely anticipated.

In general, a process model needs to be capable

f capturing multiple perspectives (Jablonki &

Bussler, 1996), in order to fully capture the business

process. There are a number of proposals both from

research and academia, as well as from industry on

the modelling environment (language) that allows

these perspectives to be adequately described.

Sadiq S., Orlowska M., Lin J. and Sadiq W. (2005).

QUALITY OF SERVICE IN FLEXIBLE WORKFLOWS THROUGH PROCESS CONSTRAINTS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 29-37

DOI: 10.5220/0002526900290037

 SciTePress

Different proposals offer different level of

expressiveness in terms of these perspectives, see

e.g. (Sadiq & Orlowska, 1999), (Casati et al 1995),

(van der Aalst, 2003), although most focus on the

control flow (what activities are performed and in

what order).

Basically these perspectives are intended to

express the constraints under which the business

process can be executed such that the targeted

business goals can be effectively met. We see two

fundamental classes of these constraints:

Process level constraints: This constitutes the

specification of what activities must be included

within the process, and the flow dependencies within

these activities including the control dependencies

(such as sequence, alternative, parallel etc.) and

temporal dependencies (such as relative deadlines).

Activity level constraints: This constitutes the

specification of various properties of the individual

activities within the process, including activity

resources (applications, roles and performers), data

(produced and/or consumed), and time (duration and

deadline constraints).

In this paper, we focus on the flexible definition

of process level constraints. We see the level of

definition of these constraints along a continuum of

specification There is the completely predefined

model on one end, and the model with no

predefinition on the other. Thus the former only has

strong constraints (e.g. A and B are activities of a

given process, and B must follow A), and the latter

no constraints at all. The former extreme is too

prescriptive and not conducive to dynamic business

environments; and the latter extreme defeats the

purpose of process enforcement, i.e. with

insufficient constraints, the process goals may be

compromised and quality of service for the process

cannot be guaranteed. Finding the exact level of

specificity along this continuum will mostly be

domain dependent. However, technology support

must be offered at a generic level. There is a need to

provide a modelling environment wherein the level

of specification can be chosen by the process

designer such that the right balance between

flexibility and control can be achieved.

The work presented in this paper basically

discusses flexible process definition for a particular

class of constraints. In essence, a small number of

constraints are specified at design time, but the

process instances are allowed to follow a very large

number of execution paths. As long as the given

constraints are met, any execution path dynamically

constructed at runtime is considered legal. This

ensures flexible execution while maintaining a

desired level of control through the specified

constraints.

In the following sections, we first present the

modelling framework which allows flexible process

definition. We will then present the details of the

constraint specification and validation. In the

remaining sections, we will present some

background related work to appropriately position

this work, and finally a summary of this work and its

potential extensions.

2 MODELING FRAMEWORK

The modelling framework required for the

specification of process constraints is simple and has

minimal impact on the underlying workflow

management system. We assume that the underlying

WFMS supports a typical graph-based process

model and a state-based execution model. Such

process models support typical constructs like

sequence, fork, choice etc (Figure 1(a)), and activity

execution is based on a finite state machine with

typical states such as available, commenced,

suspended, completed (Figure 1(b)).

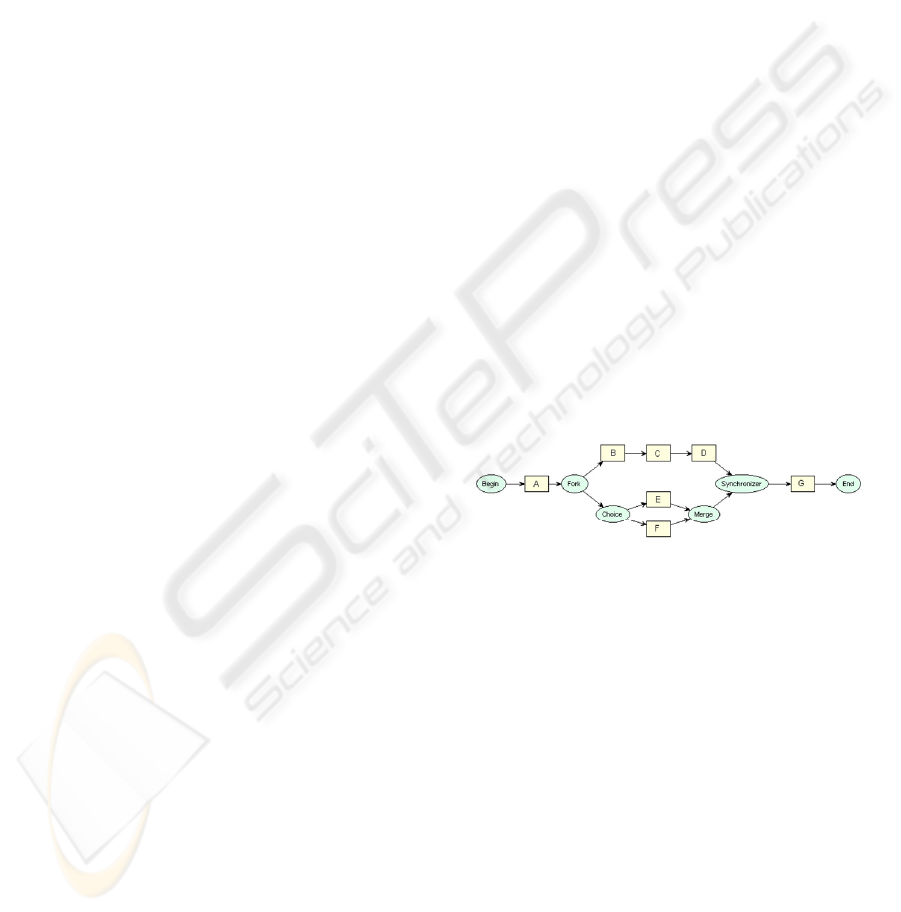

Figure 1: (a) Process Model

The workflow model (W) is defined through a

directed graph consisting of nodes (N) and Flows

(F). Flows show the control flow of the workflow.

Thus W = <N, F> is a Directed Graph where N:

Finite Set of Nodes, F: Flow Relation F ⊆ N Χ N.

Nodes are classified into tasks (T) and coordinators

(C), where C ∪ T, C ∩ T = φ.

Task nodes represent atomic manual / automated

activities or sub processes that must be performed to

satisfy the underlying business process objectives.

Coordinator nodes allow us to build control flow

structures to manage the coordination requirements.

Basic modelling structures supported through these

coordinators include Sequence, Exclusive Or-Split

(Choice), Exclusive Or-Join (Merge), And-Split

(Fork), And-Join (Synchronizer), and explicit begin

and end coordinators.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

A process model will have several activities. An

activity t ∈ T is not a mere mode in the workflow

graph, but has rich semantics which are defined

through its properties, such as input and output data,

temporal constraints, resources requirements etc.

Figure 1: (b) Activity Execution Model

An instance within the workflow graph

represents a particular case of the process. An

instance type represents a set of instances that follow

the same execution path within the workflow.

Let i be an instance for W.

∀ t ∈ N, we define ActivityState(t, i) Æ {Initial,

Available, Commenced, Completed, Suspened}

We propose to extend the above environment

with the following two functions:

A design time function of constraint

specification. To provide a facility to specify a pool

of activities (including sub-processes) and associated

constraints in addition to the core process model.

These activities are allowed to be incorporated in the

process at any time during execution, but under the

given constraints. The core process defines the un-

negotiable part of the process, and the pool of

activities and associate constraints define the

flexible part – thus attempting to strike a balance

between flexibility and control.

We associate with every process W, these two

additional elements of specification, namely the pool

of activities given by P, and a set of constraints

given by C. The definition of the flexible workflow

is thus given by <W, P, C>.

A run time function of dynamic instance

building. To allow the execution path of given

instance(s) to be adapted in accordance with the

particular requirements for that instance which

become known only at runtime. Thus the process for

a given instance can be dynamically built based on

runtime knowledge, but within the specified

constraint set C.

In order to provide explicit terminology, we call

the instance specification prior to building, an open

instance. The instance specification after building

we call an instance template. Thus the instance

template is a particular composition of the given

activities within the flexible workflow W

. The

instance templates in turn have a schema-instance

relationship with the underlying execution. In

traditional terms, the instance template acts as the

process model for the particular instance. Execution

takes place with full enforcement of all coordination

constraints as in a typical production workflow.

However, template building is progressive. The

process may be changed several times through the

available pool of activities and associated

constraints. As such the template remains open until

the process has reached completion.

Available Commenced

Suspended

Completed

Initial

Available Commenced

Suspended

Completed

Initial

The main feature of this approach is the

utilization of the constraint set C. In previous work,

we proposed the use of so called structural and

containment constraints for flexible workflows

(Sadiq et al, 2001), (Sadiq et al, 2004). The

constraints belonging to the structural class impose

restrictions on how activities can be composed in the

templates. The constraints belonging to the

containment class identify conditions under which

combinations of activities can(not) be contained in

the templates.

For example serial is a type of structural

constraint, where given activities must be executed

serially, i.e. not concurrently. However the choice of

order remains flexible and is determined by the user

during the build. A practical example of a serial

constraint can be found in healthcare. Pathologies

and medical imaging labs need to schedule a large

number of tests in different departments. A number

of tests can be prescribed for a given patient e.g.

blood test, X-Ray, ECG. These tests can be done in

any order but only one at a time. A serial constraint

on these activities will ensure this for a given patient

or instance.

In this paper, we introduce a new class of

constraints for flexible workflows. We call these

cardinality constraints. This new class is especially

interesting, because it provides a new means of

dealing with two well known challenges in

workflow specification, namely n-out-of-m joins and

implicit termination. In the sections below, we

introduce the framework for the specification of

cardinality constraints in flexible workflows. We

will also present a means of validating the

dynamically built instance (templates) against the

specified constraints.

QUALITY OF SERVICE IN FLEXIBLE WORKFLOWS THROUGH PROCESS CONSTRAINTS

3 CARDINALITY CONSTRAINTS

Cardinality constraints basically define the set of

tasks that must be executed within the process, to

guarantee that intended process goals will be met. In

other words, which tasks must essentially be

executed for a process to be considered complete.

The completion of W is explicit due to the

presence of an end coordinator and also since the

tasks within an instance type are pre-determined.

However, completion of W

is not explicit, since the

user may make different selections at run time from

the available pool of activities.

To further explain this, we define the function

Complete (W, i) Æ {True, False}, where

Complete (W, i) = True iff

∀ t ∈ T, ActivityState(t, i) = Completed | Initial

AND ∃ t ∈ T, ActivityState(t, i) = Completed

Complete (W

, i) = True iff

Complete (W, i) = True

AND ∃ P

⊆ P, such that

∀ t ∈ P

, ActivityState(t, i) = Completed

The interesting question is, how to define the

set of tasks that constitute P

. This requires

consideration at both the conceptual and

implementation level. As an example, consider the

tertiary education domain.

Today’s student communities are constantly

changing, with more and more part time, mature age

and international students with a wide variety of

educational, professional and cultural backgrounds.

These students have diverse learning needs and

styles. Where as degree programs are generally well

defined in terms of overall process constraints, it is

difficult to judge the quality of specific choices

made by students. Tertiary programs often offer a

diverse collection of courses that allow

specialisation on various aspects of a program. The

wide variety of valid combinations of courses that

satisfy a particular program’s requirement indicates

a high degree of flexibility.

The study of a simple program structure was

conducted. The program consisted of nine courses of

compulsory material and a further three courses of

elective material which are selected from a schedule

of 14 available electives. This was found to yield a

total of some 364 instance types, when considering

also the sequence in which the courses can be taken.

A further illustration considers a less structured

program, such as Arts or Science, where some 20 to

30 courses are required from a schedule that can

contain thousands of courses. A number of factors

impact on the choices made by the students

including changing areas of interest, changing

workload requirements and changing program rules.

The multiplicity of valid combinations of courses

that can be undertaken, and ensuring that these

satisfy the requirements of programs, particularly

where these requirements have changed during the

duration of the student’s enrolment constitute a

complex problem.

Although academic courses are not currently

deployed as workflow tasks in the typical sense, the

appropriateness of workflow modelling concepts has

been demonstrated (Sadiq & Orlowska, 2002).

Academic courses equate to process tasks, these

courses are interdependent and the academic

program represents a long duration business process.

At the same time, there is an inherent flexibility in

these processes, required for diverse student

requirements, which makes their modelling in

traditional prescriptive process definition languages

very difficult.

In the sections below, we will demonstrate how

the use of cardinality constraints within a flexible

workflow modelling framework provides an elegant

means of capturing the requirements of such

processes. Furthermore, the presented framework

also provides a simple means of ensuring that the

specified constraints are met for a given instance,

thus providing the essential validation support.

3.1 Specification

The specification of the task set P

that satisfies the

completion condition for W

can be done in three

ways:

1. Providing a static set of mandatory tasks which

must all be performed in a given instance. In

this case, the flexibility is found only in when

these tasks will be executed, not which ones.

We call this constraint include. Specification on

include is rather straightforward and can be

made as include: P

2. Providing a set of tasks, together with a minimal

cardinality for selection, that is at least n out of

m tasks must be performed in a given instance.

We call this constraint select. Specifying select

is also simple and can be made by providing the

set of tasks, together with an integer n, i.e.

select: (P, n), where P is the available pool of

activities for the flexible workflow. In this case

, is any subset of P where |P

| = n

3. Providing a set of tasks, a minimal cardinality

for selection, as well as prescribing some tasks

as mandatory. Thus, at least n tasks must be

preformed for a given instance, but this

selection of n tasks must include the prescribed

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

mandatory tasks. We call this constraint

minselect.

Specifying minselect requires further

consideration, which we present below.

We first introduce the notion of a family of set A,

as a collection of subsets of A. A notation to

represent a family of set A is given by (A`, k; A) and

is defined as follows:

|A| = n

A`⊆A such that |A`| = m,

Let k be such that m+k ≤ n,

(A`, k; A) = { A`∪ B | B ∈ 2

A\A`

and |B| = k}

(A`, k; A) represent a collection of subsets of set

A, such that each member of the collection is

composed from A` and B. To illustrate further, we

present the following simple example:

Let A = {a, b, c, d} and family F = (A`, k; A)

where A` = {a, b} and k = 1,

then F = {{a, b, c}, {a, b, d}}

There are number of elemental

subsets in the (A`, k; A) family. i.e. the cardinality

of the family can be computed by |(A’, k; A)| = (n –

m)!/k!(n – m – k)!.

⎟

⎠

⎞

⎜

⎝

⎛

− mn

The notation of (A`, k; A) has the expressive

power to represent a collection of subsets without

listing every single one. Basically all members of

(A`, k; A) family shares the common subset A` in

the set, and the remaining subset is selected from the

power set of the set difference A\A` where

cardinality equals to k. Thus A’ represents the

mandatory selection.

Since the list of all elements within the (A`, k;

A) family may become very large, modelling the

minselect constraint as (A`, k; A), provides an

effective means of capturing a large number of

choices effectively. Thus specification of this

constraint can be given as minselect: (P`, k; P),

where P is the available pool of activities for the

flexible workflow.

For example, the higher education degree

program referred to earlier has 14 courses to select

from (n = 14, i.e. |A| = n), 9 of which are

compulsory courses (m = 9, i.e. |A’| = 9), and with a

requirement to take at least 12 courses, students can

choose any three, or at least three from the

remaining courses, which indicates k = 3.

3.2 Validation

Once the flexible workflow has been defined,

including the core process, pool of activities, and

process constraints (which may include a number of

structural, cardinality or other constraints), instances

of the workflow may be created. Instance execution

will take place as in typical workflow engines, until

the time when a special purpose build function is

invoked. This function basically allows the instance

template to be modified. The next section will

elaborate further on how the flexible workflow is

managed by the WFMS.

In this section we are interested in what happens,

once the build function is invoked, and the instance

template has been modified. Clearly the ability to

modify the instance template on the fly provides the

much desired flexibility. However, the question is,

does the modification conform to the prescribed

process constraints?

Thus validating an instance template against a

given set of constraints needs to be provided. In the

context of cardinality constraints, this can be

achieved as follows.

In order to validate a dynamically built instance

template, we have to ensure that all tasks in P

are

part of the node set of the newly defined instance

template. This is required since the condition for

completeness of an instance of W

is dependent on

the task set P

. It can be observed that determining

in case of include and select constraints is a

relatively straight forward procedure. In the case of

minselect, P

is defined as an element in the family

of set P. That is, an instance i of W

, for which a

constraint of type minselect has been defined, can be

guaranteed to complete satisfactorily under the

following conditions:

Complete (W

, i) = True iff

Complete (W, i) = True

AND ∃ P

⊆ P, such that

∈ (P`, k; P)

AND ∀ t ∈ P

, ActivityState(t, i) = Completed

A very important question to ask is: what

happens if we want to specify several cardinality

constraints for the same workflow? Could potential

conflicts or redundancy arise within the constraint

set itself. If so, it must be resolved at design time,

that is before any instance templates are built under

that constraint set.

A number of relationships may exist between

constraints. For example two minselect constraints

may be specified:

minselect1: (P1’, k; P1)

minselect2: (P2’, k; P2)

QUALITY OF SERVICE IN FLEXIBLE WORKFLOWS THROUGH PROCESS CONSTRAINTS

where P1 and P2 are subsets of P, the given pool

of activities for W

How do we reason with the constraint set when

P1∩ P2 ≠φ. The full scope of this reasoning is

beyond the scope of this paper, however, (Lin &

Orlowska, 2004), presents an investigation into

dependencies between an arbitrary pair of (A’, k; A)

families. Three relationships have been identified

and analysed, namely Equivalent, Subsume and

Imply. This reasoning provides the first step towards

a complete analysis of the set of cardinality

constraints, in particular minselect.

Another important question to be asked is, when

is the instance template validated against prescribed

process constraints? Clearly, this must be done prior

to the instance resuming execution. In the next

section, we will provide a detailed view of the

procedure to manage the flexible workflow W

3.3 Managing W

Below we explain the functions of the flexible

workflow management system based on the

concepts presented in this paper. The discussion is

presented as a series of steps in the specification and

deployment of an example process. Figure 2

provides an overview diagram of these steps and

associated functions of the flexible workflow engine.

Process

Modeling Tool

Constraints

Validation

Engine

Process

Verification

Engine

Process

Enactment

Engine

Worklist

Manager

Process

Designer

Dynamic Instacne

Builder

Workitem

Performers

2,7

pplications /

Users Creating

Process Instances

5,6

Figure 2: Deployment of a Flexible Workflow

Step 1: The definition of the (flexible) workflow

model takes place. The core process, pool of

activities and associated constraints are defined.

Step 2: The process is verified for structural

errors. The validation of the given constraint set may

also takes place at this time.

Step 3: The process definition created above is

uploaded to the workflow engine. This process

model is now ready for deployment.

Step 4: For each case of the process model, the

user or application would create an instance of the

process model. On instantiation, the engine creates a

copy of the process definition and stores it as an

instance template. This process instance is now

ready for execution.

Step 5: The available process activities of the

newly created instance are assigned to performers

(workflow users) through work lists and activity

execution takes place as usual, until the instance

needs to be dynamically adapted to particular

requirements arising at runtime.

Step 6: The knowledge worker or expert user,

shown as the dynamic instance builder, will invoke a

special build function, and undertake the task of

dynamically adapting the instance template with

available pool of activities, while guided by the

specified constraint set. This revises the instance

template.

The build function is thus the key feature of this

approach which requires extension of the typical

WFMS functionality to include this additional

feature. Essentially the build function is the

capability to load and revise instance templates for

active instances.

Step 7: The next step is to verify the new

template, to ensure that it conforms to the

correctness properties of the language as well as the

given constraints.

Step 8: On satisfactory verification results the

newly defined (or revised) instance template

resumes execution. Execution will now continue as

normal, until completion or until re-invocation of the

build function, in which case steps 6-8 will be

performed again.

4 RELATED WORK

There have been several works reported in research

literature that aim towards providing the necessary

support for flexible workflows. So much so, that the

term flexible workflows has become rather

overloaded. It can range from process evolution, to

dealing with workflow exceptions, to flexible

modelling frameworks. We position this work in the

area of flexible modelling frameworks.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

Where as there has been substantial work on the

first two aspects, namely process evolution, see e.g.

(Ellis, Keddara and Rozenberg, 1995), (Joeris and

Herzog, 1998), (Kradolfer and Geppert, 1999),

(Sadiq, Marjanovic and Orlowska, 2000). and

exception handling, see e.g. (Reichert and Dadam,

1998), (Casati and Pozzi, 1999). In the area of

flexible workflow definition, the closest to our

approach is the approach followed by rule-based

workflows.

(Knolmayer, Endl and Pfahrer, 2000), for

example provides a rule based description of a

business process and transforms it, by applying

several refinement steps, to a set of structured rules

which represent the business process at different

levels of abstraction.. The underlying concept of

developing a workflow specification from a set of

rules describing the business processes is similar in

principle to the work presented here. However the

approach is primarily directed towards the

development of coordinated processes that span

enterprise boundaries by providing a layered

approach that separates the transformation of

business (sub-) processes and the derivation of

workflow specifications and does not address the

issue of catering for processes that cannot be

completly predefined.

Moving to the other end of our continuum for

organisational processes that spans from highly

specified and routine processes to highly unspecified

and dynamic processes we acknowledge the

significant work that has been performed in the

coordination of collaboration intensive processes in

the field of CSCW, see e.g. (Bogia and Kaplan,

1995). The complete relaxation of coordination, to

support ad-hoc processes is not conducive to the

processes targeted by our work.

However, structured ad-hoc workflows, where

patterns can be derived form the activities in the

process as a result of underlying rules to achieve

certain goals, have also been proposed (Han and

Shim, 2000). This allows the workflow system to

derive the workflow incrementally from workflow

fragments and avoids the need to predefine the

process prior to enactment. The completion of a

structured ad-hoc workflow instance allows flows to

be derived for other instances of workflows that

share the same process rules. Although defining

parts of a process incrementally rather than enacting

on a predefining process is similar to the underlying

assumption in our work. However the development

of this concept to address the modeling of processes

that cannot be eloquently predefined contains

significant differences as a result of the rules being

more explicit and consistent across instances.

Rule based approaches that make use of

inference mechanisms have also been proposed for

flexible workflows, (Abrahams, Eyers, and Bacon,

2002), (Kappel, Rausch-Schott, and Retschitzegger

2000), (Zeng et al, 2002). For example (Zeng et al,

2002) proposes PLM Flow, which provides a set of

business inference rules designed to dynamically

generate and execute workflow. The process

definition in PLMflow is specified as business rule

templates, which include backward-chain rules and

forward-chain rules. PLM Flow is a task centric

process model. The workflow schema is determined

by inferring backward-chain and forward-chain tasks

at runtime.

Some researchers have also made use of agent

technologies for flexible workflow definition e.g.

ADEPT (Jennings et al, 2000), AgFlow (Zeng et al,

2001), and RSA (Debenham, 1998). We present

brief summaries below.

ADEPT provides a method for designing agent-

oriented business process management system. It

demonstrates how a real-world application can be

conceived of as a multi-agent system.

AgFlow is an agent-based workflow system built

upon a distributed system. The system contains a

workflow specification model and the agent-based

workflow architecture. The process definition is

specify by defining the set of tasks and the workflow

process tuple. The control flow aspects can be

reflected in the task specific ECA rule.

RSA is an experimental distributed agent-based

system based on a 3-layer Believe-Desire-Intension

(BDI) architecture, hence the process definition is

reflected by the conceptual architecture of the

system as a whole.

Inspite of substantial interest from research

communities, our study shows that industry

acceptance of rule based approaches has been low.

Most commercial products continue to provide much

more visual languages for workflow specification.

Often some variant of Petri-nets, these languages

have the dual advantage of intuitive representation

as well as verifiability. A key distinguishing feature

of our approach from typical rule based approaches

is that the the core process as well as the instance

template can still be visualized in a graphical

language, as well as be supported by essential

verification.

5 CONCLUSIONS

Difficulties in dealing with change in workflow

systems has been one of the major factors limiting

the deployment of workflow technology. At the

same time, it is apparent that change is an inherent

characteristic of today’s business processes. In this

paper we present an approach that recognizes the

QUALITY OF SERVICE IN FLEXIBLE WORKFLOWS THROUGH PROCESS CONSTRAINTS

presence of change, and attempts to integrate the

process of defining a change into the workflow

process itself. Our basic idea is to provide a

powerful means of capturing the logic of highly

flexible processes without compromising the

simplicity and genericity of the workflow

specification language. This we accomplish through

process constraints in workflow specifications,

which allow workflow processes to be tailored to

individual instances at runtime.

Process constraints can be defined for a number

of aspects of workflow specification, including

selection of activities, as demonstrated in this paper.

In addition to selection, they can be defined for

structural, resource allocation, as well as temporal

constraints for and between workflow activities. One

can observe that the design of an appropriate means

to facilitate the specification of process constraints is

an interesting and challenging issue.

Another interesting and beneficial outcome of

the above approach is that ad-hoc modifications can

also be provided through essentially the same

functionality. Ad-hoc modification means that any

unexecuted part of the instance template may be

modified at runtime. This is possible since the

workflow engine provides the facility to modify

instance templates even in the absence of process

constraints. However, it is important to point out

that we advocate the approach using process

constraints over ad-hoc modification because it

provides greater control over allowable changes at

runtime.

The key feature of this approach is the ability to

achieve a significantly large number of process

models, from a relatively small number of

constraints. Extensions to the constraint set may be

envisaged, although it is arguable if such a complete

and generic set can be found, and hence achieving

flexibility still remains a matter of degree.

REFERENCES

van Der Aalst, W. M. P., ter Hofstede, A. H. M.,

Kiepuszewski, B., Barros, A. P. Workflow Patterns,

Distributed and Parallel Databases, vol.14 no.1, p.5-

51, July 2003.

Abrahams, A., Eyers, D., and Bacon, J. An asynchronous

rule-based approach for business process automation

using obligations. ACM SIGPLAN workshop on Rule-

based programming, 2002.

Casati, F., Ceri, S., Pernici, B., Pozzi, G. Conceptual

Modeling of Workflows. Proceedings of the 14th

International Conference on Object-Oriented and

Entity-Relationship Modelling, vol. 1021 LNCS,

pages: 341 – 354, Springer-Verlag, 1995.

Casati, F., Pozzi, G. Modeling Exception Behaviors in

Commercial Workflow Management Systems.

Proceedings of the Fourth IFCIS International

Conference on Cooperative Information Systems

(CoopIS99). Edinburgh, Scotland. Sep 2-4, 1999.

Debenham, J. Constructing an Intelligent Multi-agent

Workflow System. Lecturer Notes in Computer

Science: vol. 1502, Springer Verlag, 1998, pp. 119 -

130.

Ellis, S., Keddara, K., Rozenberg, G.. Dynamic Changes

within Workflow Systems. Proceedings of ACM

Conference on Organizational Computing Systems

COOCS 95 (1995).

Han, D. and Shim, J. Connector-oriented workflow system

for the support of structured ad hoc workflow,

Proceedings of the 33rd Hawaii International

Conference on System Sciences. 2000

Herrmann, T. Evolving workflows by user-driven

coordination, Proceedings of DCSCW, Munich,

Germany, 102–114, September 2000

Jablonski, S., Bussler, C. Workflow Management-

Modeling, Concepts, Architecture and

Implementation, International Thomson Computer

Press, 1996.

Jennings, N. R., Faratin, P., T. Norman ,J., O'Brien, P.,

Odgers, B., and Alty, J. L. Implementing a Business

Process Management System using ADEPT: a Real-

World Case Study. International Journal of Applied

Artificial Intelligence, vol. 14, pp. 421--463, 2000

Joeris, G., Herzog, O.. Managing Evolving Workflow

Specifications. Proceedings of the third IFCIS

International Conference on Cooperative Information

Systems (CoopIS 98). NewYork, USA. Aug (1998).

Kappel, G., Rausch-Schott, S., and Retschitzegger, W. A

Framework for Workflow Management Systems

Based on Objects, Rules and Roles. ACM Computing

Surveys, vol. 32, pp. 27 - 27, 2000.

Knolmayer, G., Endl R. and Pfahrer, M. Modeling

processes and workflows by business rules, van der

Aalst W. et al. (Eds.) Business Process Management,

LNCS 1806: 16–29. 2000

Kradolfer, M., Geppert, A.. Dynamic Workflow Schema

Evolution based on Workflow Type Versioning and

Workflow Migration. Proceedings of the Fourth

IFCIS International Conference on Cooperative

Information Systems (CoopIS99). Edinburgh,

Scotland. Sep 2-4, 1999.

Lin, J., Orlowska, M. A new class of constraints for

business process modelling. School of Information

Technology and Electrical Engineering, The

University of Queensland. Technical Report No. 453.

Nov 2004.

Reichert, M., Dadam, P. ADEPTflex - Supporting

Dynamic Changes of Workflow without loosing

control. Journal of Intelligent Information Systems

(JIIS), Special Issue on Workflow and Process

Management 1998.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

Sadiq W., Orlowska, M. On capturing Process

Requirements of Workflow Based Information

Systems. Proceedings of the 3rd International

Conference on Business Information Systems (BIS

’99), Poznan, Poland. April 14-16, 1999.

Sadiq, S., Marjanovic, O., Orlowska, M. Managing

Change and Time in Dynamic Workflow Processes.

The International Journal of Cooperative Information

Systems. Vol 9, Nos 1&2. March-June 2000.

Sadiq, S., Sadiq, W., Orlowska, M. Pockets of Flexibility

in Workflow Specifications. 20th International

Conference on Conceptual Modeling, ER’2001,

Yokohama Japan, 2001.

Sadiq, S., Sadiq, W., Orlowska, M. Workflow Driven e-

Learning – Beyond Collaborative Environments.

Networked Learning in a Global Environment.

Challenges and Solutions for Virtual Education.

Berlin, Germany May 1 - 4, 2002.

Sadiq, S., Sadiq, W., Orlowska, M. Specification and

Validation of Process Constraints for Flexible

Workflows. Information Systems (To appear).

Zeng, L., Flaxer, D., Chang, H., and Jeng, J.. PLMflow:

Dynamic Business Process Composition and

Execution by Rule Inference. 3rd VLDB Workshop on

Technologies for E-Services (TES'02), HongKong

P.R.China, 24-25 Aug 2002.

Zeng, L., Ngu, A., Bentallah, B., and O'Dell, M. "An

agent-based approach for supporting cross-enterprise

workflows," presented at 12th-Australasian-Database-

Conference.-ADC-2001, 2001.

QUALITY OF SERVICE IN FLEXIBLE WORKFLOWS THROUGH PROCESS CONSTRAINTS
