PROCESS ORIENTED DISCOVERY OF BUSINESS PARTNERS

Axel Martens

IBM T. J. Watson Research Center

Component Systems Group

Keywords:

Business Process Modeling, Web Service, BPEL4WS, UDDI, Process Model Matchmaking, Petri nets.

Abstract:

Emerging technologies and industrial standards in the ﬁeld of Web services enable a much faster and easier

cooperation of distributed partners. With the increasing number of enterprises that offer speciﬁc functionality

in terms of Web services, discovery of matching partners becomes a serious issue. At the moment, discovery

of Web services generally is based on meta-information (e.g. name, business category) and some technical

aspects (e.g. interface, protocols). But, this selection might be to coarse grained for dynamic application

integration, and there is much more information available. This paper describes a method to discover business

partners based on the comparison of their behavior – speciﬁed in terms of their published Web service process

models.

1 INTRODUCTION

To an increasing extend business processes are cross-

ing the borders of individual enterprises. This re-

quires the integration of the underlying business ap-

plications in a reliable but ﬂexible manner. Web ser-

vices (Alonso et al., 2002) provide a stack of closely

related technologies to cover the heterogeneity and

distribution of such processes underneath a homoge-

nous concept of components and composition. Each

self-contained work item or sub-process is wrapped

up and encapsulated as a Web service – a reusable

component with a standardized interface. The distrib-

uted application arises from composition of several

Web services that interact via existing protocols.

1.1 The scenario

In spit of all technical speciﬁcations, Web services are

not just another programming paradigm. They are the

core piece of the service oriented architecture

SOA

(Alonso et al., 2002) – a philosophy of transforming

business functionality into an article of trade, which

is available through a network, and which can be dis-

covered and integrated into an distributed application

on demand. To provide necessary background infor-

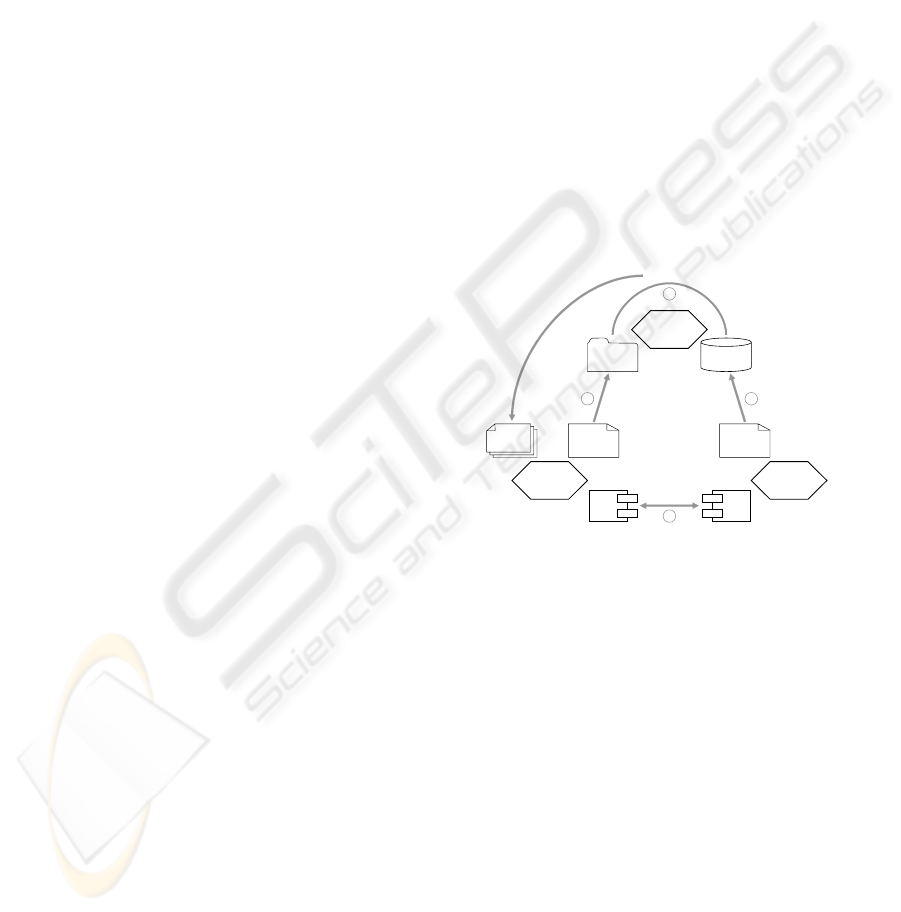

mation, Figure 1 shows the involved actors and their

activities. For one given Web service each participant

plays the role of a provider,arequestor or a broker.

The service provider offers a Web service to poten-

tial users by

publishing(1) its description in a reposi-

tory, called

UDDI (Bellwood et al., 2002). The Web

service description consists of several parts. Some

parts cover non-operational information (e.g. name,

publish

bind

find

Service

Requestor

Service

Provider

Service

Broker

Web Service

Service

Description

Service

Requirements

Service

Descriptions

Request

List of

Services

Environment

Discovery

Figure 1: Service Oriented Architecture (SOA)

address, business category, policies). This paper fo-

cuses of the technical parts, which cover, at the mo-

ment, basically the Web service interface description,

deﬁned in terms of

WSDL (Christensen et al., 2001).

As this paper will show, the Web service process

model should be include, as well – deﬁned in terms

of the Business Process Execution Language for Weg

Services

BPEL4WS (Andrews et al., 2002).

The service requestor wants to integrate a new Web

service into its application – which is called environ-

ment. Because the resulting composed system should

perform a desired task error free, the requestor de-

mands certain properties from the Web service to

ﬁnd(2). This paper presents an intuitive way to formu-

late those requirements in terms of a process model.

The service broker manages a repository of pub-

lished Web service description. His task is to

dis-

cover(3)

those services, which meet the needs of the

service requestor. In general, there might be more

Martens A. (2005).

PROCESS ORIENTED DISCOVERY OF BUSINESS PARTNERS.

In Proceedings of the Seventh Inter national Conference on Enterprise Information Systems, pages 57-64

DOI: 10.5220/0002527300570064

 SciTePress

than one matching service. Hence, the broker presents

the requestor a list of candidates. Finally, the re-

questor chooses one service and integrates it into his

environment. This activity is called

binding(4). Due

to the presented discovery mechanisms, compatibility

on the process level between the environment of the

requestor and any discovered service is guaranteed.

1.2 The approach

Apparently, the quality of the matching between a

Web service description and the requested properties

has a strong inﬂuence on the convenience and success

of the binding. At the moment, matching of technical

aspects is limited to comparison of the interface de-

scription, which might not gain sufﬁcient precision. It

is possible that the internal structure of a discovered

service does not meet the customers needs although

it has the required interface. For example, a service

requestor is searching a shopping service that delivers

an ordered product and requires payment afterwards.

Focused on the interface only (sending product, re-

ceiving payment), the discovery mechanisms might

point to a service that requires payment ﬁrst. Obvi-

ously, there is a mismatch between the desired and

the discovered service. In that sense, the matching

criterion is not adequate.

Instead of considering the Web service interface

description only, this paper presents a matching

mechanism that additionally compares the behavior

of Web services – which is deﬁned by the Web ser-

vice process model. To enable this comparison, three

activities of the service oriented architecture has to

be enhanced as follows: First, the service provider

publishes a

BPEL process model as an additional part

of the service description. Second, the service re-

questor models his requirements in terms of an (ab-

stract)

BPEL process model as well, similarly to the

Query-By-Example approach of database theory. And

third, the service broker compares the behavior of the

published and requested process models – in addition

to the established discovery mechanisms – which in-

creases the precision dramatically.

This paper explains, how already existing efﬁ-

ciently executable formal methods can be used to per-

form the necessary step. Therefore, Section 2 in-

troduces the Web service process modeling language

BPEL4WS by help of an example and discusses the

matchmaking requirements. Section 3 presents a

formal representation of the Web service behaviors

and derives the property of simulation between two

process models. This properties the foundation of

the proposed matchmaking mechanism. In Section 4,

the integration into the service oriented architecture

is demonstrated in different ways, and more advanced

use cases are discussed. Finally, the conclusion re-

lates this approach to other published research efforts.

2 PROCESS MODELING

The Business Process Execution Language for Web

Services

BPEL4WS (Andrews et al., 2002) is in the

very act of becoming the industrial standard for mod-

eling Web service based business processes. Hence,

this language is used in this paper to specify, imple-

ment and compare the behavior of Web services. Fig-

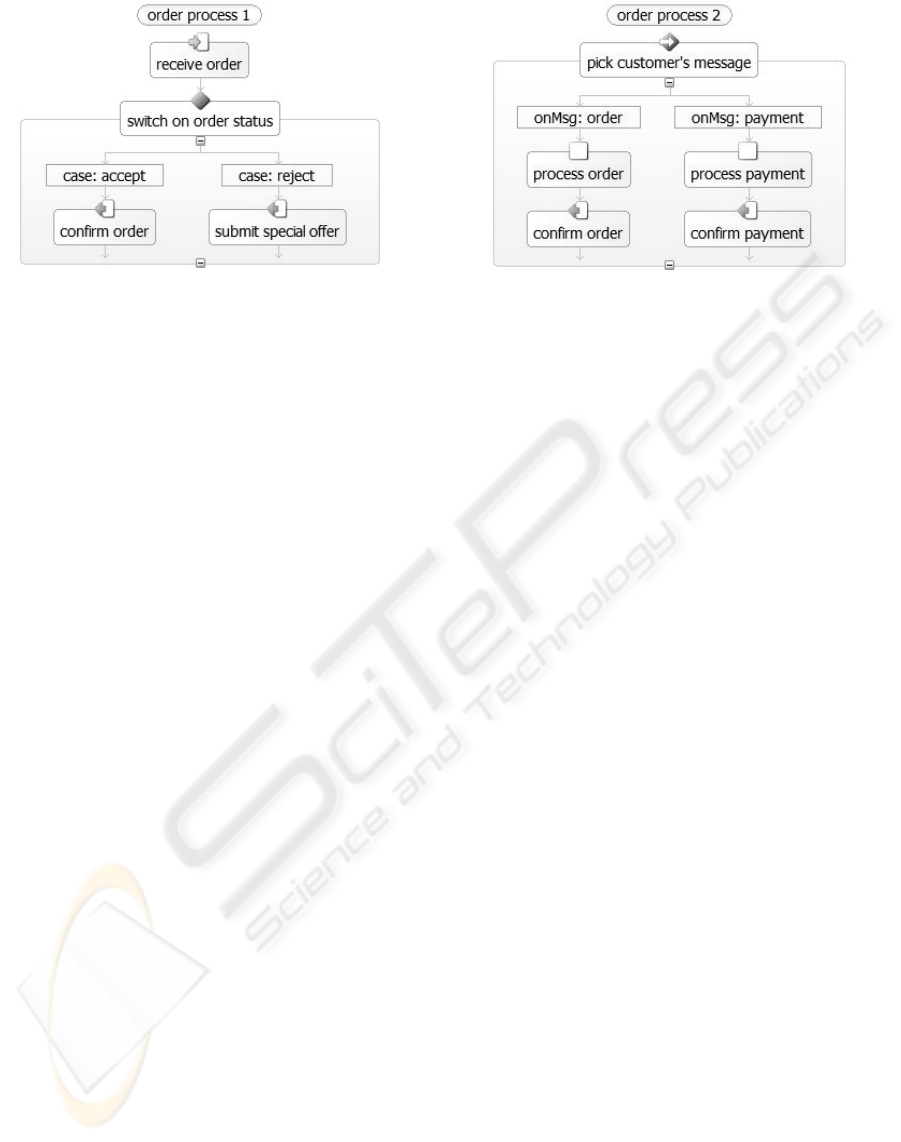

ures 2 and 3 show two

BPEL models of two different

Web services processing incoming orders.

2.1 Modeling with BPEL4WS

Basically, a BPEL process model consists of two dif-

ferent kinds of activities: Basic activities are used to

communicate to the outside e.g.

receive order, con-

ﬁrm order

in Figure 2), to manipulate data or to in-

terfere with the control ﬂow, e.g. by signaling faults

(not present in the examples). Structured activities

aggregate other activities and therefore, they are used

to build the control structures of the process: A se-

quence is the simplest structured activity. Alternative

branches can be either based on data (

switch on order

status

in Figure 2) or based incoming on messages

(

pick customer’s message in Figure 3). The parallel

execution of activities might be synchronized by di-

rected links (cf. Figure 8). Moreover,

BPEL4WS al-

lows the repeated of activities, which does not appear

in the chosen examples.

Let’s have a closer look on

orderprocess1, shown

in Figure 2. Its structure is quite simple: First, this

service receives an

order from a customer. Then, the

service chooses one out of two alternative branches.

Either the

order is accepted and a conﬁrmation is send,

or the

order is rejected (e. g. because the product is out

of stock). In that case, the customer gets the shop’s

special offers instead. It is not speciﬁed, how the de-

cision between these two branches is made.

Let’s assume, this process model was speciﬁed by

the service requestor, and therefore, it is called spec-

iﬁcation. According to the service oriented architec-

ture, the requestor is looking for a Web service that

could be bind to his environment, such that the result-

ing composed system performs the desired task error

free. In other words: The environment and the dis-

covered Web service have to be compatible – a prop-

erty that could be proven effectively as described in

(Martens, 2005a).

Of course, the

BPEL model of order process 1 was

designed such that it speciﬁes the required function-

ality, and it is compatible to the requestor’s environ-

ment. Hence, each Web service that is to be dis-

covered should behave very much like this process

model. If this is the case, the Web service is called

implementation. To verify whether a discovered Web

service is a valid implementation of a speciﬁcation, in

the next section the notion of simulation between their

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

Figure 2: The requested Web service

behavioral models is deﬁned. But before going into

the precise formalism, the overall intuition of simula-

tion shall be explained by comparing the speciﬁcation

with the

BPEL model of order process 2.

2.2 Matching process models

Figure 2 shows the process model of a published Web

service. The structure of this process model differs

a lot from the previously explained

order process 1,

and so does the behavior. Similarly to the speciﬁca-

tion,

orderprocess2 is able to receive an order from

the customer right at the beginning. But, it also can re-

ceive the

payment. In case of an order, orderprocess2

performs an internal activity and sends always a con-

ﬁrmation

. It does neither have the possibility to reject

order nor to send some special offers instead.

In spite of all differences, it is reasonable to

call

orderprocess2 a valid implementation of order

process1

. To prove this statement, the compatible en-

vironments of

orderprocess1 have to be considered.

Each of those environments always will send an

order

to the service, because this is the only message that

could be received by

orderprocess1. This message

could be received by

orderprocess2,

as well. After sending the

order, an compatible

environment has to be able to receive a

conﬁrma-

tion

, because order process 1 could decide to send

this message. Because this is the only response

or-

derprocess2

is able to send, the environment is per-

fectly compatible to

orderprocess2. Moreover, such

an environment is not able to see any difference be-

tween those two Web services.

This example already poses some requirements to

the notion of simulation. The implementing service

has to be able to accept at least those messages, the

specifying service can accept, and the implementing

service is allowed to produce at most those messages,

the specifying service can produce – always in re-

spect of the current state, i. e. the history of com-

munication. Nevertheless, the implementing service

Figure 3: A published Web Service

does not need to cover all behavior of the specifying

service, and the implementing service might provide

additional behavior. The next section pinpoints the

common pattern. At least, there must be a subset of

the specifying service’s behavior that is performed in

the same manner by the implementing service. In the

chosen example, the sequence of receiving and con-

ﬁrming an order is such a subset.

3 COMPARING BEHAVIOR

The presented approach to Web service discovery is

based on the comparison of the behavior – speciﬁed

in terms of their published

BPEL process models. But,

the semantics of

BPEL4WS so far is deﬁned only by

English prose or encoded into middleware compo-

nents, more ore less accurately. To reason precisely

about the current state and activated actions, and to

prove properties like the simulation of two models,

a formal and explicit semantics of the language is

needed. This paper is based on a formal Petri net

semantics(Schmidt and Stahl, 2004) for

BPEL4WS,

which enables the automatic generation of an explicit

behavioral model. This section gives a short overview

on the algorithmic steps related to the examples, and

refers to detailed explanations in other publications.

3.1 BPEL transformation

Petri nets are a well established method for mod-

eling and analyzing (cross-organizational) business

processes(van der Aalst, 1998a; van der Aalst,

1998b). Beside the already mentioned

BPEL seman-

tics, other recent research projects apply Petri nets to

Web Services (Hamadi and Benatallah, 2003).

Basically, a Petri net consists of a set of transitions

(boxes), a set of places (ellipses), and a ﬂow relation

(arcs)(Reisig, 1985). A transition represents a dy-

namic element, i.e. an activity of a business process

PROCESS ORIENTED DISCOVERY OF BUSINESS PARTNERS

(e.g. receive order). A place represents a static ele-

ment, i. e. the causality between activities or a mes-

sage channel (e.g. order). The state of a Petri net

is represented by black tokens distributed over the

places. While transforming a

BPEL process into a

Petri net, each element of the source language is rep-

resented by a modular Petri net pattern. Hence, the

process structure is still visible in the resulting net.

In contrast to the original

BPEL process, the re-

sulting Petri net abstracts from data aspects, i.e.

each data driven decision is mapped into a non-

deterministic choice. This is a usual procedure in the

ﬁeld of computer aided veriﬁcation. On the one hand,

a model without data has the disadvantage of less pre-

cision (i. e. a more general behavior). But on the other

hand, this enables analysis methods yielding impor-

tant results that are not applicable to models with full

expressive power of arbitrary data objects.

Because of the possible loss of information, the im-

plemented transformation provides the feature of user

interaction. On speciﬁc points that a crucial for the

process’ behavior, the user may add structure to the

Petri net. Thereby, data dependencies are transformed

into control dependencies (cf. Section 4.2).

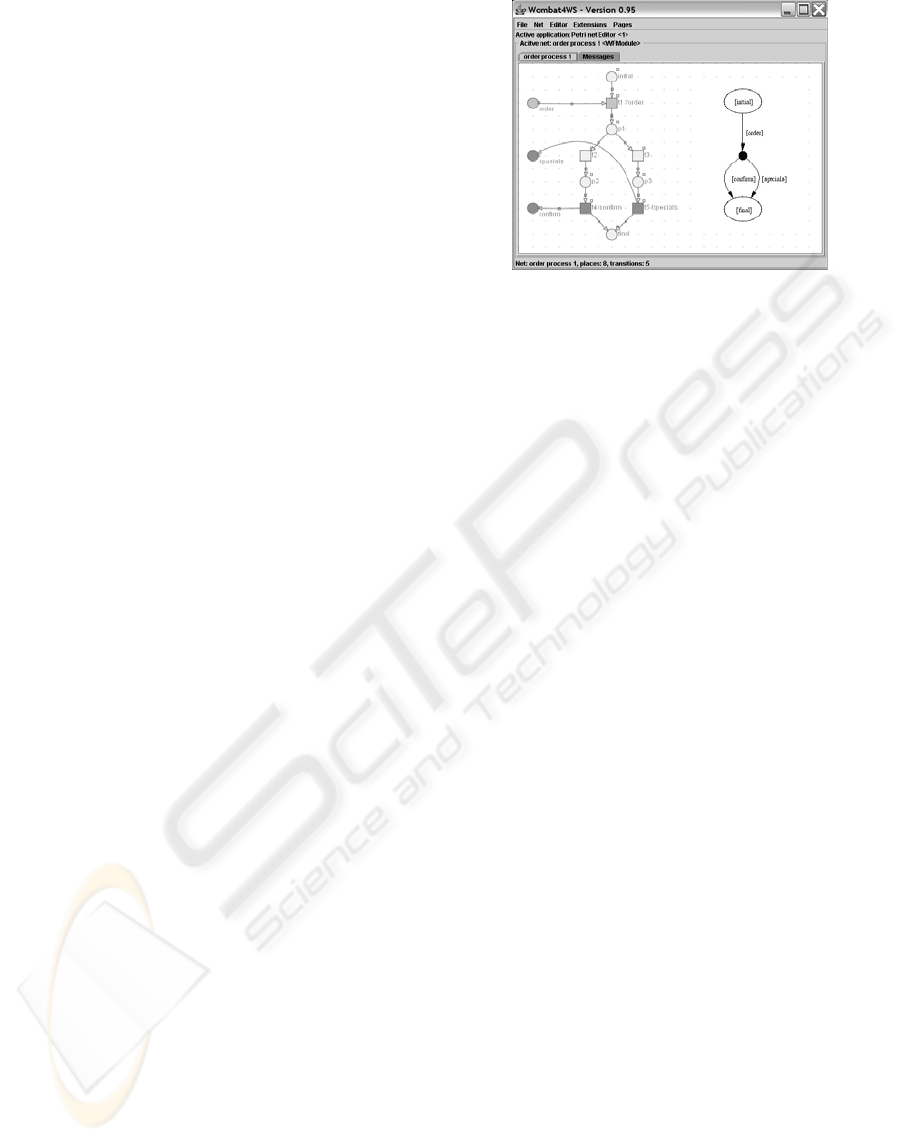

Figure 4 shows a screenshot of the Web service

analysis tool

WOMBAT4WS (WOMBAT4WS, 2003, ). In

the left half, it shows the generated Petri net model of

the

orderprocess1 (cf. Figure 2). Based on the trans-

formation into Petri net,

WOMBAT4WS provides sev-

eral analysis methods for

BPEL processes: the check

of usability of a given Web services(Martens, 2004),

the check of compatibility (Martens, 2003) of two

Web services, the automatic generation of an abstract

process model for a given Web service, and the check

of simulation between two Web services(Martens,

2005b) – which is the base for presented discovery

mechanisms. The following two paragraphs reﬂect

the idea of simulation and its veriﬁcation.

3.2 Behavioral model

In this approach, the comparison of the behavior is

not deﬁned on the generated Petri net models directly.

This is because those models reﬂect the entire struc-

ture of the corresponding

BPEL processes, and there-

fore they might contain details that have no direct im-

pact on the communication with the environment. In-

stead, an explicit representation of the externally vis-

ible behavior is derived – called the communication

graph (c-graph) of a

BPEL process. A c-graph is a

ﬁnite deterministic automaton. In the right half, Fig-

ure 4 shows the c-graph of the

orderprocess1.

The nodes of a c-graph are divided into two classes:

visible nodes (white ellipses) and hidden nodes (black

dots), and its edges are labeled with messages either

received (e. g.

order) or send (e. g. conﬁrm) by the

process. A visible node represents a state in which

Figure 4: Transformation into a behavioral model

the process is either waiting for an input message or

already terminated. Hence, the c-graph’s initial node

and its ﬁnal nodes are visible. A hidden node repre-

sents a state in which the process is able to produce

an output message. Each visible node is followed by

a hidden node and vice versa. A path from the initial

node to the ﬁnal node represents a communication se-

quence between the process and its environment.

Because a

BPEL process is able to consume mes-

sages from the environment and to produce answers

depending on its internal state, the state of the process

is important – simple message traces do not pro-

vide the same precision (cf. (van Glabbeek, 1990)).

But, an environment, which wants to use this process,

has no explicit information on its internal state. In-

stead, an environment can deriveinformation from the

process model by considering the history of commu-

nication, only. Consequently, an environment might

gain implicit information. Exactly that kind of infor-

mation is represented within the c-graph of the

BPEL

process.

In general, the c-graph of a

BPEL process may con-

tain multiple leaf nodes. But in each c-graph, there

is at most one leaf node, which is labeled with the

proper ﬁnal state of the Petri net model. All other

leaf nodes contain at least one state, where there are

messages left, or which marks a deadlock state of the

Petri net. If an environment was communicating with

the process according to a path towards such a leaf

node, the composed system of the process and the en-

vironment will end up in an erroneous situation. The

elimination of all such erroneous sequences yields a

(possibly empty) subgraph that can be regarded as

an user manual of the module – called the usabil-

ity graph (u-graph). A c-graph may contain several

u-graphs, in general. In all chosen examples, the

whole c-graph also is one u-graphs of the correspond-

ing

BPEL process. The precise, mathematical deﬁni-

tion of all notions mentioned above and a discussion

on the complexity of the generating algorithms is pre-

sented in (Martens, 2005a).

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

payment

receipt

order

confirm

order

specials

confirm

initial

final

initial

final

order process 1 order process 2

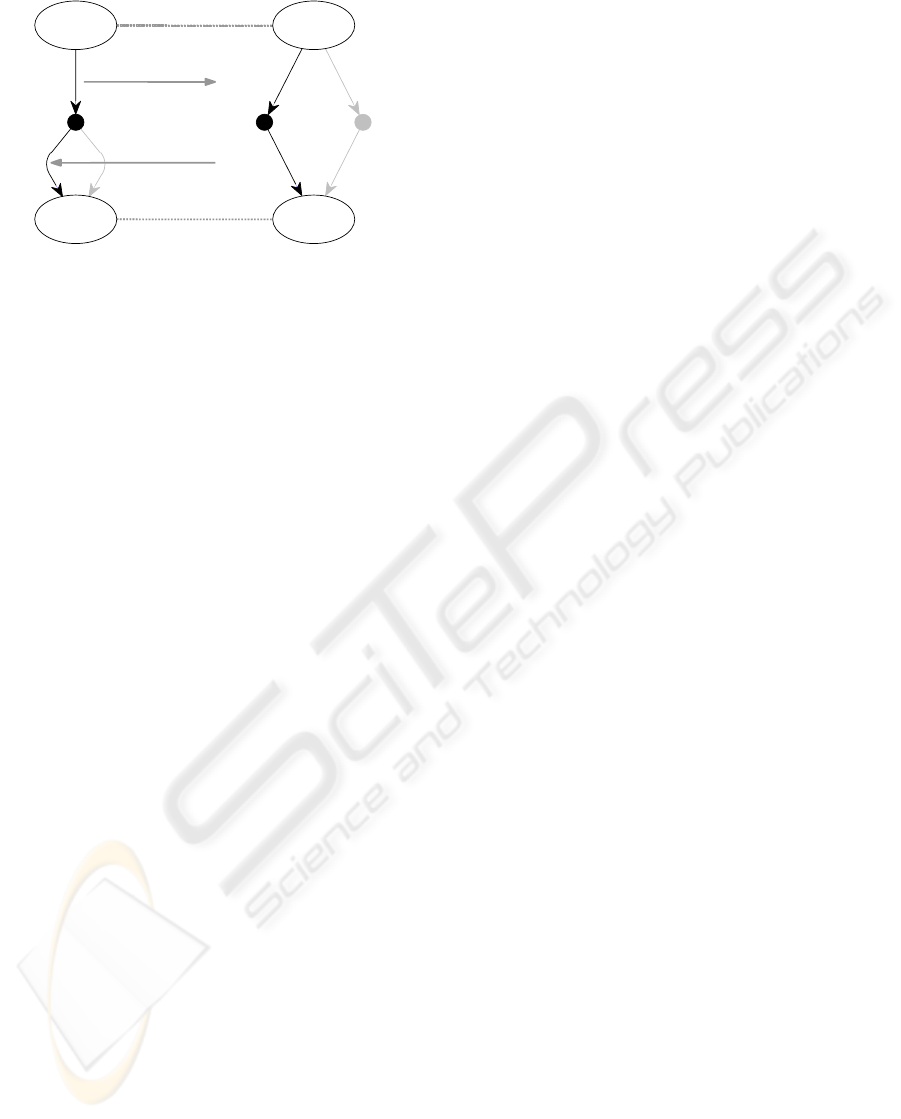

Figure 5: Simulation between c-graphs

3.3 Deﬁning simulation

Intuitively, one BPEL process simulates another BPEL

process if in a comparable situation the ﬁrst process

behaves like the second process. There are count-

less approaches published dealing with the compari-

son of behavior in terms of simulation or equivalence,

respectively. This variety results from different in-

terpretations of the terms “comparable situation” and

“behave like”. To ﬁnd the appropriate terms, ﬁrst of

all, a semantic deﬁnition of simulation should be de-

rived from the ﬁeld of application. In a second step, a

proving method can be developed.

Deﬁnition 3.1 (Simulation/Equivalence).

BPEL process A simulates a BPEL process B if

each compatible environment of process B is an com-

patible environment of process A, too. Two

BPEL

processes A and B are called equivalent, if process

A simulates process B and vice versa.



This deﬁnition meets the requirements of an discov-

ery mechanism in the service oriented architecture.

A service requestor has an environment, and he de-

ﬁnes an abstract process such that it is compatible to

this environment. Hence, if the service broker points

him to a published service that simulates the abstract

service, the compatibility with the requestor’s envi-

ronment is guaranteed. To illustrate the veriﬁcation

of this property, Figure 5 shows the c-graphs of both

order processes introduced in Section 2. As men-

tioned before,

orderprocess2 is a valid implementa-

tion of

order process1. Hence, in Figure 5, the pat-

tern of simulation can be seen. The

orderprocess2

can accept at least those messages, order process1

can accept (message order). Once the message was

received,

orderprocess2 produces at most those mes-

sages,

order process1 can produce (message con-

ﬁrm

). To emphasize the connection to the process dis-

covery, P refers to the published service and R refers

to the requested service.

Activated input: Given a visible node of an u-

graph, a bag of messages is an activated input in this

node if the node has an outgoing edge that is labeled

with this bag of messages.

Communication step: Given a visible node v of a

c-graph and a bag of messages m, the tuple (v, i, o, v



)

is a possible communication step, if there is an edge in

the c-graph from v to a hidden node h that is labeled

with the a bag of messages i, there is an edge from

h to a visible node v



that is labeled with a bag of

messages o, and m greater or equal to i. Two steps

are called similar if the labels are identically.

Deﬁnition 3.2 (Simulation).

A c-graph C(P ) simulates a c-graph C(R) if both

graphs contain a non-empty u-graph, and the root

node of C(P ) simulates the root node of C(R).

A visible node p of C(P ) simulates a visible node r

of C(R) if the following requirements are fulﬁlled:

(i) For each activated input in r and for each pos-

sible communication step in p (with this input),

there is a similar communication step in r and

the target node r



simulates the target node p



(ii) If r is a leaf node, then p is a leaf node, too.

(iii) If i is an activated input in p, and i is a subset

of any activated input in r, then i is an activated

input in r, too.



Requirement (i) has been motivated before: If a BPEL

process P shall simulate a BPEL process R, then P

has to accept at least those messages R accepts, and

P has to produce at most those messages R produces.

The proper simulation of terminal states is guaranteed

by requirement (ii). Finally, the process P must not

respond to a smaller bag of messages than R does,

e.g. sending a product without receiving the com-

plete payment. Such behavior can yield to a dead-

lock, e.g. some customers might refuse to complete

the payment after receiving the product.

Regarding to the examples of Figure 5, it is easy

to prove that the right u-graph simulates the left u-

graph. The presented deﬁnition of simulation be-

tween c-graph is a sufﬁcient criterion for simulation

between

BPEL processes. Hence, the simulation re-

lation between

orderprocess2 and order process1 is

proven. In (Martens, 2005b), this simpliﬁed deﬁnition

is extended to communicating pathes instead of com-

munication steps. With this extension, the following

theorem holds:

Theorem 3.1 (Simulation).

BPEL process P simulates a BPEL process R iff the

c-graph C(P ) simulates the c-graph C(R).



As a result, simulation of BPEL processes can be de-

cided effectively. The entire proof, a detailed dis-

cussion, and precise deﬁnition of all notions can be

PROCESS ORIENTED DISCOVERY OF BUSINESS PARTNERS

found in (Martens, 2005b). Now, all prerequisites are

given to build the simulation analysis into the discov-

ery mechanism.

4 DISCOVERY

The simulation analysis build the formal backbone of

the presented discovery mechanism. To gain an in-

tegrated solution, some design issues have to be de-

cided: Who is responsible for the generation of the

behavioral model? When will the simulation check

take place? What changes to the existing architecture

has to be made? This section sketches two different

implementations and one combined approach. Sup-

plementary, it deals with the problem of data depen-

dencies that are crucial to the process’ behavior.

4.1 Discovery architectures

Given an extensive repository of published Web ser-

vice, the ﬁrst step of selecting possible candidates of-

ten is based on non-operational information: A ser-

vice requestor is looking for a partner that runs his

business in a certain domain, that is located in a cer-

tain area or that has a certain amount of expertise

(references) in providing the required functionality.

This discovery step is either implemented by help

of a hierarchically structured catalogue (i. e. taxon-

omy(Boubez and Clément, 2002)) or through seman-

tic net of notions, relations and dependencies (i. e. on-

tology(Paolucci et al., 2002; Web-Ontology Working

Group, 2004)). Assuming an efﬁcient way of per-

forming step one is available, this paper focusses on

the second step – based on the operational Web ser-

vice description.

Server based approach Figure 6 visualizes the ﬁrst

– so called server based approach. The service

provider has created a

BPEL process model of his Web

service. He transforms the process model into a Petri

net and generates the behavioral model

(1a), i. e. the

c-graph of the

BPEL process. Built into an end-user

process modeling tool, the transformation and gener-

ation are performed on the backend in such a way that

the user only has to deal with

BPEL process models.

The service provider publishes the behavioral model

(1b) – which also contains the interface description

and refers to the actual service implementation – into

the repository.

The service requestor behaves almost similarly.

But, his

BPEL process models describes the required

behavior. He also generates the behavioral model

(2a)

and submits it, together with the non-operational re-

quirements, to the service broker

(2b). After the ser-

vice broker has performed the ﬁrst discovery step (see

publishfind

Service

Requestor

Service

Provider

Service

Broker

Behavioral

Model

Behavioral

Model

Service

Descriptions

Request

List of

Services

Discovery

Process

Model

Process

Model

1a2a

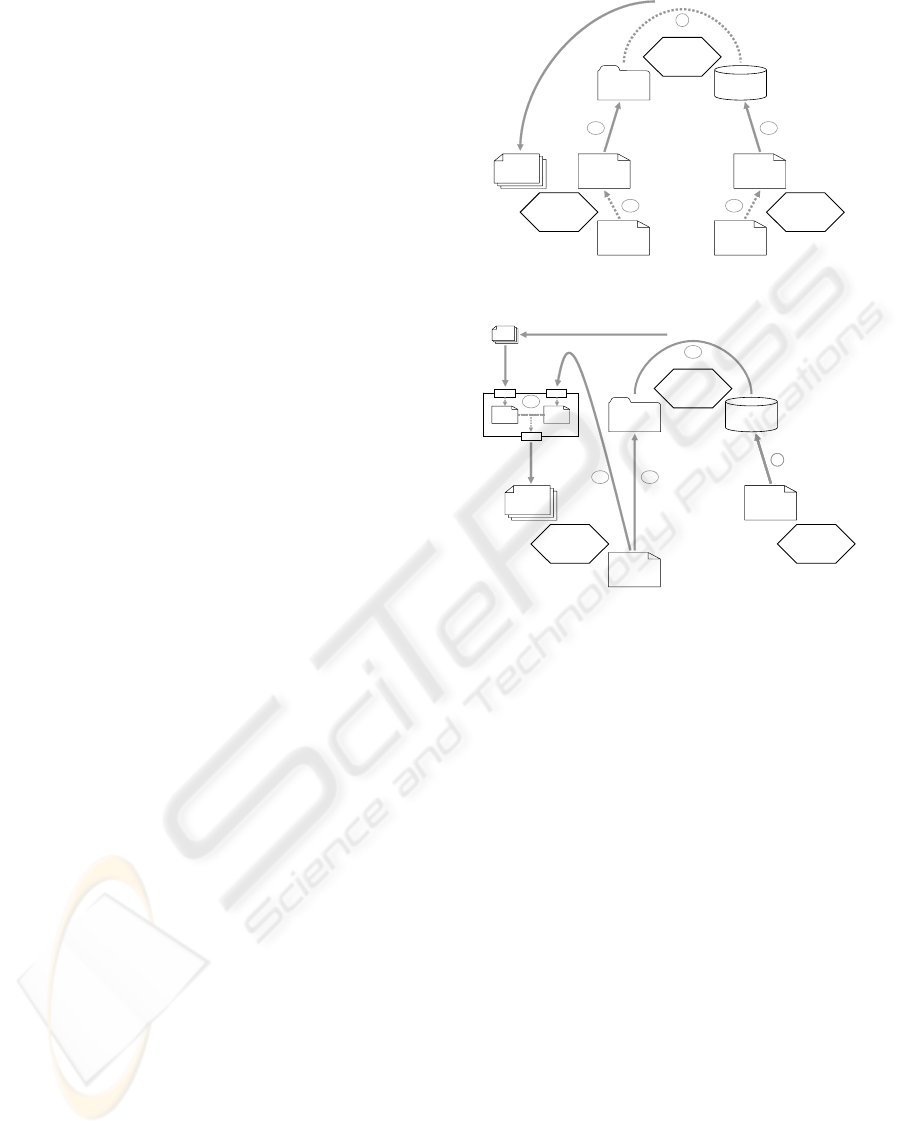

Figure 6: A server based approach

publish

Service

Description

1publish

Service

Description

Discovery

Service

Requestor

Service

Provider

Service

Broker

Service

Descriptions

Request

List of

Services

Discovery

Process

Model

List of

Candidates

Behavioral

Model

Behavioral

Model

find

2b 2a

Figure 7: A service based approach

above), he compares the interfaces of the remaining

published services with the request. If a published

service has a matching interface, the service broker

checks whether it simulates the requested behavior.

Only if this check yields true, the published service is

appended to the list of services that is presented to the

requestor.

In this approach, both process modeling parties (the

provider and the requestor) have direct inﬂuence on

the generation of the behavioral model. This fact that

will be appreciated in the next section. But this ap-

proach poses some none trivial challenges: It requires

mayor changes to the

UDDI speciﬁcation – which

has to be done anyhow, because the representation of

BPEL4WS in the repository is not solved sufﬁciently,

yet. Moreover, the issues of scalability and perfor-

mance are not sufﬁciently examined yet.

Service based approach Figure 7 visualizes an al-

ternative – so called service based approach. In this

approach, the service provider just publishes his Web

service description

(1), as required in the service ori-

ented architecture (cf. Figure 1). The discovery runs

into two steps: First the service requestor builds a

standardized request from his abstract process model

and submits it to the broker

(2a). The broker discovers

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

a list of candidates (3a), basically based on the inter-

face description. The requestor redirects this list to-

gether with his process model

(2b) to an external dis-

covery service. This service generates the behavioral

model of the requested process and all selected candi-

dates. Then, it performs the simulation analysis, such

that a smaller list of services is ﬁnally presented to the

requestor

(3b). A mayor advantage of this approach is

the relatively small changes to the established discov-

ery mechanisms (only the requestor has to change his

behavior). Moreover, this architecture provides a sim-

ulation check on demand and has the build-in feature

of scalability.

Hybrid approach The discovery service has to

generate the behavioral model of a published Web ser-

vice without the possibility of interacting with the ser-

vice provider. This might be a disadvantage of this

approach in some cases, as explained in the follow-

ing paragraph. To overcome this problem, a kind of

hybrid approach might be considered: The service

provider and the service requestor generate their be-

havioral models, as shown in the server based ap-

proach. The provider publishes this model supple-

menting the Web service description. The broker

ignores the behavioral model while performing dis-

covery, but includes it when returning the list of can-

didates. The requestor submits his behavioral model

to the discovery service, as well. In result, the discov-

ery service only has to perform the simulation check.

Such an approach combines modeler’s direct inﬂu-

ence on the behavioral model generation and scala-

bility – without mayor changes to existing discovery

architectures.

4.2 Discovery challenges

Regarding to the chosen example, the objected preci-

sion of discovery is obtained only if the behavioral

models of both processes reﬂect the behavior ade-

quately. As mentioned already, the transformation

from

BPEL4WS to Petri nets abstracts form data as-

pects. In result, the arising Petri net has a more gen-

eral behavior than the actual

BPEL process. In most

cases, this still is an adequate approximation. But for

some process model, the behavior of generated Petri

net might be too arbitrary. Figure 8 shows a third or-

der process that has an area of parallel activities, par-

tially synchronized.

The

orderprocess3 shown in Figure 8 receive

the

order and contacts three contractors in paral-

lel to check the availability of the requested prod-

uct. In the published process model, those activities

(

callcontractor..) are empty activities instead a ac-

tual invoke activities, because they do not communi-

cate with the customer. Each of them has to outgo-

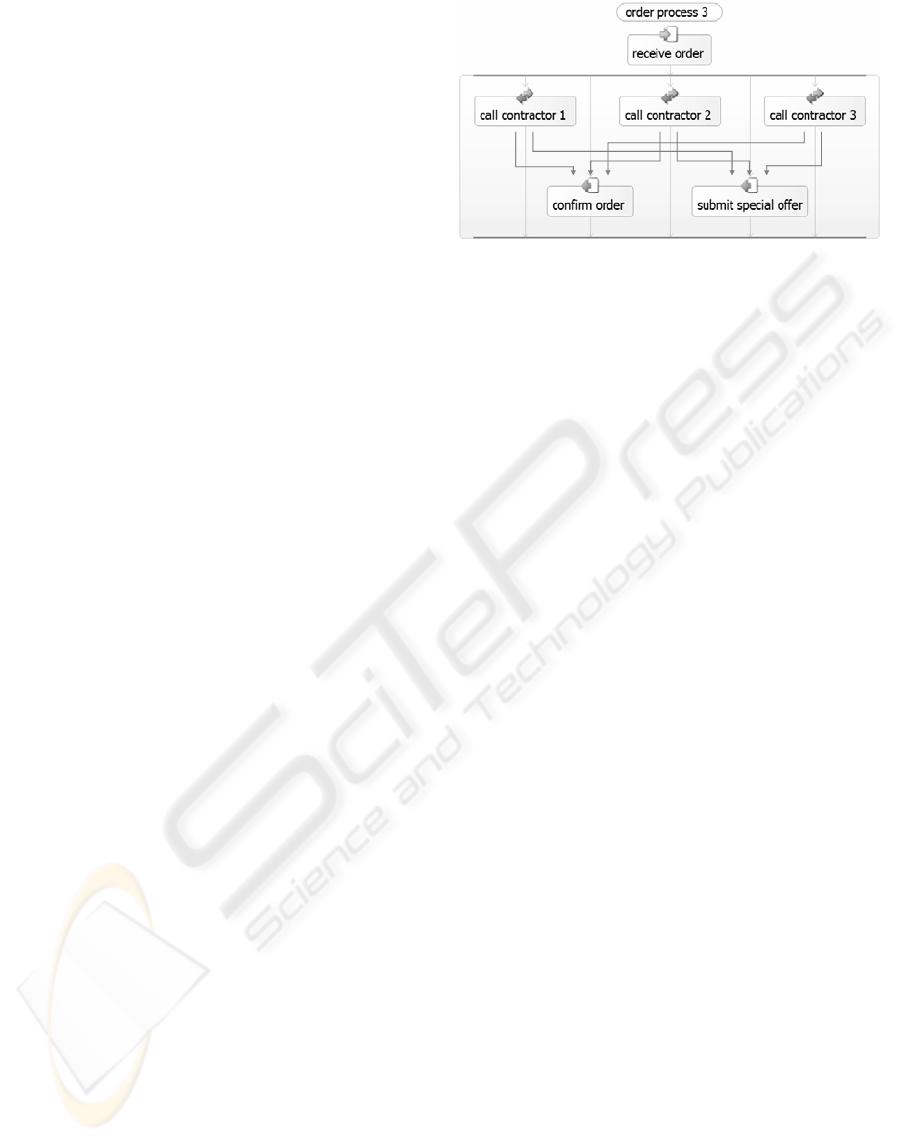

Figure 8: Another published Web service

ing links: If a contractor has the requested product in

stock, the link towards the activity

conﬁrm order is set

to true, and the other link is set to false. Otherwise,

the values of the links are ﬂipped. The activity

con-

ﬁrm order

is activated if at least one incoming link has

the value true. The activity

submitspecialoffer is ac-

tivated if all incoming links have the value true – i. e.

no contractor has the requested product in stock.

Due to this structure, the process models an exclu-

sive choice between the activities

conﬁrm order and

submitspecialoffer. But, because predicates on real

data are used to specify the link values (called tran-

sition condition) and the join behavior (called join

condition), a pure non-deterministic transformation

into a Petri net would not yield an good approxima-

tion. Instead, the tool

WOMBAT4WS asks the process

modeler to choose a more appropriate pattern, e. g. a

xor-split replacing the transition conditions and an or-

join or an and-join replacing the join conditions. By

help of pattern, each boolean combination can be ex-

pressed (cf. (Martens, 2005a) for more details). If

the process modeler can’t be contacted, the algorithm

tries to choose a pattern automatically. Obviously this

does not yield the same precision. But, current re-

search on static program analysis aims to improve the

quality of mapping

BPEL4WS into Petri nets.

Once the data dependencies are transformed into

control structures, the c-graph of

order process 3

could be generated. It looks exactly like the c-

graph of

orderprocess1 (cf. Figure 5). Hence, or-

der process 3

simulates order process 1, i. e. the ser-

vice requestor who has speciﬁed

orderprocess1 will

be totally satisﬁed binding its environment to the

or-

derprocess3

. This result has not been achieved with-

out interaction of the process modeler.

5 CONCLUSION

This paper presents a method to discover business

partners based on the comparison between the re-

quired behavior and the behavior implemented by an

offered service. This method is an extension to es-

PROCESS ORIENTED DISCOVERY OF BUSINESS PARTNERS

tablished discovery mechanisms that uses available

information and existing formal methods to gain a

higher level of precision. The presented approach is

based on a formal Petri net semantic (Schmidt and

Stahl, 2004) for the modeling language

BPEL4WS.

Consequently, the method is directly applicable to

real world examples. The existing tool

WOMBAT4WS

proves it effectiveness (WOMBAT4WS, 2003, ).

The current work was inspired by many other

approaches, dealing with behavioral comparison of

process models. Some of them also use Petri nets

for process modeling (van der Aalst, 1998a; Hamadi

and Benatallah, 2003). Those publications, of course,

had inﬂuence on the current approach. But, none

of them presents such a focussed view on a compo-

nents externally visible behavior as the communica-

tion graph does. Concerning matchmaking of Web

services, there are recent results published, which em-

ploy ﬁnite state automata to solve a similar prob-

lem(Wombacher et al., 2004). This approach seems

to yield similar theoretical results, whereas the appli-

cation to a real world modeling language is not pro-

vided, yet.

Currently, the simulation between process models

is based on the assumption of one environment that

uses all interfaces of the process. But, a

BPEL process

might interact with several partners, and therefore it

is reasonable to have several abstract models of the

same process. Each abstract model emphasizes only

those interactions of one speciﬁc partner. In the next

step, the notion of the communication graph and the

deﬁnition of simulation will be adopted to meet the

requirement of this scenario.

The presented algorithms is already prototypically

implemented. The current work is focussed on im-

proving the algorithms’ efﬁciency by the application

of partial order reduction techniques(Valmari, 1988;

Schmidt, 2002). Moreover, up to a certain degree

the integration of data aspects into the formalism is

planned. Especially the dependencies between the

content of incoming message and internal decisions

made by the process are the focussed target. Ap-

plying technologies of static program analysis (e. g.

slicing (Nielson et al., 1999)), it seems possible, to

achieve a higher level of precision in mapping a given

process model into a Petri net, without loosing the

possibility of efﬁcient analysis.

REFERENCES

Alonso, G., Casati, F., Kuno, H., and Machiraju, V. (2002).

Web Services. Springer-Verlag.

Andrews et al. (2002). BPEL4WS – Business Process Exe-

cution Language for Web Services. OASIS, Standard

proposal, Version 1.1.

Bellwood, T., Clément, L., and von Riegen, C. (2002).

UDDI – Universal Discovery, Description, and Inte-

gration. UDDI.org, Version 3.0, Standard.

Boubez, T. and Clément, L. (2002). UDDI Registry tMod-

els. Technical contribution, Version 2.03, OASIS.

Christensen, E., Curbera, F., Meredith, G., and Weer-

awarana, S. (2001). WSDL – Web Services Descrip-

tion Language. W3C, Standard, Version 1.1.

Hamadi, R. and Benatallah, B. (2003). A Petri Net based

Model for Web Service Composition. In Proc. of ADC

2003. Australian Computer Society, Inc.

Martens, A. (2003). On Compatibility of Web Services.

Petri Net Newsletter, 65:12–20.

Martens, A. (2004). On Usability of Web Services. In

Calero, Diaz, and Piattini, editors, Proc. of WISE 2003

Workshops, Rome, Italy. IEEE Computer Society.

Martens, A. (2005a). Analyzing Web Service based Business

Processes. In Proc. of FASE’05, Edinburgh, Scotland.

Springer-Verlag, LNCS. to appear.

Martens, A. (2005b). Consistency between Executable and

Abstract Processes. In Proc. of IEEE EEE’05, Hong

Kong. IEEE Computer Society. to appear.

Nielson, F., Nielson, H. R., and Hankin, C. (1999). Princi-

ples of Program Analysis. Springer-Verlag.

Paolucci, M., Kawamura, T., Payne, T., and Sycara, K.

(2002). Importing the Semantic Web in UDDI. In

Proc. of CAiSE 2002, Toronto, Canada.

Reisig, W. (1985). Petri Nets. Springer-Verlag.

Schmidt, K. (2002). Explicit State Space Veriﬁcation. Post-

doctoral thesis, Humboldt-Universität zu Berlin.

Schmidt, K. and Stahl, C. (2004). A Petri net semantic for

BPEL4WS.InProc. of 11th Workshop AWPN. Univer-

sity Paderborn, Germany.

Valmari, A. (1988). State Space Generation – Efﬁciency

and Practicality. PhD thesis, Tampere University.

van der Aalst, W. (1998a). Modeling and Analyzing Interor-

ganizational Workﬂows. In Proc. of CSD’98. IEEE

Computer Society.

van der Aalst, W. (1998b). The Application of Petri Nets to

Workﬂow Management. Journal of Circuits, Systems

and Computers, 8(1):21–66.

van Glabbeek, R. (1990). The Linear Time - Branching Time

Spectrum. LNCS 458. Springer-Verlag.

Web-Ontology Working Group (2004). Ontology Web Lan-

guage for Web Services. W3C, OWL-S 1.1 Release.

Wombacher, Fankhauser, Mahleko, and Neuhold (2004).

Matchmaking for Business Processes. In Proc. of

IEEE EEE-04. IEEE Computer Society.

OMBAT4WS (2003). Workﬂow Modeling and Business

Analysis Toolkit for Web Services. Tool hompage,

http://www.informatik.hu-berlin.de/

top/wombat/.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION
