DYNAMIC PRE-FETCHING OF VIEWS BASED ON USER-

ACCESS PATTERNS IN AN OLAP SYSTEM

Karthik Ramachandran, Biren Shah, Vijay Raghavan

P. O. Box 44330, CACS, University of Louisiana at Lafayette, Lafayette, LA 70504, USA

Keywords: data warehouses, OLAP, view selection, decision

support systems, enterprise information systems

Abstract: Materialized view selection plays an important role in improving the efficiency of an OLAP system. To

meet the changing user needs, many dynamic approaches have been proposed for solving the view selection

problem. Most of these approaches use some form of caching to store frequently accessed views and a

replacement policy to replace the infrequent ones. While some of these approaches use on-demand fetching,

where the view is computed only when it is asked, a few others have used a pre-fetching strategy, where

certain additional information is used to pre-fetch views that are likely to be accessed in the near future. In

this paper, we propose a global pre-fetching scheme that uses user access pattern information to pre-fetch

certain candidate views that could be used for efficient query processing within the specified user context.

For specific kinds of query patterns, called drill-down analysis, which is typical of an OLAP system, our

approach significantly improves the query performance by pre-fetching drill-down candidates that otherwise

would have to be computed from the base fact table. We compare our approach against dynamat; a well-

known on-demand fetching based dynamic view management system that is already known to outperform

optimal static view selection. The comparison is based on the detailed cost savings ratio, used for

quantifying the benefits of view selection against incoming queries. The experimental results show that our

approach outperforms dynamat and thus, also the optimal static view selection.

1 INTRODUCTION

Decision Support Systems (DSS) involve complex

queries on very large databases. While operational

databases maintain state information, data

warehouses typically maintain historical

information. As a result, data warehouses tend to be

very large and grow over time. To facilitate

answering such complex queries that span over large

amounts of data, the data is extracted, transformed

and loaded into the warehouse and is stored in a way

that supports common analytical operations. The

data warehouse is generally organized as a set of fact

tables and is indexed by attributes (primary keys) of

the dimension tables that store dimension

information. Fact tables are thin and long whereas

dimension tables are thick and small. A star schema

model, as shown in Figure 1 is used to represent a

data warehouse.

In Figure 1, there are two dimension tables

nam

ely Product and Location and a central fact table

Sales. The fact value that is measured is sales, which

indicates the total sales of a particular product sold

to a particular customer. In most real life

applications, the dimensions are organized as

hierarchies of attributes that are functionally

dependent on the primary attributes of each

dimension. A simple example is organizing the

Product dimension into the hierarchy: productId,

and type. A sample hierarchy for the schema of

Figure 1 is shown in Figure 2.

While the data warehouse approach solves the

oblem of representing data in a form suitable for

analytical queries, it does not completely address

several other performance issues; for example, query

response time for a given aggregated query. An

Online Analytical Processing (OLAP) system

consists of alternating query processing (i.e. when

data warehouse is online) and maintenance windows

(i.e. when data warehouse is offline). In a typical

OLAP scenario, called drill-down analysis, a user

successively asks queries that are more detailed.

Roll-up is just the opposite. To improve query

response times for such complex queries,

intermediate results are materialized so that, when a

query is asked, it can be answered from the already

materialized results (if available). An obvious issue

in using materialized results to answer queries is

Ramachandran K., Shah B. and Raghavan V. (2005).

DYNAMIC PRE-FETCHING OF VIEWS BASED ON USER-ACCESS PATTERNS IN AN OLAP SYSTEM.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 60-67

DOI: 10.5220/0002528700600067

 SciTePress

selecting views that should be pre-computed. The

view selection problem has been shown to be an NP-

Hard problem (Gupta Harinarayan and Rajaraman,

1997) and has been one of the major research issues.

Several approaches have been proposed towards

solving this problem. Some of the approaches

(Gupta, 1997; Harinarayan, 1996; Shukla, 1998;

Baralis, 1997; Bauer, 2003) suggest static selection

of views before each query window and then using

these pre-selected views to answer subsequent

queries. The obvious drawback of this approach is

that the selection algorithm needs to be run

frequently enough to keep up with the changing user

needs. Even under the assumption that query access

patterns (see definition 3.4 for details) change only

between successive query windows, the static

approach is very inconvenient, since the algorithm

has to be rerun after every query window and, as

pointed out by (Shukla, 1998), this could take a long

time.

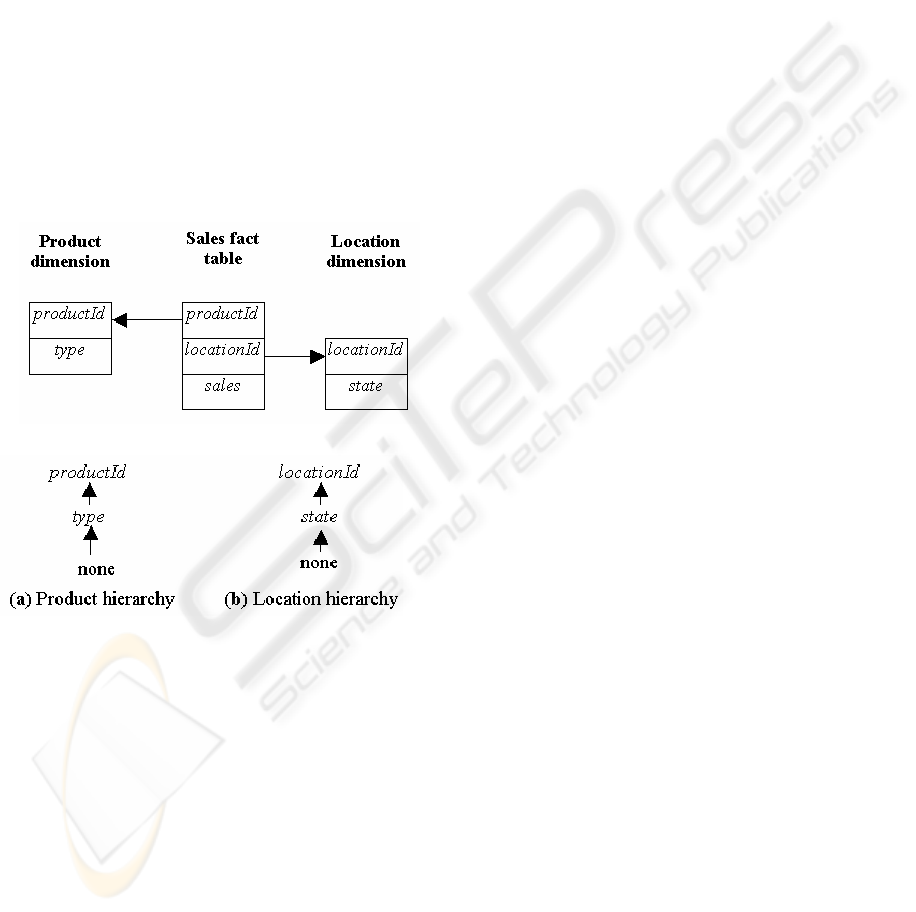

Figure 1: Sample Star Schema

Figure 2: Dimension Hierarchy

To meet the changing user needs, several

dynamic approaches (Kotidis, 2001; Sapia, 2000;

Yao, 2003) have been proposed. These approaches

work in a way similar to the principles of cache

management in memories. The views may be

fetched (or selected) on demand (on-demand

fetching) or they may be pre-fetched using some

prediction strategy. In cases where there are space

constraints, a replacement algorithm may be used to

identify the candidate victims for replacing the

views in the materialized pool with new selections.

The dynamic approach could be made to

automatically adapt itself to changing query patterns.

The rest of the paper is organized as follows:

Section 2 describes some of the related works in this

field. In section 3, we introduce the lattice

framework to model the dependency among views.

Section 4 describes our proposed approach in more

detail. In section 5, we provide experimental results

of our work and compare it with (Kotidis, 2001).

The last section summarizes, draws conclusions and

presents the future work.

2 RELATED WORK

The Dynamat (Kotidis, 2001) approach implements

dynamic view selection using the on-demand

fetching strategy. The granularity of the materialized

results is fixed to accommodate certain class of

queries called Multidimensional Range Queries

(MRQ). A MRQ is very similar to a view with the

exception that the queries can also be single valued

with respect to one of the dimensions (In OLAP

context, these are called slice queries). The

granularity of the MRQ is a compromise between

choosing to materialize many small, highly specific

queries and, materializing a few large queries and

then answering incoming queries, at each stage,

using them. Their approach, however, does not take

the user access pattern information into account

before making a selection.

The PROMISE (Sapia, 2000) approach goes one

step further by predicting the structure and value of

the next (incoming) query based on the current

query. It argues that the number of possible queries

is so large that predicting the next query as a whole

(at a coarse granularity), is extremely time

consuming. Instead, it requires that the granularity of

the individual materialized results be detailed

enough to capture the subtle differences between the

values and structures of the addressed queries.

A different approach to view materialization is

proposed in (Yao, 2003), where a set of batch

queries are rewritten using certain canonical queries

so that the total cost of execution can be reduced by

using intermediate results for answering queries that

appear later in the batch. Obviously this approach

requires that all the queries must be precisely known

before hand, and hence, even though the approach

might work well in an operational database scenario,

it might not be very useful in dynamic OLAP where

it is extremely difficult to accurately predict the

exact nature of queries.

In this paper, we propose a global pre-fetching

scheme to pre-fetch certain candidate views that

could be used for efficient query processing. Our

scheme is global in the sense that the pre-fetched

views are searched for in the global access lattice

(for the particular user) at the beginning of a user

query session or context. It emphasizes on the

importance of the use of access pattern information

to identify the user role so as to prune the access

DYNAMIC PRE-FETCHING OF VIEWS BASED ON USER-ACCESS PATTERNS IN AN OLAP SYSTEM

space of the user accessing the lattice for selecting

pre-fetching candidates. This information can be

explicitly available by having a role associated with

each user or it can be implicitly obtained by

analyzing the query patterns of the user. For specific

kinds of query patterns, called drill-down analysis,

which is typical of an OLAP system, our approach

significantly improves the query performance by

pre-fetching drill-down candidates that otherwise

would have to be computed from the base fact table.

3 LATTICE FRAMEWORK

OLAP views are typically represented as elements of

lattices (Harinarayan, 1996) or ‘View Graphs’

(Gupta, 1997) to illustrate the fact that any view

(except the top view, which is the base fact table) in

the lattice can be computed by aggregating results

from other (more detailed) views. For example, the

schema of Figure 1 can be represented as a lattice as

shown in Figure 3. Each node corresponds to a view

in the multidimensional OLAP.

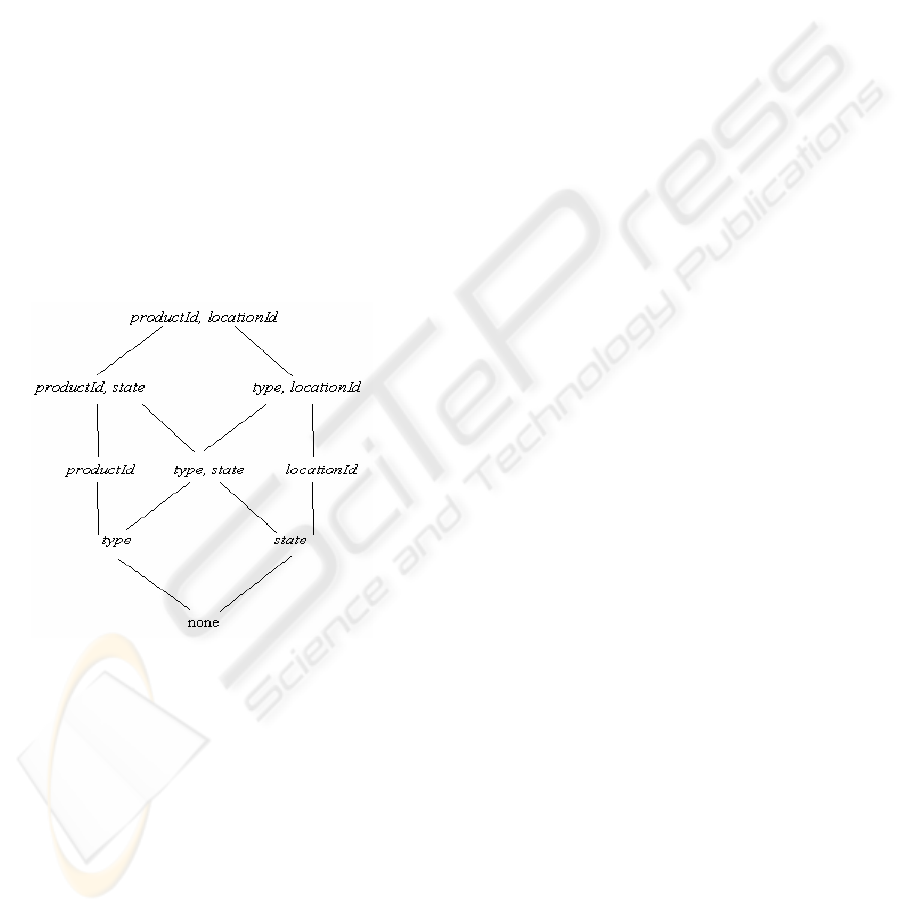

Figure 3: Lattice Cube

Definition 3.1 (partial ordering): Consider two

views, v

and v

. We say that v

p v

if and only if v

can be computed from v

. We then say that v

dependent on v

. For example, in the lattice shown in

Figure 3, the view (type) can be computed from

(type, locationId). Thus (type)

p (type, locationId).

There are certain views that are not comparable with

each other using the

p operator. For example,

(type) and (state) are not comparable with each

other. Note that

imposes a partial ordering on the

views, and it is transitive. In order for a set of

elements to be a lattice, any two elements must have

a least upper bound and a greatest lower bound

according to the

ordering. However, in practice,

we only need the assumptions that: (a)

is a partial

order, and, (b) there is a top element, a view upon

which every view is dependent.

Definition 3.2 (ancestors and descendents):

ancestors and descendents of a view v in the lattice

are defined as follows:

ancestor(v) = {v′ | v

v′} p

descendent(v) = {v′ | v′

v} p

Definition 3.3 (parents and children): parents

(children) of a view v in the lattice are defined as the

immediate proper ancestors (descendents) of v. i.e.

parent(v) = {v′ | v

v′, /∃ x, v x, x v′} p p p

child(v) = { v′ | v′

v, /∃ x, v′ p x, x v} p p

Definition 3.4 (access pattern): A query access

pattern is defined as an ordered sequence of queries

, q

, …, q

, addressed to views v

, v

, …, v

respectively, such that v

p v

, v

p v

, …, v

n-1

p v

i.e. given a query, a user successively drills-down

the results for analytical processing.

4 PROPOSED APPROACH

The user access patterns play an important role in

determining the granularity of materialization. For

example, consider the scenario where a user, almost

always, carries out a sequence of drill down

operations on the lattice shown in Figure 3. Under

such a situation, the MRQ level of granularity would

be appropriate, since the user doesn’t spend much

time in accessing a single view. In other words, he is

interested in only a slice of the view. Now consider a

different situation where the user addresses a

number of slice queries to the view (productId)

before drilling down to the view (productId, state). If

the granularity is kept at the MRQ level, then each

slice query that the user addresses to the view

(productId) needs to be fetched from the

materialized parent and materializing the fetched

result doesn’t help in answering the future queries in

any way. Instead, if the granularity were fixed at the

view level, the whole view would be materialized

when the first slice query is asked. The remaining

slice queries addressed to the view can be answered

directly from the materialized views. Thus, the

access pattern information can be used to great

advantage in determining the granularity and in pre-

fetching views for materialization. Without loss of

generality, we fix the granularity at the view level to

simplify the explanation of the proposed approach.

There are two issues to be dealt with in the

dynamic selection of views. The first issue deals

with the amount of information that is used to

select candidate views to be stored in the view pool

(a view pool is a dedicated disk space for storing

pre-computed views). At the most basic level, global

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

access frequencies can be used along with

replacement strategies like least recently used,

smallest penalty first, etc. for the selection of views.

This approach, as used in (Kotidis, 2001), although

very intuitive and simple, has some serious

drawbacks. For example, in Figure 3, consider a

scenario where the view (type, state) is seldom

queried. Given that the most recent query asked by

the user corresponds to the view (type) and that there

isn’t enough space available to materialize the

results of this query; a replacement candidate, hence,

needs to be determined. Under such circumstances,

the (type, state) view would be a prime candidate for

replacement due to its low access frequency. But

suppose the past access patterns indicate that,

although the view (type, state) has a low access

frequency, the probability that it is queried given the

previous query was addressed to the view (type),

could be very high. In such a situation, it may not be

appropriate to use replacement policies based on

pure global frequencies or recentness of use while

considering view benefits.

The second issue deals with the view fetching

strategy, which can be either on-demand fetching

(fetch on demand) or pre-fetching (fetch by

prediction). On-demand fetching strategies are

similar to the ones used in current operating system

caches where pages are brought into memory only

when requested. The advantage of this strategy is

that the fetching algorithm need not be run unless

the view corresponding to the query is absent from

the view pool. However, the drawback of this

approach is that for certain query patterns (drill-

down queries), the performance may be very poor.

For example, consider a query access pattern in the

given order: (none), (type), (type, state), (productId,

state), (productId, locationId). If pure on-demand

fetching approach is used, the system will have to

query the base fact table for every query in the

pattern, since views are brought only on demand and

no materialized view is available to answer the next

query in the pattern. This is a typical OLAP

scenario, called drill-down analysis, where a user

progressively asks queries that are more detailed. In

such a situation, even though it can be predicted

(from past history) that the pattern may successively

drill-down all through to the base fact table; the on-

demand fetching strategy would continue to fetch

views only when the queries are asked and hence the

performance could become a bottleneck.

By pre-fetching certain views in advance, we can

alleviate the above-mentioned drawbacks to a great

extent. The most essential part of a pre-fetching

strategy is a prediction algorithm that is able to

predict the set of views that need to be brought in to

the view pool.

4.1 Global Pre-Fetching Algorithm

We extend the Markov chain model (Howard, 1960)

in developing a formal framework for modelling

user interaction and navigation in an OLAP

scenario. Each of the views visited (accessed) by the

user map to the states of the Markov chain. The

access pattern information that determines the

probability that a user follows a particular navigation

path can then be mapped to the state transition

probabilities associated with a Markov chain. The

probability that a user will drill-down to a particular

view v

given that he is currently querying another

view v

could be found by computing the transition

probability between the two nodes in the n

degree

probability matrix where n equals the number of

hops (length of path) to reach state (view) v

from

state (view) v

Drill-down analysis being the most

natural (intuitive) way of querying an OLAP system,

in our proposed approach, we do not explicitly

emphasize roll-up queries since it can always be

answered from the most recently materialized views.

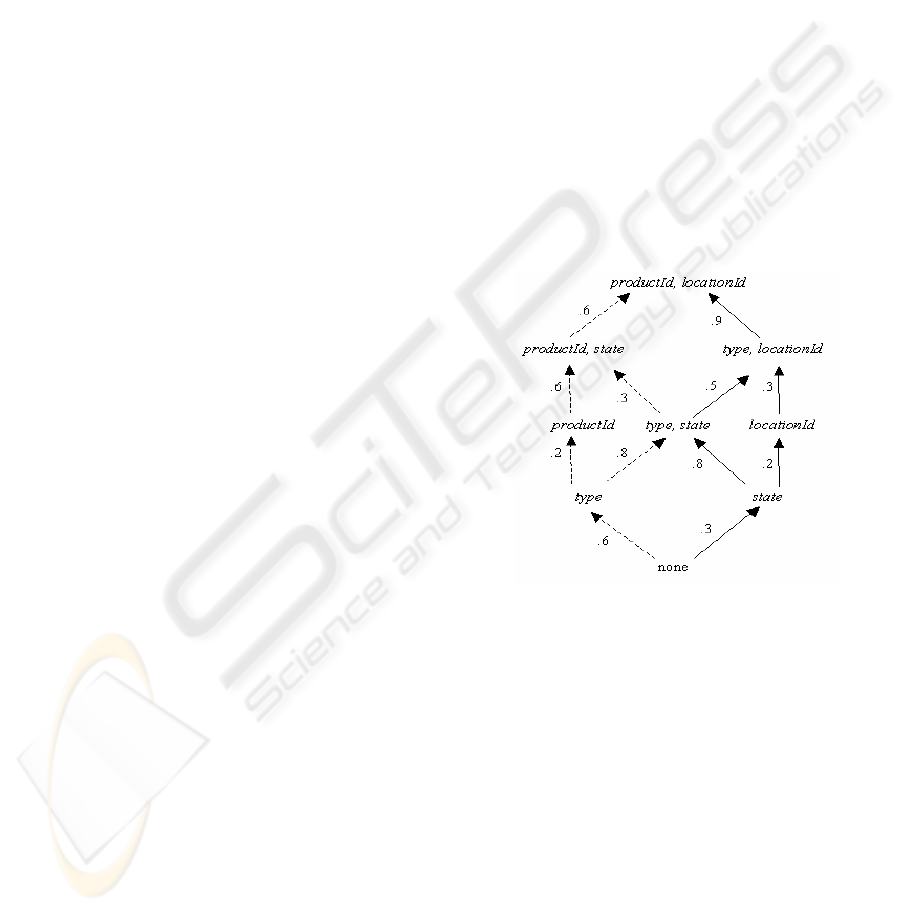

Figure 4: Lattice with Access Patterns and Roles

We now propose a global pre-fetching algorithm

for dynamic view selection that pre-fetches

candidate views based on the current query and the

information about the users past access patterns. The

algorithm is shown in Figure 5. The terminology

used in the algorithm is shown below and explained

in terms of the lattice in Figure 4 (modified lattice of

Figure 3 with access patterns information).

q is a queue of vertices (nodes/views in lattice).

v is the current node.

w[] stores the weight (or benefit) of each of the

nodes based on the probability of reaching them

from the current node (the weight computation will

be explained later).

eh[i][j] stores the edge probability for an edge

connecting nodes i and j. It is the probability that the

next query will be addressed to view j given the

current query is addressed to view i. For example,

DYNAMIC PRE-FETCHING OF VIEWS BASED ON USER-ACCESS PATTERNS IN AN OLAP SYSTEM

the value .2 (in Figure 4) along the edge connecting

nodes (type) and (productId) is the probability that

the next query will be addressed to view (productId)

given the current query is addressed to view (type).

The user access pattern information is used to

determine the edge probabilities. These values are

updated periodically, between successive query

windows.

views is the set of all views/nodes in lattice.

TS is the total space available for storing pre-

fetched views.

startNode is the node that represents the

beginning of a query session or context.

prefetchedViews is the set of views returned by

the pre-fetching algorithm.

size[v] denotes the size of the view v. We use our

proposed method (Shah, 2004) for estimating the

storage requirements of views, without actually

materializing them.

The algorithm begins with the first user query

(the start query). The algorithm carries out a breadth

first search to compute the benefit (weight) for each

of the ancestor views. According to this heuristic,

the benefit of a view depends on the following two

factors:

1. The number of descendant (all descendants

including children) queries it can answer if

materialized.

2. The probability that the user takes a path from

the initial query (startNode) to the current view.

Note that the views that are projected as

beneficial by the first factor above have many

descendants, and as a result of which they form

excellent candidates not only in supporting efficient

drill-down analysis but also in (implicitly)

facilitating roll-up queries.

The weight computation in line 9 in Figure 5

takes these factors into account. The multiplying

factor eh[c][a], which is the probability associated

with the edges, takes the second factor into account

while the summation of this value over all the edges

emanating from the node accounts for the first

factor.

The stopping condition for the breadth first

search can be fixed based on some threshold value

that can be computed from the edge probability. In

other words, if the edge probability falls below the

threshold value, we stop pursuing nodes along that

path. Once the weight values of nodes are computed,

the best set of nodes can be selected for

materialization depending on the available space.

The threshold can be based upon one of the two

different factors. The first factor is the maximum

tolerable query response time. For example, as we

go higher up the lattice, the cost of answering

aggregated queries increases and hence the query

response time increases. The second factor is the

probability that the user queries a node given that he

starts his analysis from startNode.

To illustrate weights computation, consider the

lattice shown in Figure 4. Assume that the user starts

his analysis from the startNode (none) and drills-

down the lattice and that the stopping condition is to

process all nodes up to a certain level (length of

navigation path) with respect to the startNode.

Assume that level = 2 and w[startNode

] = 1.

when level=1

w[type]=.6*1=.6, w[state]=.3*1=.3

when level=2

w[productId]=.2*w[type]=.12

w[type,state]=.8*w[type]+.8*w[state]=.72

w[locationId]=.2*w[state]=.06

Since the stopping condition (stoppingCondition)

is level = 2, using above values, the node (type,

state) would be a good candidate for pre-fetch since

it has the maximum weight.

The materialized views can be used to answer

user queries as long as the user stays in the same

context. The context is defined by the past access

patterns of the user. As long as the user navigates

within the same context, no (or minimal) fetching is

required after the initial fetch. However, to avoid

intermittent delays, materialization of selected views

could be done in parallel with query processing.

Input: views, TS, startNode, size[]

Output: prefetchedViews

10.

11.

12.

13.

14.

15.

add startNode to q;

initialize w[startNode]=1, w[j (j≠startNode)]=0;

while (! isEmpty(q))

begin

v = first element of q;

for all a in parent(v)

begin

if (! stoppingCondition)

add a to end of q;

for each c in child(a)

w[a] += eh[c][a] * w[c];

end

sort descending views based on w[];

k = 0, space = 0;

while ((space + size

[views(k)])< TS)

begin

prefetchedViews = prefetchedViews ∪ views(k);

space += size[views(k)];

k = k +1;

end

16. return prefetchedViews ;

Figure 5: Global Pre-Fetch Algorith

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

4.2 Lattice Pruning

The number of views examined by the global pre-

fetch algorithm can be pruned by taking into account

the access pattern information and the user role. In a

typical OLAP scenario, most of the time, a user is

confined to a region of the lattice that interests him

based on his profile or role. The user has different

roles depending on the start node and the navigation

path pursued. For example, the lattice of Figure 4

has two dimensions, namely product and location. A

product manager drills-down through a region of the

lattice that groups the facts by the product dimension

(shown by dotted arrows) whereas; a regional

manager drills-down a region of the lattice that

groups the facts by the location dimension (shown

by solid arrows). Even though the actual nodes

accessed by the user could vary, the region of the

lattice is more or less determined by the specific role

of the user. By knowing the role of the user, one can

prune the lattice space to search for nodes relevant to

the current role.

5 EXPERIMENTS

A detailed set of experiments were carried out to

measure the effectiveness of our proposed global

pre-fetching scheme against a well-known dynamic

view management system (dynamat) (Kotidis, 2001)

that uses on-demand fetching strategy.

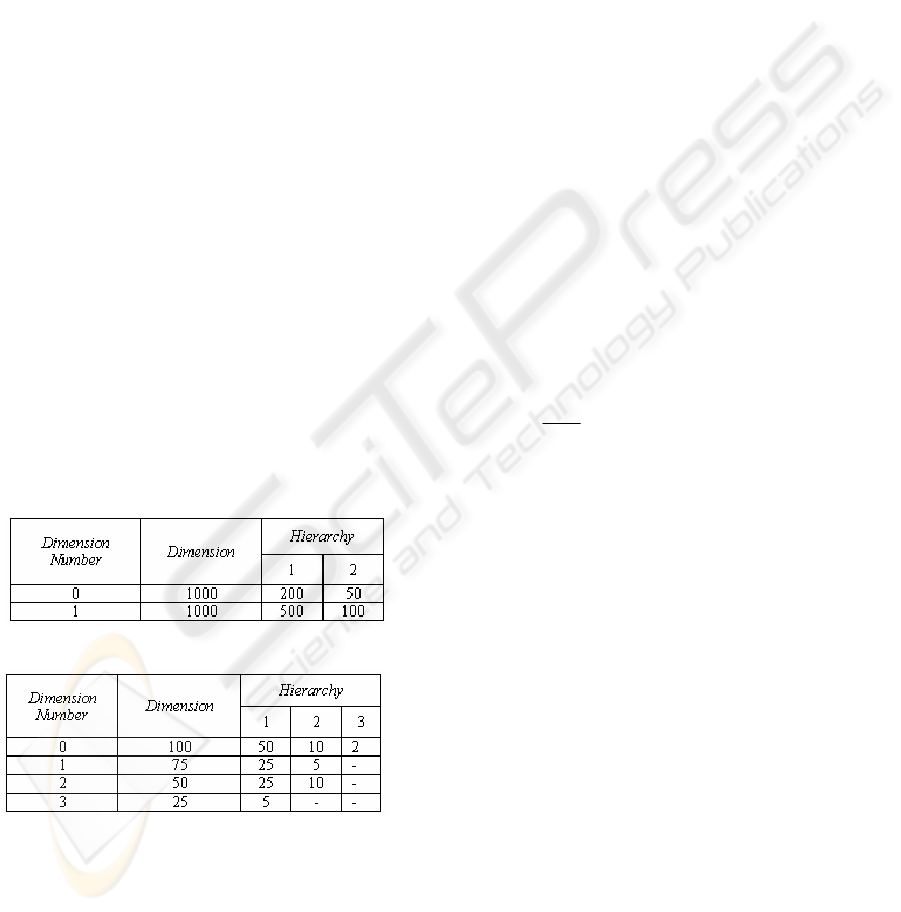

Table 1: Schema 1

Table 2: Schema 2

Synthetic data sets were used for generating

multidimensional data. Table 1 and Table 2 contain

the schemas and the number of distinct values of the

dimensions and hierarchies of the two synthetic

databases (schema 1 and schema 2) that we used.

For example, the data in Table 1 means that the

schema 1 has two dimensions. Dimensions 0 and 1

have a two-level hierarchy. Both dimensions have

1000 distinct values. Dimension 0 hierarchies have

200 and 50 values respectively, while dimension 1

hierarchies have 500 and 100 values respectively.

The total number of views for schema 1 and schema

2 are 16 and 240, respectively. The maximum size of

the base fact table is 1 million tuples for schema 1

and 9.375 million tuples for schema 2. For

experimental purposes, a data density of 1% for

schema 1 (approx. 10,000 tuples) and 10% for

schema 2 (approx. 937,500 tuples) is selected and

the total size of all the views in the multidimensional

data cube is approximately 100,000 tuples for

schema 1 and 5.6 million tuples for schema 2.

5.1 Performance Evaluation

To compare the two approaches, we measure the

following:

1. The cost of answering the query from the

matching view. This is assumed to be equal to

the number of tuples (size) in the view. The cost

is measured using the Detailed Cost Savings

Ratio (DCSR) (Kotidis, 2001). If c

is the cost of

execution of query q

from the base fact table, c

is the cost of execution of q

from the matching

view v and M is the set of materialized views in

the view pool then,

0 if q

cannot be answered from M

if there is an exact match for q

in M

= {

–c

if v from M was used to answer q

where

DCSR

∑

Thus, to maximize the overall performance,

DCSR values should be as high as possible.

2. Given a space constraint, the total number of

view replacements or Cumulative Replacement

Count (CRC) in the materialized pool with new

selections.

5.2 Generating Query Patterns

To compare our approach against the dynamat

approach, we generated a set of query patterns (for

drill-down analysis) that are representative of OLAP

queries. The access information was embedded into

the lattice by arbitrarily assigning probabilities

between 0 and 1 to all edges emanating from each of

the nodes (ensuring that the sum is never greater

than 1). While generating the patterns, there are

some issues that need to be taken into account.

Given that a user is currently querying a view v

, the

next view v

in the access pattern is chosen based on

the emanating edge probabilities. For this purpose,

we used the Roulette Wheel Selection strategy,

DYNAMIC PRE-FETCHING OF VIEWS BASED ON USER-ACCESS PATTERNS IN AN OLAP SYSTEM

which randomly picks objects based on their

assigned weights.

For testing purposes, we generated a set of 10

query patterns for schema 1 each consisting of 3

queries and a set of 50 query patterns for schema 2

each consisting of 9 queries. The patterns were

generated by randomly choosing a node as start node

and then generating the sequence of queries from the

start node. Each new pattern denotes a change in the

context. Our approach is affected by the context

change, since its selection is based on views that are

best suited for the current context. Dynamat,

however, is not affected by the context change since

it does not exploit the user access patterns.

5.3 Results

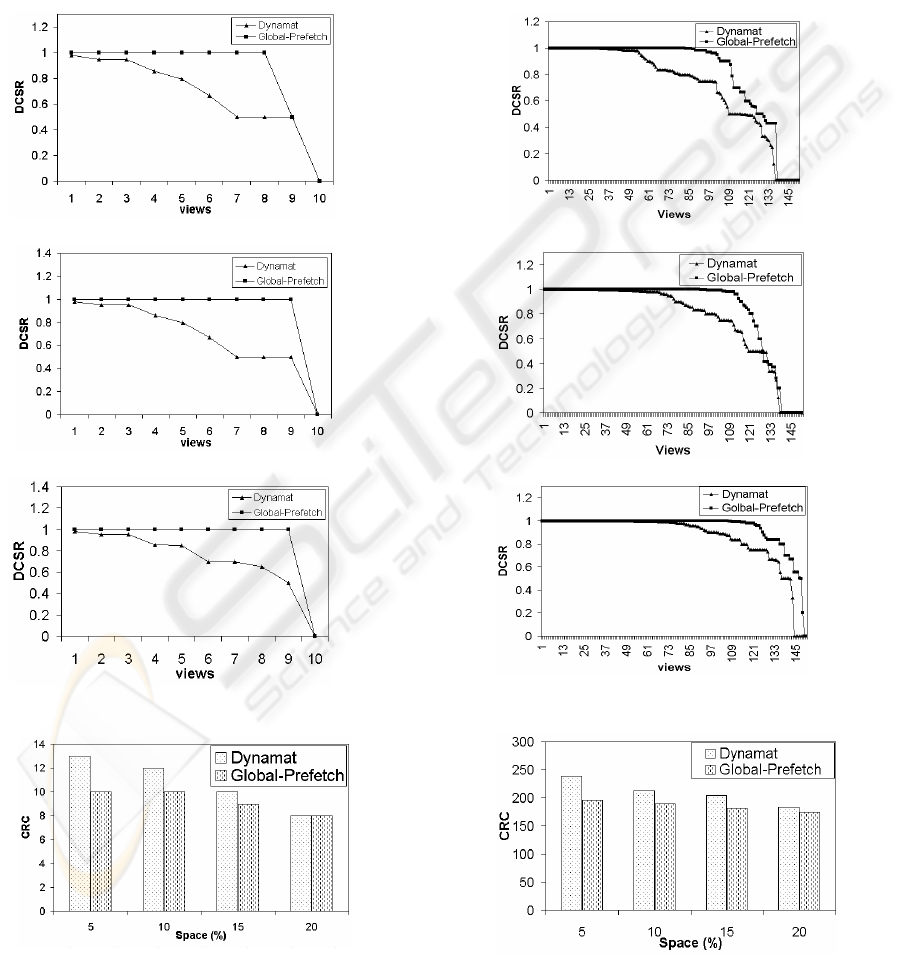

Performance was measured under different space

constraints (i.e. view pool size expressed as a

percentage of the full data cube size). The DCSR per

view (in decreasing order of savings) for schema 1

and schema 2 (for space constraints of 5%, 10% and

20%) are shown in Figure 6 and Figure 7,

respectively. The CRC for schema 1 and schema 2

are shown in Figure 8 and Figure 9, respectively.

The global pre-fetching scheme clearly outperforms

the dynamat approach, especially when the available

space is low. As the available space increases, the

query performance (DCSR) of dynamat gradually

approaches to that of ours. Dynamat chooses views

for materialization as and when new queries are

asked. Our pre-fetching approach selects views for

materialization at the beginning of every context.

With more available space, more views can be

materialized, as a result of which the probability of

finding a matching view to answer a query is high.

Additionally, the global pre-fetching scheme uses

the access patterns information, which further

optimizes the selection of views in any given

context, as seen by the high DCSR values. On the

other hand, when the space constraints are high,

dynamat, which updates its selection at each stage,

requires replacing a lot of views. In the process, the

DCSR per view drops since more views have to be

answered from the base fact table. The global pre-

fetch, however, continues to perform better since it

selects views at the beginning of every context and

the selection is such that the queries in the given

context are likely to be answered from the

materialized view pool, instead of the base fact

table. Additionally, the global pre-fetch requires

fewer number of replacements since many of the

selections persist over different contexts, as a result

of which the reusability of these already materialized

views for answering queries from other contexts

increases.

It has been experimentally proved in (Kotidis,

2001) that dynamat outperforms the optimal static

view selection. The results above show that our

approach outperforms dynamat and thus, also the

optimal static view selection.

6 CONCLUSIONS

Pre-computation of views is an essential query

optimization strategy for decision support systems.

To meet the changing user needs, the views may be

fetched (or selected) on demand (on-demand

fetching) or they may be pre-fetched using some

prediction strategy. In this paper, we proposed a

global pre-fetching scheme that uses user access

pattern information to pre-fetch certain candidate

views that could be used for efficient query

processing within the specified user context. Our

approach optimizes the selection of views for

efficient drill-down analysis, which is the most

natural way of querying an OLAP system. Roll-up

analysis is not explicitly emphasized since such

queries can always be answered from the most

recently materialized views.

We compare our scheme against dynamat, a

dynamic view management system that uses on-

demand fetching and is already known to outperform

optimal static view collection. The DCSR results

show that the average cost savings of answering a

query using our proposed scheme clearly exceeds

the dynamat approach. The CRC results show that

our scheme is more robust than dynamat since it

requires relatively fewer number of view

replacements.

In future, we plan to test our approach by varying

the granularity of the materialized results and also

on large real-world data sets.

REFERENCES

Baralis, E., Paraboschi, S., Teniente, E., 1997.

Materialized View Selection in a Multidimensional

Database. In Proc of 23

VLDB Conf., pp. 156-165.

Bauer, A., Lehner, W., 2003. On Solving the View

Selection Problem in Distributed Data Warehouse

Architectures, In Proc. of SSDBM Conf., pp. 43-51.

Harinarayan, V., Rajaraman, A., Ullman, J., 1996.

Implementing Data Cubes Efficiently. In ACM

SIGMOD Conference, pp. 205-216.

Gupta, H., 1997. Selection of Views to Materialize in a

Data Warehouse. In Proc. of Intl. Conf. on DB Theory,

pp. 98-112.

Gupta, H., Harinarayan, V., Rajaraman, A., 1997. Index

Selection for OLAP. In 13

Conf. on Data Engg, pp.

208-219.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

Howard, R., 1960. Dynamic Programming and Markov

Processes. MIT Press.

Kotidis, Y., Roussopoulos, N., 2001. A Case for Dynamic

View Management. In ACM Transactions on

Database Systems, vol. 26, no. 4, pp. 388-423.

Sapia, C., 2000. PROMISE: Predicting Query Behaviour

to Enable Predictive Caching Strategies for OLAP

Systems. In Proc. of Intl. Conf. on Data Warehousing

and Knowledge Discovery, pp. 224-233.

Shah, B., Ramachandran, K., Raghavan, V., 2004. Storage

Estimation of Multidimensional Aggregates in a

Datawarehouse Environment. In Intl. Conf. on

Systemics, Cybernetics and Informatics, pp. 283-290.

Shukla, A., Naughton, J., Deshpande, P., 1998.

Materialized View Selection for Multidimensional

Datasets. In Proc. of 24

VLDB Conf., pp. 488-499.

Yao, O., An, A., 2003. Using User Access Patterns for

Semantic Query Caching. In Intl. Conf. on Database

and Expert System Applications, pp. 737-746.

(a) space = 5%

(b) space = 10%

Figure 6: DCSR per view (Schema 1)

Figure 8: CRC (Schema 1)

(a) space = 5%

(b) space = 10%

Figure 7: DCSR per view (Schema 2)

Figure 9: CRC (Schema 2)

DYNAMIC PRE-FETCHING OF VIEWS BASED ON USER-ACCESS PATTERNS IN AN OLAP SYSTEM
