FRAMEWORK FOR HIERARCHICAL MOBILE AGENTS: TOWARD

SERVICE-ORIENTED AGENT COMPOUND

Fuyuki Ishikawa

Graduate School of Information Science and Technology, The University of Tokyo

7-3-1 Hongo, Bunkyo-ku, Tokyo 113-8654, Japan

Nobukazu Yoshioka, Yasuyuki Tahara, and Shinichi Honiden

National Institute of Informatics

2-1-2 Hitotsubashi, Chiyoda-ku, Tokyo 101-8430, Japan

Keywords:

Hierarchical mobile agent, Agent system, Agreement, Service oriented architecture, Multimedia application.

Abstract:

Hierarchical mobile agent model is an emerging extension to traditional agent models, where an agent can

migrate into another agent and establish a strong partnership. The entering agent and accepting agent are

called as a child and its parent, respectively. This model enables agents to establish the strong (parent-child)

partnership and cooperate with each other while maintaining the partnership stable for a long term. This

work discusses requirements for frameworks that support development of HMA applications, and describes

the basic direction of our proposed HMA framework named MAFEH. MAFEH includes two features: (1)

Parent-Child Agreement that speciﬁes an agreement regarding behaviors of a parent and its child, and (2)

Interaction Behaviors Description that is used to specify typical synthesis actions separated from the main

application logic. Supporting these features, MAFEH aims to facilitate development of an agent system where

each agent can obtain required functions on demand by means of synthesis as well as remote interaction. This

work considers multimedia application as a motivating scenario, where an agent encapsulates a multimedia

content and establishes synthesis with various agents encapsulating other contents or additional services.

1 INTRODUCTION

Agent technologies have attracted widespread atten-

tion, orienting towards adding more autonomy and

ﬂexibility to software components, especially distrib-

uted conpoments interacting and cooperating with

each other (Bradshaw, 1997). Mobility of agents has

also been investigated, i.e. the ability to migrate from

one host to another on its own decision. Mobility has

been considered as a powerful way to facilitate ﬂexi-

ble, on demand deployment of agents adapting to the

surrounding environments e.g. heterogeneity of com-

puting/network resources and movement of users in

pervasive computing.

Hierarchical Mobile Agent (HMA) model is an

emerging extension to traditional agent models,

where an agent can migrate into another agent (Suna

and Fallah-Seghrouchni, 2004; Satoh, 2000; Tahara

et al., 2003)

An agent can enter into another agent or

to take one in that provides additional services, and

form an agent compound. In this paper, we call the

Currently, there is no widely-accepted name for the

model. We follow (Satoh, 2000) for the name HMA. We

follow (Satoh, 2000) for the use of kinship terms, too.

entering agent and accepting agent as a child and its

parent, respectively, and use such kinship terms. As

the most notable point in the HMA model, when an

agent migrates into an agent or a host, it takes all

its descendants along. The HMA model thus enables

agents to establish a strong partnership as an agent

compound.

The HMA model enables function-migration as

well as data-migration as the mobile agent model

does. It thus can be used for adaptation to limitation

in computing/network resources in mobile computing

or in multimedia processing. The HMA model ex-

tends the mobile agent model in a sense agents can

maintain their partnership stable for a long term, even

if the agents migrate around.

In addition, the HMA model can be considered as

one way to implement Service-Oriented Architecture

(SOA) (Haas, 2004). In SOA, software systems pro-

vide services to other applications through published

and discoverable interfaces, and the services can be

invoked over a network. The HMA model also con-

siders dynamic discovery and coodination of services

provided by agents. Moreover, it additonally enables

agents to establish stronger partnership by keeping

being together with service instances as an agent, if

275

Ishikawa F., Yoshioka N., Tahara Y. and Honiden S. (2005).

FRAMEWORK FOR HIERARCHICAL MOBILE AGENTS: TOWARD SERVICE-ORIENTED AGENT COMPOUND.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 275-282

DOI: 10.5220/0002529102750282

 SciTePress

preferred, not for one-shot invocation but for long-

lasting interaction.

Encapsulation of multimedia contents by agents

has been considered as an attractive application of the

HMA model. Agents encapsulate multimedia con-

tents, form a hierarchy corresponding to the hierar-

chy of the contents, and achieve presentation, deliv-

ery, and composition suitable for the user’s situation

while obeying policies given by their creators and dis-

tributors (Satoh, 2001; Tahara et al., 2003).

Although there seem to be considerable advantages

of the HMA model, little effort have been conducted

on it. Our objective is to provide a framework that

supports development of attractive HMA applications

by addressing its unique issues.

The existing HMA frameworks provide only prim-

itive functions for agents to enter into/exit out of

another agent and to exchange messages (Suna and

Fallah-Seghrouchni, 2004; Satoh, 2000). These

functions are derived by directly adopting the mo-

bile agent model and extending typical mobile agent

frameworks. Although this enables developers to

achieve various behaviors by combining the func-

tions, it leads to complicated codes of low-level func-

tions, where various kinds of behaviors, e.g. discov-

ery and migration, are weaved into the application

logic, resulting in difﬁculty in development and main-

tenance. In additon, it has not been discussed what

behaviors are typical and should be easy to achieve in

the HMA model, not in the mobile agent model. It

has not been discussed, too, how to support develop-

ers to achieve consistent and cooperative behaviors of

agents to form an agent compound and work together.

This paper discusses two additional requirements

for HMA frameworks: (1) easy control of typical ﬂow

upon interaction with a partner agent, i.e. discovery

and migration (if preferred), and seperation of it from

the main application logic, and (2) support for con-

trols/restrictions over a child’s behaviors by its parent.

This paper also describes our approach to these re-

quirements and introduces two concepts: Interaction

Behavior Description (IBD) and Parent-Child Agree-

ment (PCA) in response to (1) and (2), respectively.

IBD is used by developers to control typical ﬂow

mentioned above by setting parameters. IBD is added

to the application logic, which speciﬁes how to inter-

act with partners dynamically bound in runtime but

does not specify concrete information of them.

PCA denotes an agreement between a child and its

parent for strong controls/restrictions over a child by

its parent, such as encapsulation of the child or con-

ﬁnement of the child. Before synthesis, the agents

establish a PCA and then behave according to it until

dissolution of the synthesis. In this work as the ﬁrst

step, we focus on an easily-built agreement concern-

ing on controls/restrictions of domain-independent

primitive actions supported by frameworks, such as

Agent1

Agent3

Agent2

1. Migration

(Synthesis)

2. Interaction

3. Migration

(Synthesis)

Agent1

Agent2

Child

Parent

4. Interaction

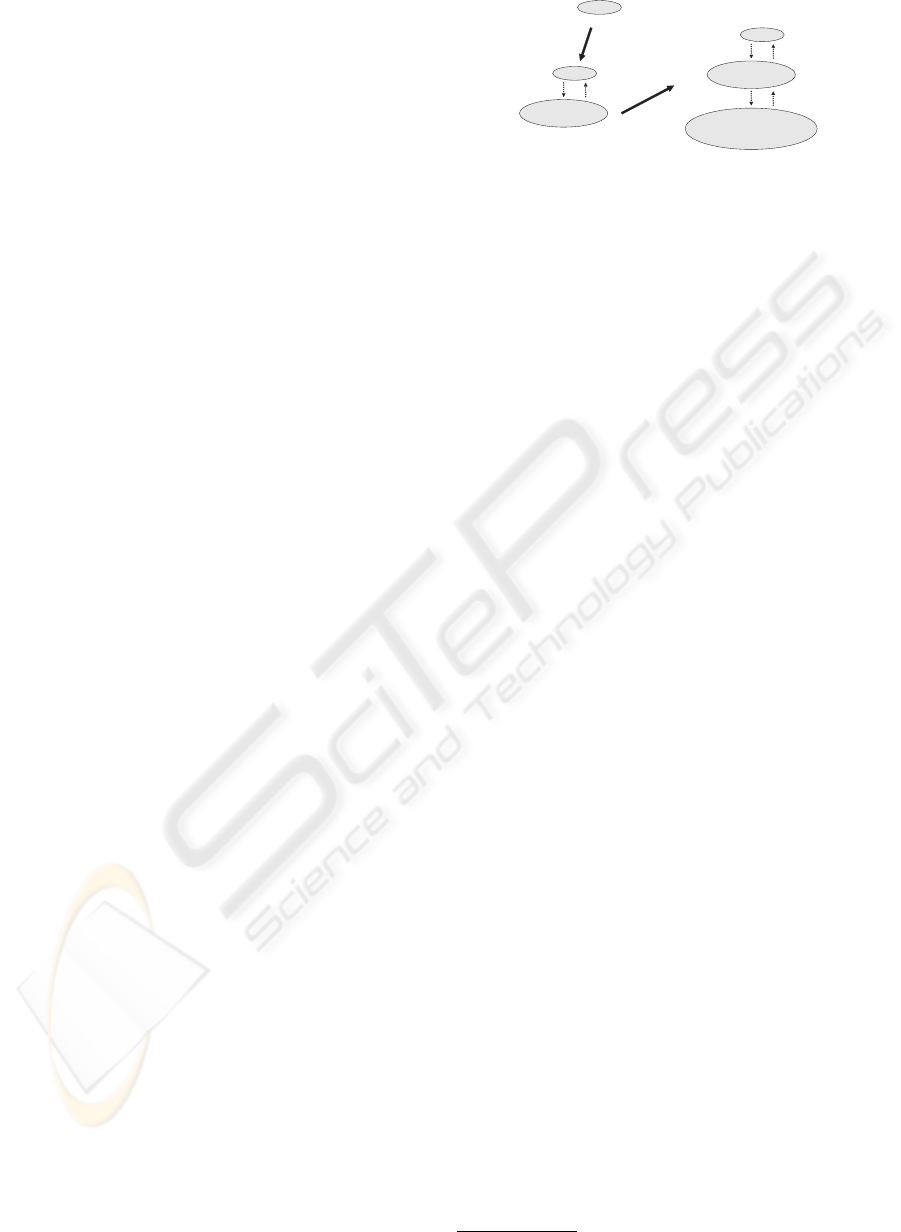

Figure 1: Hierarchical Mobile Agent Model

communication and migration.

This paper is a progress report of our challenge

and describes the basic direction of our ongoing work

on the HMA framework named MAFEH

, which

includes IBD and PCA as its main features. Our

work aims to facilitate development of an agent sys-

tem where agents can request for additional func-

tions on demand and work cooperatively, by synthe-

sis as well as remote interaction. As a motivating

scenario, our work considers multimedia application

where an agent encapsulates a multimedia content

and forms synthesis with various agents encapsulat-

ing other contents or services.

In the remainder of this paper, we ﬁrst introduce

the HMA model and discuss requirements for HMA

frameworks with the motivating example scenario in

Section 2 and 3. We then describe the basic direction

of the proposed framework in Section 4. Finally we

give some discussion in Section 5 before concluding

remarks in Section 6.

2 HIERARCHICAL MOBILE

AGENTS

This section introduces the Hierarchical Mobile

Agent (HMA) model.

2.1 Basic Concepts

Figure 1 illustrates the HMA model (Suna and Fallah-

Seghrouchni, 2004; Satoh, 2000; Tahara et al., 2003),

where an agent can migrate into another. The migrat-

ing agent and the accepting agent are called a child

and its parent, respectively. An agent can have only

one parent and any number of children, forming a

tree structure. When an agent migrates into an agent

or a host, it takes all its children along (migration of

agent1 in Fig. 1). The HMA model enables agents to

establilsh a strong partnership and work cooperatively

for a long term forming an agent compound.

We claim inter-agent migration should be divided

conceptually into two phases: inter-host migration

Mobile Agent Framework with Enhanced Hierarchy.

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

276

where one agent migrates to the same host of the

other, and the action where they establish a parent-

child relationship. This work refers to the latter as

synthesis and focuses on it.

2.2 Existing Works

SyMPA (Suna and Fallah-Seghrouchni, 2004) is

an HMA platform inspired by Ambient Calculus

(Cardelli and Gordon, 1998), a calculus for concur-

rent process forming hierarchy. SyMPA supports ba-

sic functions from the calculus for inter-agent migra-

tion. However, SyMPA has not focused on how to

make use of the HMA model.

MobileSpaces (Satoh, 2000) is a framework that

provides basic functions for the HMA model. Multi-

media applications on MobileSpaces have been pro-

posed (Satoh, 2001). Agents encapsuate multime-

dia objects and form a hierarchy, which corresponds

to the hierarchy of the multimedia objects, e.g. im-

ages included and managed by a word processor doc-

ument. The agents provide to users, customized func-

tions to operate multimedia objects (play, edit, etc.).

In addition, required services can be added at runtime

as child agents, e.g. streaming functions.

Active Contents project (Tahara et al., 2003) also

proposes encapsulation of multimedia contents in the

HMA model. It additionally considers agents that

contain multiple content agents and (1) integrate them

to provide a united content or (2) provide ﬂexible

delivery functionality by means of migration. This

model has been formalized using Ambient Calculus,

however, implementation issues have not been ad-

dressed.

Note that for synthesis control, the existing frame-

works (SyMPA, MobileSpaces) provide functions

only to enter into/exit out of another agent (either on

the same host or on a different host), as an extension

to inter-host migration.

3 MOTIVATION

In this section, we ﬁrst describe the motivating exam-

ple application. We then discuss additional require-

ments for HMA frameworks.

3.1 Example Application

In Section 2.2, we have mentioned some multimedia

applications of the HMA model. Agents encapsulat-

ing multimedia contents and related services in the

HMA model are attractive for the following reasons.

Multimedia data cannot be organized like text data.

There exist many formats and functions for each for-

mat such as playing, editing, and translating formats.

There also exist specialized functions to extract use-

ful metadata or provide users customized view. The

HMA model enables adoption of functions on de-

mand, without preparing all in advance. Since mul-

timedia data is typically large in size, it is inadequate

to send data to remote servers with rich functions.

The HMA model enables function migration as well

as data migration. Moreover, multimedia data have a

hierarchy, e.g. an image in a word-processor docu-

ment. Presentation of children is controled by their

parent and whole contents are delivered as a unit.

This is equivalent to the HMA model and the model

adds the abilities to move or establish partnerships au-

tonomously. We believe agent technology will help

address issues in content synthesis, such as conﬂiction

of licenses or presentation policies, as well as system-

atic issues tackled in this work.

As the motivating example scenario, this work

also considers an agent encapsulating a video content

(VCA: Video Content Agent). The VCA is given pre-

sentation, composition, and delivery policies by cre-

ators, editors, and distributors of the contents, repec-

tively. It provides the contents in a way compliant

with the policies. For example, it can control how

many times the user can move the contents as well as

until when the user can play. It can also increase such

licenses after the user answers a questionnaire. Such

control can be achieved without connecting a central

management server, without the need for such func-

tions to be installed in advance. In addition, it can

provide value-added services such as customization

of contents presentation, merge of related information

collected from the Web, and creation / edit manage-

ment by migrating among hosts of software services

or human professionals.

Our concern here is not issues in handling multi-

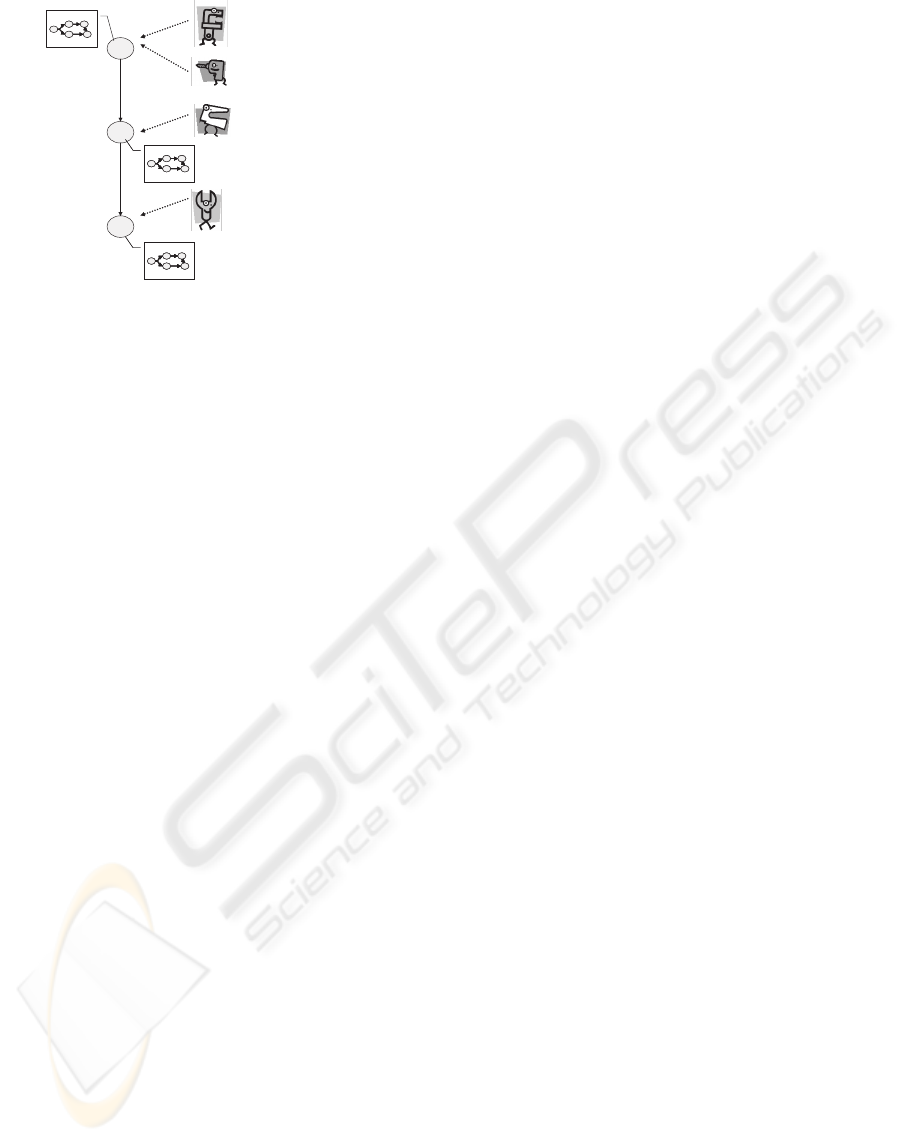

media contents but control of agent synthesis. Figure

2 shows an overview of the VCA lifecycle where it

interacts with four types of agents.

Advertiement Agent Upon instantiation of the

VCA, it takes in an agent as a child that encapsu-

lates advertisements. The VCA then presents the

advertisements integrated to its own video content.

User Agent The VCA migrates to the user host and

starts interaction with an agent that represents the

user.

Mobile Streaming Agent The VCA provides mo-

bile streaming, i.e. tracking the user and provid-

ing streaming at a host nearby the mobile user. To

achieve this, the VCA enters into an agent that pro-

vides migration and streaming ability.

Privacy Agent To provide presentation customized

for the user, the VCA enters into an agent that im-

poses strong restriction on its behaviors, e.g. out-

bound communication, in return for the user’s in-

formation.

FRAMEWORK FOR HIERARCHICAL MOBILE AGENTS: TOWARD SERVICE-ORIENTED AGENT COMPOUND

277

Loop for

service provision

Initialization

Partner3 (entered into as a parent):

an agent provides user -tracking migration

and streaming functions

Partner2 (approached for local interaction):

an agent representing the user

Loop for

Service Provision

Customized mode

Partner4 (entered into as a parent):

an agent providing user information

Partner1 (taken in as a child):

an agent encapsulating advertisements

Customized presentation of the contents

Usual presentation of the contents

or Mobile streaming presentation

Figure 2: Agent Encapsulating Video Content

3.2 Requirements for HMA

frameworks

For the unique issue in the HMA model, i.e. synthe-

sis, the existing frameworks (SyMPA, MobileSpaces)

provide functions to enter into/exit out of another

agent (either on the same host or on a different host),

as an extension to inter-host migration. Synthesis

control functions can be classiﬁed into two types: (1)

building or dissolving a parent-child relationship and

(2) cooperation of between a child and its parent while

the relationship is being maintained.

3.2.1 Synthesis Control

For (1), the existing frameworks (Suna and Fallah-

Seghrouchni, 2004; Satoh, 2000) only provide prim-

itive functions to enter into/exit out of another agent.

This fact causes the following two issues. First, it

means that the frameworks would require a heavy task

of coding, for each partner agent, regarding discov-

ery of a partner instance that can play the required

role, migration and synthesis if required, and dissolu-

tion of the synthesis. However, this ﬂow is considered

rather typical since the HMA model essentially con-

siders on-demand partnerships. Second, in the HMA

model, a parent can not only be a host but can also be

an agent. It is quite natural that a synthesis is activated

by a parent to obtain additional functions as a child

(e.g. the advertisement agent in Section 3.1). It is also

possible that a parent would migrate to the host of a

child, forms a synthesis and provides services (e.g.

the mobile streaming agent in Section 3.1). These be-

haviors have not been facilitated by the frameworks

since developers would have to combine the entering

action and communication to request the action.

3.2.2 Cooperation of Child and Parent

For (2), consistent behaviors of a child and its par-

ent have not been considered in the existing frame-

works. In the frameworks, a child can exit out of its

parent on its own discretion. This may cause termina-

tion of interaction and then unexpected errors to oc-

cur in the parent’s behaviors. One idea is to intro-

duce controls and restrictions over children’s actions

by the parent. It seems like a natural metaphor that

a parent would own and control its children (compo-

nents). Actually, in the MobileSpaces framework, a

parent can kill its child or remove it out (Satoh, 2000).

However, such control by a parent may in turn cause

error in its child’s behaviors. Some mechanism is thus

required to ensure duration of a partnership. In addi-

tion, it has not been discussed whether other types of

controls or restrictions over a child by its parent are

useful or not.

Below we list types of controls/restrictions consid-

ered useful with respect to each purpose. In this work

we limit our discussion to primitive functions typi-

cally managed by frameworks, namely, lifecycle man-

agement, communication, and migration/synthesis.

Duration of Partnership. In the existing work, a

child can migrate out of its parent on its own discre-

tion. On the other hand, in MobileSpaces a parent

can kill its child or move it away. These actions may

cause interruption of interaction that is unexpected by

the partner. It should be assured the partnership is

maintained for a certain duration.

Service Provision Parents may want their chil-

dren to interact with the outside in special manners,

namely, (1) a black box model and/or (2) encapsula-

tion (the advertisement agent in Section 3.1). (1) A

parent makes its child invisible from outside to hide

its internal business logic. In this case, all required

communication of the child would be conducted in

the parent’s name, and forwarded by the parent as ap-

propriate. (2) A parent encapsulates its child so that

the child’s services are not available from the outside,

directly or via the parent, and restricted usages are

achieved by the parent.

Conﬁnement In MobileSpaces, a parent can kill

its child. One usage of this function is to “conﬁne” a

child so that it cannot leak some information such as

the internal business logic or user privacy information

(the privacy agent in Section 3.1). This also requires

restriction on outbound communication of the child.

The extent of these controls/restrictions should be

decided for each agent pair. In Section 3.1, the mobile

streaming agent merely provides carrier functions and

imposes no restriction on the video agent while the

video agent wants to encapsulate the advertisement

agent and control its functions. The above patterns re-

quire a mechanism to make agents agreed before syn-

thesis and then work cooperatively according to the

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

278

Workflow

Sub -Workflow

public void run()

{

…

}

Implementation

of Atomic Action

(Java)

Activities

IBD

Acceptable PCA Condition

(Initiator)

Partner Scope

Partner Agents

Agent Description

Acceptable PCA Condition

(Responder)

Figure 3: MAFEH Agent Description Model

agreement, since they may have conﬂicting desires on

the extent of the controls/restrictions.

4 MAFEH FRAMEWORK

This section describes the basic direction of our on-

going work on the MAFEH framework.

4.1 Overview

Considering the requirements discussed in Section

3.2, we are developing an HMA framework named

MAFEH including two features: Interaction Behav-

ior Description (IBD) and Parent-Child Agreement

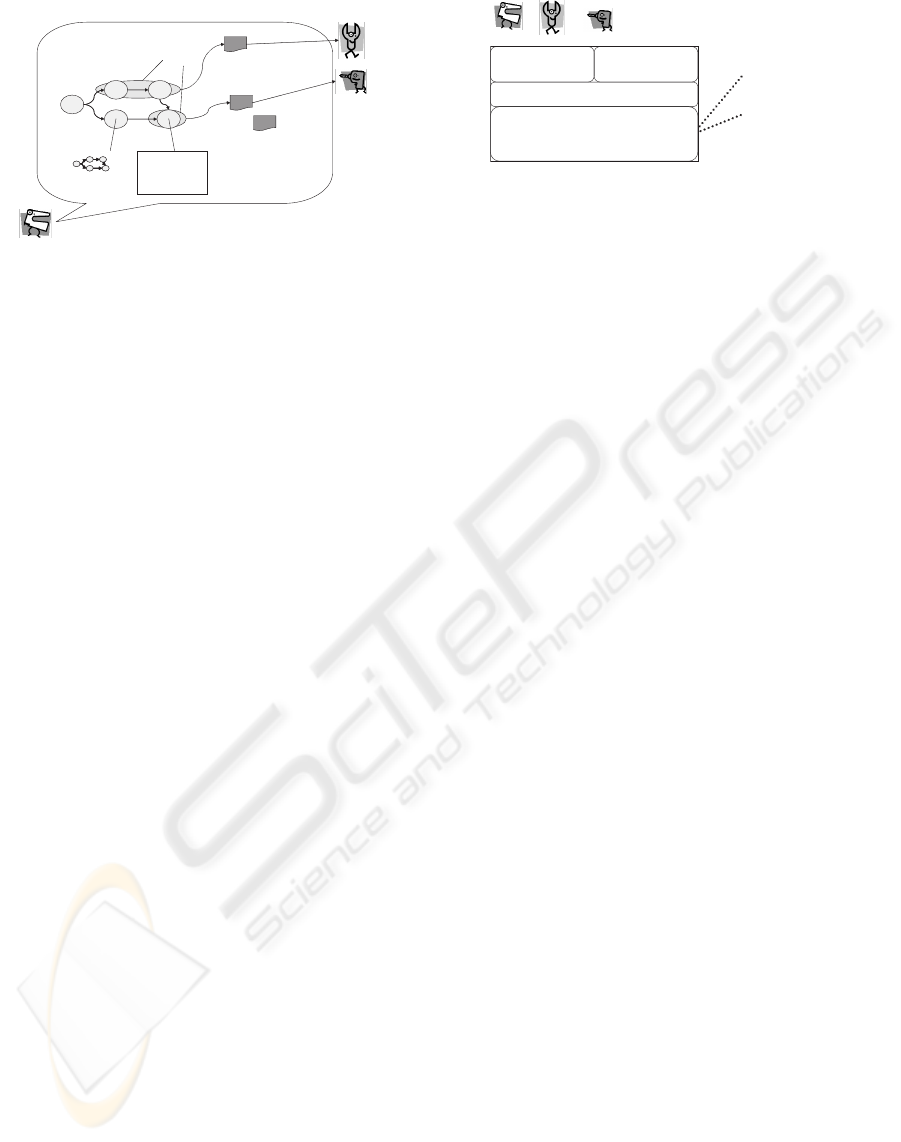

(PCA). Figure 3 and 4 illustrate the agent descrip-

tion model and the architecture of MAFEH, respec-

tively. Although the concepts of PCA and IPA do not

essentially depend on enviroments, our current work

assumes all agents are registered and can be discov-

ered in global directory services.

The main application logic is described as a work-

ﬂow, which connects sub-workﬂows and atomic ac-

tions. An atomic action is a unit of execution (com-

putation or interaction with other agents) and imple-

mented in Java. This logic speciﬁes how to interact

with abstract partners without concrete information of

them. We assume developers know the type of each

partner and interaction protocols for communicating

with them.

IBD is then used by agent developers to de-

scribe concrete information and detailed action pa-

rameters related to each abstract partner declared in

the workﬂow description, for discovery and migra-

tion/synthesis.

PCA denotes an agreement on the extent of con-

trols/restrictions over a child by its parent. Devel-

opers give each agent acceptable PCA conditions.

They denote the conditions about the extent of con-

trols/restrictions under which the agent can achieve its

expected behavior. An agent has accetable PCA con-

Workflow + IBD

Interpreter

APIs

for Atomic Actions

PCA Checker

Infrastructure for Primitive Functions

Relation and PCA Management

Application Level Communication (FIPA ACL)

Directory Access

Inter-host Migration

Place

Agents

Other Places

Directory Services

with PCA Matching Facility

Figure 4: MAFEH Architecture

ditions for each partner that it asks to provide services

(in case the agent is an initiator of interaction), and

for a partner that asks it to provide services (in case

the agent is a responder). When an agent activates

synthesis, it discovers a partner with which it can es-

tablish a PCA using simple matching rules. Man-

agement of parent-child relationships are conducted

by MAFEH. The relationships are managed as logical

links between agents. Calls for primitive functions are

hooked and changed or denied according to formed

PCAs. The framework is responsible to realize and

assure compliance with formed PCAs. Infraction by

not using IBD or provided APIs is prevented by using

SecurityManager in Java.

4.2 Main Application Logic

The main application logic is described as a combi-

nation of (1) implementation of each atomic action in

Java and (2) a global workﬂow that connects activ-

ities (atomic actions and sub-workﬂows). A work-

ﬂow consists of activities and the control/data ﬂow

among them. An activity is either a sub-workﬂow or

an atomic action. MAFEH provides APIs for imple-

mentation of atomic actions, such as APIs for get-

ting workﬂow-level inputs and setting outputs, and

sending/receiving messages of FIPA ACL (AGENTS,

1997). For description of control/data ﬂow, we

followed Web Services Flow Language (Leymann,

2001) and extended its notation and semantics with

the concept of exception handling. The control/data

ﬂow is expressed by connecting activities with con-

trol links and data links. Loop execution is expressed

with an exit condition of an activity (until loop).

This two-layer descriptions of the main logic is in-

tended to keep control of migration and synthesis as

abstract as possible by handling it at the workﬂow

level. Inter-host migration is not activated during exe-

cution of atomic actions but in the interval, according

to IBD (described later in Section 4.4). Upon migra-

tion all activity states and variable values at the work-

ﬂow level are preserved, and then rebuilt after migra-

tion completion. When a parent initiates migration,

the migration is delayed until all the children ﬁnish

their current atomic actions and preserve their states.

FRAMEWORK FOR HIERARCHICAL MOBILE AGENTS: TOWARD SERVICE-ORIENTED AGENT COMPOUND

279

Partner Scope Declaration

Implementation

of Atomic Action

(Java)

Internal Name of the Partner in the Main Logic:

AdAgent

public void run() {

…

AID aid = getAID(“AdAgent");

…

}

Discovery and Selection

Information

…

Agent ID (Reference)

Bound in Runtime

Activities

IBD

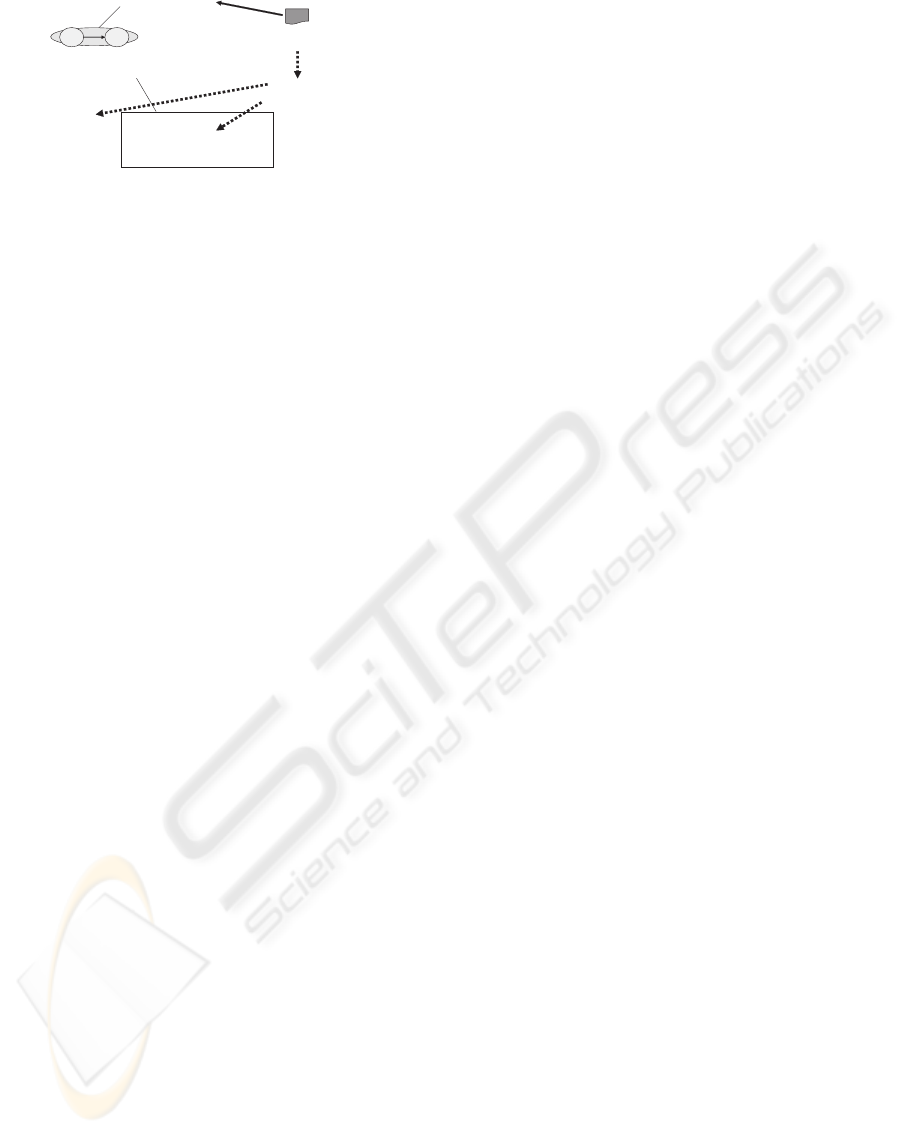

Figure 5: Partner Scope

The main application logic can be speciﬁed with-

out concrete information of interaction partners. Fig-

ure 5 illustrates how each partner is bound. Names

of the involved partners are declared and then can be

used in the implementation of atomic actions. At the

global workﬂow level, the partner scope of each part-

ner is deﬁned and then used to decide when to initiate

synthesis or dissolve it. Concrete information of the

declared partners and detailed parameters for migra-

tion/synthesis (if preferred) are given in Interaction

Behavior Descriptions (IBD) described later in Sec-

ton 4.4.

4.3 Parent-Child Agreement

PCA speciﬁes an agreement on the extent of con-

trols/restrictions over the child by the parent. As

mentioned in Section 3.2.2, this work handles con-

trols/restrictions related to term of the partnership,

black box/encapsulation, and conﬁnement.

The extent of each control or restriction is spec-

iﬁed as a value of a predeﬁned parameter in PCA.

Each agent is given, by its developers, acceptable

PCA conditions for each partner that it requests (for

the case where the agent is the initiator of inter-

action) and for the partner that requests it to pro-

vide services (for the case where the agent is the re-

sponder). When an agent requests for synthesis, the

MAFEH framework matches conditions of two agents

(the initiator and responder) and forms a PCA. This

work adopts simple matching rules that derive the

least controls/estrictions compliant with the accept-

able conditions. After forming synthesis, the frame-

work achieves the controls and denies actions against

the restrictions in the PCA, causing an exception to be

thrown (both at the workﬂow and atomic action lev-

els).

Figure 6 shows an example of acceptable PCA

conditons of two agents and the PCA established

by mathching them. The parameters are deﬁned

to achieve controls/restrictions described in Section

3.2.2. Suppose the parent is the video agent and the

child is the advertisement agent in Section 3.1. In

the parent conditions, the parent wants black model

(requireBlackBox) and encapsulation of the adver-

partnerName: careerAgent{

role: MobileStreaming/career

onDemand: yes

interactionType: parent

approach: come

(Other detailed parameters

such as for exception handling)

}

Figure 7: IBD

tisement provision functionality (deniedInboundMes-

sages and deniedOutboundMessages). It does not

want to kill the child after the partnership expires

(for conﬁnement) (requireKillResolve). On the other

hand, in the child conditions, the child wants to inter-

act with its master servers for update (subscribedIn-

boundMessages and allowedOutboundMessages). It

also wants a guarantee for term of the partnership

(expireDateLaterThan). As requirements of the two

agents are not inconsistent, matching succeeds, lead-

ing to the PCA with the least controls/restrictions

compliant with both of the requirements.

4.4 Interaction Behavior Description

The main application logic speciﬁes how to interact

with abstract partners as mentioned in Section 4.2.

IBD gives concrete information of the partners and

detailed parameters for discovery, migration, and syn-

thesis. Figure 7 shows IBD of the video agent for the

mobile streaming agent in Section 3.1. Below, we de-

scribe how migration and synthesis actions are con-

ducted upon interaction according to IBD.

When to initiate interaction with the partner is

speciﬁed in onDemand in IBD. If the item is set to yes,

the partner is discovered on demand, that is, when the

interpreter of the workﬂow ﬁrst encounters an activ-

ity that belongs to the partner’s scope. If the item is

set to no, the partner is discovered when the agent is

instantiated, before execution of the main logic.

Agents are discovered from directory services that

can play the role in the protocol speciﬁed in role.

When a PCA can be established with an agent in the

query result, the agent becomes the partner.

After the partner is decided, migration and/or syn-

thesis is activated if necessary. The interaction type

is speciﬁed in interactionType; (1) parent: interaction

after entering into the partner, (2) child: interaction

after taking the partner in, and (3) parallel: inter-

action without synthesis. In addition, the method of

approaching the partner is speciﬁed in approach: its

value can be (a) go: migrating to the partner’s host,

and (b) come: asking the partner to send a new in-

stance of the partner to the agent’s host, and (c) re-

mote: interaction by remote messaging without mi-

gration only in the case of parallel interaction.

In the case of synthesis, dissolution of the synthe-

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

280

Parent Conditions Child Conditions Formed Agreement

expiredDateLaterThan:

expiredDateLaterThan: expiredDate:

2004-11-12 00:00:00 JST 2004-11-12 00:00:00 JST

requireBlackBox: yes

acceptBlackBox: yes blackBox: yes

deniedInboundMessages:

subscribedInboundMessages: subscribedInboundMessages:

(protocol=="playAd")

(protocol=="adUpdate") (protocol=="adUpdate")

deniedOutboundMessages:

allowedOutboundMessages: deniedOutboundMessages:

(protocol=="playAd")

(protocol=="ad") (protocol=="playAd")

requireKillDissolve: no

acceptKillDissolve: yes killDissolve: no

Figure 6: Acceptable PCA Conditions and Formed PCA

sis is initiated according to the partner scope. Ba-

sically, when all the activities in the partner scope

have been evaluated (including “skipped” in condi-

tional branch), the synthesis is dissolved. In the case

where a partner scope is involved in a loop, it is not

clear whether it will be a loop targeting the same part-

ner instance or a loop switches partner instances. It

seems typical that an interaction with a partner is de-

scribed as a loop and then that loop is involved in an-

other loop in which partner instances are switched. In

declaration of partner scopes, developers can specify

the activity where partner instances are switched.

All the above actions are executed just before or af-

ter execution of an activity, according to partner scope

declarations and IBDs. Exceptions in these actions

are thrown and can be caught at the workﬂow level.

4.5 Adoption to Example

Below, we describe how IBD and PCA can be used

for the example in Section 3.1.

Advertisement Agent The VCA takes in the

advertisement agent (interactionType:child, ap-

proach:come in IBD). PCA for this agent pair was

described in the example in Section 4.3.

User Agent VCA interacts with an agent that repre-

senting the user. When initialized, it migrates to

interact with it locally without synthesis (interac-

tionType:parallel, approach:go in IBD).

Mobile Streaming Agent VCA calls and enters a

mobile streaming agent according to the user’s

request (interactionType:parent,approach:come in

IBD). This time in PCA, the black box model is not

adopted and the function for regular presentation

can also be called from the outside. As the agent

provides migration strategy based on knowledge of

the current environment and supports a streaming

protocol supported by the user’s device, this agent

is switched every time requested (onDemand: yes

in IBD).

Privacy Agent The VCA enters into the privacy

agent that imposes strong restrictions in re-

turn for the user’s information (interaction-

Type:parent,approach:go in IBD). According to

the user’s policy, the agent inhibits communication

with the outside and migration out of it (deniedOut-

boundMessages: (true), isEscapable:no in PCA).

This way, various patterns for agent pairs can be

achieved on the framework, MAFEH, especially the

interaction patterns in IBD and the control/restriction

patterns in PCA.

5 DISCUSSION

We have brieﬂy described the basic concepts of the

MAFEH framework, especially IBD and PCA. In this

section, we discuss advantages of our approach to

IBD and PCA, though MAFEH is currently under

development and requires evaluation by constructing

real applications. We also discuss further require-

ments on IBD and PCA.

5.1 IBD

We mentioned needs for facilitation of the typical

ﬂow: discovery, synthesis, and dissolution, in Sec-

tion 3.2.1. In MAFEH, developers explicitly declare

partner scopes so that the framework can manage the

ﬂow eliminating the need for developers to insert each

action appropriately. IBD also facilitates the patterns

mentioned in Section 3.2.1, synthesis activation and

inter-agent migration (interactionType and approach).

In the existing frameworks, these patterns have not

been facilitated as they require combining communi-

cation for requests and the primitive function to enter

into an agent.

In addition, as details of interaction partners are

separated from application logic, it is easier for de-

velopers to change them, e.g. to change from synthe-

sis to parallel interaction or to change parameters in

the query for discovery. If such details are not sepa-

rated from application logic, it is difﬁcult to ﬁnd and

modify actions scattered and enweaved within the ap-

plication logic. However, as this approach of IBD

limits description capability, further evaluation is re-

FRAMEWORK FOR HIERARCHICAL MOBILE AGENTS: TOWARD SERVICE-ORIENTED AGENT COMPOUND

281

quired by constructing various agents such as those

mentioned in 3.1.

IBD takes a similar approach to the one in co-

ordination languages in the Web Services activity

for on-demand discovery and coodination of distrib-

uted services, e.g. WSFL (Leymann, 2001) and

BPEL4WS ((editor) et al., 2003). However, they have

not considered strong partnerships as in the HMA

model for long-lasting interaction. On the other hand,

there have been many languages for controling mo-

bile agents by associating migration with actions (ita,

2001; Ishikawa et al., pear). However, no language

has appeared for the HMA model.

It is necessary to extend the current work to facil-

itate decision of acceptance of agent synthesis based

on nonfunctional parameters such as trust and security

policies. We are thinking of introducing some pol-

icy descriptions similar to acceptable PCA conditions,

which allow the framework to support an agent’s de-

cision to accept an offer of synthesis.

5.2 PCA

In 3.2.2, we described basic types of agent cooper-

ation in the HMA model: assurance of partnership

durations, the black box model and encapsulation,

and conﬁnement for information secrecy. MAFEH

allows an agent to change the extent of such con-

trols/restrictions for each of its partners, obeying the

minimum requirements imposed by its developer.

The framework supports realization of controls and

compliance with restrictions in PCA. If they are dele-

gated to each agent, each developer is obligated to im-

plement cooperative behaviors correctly. For exam-

ple, the black box model requires developers to code

appropriately so that a child sends all messages to its

parent and the parent forwards inbound and outbound

messages correctly. However, it is a heavy burden to

code such detailed actions obeying each PCA decided

at runtime. It is also very difﬁcult to assure that each

agent behaves correctly according to the PCA.

Acceptable PCA conditions are given by develop-

ers. Tool support is necessary such as veriﬁcation of

the conditions or (semi-)automatic extraction of them

by analysing the main logic. In addition, it should be

possible to develop an agent that handles its condi-

tions by itself. For example, the video agent should

decide by itself to accept strict conditions of the pri-

vacy agent only in return for privacy information, and

change its behaviors adapting to the established PCA.

6 CONCLUSION

This paper has described the basic direction of our

work on the MAFEH framework for hierarchical mo-

bile agents. MAFEH includes two features: PCA

for an agreement regarding behaviors of a parent and

its child, and IBD for description of synthesis ac-

tions separated from the main application logic. Al-

though our work is still at an early stage, we believe

we can mature MAFEH for development of agents

that autonomously establish synthesis at runtime, by

incrementally focusing on and reﬁning each part of

MAFEH.

REFERENCES

(2001). Mobile agents itinerary language project.

http://nemesis.csse.monash.edu.au/

˜azaslavs/itag/. (Access: 10 June 2004).

AGENTS, F. F. I. P. (1997). Agent communica-

tion language. http://www.fipa.org/specs/

fipa00003/OC00003A.html.

Bradshaw, J. M. (1997). An Introduction to Software

Agents. MIT Press.

Cardelli, L. and Gordon, A. D. (1998). Mobile ambients.

In Foundations of Software Science and Computation

Structures: First International Conference.

(editor), S. T. et al. (2003). Business process execution

language for web services, version 1.1. http:

//www-106.ibm.com/developerworks/

webservices/library/ws-bpel/. (Access:

10 June 2004).

Haas, H. (2004). Web services. http://www.w3.org/

2002/ws/. (Access: 10 June 2004).

Ishikawa, F., Yoshioka, N., Tahara, Y., and Honiden, S. ((to

appear)). Behavior descriptions of mobile agents for

web services integration. In 2004 IEEE International

Conference on Web Services (ICWS 2004).

Leymann, F. (2001). Web services ﬂow language (wsﬂ1.0).

http://www-3.ibm.com/software/

solutions/webservices/pdf/WSFL.pdf.

Satoh, I. (2000). Mobilespaces: A framework for building

adaptive distributed applications using a hierarchical

mobile agent system. In The 20th International Con-

ference on Distributed Computing Systems ( ICDCS

2000), pages 161–168.

Satoh, I. (2001). Mobile agent-based compound documents.

In ACM Symposium on Document Engineering 2001,

pages 76–84.

Suna, A. and Fallah-Seghrouchni, A. E. (2004). A mobile

agents platform; architecture, mobility and security el-

ements. In The 2nd International Workshop on Pro-

gramming Multiagent Systems Languages and tools

(PROMAS 2004).

Tahara, Y., Yoshioka, N., and Honiden, S. (2003). A

formal model of active contents based on the ambi-

ent calculus. In The 5th International Workshop on

Mobile Agents for Telecommunication Applications,

pages 132–141.

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

282
