MANAGING INTER-ACTIVITIES IN CSCW

Supporting users emerging needs in the CooLDA platform

Gregory Bourguin, Arnaud Lewandowski

Laboratoire d’Informatique du Littoral (LIL), 50 rue Ferdinand Buisson, 62228 Calais, France

Keywords: CSCW, tailorability, dynamic integration, Activity Theory, Java.

Abstract: The CSCW research domain still tries to find a b

etter way for supporting the users needs. Some groupware

systems propose global and integrated environments supporting collaborative activities, but empirical

studies show that these environments usually omit to support some dimensions of the work. On the other

hand, some groups work with diverse applications that do not know each other. Mainly inspired by results

coming from Social and Human Sciences, we believe that the complete CSCW environment cannot be

defined a priori. However, we also believe that a global CSCW environment is really valuable for users.

Taking our foundations in the Activity Theory, we aim at creating a global but tailorable environment that

supports the dynamic integration of external applications and manages the links between them, i.e. it

manages the inter-activities. This work is concretized in the CooLDA platform.

1 INTRODUCTION

Following the impressive rise of communication

means, the CSCW (Computer Supported

Cooperative Work) holds today a strong place in

computer science. Many communities use

groupware tools while realizing their cooperative

activities. However, even if a real need for

groupware exists, a quick look at the large literature

helps to understand that many questions still exist

about how to realize a good CSCW application. The

main question that remains after years of research is

how to realize an application really fitting the users

needs. As an example, we can cite a recent study

about systems supporting collaborative writing on

the Web (Noël & Robert, 2003). The study presents

some systems that are interesting because they

propose global and integrated environments for the

realization of cooperative editing tasks. However,

the authors underline that none of these systems

totally fulfils the requirements that better fits the

users needs. It happens despite of the large number

of systems supporting this activity. This work

concludes that it is necessary to further develop

existing tools while adding required functionalities,

or to create new and more complete ones. These

critics are characterizing a major problem in the

CSCW research domain highlighted by results

coming from Human and Social sciences. For

example, Activity Theory (Bedny, 1997) teaches us

that human activity is reflective and that the users

needs are emerging from the activity, while they are

realizing it. These results lead to believe that the

complete CSCW system cannot be defined a priori.

The solution that is usually adopted by groups is

o use concurrently different groupware applications,

when they need them, each one fulfilling a

dimension of the collaborative activity. The matter

in this situation is that these different tools do not

know each other and the coherence of the

collaborative environment, the global activity

contextualizing their use, is only managed by

humans.

Trying to solve this problem, we are working on

a platform

named CooLDA (Cooperative Layer

supporting Distributed Activities) that provides the

means to create some global and integrated but

tailorable cooperative environments. In this

approach, the environment is not designed to support

some a priori users needs, but we want it to be able

to dynamically integrate groupware tools supporting

their emerging needs.

The first part of this paper describes how we

defi

ne a tailorable global and integrated environment

while characterising what we call the inter-activities

approach. The second part of the paper introduces

the CooLDA platform that proposes a conceptual

and technical solution to these problems. The last

part of the paper briefly underlines some CSCW

research works that are close but different ours.

134

Bourguin G. and Lewandowski A. (2005).

MANAGING INTER-ACTIVITIES IN CSCW - Supporting users emerging needs in the CooLDA platform.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 134-139

DOI: 10.5220/0002529601340139

 SciTePress

2 THE INTER-ACTIVITIES

2.1 A fine-grained integration need

As we introduced before, groups usually use

concurrently different tools while realizing their

cooperative activities. Each tool supports an aspect

of the group’s activity. From our point of view, each

tool itself supports an activity existing in the context

of another more general one. As an example we can

consider the setting that is described in

Figure 1.

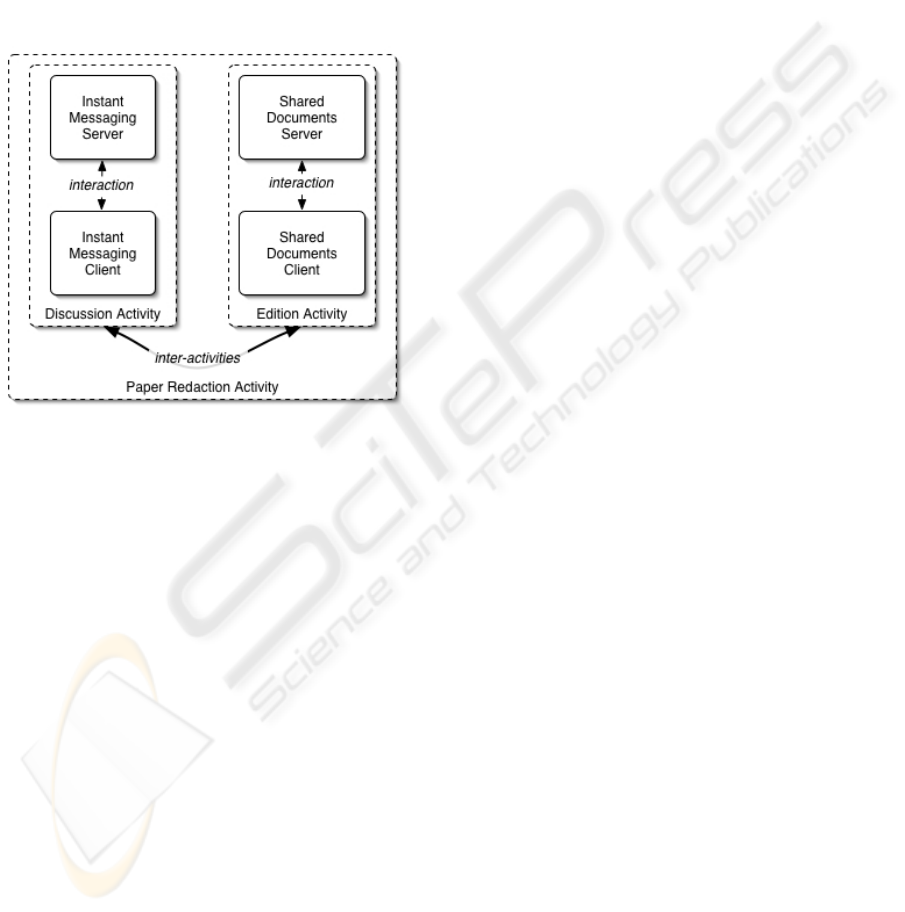

Figure 1: The inter-activities

In this situation, an instant messaging application

is available over the Internet. It supports a

synchronous discussion activity. In the same way,

another application supports an asynchronous

document sharing activity. In this example, our

approach aims at providing the support for the paper

writing activity that creates a context for the

discussion and document sharing. We want to

support the inter-activities between these two sub-

activities. Such contextualization supposes that the

global environment is able to start the application,

control it and, in the case of a really fine integration

scheme, receive some events concerning state

changes in the activity it supports.

The ability to start the integrated tool seems an

evidence: a user that connects to the environment

and enters in the paper writing activity should have

access to the instant messaging and document

sharing tools. This corresponds to the minimal

integration level. Such integration scheme can be

found in web sites providing simple links towards

different applications.

In the case of a finer integration, the role of a

user in an activity should influence its roles in the

linked activities. For example, in a distance learning

activity like a course, the professor role may imply

the presenter role in an activity supported by a

WYSIWIS (What You See Is What I See) document

sharing application and the speaker role in an

associated audio conference. To do this, the platform

that supports the course has to control the tools

implied in this global activity. We can also imagine

that an action that is triggered in the global activity

has direct repercussions on the sub-activities, i.e. on

the integrated tools. These repercussions may be

different according to the different roles played by

the users in the global activity. For example, after its

presentation, the professor may decide to start an

exercise where students cooperatively annotate a

shared document while discussing altogether. This

professor action in the global course activity triggers

a state change in the audio-conference activity, thus

allowing students to speak when they want, and

another related state change in the document sharing

application allowing students to annotate the shared

document. Those are simple examples, but they

show why it is important that the global integrated

environment is able to pilot tools supporting sub-

activities. If this is not the case, the teacher has to

explicitly change the state of each tool he uses for its

course, and this, each time he switches from a

presentation to an exercise.

Finally, in the case of a maximum integration

scheme, the action of a user in a sub-activity may

also have repercussions on the state of the other sub-

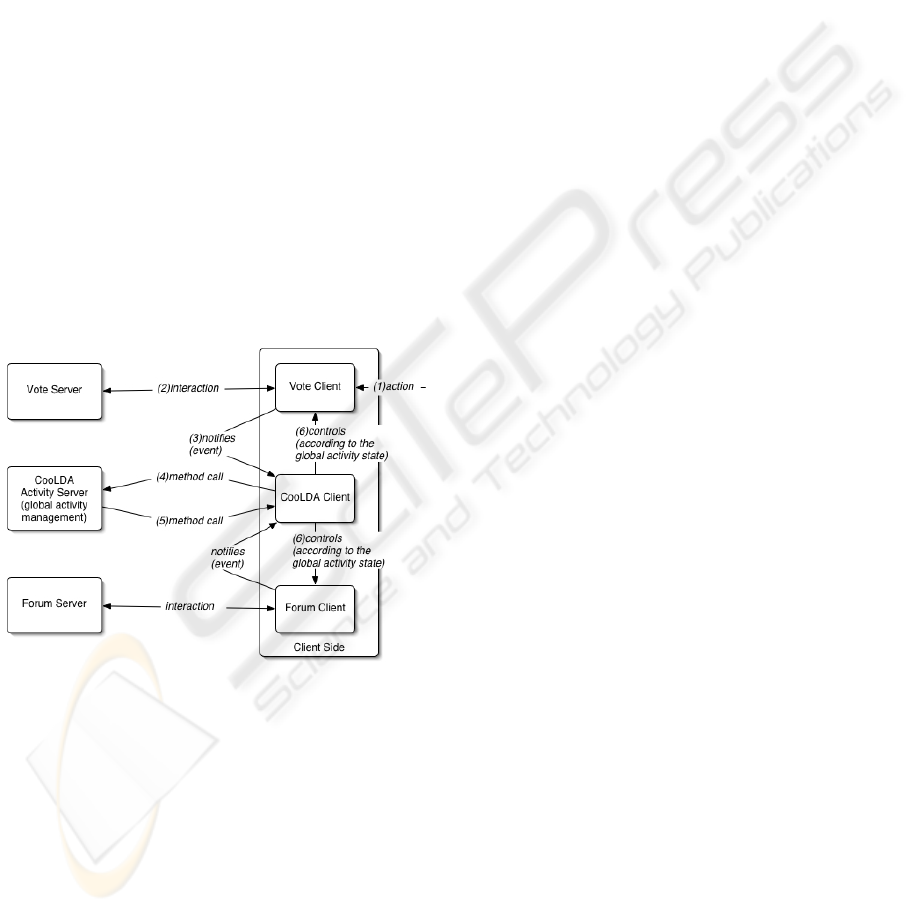

activities. As an example, we can imagine a global

debate activity using a vote tool and a forum.

Proposing a motion in the vote sub-activity may

engender a state change in the global debate activity

that closes the discussions in the associated forum

sub-activity. The platform should be able to receive

some events that are generated by a tool, to give

them a sense in the global activity according to the

role of the actor, and eventually to trigger a global

action having repercussions in the linked sub-

activities.

2.2 A dynamic integration need

We have talked about the mechanisms that are

necessary to support the links weaved between an

external tool and our environment. One can notice

that these mechanisms may be found in certain full-

integrated environment like complex web portals.

However, it is important to remember that the main

difference here is that we want to support the

emerging user needs. In our approach of

tailorability, the users should be able to integrate

tools they need and when they need them. Thus, our

platform must also propose the means for

dynamically creating and evolving those links. This

supposes that the environment is able to support the

MANAGING INTER-ACTIVITIES IN CSCW: Supporting users emerging needs in the CooLDA platform

135

dynamic integration of diverse tools as linked

activities, and the dynamic (re)definition of the links

created between them.

Finally, we would like to underline that in our

approach, this dynamicity should be offered not only

to computer scientists or system administrators, but

also to domain specialists, i.e. the end-users. In fact,

if a teacher finds integrable tools that are interesting

for its activity, we want to let him integrate them

himself, without stopping the system, i.e. during its

activity. This is what the CooLDA platform is

designed for.

3 THE COOLDA PLATFORM

The CooLDA platform takes benefits from our

experience in the CSCW research domain (Bourguin

& Derycke, 2001). This work mainly takes its

foundation in the Activity Theory (AT) (Bedny,

1997), a conceptual framework that has a wide

audience in CSCW (Nardi, 1996). Presenting all of

our previous work in the domain with the AT is out

of the scope of this paper. More details can be found

in (Bourguin & Derycke, 2001). However, we will

start this presentation of CooLDA by defining some

concepts necessary for understanding our

demonstration.

3.1 A generic model for activity

CooLDA has to support the inter-activities. For this

purpose, we have defined a generic model of

activity-support. This model is presented in Figure 2.

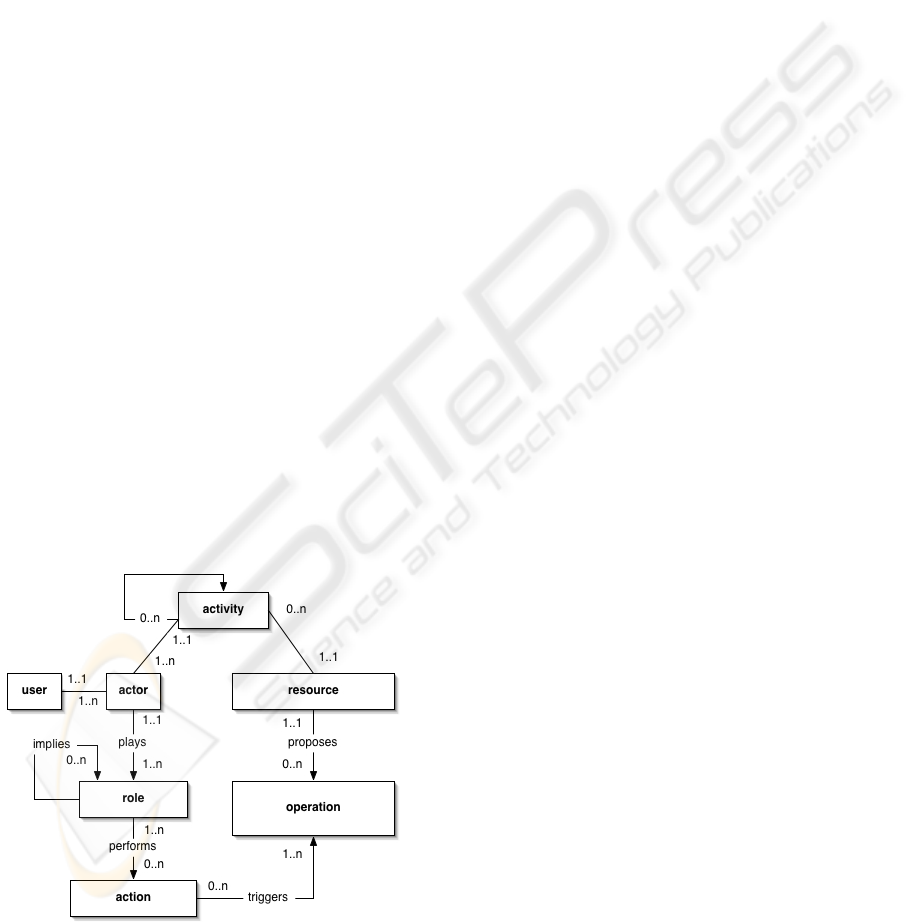

Figure 2: The activity-support model

A user is an actor in a particular activity-support.

Each activity-support is linked to a resource,

namely, a tool that is integrated in the platform.

Each resource proposes some operations that can be

triggered. An actor plays a role allowing the user to

perform some actions according to the activity state.

An action is realized through a chain of operations.

An activity can be linked to another (sub-)activity.

In this case, a role in the activity may imply another

role for the user being an actor in the other activity.

With this model, we can describe how CooLDA

conceptually manages the inter-activities. Going

back to our example with the professor and students

in a course, professor and student are the roles in the

course activity. The course activity is linked to the

document sharing and the audio-conference

activities. The professor role implies a presenter role

and a speaker role in the respective two sub-

activities. The document-sharing resource proposes

an enable/disable drawing operation that will be

mapped in a corresponding action in the document

sharing activity. This action will automatically be

triggered for a student when the professor performs

the start exercise action in the course activity.

Several other points should be described in this

scenario. It is not the purpose of this paper to

describe them all here, but those we have explicated

let understand how our generic model enables the

specification of the inter-activities managed by

CooLDA. We now would like to describe how we

realize the dynamic inter-activities management

from the technical viewpoint.

3.2 A simple dynamic integration

environment

One particularity in our project is that we do not

want to develop ourselves the tools that may be

integrated in the environment and we would like to

let users integrate themselves tools available over

the Internet. The generic properties needed for

integration that we have already enunciated in part 2

exist in diverse distributed environments like

CORBA. The same type of elements can be found in

the more recent Web Services technology (Kleijnen

& Raju, 2003). These elements support the dynamic

discovery and invocation of objects (or services) and

methods over a network.

Another particularity of our project is that we are

actually working with teachers involved in the

development of distance learning situations. These

teachers use concurrently different tools supporting

their distributed collaborative teaching. They are

interested in using CooLDA as a global integrated

environment supporting scenarios related to their

teaching activities. The tools they use are mostly

ICEIS 2005 - HUMAN-COMPUTER INTERACTION

136

simple Java applications they find over the Internet

and, for some, Java applications developed by

students at university..

According to these constraints, we have

developed the current version of CooLDA using a

very simple integration environment : the standard

Java Virtual Machine (JVM). The description of

CooLDA in the rest of this paper will be linked to

this choice. However, the principles we are going to

describe are transposable in other technologies.

3.3 Supporting inter-activities

Java enables to download and dynamically create

instances of any Java application whose classes have

been made available over the Internet in a simple

Web server. An URL allows downloading the client

part of a groupware application. Thus, the CooLDA

client is itself a Java application which instantiates

client tools in its own virtual machine.

As the instance of the object-application is

created inside CooLDA, we benefit from the Java

message sending mechanisms for supporting the

interactions between activities. These mechanisms

are synthesized in Figure 3.

Figure 3: A debate inter-activities scenario.

This figure takes back to the debate example.

The action (1) of a user in its vote client by

proposing a motion warns (2) the vote server. This

corresponds to the “normal/external” functioning of

this distributed application. The CooLDA client,

which is in the same JVM, can receive a message or

event (3) that is generated by the vote client. This

message is thrown (4) to the CooLDA server

(actually using CORBA) that determines the sense

of this local action in the global debate activity. This

may imply a call-back (5) on the CooLDA clients

that will then control the linked sub-activities, i.e. it

will cause needed method calls on the other client

applications. In this example, the CooLDA client

will ask to the Forum client to change its activity

(sending a message to its server) towards a state

where discussions are closed.

It is important to notice that each separate

application is free to choose its communication

protocol (CORBA, SOAP, RMI, JSDT, JXTA, etc.)

to manage its own activity. On the other hand and

for a fine integration, it is necessary that the

application designer has defined methods on the

client side enabling the communication with a tierce

environment. In our example, the Forum client

should propose a method like stopDiscussion() that

changes the Forum activity state managed by the

Forum server. This server will itself warn the other

Forum clients interested in this Forum activity. Any

integration approach needs the creation of such

interface. However, our approach does not constrain

the application designer to implement a particular

extra communication protocol. Only the basic

message sending mechanism, available in any JVM,

is solicited. Moreover, a part (if not all) of this

needed interface certainly already exists in the

client. It is indeed probable that the application

designer has created a menu or a button calling the

stopDiscussion() method. In fact, such a method

belongs to the Forum activity abstraction level.

3.4 Inter activities dynamic

specification

3.4.1 Using introspection

We want to let users themselves weave the links

between their activities. A particular link will for

example define which methods of the integrated tool

will be called by CooLDA to create a configuration

according to the role of a user in a global activity. In

the same way and as in the debate example, a state

change in the global activity will use these links to

be transmitted to the associated activities.

For this dynamic (re)definition of the links, we

use the Java reflective mechanisms, particularly the

introspection. When an application-object has been

downloaded from a Web site, it is possible to

dynamically get a list of its methods. These

mechanisms are similar to those used in Sun’s

BeanBox that proposes to graphically link

JavaBeans. The main difference with CooLDA is

that we use them to create links between high

abstraction level components like a chat tool.

Another difference is that we want to help end

users to integrate themselves the tools they need in

the environment. The matter with introspection is

that it presents many methods that should not be

used for specifying integration. Moreover, the name

MANAGING INTER-ACTIVITIES IN CSCW: Supporting users emerging needs in the CooLDA platform

137

of the methods and the parameters types are close to

the underlying language abstraction level, and then,

the description is difficult to read and understand for

a non-programmer. This is why, we need a

technique to filter and better describe the elements

presented to the user integrating a tool component.

3.4.2 The Activity Descriptor

Filtering can be realized by different means and

some examples exist in classical software design.

For example, the JavaBeans recommendation uses

prefixes for filtering the methods related to

properties. Another technique is to create a specific

separated interface description. This is the role of

IDL with CORBA and WSDL in the Web Services

technology. However, classical interface description

languages use semantics designed to inform only

programmers. Java proposes another interesting

mean with the BeanInfo technique. A BeanInfo

allows the component programmer to create a

specific interface for integration by filtering the

methods and, if needed, by proposing a high

abstraction level user interface that is instantiated to

manipulate the component at integration time. This

technique is interesting but it requires over-

development.

Inspired by all these techniques but still thinking

to our end users, we have decided to create a tool,

named Activity Descriptor that helps to create an

XML description of the activity supported by a tool

component. The XML file contains a separated

higher abstraction level description. When a user

needs to integrate a tool in CooLDA, the platform

uses Java introspection coupled with the tool’s XML

description. If the description is not found, only the

standard introspection mechanism is used.

The Activity Descriptor also uses introspection.

This enables to document a component whose

source code is not available. Activity Descriptor

presents all of the component’s constructors and

methods. Selecting an element uses its structure to

propose a form for creating a description. For

example, selecting the ChatApp(…) constructor in a

Chat application allows to create an operation named

Start the chat with its particular description

according to the required parameters. This

description will be used in CooLDA to help a user to

define an action while hiding the implementation

level : the user will be able to specify a specific role

with specific actions realized by operations. Even if

there is a direct mapping between the Start the chat

operation and the ChapApp(…) constructor at run-

time, the underlying programming language

abstraction level is partially hidden. The Activity

Descriptor tool still has to be improved, but the

current version helps us to develop our approach.

We have described how it is possible to

dynamically create specifications to start and pilot

integrated tools in CooLDA. Even if this is not the

maximum integration level, these functionalities are

helpful : it allows a professor to perform a start

exercise action in a course activity, this

automatically triggering operations on the tools

involved in the realisation of sub-actions performed

by the sub-roles in the sub-activities.

3.4.3 Activity events

However, the last point is related to the maximum

integration means, i.e. receiving events from an

integrated tool. We already noticed that CooLDA

could technically receive events from other

components because they are running in the same

JVM. The question is, what to listen to ? With the

hierarchical approach defined in Java for creating

user interfaces, it would be possible to register

CooLDA for receiving events from each widget

composing the tool. The matter is to give a sense to

this event in the global activity. This is why we

develop a different approach. We propose a simple

framework, based on the publish/subscribe

paradigm, which can be used by tools developers to

extend the functionalities of their applications. This

extension provides an activity event generator and a

simple activity event model. Using introspection,

CooLDA can dynamically discover if a tool

proposes an activity event generator and listen to

receive activity events. With the same mechanisms,

the Activity Descriptor tool helps in creating a high

abstraction level description of the events that may

be generated by a tool. When describing inter-

activities, a user can then know which event like a

vote has been proposed can be generated by a

particular tool, and specify which actions should

automatically be triggered in the global activity. The

main drawback of this approach is that it requires

that the integrable tool use our simple framework for

activity event generation. Then, this type of

integration is constraining for the tool developer :

the component has to be adapted for CooLDA. This

seems to be the prise for a maximum integration

scheme.

4 RELATED WORK

Different works have been realized by CSCW

researchers using a component approach for

tailorability and it would not be possible to

summarize them all here. There are several

differences between these propositions and ours.

ICEIS 2005 - HUMAN-COMPUTER INTERACTION

138

Systems like in (Grundy & Hosking, 2000) only

allow arranging predefined plugins components at

the user interface level. We develop an approach

allowing end-users to finely integrate themselves the

components they need in the platform.

In (Stiemerling & Cremers, 2000) the authors

develop a component model named Flexibeans

designed for creating components that are finely and

dynamically integrable by end-users in the Evolve

platform. This approach is different because it

proposes a completely new component model for

composition as we try to directly use standard

mechanisms. Evolve also differs from our platform

because CooLDA takes directly its roots in the

Activity Theory and then our view of what is a

component is a little different. For example, in

CooLDA, a tool that has been documented and/or

adapted while its integration becomes a high

abstraction level component that may be easily

integrated in someone else’s activity. The scenarios

for inter-activities that are defined or adapted by

users are also reusable CooLDA components for

other users. This way and thanks to our component

approach, CooLDA aims at presenting an important

property inspired from the Activity Theory : the

crystallization of the users experience inside the

computer artefacts supporting their activities. In

other words, reusing a CooLDA component is taking

benefits from the experience of the actors that used

and developed it during their own activities.

5 CONCLUSION

In this paper, we have shown that despite of the

strong need towards CSCW, problems still exist in

proposing the needed groupware applications to

their potential users. We have underlined that

existing global and integrated groupware

environments are interesting but, as they are usually

designed for fulfilling a priori users needs, they are

not completely satisfying. Users usually solve this

problem by concurrently using different groupware

applications without links between them. This

solution is also not satisfying because it does not

provide a computer support for the global group

activity that creates the context for the use of these

tools. This is why we aim at creating the CooLDA

platform proposing a global, integrated and

tailorable CSCW environment.

CooLDA is designed to support what we call the

inter-activities, i.e. the global activity giving sense to

the links existing between different sub-activities.

We have proposed a generic recursive model for

activity that enables the specification of scenarios

for inter-activities computer support. We also have

identified the different properties that should be

proposed by the platform for enabling the dynamic

integration of tools supporting diverse activities.

Finally, we have introduced an approach for end-

users tailorability that proposes means for dynamic

tool integration by end-users while elevating the

components abstraction level. These concepts and

mechanisms have been exemplified in the current

version of CooLDA that has been designed for

teachers involved in distance learning activities. This

version uses the standard Java Virtual Machine as a

simple technical integration environment.

The next step of our work will focus on usability

tests and improvements. For example, the Activity

Descriptor should evolve for creating tools

descriptions closer to the end-users abstraction level.

CooLDA is going to be used in real long-term

distance learning activities to see how its users

effectively evolve the environment. We hope that

CooLDA will grow from its own use, the users

experience crystallizing in the components they

integrate or evolve.

REFERENCES

Bedny G., Meister D., 1997, The Russian theory of

activity, Current Applications to Design and

Learning,. Lawrence Erlbaum Associates, Publishers.

Bourguin G., Derycke A., Tarby J.C., Beyond the

Interface: Co-evolution inside Interactive Systems - A

proposal founded on Activity Theory, in Proceedings

of IHM-HCI 2001, Lille, France, 10-14 September

2001, Springer Verlag, pp. 297-310.

Grundy J., Hosking J., 2000, Developing Adaptable User

Interfaces for Component-Based Systems, in

Proceedings of the First Australasian User Interface

Conference, pp 17-25.

Hummes J., Kohrs A., Merialdo B., 1998, Software Com-

ponents for Co-operation: a Solution for the “Get

help” Problem, in Proceeding of COOP’98

conference, INRIA.

Kleijnen S., Raju S., 2003, An Open Web Services

Architecture, QUEUE Volume 1 , Issue 1 (March

2003), pp. 38-46.

Nardi, B. A., 1996, Context and consciousness : activity

theory and Human-Computer Interaction., Cambridge,

Ma : MIT Press.

Noël, S., Robert, J-M., 2003, How the Web is used to

support collaborative writing, Behaviour &

Information Technology, 22 (4), pp. 245-262

Stiemerling, O., Cremers, A. B., 2000, The EVOLVE

Project: Component-Based Tailorability for CSCW

Applications, AI & Society (2000), 14, pp. 120-141.

MANAGING INTER-ACTIVITIES IN CSCW: Supporting users emerging needs in the CooLDA platform

139
