ADDING SUPPORT FOR DYNAMIC ONTOLOGIES

TO EXISTING KNOWLEDGE BASES

Upmanyu Misra, Zhengxiang Pan, Jeff Heflin

Department of Computer Science and Engineering, Lehigh University,

19 Memorial Dr West, Bethlehem, PA 18015, USA

Keywords: Ontology, Ontology Versioning, OWL, Semantic Web technology, Intelligent Agent

Abstract: An ontology version needs be created when changes are to be made in an ontology while keeping the basic

structure of the ontology more or less intact. It has been shown that an Ontology Perspective theory can be

applied on a set of ontology versions. In this paper, we present a Virtual Perspective Interface (VPI) based

on this theory that ensures that old data is still accessible through ontology modifications and can be

accessed using new ontologies, in addition to the older ontologies which may still be in use by legacy

applications. We begin by presenting the problems that are to be dealt with when such an infrastructure

needs be created. Then we present possible solutions that may be used to tackle such problems. Finally, we

provide an analysis of these solutions to support the one that we have implemented.

1 INTRODUCTION

Many discrepancies may be caused due to

incompatible changes between ontologies. These

changes may happen when various versions of an

ontology are created where new concepts are added,

for example when an abstract super class for two

classes is added, or a class is moved, renamed etc. It

has been shown that an Ontology Perspective theory

(Heflin and Pan, 2004) can be applied on a set of

ontology versions. In this paper, we present a Virtual

Perspective Interface (VPI) based on this theory that

ensures that old data is still accessible through

ontology modifications and can be accessed using

new ontologies, in addition to the older ontologies

which may still be in use by legacy applications.

VPI obviates the need for wholesale translation of

existing data every time an ontology is changed. The

focus of VPI is on prospective use (i.e., using newer

versions of some ontologies to access knowledge

represented in previous versions of those ontologies)

versus retrospective use (i.e., using older versions of

some ontologies to access knowledge represented in

newer versions of those ontologies).

We begin, in section 2, by providing relevant

ackground for the technologies used. We also

define the problem we are addressing in this paper

and give some motivation for the need of a system

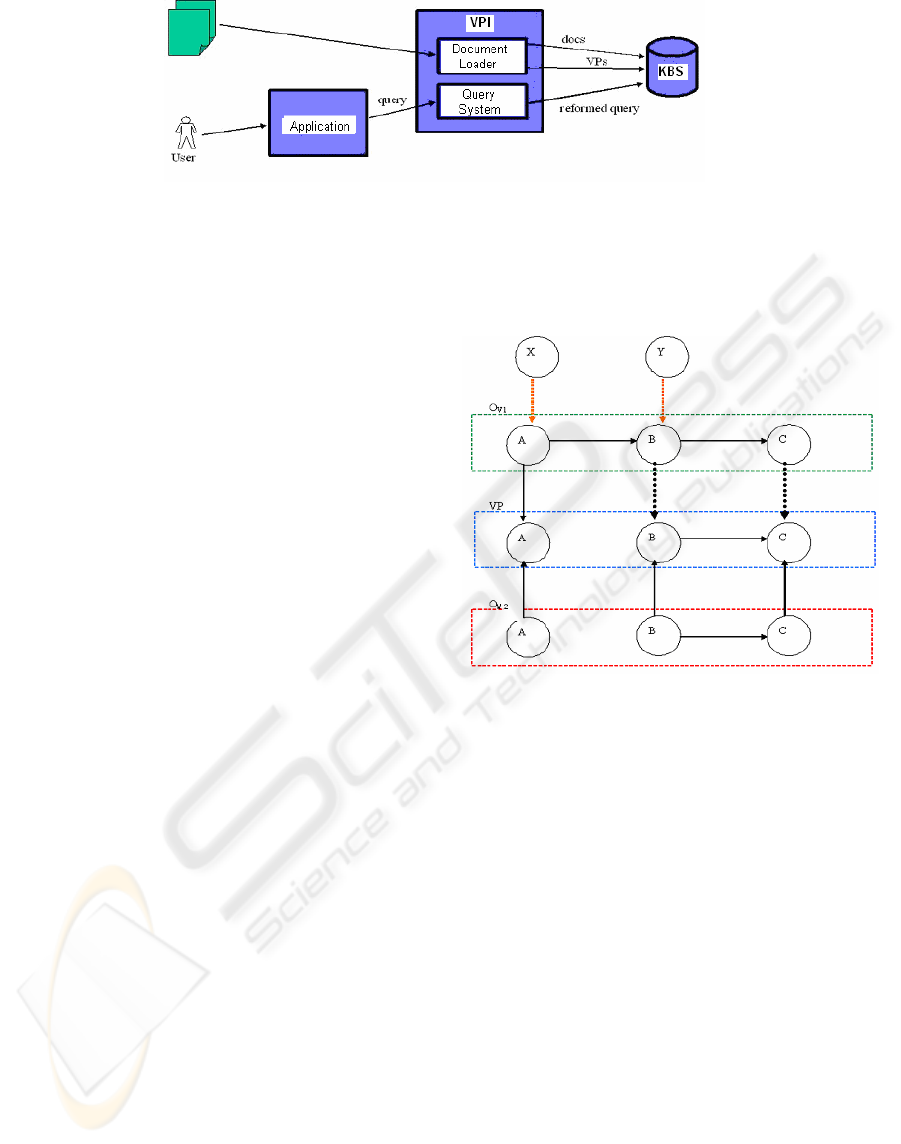

that solves the problem. In section 3, we present the

architecture for such a system. We produce the VPI

modules and the implementation details. This is

followed by an analysis of the system in section 4. In

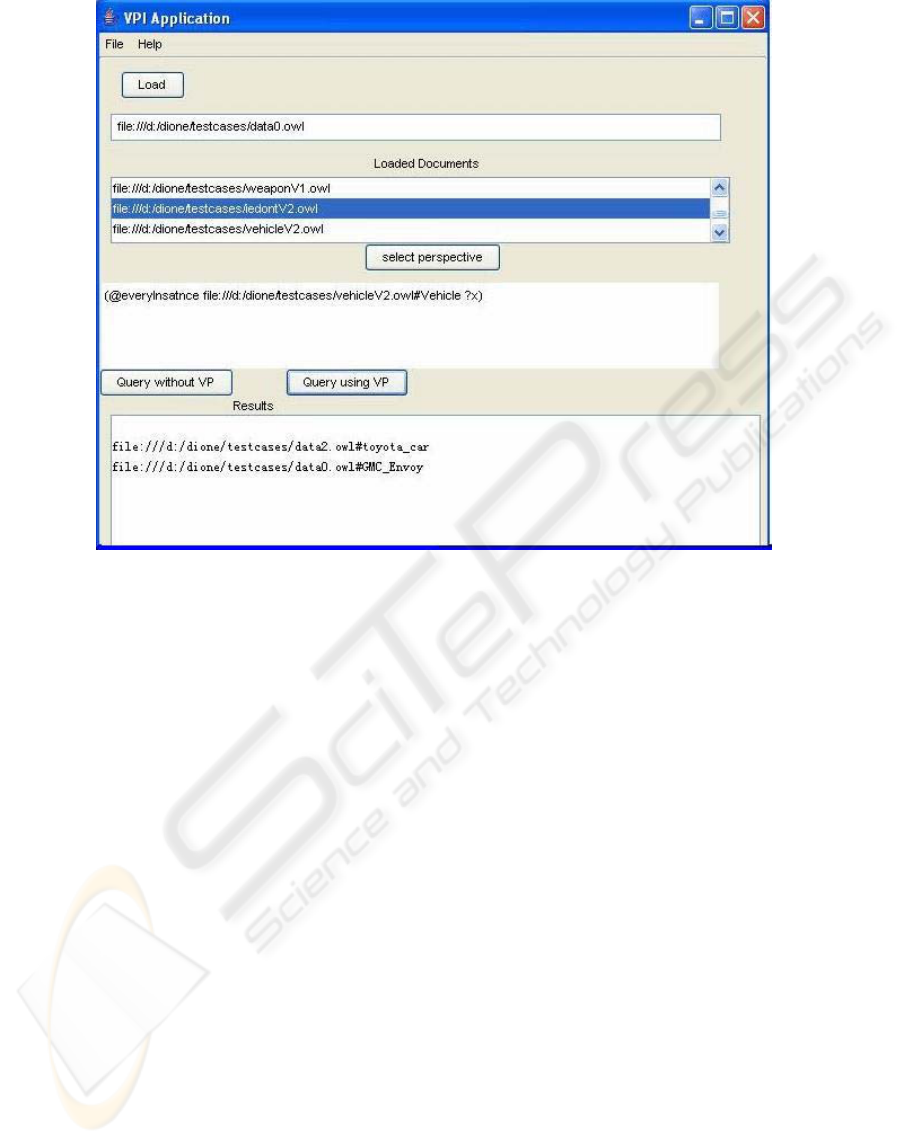

section 5, we present snapshots of our implemented

system and some samples. Finally, in section 6, we

conclude with an overview of our system and future

work.

2 BACKGROUND

In this section, we will provide a brief description of

related terms that will be frequently used throughout

this paper and some discussion of the research that

our paper builds up on.

2.1 Ontologies for Information

Systems

Ontology is a central issue for the development of

Internet commerce systems. The main barrier to

electronic commerce lies in the need for applications

to meaningfully share information, not in the

reliability or security of the Internet. This is because

of the variety of enterprise and e-commerce systems

Misra U., Pan Z. and Heﬂin J. (2005).

ADDING SUPPORT FOR DYNAMIC ONTOLOGIES TO EXISTING KNOWLEDGE BASES.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 97-104

DOI: 10.5220/0002529700970104

 SciTePress

deployed by businesses and the way these systems

are variously configured and used. Although it is

useful to strive for the adoption of a single common

domain-specific standard for content and

transactions, this is often difficult to achieve,

particularly in cross-industry initiatives, where

companies co-operate and compete with one

another. In this regards, there has been previous

work to develop a core ontology which may be used

as a base to develop domain specific ontologies

(Hunter, 2003).

For over a decade, knowledge representation

researchers have studied the use of ontologies for

sharing and reusing knowledge (Gruber, 1993;

Guarino, 1998; Noy and Hafner, 1997). Although

there is some disagreement as to what comprises an

ontology, most ontologies include a taxonomy of

terms (e.g., a Car is a Vehicle), and many ontology

languages allow additional definitions using some

form of a logic. Guarino (1998) has defined an

ontology as “a logical theory that accounts for the

intended meaning of a formal vocabulary.” A

common feature in ontology languages is the ability

to extend preexisting ontologies. Thus, users can

gain the interoperability benefits of sharing

terminology where possible, but can also customize

ontologies to include domain specific information.

Research on the development of the Semantic

Web (Berners-Lee et al., 2001) has led to progress in

the design and use of distributed ontologies. Two

languages have been developed for representing

describing and semantics on the Web. The Resource

Description Framework (RDF) is provides a graph-

base data model, in which every resource is

identified by a Unified Resource Identifier (URI).

For syntactic convenience a URI can be abbreviated

using namespace prefixes which can be defined in

each document. An arc in the graph can be viewed

as a triple consisting of subject, predicate and object.

For example, <subject, subClassOf, object> means

that subject is a subclass of object. The Ontology

Web Language (OWL) extends RDF to provide a

richer set of modeling constructs that allow the

semantics of data to be more precisely defined.

These languages can be used to describe the

semantic for enterprise information systems.

However, it is usually impossible to establish, a

priori, rules (technical or procedural) governing

participation in an electronic marketplace. In the fast

paced scenario of e-commerce and m-commerce, an

enterprise must be able to adapt its information

systems quickly. We, in this paper, are focussing on

ontology changes. Hence the ultimate goal is the

development of reusable, dynamic ontologies

(Heflin and Hendler, 2000) that can be applied

across multiple disciplines. This calls for a

comprehensive framework to formulate and

maintain ontology versions. Ontology Versioning

Theory (Heflin and Pan, 2004; Heflin 2001), in

section 2.2, presents such a framework.

2.2 Ontology Versioning

Once a database schema changes one faces the

problem of managing the data using its different

versions in a consistent and economical fashion. In

this context, database schema versioning (Roddick,

1995) is similar to the ontology versioning. Roddick

pointed out two ways database schema can be

viewed as, prospective (viewing data from the point

of view of a newer ontology) and retrospective

(viewing data from the point of view of an older

ontology). Klein and Fensel (2001) were the first to

compare ontology versioning to database schema

versioning. They proposed that both prospective use

and retrospective use of data should be considered in

ontologies as well. However, Klein and Fensel do

not describe a formal semantics.

Stuckenschmidt and Klein, (2003) provide a

formal definition for modular ontologies and

consider the impact of change in it. However, their

approach involves physical inclusion of extended

ontologies and requires that changes be propagated

through the network. This approach is unlikely to

scale in large, distributed systems. Furthermore, they

do not allow for resources to be reasoned with using

different perspectives, as is described here.

Heflin, (2001) has suggested that there should not

be a universal model of all the resources and

ontologies on the Web. In fact, it is extremely

unlikely that one could even exist. Instead, we must

allow for different viewpoints and contexts, which

are supported by different ontologies. Ontology

Perspective Theory from Heflin (2001) defines

perspectives which then allow the same set of

resources to be viewed from different contexts,

using different assumptions and background

information.

Heflin and Pan (2004) builds on this and presents

a model theoretic description of ontology

perspectives. Each perspective is based on an

ontology, called the basis ontology or base of the

perspective. By providing a set of terms and a

standard set of axioms, an ontology provides a

shared context. Thus, resources that commit to the

same ontology have implicitly agreed to share a

context. We also want to maximize integration by

including resources that commit to different

ontologies. This includes resources that commit to

ancestor ontologies and resources that commit to

earlier versions of ontologies that the current

ontology is backward compatible with. Heflin

defines that an ontology version is backward

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

compatible with a prior version if it contains all of

the terms from the earlier ontology and the terms are

supposed to mean the same thing in both ontologies.

See the paper for details regarding entailment in the

theory.

We use Web Ontology Language (OWL) to

represent knowledge bases. But OWL has little to no

semantics for versioning properties yet. Ontology

Perspective Theory allows multiple views of the

same data where each view is based on an ontology.

It also provides an initial semantics for versioned

ontologies, in particular, semantics for backward-

compatibility.

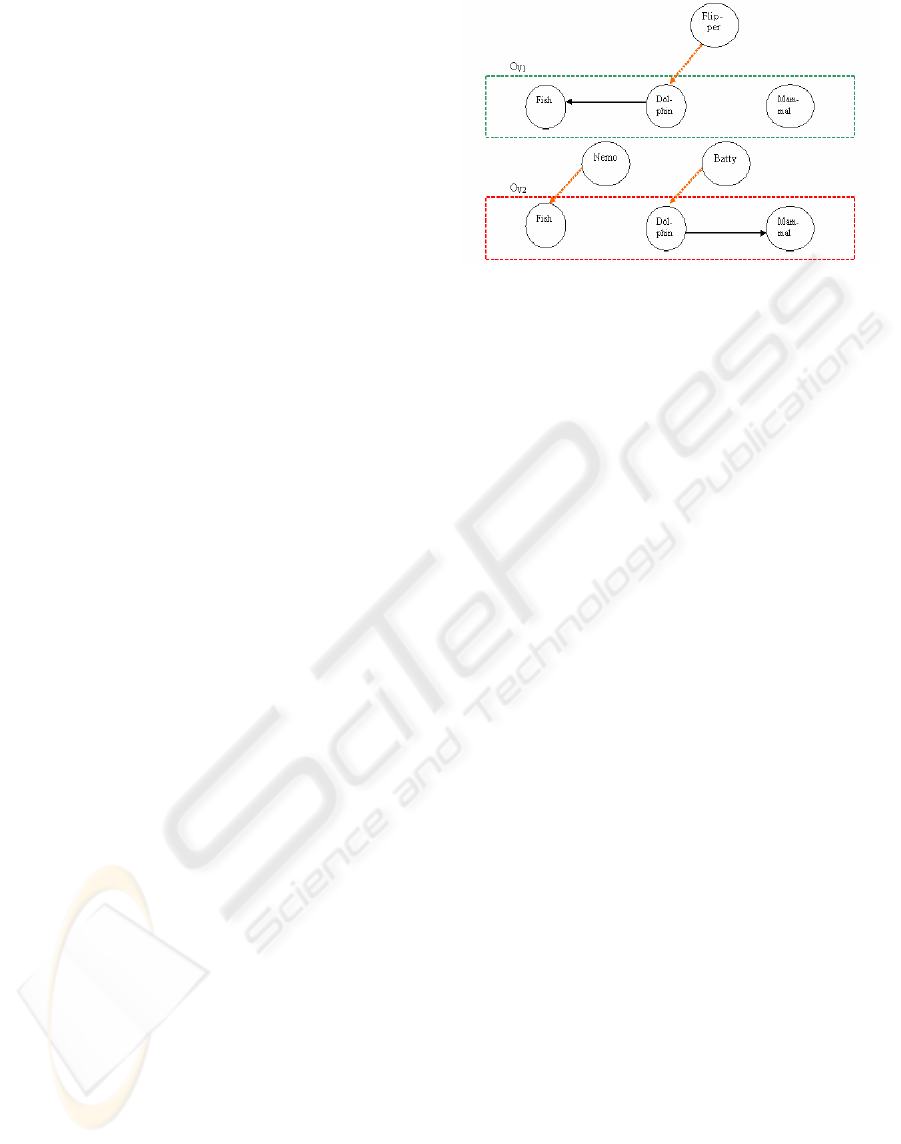

Figure 1: Simple Example of Ontology versioning

Prospective use of data is a highly desirable

concept and backward compatibility facilitates this.

Hence its use will be an incentive for ontology

engineers. However in the present OWL world we

can’t state that backward compatible versions are

more common than ones that are not. OWL is too

new and there aren’t many, if any, new versions of

existing ontologies. However, we argue that, if the

versions are truly incompatible then it does not make

sense to reuse data. For example, if a new version

significantly alters the modeling of knowledge in the

previous version, it may not be useful to construct a

link between the two versions. Moreover, backward

compatibility could allow ‘deprecation’ of terms

between two versions and hence is more flexible

than it might initially seem. Say there are two

incompatible versions of an ontology: O

and O

We can have a O

v1.5

which is compatible with O

and deprecate all the terms that will disappear in O

Then O

can delete those deprecated terms while

being compatible with O

v1.5

. Thus deprecation

facilitates backward compatibility without hindering

the validity of a previous version that might be in

use by some other application.

This makes it undesirable to discard the data

contained in any of the older versions. In practise,

there will be many complex cases that will result in

Ontology versioning. One such case may be where a

subclass is deleted. Fig. 1 denotes a part of ontology

concerning Fish genealogy. O

wrongly conveys

that the class ‘dolphin’ is a subclass of class ‘fish’

whereas O

rectifies this and reassigns the ‘dolphin’

class to be a subclass of class ‘mammal’.

Additionally, Flipper and Batty are instances of class

‘dolphin’ in O

and O

respectively. Therefore,

according to O

, Flipper is a dolphin and hence a

fish. Whereas, Batty is a type of dolphin, and hence

is a mammal. This is also a case demonstrating the

use of backward-compatibility. It must be

emphasized here that the intended meaning (and not

only the name) of a class must remain the same in

subsequent versions. For example, the dolphin, in

version 2, must remain to be the living creature that

is commonly known and not a different entity.

This requires us to come up with a system where

such discrepancies can be removed while retaining

as much knowledge as possible. VPI provides a

simple yet effective method to achieve these goals. It

is designed such that it sits on top of the underlying

model of knowledge bases and acts as an agent

mediating between the querying user and the

knowledge bases. For example, a query for ‘Fish’

from the perspective of version 2 must produce

Nemo. The same query from the perspective of

version 1 will give us Flipper. A query for

‘Mammal’ from the perspective of version 2 will

give us both Batty and Flipper. The Flipper solution

comes from the inference using version 1. Without

using perspectives, our answer would have been

Batty only.

3 VPI

As an ontology evolves, multiple versions are

created. These versions coexist in the containing

knowledge base. Most legacy applications will want

to keep the snapshots of these versions at all time

and query for different data with respect to different

versions. Additionally, many Enterprise Systems are

inherently distributed and dependent.

ADDING SUPPORT FOR DYNAMIC ONTOLOGIES TO EXISTING KNOWLEDGE BASES

Figure 2: High Level Design of VPI

3.1 Architecture

VPI acts as the middle layer between the user and

any OWL knowledge base system. It facilitates the

knowledge base to perform perspective based

entailment without modifying any internal

knowledge in the system. It creates a virtual OWL

Ontology, the details of which are provided later,

that results in perspective entailment using only

OWL entailment. This is shown in Fig. 2. There are

two main modules of the VPI.

Document Loader: The document loader takes an

ontology and computes the virtual perspective

ontology for it. This will be OWL file with the same

local names as the other ontology, but will contain

mappings to ontologies with which the ontology is

backward-compatible. Both the original ontology

and the virtual perspective ontology will be stored in

the underlying knowledge base.

Query System: All queries to the knowledge base

pass through the VPI. An application may either

select a default perspective or the user may specify a

perspective for each query. The VPI translates the

query to the terms of the corresponding virtual

perspective ontology, and issues the query to the

underlying knowledge base. It then returns the

results to the client application.

For all the following discussion, we will use the

following convention for naming ontologies,

Version X of any ontology is written as O

. Hence

version 4 of an ontology will be O

. To denote a

Virtual Perspective we will use O

. The class C of a

version, say 3, will be denoted as O

:C.

Fig. 3 is a graphical example of a naïve solution to

our problem. In this case there are two ontologies,

and its latest version O

. It creates mappings

such that all O

and O

classes are made subclasses

of their corresponding VP classes.

Note: VP is in perspective of O

here. In the new

version, it was established that Dolphin is a subset of

Mammal rather than a subset of Fish. The VP was

constructed using O

as the perspective. The

orientation of the class hierarchy is such that X,

which is a O

:dolphin, is labeled as both, a O

:fish

(due to version 1) and a O

:mammal (due to

version 2).

Figure 3: Erroneous Virtual Perspective

It may be argued that such an outcome is

undesirable since the primary reason for versioning

the ontology might have been to substitute the

knowledge that dolphins are mammals with the

earlier version of them being fish. This is the

approach taken by ontology perspective theory. The

axioms of the new ontology are used in place of the

old. We would still like to keep the knowledge for

all O

:fish that are not dolphin, such as Y. Hence

the system should be equipped such that it can make

intelligent inferences in such situations.

We start with O

where A is a subclass of B

which is a subclass of C. In its version O

, A no

longer remains a subclass of B. The O

is built with

as the perspective.

In this case it is not possible to make any more links

of the version classes with the O

classes as in Fig.

3 (the dotted links are faulty). This is because as

soon as we make a link, we will be confronted with

the problem that is mentioned above. For example,

assume a “subclassOf” relationship from O

: B to

:B. Using the VPI inferencing, X will be type

:B and hence also of type O

:C. Using

perspective of O

, we should not be able to say that

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

100

any instance of O

:A is necessarily an instance of

:B.

3.2 Solution

We looked at some possible techniques for the

solution. Later we briefly describe and compare

them in terms of various attributes such as their

scalability, soundness and completeness. Here we

explain the technique that we finally accepted and

implemented as the solution.

Before that we will delineate the some more

notations used throughout the paper. For denoting

triples we use <Subject, Predicate, Object>. We will

use colons to indicate namespaces whenever

relevant. Hence, considering ontology in fig. 1,

:A implies a class A in ontology version 1.

Hence B is a sub class of A can be written as,

<B, subClassOf, A>

and I is a type of a Class C can be written as,

<I, typeOf, C>

Note: “type of” is a synonym of “instance of”.

This method makes use of a separate “type

graph” that is formulated for every ontology. Each

ontology will have two virtual ontology. The virtual

perspective ontology will be identical to the original

except for a different namespace. The type graph

ontology contains copy of each class and type values

(instances) for all classes without any relationships

(property). Each version will have its own type

graph. The linking between each version will be

done using their type graphs. Let’s consider the

same example as in fig. 3.

For type graphs, we will be using the following

convention, the type graph of version k will be

written as O

, and O

will be any type graph in

general. The pseudo code for constructing a virtual

perspective graph and a type graph is as follows,

// Copy classes and properties into the virtual ontologies

For each triple <O

:C type rdfs:Class> in O

Add <O

:C type rdfs:Class> to O

Add <O

:C type rdfs:Class> to O

Add <O

:C subClassOf O

:C> to O

For each triple <O

:P type rdf:Property> in O

Add <O

:P type rdf:Property > to O

Add <O

:P type rdf:Property > to O

Add <O

:P subPropertyOf O

:P> to O

// Copy axioms into virtual perspective ontology

For each triple <O

subClassOf O

> in O

Add <O

subClassOf O

> to O

For each triple <O

subPropertyOf O

> in O

Add <O

subPropertyOf O

> to O

//Link corresponding instances to type graph

For each triple <O

:I type O

:C>

Add <O

:I type O

:C> to O

This gives us a representation of each ontology

version with type graphs and virtual perspective

graphs linked together. Now we present three

candidate solutions for linking each ontology

version to its backward compatible version. Let B be

the set of backward compatible versions for each of

the ontology.

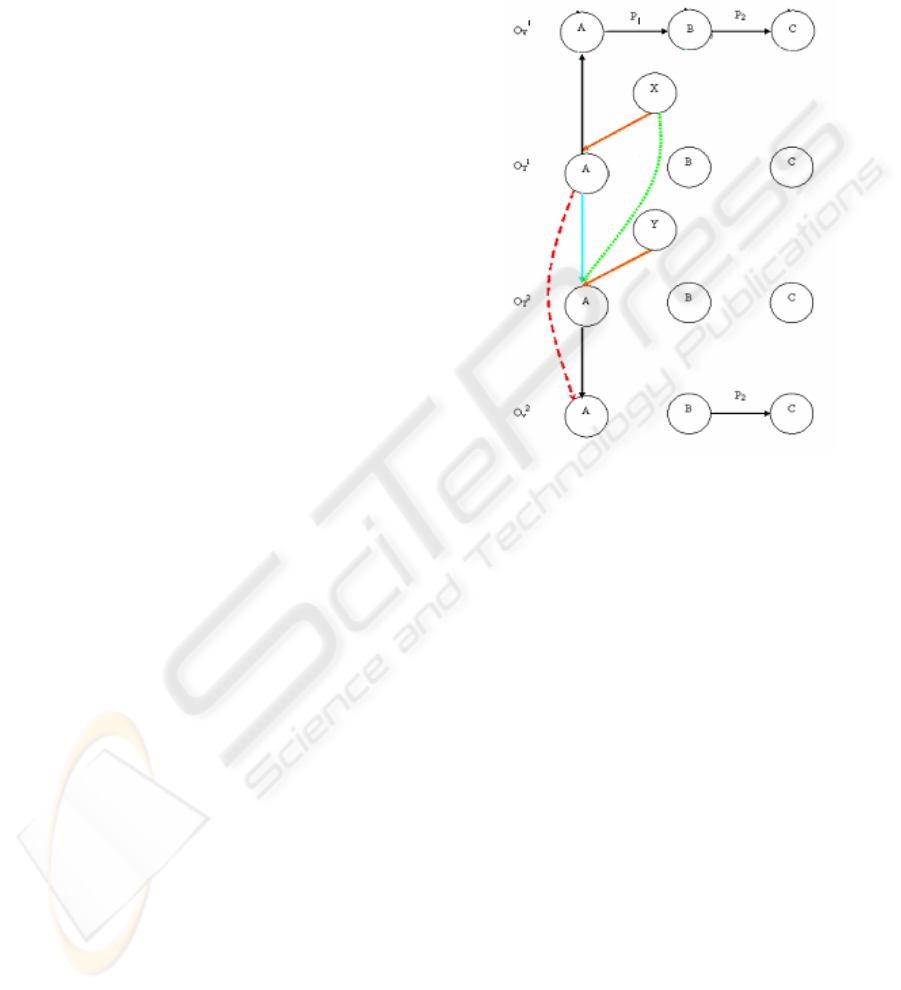

Figure 4: Various Type Graph implementations

Instance to type graph mapping (green dotted

lines in fig. 4): All the instances in a type graph

version are mapped onto corresponding classes of all

the subsequent backward-compatible versions of that

type graph.

Type graph to virtual perspective mapping (red

dashed lines in fig. 4): All classes and properties in

the type graph are mapped to their sisters in the

virtual perspective graphs of all ontologies that are

backward compatible with the current ontology.

Type graph to type graph mapping (blue line in

fig. 4): To link type graphs such that we can

successfully access all relevant ontologies, we add

the following pseudo code to the one that we

previously presented,

//Find the ontology O

∈

B, such that O

immediately

//precedes O

For each triple <O

:C type rdfs:Class> in O

Add < O

:C subClassOf O

> to O

For each triple <O

:C type rdfs:Property> in O

Add < O

:C subPropertyOf O

> to O

Fig. 4 shows an example of the above discussed

solution applied on a simple test case. An ontology

is shown in the first set of the figure. For the

ADDING SUPPORT FOR DYNAMIC ONTOLOGIES TO EXISTING KNOWLEDGE BASES

101

next version O

of the same ontology, property P

is deleted. Also an instance Y of type A is added.

Their corresponding type graphs are also shown.

The link between the type graphs is shown by the

blue solid line. In the next section, we will compare

these three alternatives.

Instance to type graph mapping: Since every

instance must be linked to the type graph of every

subsequent version, the number of additional triples

is I (m)(n)(n-1)/2. This is because linking the

instances of any ontology to one subsequent

ontology requires I (m) triples, and this must be done

= (n)(n-1)/2 times.

∑

−

4 ANALYSIS

Type graph to virtual perspective mapping:

Every class in the type graph must be linked to every

subsequent virtual perspective graph, which requires

= (n)(n-1)/2 links per class. Thus this approach

requires (m)(n)(n-1)/2extra triples.

∑

−

The three variations of the algorithm can be

evaluated with respect to different criteria. First, the

algorithms must be sound with respect to ontology

perspective theory, meaning that any result deduced

by the algorithm must be entailed by the theory.

Second, the algorithms must be complete with

respect to the theory, meaning that any formula

entailed by the theory must be inferred b the

algorithm. Third, we can distinguish the scalability

of the algorithms, based on the number of triples that

they require.

Type graph to type graph mapping: Since each

type graph only establishes links to a single

preceding type graph, and every class must have a

link, the number of triples will be (n-1)m.

All of the algorithms are sound and complete for

ontology perspective theory, assuming that the

knowledge base system is sound and complete for

OWL. However, due to limited space we omit the

proof of this.

Clearly, the instance to type graph mapping

approach is the least scalable. Furthermore, as long

as n > 2, then the type graph to type graph mapping

requires fewer triples than type graph to virtual

perspective mapping. For example, for n=10, type

graph to virtual perspective mapping requires 5

times as many additional triples as type graph to

type graph. We decided that this improved

scalability more than offset the potential query time

advantage of the type graph to virtual perspective

mapping approach, and thus implemented type graph

to type graph mapping.

However, all three algorithms differ in terms of

scalablity. In each method, triples have to be

replicated many times. Given the enormous size of

ontologies to deal with, scalability is a major

priority.

Given below are a few variables that will be used

throughout the analysis,

No. of versions of ontologies: n

No. of instances per class: I

Additionally, the type graph method is simple to

comprehend, implement and present. Taking all

these factors into consideration, the type graph

method seems to be a befitting approach. Hence we

implemented the VPI with type graph method.

In the following cases we compare different

techniques mentioned earlier in terms of the total

number of extra triples required to be created when

each technique is applied. Consider that the process

of creating links between classes has reached upto

the k

version.

5 VPI IMPLEMENTATION

For ease of analysis we assume that each O

backward compatible with its previous version, each

ontology contains m classes such that

m-1

, subClassOf, C

> (for k > 1), and, Version O

removes the (k-1)

“subClassOf” link.

We have implemented the VPI in Java. This

implementation make use of Jena, a Java framework

for semantic web applications. Jena provides a

programmatic environment for RDF, RDFS and

OWL, including a rule-based inference

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

102

Figure 5: VPI User Interface

engine. The core of the VPI is a Java class that

consists of two methods, loadDocument() and

issueQuery(), that have the functionality already

discussed in section 3.1.

In order to evaluate the VPI, we created a simple

user interface shown in fig. 5. This interface allows

the user to load in OWL documents one at a time

and issue queries using different perspectives. The

user selects a perspective from a list of loaded

ontologies and types a KIF-like query into a text

box. When the user presses the “Query using VP”

button, the VPI is used to issue the query, and the

answers are returned in the Results field. If the user

presses the “Query without VP” button, the query is

issued directly to the knowledge base, circumventing

the VPI. Using these two methods, the user can see

the advantages of ontology perspective theory over

standard OWL entailment.

6 CONCLUSION

In this paper we discussed the problems that may

arise when we deal with a group of ontology and its

versions. It was argued that both discarding the older

version and storing redundant or obsolete data are

naïve ways to handle ontologies. The former results

in loss of knowledge whereas the

latter induces overheads on computation. We

provided a simple, yet effective, solution to tackle

the discrepancies that arise. We saw how several

techniques qualifies as potentials solutions. We gave

relevant analysis to sift out the most suitable

solution. In future, we plan to enable handling of

imports, i.e. support perspectives for ontologies that

import other ontologies. We will also be looking at

deploying and testing an OWL reasoner. This will

facilitate the handling of versioning for richer

ontologies, i.e. those that contain OWL axioms

rather than just RDFS axioms. This will require an

alternative to Jena and we are looking at HAWK and

DLDB, developed at Lehigh. DLDB is a knowledge

based systems developed for large semantic web

applications and includes a description logic

reasoner that implements a significant fragment of

OWL referencing. Finally, an empirical evaluation

comparing this approach with other alternatives will

be desirable.

REFERENCES

Berners-Lee, T., Hendler, J., Lassila, O., 2001. The

Semantic Web. In Scientific American.

Gruber, T., 1993. A Translation Approach to Portable

Ontology Specs. In Knowledge Acquisition.

ADDING SUPPORT FOR DYNAMIC ONTOLOGIES TO EXISTING KNOWLEDGE BASES

103

Guarino, N., 1998. Formal Ontology and Information

Systems. In Formal Ontology and Information Systems.

IOS Press.

Heflin, J., Hendler, J., 2000. Dynamic Ontologies on the

Web. In AAAI’00, 7th National Conference on

Artificial Intelligence. AAAI/MIT Press.

Heflin, J., 2001. Towards the Semantic Web: Knowledge

Representation in a Dynamic, Distributed

Environment. PhD thesis, University of Maryland.

Heflin, J., Pan Z., 2004. A Model Theoretic Semantics for

Ontology Versioning. In ISWC’04 ,3rd International

Semantic Web Conference. Springer.

Hunter, J., 2003. Enhancing the Semantic Interoperability

of Multimedia through a Core Ontology. In ICEIS’03,

International Conference on Enterprise Information

Systems.

Klein, M., Fensel, D., 2001. Ontology Versioning for the

Semantic Web. In SWWS’01, 1

Semantic Web

Working Symposium.

Noy, N., Hafner, C., 1997. The State of the Art in

Ontology Design. In AI Magazine.

Roddick, J., 1995. A Survey of Schema Versioning Issues

for Database Systems. In Information and Software

Technology.

Stuckenschmidt, H., Klein, M., 2003. Integrity and

Change in Modern Ontologies. In IJCAI’03

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

104
