A CONTROLLED EXPERIMENT FOR MEASURING THE

USABILITY OF WEBAPPS USING PATTERNS

F. Javier García, María Lozano, Francisco Montero, Jose Antonio Gallud, Pascual González

Computer Science Department,University of Castilla-La Mancha, Albacete, Spain

Carlota Lorenzo

Marketing Department, Universitity of Castilla-La Mancha, Albacete, Spain

Keywords: Internet services, Dial-up networking

Abstract: Usability has become a critical quality factor of software sy

stems in general, and especially important

regarding Web-based applications. Measuring quality is the key to developing high-quality software, and it

is widely recognised that quality assurance of software products must be assessed focusing on the early

stages of the development process. This paper describes a controlled experiment carried out in order to

corroborate whether the patterns associated to a quality model are closely related to the final Web

application quality. The experiment is based on the definition of a quality model and the patterns associated

to its quality criteria to prove that applications developed using these patterns improve its usability in

comparison with other ones developed without using them. The results of this experiment demonstrate that

the use of these patterns really improves the quality of the final Web application in a high degree. The

experiment is formally based on the recommendations of the ISO 9126-4.

1 INTRODUCTION

Usability has become a critical quality factor of

software systems in general, but with the increase

use of internet for everyday activities, it is especially

important in web-based applications. Usability is a

key factor for users to decide whether or not a web

application (WebApp) is satisfying.

Thus, it is important to design WebApps with a

sic level of quality in general and usability in

particular, and also developing methods which allow

evaluating this quality. In this sense, different Web

metrics have been defined (Ivory, 2001), (ISO,

2001), which can help us to measure the final

usability or quality in use of a web application.

Lots of efforts have been made in order to

prove the quality of software systems, such as

definition of quality metrics (Olsina, 1999), usability

metrics (Ivory, 2001), usability evaluation methods

(Nielsen, 93), (Constantine et al., 2000), etc. All

these mechanisms allow us to check the usability of

a software system but they have to be used on a final

and running application. Nowadays, it is widely

recognised that quality assurance of software

products must be assessed focusing on the early

stages of the development process. It is necessary to

incorporate new mechanisms at the very beginning

of the software process to produce high-quality

software applications. In this sense, the use of design

patterns in general has proved to be good for these

purposes, especially interaction patterns regarding

usability.

Some interaction patterns have been proposed in

e literatu

re, but the novelty of our approach is to

establish a clear association between a quality factor

defined in a quality model and one or more concrete

patterns in such a way that the use of that pattern in

the construction of a WebApp makes it to assess the

corresponding quality criteria.

To validate these associations and the goodness

using interaction patterns to satisfy the

corresponding quality factors, a controlled

experiment has been carried out.

This paper is organized as follows: firstly, we

esent a general idea about web quality, usability

and patterns, to have a global vision of the frame

work where this study is included and the related

work.

Javier Garc

ıa F., Lozano M., Montero F., Antonio Gallud J., Gonz

alez P. and Lorenzo C. (2005).

A CONTROLLED EXPERIMENT FOR MEASURING THE USABILITY OF WEBAPPS USING PATTERNS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems - DISI, pages 67-74

 SciTePress

Then we describe the experiment that we have

carried out to prove the importance of using patterns

and quality models to design quality WebApps, as

well as the use of different metrics as a mechanism

for evaluating usability.

Finally, we finish the paper with interesting

conclusions based on the experiment results and

future research aspects are proposed.

2 RELATED WORK

Before describing the experiment carried out for this

study is necessary to talk about web quality and web

usability to establish the aim and the context of the

experiment.

Brajnik states (Brajnik, 2002) that the quality in

this context is a property of a website defined in

terms of a group of attributes, like consistency of

background colours or average download time. ISO

9126 defines web quality dividing it into more

abstract terms, as effectiveness, efficiency and

satisfaction. (ISO, 2001).

Because of the variety and quantity of quality

attributes proposed in the literature, it is necessary to

develop a quality model that helps to know which

attributes are important for the analysis, which one is

more important than others, and which measurement

methods have to be used to assess the attributes

values.

Usability is widely recognized as one of the most

important attributes regarding Web quality, so we

focus on usability to define a complete quality

model (see figure 1) and define an accurate

association between the final and more concrete

criteria with one or more interaction pattern. The

experiment aims to prove the goodness of the quality

model and the interaction patterns associated.

The model is centred specifically on usability

criteria as regarding web environments this factor is

more meaningful than others because of the new

interactive features of internet.

This quality model (Montero et al. 2003) centred

on usability is based on usability features defined by

ISO 9126, some ergonomic criteria and its sub-

criteria. These ergonomic criteria are implemented

by means of patterns, as a way to materialize the

abstract concept of a quality criterion with

something implementable as it is a pattern.

Pattern concept in computer science in this

context is defined as a tuple of three elements: a

problem, a context and a solution. Many patterns

have been proposed for web development (Percel et

al.,1999), (Tidwell, 2002), (Welie, 2003), (Van

Duyne et al., 2002), (Rossi et al., 12), or (Montero et

al., 2002b) can be cited.Once we have seen the

general terms and web quality model we base the

experiment on, we continue this paper describing the

case study about assessing the usability of an e-

commerce WebApp by using patterns and the

complete description of the experiment.

3 DESCRIPTION OF THE

EXPERIMENT

The description of the experiment follows the

structure and recommendations of ISO 9126-4.

3.1 Goals

The website that we use for the experiment is a

fictitious on-line store named e-fashion in order to

eliminate the effects of prior experience. This site is

an e-commerce WebApp where you can buy men

and women clothes.

The content of an online shop is based on a

homepage (Nielsen, 2001) which includes the same

links and websites as other online apparel stores.

We developed six different versions of this site

according to different quality patterns we wanted to

validate.

The main goal of the experiment is to prove that

the association established between interaction

patterns and the criteria defined on the proposed

quality model (Montero et al. 2003) is correct (see

figure 1), in such a way that the use of the patterns in

the construction of a WebApp makes it to assess the

corresponding quality criteria, and for this reason the

WebApp versions that includes the recommended

patterns for solving usability problems have more

quality that the ones that do not include them. In this

case we carried out the experiment choosing only

one of the quality model criteria: “Guide”. The same

method could be used with the rest of quality factors

and patterns related.

We had to evaluate the websites designed for the

experiment using usability metrics to validate the

hypotheses.

ICEIS 2005 - HUMAN-COMPUTER INTERACTION

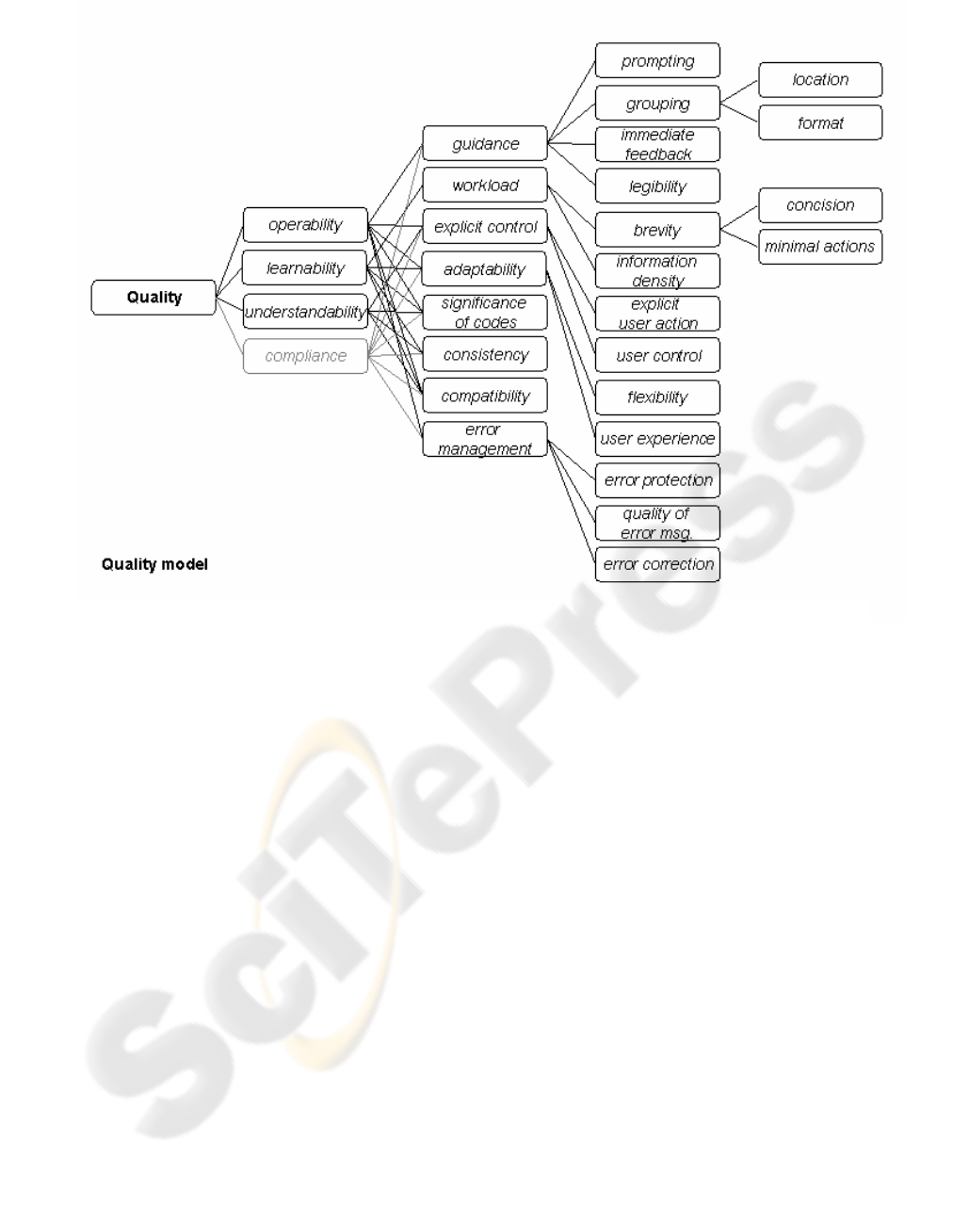

Figure 1: Web Quality Model

3.2 Method

To do the experiment for each feature of the criteria

“Guide” represented in the quality model we based

on, we had to design six versions of e-fashion. Thus,

we had to choose six different groups of people,

with the same experience on the use of internet and

buying in electronic shops.

Each group had to do four tasks, and then we had

to measure them with usability metrics to reach the

goals of the experiment.

Each version of e-fashion was made using the

patterns that are recommended according to the

features of the quality criteria “Guide” of our quality

model (Montero et al. 2003). We wanted to measure

if the association established between the patterns

and this features is correct and their use improves

the usability of the WebApp generated.

The sub-criteria defined for the criteria “Guide”

are the following:

-Prompting

-Grouping

-Immediate feedback

-Legibility

The patterns, defined by D. Van Duyne (Van

Duyne et al. 2002), associated to each sub-criteria

are the following:

- Prompting:

D3: Headlines and blurbs

D9: Distinctive HTML titles

G1: Featured products

G2: Cross-selling and up-selling

H6: Pop-up windows

H8: Context-sensitive help

K6: Location bread crumbs

- Grouping:

B3: Hierarchical organization

B4: Task-based organization

B5: Alphabetical organization

B6: Chronological organization

B7: Popularity-based organization

D1: Page templates

D7: Inverse-pyramid writing style

F1: Quick-flow checkout

G1: Featured products

H7: Frequently asked questions

J3: Organized search results

K1: Navigation bar

- Immediate feedback:

C2: Up-front value proposition

D9: Distinctive HTML titles

F3: Shopping cart

F7: Order summary

A CONTROLLED EXPERIMENT FOR MEASURING THE USABILITY OF WEBAPPS USING PATTERNS

F8: Order confirmation and thank-you

H6: Pop-up windows

I3: Clear first reads

K5: High-visibility action buttons

K10: Obvious links

K14: Page not found

- Legibility:

D7: Inverse-pyramid writing style

D9: Distinctive HTML titles

I2: Above the fold

I3: Clear first reads

I4: Expanding width screen size

I5: Fixed-width screen size

Taking into account these associations, we

implemented the six different websites of e-fashion:

one version using all the patterns (e-fashion 3),

another one using any of them (e-fashion 4), another

one using only the patterns defined for the sub-

criteria Prompting (e-fashion 5), another one using

only the patterns defined for the sub-criteria

Grouping (e-fashion 6), another one using only the

patterns defined for the sub-criteria Immediate

Feedback (e-fashion 7), and the last one using only

the patterns defined for the sub-criteria Legibility (e-

fashion 8).

3.2.1 Participants

The selection of participants was not easy as they

should not be experts on using internet and buying

through websites.

Finally the participants selected to carry out the

experiment were high school students between 16

and 17 years. All of them had the same experience

on using internet and no experience on buying in

internet. There were only 2 users that had previously

bought something in internet but just once.

3.2.2 Context of Product Use in the

Experiment

3.2.2.1 Tasks

The proposed tasks that each user had to do on the

experiment were designed according to the factor

“Guide” that we wanted to evaluate and considering

that the WebApps designed for the experiment were

e-commerce sites.

The tasks each user had to do were the

following:

- Task 1: To buy two grey men jerseys.

- Task 2: To write the price of a white

woman shirt with black stripes

- Task 3: To add to the shopping chart four

pairs of uncovered woman shoes and a

white man belt.

- Task 4: To buy a brown woman skirt.

After the execution of these tasks the users had to do

the satisfaction test proposed in the experiment.

With the results obtained using metrics we got

conclusions about the use of patterns to create usable

websites, as described afterwards.

3.2.2.2 Context Used for the Experiment

The evaluation was made on the Albacete high

school called CEDES, in Spain, on June the 15

and

of 2004.

The participants were constantly observed by the

person in charge of the experiment during the whole

time.

3.2.2.3 Participant’s Computing Environment

All the participants used the same computer

machines and the same internet connection. The

computers used were Pentium MMX with 32 MB of

RAM, with 15” monitors and a screen resolution of

800x600. The operating system was Windows 2000.

The internet connection was 150 kb/s ADSL, but

shared by all the machines. This was determining in

the development of the experiment, because the

loading of the pages was very slow, because of the

high quantity of images shown in the web.

3.2.3 Experiment Design

Six groups of participants were established, with a

media of 12 users per group. Thus, the total amount

of participants was 74 peoplel. Each group of users

did the proposed tasks in one of the versions of e-

fashion. Each user had to do the 4 proposed tasks

and to fill the satisfaction test.

3.2.3.1 Procedure

When the participants arrived at the laboratories

where the experiment was carried out, all of them

were informed about the goals of the experiment at

the same time. We told them that the experiment

was made to measure the usability of the website e-

fashion where they had to do the proposed tasks to

find out whether it met the needs of users as them.

They were told to read each task (described on a link

on the home page of e-fashion) and to make these

tasks one by one. Finally they had to fill the

satisfaction test available by a link on the home

page.

The experiment was about 50 minutes long for

each one of the six groups. In this time the users had

to be able to execute the four proposed tasks and the

satisfaction test.

The participants were given basic instructions

describing the environment. The evaluator reset the

state of the computers before the coming of each

new users group, and gave them the appropriate and

ICEIS 2005 - HUMAN-COMPUTER INTERACTION

convenient instructions. The participants also were

informed that they could not be helped by the

evaluator, because the web was enough to help the

users to make the tasks properly.

Any incident occurred during the experiment was

solved by the evaluator in the most properly way.

The evaluator finally asked the participants about

the difficulties they had encountered to have a best

vision about the results of the experiment.

3.2.4 Metrics

The metrics we used on the experiment were the

following:

- Efficiency: We use as efficiency metric the

“Task Time”, which is the time that each user spends

completing each task. We did the mean time for all

users on each task.

- Effectiveness: The effectiveness was measured

using the metric “Task Completion” and “Error

frequency”. With these metrics we can obtain the

number of tasks that users did not completed and the

number of errors the users had made on each task.

In this case we considered as completed task the

one where the user had done what we asked to do,

independently of if he did it properly or not.

As well as the number of completed and not

completed tasks, we showed the results as a

percentage to allow a simple analysis.

One task is not completed for example if we

asked to buy something and the user has added the

products to the shopping chart but he has not paid

for them.

The results of the metric “Error Frequency”

allow us to evaluate the errors that each user has

made. If one of the task was to buy a brown skirt,

but the user have bought another issue, it will be

considered that the task is completed but with errors.

If the task consisted on taking note of the price

of a certain shirt and this price was written from

other shirt, then the task will be considered

completed but with errors.

Another possible way to have contemplated this

metrics would have been to consider that the task

with errors it is not completed.

- Satisfaction: The satisfaction metric was

measured using a satisfaction test, that was created

based on some questions of the evaluation test

SUSS, developed by Constantine (Constantine et al.,

1999) to measure key elements in the interfaces

design as could be personal tastes, aesthetic,

organization, understandability, and learning.

Other questions of the test are based on SUMI

test, accepted by expert evaluators and international

organizations as ISO.

Our test is about 20 questions that allow us to

evaluate in a simple way the satisfaction of the users

who have carried out the four tasks in the website.

Each user had to answer each question of the test

choosing an option between 1 and 5, like a Likert

scale, except in the two first questions and the three

final questions that were questions with a scale of

three points.

- Comprensibility and learning: Finally the

metric learning was measured. This kind of metric

measures how the user have learned to use the

website. To measure this metric we use a special

question of the satisfaction test and we compared

also the “Task Time” of task 1 and task 4, because

these two tasks consisted on buying something.

Thus, it was supposed that if the user had been able

to learn, the Task Time for Task 4 would be inferior

to Task Time for Task 1, as indeed occurred.

3.2.5 Results

Before comparing the data obtained by the metrics

in the different versions of e-fashion we can say that

the association established between the interaction

patterns and the feature Guide in general is good and

improves notably the quality of websites.

Special case was e-fashion 5 because the server

felt down for some minutes and some tasks could

not be completed, and some Task Times were higher

than expected, so the results of e-fashion 5 were

taken carefully taking into account this unexpected

situation.

3.2.5.1 Comparative of Medium Task Time

Figure 2 shows a graphic where the medium times of

task are represented for each version of e-fashion.

We highlight the fact that it occurs something

curious on the versions of e-fashion that use all the

patterns of the criteria “Guide”, or some of them.

These sites had more information to load, for

example more quantity of images, than e-fashion 4,

the “worst” version of all. For this reason the

loading time of these pages was slower than the

loading time on e-fashion 4.

A CONTROLLED EXPERIMENT FOR MEASURING THE USABILITY OF WEBAPPS USING PATTERNS

0,00

5,00

10,00

15,00

20,00

25,00

123

Task

Time (min.)

e-f ashion 3

e-f ashion 4

e.f ashion 5

e-f ashion 6

e-f ashion 7

e-f ashion 8

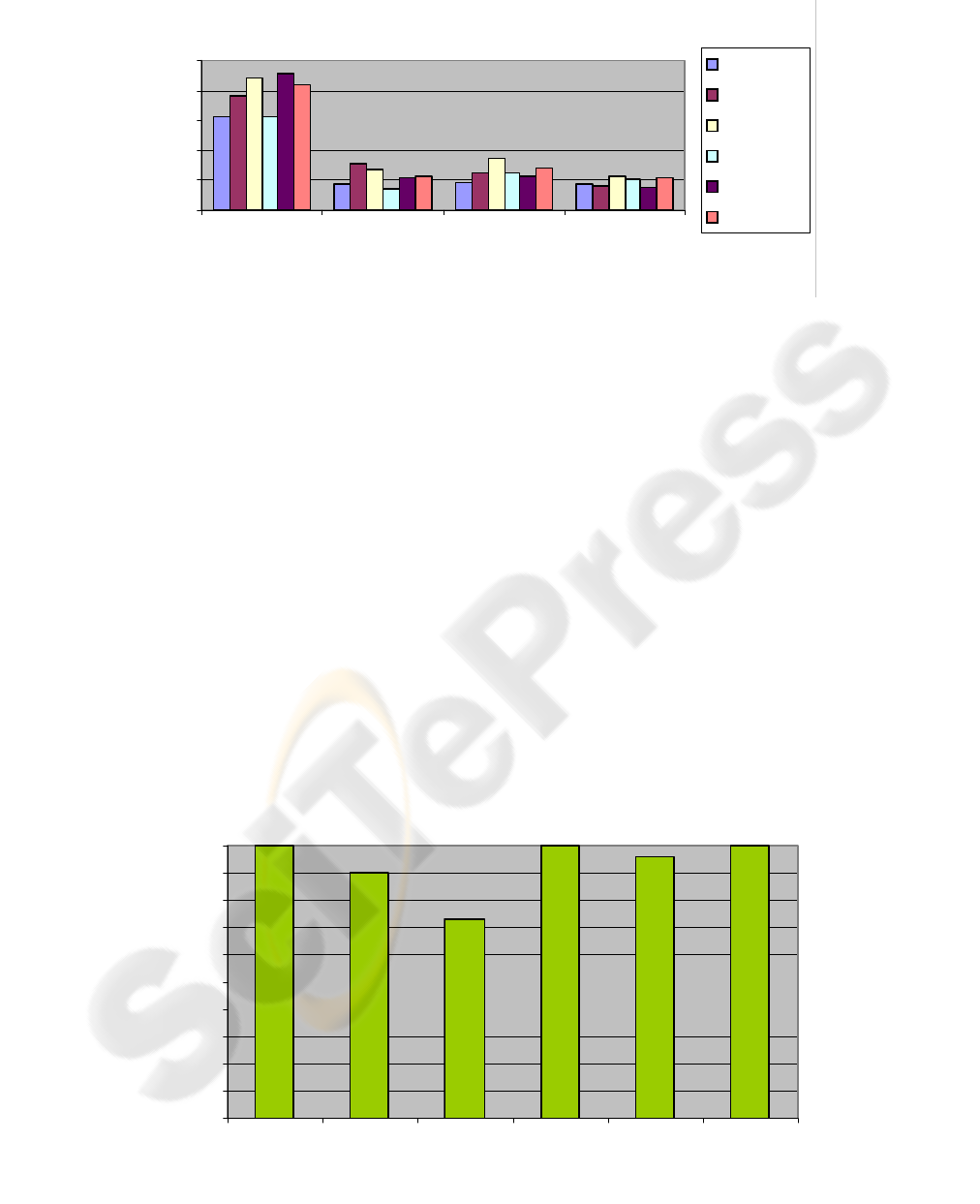

Figure 2: Medium Task Time Comparative

This workload that made the loading slower was

due to products images, for example on the home

page that loads the new products of the month, and

this could affect to the final time task.

Despite this situation, on the Figure 2 we can see

that in general, the users take more time to execute

the tasks on e-fashion 4 than on e-fashion 3, as we

expected. If we add the handicap that has been

talked about, we have to take into account the times

in function of the load of the page. In this case there

is no doubt that e-fashion 4 is the worst of all

versions of the sites, and e-fashion 3 is the best of

the six versions because its task times are slower on

3 of the 4 tasks.

These results allow us to conclude that the

association between the patterns with the criteria

“Guide” is good in general and helps to improve the

quality of websites.

Each colour in Figure 2 represents each version

of e-fashion that was used on the experiment. The

X-axis shows the number of task and the Y-axis

shows the time expressed in minutes.

3.2.5.2 Comparative of Task Completion

Figure 3 shows a graphic where the completion of

tasks is compared on the six versions of e-fashion.

We want to remind that when the experiment was

made with e-fashion 5 the server felt down, and

some tasks were not completed. So, this 23% of

users that had not completed the tasks on e-fashion 5

do not reflect the real usability of the web.

If we analyse the rest of groups, we can see that

on e-fashion 4 there was a 90% of uncompleted

tasks, what shows that this web was the worst of the

six versions, because in e-fashion 7 there were a 2 %

of users that did not complete all the tasks, but it is a

better result than e-fashion 4 and in the rest of the

versions there was a 100% of task completed.

3.2.5.3 Errors Frequency comparative

Figure 4 shows which version of e-fashion had more

error frequency on its tasks, and as we expected e-

fashion 4 was the worst site of the six.

This result reinforces the hypothesis that it is

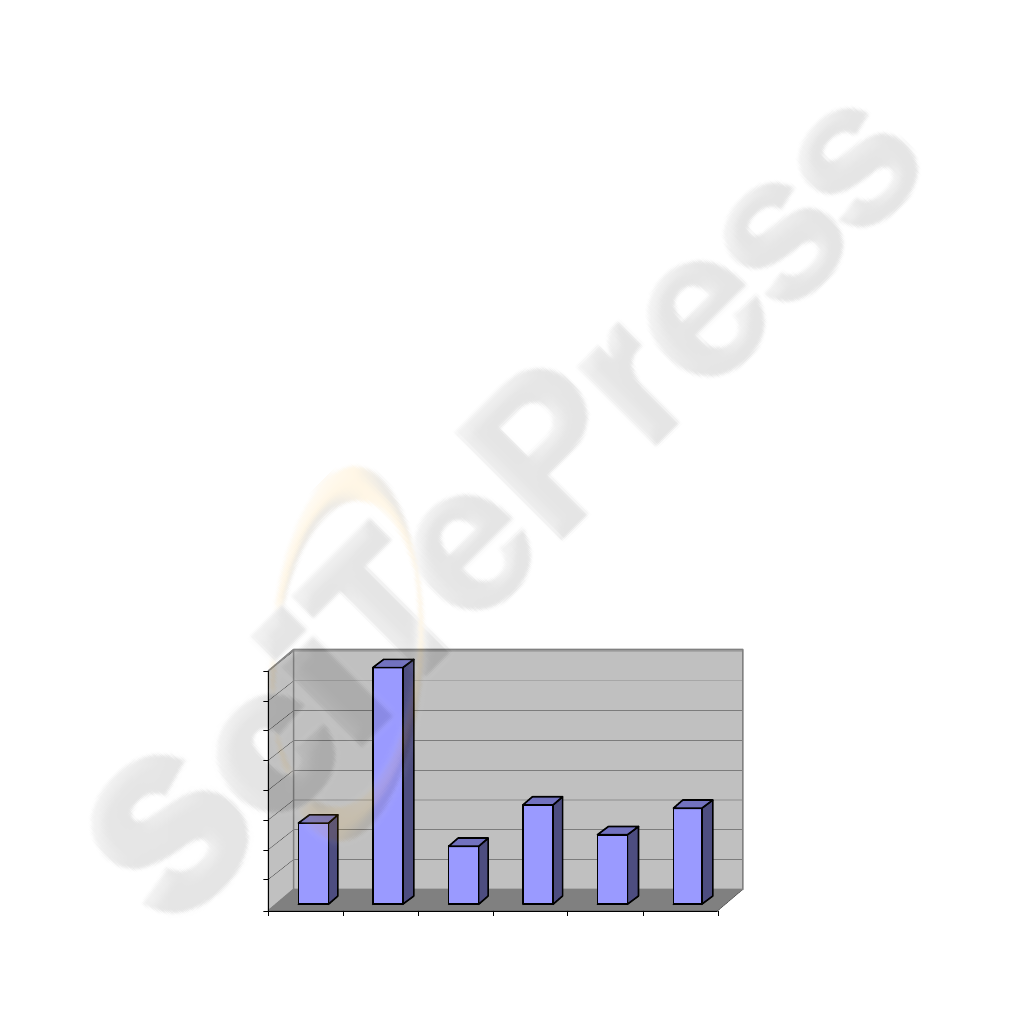

Figure 3: Task Completion Comparative

10%

20%

30%

40%

50%

60%

70%

80%

90%

100%

e-f ashion 3 e-f ashion 4 e-fashion 5 e-f ashion 6 e-f ashion 7 e-fashion 8

ICEIS 2005 - HUMAN-COMPUTER INTERACTION

much better to design websites according to a

quality model and using the ergonomic patterns

identified.

3.2.5.4 Satisfaction comparative

Now we show some of the results obtained from the

satisfaction test bringing face to face the different

versions of e-fashion showing some comparative

graphics.

We start with the affirmation “Working with this

site is satisfactory”, because this question shows the

general satisfaction of the users that have used the

web application. In general, the satisfaction of the

users was higher on e-fashion 3, because the most

chosen option was number 5, which is the best of the

different options. This shows that in general the

satisfaction of the users that executed the tasks of the

experiment was good.

However, on e-fashion 4 the most chosen option

was number 2, which is near to the worst option

(Totally disagree), which indicates that in general,

on e-fashion 4 the satisfaction was the worst.

Another interesting question of the test was

number 4: “The website is very attractive for me”,

because it shows the capacity of the website to

attract users. In this case the results were also

favourable to e-fashion 3.

In general the results of e-fashion 3 were

positives, if we have into account the percentages of

the different versions. E-fashion 4 again was the

worst of the six versions.

The conclusions that we obtained about the rest

of questions in the test were favourable to e-fashion

3 too. This indicates again that using patterns for

designing websites is good to improve their final

quality.

3.2.5.5 Learning comparative

In this case as we could see in the answers of

question number 21 of the satisfaction test, in the

notes taken by the evaluator while the experiment

was carried out, and comparing the times obtained

on the tasks where the users had to buy something

(number 1 and number 4), the users proved to have

understood the functionality of the website and have

learned the basic use of it. Again this result was

clearer on e-fashion 3, the version that was

implemented using all the patterns defined for the

criteria “Guide”.

4 CONCLUSIONS AND FUTURE

WORKS

Based on the interesting results obtained from the

experiment, we can conclude that the use of

ergonomic patterns to characterize quality criteria

defined in a quality model produces better web

applications with much more quality than others

implemented without using the patterns.

Moreover, the realization of the experiment has

been useful to evaluate the metrics used on it. The

metrics are a useful mechanism for evaluating the

usability of websites.

With the data obtained from the experiment we

can conclude that the satisfaction metric is useful

because it shows a good view about what users think

about when they use the website on true conditions.

However, we can also state that due to the subjective

nature of this metric, and because we cannot assure

that all the users say the truth when they fill a test, is

important not to use only this metric to evaluate the

quality of a website. In this sense, it is better to

compare its results with the results obtained by using

other metrics, as for instance, Task Time, Error

Frequency and so on.

The validity of the experiment is clear in this

case as the global results of the metrics used are

Figure 4: Errors Frequency Comparative.

10%

15%

20%

25%

30%

35%

40%

e-f ashion

A CONTROLLED EXPERIMENT FOR MEASURING THE USABILITY OF WEBAPPS USING PATTERNS

consistent one with the others,

Another interesting conclusion is that “Task

Time” and “Error Frequency” metrics are useful

when we need to evaluate the quality of a website,

because they show in an objective way the usability

of the system when users execute tasks on it.

However, in the experiment we can see that it is

very important when we want to evaluate the results

of the metric “Task Time” the loading time of the

page, because the loading time can give a false view

about the time users spend on doing the tasks. Thus,

it is very important that all the users can carry out

the tasks on computers with the same technical

specifications. About the “learning” metric we must

say that it is also a good metric because it gives a

general idea about the capacity of the website to be

learned and used by the user.

So, applications easier to learn are more

satisfactory for the user as we can conclude from the

experiment results. The most important conclusion is

that the use patterns to characterize the criteria

defined in a quality model allow us to construct web

applications with a higher degree of quality than

others designed without any reference model nor

patterns.

As a final remark, we can state that due to the

complexity and difficulty of carrying out an

experiment with real people it is much better to

develop web quality models which allow developing

websites with a basic level of usability. The design

websites using a quality model and interaction

patterns associated to the different criteria avoids

making usability experiments because the final

quality will be guaranteed.

REFERENCES

Brajnik, G (2002). Quality models based on automatic

webtesting. Automatically evaluating usability of Web

Sites, Minneapolis, CHI April 2002.

Constantine, L.L., Lockwood, L.A.D. (1999), Software for

use, A practical guide to the models and methods of

usage-centered design. ACM Press

ISO/IEC 9126-1. (2001) Software Engineering – Product

Quality- Part 1: Quality Model, International

Organization for Standardization, Geneva, 2001.

ISO/IEC 9126-4. (2001) Software Engineering – Software

Product Quality- Part 4: Quality in use metrics, 2001.

Ivory, M.Y. (2001) An Empirical Foundation for

Automated Web Interface Evaluation. Ph D. Thesis,

Berkeley University, California.

Montero, F., Lozano, M., González, P., Ramos, I. (2002)

Designing Websites by Using Patterns. Second Latin

American conference on Pattern Languages of

Programming. SugarLoafPLoP02. Itaipava. Rio de

Janeiro. Brasil. ISBN: 85-87837-07-9. pp. 209-224.

Montero, F.; Lopez-Jaquero, V., Lozano, M.; González, P.

(2003) A Quality Model For Testing the Usability of

Web Sites. HCII´03.

Nielsen, J. (1993). Usability Engineering. Morgan

Kaufmann,

Nielsen, J. (2001). Homepage Usability: 55 websites

deconstructed. New Riders, pp. 315

Olsina, L. (1999) Metodología Cuantitativa para la

Evaluación y Comparación de la Calidad de Sitios

Web. PhD. Thesis, Universidad Nacional de La Plata,

Argentina.

Perzel, K., Kane, D. (1999). Usability Patterns for

Applications on the World Wide Web. PloP´99.

Shneiderman, B (1998). Designing the User Interface:

Strategies for Effective Human-Computer Interaction.

Addison-Wesley Publishers.

Tidwell, J. (1999) Commond Ground: A pattern language

for HCI design.

http://www.mit.edu./~jtidwell/interaction_patterns.htm

Van Duyne, D.K.; Landay, J. A.; Hong, J. I.; (2002) The

Design of Sites: Patterns, Principles, and Processes for

Crafting a Customer-Centered Web Experience,

Publisher: Addison Wesley, ISBN: 0-201-72149-X

Welie, M. (2003) Interaction Design Patterns.

http://www.welie.com/patterns.

This work is partially supported by the Spanish CICYT

TIN2004-08000-C03-01 and PBC-03-003 grants.

ICEIS 2005 - HUMAN-COMPUTER INTERACTION
