ARCO: A LONG-TERM DIGITAL LIBRARY STORAGE SYSTEM

BASED ON GRID COMPUTATIONAL INFRASTRUCTURE

Han Fei, Paulo Trezentos, Nuno Almeida, Miguel Lourenço

ADETTI, ISCTE, Portugal

Edificio ISCTE, Avenida das Forcas Armadas,1600-082 Lisboa, Portugall

José Borbinha, João Neves

National Library of Portugal

Campo Grande, 83-1749-081 Lisboa, Portugal

Keywords: Grid Computing, Digital Library, Storage, Large file transfer

Abstract: Over the past several years the large scale digital library service has undergone enormous popularity. Arco

project is a digital library storage project in Portuguese National library. To a digital library storage system

like ARCO system, there are several challenges, such as the availability of peta-scale storage, seamless

spanning of storage cluster, administration and utilization of distributed storage and computing resources,

safety and stability of data transfer, scalability of the whole system, automatic discovery and monitoring of

metadata, etc. Grid computing appears as an effective technology coupling geographically distributed

resources for solving large scale problems in the wide area or local area network. The ARCO system has

been developed on the Grid computational infrastructure, and on the basis of various other toolkits, such as

PostgreSQL, LDAP, and the Apache HTTP server. Main developing languages are C, PHP, and Perl. In this

paper, we discuss the logical structure sketch of the digital library ARCO system, resources organization,

metadata discovering and usage, the system's operation details and some operations examples, as also the

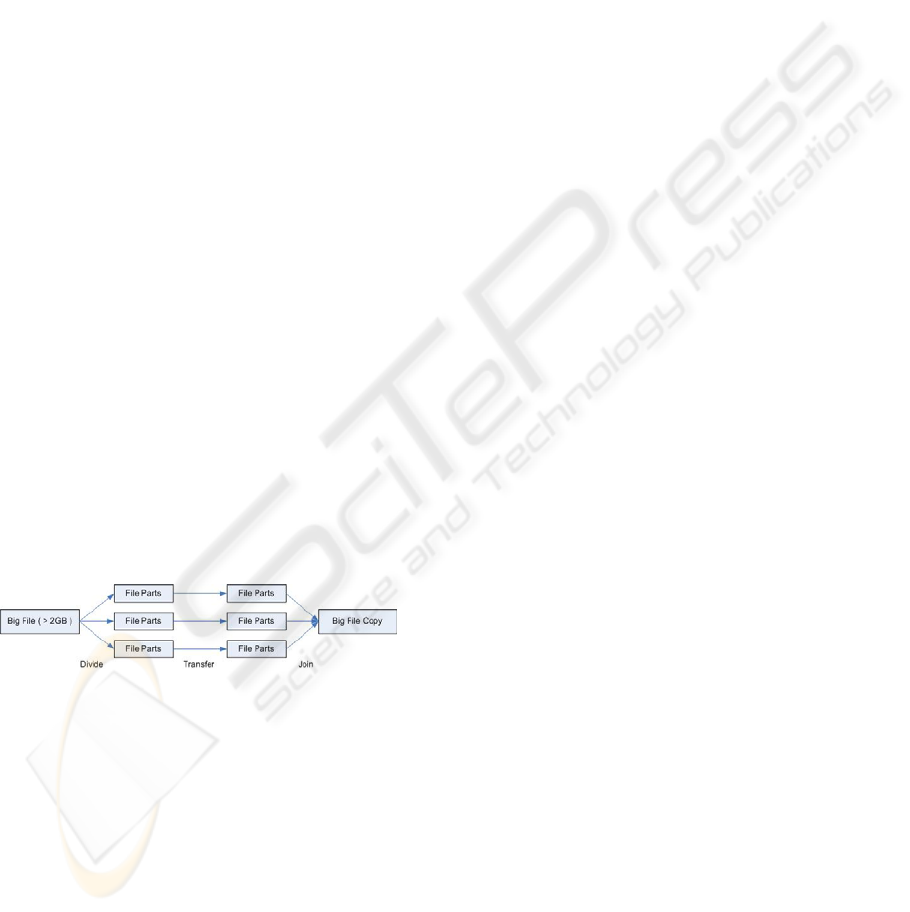

solution of large file transfer problem in Globus grid toolkit

1 INTRODUCTION

1.1 Back

ground of digital library

storage system

With the swift popularity of providing digital

content and multimedia service through internet,

traditional libraries are in a changing role. The data

services of a library provided through internet have

undergone fundamental changes not only in style,

but also in the quality and quantity of the data.

Previously, library network provision was serviced

by a single stand alone server. Daily network

connections were limited to data volumes of merely

several megabytes. But since then, things have

changed dramatically.

Nowadays, people are no longer content just to

owse and look up some book catalogues and

introductions; they want to read digitalized books

online, or download the book to convenient movable

devices, such as notebooks and handhold book

reading gadgets. Meanwhile this digital content are

in multi styles, such as text file, static images, and

media streams. However, inside the library, all

digitalized data need to be stored in devices with

huge amount of storage capacity. As a result,

administrative software and toolkits for utilizing

data storage resources inside the digital virtual

library become complex and difficult to develop and

uphold. In the storage system of a digital library,

data are transferred from one part of the library

storage space to another part constantly; new books

are digitalized and copied into the library system;

Fei H., Trezentos P., Almeida N., Lourenço M., Borbinha J. and Neves J. (2005).

ARCO: A LONG-TERM DIGITAL LIBRARY STORAGE SYSTEM BASED ON GRID COMPUTATIONAL INFRASTRUCTURE.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 44-51

DOI: 10.5220/0002534000440051

 SciTePress

old version are deleted or updated; metadata

catalogue need to be set up and updated continually.

BN (Biblioteca Nacional) is the Portuguese

national library. BN needs to combine leading

information processing techniques and undertake the

mission of digital publishing, provide digital books,

preserve cultural artefacts, and process metadata,

etc. As a result, it became an urgent demand to have

a system with a large storage capacity.

1.2 Storage system demand in BN

Each year, millions of users and clients, all over the

world, connect to BN through the internet and use

the online service provided. The service includes not

only simply looking up book catalogue and

browsing brief html files, but also online reading of

digital books and downloading of digital content for

late reading or rendering. All of these data need to

be digitally stored somewhere.

With the time passing by, the storage system

needs to be not only big enough for old data, but

also fully scalable in capacity for the future, because

almost every day, big amount of digital data is

produced (around 400 GB/day). The scale of the

needed storage capacity is petabytes. For the time

being, from the view point of mature and viable

technique solution, only some kind of storage cluster

or server farm can provide storage capacity in this

scale.

Nowadays, an entry-range server with a

powerful CPU and a large capacity is much cheaper

than several years ago (1-2 EURO / Gigabyte).

A dual CPU server with about 800-1200

Gigabytes hard drives (4 hard drives) turn out then

to be a proper choice for data storage system. With

all of these kinds of computers connecting with each

other, there is another challenge remaining unsolved.

How to build a system capable of use these

resources? The storage demand in BN is not only

just simple a matter of scale well, since the storage

devices and network connections are just the

primary basis of a digital library. Digital library still

need administrative software, toolkits and

middleware software. All of these items need to be

combined together into the functional virtual library.

The ARCO project in BN aims at leading edge

techniques and solutions, to develop a digital library

storage system with computational storage resources

and a set of software toolkits.

2 ARCO PROJECT OBJECTIVES

AND RELATED TECHNIQUES

2.1 Project objectives

Through the ARCO project, BN want a usable

storage system able to handle a huge amount (about

several hundreds of Tera Bytes) of digital content.

The ARCO system will be the main reservoir of

the digital library in BN. Internally, the storage

system need to be constructed based on a layered

concept, in order to get better use of already

available toolkits and techniques. Any developed

part of the system can be re-used in the future.

Under various considerations, the following points

have been proposed.

The physical basis of the system is a cluster of

PCs, without keyboard and monitor. In the

experiment and developing stage ARCO has 30 PCs

providing a storage capacity of 24 TB.

All these PCs are connected by 1Gigabit fast

Ethernet, but the software and the middle-ware will

not make any assumption to the speed of network

connection. Data sharing should be available

between different part of departments inside BN,

and between BN and other major libraries in other

areas.

To solve these issues, ARCO is based on GRID

architecture, because it introduced an abstraction

layer to handle with the distributed data storage

environment.

The topological structure of the logical digital

library will be scalable in several levels to satisfy

future demand.

The system administrative operation will be

provided in PHP scripted webpages. This is easy to

use and convenient to operate over a different locale

through network.

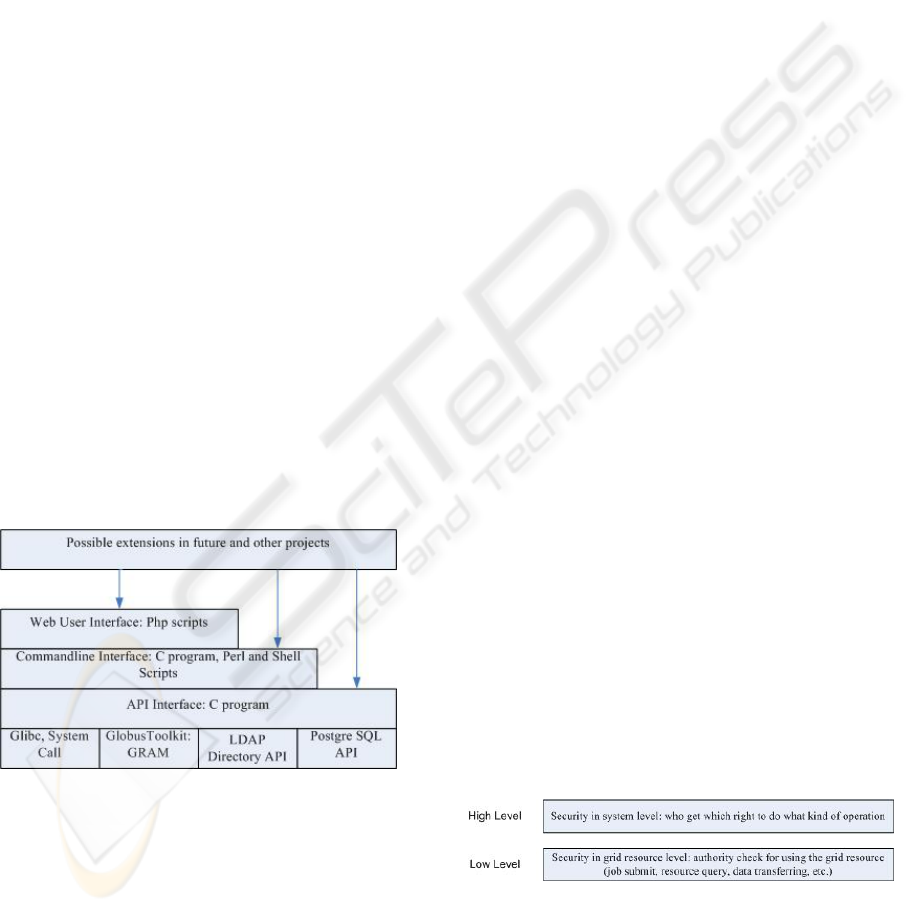

There are three interfaces having been defined

for operations taken on different logical entities

level. The first interface is provided through

webpage which is scripted in PHP. The second is

provided through command line in the grid

computing environment. The third is provided in

API (Application Programming Interface). The

command line and API interfaces can be re-used by

other projects in the future.

The ARCO system provides the grid

computational resource automatically discovering

feature. All the local resource and hardware

attributes are collected and stored in LDAP server

directory service, and late are queried through by

LDAP clients. The resource attributes can be used in

several ways, such as data and workload

automatically redistribution or resource usage

monitorization.

ARCO: A LONG-TERM DIGITAL LIBRARY STORAGE SYSTEM BASED ON GRID COMPUTATIONAL

INFRASTRUCTURE

Metadata creation, querying, and administration

will be provided in ARCO system. Metadata are

stored in a PostgreSQL database.

ARCO system provides grid resource hardware

and network connection monitorization. For

example the CPU working environment is

discovered through ACPI interface, and some

working conditions are continuingly monitored.

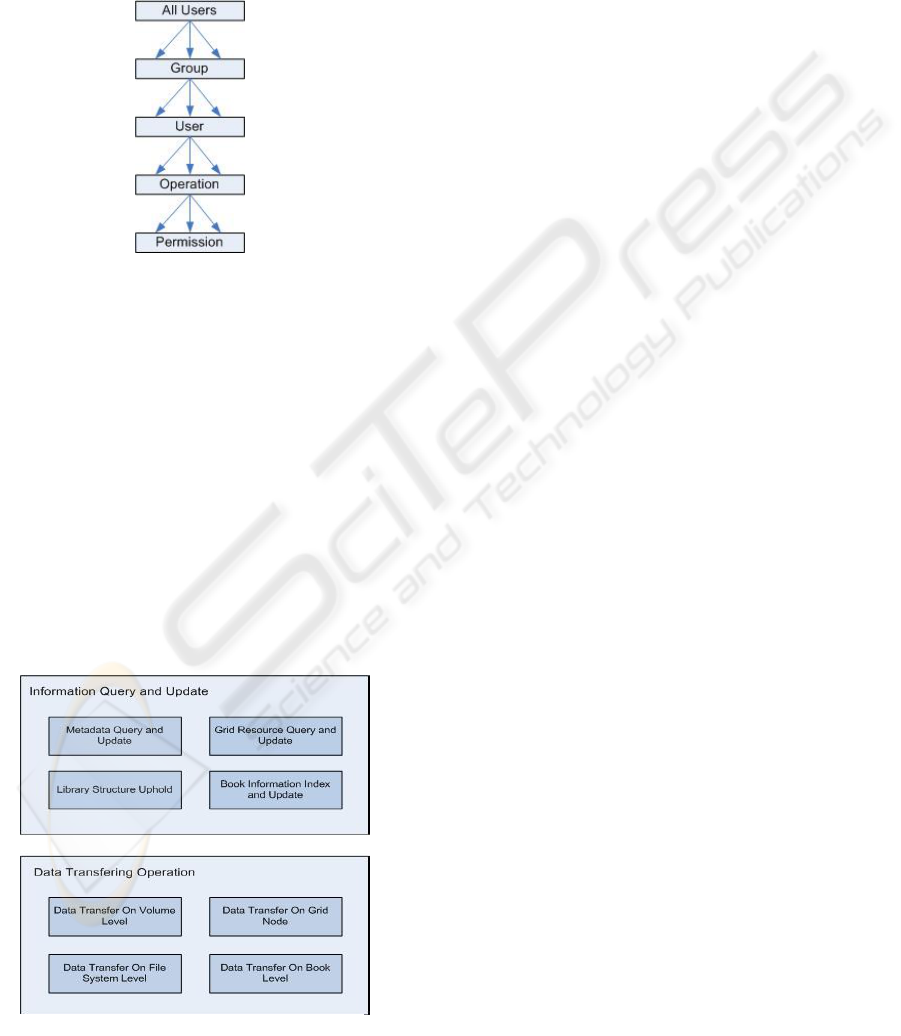

To guarantee the system safety and information

integration, ARCO system adopts a basic security

mechanism, to authorize different administrators

with different level of rights to operate on various

logical entities of the library storage system.

All of these physical demands and logical

concepts have composed of the ARCO system. In

this paper we will discuss in details about the logical

structure of the system and some examples of

system operations.

2.2 Globus grid toolkits

Grid computing provides effective techniques for

coupling distributed resources, solving large-scale

computational and storage heavily problems over the

network. Globus grid toolkits(The Globus Project:

Globus Quick Start Guide)(IBM Redbook: Globus

Toolkit 3.0 Quick Start Guide), as a middle-ware,

manages and uses resources in local or wide area

network.

Globus grid toolkits includes mainly three

parts(Ian Foster and Carl kesselman, 1999)(Ian

Foster et al., 2002). The first is GRAM, the Globus

Resource Allocation Manager, which is a basic

service that provides capabilities to submit job from

one grid node to another node. GRAM unites

computational resources in grid environment, and

provides a common user interface so that you can

submit and administrate jobs on multiple machines

on the Grid fabric environment. Without the grid

interface, first you will meet with different security

need to copy the executable file to the destination

machine for later execution; third you will try to

start running the job on the remote machine; finally

you will need to collect and transfer the computing

results or any error message back to your local node.

GRAM not only unites computational resources, but

also unifies utilization interfaces. When you submit

a job, you can configure the job executing

environment (i.e. source data, result data, standard

output and standard error file) by RSL (Resource

Specification Language) language sentence.

The second main part of Globus grid toolkit is for

information services, which provides information

about grid resources. In Globus toolkit, such utilities

include the MDS (Monitoring and Discovery

Services)(The Globus Project: MDS 2.1 User’s

Guide). Without MDS service, you must to write a

script or program to collect, analyse, and transfer

resource attributes from all grid nodes back to your

local node. In the case of Linux, perhaps you need to

make a statistic report about proc directory in every

computer, and then transfer this statistic information

back to your local computer, and finally generalize a

report about all resources of the grid cluster. In a

grid environment, MDS periodically collect local

information and store it into LDAP directory server.

You only need to send a LDAP query, and then you

will get all these useful information.

The third key part of Globus is for data

management and transferring, which includes such

utilities as GridFTP and globus-url-copy. The

GridFTP and globus-url-copy provide multiple

protocol transferring; meanwhile use the same

unified security mechanism as other parts of Globus

grid toolkit.

3 ARCO SYSTEM STRUCTURE

Looking from different angle and standpoint, we

will get different impression to ARCO system.

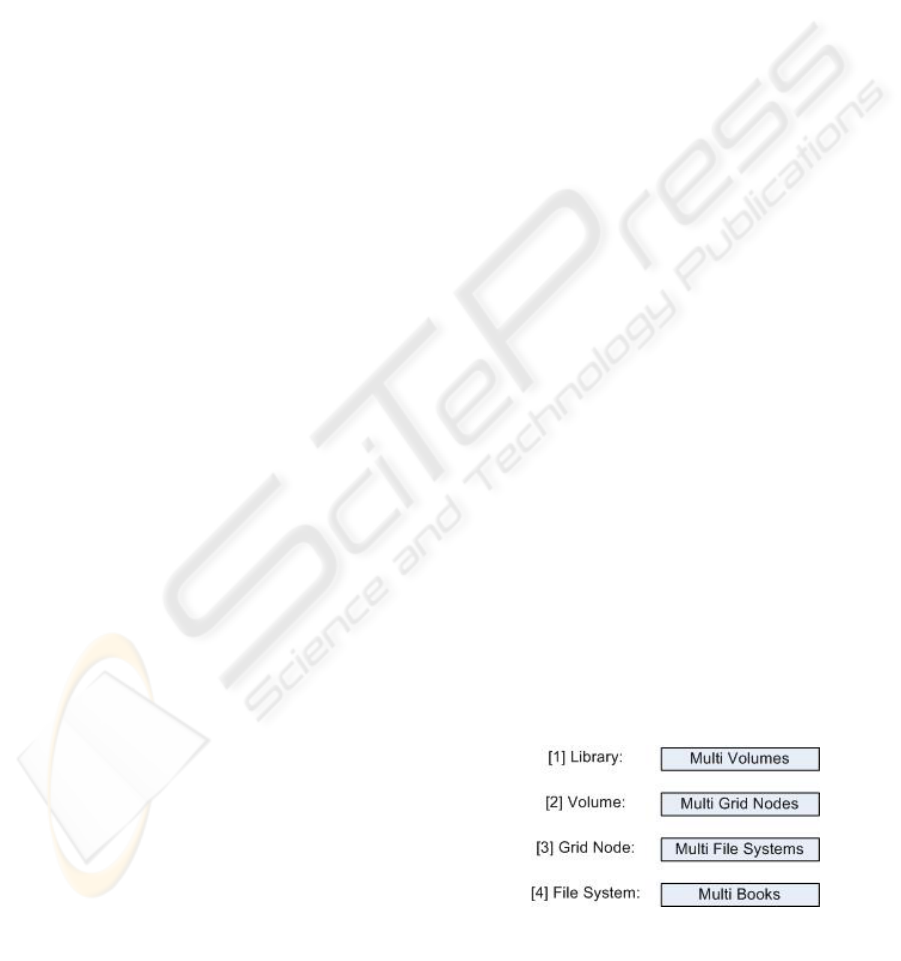

3.1 Digital Library abstract structure

To get a better understand we can compare the

ARCO storage system with the traditional library. In

a traditional library, there are catalogue for looking

up books in an organized way; in ARCO there are

metadata catalogue (PostgreSQL database) to

provide a books list, which can be browsed and

looked up in several methods. In according to

different branch of subjects, the traditional library,

which can have a very big area for storing books,

have book shelves with specific subject label. Books

belonging to one subject will put onto shelves

belonging to this subject. The subject and

correspondent shelves can be organized in a

complex way of several classes.

Figure 1 is the ARCO system abstract structure.

Like the traditional library, ARCO library is

composed by multiple volumes. A volume is

Figure 1: ARCO system abstract structure

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

composed by multiple grid nodes, which are servers

in computing grid environment. But one volume can

have a mirror volume to guarantee the information

integration. Beside of be a mirror of another volume,

a mirror volume is as functional the same as a

normal one.

A grid node is composed by multiple file

systems. Physically, file systems is a partition of a

hard drive, or occupy a whole hard drive, even span

over several hard drive in the case of soft RAID or

LVM. Finally, books are stored in file system.

But a node can be detached from the grid cluster

through a special operation, in which case, all the

data reside inside this node will be automatically

redistributed to other nodes of the same volume.

This is a way for guarantee the information

integration of the volume.

In traditional library, a book will have several

physical copies. In a digital library as ARCO, mirror

copy is needed, but only for the security and

information integration reason. The mirror in ARCO

is arranged on the volume level. A mirror volume is

organized in the same way as normal volumes, only

the metadata catalogue of the mirror volume has a

record item to say that this volume is a mirror of

which volume and the metadata catalogue of the

main volume will has a record to show the mirror

volume name.

3.2 System interface

Figure 2 demonstrate the layered structure of the

ARCO system user interface.

Looking from the outside, the ARCO system

provide three interfaces, which are http protocol web

interface, command line interface and API interface.

Through web interface users can query the system

information or take some operations. Under this

case, users are divided into different groups and

granted different right to take specific operations.

User need to login into the system, then all the

available commands and menus to this specific

security class will be appear in several web pages.

The web page is scripted in PHP and rendered by

Apache server. The login and security control is

also done by PHP scripts. Whenever any operation is

asked by the user, in fact, PHP scripts will call

command line interface to do the actual thing.

In ARCO system, command line interface takes

full control of the system. It utilizes the security

mechanism of operating system, database and

Globus grid to check the user's identification. The

web page interface provides only preconfigured

operations and functions, compared with this, the

command line interface are fully free to not only

preconfigured operations, but also to any operation

scripted on the fly. In the case of some special

operations that haven’t been configured, the

administrator can use command line interface, and

write a script (Shell, Perl, Python etc.) to do it. The

command line interface can be used in the future for

other project or system function expanding.

The API interface is the basis of all the system

operation. The entire high level interface will finally

call the API interface to fulfil the operation. The API

interface can work as a library tool that in the future

can be used by other programs.

3.3 User, Group and security

definition

The ARCO system will provide a large storage

capacity. Digitalized books and media data will

constantly flow into the system. From the viewpoint

of security, operators and users need to have

different level of authorities.

Figure 3 shows the ARCO system security

mechanism. There are two levels of security. In the

high level, ARCO system works as a storage

reservoir and the operations have been defined to

operate at this level. There are also many users and

administrators. What kind of operations can be taken

by which user must be strictly limited in a

preconfigured way? The high level security

mechanism guarantees the system safety and the

information integrity.

Figure 2: ARCO system multiple interface structure

Figure 3: ARCO system security structure

In a summary, the ARCO web interface has

adopted independent security mechanism which is

scripted in PHP and rendering by Apache server. But

the command line and API interface don't provide

ARCO: A LONG-TERM DIGITAL LIBRARY STORAGE SYSTEM BASED ON GRID COMPUTATIONAL

INFRASTRUCTURE

this kind of high level security mechanism, which

just assume that people get touch to this level will

have fully control over not only the hardware but

also the system services. The figure 4 is the ARCO

system security schema in the web interface. All the

ARCO system operations will finally step down into

APIs for some kinds of services and resources, and

then in here, it is the grid security mechanism takes

effects.

4 SYSTEM OPERATIONS

The ARCO system not only has some static features,

such as the system interfaces in various level and

zones of volumes and grid nodes and file systems,

but also has dynamic snapshots. Dynamically, new

works are constantly stored into the system,

ephemeral versions are replaced or deleted, new

subjects are created, subjects are merged or

reorganized, new servers are added into the grid,

servers are shutdown and moved out for maintaining

reason, accident are taken place in hardware level

and software level then fault recoveries are taken

place. Dynamic operations and static feature, in

together, compose the ARCO system.

Figure 5 shows the operation classes in ARCO

system. All the operations can be generally divided

into 2 groups, the first is information querying and

updating, and the second is data transferring related.

The objectives of dividing operations into classes

and groups are for a better and clearer logical

structure, and to get maximum code reuse.

In ARCO the metadata define in a detailed mode

the virtual digital library and parameters of the grid

infrastructure resources. All the data transferring

operations need first to know not only the usable

grid storage and computing resources, but also the

logical structure of the library. Metadata querying

provides a way to know the library logical structure,

which is the same as in traditional library, where the

librarian need to know where each bookshelf is and

what each bookshelf is labelled. Grid resource query

and update is the same concept as the librarian needs

to know the bookshelves usage and distribution

details in each catalogue section. Library structures

uphold is to reorganize the library. Book information

index and update provide the book catalogue.

Figure 4: ARCO system security schema

From high level such as a volume to low level

such as a single book, the data transferring

operations are divided into different groups. Some of

the data transferring operations will take long time,

operations as these are better to be arranged to

execute in batch mode. All transferring operations,

complex or simple, finally will be analysed and

divided into unit single file transfer. The single file

transfer unit are described in JDL (job description

language) and write down in a JDR (job description

record). In the case of short operation, the JDR will

be submitted to execute at once, and the result can

be got interactively. To a complex and time

consuming operation, all its JDRs of file transfer

units are stored in a JDR link list structure, which

can be write to a file in hard drive and late read

back. The JDR link list will be submitted to execute

in batch mode.

The JDR includes not only the digital library

metadata and library structure information, but also

grid resources details and job executing

configuration. The grid resources demand and job

executing configuration of the JDR are written in

grid RSL (Resource Specification Language).

4.1 Metadata about objects, job

description record and batch

mode

In ARCO system, metadata is mainly stored in

PostgreSQL database. The metadata information is

very important, which not only defines the logical

structure of the digital library, but also is the

Figure 5: System Operation Schema

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

bookkeeping of the content storage. To take a simple

example, the metadata is just like the super block

and inodes and the journal database of a file system;

and the grid storage resource is like the storage

block of a file system. Almost all of the digital

library operation are tightly related with querying

and update the ARCO metadata.

volume: name, id, mirror, mirror-info, date,

username, status, log;

grid node: domain-name, ip, volume-id, status,

log;

file system: dynamically query from LDAP

directory;

book: name, id, size, grid-node-ip, full-path-

name, status, date, log;

4.2 Operation example: Insert new

book into ARCO system

Qualified operators with administrator rights can

insert new digital books or files into ARCO system.

When the operator submits an “insert new book” job

to ARCO system, some metadata item must be

clearly defined: (Inside quotation mark, we compare

it with traditional library operation).

- Book name (Book name in traditional library);

- Source server domain name, full path (Where

is the book);

- Volume id (Which catalogue section the book

belong to? i.e. Society or Law or Science.);

- Insert (This should be a new book).

Then the ARCO system will look up the

PostgreSQL database to make sure what grid nodes

are belong to this Volume and if there is another

mirror Volume:

- Grid nodes domain name list of this volume

(Bookshelves belong to this catalogue section);

- Grid nodes domain name list of mirror

volume.

Then we query the LDAP server in each Grid

node and get the basic information:

- All available file systems and free space (The

free space in available bookshelves);

Then make choice of one proper server and file

system according to specific policy, i.e. largest one

first, or the first available first. The next step is to

copy the file from the source entry point to the

destination. If this volume has mirror, the book will

also copy into the mirror volume. If the copy

operation is successful then insert the metadata into

the PostgreSQL database:

Book name, id, size, grid-node-ip, full-path-

name, status, date, log, and operator.

Books, which reside inside a volume, can be

indexed, looked up and browsed through web

services. Sometimes the operation is to insert a new

book, but there is already a book with the same

name in this volume. Under this case, the system

will send out warning message and do nothing.

There is a book update operation in ARCO for

update an old version. But the system allows the

storage of different book with the same name but in

different volumes.

4.3 Operation example: Volume copy

In ARCO system, many basic operations can

combine with each other to compose of complex

semantics structures and sentences. It is like in our

natural language, when we want to express ourselves

or generalize complex imagination, we always

construct our thinking by using basic idea unites. In

ARCO system, volumes don't share grid nodes, so

that a volume is logically and physically

independent with its copy. After copying, the

duplicated volume can be labelled as the mirror of

the main volume; otherwise, the volume copy

operation can just act as an intermedium step of

more complex operations.

A volume can be very large, it can include many

grid nodes, each node can have many file systems,

and each file system can have many books stored.

The volume copy operation is time consuming; it

can take very long time to finish, so we have

programmed its executing in batch mode.

The first step of volume copy is to query the node

name list of the destination volume, and then to each

grid node, send LDAP query and get file system

details and free space information about file

systems. The second step is to make a decision if the

total free space of the destination volume can hold

all the new files, after that, create a job description

record for each book. This record has enough

information, so that basic functions of insert a new

book operation can be reused in here. All the job

description records are stored in a link list structure,

the link list can be written to a file and late read back

from the file. The job link list is the basis of the

batch mode execution. After the file transferring

finished successfully, the final step is to update the

metadata information about the new volume and all

its books.

ARCO: A LONG-TERM DIGITAL LIBRARY STORAGE SYSTEM BASED ON GRID COMPUTATIONAL

INFRASTRUCTURE

4.4 Operation example: grid node

shutdown

The grid nodes are the physical basis of ARCO

storage system. One volume can have multi nodes.

Some times a node need to be shutdown and taken

out off the grid cluster, under this case, we still need

to keep all the data intact, so all books in the

shutdown node need to be transferred to other nodes

in the same volume.

Firstly, the gird node shutdown procedure need

to query and get the node name list of the same

volume, after that, send LDAP query and get all the

file system details and free space. Because the

shutdown procedure can cost very long time, the

entire book transferring jobs will be stored as a job

description record in a link list structure. Finally, the

operation will be submitted to execute in batch

mode.

5 BIG FILE TRANSFER PROBLEM

AND SOLUTION

Globus-url-copy (version 2.9 at the time of this

project) supports several transport protocols such as

GridFTP and GASS. It was designed to transfer

small files between grid nodes, but some of the files

in ARCO system are very big; usually they are

media stream files. In our test, GridFTP can not

transfer files bigger than 2 Gbytes.

Figure 6 shows how we have worked around the

big file transferring problem in Globus toolkit. For a

big file bigger than 2 Gbytes, firstly, we divide it

into smaller file parts with every single part bellow

the 2 Gbytes limitation; then, transfer each parts to

destination server; finally, join all the parts into a

full file.

In ARCO system, some digital books include

multi files and stay in a directory tree structure. In

theory, we can step down and traverse the directory

tree, meanwhile transfer each file and create

correspondent subdirectory in destination server, but

work in this way is dangerous, and can not keep the

information integration. Besides the big file transfer

problem, there are other small bugs in Globus

version 3.0 (see the release notes in

www.globus.org). So we have decided to treat book

of multi file or single file in the same way, to tar it

into file parts, then transfer file part, finally join file

parts. There is an excellent backup tool, Dar(Disk

ARchive software), which can backup files or

directories into several files of given size.

6 CONCLUSION

Now we have fulfilled the first phase of the ARCO

project. The original objective has been realized. For

the time being, the ARCO system running on about

30 PCs (dual CPU Pentium 2.4Ghz, 200G x 4 Hard

drives, 1G fast Ethernet, without monitor and

keyboard). The system has undergone some

experiment, such as new books copying into the

system, digital library structure re-constructing in

different level, security mechanism testing,

transferring large files (as large as 40 Gbytes), etc.

Grid technique has become the de facto solution

for combining and utilising geographically

distributed computing resources. In ARCO system,

we have utilized Globus grid toolkit, to provide a

integrated and unified storage system for the digital

library. For the time being, many other solutions still

need to be taken to overcome some limitations and

immature parts of the Globus grid toolkit.

From now on it will be much easier to BN store

and search for digitalized content, the system has a

good abstraction layer (provided by the Grid

services) and it’s very easy to increase the storage

capacity. The cost of this system is low, because it

uses desktop computers with IDE hard disks (less

than 500 € each) and in case of failure it’s always

possible to use the volume mirror.

Finally we can conclude that ARCO is a simple

and cheap solution to handle large TB of digital

content.

Figure 6: Big File Transfer

REFERENCES

The Globus Project: Globus Quick Start Guide

http://www.globus.org/toolkit/documentation/QuickSta

rt.pdf

IBM Redbook: Globus Toolkit 3.0 Quick Start Guide

http://www.redbooks.ibm.com/redpapers/pdfs/redp369

7.pdf

The Globus Project: MDS 2.1 User's Guide

http://www.globus.org/mds/mdsuserguide.pdf

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

Disk ARchive software

http://dar.linux.free.fr/

Ian Foster and Carl kesselman, The Grid: Blueprint for a

New Computing Infrastructure. Morgan Kaufmann,

1999

Ian Foster, Carl kesselman, Jeffrey M. Nick, and Steven

Tuecke, Grid Services for Distributed System

Integration, Computer, 35(6), 2002

Global Grid Forum Documents and Recommendations:

Process and Requirements, GFD-C.1, C.Catlett

Viktor Berstis, Fundamentals of Grid Computing, IBM

Redbook.

Ian Foster, Carl Kesselman, Jeffrey M. Nick, Steven

Tuecke, “The Physiology of the Grid – An Open

Services Architecture for Distributed Systems

Integration”, Draft document, version: 6/22/2002

S. Tuecke, K. K. Czajkowski, I. Foster, J. Frey, S.

Graham, C. Kesselman, T. Maquire, T. Sandholm, D.

Snelling, P. Vanderbilt, “Open Grid Services

Infrastructure (OGSI) ”, Global Grid Forum, Draft

document, version 1.0, 5/4/2003

António Serra, Paulo Trezentos, Carlos Serrão, Miguel

Dias, “Parallel Jpeg2000 Enconding On A Beowulf

Cluster”

Han Fei, Paulo Trezentos, Nuno Almeida et Al, “Enabling

Queries Using Grid-brick Approach - A Distributed

Data Storage Architecture”, (2002)

ARCO: A LONG-TERM DIGITAL LIBRARY STORAGE SYSTEM BASED ON GRID COMPUTATIONAL

INFRASTRUCTURE
