Data Mining Based Diagnosis in Resource Management

Mathias Beck

and Jorge Marx G

omez

Technical University of Clausthal, Germany

Otto-von-Guericke-Universit

at, Magdeburg, Germany

Abstract. There are different solutions to resource allocation problems in Re-

source Management Systems (RMS). One of the most sophisticated ways to solve

these problems is an adjustment to Quality-of-Service (QoS) settings during run-

time. These settings affect the trade-off between the resource usage and the qual-

ity of the services the executed tasks create. But, to be able to determine the

optimal reactive changes to current QoS settings in an acceptable time, knowl-

edge of the resource allocation problem’s cause is necessary. This is especially

signiﬁcant in an environment with real-time constraints. Without this knowledge

other solutions could be initiated, still an improvement to the current resource

allocation, but the optimal compromise between resource requirements and QoS

is likely to be missed. A resource management system (RMS) with the ability to

adjust QoS settings can solve more resource allocation problems than one pro-

viding reallocation measures only. But problem-depending only optimal changes

to QoS settings can solve the problem within timing constraints and thus prevent

expensive system failures. Depending on the environment a RMS is used in, the

failures could be a huge ﬁnancial loss or even a threat to human lives. But the

knowledge of a problem’s cause does not only help to solve the problem within

existing timing constraints and to guarantee feasibility of the executed tasks, but

helps to maximize the quality of the generated services as well. To detect upcom-

ing problems in time, forecasting mechanisms can be integrated into the RMS.

They can predict a problem in the near future, early enough for the system to re-

act. For diagnosis of resource management problems, data mining can be applied

to determine the cause of an allocation problem. The techniques implemented in

this work are the k-nearest neighbor analysis and decision trees. Both techniques

will make their predictions based on prior created resource allocation snapshots

referring to problem cases with known cause.

1 Introduction

There are different solutions to resource allocation problems in Resource Management

Systems (RMS). One of the most sophisticated ways to solve these problems is, if sup-

ported by the RMS, an adjustment to Quality-of-Service (QoS) settings during runtime.

These settings affect the trade-off between the resource usage and the quality of the

services the executed tasks create. But, to be able to determine the optimal reactive

changes to current QoS settings in an acceptable time, knowledge of the resource al-

location problem’s cause is necessary. This is especially signiﬁcant in an environment

Beck M. and Marx Gómez J. (2005).

Data Mining Based Diagnosis in Resource Management.

In Proceedings of the 5th International Workshop on Pattern Recognition in Information Systems, pages 177-185

DOI: 10.5220/0002534801770185

 SciTePress

with real-time constraints. Without this knowledge other solutions could be initiated,

still an improvement to the current resource allocation, but the optimal compromise be-

tween resource requirements and QoS is likely to be missed. A resource management

system (RMS) with the ability to adjust QoS settings can solve more resource alloca-

tion problems than one providing reallocation measures only. But problem-depending

only optimal changes to QoS settings can solve the problem within timing constraints

and thus prevent expensive system failures. Depending on the environment a RMS is

used in, the failures could be a huge ﬁnancial loss or even a threat to human lives. “The

real-time and reliability constraints require responsive rather than best-effort metacom-

puting.” ([2]) In general problems in a RMS arise whenever over-load or under-load on

an attached node occurs. Under-load occurs when the current resource usage falls below

a certain minimum usage. This simply results in a high idle time and indicates potential

for optimization. If other hosts are much busier or new tasks are waiting to be assigned

to a computing node a resource reallocation can improve the overall performance. In

case of a QoS aware RMS under-load could also, if necessary or possible, trigger an in-

crease in the currently executed task’s QoS level. Overload is a problem indicating that

the resources are currently operating close to their maximum capacity. If other nodes

in the RMS still operate with higher idle times, a resource reallocation might be able

to solve the problem. If all hosts are operating close to their capacity limits, a decrease

of the currently executed task’s QoS level can improve the systems condition. While

unsolved overload problems in a timing insensitive environment only result in longer

response times, the effects in a real-time environment are more severe. In case of QoS

aware RMS overload indicates that the current QoS level might not be feasible any-

more in the near future and that the QoS level has to be reduced. If overload problems

in a real-time environment can not be solved, timing sensitive deadlines of one or more

tasks in the systems can be missed. Violating the timing constraints of a real-time ap-

plication system can, especially in case of military defense systems or aviation control

systems, result in very costly system failures. To prevent these violations it is important

that the available resources are allocated in a way meeting all task deadlines that would

result in an immediate system failure when missed. To detect upcoming problems in

time, forecasting mechanisms can be integrated into the RMS. They can predict a prob-

lem in the near future, early enough for the system to react. To determine the cause of

resource allocation problems or forecasted problems a technique already successfully

applied to multiple business-related problems and in [4] to resource performance analy-

sis can be used: data mining. The techniques implemented in this work are the k-nearest

neighbor analysis and decision trees. Both techniques will make their predictions based

on prior created resource allocation snapshots referring to problem cases with known

cause. Once the cause of a resource allocation problem is determined, this knowledge

can help to choose the optimal measures to solve the problem. Different solutions to a

resource allocation problem are possible, thus the optimal one can be hard to determine

without knowledge of the problem’s cause. A sub-optimal solution is not sufﬁcient for

all computing environments, RMS operating under real-time constraints while optimiz-

ing QoS attributes relies on optimal solutions rather than ﬁrst-ﬁt measures. Once the

cause of a resource allocation problem has been determined, it can be used to limit the

number of possible countermeasures to those who actually could help to solve the spe-

178

ciﬁc problem. The reduction to relevant solutions helps a QoS aware RMS to decide

which service attributes to modify while still providing an optimal QoS level. Depend-

ing on the number of solutions known to the RMS, the reduction of alternative solutions

also strengthens the real-time applicability. This performance improvement beneﬁts the

timing constraints in a real-time environment, requiring fewer solutions to be evaluated.

2 Requirements and Speciﬁcations

The resource management architecture QARMA, introduced in [3], consists of three

major components: a System Repository Service (SRS), a Resource Management Ser-

vice and an Enactor Service. The SRS stores both static and dynamic information con-

cerning resource usage and software systems in the computing environment. Static in-

formation is known a priori and includes attributes like the number of available process-

ing nodes or service replicas. Dynamic information is concerning the current state of

the resources, often referred to as a snapshot, and includes monitor data measuring

resource usage, resource availability, application performance and environmental con-

ditions. To support the QARMA resource management service during the decision mak-

ing, a QoS problem diagnosis component can be integrated in the functional structure

of QARMA. This component analyzes resource allocation problems in order to deter-

mine their cause. The discovered knowledge enables QARMA to make more effective

decisions, ﬁnding the optimal reactive measures faster and with increased accuracy. The

knowledge of a problems cause helps to limit the number of possible countermeasures

to those who actually ﬁt the speciﬁc problem. The decreased set of possible solutions

makes it easier for the decision-making component of QARMA to choose the optimal

reaction and thus to provide longer-lasting solutions with a maximum level of QoS. A

sub-optimal solution is not sufﬁcient for all computing environments. Operating under

real-time constraints and maximizing the QoS level provided by active tasks, QARMA

relies on optimal countermeasures rather than ﬁrst-ﬁt measures. In addition QARMA

can take beneﬁt from the performance improvement, requiring fewer reactive measures

to be evaluated for each problem. Whenever a detector discovers or predicts a violation

to existing real-time constraints, it will invoke the QoS problem diagnosis component.

Based on a snapshot of the current resource allocation, this module determines the exact

cause of the problem. This information can be used by QARMAs resource management

service to choose the optimal reactive measures for each problem. In general the QoS

problem diagnosis component is independent of a speciﬁc technique used to determine

the cause of a resource allocation problem. In this work a data mining module will be

utilized by the diagnosis component to analyze the problem data.

3 A Data Mining Approach

To prove the aptitude of data mining to be used by the QoS problem diagnosis compo-

nent, two according to [5] and [1] very common data mining techniques are applied to

the resource allocation problems: the k-nearest neighbor technique and decision trees.

Among the most common techniques, these two seem to be the most promising ap-

proaches to support the decision-making process of QARMA. They are not intended to

179

be the perfect choice out of all existing data mining techniques, but suitable to prove the

aptitude of data mining for the given problem. The nearest neighbor technique makes

a prediction based on distance between objects, in this case between snapshots of the

training data and the one of the unclassiﬁed problem. Due to the identical layout of

training data and the snapshot of the unclassiﬁed problems resource allocation and due

to their restriction to numerical values only, a calculation of the distance is very simple.

Each resource allocation can be seen as a point in a multi-dimensional vector space with

one dimension for each resource attribute. While a graphical illustration of these points

is impossible, the mathematical calculation of the distance between them is simple. It

can be determined with the Euclidean distance metric shown in equation 1.

i=1

− x

: distance between two points a and b

N : Number of predictors

(1)

For cause detection every resource attribute is equally important. Therefore it has to

be prevented that attributes with large values outweigh ones with small values. This is

done by normalizing the input values to lie in an equal interval for all attributes. Since

all values in the system repository are positive, the interval [0,1] makes most sense. This

normalization can be done with a linear transformation of all input values, the min-max

normalization deﬁned in equation 2.

′

= x ·



max

− min



x : input value

′

: output value

min

: lowest input value

max

: highest input value

(2)

Without the normalization a 5 percent different amount of free memory would be rated

much more important than the same difference for one of the load values. After the

preprocessing of the input data is ﬁnished, the distance between each snapshot of the

training data and the unclassiﬁed problem is calculated. Basing the prediction only on

the one very closest match of the training data can case-dependent be too inaccurate.

Thus the k closest records are taken into account for a prediction, usually k between 9

and 15 return much better predictions. But it is important that k matches the number

of records in the training set and is not chosen too high. Otherwise the accuracy of the

prediction will be reduced by too strong inﬂuences of records with other causes. Other

than the k-nearest neighbor technique the decision tree prediction works with a prior

created classiﬁer model. Based on the training data, simple conditional rules are dis-

covered. These rules separate groups of records with identical problem causes of the

remaining group of unclassiﬁed records. The rule discovery algorithm tries to ﬁnd at-

tributes within the training data, which only have records with an identical cause above

180

or below a certain value for the attribute. A rule does not have to separate all records of

a cause, the cause of the separated group might reoccur in the unclassiﬁed part of the

training data or in other rules. The group of records classiﬁed by a rule is only restricted

to a single cause. Searching for these rules, the algorithm tries to ﬁnd the most signif-

icant ones, separating the biggest groups, ﬁrst. The algorithm stops looking for further

rules when only a single cause is left in the unclassiﬁed part of the training data. Once

the rules are discovered, they can be used over and over again to predict the cause of

an upcoming resource allocation problem. Given a suitable training set, decision trees

return very accurate predictions. Since the predictions are made only based on the prior

discovered rules, the performance of the prediction is rather independent of the amount

of training records. The performance is only inﬂuenced by a limited number of rules.

Thus decision trees are a very suitable approach even under the timing constraints of

a real-time environment. The implementation of the decision tree technique consists

of two different components. The ﬁrst one searches the database for rules separating

records of the database in groups with an identical cause. The second component pre-

dicts the cause of an unclassiﬁed problem by applying the resource usage snapshot to

these rules. The big advantage of this separation with respect to performance issues is

the fact, that the computation intensive rule discovery only has to be done once and

that the discovered rules can be used over and over again by the prediction component.

This provides a major performance improvement compared to techniques based on the

complete training data.

4 Experimental Results

To prove the aptitude of the developed data mining module to be used in the QoS prob-

lem diagnosis component, and thus the aptitude of data mining in general, two different

experiments were performed. The ﬁrst experiment was set up to analyze the accuracy of

the two implemented data mining techniques. It was used to determine the aptitude of

the techniques to be used for problem diagnosis independent of their required execution

time. The second experiment was set up to analyze the performance of the predictions in

dependence of the amount of training data. The results of this experiment were used to

determine how suitable the two data mining techniques are for a real-time environment.

The dependence of the size of the training set is important, because the accuracy of the

predictions made depends on the size of the training set. All experiments were repeated

several times on a machine with a Pentium IV 2.4GHz CPU and 512MB RAM running

under Knoppix Linux 3.3 or Knoppix Linux 3.4 respectively. Prior to both experiments

the training data was created by deliberately causing resource allocation problems in

QARMA and collecting the afﬁliated resource usage information. For each cause mul-

tiple SRS snapshots and their causes were stored. The biggest part of these snapshots

was used as training data, providing the data mining techniques with resource usage

information of classiﬁed problems. The remaining records were provided to the data

mining techniques as unclassiﬁed problems without their known cause. To be correct,

a predicted cause had to be equal to the real cause of these snapshots. The experiments

regarding the accuracy of the predictions made by the two implemented data mining

techniques were performed for the biggest part with small databases. Later the database

181

size was increased to capture possible dependencies between the accuracy of a predic-

tion and the size of the training set. The minimum database size was 50 records; the

maximum size was 500 records. The experiments were repeated multiple times using

Knoppix 3.3 and Knoppix 3.4 as operating environments. Other than the results of the

performance experiments, the ones concerning the accuracy of the chosen techniques

were identical for both operating systems as expected. Thus neither average values are

presented nor can a comparison of the predictions made under different operating sys-

tems be made. To evaluate the predictions made by the two data mining techniques, the

predicted cause of each applied resource allocation snapshot was compared to the real

cause the snapshot was created with. A prediction was deemed accurate, if it was either

equal to the known cause or in case of the k-nearest neighbor technique was at least

returned with a signiﬁcant higher probability than all other causes. The performance

experiments were set up with database sizes between 50 and 100.000 records. While

the smaller databases contained each prior created training record only once, the bigger

databases consisted of multiple copies of these records. This was easier than to manu-

ally create 100.000 problem records and still is a suitable setup since the performance

depends on the database size only. The performance is determined by the number of

records to be analyzed by the data mining algorithms, but not by reoccurrences in their

content. The experiments were performed several times under Knoppix Linux 3.3 and

Knoppix Linux 3.4. To determine the performance of an implemented data mining tech-

nique, the execution time of a prediction was measured using the Linux command time.

For each technique, each database size and each operating system the experiments were

repeated several times. After collecting the execution times for each combination of

the three factors above, the average execution time of these combinations was calcu-

lated to determine the performance. The k-nearest neighbor prediction was tested with

k={1,3,5,8,10,15} to determine if the size of k also inﬂuences the performance. The

values for k were chosen to range from very low values to those offering the high-

est accuracy. With one exception the execution time needed to predict the cause of an

unclassiﬁed resource allocation problem turned out to be independent of the chosen k.

When executed under Knoppix 3.4 a prediction with k=1 performed signiﬁcantly slower

than all other k. Since the accuracy of a prediction with k=1 is lower than one with a

higher k, this result has not been further investigated. For all other k the execution times

are very similar among those with identical database size and operating system. The

independence of the value k has a simple explanation. The most time consuming part of

a prediction is the distance measurement between the resource usage of each database

record and the unclassiﬁed problem. These calculations require almost the complete

execution time. The time needed for the comparisons of the calculated distances to

the temporary optima is insigniﬁcantly small. Thus a real difference in execution time

for different k can not be measured. Figure 1 shows the performance graphs of the k-

nearest neighbor prediction for execution under Knoppix 3.4. The execution times for

the different k are with exception for k=1 so similar that a visual difference between the

different k can not be determined. The execution times have a linear relation to the size

of the database the k-nearest neighbor prediction is based on. Thus the time complexity

of this approach is O(n)=n. Due to the results of the accuracy experiments and the lin-

ear time complexity the k-nearest neighbor prediction is a very suitable technique for

182

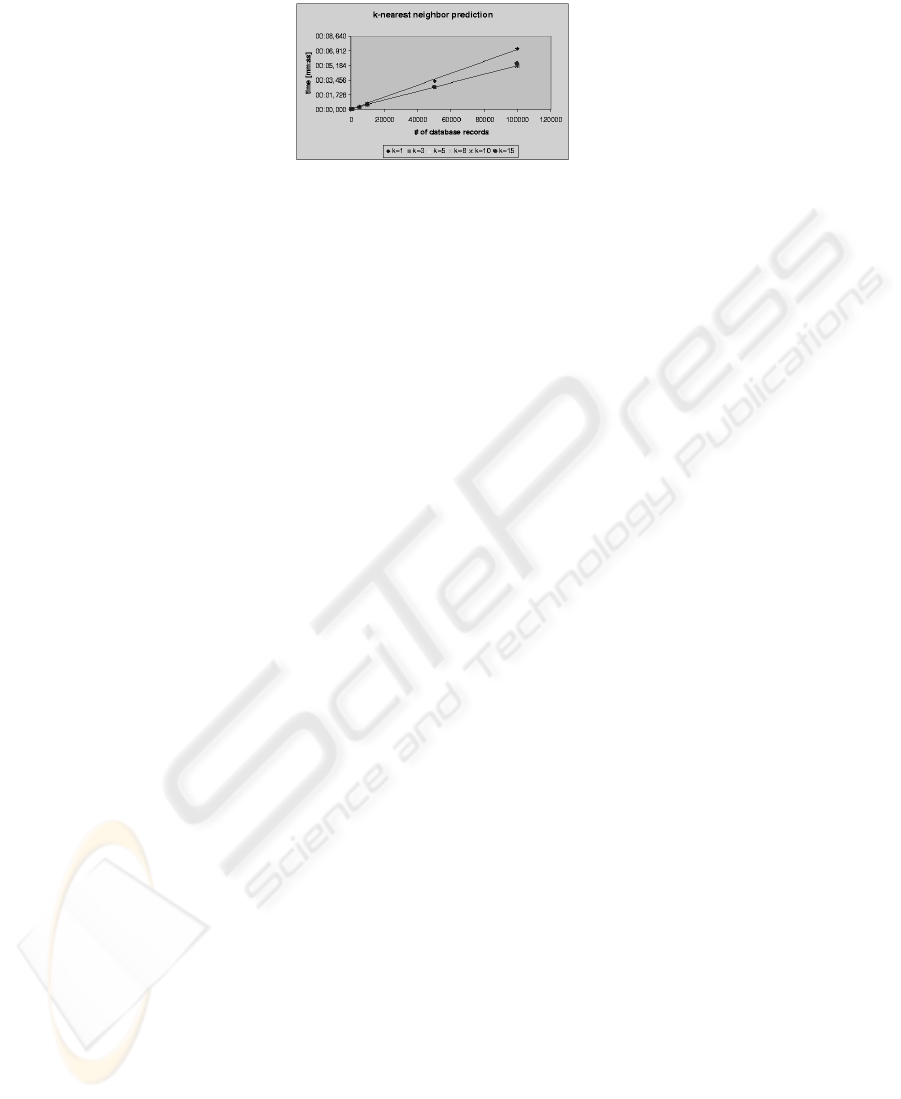

Fig.1. Performance graph of the k-nearest neighbor prediction (Knoppix 3.4)

resource management environments operating without timing constraints. The fact that

they operate without a prior created classiﬁer model has the advantage that the training

set needs less preparation while still making accurate predictions. The cause of resource

allocation problems that do not perfectly ﬁt the training data can be determined in the

diagnosis nevertheless. But depending on the number of possible problems in the en-

vironment the resource management system is used in, the database needs to be rather

large to store enough training records to make accurate predictions possible. Resulting

in longer execution times, this makes the k-nearest neighbor prediction only in connec-

tion with small-scale databases suitable for an application in a real-time environment.

The multiple-second execution time needed in a 100.000 record database is inappropri-

ate for such an environment. The experiments measuring the decision tree performance

have been executed in two steps. First a classiﬁer model has been created based on

the prior created training data. After the model had been build, the discovered rules

have been used by the decision tree prediction component to determine the cause of

the unclassiﬁed problem. Surprisingly the execution times of the rule discovery process

under Knoppix 3.3 and Knoppix 3.4 turned out to be quite different. Especially under

Knoppix 3.3 the creation of the classiﬁer model was very slow, thus only up to 10.000

database records were used for the performance experiments under this operating sys-

tem. The rule discovery process performed signiﬁcantly better under Knoppix 3.4. The

cause for these performance differences is expected to be the improved mySQL version

provided by Knoppix 3.4. But since the performance of the rule discovery process is

less important for a feasible usage of the decision tree technique in the QoS problem

diagnosis component, this result has not been further investigated. Figures 2 and 3 show

the performance graphs of the decision tree rule discovery process for Knoppix 3.3 and

Knoppix 3.4 respectively. Other than the performance of data analysis done during the

k-nearest neighbor prediction, the performance of this component differs signiﬁcantly

between the two operating systems. Under Knoppix 3.3 the rule discovery process has

a clear polynomial increase in the execution time with respect to the database size. The

creation of the decision tree classiﬁer model has time complexity O(n)=n

. For large

databases the performance of the execution time needed for the rule discovery process

under Knoppix 3.4 is in almost linear relation to the size of the database. Only for small

databases with less than 1.000 records the relation turned out to be polynomial. Due to

the range of records used for the experiments ﬁgure 3 only can visualize the linearity of

this relation. Even though the time complexity for smaller training sets is quadratic, it

almost reaches O(n)=n for larger scaled databases. The execution time of the decision

tree prediction takes constant 2 milliseconds and is independent of the database size.

The time complexity of this component’s execution is O(n)=1 and thus performing very

183

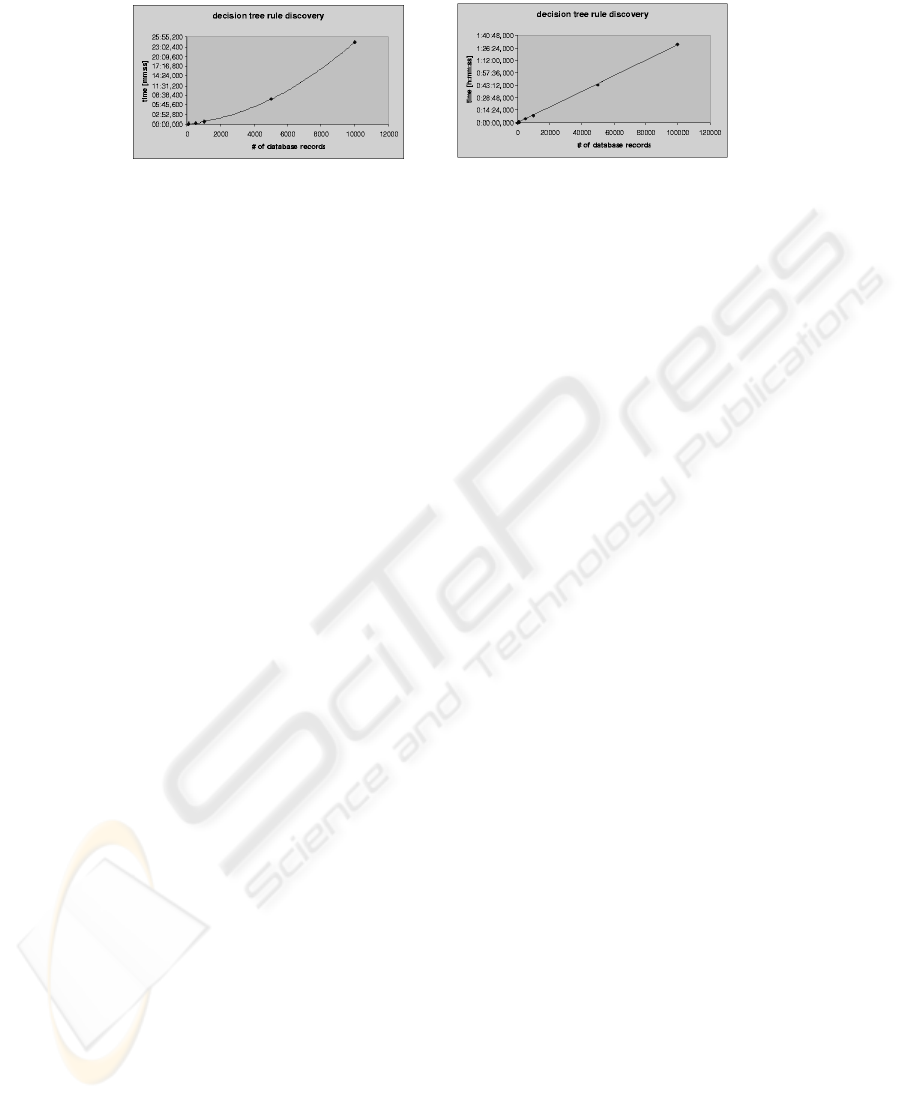

Fig.2. Performance graph of the deci-

sion tree rule discovery (Knoppix 3.3)

Fig.3. Performance graph of the deci-

sion tree rule discovery (Knoppix 3.4)

well. The performance experiments have proven decision trees to be a very suitable

technique to be used by the QoS problem diagnosis component to predict the cause of

an resource allocation problem. The polynomial time complexity of the rule discovery

process is no drawback for the aptitude of this technique. This step is required only

once and not suspect to any timing constraints. Thus the long execution times of this

component are justiﬁed, if the created classiﬁer model can be used to make accurate

predictions. Although the accuracy experiments have proven that either carefully pre-

pared or extensive training sets are required to create an accurate classiﬁer model, this

does not contradict with the aptitude of the prediction to be used even in a real-time

environment. The constantly fast execution time makes predictions with this technique

feasible even for very timing sensitive environments. Thanks to the execution time be-

ing independent of the database size, the training set can be chosen large enough for

an accurate model creation. Both data mining techniques implemented and analyzed

in these experiments have proven to be suitable and accurate approaches to diagnose

resource allocation problems. The k-nearest neighbor technique is not based on a prior

created classiﬁer model. This has the advantage that this technique is less demanding

with respect to the provided training set. This approach makes accurate predictions even

with a less careful prepared training set possible. On the other hand the linear complex-

ity of the execution time restricts this technique to either a limited training set size or

an environment with weaker timing constraints. If only a very limited number of prob-

lems can occur in the environment, the database can be kept small enough to comply

with real-time requirements. For timing sensitive environments with numerous possible

problem causes, decision trees are a better approach. The decision tree prediction is

based on a prior created classiﬁer model. This has the advantage that the time needed

for a prediction is independent of the size of the training set and thus performing signiﬁ-

cantly better that a technique taking the whole training set into account for a prediction.

Due to the constant time complexity of the prediction, this approach is feasible even

under strong timing constraints.

5 Conclusion

This work introduced a QoS problem diagnosis component for Ohio University’s real-

time resource management system QARMA. For this problem diagnosis component a

data mining module has been developed to determine a resource allocation problem’s

cause and to prove the aptitude of business informatics techniques to successfully sup-

184

port resource management. The performed experiments could verify data mining’s ap-

titude in general and the single techniques’ aptitude in speciﬁc. But the experimental

results have also been able to show the techniques’ limitations and their requirements

to be able to make accurate predictions. While the k-nearest neighbor technique is a

good choice for RMS operating without timing constraints, it is not the best choice

for problem diagnosis in a real-time environment due to performance issues. Decision

trees on the other hand are performing well enough to be applied to resource allocation

problems in a resource management environment with timing constraints. But due to

its tendency to over-ﬁt the training data, this technique turned out to be very demand-

ing to the training set. A rather large training set has to be carefully prepared to enable

the decision tree rule discovery process to create an accurate classiﬁer model. But with

suitable training data, decision trees turned out to be a very fast and accurate prediction

technique. The proposed QoS problem diagnosis component is expected to optimize the

choice of reactive measures to resource allocation problems. Knowledge of a problem’s

cause can limit the number of possible reactions in general and further restrict their

number to good or optimal choices in speciﬁc. This reduces the time needed to ﬁnd

the optimal reaction to each problem, which can not only solve the resource allocation

problem, but also provides the highest QoS level possible. Thus the problem diagnosis

component is expected to help to optimize the QoS level at which a real-time RMS can

operate and to support adjustments to QoS settings during runtime. But the expected

possibilities for QoS optimization are not only of importance for resource management

alone. Especially business application systems that work under timing constraints and

allow QoS adjustments to their tasks can take great beneﬁt of the QoS optimization.

For example video solutions like VoD systems or video conferencing solutions would

be able to constantly provide the highest lag-free QoS level possible at each moment,

while still being able to satisfy all clients. This QoS optimization would be an important

cornerstone to the success of such a business application system. In a B2C environment

this optimization could be a crucial part of a VoD system needed to gain a competitive

advantage over other similar services. Thus the problem diagnosis is not only expected

to help to constantly optimize QoS settings during runtime, but could also be of signif-

icant inﬂuence on the economic success of commercial services based on a QoS aware

RMS like QARMA.

References

1. BERSON, A., SMITH, S. and THEARLING, K. (1999): Building Data Mining Applications

for CRM. New York, NY, U.S.A.

2. BESTAVROS, A. (1996): Middleware Support for Data Mining and Knowledge Discovery in

Large-scale Distributed Information Systems. Proceedings of ACM SIGMOD’96 Data Min-

ing Workshop

3. FLEEMAN, D. and WELCH, L. et al. (w/o year): Quality-based Adaptive Resource Manage-

ment Architecture (QARMA): A CORBA Resource Management Service. Ohio University,

Athens, OH, U.S.A.

4. IMBERMAN, S. (2002): The KDD process and data mining for performance professionals.

Journal of Computer Resource Management, issue 107, p. 68-77

5. KDNUGGETS (2003): Poll: Data Mining techniques

http://www.kdnuggets.com/polls/2003/data mining techniques.htm 08/21/04

185
