MODEL DRIVEN DEVELOPMENT OF BUSINESS PROCESS

MONITORING AND CONTROL SYSTEMS

Tao Yu

Department of Computer Science, University of California at Irvine, USA

Jun-Jang Jeng

IBM T.J. Watson Research Center, New York, USA

Keywords: Model-Driven Development, Bus

iness Process, Monitoring, Control

Abstract: This paper describes a model-driven approach in monitoring and controlling the behaviour of

business

processes. The business-level monitoring and control requirements are first described by a series of policies

that can be combined together to construct a Directed Acyclic Graph (DAG), which can be regarded as the

Platform Independent Model (PIM) for the high level business solution. PIM provides a convenient and

clear way for business users to understand, monitor and control the interactions in the target business

process. Then the PIM is transformed to an executable representation (Platform Specific Model, PSM), such

as BPEL (Business Process Execution Language for Web Service) by decomposing the DAG into several

sub-processes and modelling each sub-process as a BPEL process that will be deployed to runtime.

1 INTRODUCTION

Business process monitoring and control systems

provide real-time information about execution status

of business process as well as performance

evaluation. By having this capability, business users

can configure, track and analyze desired key

performance indicators (KPI) and take actions. For

example, business managers want to identify and

resolve business problems such as whether customer

orders are delivered promptly, out of stock, etc.

Generally, business users that are doing process

monitoring and control are divided into three roles:

(1) Business Analyst

who defines KPIs to be

observed. An example of KPI can be the cycle time

to process customer order. (2) Data Specialist

who

defines the data logic required to filter, cleanse, and

correlate events. Correlation rules (patterns) are used

to specify what event patterns need be caught and

data carried in them should be extracted. (3)

Operation Manager

who defines what business

situations (or exceptions) must be monitored or

resolved as well as actions to be taken when some

situation occurs. E.g. when a server unreachable

exception occurs, monitoring system should send a

notification to administrator to ask him restart the

server.

Business users work together to design a

busi

ness process monitoring and control system.

After system design has been finished, KPIs,

correlation patterns and business situations are

defined and data sources identified. Traditional

development methods require the solution to be

developed from scratch. In this paper, we propose

using model-driven approach to develop business

process monitoring and control systems. Two

advantages can be stated for model-driven approach:

(1) Save cost and reduce development time:

Monitoring and control solution can be defined at

the business process level without being burdened

by implementation detail of target platform. There is

no need of navigating through development

lifecycle. (2) Increase the software quality: The

transformation algorithm to transform platform-

independent model (PIM) to executable

representation is similar to language compilers that

translate the higher-level instructions into native

processor instructions, which can be interpreted by

the machine. Once the transformation tool has been

well developed and thoroughly tested, it can be

reused and the quality of the software generated by it

can be guaranteed.

In general, the method of developing such

stems consists of 5 steps as shown in Figure 1.

161

Yu T. and Jeng J. (2005).

MODEL DRIVEN DEVELOPMENT OF BUSINESS PROCESS MONITORING AND CONTROL SYSTEMS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems - DISI, pages 161-166

 SciTePress

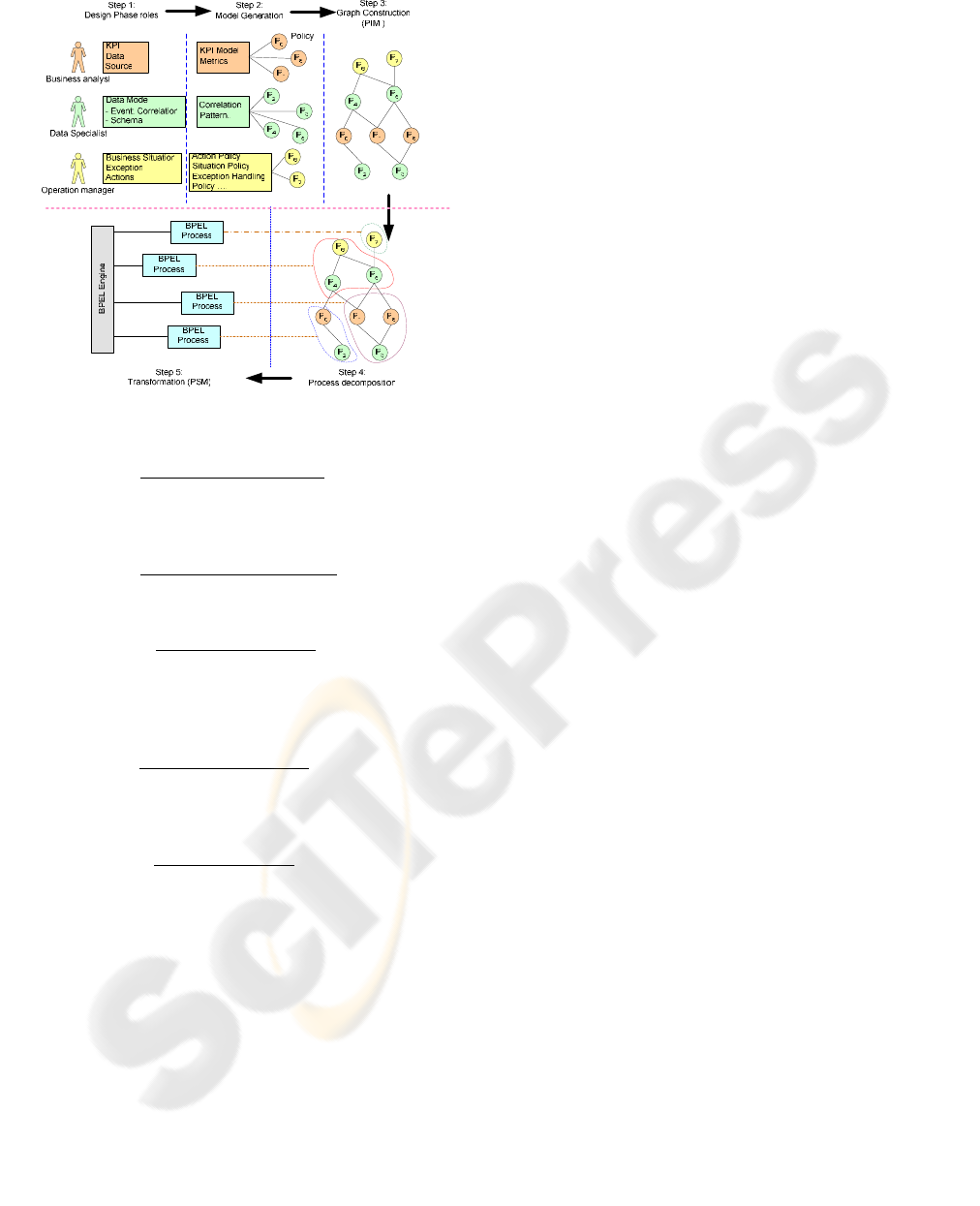

Figure 1: Model-Driven Approach for Business Process

Monitoring and Control

Step 1:

Business Design Phase where different

roles define the subset of the monitoring and control

solution at the business level (e.g. KPIs, situations,

actions, correlation rules).

Step 2:

Model Generation Phase where system

designers create a set of enforceable policies for the

models defined in step 1;

Step 3:

Composition Phase where policies

defined in Step 2 are composed into a directed

acyclic graph (DAG) that represents the platform-

independent model (PIM) for the monitoring and

control systems.

Step 4:

Decomposition Phase where the system

decomposes the generated DAGs from Step 3 into

several sub-processes that are transformable to

executable modules in the target platform;

Step 5:

Transform Phase where each sub-

process is transformed into an executable module. In

this paper, BPEL is used as the example of such

modules. Each BPEL process can be wrapped as a

service and they can communicate with each other

through event bus. By doing so, the PIM (policies)

can be transformed into PSM (BPEL) that can be

executed by an executable runtime engine.

The rest of this paper is organized as follows.

Section 2 introduces some background information

and related work. Section 3 talks about MDA and

our proposed MDA approach for business process

monitoring and control. Section 4 presents the

detailed information about process decomposition

and transformation. Section 5 gives an account of

our experience of using model-driven approach for

developing business process monitoring and control

systems. Section 6 summarizes the whole paper.

2 RELATED WORK

Model-Driven Architecture (MDA) that has been

defined by the Object Management Group (OMG) is

a new approach to application design and

implementation. It helps computer users solve

integration problems by supplying open, platform-

neutral interoperability specifications (OMG, 2001).

MDA approach is widely used for information and

service integration (Siegel, 2002). Our approach

provides a domain specific model-driven approach

based on MDA with specific target on business

process monitoring and control. Many business

process monitoring and control tools are developed

by different organizations, such as QName! from

mqsoftware (MQSoftware, 2004), TransactionVision

from Bristol Technology (TransactionVision, 2004).

The benefit brought by monitoring and control

include lower the process cost and faster the process

execution. However, they do not use model-driven

approaches.PloarLake Inc. (PolarLake, 2004),

provides a technology how to use BPEL and XML

to automating business process management. BPEL

is simply an example of transformation target in our

paper. Our approach can help BPEL solutions in a

much simpler way.

3 MODEL-DRIVEN APPROACH

FOR BUSINESS PROCESS

MONITORING AND CONTROL

MDA (Soley, 2000) is a framework of software

development. Models and model driven software

development are the key elements in MDA. A

typical model-driven development process includes

three steps: (1) Build a model with high level

abstraction. This model is a PIM that is independent

of any implementation technology. In our business

process monitoring and control system, the PIM is

the DAG constructed by a set of policies as shown in

step 3 of Figure 1; (2) Transform PIM into one or

more PSM. A PSM is related to a specific

implementation technology, such as J2EE model,

EJB model. In our system, we choose BPEL process

as target PSM; (3) Transform PSM to code to be

executed by machine. This step is usually completed

by the implementation technology related to the

PSM. In our system, BPEL process is interpreted

and executed by a BPEL engine.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

162

3.1 Policy Description

There are three groups of policies defined by

business analyst, data specialist and operation

manager: KPIs expressions, Correlation rules and

Action policies.

A KPI expression is made up of parameters and

operators. Based on parameter data types in KPI,

there are several categories of operators: Boolean,

Arithmetic, Relational, Set, String, Calendar, Vector

and etc. Table 1 shows some common operators in

each category. Some Examples of KPIs: (1)

process_time=response.timestamp-

request.timestamp (2) Server_Down = (Count

(serverdown_events) > 30) within 30 seconds

Business processes interact with one another and the

environment through events. Events are captured by

business process monitoring and control system.

Many of the captured events are meaningless to

specific monitoring and control system while others

need to be considered in a specific pattern.

Correlation rules (patterns) are used to specify the

event patterns that need be caught and data carried in

them should be extracted according to requirements.

The definition of a correlation rule includes a

number of rule-specific parameters (such as

threshold, time period), event selection criteria to

select events that relevant to the rule and actions

should take (defined by action policy) once the rule

fires (Bussani, 2003).

We define seven basic correlation rules for our

system: Match, Block Duplicates, Update Last,

Collection, Threshold, Sequence and Sequence

Absence. Match is the only stateless rule, in which

event are treated independently. All the others are

stateful, in which events rely on previous detected

events and they depend on each other. These rules

are defined based on IBM Zurich Correlation Engine

rule definition (Bussani, 2003). Correlation rules can

be defined using XML syntax. The format of rule

definition is shown in Figure 2 as follows.

<rule id = “rule identification”> --- Rule identifier

<rule type [attributes]> --- Rule Type

<selection criteria> --- Event selection criteria

…….

</selection criteria>

</rule type>

------------ Actions to take, defined by action policy

</rule>

Figure 2: Correlation Rule Definition

Action policy provides policy rules for system

behaviour in response to business situation. A

simple example of action policy is send notification

to administrator once server unreachable event has

been detected by correlation rules defined above.

Action policy can also be defined using XML

syntax. The definition of action policy includes a

number of policy-specific parameters, the target of

the policy ---- messages generated by action policy

will be sent to the defined target, a series of KPIs

used by policy (defined by KPI expression), a set of

correlation rules that triggered this policy (defined

above) as well as actions will take once the policy

has been triggered.

<policy name = “policy name”> --- policy name

--- parameters will be used in policy

--- destination for message generated by action policy

<metrics> …. </metrics> --- metrics used

--- correlation rules that trigger the policy

</correlation rules>

<action list> --- actions will take

….

</action>

</action list>

</policy>

Figure 3: Format of action policy definition

3.2 PIM construction

In a business process monitoring and control system,

business analyst, data specialist and operation

manager define different policies (KPIs, correlation

rules and action policies) for a business situation.

After all policies have been defined, the system will

compose them to form a DAG as the PIM for high

level business solution (as shown in step 3 of Figure

1).

The question is: How to combine different

policies into a DAG? Which policies should be

connected to each other? Each policy has a set of

input and output interface definitions describing the

message formats it expects to accept and to generate,

finding policy pairs is to match an input and an

output interface definition of two policies.

This problem is quite similar to the service

composition problem in Web service field, where we

need to integrate different services into a business

process. A lot of researches have been done in

semantic web service composition ([9,10]).

MODEL DRIVEN DEVELOPMENT OF BUSINESS PROCESS MONITORING AND CONTROL SYSTEMS

163

Currently only simple interface match checking

is used in our system . In following four conditions,

we define the condition when two policies’

interfaces match with each other. More matching

conditions will be added in our future work. (AO:

output of policy A, BI: input of policy B):

1. If AO == BI, match successful; (Figure 4.(a))

2. If AO

⊆

BI, match successful; (Figure 4.(b))

3. If AO

⊇

BI and the matching part can be

separated out from AO, match successful.

(Figure 4.(c)).

4. If AO ∩ BI ≠ ∅ and the matching part can be

separated out from AO and also from BI, match

successful. (Figure 4.(d))

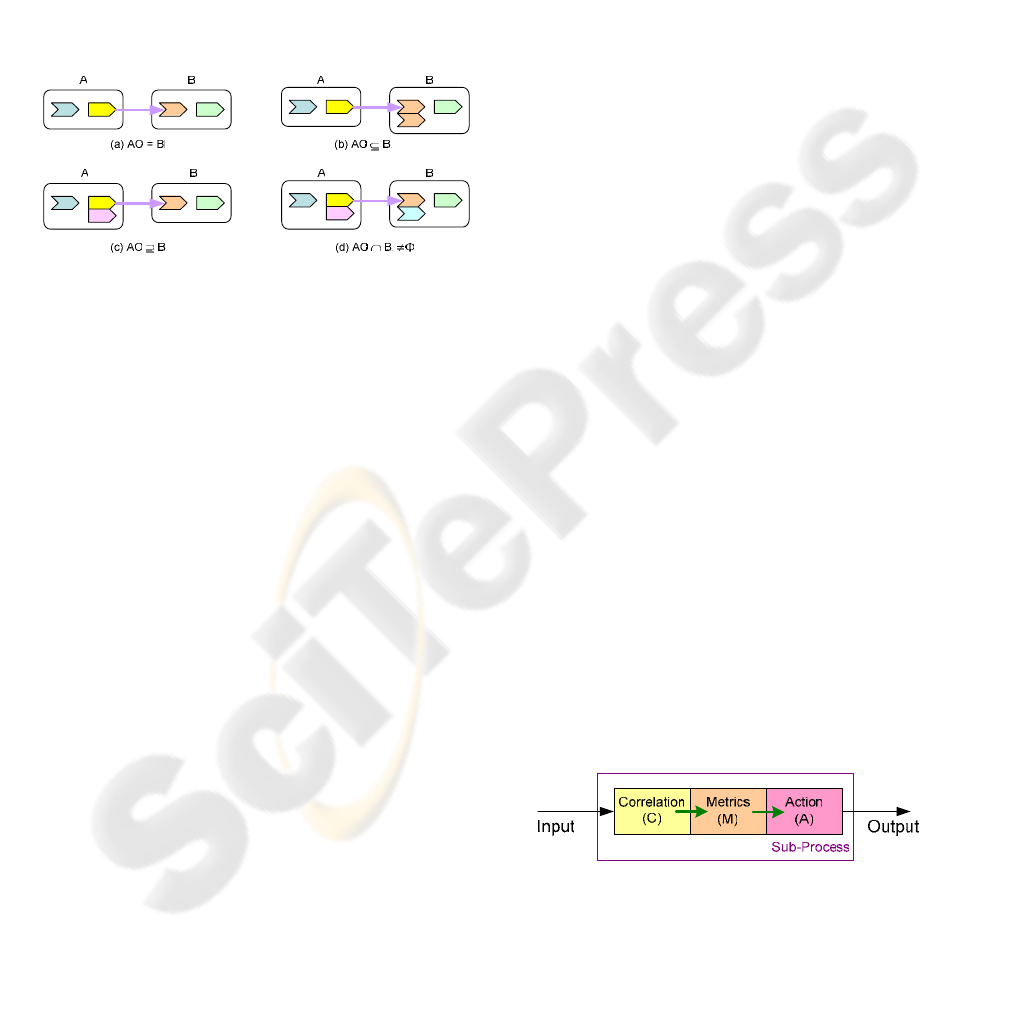

Figure 4: Policy Interface Matching Condition

Obviously, the similarities of two policies

interfaces are decreased from condition 1 to

condition 4. If two policies interfaces match

successfully, we can add a directed link (from policy

A’s output to policy B’s input) between them.

Considering each policy as a node, a graph can be

constructed by adding links between all the

matching policy pairs. And because the special

features of business process monitoring and control

system, it must be a DAG. If there’s a loop exist in

the constructed graph, we can remove the link that

has the minimal similarity in the loop and continue

this step until there is no loop in the graph. This

DAG is the PIM for high level business solutions.

4 MODEL-DRIVEN APPROACH

FOR BUSINESS PROCESS

MONITORING AND CONTROL

A composed DAG cannot be transformed into

executable modules unless it can be decomposed

into sub-graphs each of which is transformable to

executable modules in target runtime platform. After

the DAG (PIM) has been constructed by connecting

policy pairs, we need to transform the PIM into one

or more PSM.

There are many kinds of PSM, e.g., BPEL,

workflows, Web services. We have been using

BPEL as our target PSM. Usually, it is too

complicated to present the entire PIM by a single

BPEL process. Firstly, the DAG is divided into

several parts, each of which is a sub-process and can

be transformed into a BPEL process. This task is

calle

P4, P5, P6,

whi

nt sets of sub-processes, which one is the

best

ppable when each sub-part is

pres

ies can reside in more

take the

predefined actions to generate outputs.

d model decomposition.

For example, we can decompose the DAG

shown in step 3 of Figure 1 into four sub-processes,

as shown in step 4. The sub-process 1 contains

policy P1, P3 and P8, sub-process 2 contains policy

P0 and P2, sub-process 3 contains policy

le sub-process 4 contains policy P7.

Several issues need to be considered during the

decomposition process: (1) Are there any criteria for

establishing a bottom level process component?

Which means, how do we decide when to stop the

process decomposition? (2) If there exists more than

one way to do the decomposition and generate

differe

The reason of decomposing models into smaller

ones is because, in many cases, it’s too difficult

(sometimes impossible) to transform the entire

complex PIM into one executable modules (for

example, a single BPEL process). So the basic

criterion for decomposition is to make sure the fact

that after decomposition, each sub-process can be

presented by a BPEL process and all generated

BPEL processes can communicate each other to

achieve the original objective. Thereby, model

decomposition is sto

entable as PSM.

To show the concepts, we show several basic

rul s to perform process decomposition as follows.

Each policy must be included in at least one

sub-process; Some polic

than one sub-processes;

Each sub-process contains at least one

correlation rule, one KPI expression and one

action policy, as shown in Figure 5. The

correlation rule takes inputs from outside or

from the output of other sub-processes and

passes them to metrics for some calculation.

The results produced by metrics expressions

will be passed to action policy and

Figure 5: Sub-process

Decomposition based on correlation rules:

KPI calculations are based on the information

carried in events that are caught by correlation rules.

After KPIs are generated, action policies will be

triggered. So in model decomposition, the

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

164

decomposition of PIM (i.e. DAG) can be divided

according to given correlation rules. Each rule can

be considered as a starting point of a sub-process,

and the KPIs and action policy related to the

correlation rule will be added to generate a complete

4. imple sub-processes to be

be s

ach of them

will e transformed to a BPEL process.

sub process.

Combine some small s

a bigger sub-process:

For all the sub-processes constructed on

correlation rules, some of them are very simple. For

example, the sub-process that contains Match

correlation rule may only filter some special events

out and extract the message from the event and

assign to another variable, finally, the message will

ent out to another sub-process by action policy.

If there are two sub-processes with Match rules,

one takes the other one’s output as its input, we can

combine them into a new bigger sub-process that

contains two Match rules. Figure 6 shows what the

system model looks like after decomposition. Four

sub-processes have been generated and e

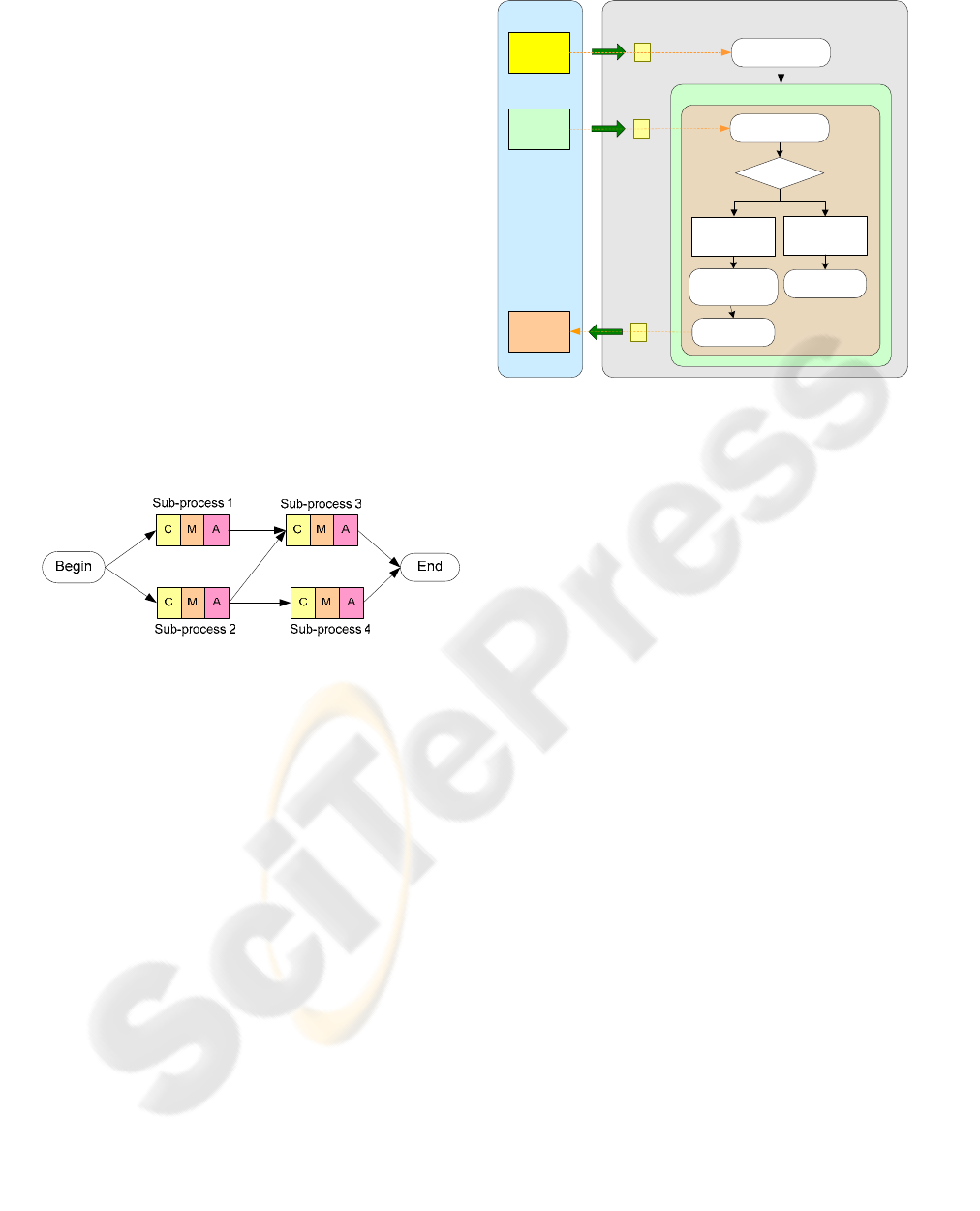

Figure 6: Business process decomposition

and message exchanges among

sub-

ecomposition will be reported

in o

here the rule

is sequential event patterns (Figure 7).

There is always a tradeoff between the

complexity of each sub-process and the efficiency of

the whole system. If the whole system is divided to

very fine-grained, each sub-process only performs a

simple task but there are lots of sub-processes exist

and they must communicate with each other to

achieve the original objective. In this case, system

efficiency is decreased by large amount of

communications

processes.

On the other hand, if the whole system is

divided to a very few large-grained sub-processes,

each sub-process need to perform a lot of work and

tend to be complicated. Of course, there will be less

communications overhead and the system turns to be

more efficient. The detailed information and

algorithms for model d

ur future work.

Due to the space limitation, the detail of

generated BPEL modules is not presented in this

paper. Only an example of using BPEL to model

correlation rules is given as follows, w

Process Match

Partners

Event

Montior

Admin

Process

Initializer

Initialization

Notification

Yes

While (true)

Sequence

<Pick>

OnMessage

<case>

crietria

Match

Set Notification

<Empty>

Figure 7: Rule Match

This process describes (1) Receiving “start

process” command from partner “Process Initializer”

(command =1 in Initialization variable) through

<Receive> activity defined by BPEL; (2) Keep

running to receive events messages from “Monitor”

through <Pick>; (3) A <Switch/Case> is used to

check whether the received event matches the

selection criteria; (4) If event matches the selection

criteria, contents of notification will be set by

<Assign> activity and sent out to “Admin” through

<Invoke>; (5) Go back to Step 2 and repeat Step 2 –

4 to detect all events that match the selection

criteria.

5 LESSONS LEARNED

We have applied this approach to developing supply

chain management systems in the domain of

microelectronic manufacturing (Jeng, 2004) and

transportation management systems. The

development time has been greatly reduced to 30-

40% of the originally defined development cycle. As

long as the policies defined by the business roles are

accurate and precise, the software generated is

guaranteed to run almost correctly.

As mentioned, we have used BPEL as our target

PSM. Our approach lead to a systematic way of

developing BPEL modules based on models that are

developed in a distributed fashion. The only factor

hard to be predicted is the overhead induced by

those generated BPEL modules. Since current

implementation of BPEL engine heavily depends on

database synchronization and our transformation

algorithms have not considered concurrency issues,

database access deadlock happen frequently. Hence,

MODEL DRIVEN DEVELOPMENT OF BUSINESS PROCESS MONITORING AND CONTROL SYSTEMS

165

generated BPEL modules need manual tuning to

achieve satisfied performance. Another issue is

tooling.

To make model driven approach to be

successful, high level business policies need to be

captured in an accurate manner. Due to lack of

policy tools, the early phases of development

process become disproportionately large.

In general, the contribution of our work lies on:

1. Propose a new approach (MDA approach) to

provide solution for business process

monitoring and control system, which is faster,

more cost-effective and reliable compared to

traditional way;

2. Present PIM by a DAG, which is constructed by

a series of policies (includes KPIs, correlation

rules and action policies) through interface

matching;

3. Transform PIM to executable representation

(BPEL in this paper) by first decomposing the

entire PIM into several sub-processes to

increase the feasibility and decrease the

complexity of transformation;

4. Show how to model different correlation rules,

which is the foundation of PIM, in BPEL

process. We are among the first ones that are

doing this kind of work.

6 CONCLUSION

In this paper, we have presented the model-driven

approach for developing business process

monitoring and control systems. The solution is first

described by the high level abstract model (PIM),

which is independent from platform and

implementation technologies. This PIM is presented

as a DAG that is constructed by a series of policies

described in XML. Then the PIM is decomposed

into several sub-processes that can be easily

transformed into an executable representation, such

as BPEL or JAVA. We use BPEL as the example to

show the model transformation.

There is still a lot of work need to be done in the

future: (1) Algorithms/rules for PIM construction

through interface matching; (2) Algorithms for

process decomposition in order to find a optimal

division for entire PIM; (3) More correlation rules

definition (currently, only 7 rules are defined); (4)

Prototype implementation for using BPEL to model

correlation rules; and (5) Prototype implementation

for business process monitoring and control system

to verify our proposed approach.

REFERENCES

Bussani, A., and Feridun, M., “Zurich Correlation Engine

(ZCE) --- Rule and Predicate Specification Document”

June 12, 2003

Fujii, K. and Suda, T., “Loose Interface Definition: An

Extended Interface Definition for Dynamic Service

Composition”. Proc. Of the First Annual Symposium

on Autonomous Intelligent Networks and Systems,

Los Angeles, CA. May 2002.

Jeng, J.-J., “Policy Driven Business Performance

Management”, to be presented in DSOM 2004.

“

Real-Time Business Transaction Monitoring”, Product

introduction in mqsoftware

http://www.mqsoftware.com/products/docs/QNamiFac

tSheet.pdf

OMG. "Model Driven Architecture - A Technical

Perspective",

by OMG Architecture Board MDA

Drafting Team, July, 2001. http://

www.omg.org/cgi-

bin/doc?ormsc/2001-07-01

“Automating Business Process Management with BPEL

and XML

”, a PolarLake Whitepaper.

http://www.polarlake.com/en/assets/whitepapers/Auto

matingBusinessProcesseManagement_BPEL_XML.pd

“Specification: Business Process Execution Language for

Web Services Version 1.1”

http://www-

106.ibm.com/developerworks/library/ws-bpel/#scopes

May 2003

Siegel, J., “Using OMG’s Model Driven Architecture

(MDA) to Integrate Web Services.” Object

Management Group. May, 2002.

http://www.omg.org/mda/presentations.htm

Soley, R., and OMG Staff Strategy Group, “Model Driven

Architecture,” November 2000.

TransactionVision, product information in Bristol

Technology.

http://www.bristol.com/transactionvision/

Zhang, R., Arpinar, B., and Aleman-Meza, B., “Automatic

Composition of Semantic Web Services”, ICWS’03,

Las Vegas, Nevada, June23-26, 2003.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

166
