JOB SCHEDULING IN COMPUTATIONAL GRID USING

GENETIC ALGORITHMS

Mohsin Saleem, Savitri Bevinakoppa

School of Computer Science and Information Technology, RMIT Univeristy, Mlebourne,Australia

Keywords: Grid Computing, Schedu

ling, Genetic Algorithms

Abstract: The computational Grid is a collection of heterogeneous computing resources connected via networks to

provide computation for the high-performance execution of applications. To achieve this high-performance,

an important factor is the scheduling of the applications/jobs on the compute resources. Scheduling of jobs

is challenging because of the heterogeneity and dynamic behaviour of the Grid resources. Moreover the jobs

to be scheduled also have varied computational requirements. In general the scheduling problem is NP-

complete. For such problems, Genetic Algorithms (GAs) are reckoned as useful tools to find high-quality

solutions. In this paper, a customised form of GAs is used to find suboptimal schedules for the execution of

independent jobs, with no inter-communications, in the computational Grid environment with the objective

of minimising the makespan (total execution time of the jobs onto the resources). Further, while using the

GA-based approach the solution is encoded in the form of chromosome, which not only represents the

allocation of the jobs onto the resources but also specifies the order in which the jobs have to be executed.

Simple genetic operators i.e., crossover and mutation are used. The selection is done on the using

Tournament Selection and Elitism strategies. It was observed that the specification of order of the jobs to be

executed on the Grid resources played a significant role in minimising the makespan. The results obtained

from the experiments performed were also compared with other heuristics and the GA-based approach by

other researchers for job-scheduling in the computational Grid environment. It was observed that the GA-

based approach used in this paper was able to achieve much better performance in terms of makespan.

1 INTRODUCTION

The objective of scheduling is to minimise the

execution time of the jobs on the Grid resources and

to balance the load across the resource as much as

possible. The scheduling techniques depend heavily

on the nature of the jobs to be scheduled. Jobs can

be independent or dependent on each other.

Independent jobs may require an input file and can

execute in any sequence according to their resource

requirements. In the case of dependent jobs, the

results are communicated to other jobs as inputs and

this communication pattern can be represented using

task graphs. The scheduling of both kind of jobs

mentioned above, can be static or dynamic. In the

case of static scheduling all the job requirements and

the information about the resources in the Grid are

already known before applying the scheduling

technique. However in the case of dynamic

scheduling, assumptions about the jobs and

performance predictions about the Grid resources

are used to take scheduling decisions at run time of

the jobs. This paper addresses the static scheduling

problem of the independent jobs in the Grid

computing environment.

The scheduling problem is NP-complete

(

achbaum, 1997), so many heuristics have been

suggested to find an optimal solution to this problem

in the Grid computing environment (Casanova et al,

2000). In this paper a simple form of GAs is applied

to the scheduling problem in the Grid computing

environment. Special chromosome representations

are used to produce the schedules, which then help

in minimising the makespan (total execution time of

the jobs onto the resources) and assist in balancing

the load on resources.

2 PROPOSED SOLUTION

This model contains an information keeper, which

provides information about the jobs to be scheduled

as well as the resources in the Grid. Jobs are

163

Saleem M. and Bevinakoppa S. (2005).

JOB SCHEDULING IN COMPUTATIONAL GRID USING GENETIC ALGORITHMS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 163-169

DOI: 10.5220/0002537501630169

 SciTePress

Figure 1: Proposed Model

specified by a number of requirements such as

required computing power, total execution time,

required architecture, required operating system, and

size and location of data input file. The users of the

Grid submit jobs to a resource broker. The resource

broker uses the information from the information

system and the jobs’ requirements as submitted by

the users to generate a schedule.

To create a schedule, the resource broker will ask

the scheduler component to find an appropriate

schedule based on the information of jobs and

resources. The scheduler can use any algorithm to

produce a schedule. The scheduler makes use of the

makespan calculator component, which estimates

the total run time of the schedule. The purpose of the

scheduler is to produce a schedule with a minimum

makespan. The makespan includes not only the

execution time of the jobs but also the data transfer

time for the input files.

A customised implementation of Simple Genetic

Algorithms (Holland, 1975) is used in this paper to

create a schedule for independent jobs to run on the

Grid resources with the objective of minimising the

makepsan. A random method is used to create initial

population of schedules and then applied standard

genetic operators to produce new schedules. Two

forms of chromosome representation are used and

the results are compared. First form only considers

the allocation of jobs on the resources. The second

form considers the order of the jobs on each resource

along with the allocation of jobs on the resource.

Single-point, two-point, uniform and cycle

crossovers are used for reproduction of individuals.

The selection is based on tournament selection

(Srinivas et al, 1994) technique. Elitism (Mitchell,

1996) is also used to make sure that the best

chromosome remains in the population. Scheduling

with GAs has been proved a good tool for providing

very good solutions to large scheduling problems.

The use of a simple model reduces the complexity of

the solution and makes it easier to integrate the

solution into the other models.

The application model chosen for this study was

that of independent jobs with no communication

between them. This means that the jobs have no

precedence constraints and can be scheduled in any

possible order. The performance criterion was to

reduce the makespan of the schedule. The GAs

provide a flexible framework for this kind of

scheduling problems; in this work a customised form

of GAs is used. The main focus of the paper is on

the scheduling using GA, so few assumptions were

made regarding the information about the jobs and

the resources. The details of the solution architecture

and the implementation of GA used for the

scheduling are presented below. Every job in the job

pool gets unique identification number Job ID,

Resource ID in XML format.

3 GA SCHEDULER

ARCHITECTURE

The model used to solve the scheduling problem is

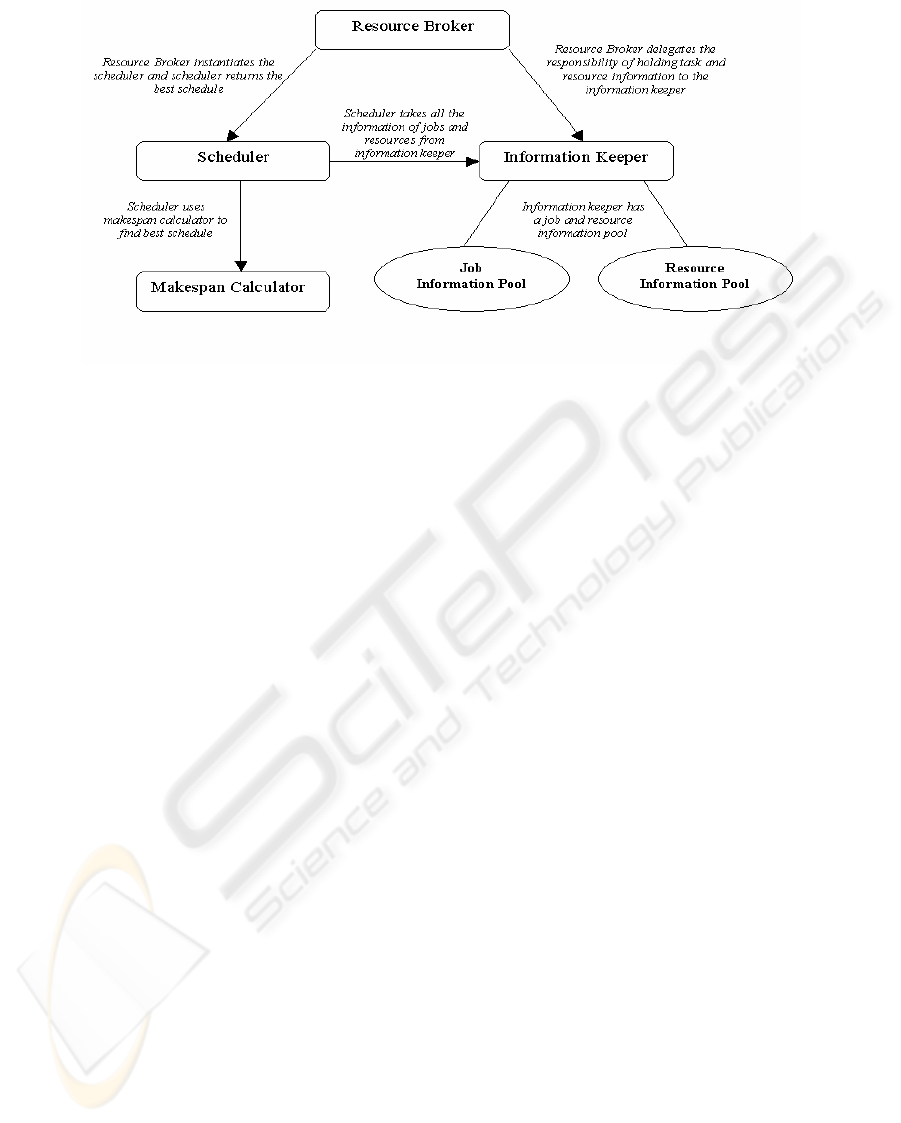

given in Figure 1.

The model used consists of following basic

components:

3.1 Resource Broker

The resource broker is responsible for getting

requests for resources to allocate jobs on them. The

resource broker, with the help of the information

keeper component obtains the job requirements for

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

164

the resources. This component is not only

responsible for allocation of jobs on the resources

but also for monitoring their progress and returning

the results to the user(s).

Once the information has been updated in the

information keeper component, the resource broker

asks another component called scheduler to use this

information and come up with a good schedule. The

good schedule in this paper is the one that helps in

finishing the job execution on the resources as early

as possible and keeps a balance of the load on the

resources at the same time.

3.2 Information Keeper

The information keeper is responsible for keeping

the information about the resources and the jobs to

be allocated on those resources. It contains two sub-

components called job information pool and

resource information pool.

The information keeper stores the information

about the jobs in the job information pool. The

resource information pool is updated when the

resource broker has to allocate job to the feasible

resources. This information can be obtained from

services such as MDS-2 (Zhang et al, 2004) (a part

of Globus toolkit (Foster et al, 1998)) or NWS

(Lowekamp, 1999).

3.3 Scheduler

This component is instantiated by the resource

broker once the information has been collected by

the information keeper. The scheduler assumes that

all the information in the job information pool and

the resource information pool of the information

keeper is the latest and builds a good schedule based

on that information.

In this paper, a Genetic algorithm based approach

is used to find a good schedule. In GAs the new

generation of solutions go through an evaluation

process. The scheduler component evaluates the

schedules produced using information from the

information keeper. The best schedule made by the

scheduler is returned to the resource broker.

3.3.1 Unordered Schedule

In one implementation of the scheduler, the schedule

is produced without any specification of the order in

which jobs have to be executed. The order is

determined by the resource on which jobs have to

run. Here we assume that when the scheduler does

not specify the order the jobs run on the resource in

a First Come First Served (FCFS) fashion.

3.3.2 Ordered Schedule

In the other implementation of the scheduler, the

order of the jobs on the resources is also specified.

By specifying order, makespan can be minimised. If

jobs 1, 2 and 3 are allocated on a resource, allocating

them in a different order affects the total execution

time. It is assumed that the resources can run jobs in

parallel. In the example shown in Figure 2, the

computing power is shown on the horizontal side of

the graph and time spent to execute the job is shown

on the vertical side. In the first case, job 2 and 3 are

allocated first in parallel. Job 1, which is a slightly

larger job has to wait until job 3 finishes execution,

thus increasing the makespan. In the other case if job

1 is allocated first with job 2 running in parallel, job

3 can start execution in parallel with job 1 when job

2 is over. This reduces the makespan significantly as

shown in Figure 2

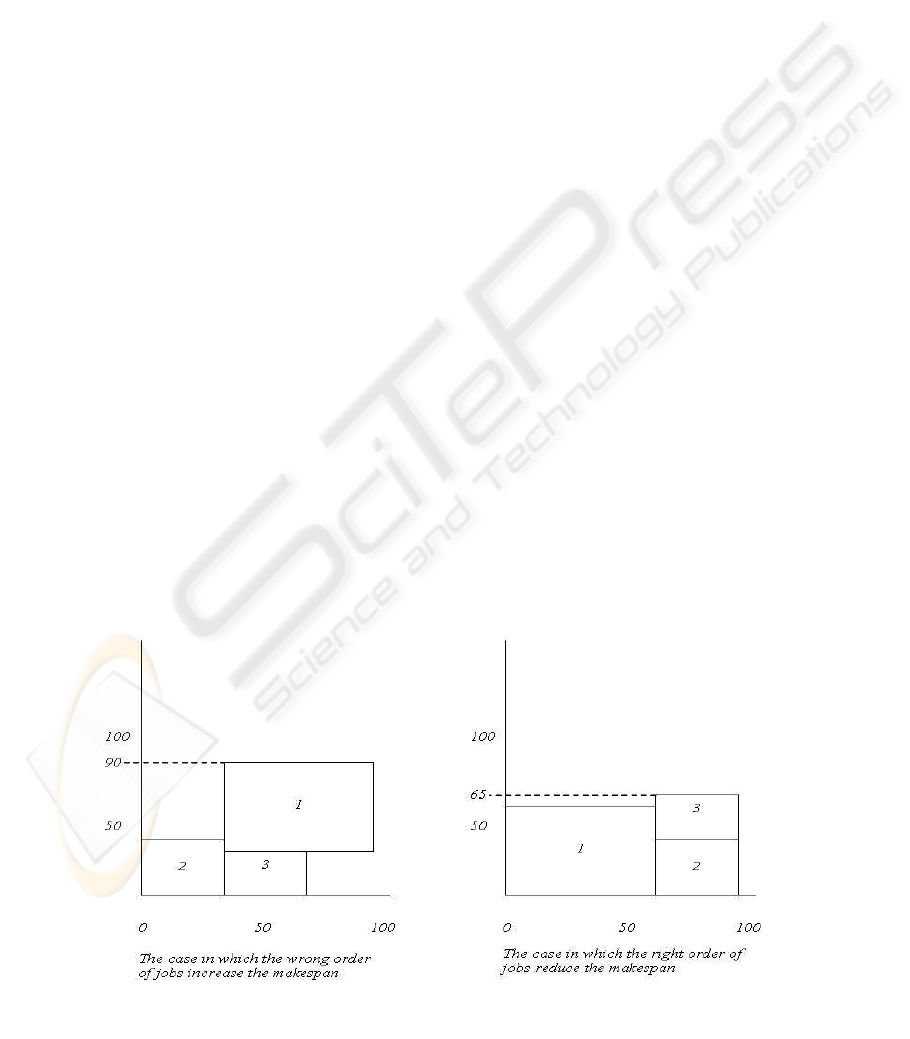

Figure 2: Example to show how order affect the makespan

Job Scheduling in Computational Grid using Genetic Algorithm

165

3.3.3 Makespan Calculator

A makespan calculator is used by the scheduler to

calculate the makespan of a schedule produced. It

virtually allocates the jobs on the resources as

specified by the schedule and returns the makespan.

To get information about the jobs and the resources

the makespan calculator contacts the information

keeper, whenever it needs it. The scheduler uses this

makespan to determine how good or bad is the

schedule produced.

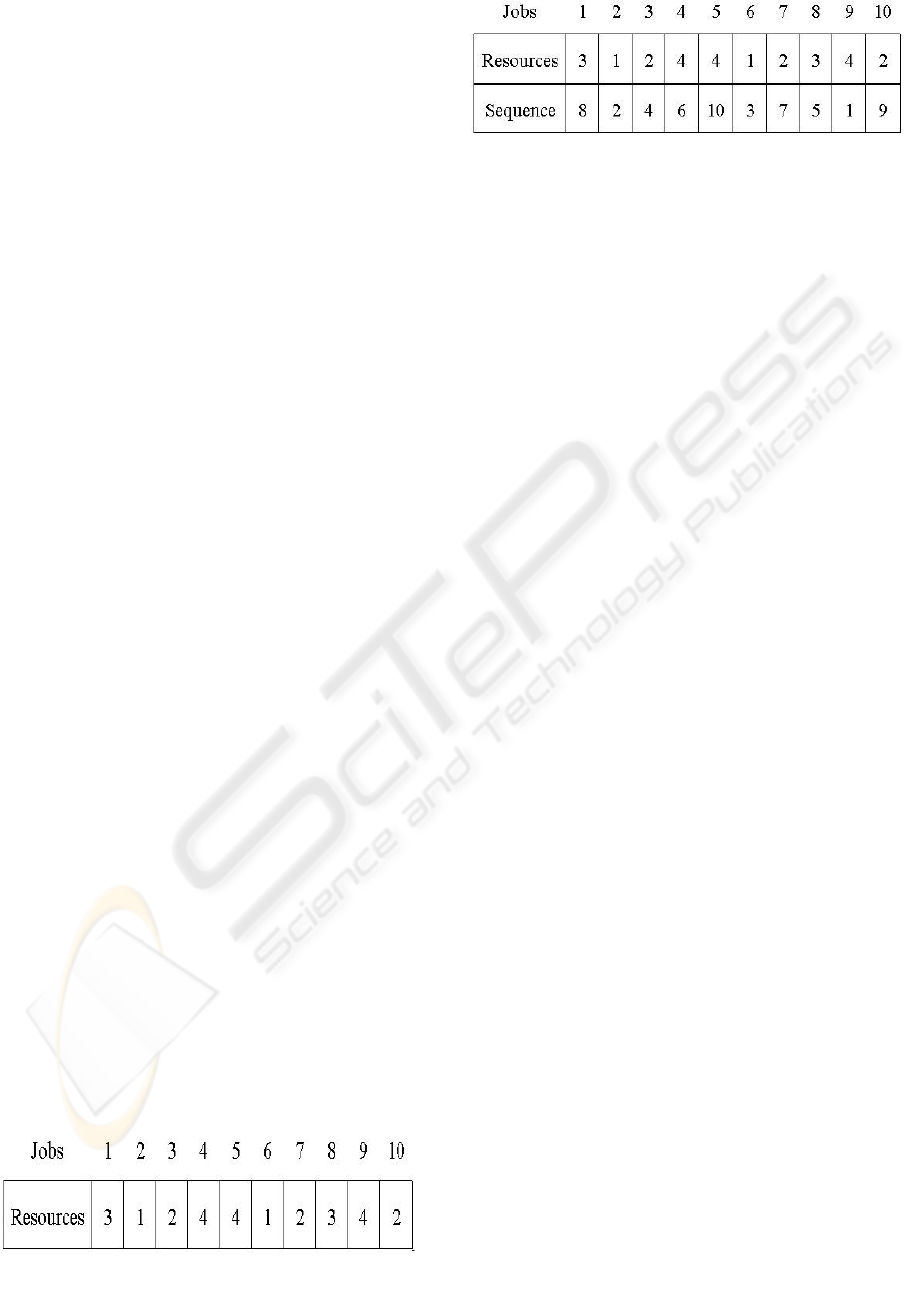

Figure 4: Chromosome with mapping and sequence strings

4 GENETIC ALGORITHMS

BASED APPROACH FOR

SCHEDULING

4.1 Chromosome Representation

In this paper, two representations of chromosomes

have been used, the first representation considers the

assignment of jobs on the resources while the other

considers the order of jobs on the resources as well.

In the first representation, the chromosome consists

of a string where the positions in the string represent

the jobs to be scheduled and the value at each

position represents the resource on which job has to

be executed. This string is termed a mapping string

as it gives mapping of jobs on the resources. In this

case the order of jobs on the resources is not

considered and is left to the resource to decide the

order as shown in Figure 3.

In the second representation, another string is

used in addition to the mapping string to consider

the order of jobs to be run on the resources. In this

string the positions in the string represent the jobs

and the values at each position in the string represent

the sequence in which the jobs are submitted to the

resources. This string is termed a sequence string as

it gives the sequence of jobs submission on the

resources as given in Figure 4.

In this example, if we consider the allocations to

the resource 4 we find that jobs 4, 5 and 9 are

allocated to this resource. If we do not consider the

sequence string, then the jobs 4, 5 and 9 will be

executed on resource 4 in the order {4, 5, 9}. On the

other hand, the sequence string enforces the order

{9, 4, 5}.

4.2 Initial Population Generation

In the initial population step, a fixed number of

chromosomes are generated. In GA used here,

random methods are used to generate mapping

strings and sequence strings. While creating the

initial population of sequence strings, the values in

the genes are kept unique at the chromosome level.

To create the initial population of mapping strings of

the chromosomes, the list of feasible resources is

used, which every job-information unit contains.

The information keeper generates this list for every

job in the job information pool. In this step the

values are assigned in the mapping strings randomly,

from the list of feasible resources for each job. For

example, if job 2 has resources 1, 2 and 4 in the list

of feasible resources then while creating an initial

population of mapping strings, any value can be

assigned at position 2 out of 1, 2 and 4.

To create the initial population of sequence

strings, for each string the values are assigned based

on the following two constraints: first, the values

should be unique and second, the values should be

less than the total number of jobs. A simple method

is used to create these strings. For each string a list L

is created containing number ranging from 1 to j,

where j is the total number of jobs to be scheduled.

A value k is picked up from L and put into the

sequence string at its starting index. The value k is

then removed from L. After that, each time k is

picked randomly from L, put in the first available

index in the sequence string and then removed from

L. This process is repeated to generate every

sequence string in the initial population. The reason

for using random methods to generate an initial

population is to introduce diversity into the

population - the more diverse the initial population,

the more chances there are to reach an optimal

solution

4.3 Evaluation

In the evaluation step the population under

evaluation is checked for fitness. The smaller the

makespan, more fit the chromosome is. To

determine the fitness the GA makes use of the

makespan calculator. In case the order is not

Figure 3: Chromosome with mapping string.

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

166

important, the makespan calculator calculates

makespan in a First-Come-First-Served (FCFS) way

on the resources given by the mapping string. In the

other case, the order of execution of jobs is given by

a sequence string and the makespan calculator

calculates makespan based on order given by the

sequence string. The GA used here also determines

the best chromosome and the average fitness of the

generation under evaluation.

4.4 Selection and Crossover

In this step, the parents’ chromosomes are selected

to take part in reproduction to produce offsprings.

One option is to use the top half chromosomes

sorted in the order of fitness, however this may lead

to a local optimum and ignore the global optimum

(Wilkinson, 1999). To avoid this situation,

tournament selection (Wilkinson, 1999) is used. The

GA, in this step, chooses pairs of chromosomes

randomly from the population and selects the

chromosome with better fitness as a parent of the

next generation. Tournament selection provides a

fairly good chance for individuals to take part in

reproduction. The problem with this selection

method is that it produces parents half in number

than the number of individuals in the population.

This problem is addressed later in the crossover step.

Uniform Crossover is used for crossover for both

mapping and sequence strings.

Comparison of the results obtained with the optimal value of makespan

140

160

180

200

220

0 5 10 15 20 25

Attempts

Makespan

Makespan obtained with ordering Optimal Makespan

Makespan obtained without ordering

5 EXPERIMENTS AND ANALYSIS

OF RESULTS

In the following sub-sections, the results obtained

from all the test cases used are given. These results

are obtained using following parameters:

Number of individual in a population = 1000

Total number of generations = 500

Uniform Crossover for mapping strings

Cycle Crossover for sequence strings.

Mutation operators

Crossover Probability = 0.95

Mutation Probability = 0.5

Tournament Selection with Elitism

Both representations of chromosomes

The termination condition is the completion of 500

iterations

These parameters were chosen after running a series

of experiments using the test cases given below and

found out to be best for this solution of the

scheduling problem. In the case of crossover for

mapping strings, the single-point and the two-point

crossovers produced almost similar results. In the

following sections the test cases and the analysis of

the results are given.

5.1 Test 32-4

This experiment had 32 jobs with different

computational requirements to be scheduled on 4

resources. In this experiment, the first 24 jobs can

run on all the 4 resources, but the other 8 jobs can

run only on resource 3 and 4.

Figure 5 shows the makespans achieved by the

scheduler when it is run 20 times. The scheduler was

able to get the makespan of 180 on 4 occasions

when the ordering of jobs was specified. It can be

inferred that scheduler resulted in a degradation of

6% from the optimal solution on 20% of occasions

when ordering is used. The most frequently

occurring makepsan in this case was 190 - occurring

12 times in 20 attempts of the scheduler. It can be

concluded that the scheduler was able to find a

solution which has a degradation of 12% from the

optimal solution on 60% of occasions. In short, in

90% of attempts, the makespan degradation was in

the range of approximately 6% to 12% when

ordering is specified. In the case of ordering, not

being specified, the makespan degradation was in

the range of 12% to 18% in all attempts.

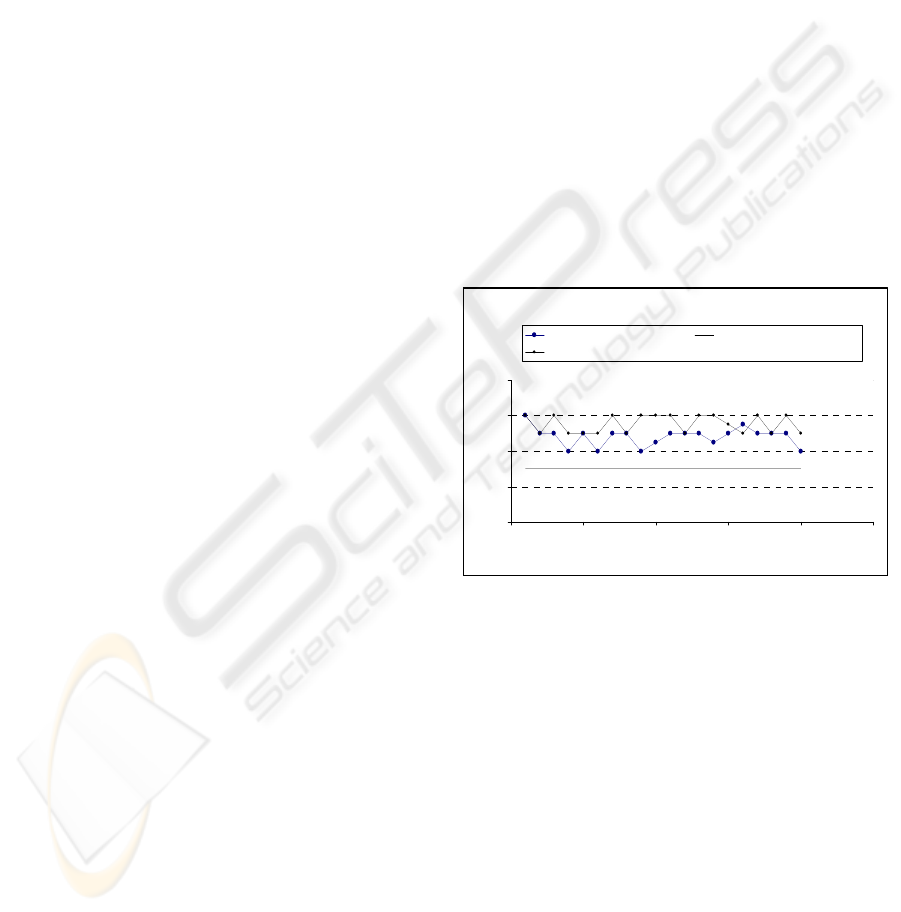

Figure 5: Comparison of results obtained with the

optimal makespan

In the case of random scheduling the jobs are

assigned randomly on the feasible resources. The

makespan given in the graph is obtained by running

the random scheduling 20 times and considering the

most frequently recurring makespan. In the case of

best node first, the makespan is obtained by

allocating a job on a resource which can guarantee

the minimum completion time for that job. This

greedy approach for scheduling is also described in

(Kwok et al, 1999) as Minimum Completion Time

(MCT) heuristic. The makespans achieved by the

Job Scheduling in Computational Grid using Genetic Algorithm

167

scheduler using GA based approach with and

without ordering information, are compared with the

heuristics defined above.

100

150

200

250

Test 9-1 Test 12-2 Test 24-4 Test 32-4

Optimal

GA with order specified

GA without order specified

Random

Best Node First

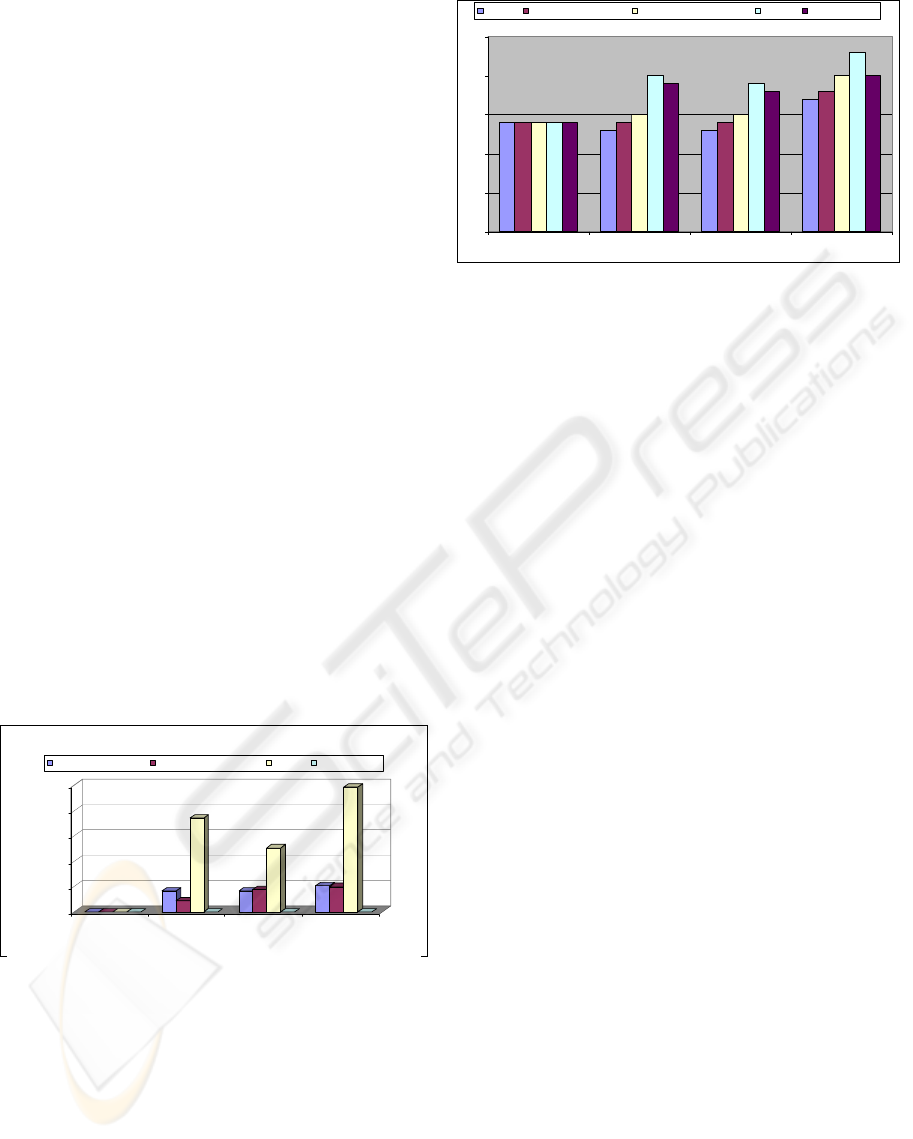

Figure 6 shows that the approach used in this

paper outperformed other heuristics stated earlier in

the performance. Random scheduling performed the

worst in all the test cases. The best node first

heuristic performed better than random scheduling

in all experiments. In the case of Test 9-1, best node

first had the same performance as the GA and was

able to achieve the optimal makespan. In all other

test cases, this heuristic was not able to compete

with GAs and was far removed from the optimal

makespan. The GA with ordering information

achieved better performance than the GA with no

ordering information. The GA with ordering

information was able to produce a schedule with a

makespan closer to the optimal makespan.

Figure 7: Standard Deviation of the different algorithms.

Figure 7 shows the comparison of standard

deviations observed with different algorithms. It was

observed that in Test 9-1 all the algorithms

performed the same as far as the stability of

algorithm was concerned. In all other cases the

random heuristic was found to be the most

inconsistent. The Best Node First heuristic was the

most consistent as it always came up with the same

solution. Both the GA approaches were almost

identical in consistency, but the approach with no

ordering information performed slightly better i.e.,

less standard deviation. But this fact does not make

this approach better than that with ordering

information. To elaborate more on the performance

of the algorithms, another comparison is made.

It is evident from the graph that the GA with

ordering information has the best performance as

compared to the other heuristics. In all the test cases

this approach was observed to come up with a

schedule having a makespan which had an average

deviation of 12% to 16% from the optimal. In the

case of the GA with no ordering information, the

average deviation range was observed to be 16% to

24%. In the case of random scheduling the average

deviation range was found to be 40% to 50%. The

average deviation range of the best node first

scheduling heuristic was observed approximately

18% to 46%. In short, the GA based scheduling

using ordering information had the best average

performance.

6 CONCLUSION

In this paper, the application model used had

independent jobs with no inter-communication. The

performance criterion chosen was to reduce the

makespan. In the experiments, the GA was run with

and without the sequence strings in the

chromosomes. It was found that if the GA is used,

not only to determine the job allocations on the

resources but also for the order in which jobs will

run, the performance of the schedule becomes better.

The approach used in this paper was also compared

with the one used in (Martino et al, 2002) and

(Martino, 2003). It was observed that the approach

used in this paper performs better that of Martino et

al in terms of performance and execution time of the

GA. The results of experiments wer also compared

with the other heuristics such as random allocation

and best node first. The GA based approach had

significantly more execution time but it

outperformed these heuristics in achieving sub

optimal makespans.

Standard Deviation

Test 9-1 Test 12-2 Test 24-4 Test 32-4

Test Cases

Comparison of Standard Deviations of heuristics

GA with order specified

GA without order specified

Random

Best Node First

Figure 6: Comparison of performance of GA

scheduling with other scheduling heuristics

REFERENCES

Hachbaum D. S., 1997. Approximation Algorithms for

NP-Hard Problems, PWS Publishing Company,

ISBN 0-534-94968-1.

Casanova H., Legrand A., Zagorodnov D. and Berman F.,

Heuristic for Scheduling Parameter Sweep

Applications in Grid Environments, In Proceedings of

Heterogeneous Computing Workshop 2000, page(s)

349-363.

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

168

Holland J.H., 1975. Adaptation in Natural and Artificial

Systems, University of Michigan Press, Ann Arbor,

Mich.

Srinivas M., Patnaik L. M., Genetic Algorithms: A

Survey, In IEEE Computer, Jun. 1994, page(s) 17-26.

Mitchell M., 1996. An Introduction to Genetic Algorithms,

MIT Press. ISBN 0-262-13316-4.

Zhang X. and Schopf J., Performance Analysis of the

Globus Toolkit Monitoring and Discovery Service,

MDS2. In Proceedings of the International Workshop

on Middleware Performance (MP 2004), part of the

23rd International Performance Computing and

Communications Workshop (IPCCC), April 2004.

Foster I., Kesselman C., The Globus Project: A Status

Report. In Proc. IPPS/SPDP '98 Heterogeneous

Computing Workshop, page(s) 4-18

Lowekamp B., Miller N., Sutherland D., Gross T.,

Steenkiste P., and Subhlok J. A Resource Query

Interface for Network aware applications, In Cluster

Computing, no. 2, 1999, page(s) 139-151.

Wilkinson B. and Allen M., 1999, Parrallel Programming

Techiniques and Applications Using Netwroked

Workstations and Parallel Computers, Prentice Hall,

ISBN 0-13-671710-1.

Kwok Y. K. and Ahmad I., Static Scheduling Algorithms

for Allocating Directed Task Graphs to

Multiprocessors, ACM Computing Surveys (CSUR),

Volume 31, Issue 4, December 1999, page(s) 406-471.

Martino V. D., Mililotti M., Scheduling in a Grid

Computing Environment Using Genetic Algorithms,

In IPDPS 2002 Workshops, International Parallel

and Distributed Processing Symposium, April 15 - 19,

2002,

Martino V. D., Sub Optimal Scheduling in a Grid using

Genetic Algorithms, In IPDPS'03 International

Parallel and Distributed Processing Symposium April

22 - 26, 2003

Job Scheduling in Computational Grid using Genetic Algorithm

169
