Abstract: Component based software inten

ds to meet the need of reusability and productivity. View concept allows

software flexibility and maintainability. This work addresses the integration of these two concepts. Our

team has developed a view-centred approach based on an extension of UML called VUML (View based

Unified Modelling Language). VUML provides the notion of multiviews class that can be used to store and

deliver information according to users viewpoints. Recently, we have integrated into VUML multiviews

component as a unit of software which can be accessed through different viewpoints. A multiviews

component has multiviews interfaces that consist of a base interface (shared interface) and a set of view

interfaces, corresponding to different viewpoints. VUML allows dynamic changing of viewpoint and offers

mechanisms to manage consistency among dependent views. In this paper, we focus on the static

architecture of the VUML component model. We illustrate our study with a distant learning system case

study.

1 INTRODUCTION

With the popularity of the Internet and web-based

access to information, software development must

face up to heterogeneous environments and

changing client’s needs. In this context, reusability

and interoperability are key criteria. Component

based software construction intends to meet these

needs. The basic idea is to allow developers to reuse

simple units of software called components to build

up more complex applications.

Moreover, to be efficient, software access must

ven to any user with respect to his culture,

rights, education, etc. A lot of web-based

information systems are now available in such fields

as e-learning, tourism, environment, health,

transport, etc. Some of them try to adapt themselves

to users' profile and behaviour at execution time,

especially to give them a rapid access to

information. But so far, development and

maintenance of those systems are not guided by

users' profile (viewpoints) and thus such systems are

very difficult to adapt and maintain.

We need methodologies that explicitly support the

conce

t of viewpoint in a component based software

development.

We already investigated the notions of vie

w and

ewpoint (Coulette et al., 1996) and elaborated a

view-based analysis and design method called

VBOOM, but this method is not compatible with

OMG standards and thus practically unusable.

UML (OMG, 2001) provides development views

(use

case,

logical, deployment...) to structure a

system at several levels of abstraction. However,

UML views are not sufficient to model system

architecture according to users’ viewpoints. We need

a fine grained mechanism to support both functional

and non functional views.

To meet these requirements, we have defined a

UML profile called

VUML (View

based Unified

Modelling Language) (Nassar et al., 2003)

implemented into the Objecteering case tool

(Objecteering, 2004). VUML provides new

217

El Asri B., Nassar M., Coulette B. and Kriouile A. (2005).

MULTIVIEWS COMPONENTS FOR INFORMATION SYSTEM DEVELOPMENT.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 217-225

DOI: 10.5220/0002538702170225

 SciTePress

modelling elements derived from the UML meta-

model through extension mechanisms (mainly

stereotypes and constraints in OCL): multiviews

class, base, view, viewpoint, extension relationship,

dependency relationship, etc. In this paper we

present the integration into VUML of the notion of

multiviews component as a unit of software which

can be accessed through different viewpoints. A first

introduction of this concept was done in

(Nassar et al.,

2004).

Due to size constraints, we focus here on two

main characteristics of such components: static

structure and composition. We illustrate these

features with a distant learning system case study.

The rest of this paper is structured as follows:

section 2 gives a brief overview of component based

software; section 3 introduces the UML distant

learning modelling, especially the use cases and

components diagrams models. Section 4 describes

the concept of multiviews component and associated

mechanisms. In the section 5, we present some

related works, and in the last section we give a

conclusion and perspectives to our work.

2 COMPONENT: DEFINITIONS,

MODEL AND COMPOSITION

The field of component-based software engineering

(CBSE) is in a phase of rapid growth and change.

Standards industry components are shipped as

“plug-ins” into existing run-time architecture.

Components are increasingly used to create complex

and distributed systems and applications.

Software component merges two distinct

perspectives: component as an implementation, and

component as an architectural abstraction. Viewed

as implementations, components can be deployed

and assembled into larger systems. Viewed as

architectural abstractions, components express

design rules that impose a standard coordination

model on all components. These design rules take

the form of a component model, or a set of standards

and conventions to which components must

conform.

In this section, we first give some component

concepts definitions. Then, we present the UML

component model and composition elements.

2.1 Definitions

C. Szyperski defines a component as a unit of

composition with contractually specified interfaces

and fully explicit context dependencies that can be

deployed independently and is subject to third-party

composition (Szyperski, 2002). This definition is

closed to that of B. Meyer who considers a

component as an oriented client software unit

(Meyer, 2000). In general, a component is a unit of

program which comprises at least two parts: a

specification part of its interfaces and behaviours,

and an implementation part that carries out its

services. An interface is a collection of operations

that are used to specify a service of a component

(Kruchten, 1999).

2.2 UML component Model

A component model specifies the standards and

conventions imposed on developers of components.

It specifies the design rules that must be satisfied by

components. The UML 2.0 language (OMG, 2003)

allows the definition of component specification and

architecture. It defines a component as a modular

part of system that encapsulates its contents and

whose manifestation is replaceable within its

environment. A component defines its behaviours in

terms of provided and required ports. A port is a

point for conducting interaction between the

component internals and his environment. Ports are

typed by interfaces. An interface includes a set of

services and constraints. Ports can be provided or

required. Connection between provided and required

ports is made by connectors. Two types of

connectors exist: the delegation connector and the

assembly one. A delegation connector is a connector

that links the external contract of a component to its

internal realisation. The assembly connector is a

connector between two components. One of the

components provides the service that the other one

requires.

2.3 Composition of components

Composition is the term used in component-based

development to refer to systems assembling.

Components are composed so that they may interact.

Contract is the concept which shifts the focus on

components interactions, and the mutual obligations

of participants in these interactions. There are two

senses of contract that are necessary to CBSE:

component contracts and interaction contracts.

Component contracts describe patterns of interaction

that are rooted on a component. Interaction contracts

describe abstract patterns of interaction among roles

that are filled by components. Systems are

assembled from components through a process of

filling roles with components. (Beugnard et al.,

1999) categorise contracts in four levels: Syntactic;

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

218

Resource management

Site Responsible

Pedagogical council

Professor

Student recording

Sequencing

Scheduling

Courses management

Content management

Student

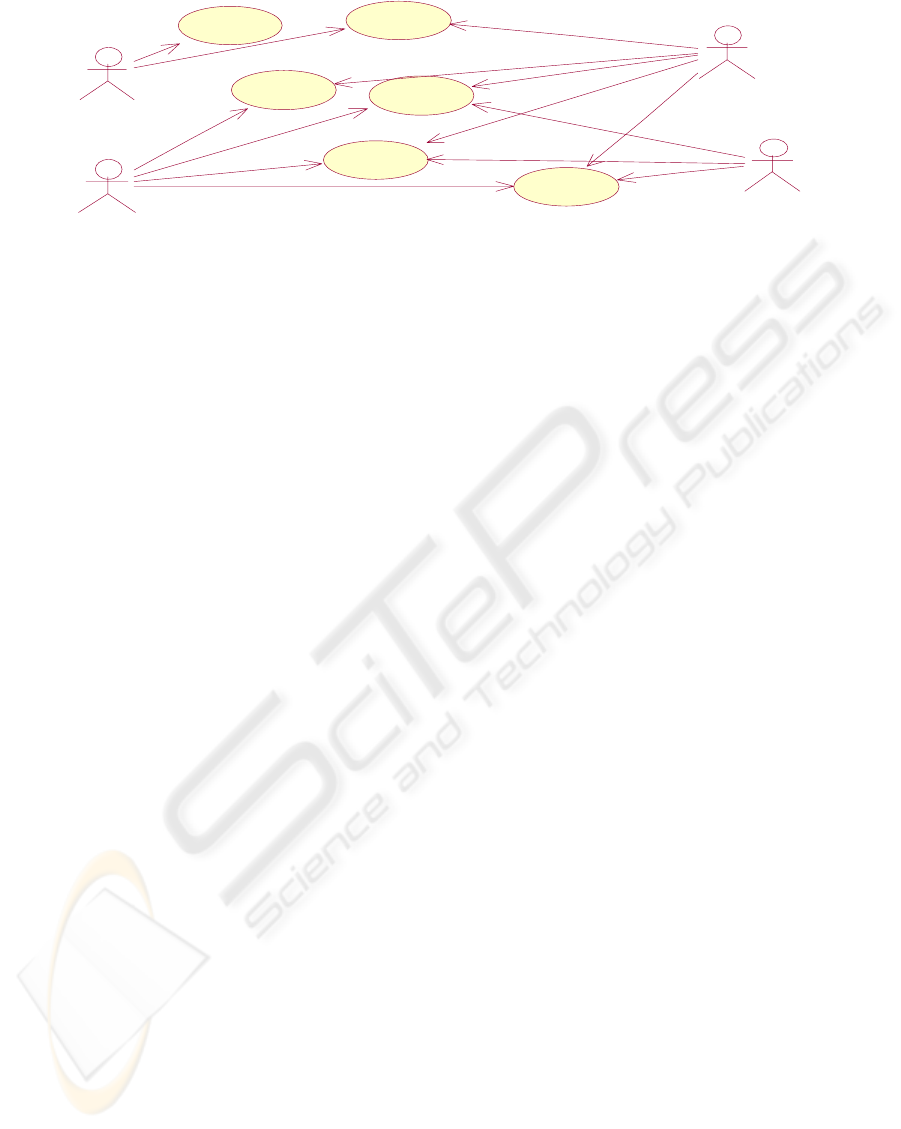

Figure 1: Use Case model of the Distance Learning System (extract)

Behavioural; Synchronisation contracts and

Quality of Service.

3 CASE STUDY: THE DLS

All along this paper, we illustrate our approach

through a Distance Learning System (called DLS in

the following). The main goal of that system is to

allow distant students to apply for courses, access to

related documentation (slides, web pages, text, etc.),

make exercises, communicate with teachers, and

take exams. The DLS provides for students runtime

sequences. It can be distributed over several sites,

and is managed by a responsible whose job consists

in : Student recording; Resource management

(creating, updating and removing resources, their

availability and their interactions) and Content

management (creating, updating, organising and

publishing information resources).

Each site has a pedagogical council whose

responsibilities are: Course management (creating,

updating and deleting units of learning); Scheduling

(allocation and deallocation of resources against

time slots) and Sequencing (organising sequences

for learning units).

Professors propose and update their own

courses; plan learning experiences and units of work

for delivery on or off line and record student

assessments. They are in charge of writing exam

subjects. Tutors are in charge of a group of students.

They mark student exams and answer students'

questions and report progress to inform students.

As we can easily understand, such DLS system

development requires a number of people working

simultaneously. The DLS should be divided into

small modules to minimize risk. Component

technology allows developing complex applications

by mixing and matching specialized modules. Each

component is developed independently from the

others so that any developer may focus on a single

component.

So, we have divided the DLS into components

that are described below. First, we consider a

classical UML modelling of this system. We present

the use case diagram, a general components diagram

and give details of some components that are

composed eventually to build a Training course

scheduling application.

3.1 Use case diagram of DLS

Figure 1 below shows a simplified Use Case

diagram of DLS in UML. Actors of the DLS are

students, teachers, site responsible and pedagogical

council. Only a subset of identified use cases is

considered in figure 1: student recording, courses

management, scheduling, resource management,

content management, and sequencing.

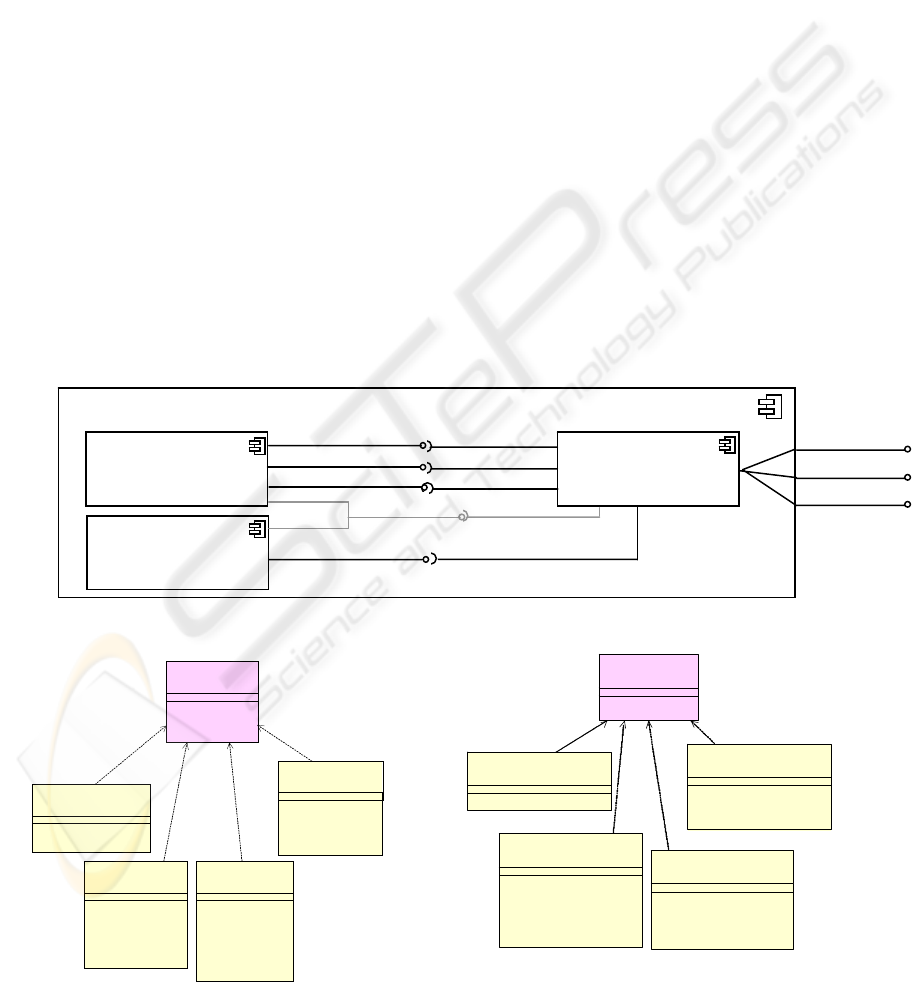

3.2 UML component diagrams

Distant learning applications are built from several

components. The most important of them are shown

below in figure 2. The Student record component

provides services for applying available course

modules and provides information about prices,

contents and sequencing. The Content management

component provides services for publishing,

retrieval, description, and organisations of

information resources. The Sequencing component

provides services about sequenced learning objects.

The Course management component provides

services that allow access and management of

learning units. The Resource management

component provides services to create, update and

remove available resources and their kind of use.

The Group management component provides

services to manage information about groups. A

group aims to get students together for learning,

exams and other activities.

MULTIVIEWS COMPONENTS FOR INFORMATION SYSTEM DEVELOPMENT

219

Every component of the figure 2 may be a

composite one. For instance, Scheduling, Resource

management and Course management are composite

components. Figure 3 shows the Resource

management component. Resources comprise three

major parts: immobile resource such as classrooms,

etc; equipments such as projectors, computers, video

players, and human resources such as teachers,

group of students, etc. Each part provides services of

creating, updating and revoking the resource and

special services. For example, Human resource

provides information about profiles, units to teach

(for teacher) or to pass (for group of students).

Equipment provides information about the way of

using, etc.

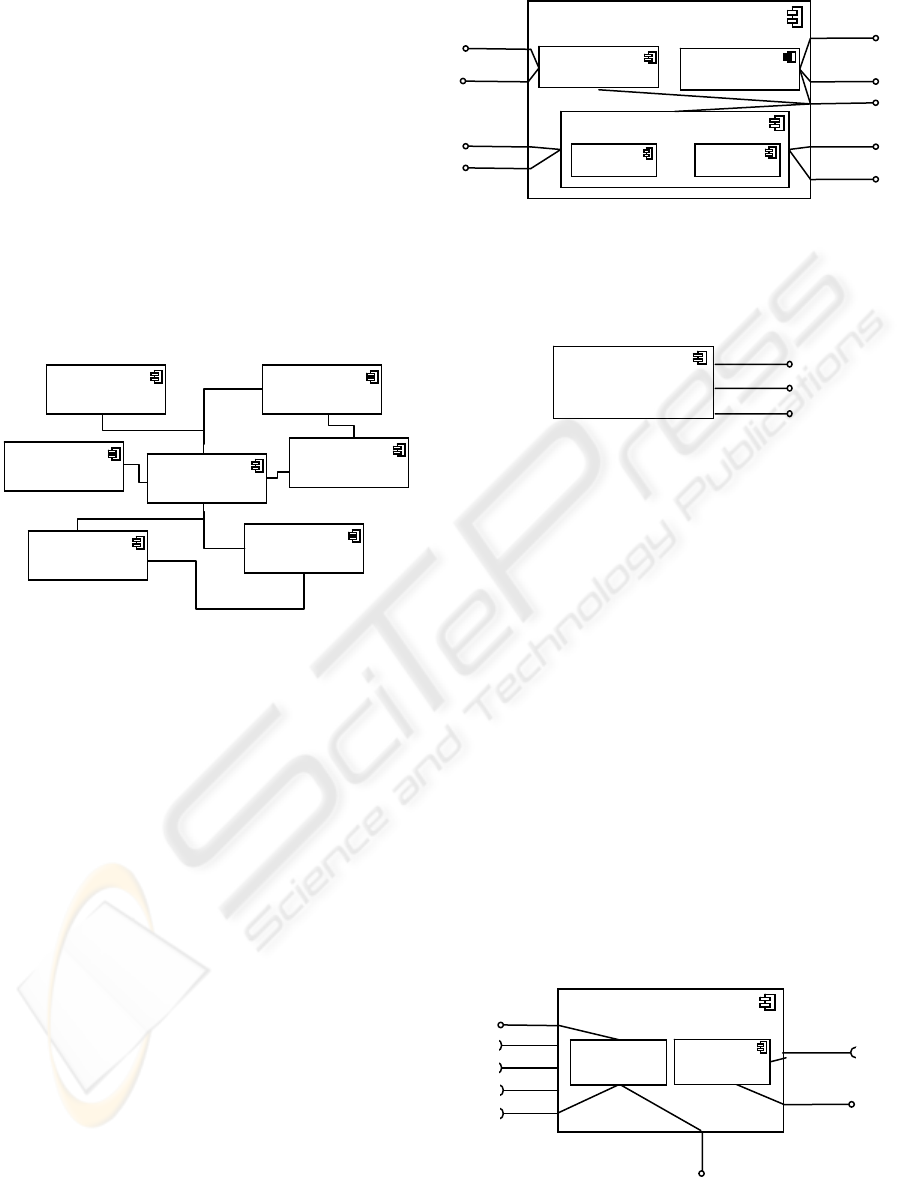

Figure 2: Component model of the DLS

While a class interface is a single collection of

provided operations, a component interface is a

subset of operations smoothly gathered for a specific

service and a further connection. As an example, the

ResourceMgt’s services cited above have been

gathered into provided interfaces called ImInf

(providing information about immobile resources),

EquitInf (for equipments), ProfInf (for professors)

GroupInf (for groups), ImMgt (for creating, updating

and removing immobile resources) and so on for the

resources management interfaces. The RsrceConst

(resource constraints) described in figure 6 provides

facilities to mark fixed resources closures or

unavailability dates determined by fixed

commitments or public holidays, and to mark other

schedule constraints such as equipment breakdown,

immobile fitting, teacher absence, etc.

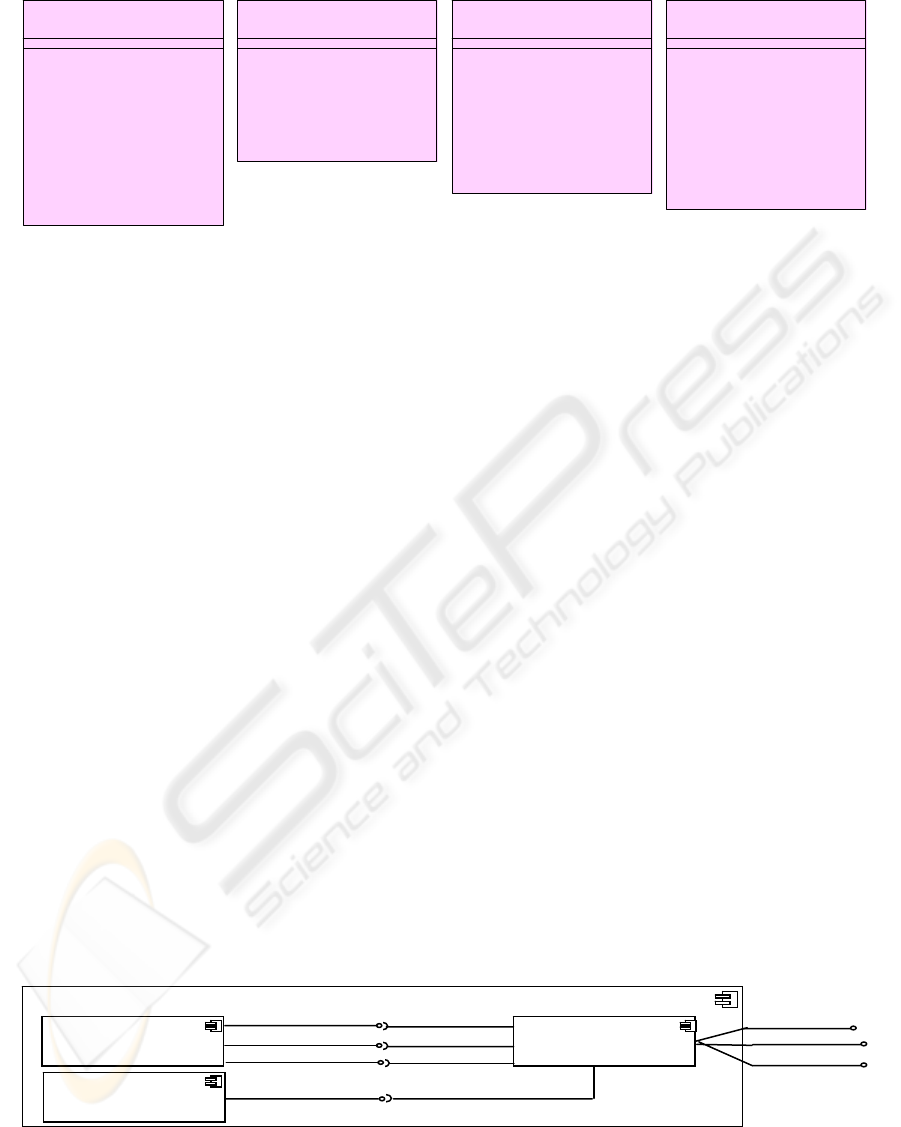

Figure 3: The Resource Management Component

For the Course management component (cf.

figure 4 below), we give only the required and

provided interfaces needed to illustrate the

assembling functionality.

Figure 4: The Course Management Component

Figure 5 shows the Scheduling component made

of two sub-components. To timetable courses, we

need to manage different types of resources together:

immobile resources where learning units will take

place, equipments necessary for a given unit,

professor who gives the unit, group of students who

will attend the unit, the learning unit and the slot of

time which brings the involved resources together.

We name Schedule the sub-component which allows

to determine whether a particular resource is

available or not. It requires the ResourceConst

(RsrceConst) interface and provides the

ResourceAvailability interface (cf. figure 5). That

interface enables users to reserve resources for

particular dates and is responsible for setting

resource priorities. The Allocation sub-component

finds out for each required resource what is its

availability, and then selects dates that suit for all the

resources involved. The AllocationMgt interface (cf.

figure 6) sets information about all resources

required and the suitable period for a unit learning

scheduling.

Figure 5: The Scheduling component

Resource Mgt

Equipment

Immobile Rsrce

EquitMgt

ImInf

EquitInf

ImMgt

RsrceConst

Human Resource

Prof Group

GroupMgt

ProfMgt

GroupInf

ProfInf

RsrceAvailability

Scheduling

RsrceConst

InitAlloc

Prof Inf

GroupInf

EquitInf

CourseInf

AllocationMgt

Schedule

Allocation

« Component »

Group Mgt

« Component »

Resource Mgt

« Component »

Scheduling

« Component »

Sequencing

« Component »

Student Record

« Component »

Content Mgt

« Component »

Course Mgt

CourseInit

Course Mgt

CourseMgt

CourseInf

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

220

<<interface>>

CourseInf

<< interface >>

ResourceConst

<< interface >>

ResourceAvailabilit

<< interface>>

AllocationM

getRsrceName()

getRsrceHolidays()

setRsrceHolidays()

getCrseName()

getCrseLevel()

getCrseNbrCredit()

getPrice()

getListStdtRecorded()

getListDoc()

getListExo()

getNeededEquip()

getNbrHours()

getNextCourses()

getPrevCourses()

getRsrceName()

getPriorities()

setPriorities()

...

setPeriod()

isAvailablePeriod()

getAvailablePeriod()

getBusyPeriod()

setBusyPeriod()

setRestPeriod()

getRestPeriod()

setAvailablePeriod()

getAvailablePeriod()

setIm()

setListEquip()

setGroup()

setProf()

setCourse()

getImmobileResource()

getListEquip()

...

getSlotTime()

setSlotTime()

Figure 6: Description of major interfaces in UML

3.3 Assembling components for a

Scheduling training course

application

As mentioned in the previous section, the

component assembly is based on contracts (basic,

behavioural, synchronization and quality of service).

In this paper we discuss only basic contract.

The basic contract checks syntactic conformance

between required and provided interfaces of the

components to compose. So, for each assembly

connector, originated in a required port and

delivered to a provider port, we need to check the

interfaces compatibility. This leads to check if

provided and required interfaces define compatible

services.

ResourceMgt, CourseMgt and Scheduling

components may be connected to compose a

Scheduling Training course (see the resulting

component model figure 7). The connection between

components is assured by provided and required

interfaces conformance.

3.4 Discussion

In UML 2.0, according to the component diagram of

figure 7, all the actors of the system have potentially

the same access rights to information and services

encapsulated in components. As an example,

students can access to all the allocation related to

courses and to all the resource constraints. This is

not acceptable because part of the allocation should

be hidden to students, and some reservations should

be accessible by professors only. In UML, access

rights control cannot be captured in component

diagrams but only in dynamic diagrams, and hence

must be programmed in component implementation.

Any use of a component must be carried out under

the constraints of a control view. For example, the

schedule component must define student control

view to restrict access to available services.

Component-based development has several

advantages over traditional approaches to software

development: reusability and productivity; but, it

does not provide any mechanism for defining control

view and access right at design-time.

Our goal is to describe such information access

rights at a high abstraction level. Indeed, we believe

that one can gain a lot from taking into account such

information as early as possible, that is during the

analysis phase. To achieve this goal, we decided to

introduce a new type of component, the multiviews

component which allows defining views associated

to actor’s profiles. The challenge is then to put

information (attributes, methods, constraints) into

the right view interface of a given component.

Figure 7: Component model of the Scheduling Training Course

RsrceConst

ResourceMgt

EquipInf

GroupInf GroupInf

CourseInf CourseInf

Schedulin

Scheduling Training Course

RsrceConst

AllocationMgt

InitAlloc

RsrceAvailability

CourseMgt

MULTIVIEWS COMPONENTS FOR INFORMATION SYSTEM DEVELOPMENT

221

Figure 8: Static structure of a multiviews component

4 MULTIVIEWS COMPONENT

In this section, we first give definitions related to

VUML component concepts. Then we describe

some details about the structure of a multiviews

component and related mechanisms.

4.1 Multiviews Component

An actor is a logical or physical person who

interacts with the system. A multiviews component

(MV-C) is a unit of abstraction and encapsulation

(Nassar et al., 2004). It is an extension of the UML

component concept. An MV-C (cf. figure 8)

provides interfaces whose access and behaviour

change according to the actor view. Such interfaces

are called multiviews interfaces. These new

concepts have been added into the VUML meta-

model whose extract is show on figure 8.

4.2 Multiviews Interface

A new type of interface is defined for MV-C, to

express its run-time behaviour change, called

Multiviews Interface. Figure 9 illustrates the static

structure of a MV-Interface. Such an interface is

composed of a base interface (baseInterface

stereotype), and views (viewInterface stereotype)

that are related to the base through a viewExtension

relation.

Base

<<baseInterface>>

ViewN

<<viewInterface>>

<<viewInterface>>

<<viewInterface>>

<<viewExtension>>

Figure 9: Static structure of a MV-Interface

The activation of a view (linkage to the current

user's viewpoint) is done at execution-time. The base

is a shared interface. The viewExtension relation is

a dependency relation. A view interface depends on

the base interface in the sense where attributes and

methods of the base interface are implicitly shared

by all views. At design-time, a MV-Component has

a set of multiviews interfaces. At run-time, MV-

Component behaves as a regular component with

interfaces whose definitions, at a given time, are the

combination of features of the base and the active

viw interfaces. To complete this run-time MV-

component’s behaviour, we have conceived an

implementation pattern for the MV-Component

deployment. This pattern is inspired from Role and

Strategy patterns, and implements a setview()

method to dynamically change the active view.

4.3 The Multiviews DLS case study

Figure 10 below shows the Multiviews component

model

of the Scheduling Training Course. One can

notice that each component of the UML component

model (see figure 7) has become a MV-C, since it

should be accessed from several viewpoints. Figure

11 gives details about the MV-CourseInf and MV-

ResourceConst interfaces. In this simplified

example, we only highlight views associated to the

actors Professor, Student, Site responsible and

Pedagogical council. Compared to the UML

component diagram (see figure 6 above), services

distribution into interfaces has been changed. For the

CourseInf interface, we have defined a base

interface which contains basic services for providing

the name, the level and number of credits of a

course. Other services are dispatched into view

Interfaces. As an example, the method getPrice() has

been put into the two view interfaces

VRespSiteCourseInf and VStudentCourseInf

associated respectively to the actors Site responsible

and Student, because other actors do not need this

information. The setAvailablePeriod() method of

Component

Class

(from StructuredClasses)

Interface

(from Interfaces)

Realization

Classifier

(

from Kernel

)

+abstraction

+realization

+/provided

IsIndirectlyInstantiated :Boolean

0..1

+/required

+realizingClassifier

Interface

+/provided

MultiViewsComponent

+/required

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

222

MV-ResourceConst has been hidden to the Student

and Professor because these latter must not update

resource availability.

The MVC Scheduling, CourseMgt and

ResourceMgt are composed by connecting provided

and required MV-interfaces. Syntactic contracts

must be checked for each viewpoint. This means to

check required and provided interfaces

conformance for base and view interfaces (for every

viewpoint). At run-time, a view is activated thanks

to the setView implicit interface. The component

interfaces are then specified according to that view.

For example, if the Pedagogical Council view is the

active one, the MV-CourseInf interface connecting

Scheduling and CourseMgt MVC comprises

operations specified in the CourseInf base and those

belonging to the VPCCourseInf (the view interface

of CourseInf corresponding to the Pedagogical

Council viewpoint.) An operation of the base

interface - for instance getRsrceHolidays() - may be

redefined in view interfaces (see the MV-interface

ResourceConst in figure 11).

View interfaces of a multiviews interface may be

dependent, so it is necessary to maintain the internal

coherence of a multiviews interface. Our approach

ensures that changes done into a view at execution

time are reflected into dependent views. As an

example, in the DLS system, one may assure that

resources reserved by a professor will be transmitted

to the site responsible; if a course price is changed

into the Site responsible view, the price to pay must

be changed into the Student view. Obviously,

management of these repercussions is done at the

implementation level; but such functional

dependencies are very important information for

system designers, so we decided to express those

dependencies in VUML. We use UML notes and

OCL (Object Constraint Language) to specify such

constraints. The description of those dependencies is

not in the scope of this paper.

5 RELATED WORKS

Researches in software modelling and development

have spawned various concepts related to view and

viewpoint concepts (El Asri et al., 2004). The view

concept was first introduced by Shilling and Sweeny

(Shilling et al., 1989) as a filter on global interface

of a class. This concept has been then largely

investigated in the field of databases (Abiteboul et

al. 1991, Debrauwer 1998), Software Engineering

(Finkelstein et al., 1990), Requirement Engineering

(Charrel, 2002) and in Object-Oriented

Development.

Figure 10: Multiviews component model of the Scheduling Training Course.

<<viewInterface>>

VSiteRespSiteCourseInf

VProfessorCourseInf

VPCCourseInf

VStudentCourseInf

<<baseInterface>>

CourseInf

getCrseNbrCredit()

<<viewExtension>>

getListExo()

getPrice()

getListDoc()

getListExo()

getNextCourses()

getPrevCourses()

getNbrHours()

getPrice()

getListStdtRecorded()

getCrseName()

getCrseLevel()

<<viewExtension>>

getListDoc()

<<viewExtension>>

getNextCourses()

getPrevCourses()

getNbrHours()

<<viewExtension>>

getListStdtRecorded()

getNeededEquip()

getListStdtRecorded()

getNbrHours()

<<viewInterface>>

<<baseInterfac e>>

ResourceConst

<< viewInterface >>

VStudentResourceConst

<< viewInterface >>

VPCResourceConst

<< viewInterface >>

VRespSiteResourceConst

<<viewInterface>>

VProfessorResourceConst

getRsrceName()

getRsrceHolid ays()

getAvailablePeriod()

setAvailab leP eriod()

getRestPeriod()

setRestPeriod()

getRsrceHolidays()

setRsrceHolidays()

getAvailableP eriod ()

setAvailablePeriod()

getRsrceHolid ays()

getRsrceRestPeriod()

getAvailablePeriod()

<<viewExtension>>

getRsrceHo lidays()

Figure 11: VUML model of the CourseInf and ResourceConst Multiviews Interfaces

MV-RsrceConst

<<multiViewsComponent>>

ResourceMgt

MV-EquipInf

MV-GroupInf

MV-CourseInf MV-CourseInf

<<multiViewsComponent>>

Scheduling

MV-Scheduling Training Course

MV-AllocationMgt

MV-RsrceConst

MV-InitAlloc

MV-RsrceAvailability

<<multiViewsComponent>>

CourseMgt

SetView SetView

MULTIVIEWS COMPONENTS FOR INFORMATION SYSTEM DEVELOPMENT

223

Moreover, a number of concepts have been

proposed to describe notions close to views such as

role (Anderson et al., 1992), subject (Harrison et al.,

1993) aspect (Kiczales et al., 1997) and more

recently multidimentional separation of concerns

(Osher et al., 2001).

Our team has been working on view-based

object-oriented methodologies since 1993. Thus, we

defined a view-based extension of Eiffel called

VBOOL (Marcaillou et al., 1994) and a view-based

analysis and design method called VBOOM

(Kriouile, 1995). We are working now on VUML

(Nassar et al., 2003), a UML profile that provides

the concept of multiviews class whose goal is to

store and deliver information according to user

viewpoints.

For components, several models have been

proposed : UML (OMG, 2003), ODP

(RM/ODP,

1996)

, JAC AOP (Pawlak et al 2004), ACCORD

(Florin et al., 2003), FRACTAL (Bruneton et al.,

2004), etc.

In UML, the view notion is a way of structuring

system designs according to different aspects of

development: use cases, logical, components,

deployment. So UML views are development views.

ODP defines a set of viewpoints with associated

viewpoint languages defining the concepts of each

viewpoint. The RM-ODP viewpoints provide a

useful abstraction for reasoning about distributed

systems but it concerns the development process

only whereas VUML views are actor views

(covering development and execution).

The JAC AOP addresses dynamic and

distributed Aspect Oriented Programming with Java

Aspect Component. It allows dynamic add and

remove of aspects to existing components using

wrapping methods. JAC is a very interesting

framework for adding non-functional concerns as

persistence, integrity, load-balancing, etc. But it

does not address add and remove of functional

concerns. On the other hand, while JAC alters the

basic component when adding new concerns,

VUML approach lets basic interfaces of the MV-

Component unchanged when adding functional

concerns for a new viewpoint.

The fractal component model makes separation

between functional and non-functional concerns. A

functional interface is an interface that

corresponds to a provided or required functionality

of a component, while a

control interface is a

server interface that corresponds to a "non

functional aspect". Internally, a Fractal component is

formed out of two parts: a

controller, and a

content. The content of a component is composed

of other components, called

sub-components,

which are under the control of the controller of the

enclosing component. A component may be

shared

by several distinct enclosing components. The

fractal extension (Caron et al. 2003, Barais et al.

2004), supports views by splitting component into

basic ones (shared by all views) and views

component. This approach is closed to ours in the

sense where it considers basic and view services.

But whereas the fractal system split the multiviews

component into several ones (each one with its own

identity), VUML considers a global component

whose interfaces change depending on the system

active view.

6 CONCLUSION

Undoubtedly, combining component and viewpoint

concepts help decentralised development, enhance

reusability, improve information accuracy and

consistency, facilitate and reduce production time of

software.

In this paper, we have first presented

components and related concepts. Through the

Distant Learning System case study, we have shown

how components are enable to provide accurate

services and controlled access to different clients. In

the continuation of our works about VUML, we

propose the concept of multiviews component which

interacts with the environment through multiviews

interfaces. Statically, a multiviews interface is

composed of a base interface and a set of view

interfaces extending this base. At any time of the

execution, a component behaves according to the

active view. That active view is automatically

propagated to every component linked to the

previous one. Management of views (add, suppress,

lock, unlock) is done dynamically through an

implicit interface called view management.

Consistency among dependent views is managed

thanks to firstly an explicit declaration of

dependencies (in OCL), and secondly programming

at the implementation level.

We have focused so far on the static aspect of

the multiviews component and on syntactic contract

for component assembling. Our objective is now to

specify other types of contracts (behavioural,

synchronisation and QoS) and to generate patterns

for multiviews component deployment.

REFERENCES

Abiteboul S., Bonner A., 1991. Objects and Views. Proc.

of ACM SIGMOD, pp. 238-24.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

224

Andersen E., Reenskaug P., 1992. System Design by

Composing Structures of Interacting Objects. Proc. of

the 6

ECOOP'92, LNCS, Vol. 615. pp. 133-152,

Utrecht, The Netherlands. Springer-Verlag.

Barais O., Muller A.,. Pessemier N., 2004. Extension de

Fractal pour le Support des Vues au sein d'une

Architecture Logicielle. Objets, Composants et

Modèles dans l'ingénierie des SI. Biarritz, Mai 2004.

Beugnard A., Jézéquel J.M., Plouzeau N. and Watkins D.,

1999. Making components contract aware. IEEE

Computer,32(7):38_45, July 1999.

Bruneton, E. Coupaye T., Stefani J.B., 2004. The Fractal

Component Model, version 2.0-3,

http://fractal.objectweb.org/specification/, Feb. 2004.

Caron O., Carré B., Muller A., Vanwormhoudt G., 2003..

A Framework for Supporting Views in Component

Oriented Information Systems. In OOIS, LNCS,

volume 2817, pages 164.178. Springer, September

2003.

Charrel P.J., 2002. The Viewpoint Paradigm: a semiotic

based Approach for the Intelligibility of a Cooperative

Designing Process. Australian Journal

of Information Systems, Vol. 10, n° 1. pp. 3-19.

Coulette B., Kriouile A., Marcaillou S., 1996. L’approche

par points de vue dans le développement orienté objet

de systèmes complexes. Revue l’Objet vol. 2, n°4, pp.

13-20.

El Asri, B., Nassar M., Coulette B., Kriouile A., 2004.

Views, Subjects, Roles and Aspects: a comparison

along Software lifecycle. 6th International

Conference on Enterprise Information Systems

(ICEIS’04), April (14-17) in Porto/Portugal.

Debrauwer L., 1998. Des vues aux contextes pour la

structuration fonctionnelle de bases de données à

objets en CROME. Thèse de Doctorat, LIFL, Lille.

Finkelstein A., Kramer J., Goedicke M., 1990. Viewpoint

Oriented Software Development. Proc. of Software

Engineering and Applications Conference, pp. 337-

351, Toulouse.

Florin G., Legond-Aubry F., Enselme D., 2003. Modèle

abstrait d'assemblage de composants par contrats.

Rapport technique Livrable 1.4, Projet RNTL Accord,

juin 2003.

Harrison W., Ossher H., 1993. Subject-oriented

programming : a critique of pure objects. Proc. of

OOPSLA’93, Washington D.C., pp. 411-428.

Kiczales G., Lampng J., Mendhekar A., Maeda C., Lopes

C. V., 1997. Aspect-Oriented Programming. Proc. of

the European Conference on Object-Oriented

Programming (ECOOP). Finland. Springer-Verlag

LNCS 1241.

Kriouile A, 1995. VBOOM, une méthode orientée objet

d’analyse et de conception par points de vue. Thèse

d’Etat. Université Mohammed V de Rabat.

Kruchten P. 1999. Modelling Component Systems with

the Unified Modelling Language. Rational Software

Corp.

Marcaillou S., Coulette B., Kriouile A., 1994. Visibility :

A new relationship for complex system modelling. In

TOOLS USA'94

. TOOLS13, Prentice Hall.

Meyer B., 2000. What to compose. Software

Development, mars 2000. Online: Software

development columns :

http://www.sdmagazine.com/articles/2000/0003/

Nassar M., 2003., VUML : a Viewpoint oriented UML

Extension. Proc. of the 18th IEEE International

Conference on Automated Software Engineering

(ASE’2003), Doctoral symposium, Montreal, Canada.

Nassar M., Coulette B., Crégut X., Ebsersold S..,

Kriouile A., 2003. Towards a View based Unified

Modeling Language. Proc. of 5th International

Conference on Enterprise Information Systems

(ICEIS’2003), Angers, France.

Nassar M., El Asri B., Coulette B. et Kriouile A., 2004.

Une approche UML de composants multivues.

Workshop Objets-Composants-Modèles dans les

Systèmes d'Information. Biarritz, France. 25 mai 2004.

Objecteering 2004. Objecteering software

http://www.objecteering.com.

OMG 2003. UML 2.0 Superstructure Final Adopted

specification, Document - ptc/03-08-02, 2003,

http://www.omg.org/cgi-bin/doc?ptc/2003-08-02

OMG, 2001. Unified Modeling Language, version 1.4;

http://www.omg.org/cgi-bin/doc?formal/01-09-67

Ossher H., Tarr P., 2001. Using multidimentional

separation of concern to (re)shape evolving software.

Communication of the ACM October 2001/Vol. 44,

No. 10 pp43-50.

Pawlak R., Duchien, L., Seinturier L., Legond-Aubry F.,

Florin G., Martelli L., – JAC : An Aspect-based

Distributed Dynamic Framework – Journal Software

Practice and Experience, 2004.

RM/ODP 1996 ISO/IEC, “ISO/IEC 10746-1 Information

technology - Basic reference model of Open

Distributed Processing - Part 1: Overview,” ISO ITU-

T X.901 - ISO/IEC DIS 10746-1, 1996.

Shilling J., Sweeny P., 1989. Three Steps to Views, Proc.

of OOPSLA’89, New Orleans, LA, pp. 353-361.

Szyperski C., 2002.: Component Software - Beyond

Object-Oriented Programming. Addison-Wesley, 2nd

edition, november 2002.

MULTIVIEWS COMPONENTS FOR INFORMATION SYSTEM DEVELOPMENT

225
