DEFINITION OF BUSINESS PROCESS INTEGRATION

OPERATORS FOR GENERALIZATION

Georg Grossmann, Yikai Ren, Michael Schreﬂ, Markus Stumptner

University of South Australia, Advanced Computing Research Centre

Mawson Lakes, SA 5095, Adelaide, Australia

Keywords:

workﬂow, cross organisation workﬂow, business process integration.

Abstract:

Integration of autonomous object-oriented systems requires the integration of both object structure and object

behavior. However, research in this area has so far mainly addressed the integration of object structure. Based

on our earlier work that identiﬁed behavior-based correspondences between business processes and deﬁned a

set of permissible integration operators to enable the construction of linked or integrated business processes.

In this paper, we deﬁne the integration operators themselves in terms of a set of high level operation calls and

demonstrate them on a car dealer and car insurance example. For modelling purposes we use a subset of UML

activity diagrams.

1 INTRODUCTION

Integration is a key theme in current database and ap-

plied computing research in general. A special issue

of the Communications of the ACM (CACM, 2002)

and several articles in subsequent issues have dealt

with integration topics. Integration of applications is

a matter of signiﬁcant concern at the level of level of

classical database applications as well as web services

or workﬂows.

1.1 Behavior-based integration

A key aspect of existing research on the integra-

tion of information systems is that it has concen-

trated almost exclusively on the structural aspects

e.g.(Bukhres and Elmagarmid, 1996; Conrad, 1997;

Garc

ıa-Solaco et al., 1995; Klas and Schreﬂ, 1995;

Parent and Spaccapietra, 1998; Schmitt, 1998; Schreﬂ

and Neuhold, 1988). Integration of object behav-

ior has received some attention, but only at the level

of single operations or “activities” at the conceptual

level (Vermeer and Apers, 1997).

In (Stumptner et al., 2004), we described a generic

approach and resulting architecture for the behavior

∗

This research was partially supported by the Australian

Research Council under Discovery Grant DP0210654. Au-

thors are listed in alphabetical order.

oriented integration of business processes. It is based

on a meta-class architecture that uses inheritance and

instantiation relationships to describe high-level inte-

gration operators that can adapt and produce individu-

alized integration plans (i.e., groups of operations) for

the integration of processes from a particular domain.

In (Grossmann et al., 2004), we have described

an integration process which consists of the identi-

ﬁcation of business process correspondences and as-

sociated integration operators. The correspondences

are speciﬁed via relationships between equivalent and

non equivalent business processes and their activities

respectively. For each identiﬁed relationship we pro-

posed proper integration options which build a new

integrating model. This resulting integrated model is

a generalization of the input models. Our approach

resulted in the ﬁrst coherent categorisation of integra-

tion options, building on a history of detailed exami-

nation of individual options using generalization (Pre-

uner and Schreﬂ, 1998; Preuner et al., 2001; Frank

and Eder, 1999). The key outcome of this work was

the identiﬁcation of permissible combinations of inte-

gration options (cf. Figure 1).

In this paper we build the capstone on the concept

of behavior generalization-based integration, by ex-

plicitly describing the key integration steps that cor-

respond to each speciﬁc integration situation.

In general the following steps will be per-

formed (Grossmann et al., 2004):

510

Grossmann G., Ren Y., Schreﬂ M. and Stumptner M. (2005).

DEFINITION OF BUSINESS PROCESS INTEGRATION OPERATORS FOR GENERALIZATION.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 510-517

DOI: 10.5220/0002539305100517

 SciTePress

• Examination of the relationships between real

world objects and relationships between activities

• Integration options contain basic integration op-

erators which can be applied to the processes in-

volved. (The integration options are not uniquely

determined by the relationships identiﬁed in the ex-

amination step.)

• Integration choice means the combination of the

outcome of the examination and the integration op-

tions, resulting in integration choices which deter-

mine the outcome of the last step in the integration

process, the model transformation. For each rela-

tionship we have suggested preferred and alterna-

tive integration options as shown in Figure 1.

• Model transformation: For each identiﬁed rela-

tionship the model is transformed by applying the

proper (for the integration choice) integration oper-

ator.

The core notation chosen for our approach are

UML 2.0 Activity Diagrams. To enable unambigu-

ous tool implementation we have deﬁned a subset of

the full language with clear semantics (not discussed

here for space reasons).

In the main sections of the paper we ﬁrst brieﬂy re-

capitulate the different activity correspondences, then

build the infrastructure for the model transformation

operators and then give the individual transformation

operator deﬁnitions, with a larger example at the end.

1.2 Activity Correspondences

The discussion on correspondences between activities

in business processes is based on a relationship be-

tween one activity in a process and one activity in an-

other process (1:1). The relationship may be extended

to a relationship between one activity and a group of

connected activities (1:n). A “1:n” occurrence can in-

volve the same relationships as a “1:1” occurrence.

To simplify the cases of identiﬁed relationships, ac-

tivities in the processes are composed or decomposed

so that only “1:1” activity relationships are created.

Identity-related activities (ident

rel): Identity re-

lationship between two activities holds if the two ac-

tivities model the same functionality. For example,

’select manufacturer’ is an activity in both business

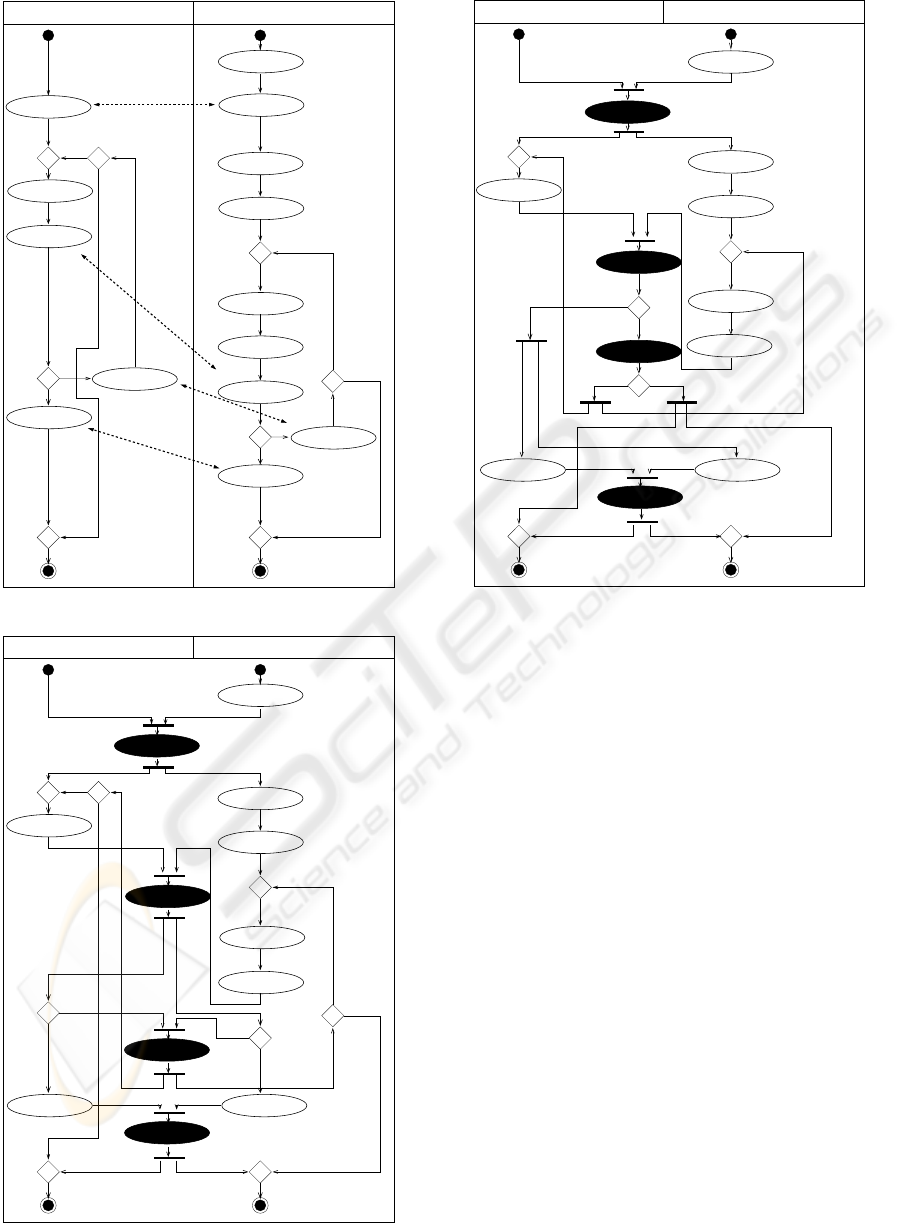

processes car dealer and car insurance as shown in

Figure 8. The identity relationship may be catego-

rized into two types (extensional (e) and intensional

(i) (Grossmann et al., 2004)):

• Business processes in the same domain

(ident

e rel): In this case, the two processes

may be derived from the same super-process and

have many activities in common.

• Business processes in the different domain

(ident i rel): In this case, the two processes model

different real world objects on the same schema.

Role-related activities (role

rel): The role rela-

tionship between two activities holds if the two activ-

ities model functionalities depending on special role

of the processes, e.g., the activity ’specify salary’ of

a company employee and the activity ’specify salary’

of an university employee. The business processes

model the same object in different situations or con-

text, e.g., the same person in the situation of a com-

pany employee and of an university employee.

History-related activities (hist rel): Two activi-

ties are in a history relationship if they model the

same functionality and the functionality depends on

the points of time at which the processes model

their instances, e.g., the activity ’submit CV’ of two

processes concerning an applicant and later as an em-

ployee. The business processes model the same per-

son at different times.

Counterpart-related activities (count

rel): Two

business process models can be counterpart-related if

they model two different real world objects which are

affected by some common activities but represent al-

ternate situations in the real world, e.g., the booking

system T for a train service and the booking system F

for a ﬂight service, both offer the service ’print sched-

ule’. The activities may be counterpart-related if they

model the same functionality but the functionality de-

pends on the counterpart relationship of the processes.

Category-related activities (cat

rel): If two busi-

ness processes share some common activities, e.g.,

one deals with house insurances and another with car

insurances, then they are category-related. The corre-

sponding activities of category-related objects model

functionality which can be perceived to belong to a

common category and are therefore category-related,

e.g., the activity ’select value of the target object’ of

a house insurance and a car insurance. The differ-

ence between the category and the counterpart rela-

tionships is that the behavior of counterpart-related

processes can be identical but not the behavior of

category-related processes.

Distinct activities: Distinct activities are activi-

ties which are not comparable because there exists no

equivalent activity in the other process. We say that an

activity in a process is distinct if there exist no activ-

ity in the other process which is comparable to it at all

points in time. Distinct activities are left unchanged

by the integration process.

2 INTEGRATION OPERATORS

AND THEIR USE

The integration of two business processes occurs in

two steps: (1) identifying activity correspondences

and (2) choosing an integration option for each rela-

tionship.

DEFINITION OF BUSINESS PROCESS INTEGRATION OPERATORS FOR GENERALIZATION

511

sync anyo seq sync a sync r stat sel user sel cond dyn b

ident e rel P P P

ident i rel P

role rel P A P P P

hist rel P

count rel P P A

cat rel P

cat rel s P P

Figure 1: Integration choices for selected activity correspondences.

The choice of integration option is supported by the

mapping of the correspondences to speciﬁc integra-

tion operators.

The identiﬁcation of correspondences is the task of

the designer of the integrated system; the set of cor-

respondences identiﬁed is the speciﬁcation for the in-

tegration process. We denote such a correspondence

by relation(Act1,Act2), where relation is one of the ac-

tivity correspondences from the previous section, and

Act1 and Act2 are activities in two different business

processes. For example,, e.g., ident

i rel(A1,A2) states

the existence of an identity relationship for business

processes in different domains between the activities

A1 and A2.

In this section we describe the identiﬁcation of re-

lationships, deﬁnition of integration operators, and

mapping of semantic relationships to the integration

options.

We next deﬁne the integration operators by describ-

ing each single step in form of base operations and

auxiliary functions. Auxiliary functions return ele-

ments of a business process and can be seen as an

information source, but have no side effects on the

process model. Base operations are able to change the

model and can appear several times in an integration

operator.

For the deﬁnition we use the following notation:

Variable N stands for nodes that can be activity (A)

or control (C) nodes. F stands for fork nodes, J

join nodes, M merge nodes, D decision nodes, and

E edges.

2.1 Auxiliary functions

We deﬁne the following auxiliary functions used by

the integration operators:

isControlNode(N) returns true if node N is a control

node.

sourceEdge(A) returns the edge leading to activity

targetEdge(N) returns the edge outgoing from node

N. N can be an activity, a join, or a merge node.

targetNode(E) returns the target node of edge E.

sourceNode(E) returns the source node of edge E.

2.2 Base Operations

In the following we list the base operations used for

the deﬁnition of the higher level integration operators:

addJoin(E1,E2,N) adds a new join node J to the

model such that preexisting edges E1 and E2 now lead

to J, and an edge (J,N) is added. The function returns

addFork(N,E1,E2) adds a new fork node F and an

edge (N,F) to the model. The two preexisting edges

E1 and E2 are changed to have F as their source node.

F is returned.

addMerge(E1,E2,N) adds a new merge node M to

the model. The preexisting edges E1 and E2 are

changed have M as target node. An edge (M,N) is

added. The function returns M.

addDecision(N,E1,E2) adds a new decision node D

to the model and returns it. From N leads an edge to

D. E1 and E2 are leaving D. D is returned.

addActivity(S) adds a new activity node A with the

description S to the model and returns A.

addMergeDecision(E1,E2,E3,E4) adds a new

merge-decision node MD to the model and returns it.

The two incoming edges are E1 and E2, and the two

outgoing are E3 and E4.

addActivity(S) adds a new activity node A with the

description S to the model and returns A.

addEdge(N1, N2, [G]) adds an edge E to the model

directing from node N1 to node N2 with the optional

guard condition G. It returns E. Precondition: If N2 is

an activity, there must not be an edge pointing at N2.

If N1 is an activity, there must not be an edge going

out of N1. If N1 is a decision node, G must be set.

changeSource(E, N) sets N as the source node of

edge E. Returns E. The pre- and postconditions as-

sociated with the edge E associated with the edge E

must not be violated, and must not refer to the former

source node.

changeTarget(E, N) changes the target-node of

edge E to N. Returns E. The pre- and postconditions

associated with the edge E must not be violated and

must not refer to the former target node.

removeNode(N) removes the node N if it is not con-

nected to any edge.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

512

(same extension)

identity-related

car: select

manufacturer (A1)

car: select

manufacturer (A2)

Car insurance A (BP1) Car insurance B (BP2)

(a) Example of identity-related ac-

tivities.

Car insurance B (BP2)Car insurance A (BP1)

E1 E3

E4E2

manufacturer

car: select

(b) Example of applying sync.

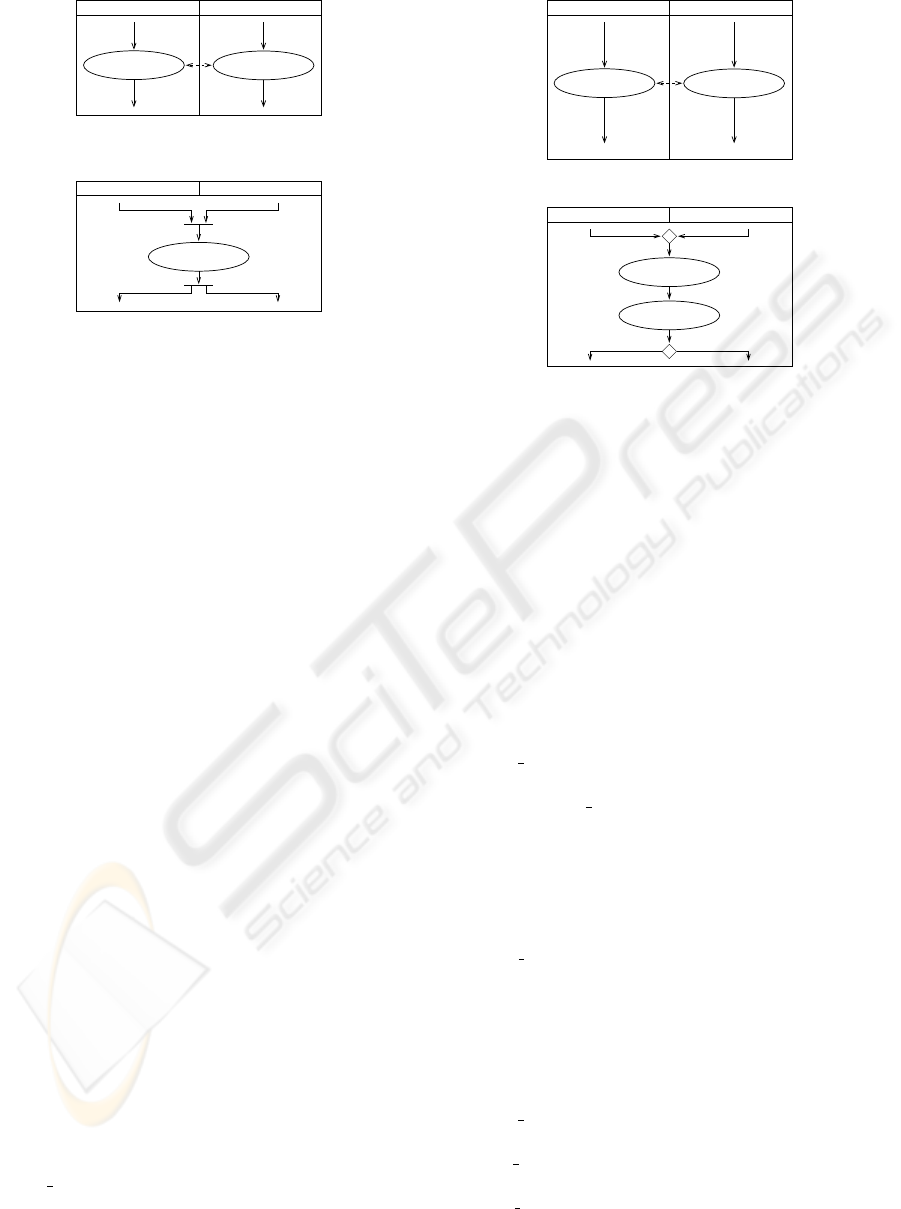

Figure 2: Example of using sync.

removeEdge(E) removes the edge E if it does not

contain a guard condition.

addGuardCondition(E, G1) adds a guard condition

G1 to edge E. If E already contains condition G0, then

the new condition will be “G0 AND G1”. Returns E.

2.3 Model transformation

We now deﬁne the different high level transformation

operators. They take two activities that are part of

a diagram and transform the local neighbourhood of

the diagram to provide consistent integrated behavior.

The context of the transformation is determined by the

permissible choices in Figure 1 - the listed preferred

(P) and alternative (A) options will produce meaning-

ful outcomes when the corresponding operators are

applied.

1. sync: The aim here is to provide synchronous exe-

cution for the identity-related activities A1 and A2

shown in Figure 2(a). The operator generates the

integrated model shown in Figure 2(b). The fol-

lowing commands synchronize the ﬂows of both

models leading into one of the two input activities,

removes the other activity, and add two outgoing

ﬂows leading to the former destination of the input

activities:

sync(A1, A2)

begin

addJoinNode(sourceEdge(A1),

sourceEdge(A2),A1); /* J */

addForkNode(A1, targetEdge(A1),

targetEdge(A2)); /* F */

removeNode(A2);

end

2. anyo: Another preferred integration option for

ident

e relationships is anyo (any order). In that

case the user can choose between seq(A1, A2) or

seq(A2, A1) (see below).

3. seq: Figure 3(a) shows the history-related activi-

car:

drive (A1)

Car insurance (BP2)Car dealer (BP1)

car:

is insured (A2)

history-related

E1 E3

E2 E4

(a) Example of history-related ac-

tivities.

is insured (A2)

car:

drive (A1)

car:

Car dealer (BP1) Car insurance (BP2)

ME5

E2 E4

E1 E3

’object type = BP1’ ’object type = BP2’

(b) Application of seq.

Figure 3: Example of using seq.

ties A1 and A2. The integration option for this re-

lationship is seq (sequential execution) which pro-

duces the output shown in Figure 3(b). In this case

the activities are set in a sequence according to the

time of their execution.

seq(A2, A1)

begin

addMerge(sourceEdge(A1),

sourceEdge(A2), A2); /* M */

addEdge(A2, A1); /* E6 */

addDecision(A1, targetEdge(A1),

targetEdge(A2)); /* D */

end

4. sync

a: The example of role-related activities is

shown in Figure 4(a). One preferred integration

option is sync a (synchronous execution and aggre-

gate results). The result is modeled in Figure 4(b).

The following command block synchronizes the

ﬂows leaving the two input activities A1 and A2.

A new activity is added to the model which con-

sists of an aggregation function, e.g., building the

sum of the results of A1 and A2 in a new object.

sync

a (A1, A2)

begin

addActivity(’aggregate: sum’); /* A3 */

addJoin(addEdge(A1,A3),

addEdge(A2,A3), A3); /* J */

addFork(A3, targetEdge(A1),

targetEdge(A2)); /* F */

end

5. sync

r: In the example shown in Figure 5(a) the

activities A1 and A2 are counterpart-related, with

sync r (synchronous execution and relating results)

being preferred. See Figure 5(b). The function

sync r() synchronizes the ﬂows leaving the input

activities A1 and A2 and insert a new activity af-

ter the synchronization which relates the results of

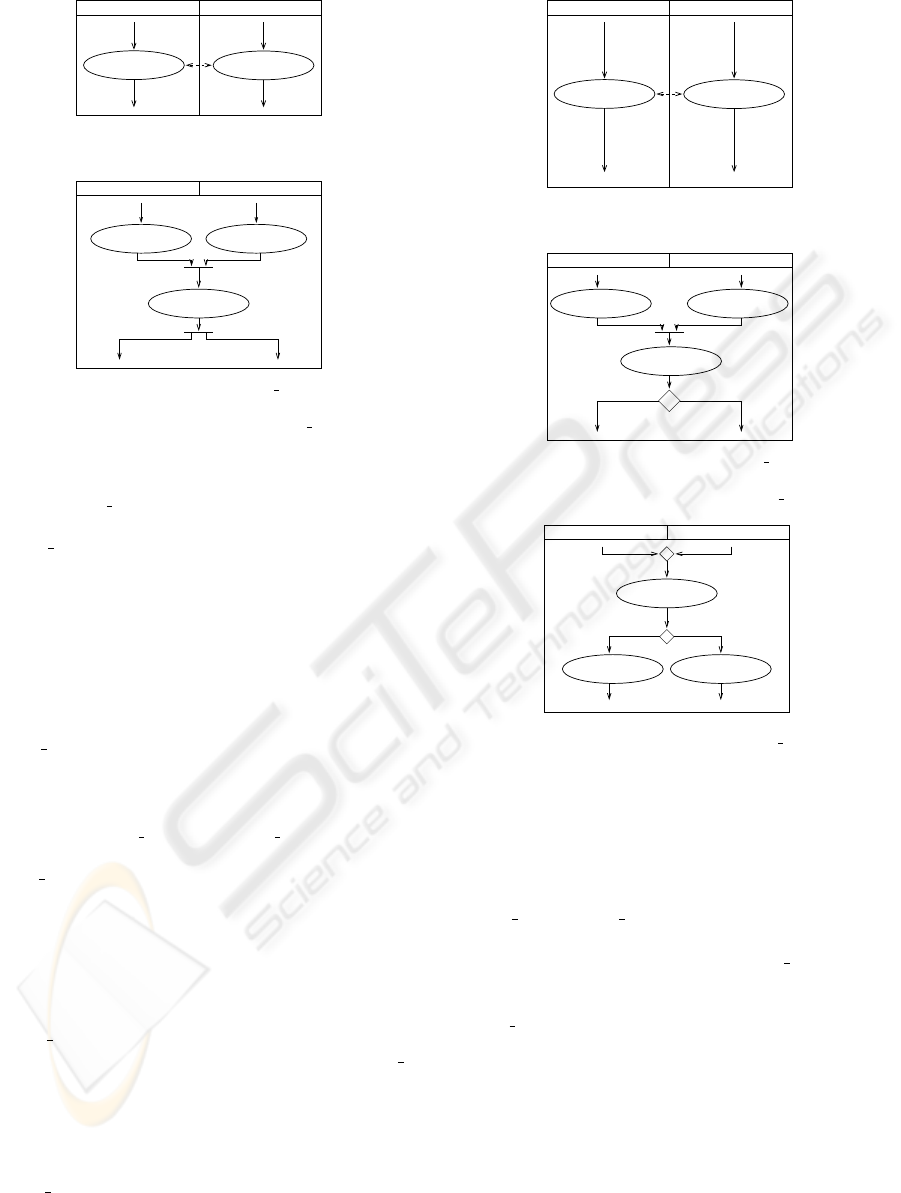

DEFINITION OF BUSINESS PROCESS INTEGRATION OPERATORS FOR GENERALIZATION

513

output:

salary (A1)

output

salary (A2)

Company (BP1) Government (BP2)

role-related

(a) Example of role-related activi-

ties.

sum (A3)

aggregate:

E5 E6

salary (A1)

output:

salary (A2)

output:

Company (BP1) Governement (BP2)

E1 E3

E2 E4

(b) Application of sync a.

Figure 4: Example of using sync a.

A1 and A2, e.g., select the minimum. The differ-

ence to sync

a is that one of the objects is selected

and the other one will be dismissed.

sync

r (A1, A2)

begin

addActivity(’relate: select minimum’); /* A3 */

addJoin(addEdge(A1,A3),

addEdge(A2,A3),A3); /* J */

addDecision(A3,targetEdge(A1),

targetEdge(A2)); /* D */

addGuardCondition(E2, ’object type = BP1’);

addGuardCondition(E4, ’object type = BP2’);

end

6. stat

s: The activities A1 and A2 are category-

related and represent the ﬁrst activities in the busi-

ness process. The user chooses one preferred ob-

ject type before the integration process, e.g., a sta-

tic sequence stat s(A1, A2) or stat s(A2, A1). In the

example below the activity A1 is preferred:

stat

s(A1, A2)

begin

addMerge(sourceEdge(A1),

sourceEdge(A2),A1); /* M */

addDecision(A1,targetEdge(A1),

targetEdge(A2)); /* D */

removeNode(A2);

end

7. user

s: The activities in Figure 4(a) are role-

related. Another preferred integration is user

(runtime selection based on user input) which pro-

duces the output shown in Figure 7. The following

commands add an activity which handles user in-

put and leads to a decision node which directs to

the user chosen activity.

user

s (A1, A2)

begin

addActivity(’ask user: which role?’); /* A3 */

addMerge(sourceEdge(A1),

Car insurance A (BP1) Car insurance B (BP2)

rate:

calculate (A1)

rate:

calculate (A2)

counterpart-related

E1 E3

E2 E4

(a) Example of counterpart-related

activities.

Car insurance B (BP2)

calculate (A1)

rate:

calculate (A2)

rate:

select minimum (A3)

relate:

Car insurance A (BP1)

E3E1

E5 E6

E2 E4

’object type = BP1’ ’object type = BP2’

(b) Example of applied sync r.

Figure 5: Example of using sync r.

Which role? (A3)

user:

salary (A1)

output:

salary (A2)

output:

Company (BP1) Government (BP2)

E1 E3

E4E2

E7 E8

Figure 6: Example of using user s.

sourceEdge(A2),A3); /* M */

addDecision(A3,addEdge(A3,A1),

addEdge(A3,A2)); /* D */

addGuardCondition(E5, ’object type = BP1’);

addGuardCondition(E6, ’object type = BP2’);

end

8. dyn

b: The dyn b option is used for category-

related activities as shown in Figure 7(a). The

output of the integration operator dyn b (dynamic

binding, i.e., automatic runtime choice based on

object type) is modeled in Figure 7(b).

dyn

b(A1, A2)

begin

addEdge(sourceNode(sourceEdge(A1)),

A1); /* E5 */

addGuardCondition(E5, ’object type = BP1’);

addEdge(sourceNode(sourceEdge(A2)),

A2); /* E6 */

addGuardCondition(E6, ’object type = BP2’);

addMergeDecision(sourceEdge(A1),

sourceEdge(A2),

E5,E6); /* MD */

end

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

514

petrol:

select type (A1)

petrol:

select type (A2)

Truck insurance (BP2)

category-related

Sportscar insurance (BP1)

(a) Example of category-related ac-

tivities.

petrol:

select type (A1)

petrol:

select type (A2)

Sportscar insurance (BP1) Truck insurance (BP2)

E2 E4

E1 E3

’object type = BP1’ ’object type = BP2’

E5 E6

(b) Application of dyn b.

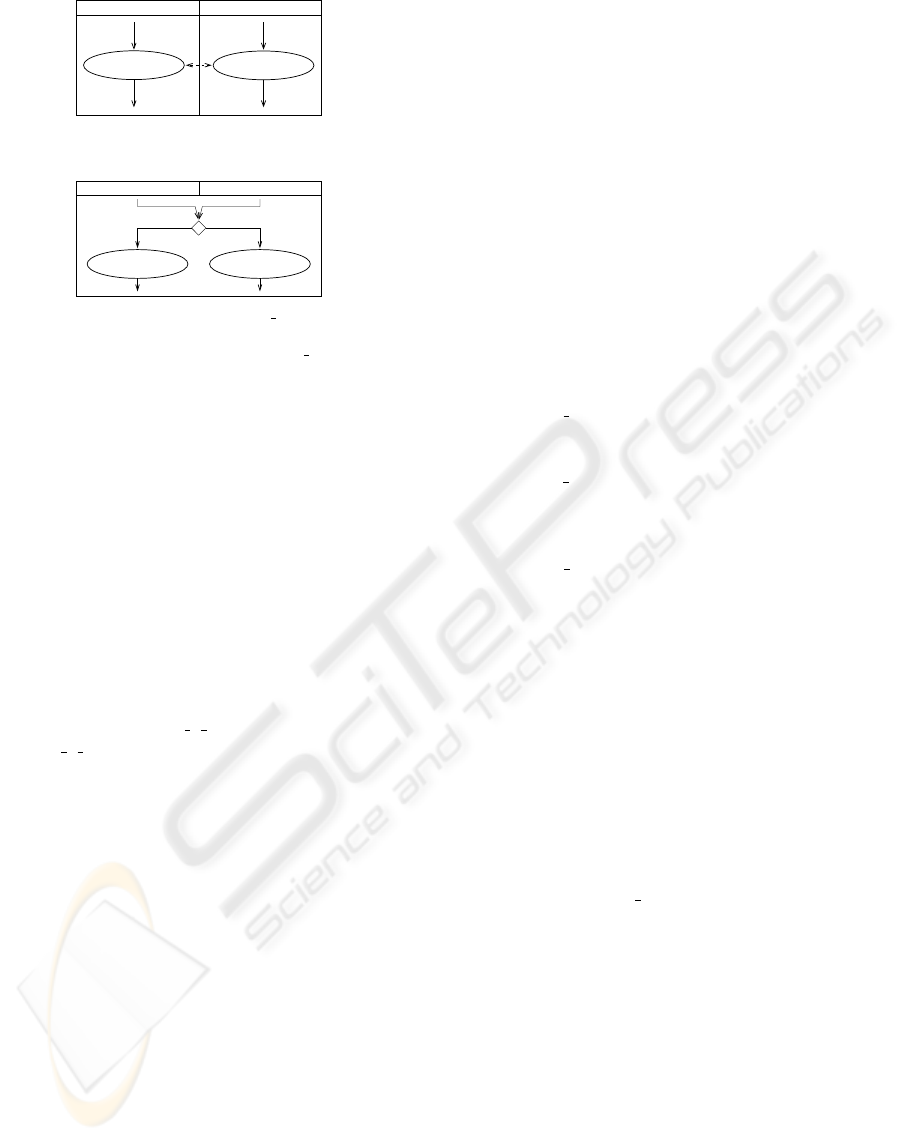

Figure 7: Example of using dyn

2.4 Mapping of integration options

The most important eligible combinations between

the high level operators and the activity correspon-

dences are shown in Figure 1. For space reasons,

only a subset of the relationships in (Grossmann

et al., 2004) is given, and we do not address all op-

erator subcategories. Note that the choice of op-

erator is normally not unique, as we do not arti-

ﬁcially overconstrain the considerable variability of

the integration task. However, there is signiﬁcant

guidance as to which combinations are appropri-

ate. The mapping is deﬁned before the integra-

tion process by the execution of the function ad-

dPreferredIO() and addAlternativeIO() , e.g., execut-

ing addPreferredIO(ident

e rel,sync) and addPreferre-

dIO(ident

e rel,anyo) according to Figure 1.

2.5 Integration choices

The second step of the integration process is the user

choice of integration options for each identiﬁed re-

lationship which is mapped to more than one op-

tion. The choices are submitted in the form choo-

seIO(RelShipID,IntOpt) where RelShipID is the cho-

sen relation and and IntOpt is the desired integration

option. After the user has assigned one integration

option to each relationship, the integration can be ex-

ecuted.

3 A LARGER EXAMPLE

We demonstrate our integration approach on two busi-

ness processes involving a car dealer and a car insur-

ance. The two businesses are in different domains,

one is in the insurances business domain and the other

one is in the car trading domain. Both businesses deal

with the same real world object “car”. The integrated

model allows customers to buy a car and a proper car

insurance at the same time. The two models of the

car dealer and the car insurance are shown in Figure 8

as business processes D and A. The integrated model

brings the following advantages to the car dealer and

customer:

• The car dealer can offer an additional service to his

customers.

• The customer does not need to go to the effort of

contacting an insurance company.

• The information about the car only needs to be pro-

vided once.

As explained in Section 1.2, we identify business

process correspondences ﬁrst which has already hap-

pened in Figure 8. The relationships are represented

by dashed arrows which are labeled with the name

of the speciﬁc relationship. In the example we have

identiﬁed the following relationships:

• R1 = ident

e(D1,A2): The submitted details about

the car are in both cases identical and so need not

to be provided twice.

• R2 = ident

e(D3,A7): Although both activities be-

long to two different offers, they are transmitted in

identical fashion. Both offers are sent together to

the customer in the integrated model.

• R3 = ident e(D4,A8): The two offers become one

and so will be negotiated together.

• R4 = count(D5,A9): The offers between the cus-

tomer, the car dealer and the insurance company are

saved and administrated separately in each com-

pany but combined later for the customer.

In a next step the proper integration options are

chosen and then applied. According to the Figure 1

we take the preferred integration operators and ap-

ply them on the activities which hold a relationship.

For the four relationships we choose the following op-

tions:

1. chooseIO(R1, sync)

2. chooseIO(R2, sync)

3. chooseIO(R3, sync)

4. chooseIO(R4, sync

The result of the execution sequence is shown in

Figure 9. The integrated model that is produced by the

execution of the integration operators is not satisfac-

tory because the model is not deadlock free. We iden-

tify two different deadlocks: (1) The business process

waits for an incoming instance at a join node which

can not arrive, e.g., after sending the offers to the cus-

tomer, the insurance offer is accepted but not the car

offer, (2) the business process is terminated although

an instance is still running, e.g., the negotiation about

the car offer is successful but the insurance is not. The

problems can be solved by removing redundant con-

trol nodes from the model. In Figure 9 we identify

two pairs of redundant decision nodes, (1) D1 and D2,

(2) D3 and D4. In each of these two cases, both deci-

sion nodes refer to the same real world situation and

DEFINITION OF BUSINESS PROCESS INTEGRATION OPERATORS FOR GENERALIZATION

515

CAR DEALER (D) CAR INSURANCE (A)

car:

details (D1)

type (A1)

cover:

car:

details (A2)

driver:

details (A3)

details (A4)

usage:

calculate prize (D2)

car:

offer:

sending (D3)

select payment (A5)

rate:

calculate (A6)

rate:

sending (A7)

offer:

negotiate (A8)

offer:

save (A9)

negotiate (D4)

offer:

save (D5)

yes

identity-e-related

accepted

yes

identity-e-related

not accepted

accepted

not accepted

counterpart-related

Figure 8: Car dealer and car insurance example.

CAR DEALER (D) CAR INSURANCE (A)

cover:

type (A1)

calculate prize (D2)

car:

rate:

calculate (A6)

select payment (A5)

rate:

usage:

details (A4)

driver:

details (A3)

save (D5)

offer:

save (A9)

combine offers

negotiate

yes

’object type = A’

’object type = D’

’object type = A’

accepted

not accepted

’object type = D’ ’object type = A’

accepted

not accepted

yes

details

car:

combine offers,

send it to cust.

combine offers

save

Figure 9: Integrated model of car dealer and car insurance.

CAR DEALER (D) CAR INSURANCE (A)

type (A1)

cover:

car:

calculate prize (D2)

details (A3)

driver:

usage:

details (A4)

rate:

select payment (A5)

calculate (A6)

rate:

save (D5)

offer:

save (A9)

yes no

accepted

not accepted

’object type = D’ ’object type = A’

car:

details

combine offers,

send it to cust.

negotiate

combine offers

save

Figure 10: Integrated model after restructuring.

so can be merged.

In Figure 10 the nodes D3 and D4 were merged to

D7, and D1 and D2 were merged to D8. A side effect

of this merging is the need to commute the forks past

the merged decision nodes, i.e., forks F1 and F2 are

replaced by F3, F4, and F5.

An algorithm for automatic detection of deadlocks

is described in (van der Aalst, 1998) where this prob-

lem is deﬁned as soundness property. Our example

does not include any constructs which are not able to

be modeled in Petri nets and so the algorithm can be

applied on our example as well. The ﬁnal deadlock

free model is shown in Figure 10.

4 CONCLUSION

In this paper we have deﬁned a set of high level in-

tegration operators for business process descriptions

based on UML 2.0 activity diagrams. The opera-

tor deﬁnitions are based on semantic categorisation

of the correspondences between the processes to be

integrated that was described in (Grossmann et al.,

2004). These correspondences constrain the set of

appropriate integration operator choices and provide

clear guidelines for the integration task while retain-

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

516

ing the ﬂexibility to choose between different options.

The operators are effective to use due to their simplic-

ity, and provide a unique toolbox for behavior-based

integration.

REFERENCES

Bukhres, O. A. and Elmagarmid, A. (1996). Object-

Oriented Multidatabase Systems: A Solution for Ad-

vanced Applications. Prentice Hall.

CACM (2002). Special Issue on Enterprise Application In-

tegration. Communications of the ACM, 45(10).

Conrad, S. (1997). F

oderierte Datenbanksysteme. Konzepte

der Datenintegration. Springer Verlag.

Frank, H. and Eder, J. (1999). Towards an Automatic Inte-

gration of Statecharts. In Proc. 18th Int. Conf. on Con-

ceptual Modeling (ER’99), LNCS 1728, pages 430–

444, Paris. Springer-Verlag.

Garc

ıa-Solaco, M., Saltor, F., and Castellanos, M. (1995).

A structure based schema integration methodology. In

Proceedings IEEE ICDE, pages 505–512, Taipeh.

Grossmann, G., Schreﬂ, M., and Stumptner, M. (2004).

Classiﬁcation of business process correspondences

and associated integration operators. In Proc. Int’l

Workshop on Conceptual Modeling Approaches for e-

Business (eCOMO), LNCS 3289, pages 653–666.

Klas, W. and Schreﬂ, M. (1995). Metaclasses and their Ap-

plications: Data Model Tailoring and Database Inte-

gration. LNCS 943. Springer-Verlag, Berlin, Heidel-

berg.

Parent, C. and Spaccapietra, S. (1998). Issues and ap-

proaches of database integration. Communications of

the ACM, 41(5es):166–178.

Preuner, G., Conrad, S., and Schreﬂ, M. (2001). View In-

tegration of Behavior in Object-Oriented Databases.

Data and Knowledge Engineering, 36(2):153–183.

Preuner, G. and Schreﬂ, M. (1998). Observation Consistent

Integration of Business Processes. In Proceedings of

the Australasian Database Conference (ADC), Aus-

tralian Computer Science Communications, Vol. 20,

No. 2, pages 201–212.

Schmitt, I. (1998). Schema Integration for the Design

of Federated Databases. Dissertationen zu Daten-

banken und Informationssystemen, Vol. 43. inﬁx-

Verlag, Sankt Augustin.

Schreﬂ, M. and Neuhold, E. J. (1988). Object class deﬁn-

ition by generalization using upward inheritance. In

Proceedings of the International IEEE Conference on

Data Engineering, pages 4–13. IEEE Computer Soci-

ety Press.

Stumptner, M., Schreﬂ, M., and Grossmann, G. (2004). On

the road to behavior-based integration. In Proceedings

1st Asia-Paciﬁc Conference on Conceptual Modelling,

pages 15–22.

van der Aalst, W. (1998). The Application of Petri Nets

to Workﬂow Management. The Journal of Circuits,

Systems and Computers, 8(1):21–66.

Vermeer, M. W. W. and Apers, P. M. G. (1997). Behaviour

speciﬁcation in database interoperation. In Confer-

ence on Advanced Information Systems Engineering,

pages 61–74.

DEFINITION OF BUSINESS PROCESS INTEGRATION OPERATORS FOR GENERALIZATION

517
