A MICROKERNEL ARCHITECTURE FOR DISTRIBUTED

MOBILE ENVIRONMENTS

Thomas Bopp, Thorsten Hampel

Heinz Nixdorf Institute,University of Paderborn, Fuerstenallee11, Paderborn, Germany

Keywords: Microkernel, Distributed Objec

ts, Peer-to-Peer, CSCL.

Abstract: Microkernels are well known in the area of operating systems research. In this paper we adapted the concept

of microkernel to the field of Computer Supported Cooperative Work and Learning (CSCW/L) to provide a

basic underlying architecture for various collaborative systems. Such architecture serves well for the fields

of mobile and distributed collaborative infrastructures with its new inclusion of small mobile devices and

ad-hoc network structures. Our architecture provides a distributed object repository for an overlay network

of CSCW/L peers. Nodes can dynamically join and leave this network and each peer is still autonomous. In

this network different kinds of peers exist depending on the module configuration of a system. So-called

super-peers with lots of storage and computing power provide gateways to the network (for example

HTTP).

1 INTRODUCTION

While the World Wide Web is still the standard way

of accessing documents in the Internet, various new

applications are created for communication and

collaboration. In particular, the emergence of Peer-

to-Peer systems with the pioneers of Napster and

Gnutella reduced the gap of consumers and

producers. Everyone can bring their own content

into the peer-to-peer network and share it with other

users. Instead of the classic client/server

infrastructure we now have a collaboration of equal

partners.

Furthermore the Internet has grown from

machines

with a permanent connection at the office

to users at home connecting temporarily to the

Internet. The latest developments are wireless

networks where users can connect with notebooks

and personal digital assistant (PDA). Instead of a

communication to a central server there is also the

possibility to communicate with another device in

close proximity.

As another development more and more smaller

obile devices come into the focus of the users.

Mobile devices lack resources such as memory and

computing power required for existing centralized

architectures.

In this paper we present a microkernel

architecture to

support different kinds of

environments. On one hand there are static

environments with machines with good processing

power and in general a lot of resources to be used by

an application. On the other hand there are also

networks without a permanent connection to the

Internet and there are nodes joining and leaving that

network dynamically. Each of these nodes might

have varying processing power and storage capacity.

As a common underlying architecture for

plications on different devices the microkernel at

first offers functionality to load, exchange, and

remove modules. Appropriate modules will provide

all other necessary functionalities.

The core components of our architecture support

teraction, offer persistence of objects and provide

security. Using protocols like JXTA the different

nodes build an overlay network where different

peers are in contact with each other. Each node of

this network can have a different configuration

though and we can roughly distinguish between two

types of peers:

• Devices

on users’ site connecting to the

network

• Server m

achines with huge storage and

processing capacity

To make all devices in the network work

gether it is necessary to meet the requirements of

151

Bopp T. and Hampel T. (2005).

A MICROKERNEL ARCHITECTURE FOR DISTRIBUTED MOBILE ENVIRONMENTS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 151-156

DOI: 10.5220/0002545101510156

 SciTePress

the ones with limited resources. The microkernel

allows different module configurations and therefore

the same software is able to run on the different

devices.

The main reasons for microkernel architecture

instead of a monolithic system can be identified as:

• Use of resources: Mobile devices have less

processing power and disk capacity than

large server systems.

• Extensibility: The modular architecture

allows flexibility in adding new modules and

replacing existing ones.

• Maintainability: The components (modules)

of the system can be maintained separately.

Each server administrator can maintain his

own server.

• Configurability: On different platforms the

system can be configured with different

modules.

• Alternative communication infrastructure

and mobility: The architecture does not rely

on a central communication infrastructure. In

particular, ad hoc communication as part of

mobile scenarios is now possible.

• Security: The module concept allows

different security modules to run on the same

system and interact with each other. Each

server can set its security policies.

• Platform independence: The system is

independent from the operating system. This

means the same software can be used in

different environments.

Our recent conceptual approach in the field of

Computer Supported Cooperative Work and

Learning (CSCW/L) has been to build cooperative

knowledge spaces. As one implementation the result

is a monolithic client/server system called sTeam

(Hampel and Bopp 2003). The idea of this system is

to combine document management facilities with a

room metaphor in collaborative knowledge spaces.

Although in our system there is some basic

support for modules, it fulfils part of the criteria

above and will not run on small devices like PDA.

Each sTeam server uses a local database and is not

able to use different persistence layers.

Apart from that it is our goal to connect rooms of

different servers. Therefore our first solution was an

enhancement of our monolithic server architecture

by creating a new type of inter-server object called

“shadow” (Bopp et al, 2004). Unfortunately the old

server architecture needs a fundamental redesign to

be able to transparently connect these rooms.

Due to the shortcomings of a monolithic system

we developed a new underlying architecture. This

architecture has been designed to be as simple as

possible in order to make it understandable for a

larger Open-Source development Community.

This paper will outline the main characteristics

of this Microkernel-based architecture for both

mobile peer-to-peer scenarios and multi-server

approaches.

First we briefly present some related work. The

Microkernel itself is described in section 3. At the

end of the paper we present some important modules

and how a distribution of object can be achieved.

2 RELATED WORK

A kernel is the essential part of a system. It is

responsible for allocating resources, security and

other crucial tasks.

A microkernel (Rashid et al, 1989) is a kernel

that consists of the minimum required functions to

run a system. All additional functionality is moved

into modules, which are dynamically loaded by the

kernel.

The concept of microkernel is common in the

area of operating systems. The idea of this work is to

adapt this concept to the area of computer supported

cooperative learning and working.

The JADE project (Oliveira et al, 1999) has

taken a quite similar approach for the area of

graphical virtual environments. The Java-

Implementation guarantees platform independency

and makes it possible to run the software on

different devices. The microkernel manages

modules, which are executed in the context of their

creators. Therefore each module can has different

permissions.

Another important concept of the JADE

microkernel is the communication design. It

provides three possibilities:

• Passive Communication: Objects provide static

methods for invoking the functionality.

• Local Events: Objects are subscribing to events

inside modules and modules are also able to

subscribe events inside any object or other

modules.

• Central Events: There are central instances

keeping track about any event. It is possible for

modules to subscribe to central events and

therefore be notified about everything.

Maverik (Hubbold et al, 1999) is a GNU Project

similar to JADE, but is implemented using the C

language. It is a platform for large-scale applications

of virtual reality. Even though the system runs on

different operating systems, there is no general

platform independence. Another microkernel

architecture for virtual environment is Bamboo

(Watsen and Zyda, 1998), which is written in the

C++ language.

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

152

All of the microkernels above are designed for

graphical virtual environments. Therefore the kernel

includes a lot of predefined functionality for this

context. Due to that they are not working on mobile

devices like PDA.

Also the MadKit agent infrastructure (Gutknecht

et al, 2001) is based on a microkernel approach. It

offers an underlying agent platform, which is able to

integrate different agent architectures. At its core it

offers some agent-specific functionality like the

control of local groups and roles and agent-lifecycle-

management. It launches agents and assigns them

global unique identifiers. Apart from that the

message passing between local agents is handled by

the microkernel.

OceanStore (Kubiatowicz, 2000) is a peer-to-

peer cooperative file system. It is object based and

objects are replicated. This replicas are called

floating replicas because they are independent from

a server and might be moved from one server to

another. The system creates an overlay network

where users can access the content of all the nodes

in the network.

Even though Eclipse is known as a JAVA

development tool, it is also a microkernel-based

architecture. It provides a plug-in management,

which resolves dependencies between different plug-

ins. The system is not suited for a CSCW-

microkernel, because it loads some core modules by

default. Those are responsible for the user-interface,

which is not needed by all peers in a peer-to-peer

network. Also it is too resource hungry to run on

mobile devices like PDA, because it is a Java-AWT

interface. Apart from that the eclipse system

includes a lot of important concepts, which have

been integrated into our microkernel architecture.

3 MICROKERNEL

ARCHITECTURE

The microkernel is the core component of our room-

based CSCW/L-System. Its functionality is

minimized to load and configure modules. As the

second main function it provides the object class as

the core class of an object-oriented system. Apart

from that there is basic network support to open

ports and connections with different protocols to

other hosts.

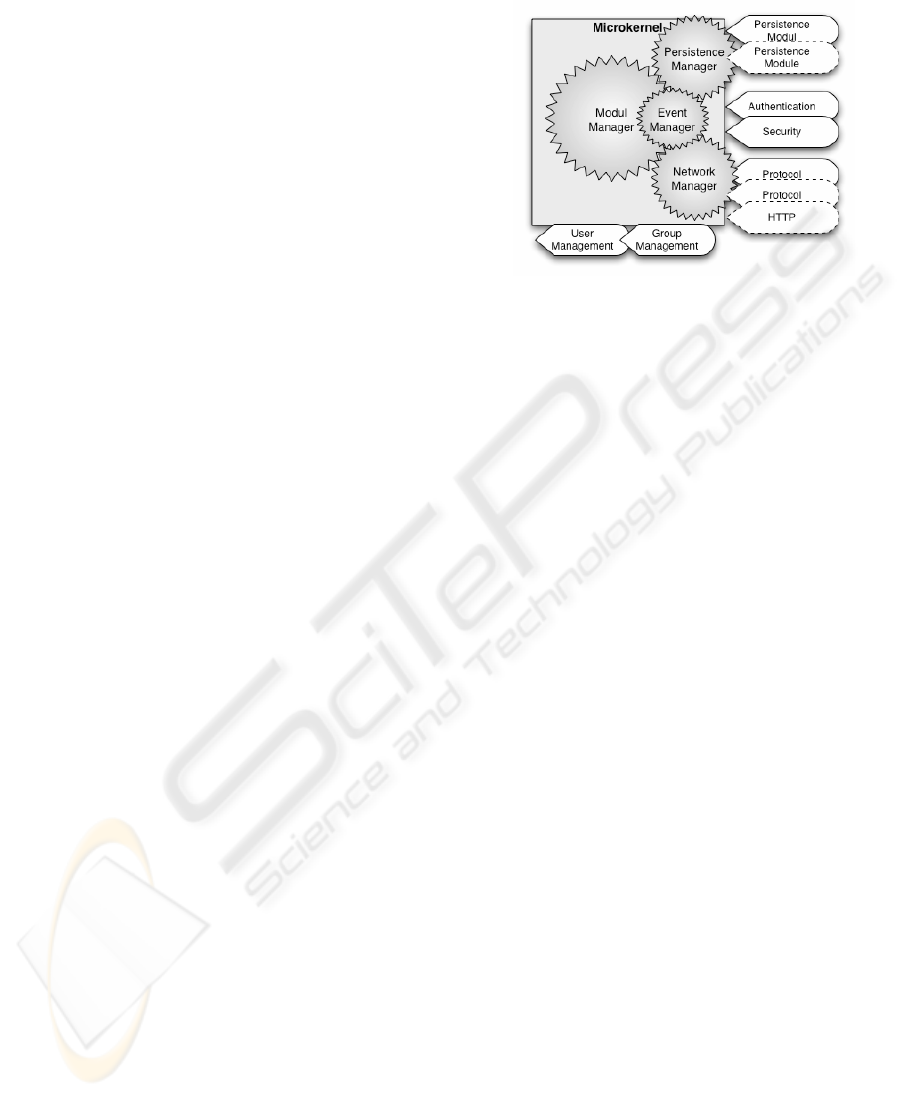

Figure 1 shows the kernel with different modules.

Beside the module manager there is persistence and

network support. The communication between the

kernel and the modules is handled by events (a

detailed description of the event system can be

found in the next section).

The resulting application is defined by the set of

modules configured. The minimum configuration

Figure 1: Microkernel

consists of a persistence module, at least one

protocol and a security module.

When loading the modules of the application, it

is important to determine an order for the load

process, because of dependency. The Eclipse

Framework offers a comprehensible plug-in

mechanism: modules can require each other or

extend others. This model has been adapted for our

architecture. Each module has its own configuration

file to define dependencies between different

modules. For example there might be a file

persistence module for storing objects in the local

file system. Furthermore there could be a persistence

module, which provides a database for storing the

objects. Both modules would extend the basic

persistence layer.

The persistence manager of the microkernel is

able to deal with several persistence modules. Those

modules can use a database or other locations to

store objects. The system is also able to provide

objects for external clients using protocols like

JXTA. The result is a remote persistence module

that works on the resources of another node. In this

sense the other node provides a repository for

objects. So there is a remote persistence module on

the one side and a repository on the other. The

repository is just another view on the objects of that

node. This is called a network view and is derived

from the basic view module. In a classical sense, a

view represents a graphical display of the objects

(see Krasner and Pope 1988).

The overlay network is created using this

functionality. Each node can have its own repository

of objects and provide them to other nodes, which

access objects by a special kind of persistence layer.

This remote persistence works in the same way as

any other persistence module, but needs to keep

connections to other nodes of the network. If every

object is accessible within the network the nodes

build a shared space. Any node can access any

A MICROKERNEL ARCHITECTURE FOR DISTRIBUTED MOBILE ENVIRONMENTS

153

object (of course permissions are checked) in the

network and due to that it is possible to transparently

move through the shared object space.

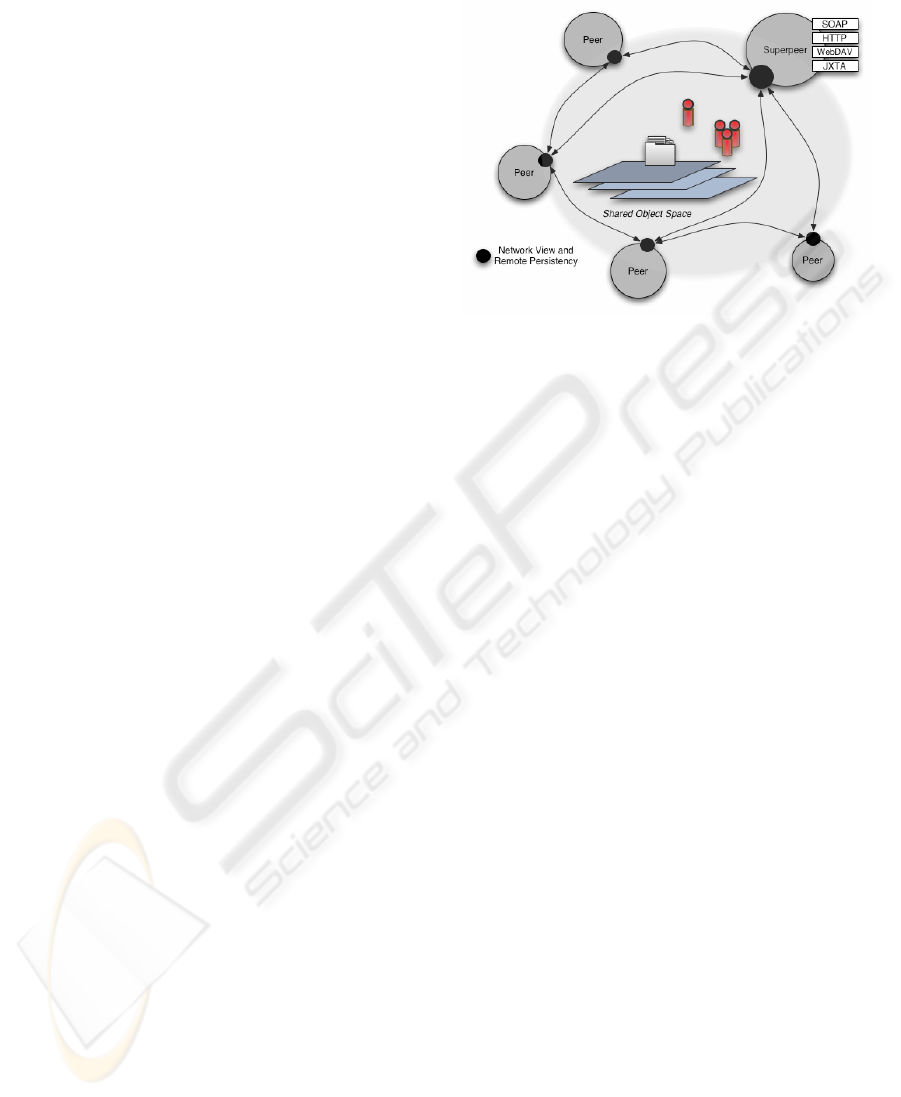

Figure 2 illustrates the idea of the shared object

space with some peers and one super-peer (Mizrak

et al, 2003), which contain more storage space and

some additional protocols. Due to that it also

functions as a gateway and provides access to the

whole shared object space to external users (for

example using a Browser to access objects).

Due to the different module configurations of the

nodes, each node can provide varying functionality.

In general we distinguish between two types of

nodes:

• Static Nodes: typically on machine with

static IP; they provide lots of functionality

and consist of many objects since there have

large capacity; they are similar to classic

servers.

• Dynamic Nodes: with changing Internet

address; they provide varying functionality

depending on the device and application; the

minimal functionality is to work as an object

broker and provide communication with

other nodes.

Although in a peer-to-peer network all peers are

equal and should have the same functionality, the

two classes above are acceptable. The first class of

nodes offers the same functionality as the second

class, but in addition provides more capabilities.

Those nodes can be called super-peers. They offer a

gateway into the network with different protocols.

For example a device with limited resources, like a

PDA, might not be able to offer a HTTP-Server.

Super-peers provide this kind of functionality. Apart

from that they have a static IP address and allow

other nodes to build their initial connection to the

network.

In order to make the microkernel run on all

different devices, it needs to be platform

independent. This can be accomplished by using

JAVA (or any other platform independent language)

as the programming language. With the possibility

of different module configurations the kernel is

scalable to use different resources and thus works on

devices with small resources. On a PDA the

persistence layer could use a memory card and

provide basic functionality for storing and retrieving

objects.

The speed of the JAVA language compared to

compiler languages like C or C++ is not such an

important issue, because the design of the network

with sharing of processing power and storage

capacity of the different nodes distributes the load

on the nodes. Apart from that, a CSCW/L system

uses fewer resources than a graphical virtual

environment like Bamboo. The platform

independence is much more important in the context

of a CSCW-system. Moreover all critical code can

Figure 2: Shared Object Space.

be implemented as a library and imported to the

microkernel as a module.

Due to the modular design of the system it is

always possible to add new modules and thus

enhance the system. On the other hand modules can

be exchanged with different ones providing the same

interface, but working in a different way.

Good examples for this are security plug-in that

might work differently on each peer and define own

security policies. Thus any peer in the network is

autonomous and can be maintained by its local

administrator.

Since the modules are the key components of the

microkernel and define the application, the next

section will describe the most important module

types of our architecture.

4 MODULES

Modules are the key components of the CSCW/L

application. Some of them are loaded at system start-

up and some functions are called to initialize the

modules. Other modules are dynamically added to

and removed from to the system as and when

necessary.

The communication between the modules takes

place through events. The design of our event

system is similar to the JADE implementation of

events. There are local events inside any object in

the system and there are also global events. For local

events the subscriber has to specify the object and

the type of event. When the event takes place the

subscriber is notified.

The global events work quite similar, but instead

of subscribing to a single object the subscriber calls

one central event-instance, which keeps track of all

events inside the system. The subscriber is notified

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

154

about any event-type that takes place for all objects.

The subscription of events enables the modules to be

notified about all actions within the server.

In a room-based CSCW/L system, the modules

that provide persistence; offer communication using

different network protocols; and provide security are

core modules. Security modules handle permissions

for users in the context of their environment

(rooms). In particular, the possibility of using

different security modules guarantees the autonomy

of peers within the network.

The following types of modules can be found in a

CSCW/L system based on our architecture:

• Security: Provide a security layer for the

application. The security system is bound to

the event system. Since each action triggers

an event it is possible to block them and

thus a security mechanism is provided.

• Persistence: Objects need to be stored in a

database and must be retrieved at the point

of access. After a reboot of the system all

objects must be still present and no data is

lost. The types of persistence are usual a

database or a file system. A remote

persistence module allows the access of

objects on different nodes of the network.

• Views: A view displays the objects of the

microkernel in a certain way. An application

like a whiteboard offers a view of the

objects by displaying them in spatial,

synchronous view. There are also network

views, which provide the objects by some

object-oriented protocol.

• Controller: The application logic is part of

these modules. They offer various

functionalities and combine the components

of the application.

Any loaded module is just available once in the

server (a singleton). It is not possible to create

several instances of a single module. Also unlike the

objects the modules are not distributed through the

nodes of the network.

5 DISTRIBUTED OBJECTS

Our microkernel-based CSCW/L architecture uses a

fully object-oriented design with different classes.

Each object in the server can be uniquely identified

by its object id (OID). Since this id is only unique

for the local persistence layer, the id must be

extended by an id for each persistence layer. This

namespace id (NID) describes the physical location

of an object. When the persistence layer needs to

locate an object it has to identify the place where to

look for the object. Otherwise it is not possible to

uniquely retrieve the object, because the same OID

could be used in different persistence modules.

Apart from that for a globally unique

identification of an object the server ID (SID) must

also be included in the id of the object.

The attempt to generate a unique global

identification for each object is common in the area

of peer-to-peer systems. For example OceanStore

uses a GUID (global unique identifier) (Kubiatowicz

et al, 2000). It is composed from the objects name

and its owners key.

The objects are distributed through the network

and a shared object space is the result of the

combination of view and remote persistence layers.

The persistence managers retrieve objects from

remote repositories and create local replicates of

them. For the lifetime of those replicates the state is

synchronised using the event system of the

microkernel.

Any action of a user triggers events, which are

distributed through the views to the remote

persistence modules. Those events can be used for

notification about modification of objects. The local

replicates are updated accordingly.

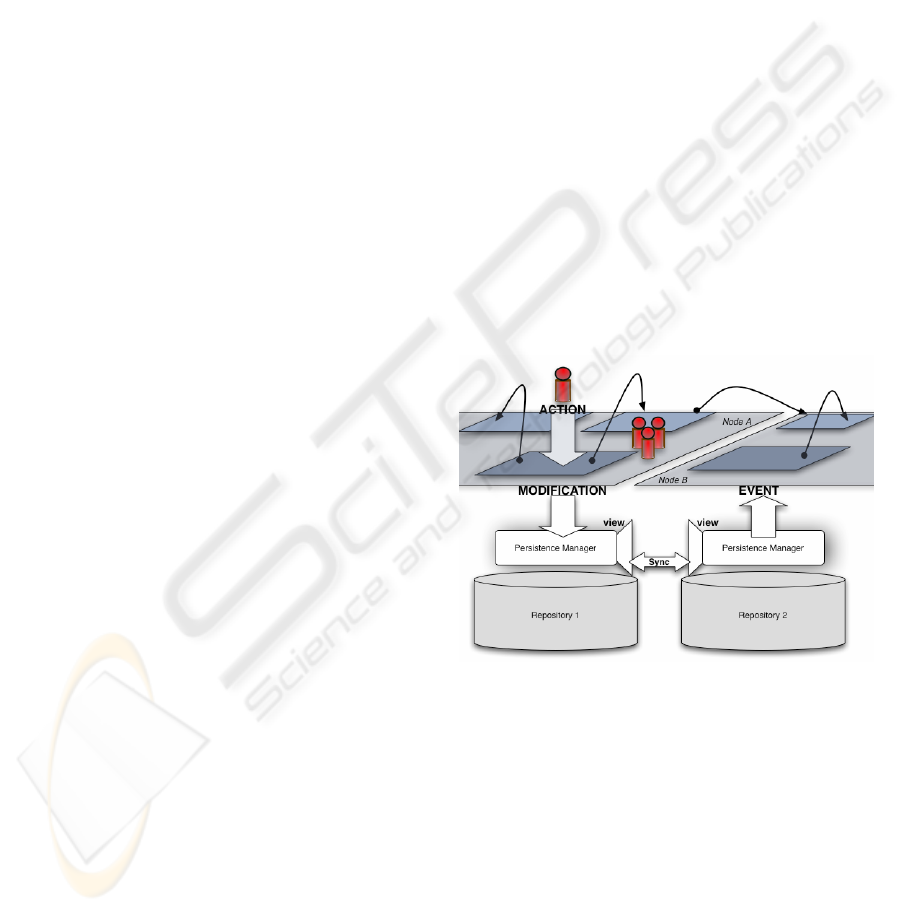

Figure 3 shows the modification of an object as a

result of a user’s action. The persistence managers of

Figure 3: Network Views and Object Synchronisations

two servers communicate with each other using the

event mechanism.

Apart from this the events need to be propagated

between servers to allow cooperation of users. When

synchronous cooperation takes place it is necessary

to be notified about all changes within a user’s

environment.

In this context one important concept is the use

of virtual rooms as a meeting place for users.

Besides this room-class there are some more classes

for all components of a CSCW/L system, e.g. for

Documents, Users, Groups and so on. Each of these

classes provides the same interface as the object

class. Additionally there are some special methods

A MICROKERNEL ARCHITECTURE FOR DISTRIBUTED MOBILE ENVIRONMENTS

155

for each class. For example the class Document

provides methods for storing and retrieving content.

6 CONCLUSION

This paper can only focus on some modules of our

architecture. As the core architecture is designed

around a strong object-oriented approach, all other

classes and objects are shaped to the same design

rules and architectural foundations as presented.

We have shown that the microkernel is a

reasonable concept for a CSCW/L system. With

protocols and object repository functionality it

builds an additional network layer. It works as an

underlying architecture for applications on static

servers as well as mobile devices.

Due to the java implementation with modular

functionality, it is independent of the platform and

works on almost any operating system.

Moreover our microkernel architecture supports

students with a very tight code base. All the

functionality is moved into modules with well-

defined interfaces. Due to this, it allows an open

source community to collaboratively extend the

overall architecture. E.g. it is possible to work on

just a few modules without understanding the rest of

it in detail.

Most importantly, the view/remote-persistency

pairs in our approach establish a CSCW/L overlay

network. All objects of every node in the system are

available in the shared object space. Most of them

are located at super-peers with huge storage capacity

and processing power. Those peers also provide a

gateway into the overlay network. Additionally they

provide a View for external clients like Browsers

and are also capable of accessing all objects of the

shared object space.

The shared space is also an active repository of

objects. All actions within the server are triggered

and events are propagated from one server to

another.

Current and future work focuses on the aspects

of ad-hoc communication as basis on the above

presented architecture. Here problems of replicated

and distributed objects in distributed knowledge

spaces have to be solved. Objects have to be moved

transparently for the user from one to another peer

when mobile peers are leaving or joining the

network. Concepts of mobile knowledge spaces and

persistent knowledge spaces apply. Our

microkernel-based architecture proves to offer great

flexibility in developing and evaluating these

concepts and architectures.

REFERENCES

Bopp, T.; Hampel, T.; Eßmann, B.: Connecting Virtual

Spaces. Proceedings of the ICEIS 2004, Sixth

International Conference on Enterprise Information

Systems, 475–479.

Eclipse Platform Technical Overview.

http://www.eclipse.org/whitepapers/eclipse-

overview.pdf, 2004.

Gutknecht, O.; Ferber, J.; Michel, F.: Integrating Tools

and Infrastructures for Generic Multi-Agent Systems.

Proceedings of the fifth international conference on

Autonomous agents, 2001, 441–448.

Hampel T.,Bopp T. (2003): Combining Web Based

Document Management and Event-Based Systems -

Integrating MUDS and MOOS Together with DMS to

Form a Cooperative Knowledge Space. ICEIS 2003,

Proceedings of the 5th International Conference on

Enterprise Information Systems, pages 218-223.

Hubbold, R., Cook, J., Keates, M., Gibson, S., Howard T.,

Murta, A.,West, A., Pettifer, S.: GNU/MAVERIK: A

Micro-Kernel for Large-Scale Virtual Environments.

Proceedings of the ACM Symposium on Virtual

Reality Software and Technology 1999, 66–73.

Krasner, G.E., Pope, S.T.: A cookbook for using the

Model-View-Controller interface paradigm. Journal of

Object-Oriented Programming 1(3) 1988, 26–49.

Kubiatowicz, J.; Bindel, D.; Chen Y.; Eaton, P.; Geels, D.;

Gummadi, R.; Rhea, S.; Weatherspoon, H.; Weimer,

W.; Wells, C.; Zhao, B.: OceanStore: An Architecture

for Global-scale Persistent Storage. Proceedings of

ACM ASPLOS, 2000.

Mizrak, A.; Cheng, Y.; Kumar, V.; Savage, S.:

Structured superpeers: Leveraging heterogeneity to

provide constant-time lookup. Proceedings of the

Third IEEE Workshop on Internet Applications, 2003,

104–111.

Oliveira, M.; Crowcroft, J., Brutzman, D., Slater, M.:

Components for distributed virtual environments.

Proceedings of the ACM Symposium on Virtual

Reality Software and Technology 1999, 176–177.

Rashid, R.; Baron, R.; Forin, A.; Golub, D.; Jones, M.,

Julin, D.; Orr,, D.; Sanzi, R.: Mach: A foundation for

Open Systems. In Proceedings of the 34th Computer

Society Ithe Second Workshop on Workstation

Operating Systems(WWOS2), September 1989.

Watsen, K.; Zyda, M.: Bamboo - A Portable System for

Dynamically Extensible, Real-Time, Networked

Virtual Environments. Proceedings of the IEEE

Virtual Reality Annual International Symposium

1998.

ICEIS 2005 - SOFTWARE AGENTS AND INTERNET COMPUTING

156
