MODEL SHARING IN THE SIMULATION AND CONTROL OF

DISTRIBUTED DISCRETE-EVENT SYSTEMS

Fernando Gonzalez

Department of Electrical and Computer Engineering

University of Central Florida, Orlando, Florida 32816

Keywords: Discrete Event Systems, Modeling, Simulation, Control, Distributed Systems

Abstract: Today, sophisticated discrete-

event systems are being designed whose complexity necessitates the

employment of distributed planning and control. While using a distributed control architecture results in the

overall system model consisting of a collection of independent models, today's commercially available

simulation languages can only accommodate a single model. As a result, in order to use these simulation

languages one must create a new system model that consists of a single model but yet models a collection of

models. Typically the communication among the distributed models is ignored causing inaccurate results.

In this paper we use our simulation concept, also presented in this paper, to create a simulation tool that

enables the simulation of distributed systems by using a collection of models rather than a single model.

With our concept we create a methodology that accomplishes this by simulating the communications among

the distributed models. Besides the benefit of not having to create a new model for simulation, this

methodology produces an increase in accuracy since the communication among the models is taken into

consideration. Furthermore this tool has the capability to control the system using the same collection of

models.

1 INTRODUCTION

Flexible manufacturing systems represent an

interesting control problem because they generally

have its control architecture distributed among many

different computers. While creating a controller for

each subsystem is not difficult, coordinating the

individual controller to perform a common task may

be more challenging. Manufacturing systems are

typically modeled using discrete-events. And

discrete-event simulation is commonly used to

evaluate possible alternative actions used in decision

making. This leads to a modeling problem. Since the

controller of the plant is distributed, that is it

consists of many controllers running independently,

and the simulation model must not be distributed

how is one to model a system using a single model

when the actual controller consists of a collection of

models? Currently the solution is to create a new

model that captures the control logic of the complete

controller system. This of course requires writing a

new model that hopefully captures this true control

logic correctly including all of the communication

among the controllers. In addition to representing a

significant modeling effort, it leads to a source of

error. This is especially true when you consider

modeling the communication. In this paper we

present a modeling approach that has the capability

of accepting a collection of models. We can use the

models that are used for control directly by simply

including them into the simulation. Not only can our

simulation handle the collection of models but it also

automatically models the communication among the

controllers. This paper is based on the simulation

and control of distributed large complex systems

whose behavior is characterized by discrete events

such as a flexible manufacturing system, FMS. FMS

produce many part types concurrently in very small

quantities. These systems are difficult to control

because they generally operate in a highly transient

state.

The following research efforts are related to our

work. (Peters

et al. 1996), (Smith et al. 1994) and

(Smith and Peters 1998) have adapted Arena

(Kelton, Sadowski and Sadowski 2001) to control

their experimental FMS. However, unlike the

modeling approach to be discussed in this paper,

their control architecture uses one hierarchical level

where a single supervisor, the cell controller,

144

Gonzalez F. (2005).

MODEL SHARING IN THE SIMULATION AND CONTROL OF DISTRIBUTED DISCRETE-EVENT SYSTEMS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 144-151

DOI: 10.5220/0002549401440151

 SciTePress

manages a set of subordinate processes. In their

modification of Arena, they have included special

events in order to facilitate message passing among

the controllers. Furthermore, to model a complex

FMS or other multi-level, distributed system, the set

of modeling elements provided by ARENA, as well

as most simulation languages, severely constrains

the modeling process. This is particularly true when

one attempts to assess the impact of the control

architecture upon the system. (Davis et al. 1993) and

(Davis 1998) details the numerous restrictions that

current simulation languages impose upon the

modeling of hierarchically distributed systems.

(Mize et al. 1992) further discusses the inaccuracies

that ensue from using current simulation languages

in order to model an FMS.

(Narayanan et al. 1992), (Govindaraj et al.

1993) and (Bodner and Reveliotis 1997) have also

developed simulation tools that are capable of

controlling a system. They claim that the typical

approach to address the complexity of FMS control

systems is a hierarchical decomposition. A widely

used decomposition features tree layers, Strategic

Decisions, Tactical Decisions and Operational

Decisions, (Arango and Prieto-Diaz 1991) and

(Stecke 1985). In (Bodner and Reveliotis 1997),

(Govindaraj et al. 1993), and (Narayanan et al.

1992), they claim that to handle lower level issues

involving the real-time control, two additional layers

are needed. The Structural and Equipment Control

layers address issues such as deadlock avoidance. In

these papers, hierarchical decomposition refers to

the logical decomposition of the decision making

process while we refer to it as the actual

decomposition of the controller that yields a

distributed controller. Incidentally they also claim

that FMS exist but there are no controllers for them.

The notions of multi-resolutional architectures

and task decomposition have been discussed by

many. The interested reader is referred to (Albus and

Meystel 1995 and 1997) for a discussion of these

terms. In the same reference, these authors discuss

their reference architecture for distributed intelligent

control and the associated real-time control system

for its implementation. The major distinction

between their architecture and ours, discussed

below, is that they have separated the planning and

control functions within a given controller. Our

approach does not separate these functions.

Secondly, we make heaver use of on-line simulation.

2 THE DISTRIBUTED MODELING

METHODOLOGY

This methodology presents a very novel approach to

simulating distributed systems using a single thread.

It is assumed that the control architecture is

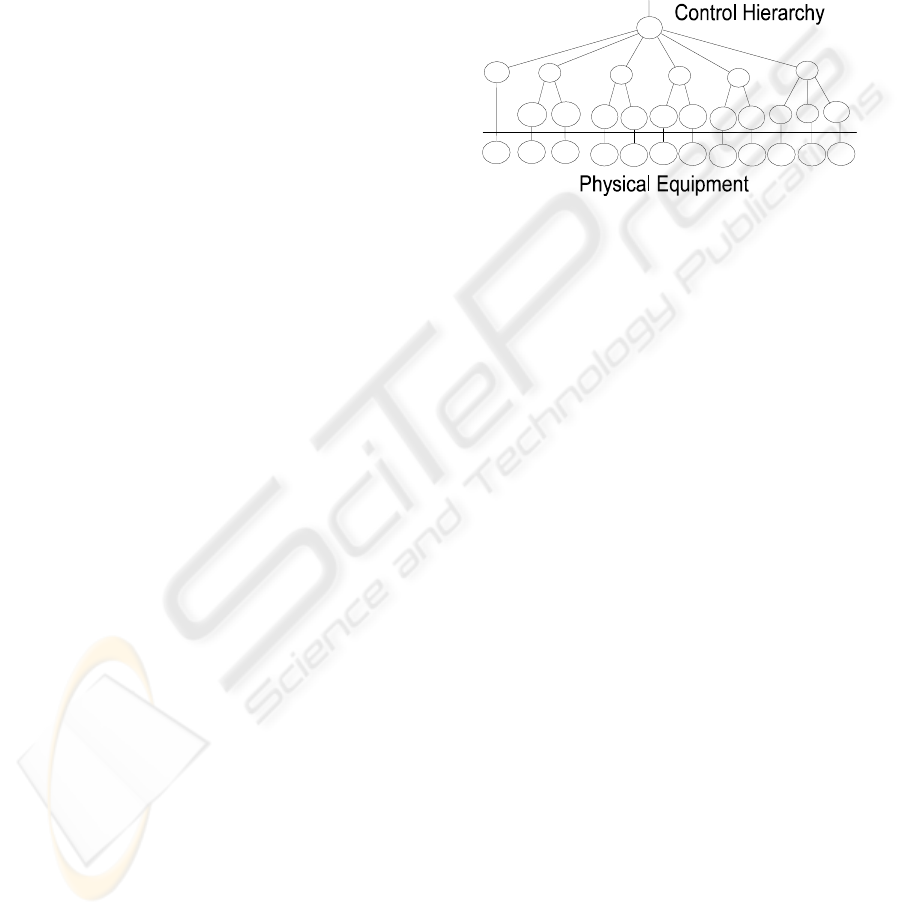

hierarchical. Figure 1 shows a typical control

architecture for an example system.

Figure 1: The hierarchical architecture used in our

physical model

This methodology is based upon the belief that

the interactions among the controllers must be

considered by the simulation model in order to

accurately model a system with a distributed control

architecture. The single most important

characteristic of the methodology and what separates

it from other object-oriented simulation approaches

is its attention to modeling the flow of messages

among the controllers included within the

architecture. By modeling the flow of messages, the

methodology allows the simulation to accommodate

any number of models. Recall that the controller is

distributed. That means that there are many

independent controllers each running with its own

model. This methodology allows us to simulate the

complete system using the models from the

controllers (Gonzalez 2004). This has many

advantages:

1. The simulation is more accurate since it includes

all of the communication among the distributed

controllers. This was the original motivation for

developing our methodology.

2. The simulation produces maximum fidelity since

the same models are used for both simulation and

control. Model verification is a major effort in

modeling usually requiring more effort then to

actually build the model. Furthermore there is

always the risk that the model does not represent

the control logic correctly. Using our method

reduces the chances of discrepancies between the

models used for simulation and those used for

control. This simplifies the verification phase of

MODEL SHARING IN THE SIMULATION AND CONTROL OF DISTRIBUTED DISCRETE-EVENT SYSTEMS

145

modeling and produces a model that represents

the true logic.

3. The modeling effort is shared between control

and simulation. They both share the same models

so only one set is made. In fact without our

methodology many more models will have to be

created. Since each controller has a different set

of subordinate controllers in its control domain,

each one will need a different model. Only the

model in the very bottom row will be able to use

there exiting models. Each model will need to

include its own logic as well as the logic of all of

its subordinate controllers.

4. The control and simulation models necessarily

employ the same state definition since they are in

fact the same code. This simplifies the task of

initializing the simulation model to the current

system-state. If the simulation and control

models employ different state definitions, which

is the case when one employs conventional

simulation approaches, then one must translate

the measured system variables into values for the

state variable employed within the simulation

model. This is a relatively large effort (Gonzalez

and Davis 1998a).

5. This methodology offers multiresolutional

modeling for simulation. Since the system

models have a hierarchical organization, the

simulation resolution can be dynamically

selected by selecting the levels in the hierarchy

to include models for. For example, in Figure 1,

if the top most controller wants to make a fast

but rough decision it may only include the next

level down. This increases the simulation speed

at a cost of accuracy. Furthermore if a controller

on the 2nd level wants to make a decision it will

only include the 3 controllers below it since the

others have no relevance to its decision. Since

the models are independent, to vary the

resolution we simply include the desired models

with no extra modeling effort required.

3 THE SIMULATION AND

CONTROL TOOL

In order to use the control models in the simulation

directly a tool needs to be used that can run in

control and simulation mode, in this way the same

model, written for the same tool, can be used for

both control and simulation. The state definition can

then be simply the contents of the model’s variables

without any need for interpreting the information in

these variables. We have developed a tool based on

this methodology. This tool is described in more

detail in (Gonzalez and Davis 2003). The goal for

developing this software tool is to provide a

simulation approach using C++ that provides the

modeling convenience of a conventional simulation

language while providing the additional modeling

capabilities that are needed to control a real-world

system, particularly hierarchically distributed

systems. A set of C++ objects was developed in

order to provide the basic necessary modeling

elements that are employed in nearly all simulation

and control scenarios, irrespective of which

modeling methodology is being employed.

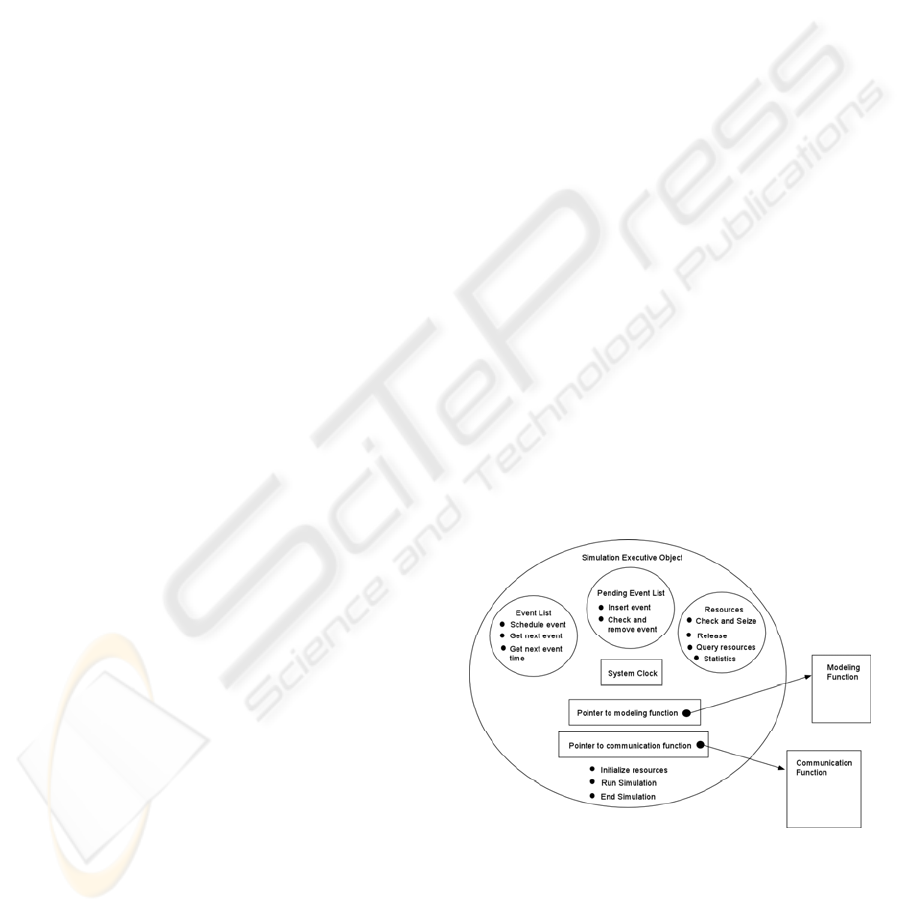

In this tool each included modeling element is

represented as an object in C++. As with most

simulation approaches, the adopted simulation

approach is event-driven, and an executive object

manages the sequential processing of events. Two

event lists (discussed below) are maintained where

the events are stored as they wait to be executed at

the proper simulated time. The simulation object,

Figure 2, is a C++ object that contains the scheduled

event list, pending event list, list of resources, the

executive function, a pointer to the system model,

and the communication object that interacts with the

hardware. The executive function manages the

chronologically ordered scheduled event list and the

pending event list. It manages the processing of the

events as they are removed from the event lists,

schedules new events that are to be placed into either

the scheduled or pending event list, and manages the

allocation of resources. After each event is

processed, the simulation object removes the next

event with the smallest event time from the event list

and then invokes the proper object to manage the

event’s execution.

Figure 2: The Executive Object.

Using a streamlined approach, there are two

basic types of events that can occur. The

QUESEIZE event occurs when resources become

available for assignment to a requesting entity. The

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

146

DELAY event occurs whenever a delay is

completed. There are also other types of events that

provide capability for control but which are not

considered in most simulation tools, including the

PENDING, TIMEOUT, and ERROR events.

In order to run, the system model must be

attached to the simulation object. A communication

function must also be provided to the simulation

object in order to permit this object to communicate

with the hardware when the model is running in a

control mode. This function handles all of the

communications among the distributed controllers

and the various machines.

The simulation object can operate in the

following two modes:

Simulation mode: In this mode, the system clock

advances in discrete increments. Every time an

event is pulled off the event list, the time is

incremented to the event’s time of occurrence.

No hardware is present. The model executes

purely as a software program.

Control mode: In control mode, the system clock

runs in real time. That is, the system clock is a

conventional clock, like the one on the wall,

where time advances continuously. The events

are pulled off the event list when their event time

occurs. Hardware may be present. The pending

event list is used to allow the executive function

to determine when events occur.

4 DISTRIBUTED MODELING

In order to build the complete simulation model, one

simply includes all of the simulation objects into a

single program along with the coordination object.

The coordination function within the coordination

object coordinates the execution of all of the

simulation objects. It also has the global event list

and the message relay discussed later. When the

distributed model is executed upon a single

computer, only one of the simulation objects can be

executed at a given time because there is only one

computational thread. In order to emulate all of the

simulation objects operating concurrently on a single

processor, the coordination function executes one

simulation object for a short time and then switches

to another object. The coordination function uses its

global event list and its message relay to determine

which simulation object to execute next. The

individual simulation objects return control back to

the coordination function when it is done executing

all of the events that occur during that instance of

time. Note that in simulation, the time it takes the

computer to execute the segment of event code that

handles is usually neglected, and an event can be

assumed to occur in an instance of time.

Furthermore, if an event triggers the immediate

execution of another event, then this second event is

assumed to occur at the same instant of time. This is

why the coordinating function has the liberty to give

control to an individual simulation object for the

duration that it takes that object to execute an event

while meeting the stated objective of emulating

concurrent operation.

In a nondistributed simulation of the system, the

executive function constantly cycles in a loop. This

loop starts by checking the event list for the next

event. It then executes this event. After executing

the event, it checks to see whether there are any new

events resulting from the execution of this event. An

event may cause a second event to execute by the

releasing of resources. Thus, the execution of an

event may cause a chain reaction. All the events in

this chain are executed within this single executive

function cycle. In control mode, at the end of the

current cycle, the executive function checks to see

whether any message has arrived from the

communication pipelines. If a message has arrived,

the pending event list is then checked to find the

proper event to be executed. In either mode, the

executive function then initiates a new event-

processing cycle.

In order to permit several executive objects to

operate concurrently while in the control mode, the

executive function is modified so that it cycles

through the loop only once every time it is called.

Furthermore, it does not check the communication

pipelines at the end of the cycle. All the

communication is handled by a message relay

contained within the primary executive function.

The executive function is responsible for calling the

executive function of the model that will execute the

next event. At this time, the submodel’s executive

function cycles through the event-processing loop

once and then returns program control back to the

coordinating function. This method of sharing the

computing processor operates on a similar principle

as many multi-tasking operating systems.

Another special feature of our simulation tool is

the manner by which messages enter the model.

Instead of checking the communication lines every

time the executive function reaches the end of an

event processing cycle, the lines are not checked at

all. Rather, the coordination function manages the

flow of messages. Whenever a message is present,

the coordination function calls the executive

function of the appropriate submodel’s object and

provides it with the message. The executive function

of that object then handles the message by executing

the proper events in the same way that it previously

MODEL SHARING IN THE SIMULATION AND CONTROL OF DISTRIBUTED DISCRETE-EVENT SYSTEMS

147

handled a message when it was responsible for

detecting the message arrival. We adopted this

approach to insure that a single entity, namely the

coordination function, was responsible for

monitoring the arrival of all messages.

The last feature in our simulation software is the

DELAY modeling element. When a DELAY

element is executed, in addition to scheduling a

DELAY event onto the submodel’s scheduled event

list, it also automatically schedules a DELAY event

into the coordination object’s global event list as

well. Using this approach, the coordination function

maintains a chronologically ordered, global event

list with all of the events associated with every

simulation object. The coordination function uses

this global event list to determine which simulation

object will be invoked next. Since the scheduling of

events into this global event list occurs

automatically, the user does not need to consider this

global event list when modeling a local delay. From

the user’s point of view, the delay is modeled in the

same way as if the model were not a member of a

collection of distributed simulation objects. As a

matter of fact, no part of the submodel has to be

modified to accommodate the distributed simulation.

Each submodel executes as though it is running on

its own dedicated computational thread. This is

important because it allows the modeling engineer to

implement a distributed model the same manner as

when the model was not distributed. Again this

feature is essential because the model will be used

both to project the response and to control the

system.

5 THE COORDINATION

FUNCTION

The coordination function is a supervisory function

that manages the execution of all of the submodels’

simulation objects. The coordination object contains

a global event list and a message relay. This

function runs in a cycle much the same way the

simulation objects do when running independently

(not as part of a distributed simulation). In the

typical simulation mode, the event-processing cycle

starts by removing the next event from the global

event list and passing it to the appropriate submodel

for execution. While a submodel is being executed,

the message relay, which acts as the network,

receives all of the messages that are generated by the

submodel that is currently executing. These

messages are stored in the rear of the message queue

within the message relay, which is used to model the

network. Once the submodel finishes executing its

current event-processing cycle, the coordination

function removes the first message from the front of

the message queue and passes it to the recipient

submodel. The submodel then receives the message

and executes the appropriate functions that are

needed to handle the message. Additional messages

may again be generated and are inserted at the rear

of the message queue. Once control is returned to

the coordination function, it removes the next

message from the front of the message queue and

recycles it though the message-processing loop.

This procedure is repeated until no messages remain

in the message queue. At this time the coordination

executive function finishes its cycle and begins the

next cycle by removing the next event in the global

event list and passing it to the appropriate simulation

object.

Global Event List

Message Relay

Figure 3: Simulation involving 3 models

The events in the global event list tell which

submodel will address the event and the time at

which the event occurs. When an event is pulled off

the list, the simulated time is then advanced to the

next event’s event time. The event type is not

recorded on the global event list, as this information

is contained within the submodel’s local event list

and need not be duplicated. The coordination

function then calls the appropriate submodel and

passes it the current simulated time. The submodel,

knowing that it is responsible for executing the next

event, pulls the next event off its local event list and

executes it. As stated above, it only executes its

executive function’s event processing cycle up to the

point where the communication lines are to be

checked. At this point, program control is returned

to the coordination function where the function then

checks the message relay and continues its cycle.

See Figure 3 above.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

148

6 AN ILLUSTRATIVE EXAMPLE

The following section illustrates an example of a

real physical system that is controlled using a

distributed model. A simulation using the same set

of distributed models for the considered system is

also performed. Each of the sub models for the

included controllers was programmed using the

simulation tool discussed above. In Gonzalez and

Davis (1998b), the physical system is discussed in

greater detail while in Gonzalez and Davis (1997)

the employed simulation model is discussed.

The physical system is a model of a flexile

manufacturing system. The schematic for the

constructed FMS emulator is shown in Figure 4 and

a photograph is depicted in Figure 1. This model

provides a testbed for the development of the

simulation and control tool that is needed to manage

the system. Note that since we are assuming the

system is a real FMS, we thus have modeled it using

a collection of independent models.

Machine 1

Machine 4

Machine 2

Machine 3

Fixturing

Stations

1 and 2

Dedicated LAN

Cell

olle

MHS (PLC)

olle

To Network Server

HO Gauge Train Track

Entry Point

from Shop Level

Exit Point

to Shop Level

Figure 4: Schematic for the constructed FMS physical

model.

The emulator has four Processing Centers,

numbered 1 through 4. Each Processing Center (PC)

contains one primary processing resource and a

dedicated Material Handling System (MHS). Within

the emulated FMS (see Figure 3), another process is

the Fixturing Center (FC). The FC has a dedicated

MHS consisting of a primary carousel capable of

holding sixteen jobs and two smaller carousels for

loading and unloading jobs from the Automatic

Guided vehicle (AGV). The movement of these

carousels is controlled by a dedicated controller.

The FC has two fixturing positions that represent the

subordinate unit processes. The final subordinate

process is the cell’s MHS. AGVs are employed as

the primary material handlers at the cell level and

are modeled with an HO-scale electric train. In this

layout, there are over forty track segments that can

be individually powered. Sensory switches are

provided on each track segment to detect the

presence of an AGV.

Figure 5: Photograph of the hardware model

In constructing this control architecture, 25

independent copies of the simulation tool was

employed, each with its own model of the subsystem

that it is addressing and all running concurrently, see

Figure 1. The only thing that ties them together into

a single-control architecture is the communication

among them. The communication is performed

across a local area network (LAN) connecting seven

computers where the cell controller and each of the

cell’s six subordinate controllers are situated on their

own computer. Additional communication links are

provided via RS-232 links between the FC and PC

controllers and their dedicated hardware controller

boards.

In this example, the developed model controlled

the physical system. The controller was given a total

of three jobs, each with two processing steps. Each

processing step required the part to be moved to a

different machine. In addition to the processing of

the part, before and after each processing step the

part had to be moved to the fixturing center for

fixturing. There were four Sun Work stations and six

controller boards. The software controllers were

distributed among the four workstations. Each

controller board controlled the hardware that was

attached to it. The same model was employed to run

the simulation in order to project the future

performance of the system given its current state.

The state of the hardware is used to initialize the

state of the simulation models. However since they

are in fact the vary same software code the state

transfer simply represents a straight forward

initialization of each variable in the simulation

model from the corresponding variable in the control

model. No interpretation as to the physical meaning

of these variables data is necessary. The message

transcript for both the actual run and the simulation

run were similar. The only difference was due to the

MODEL SHARING IN THE SIMULATION AND CONTROL OF DISTRIBUTED DISCRETE-EVENT SYSTEMS

149

discrepancy between the estimated and actual

duration times. No changes had to be made to any

of the models in order to switch from using them for

control or simulation.

Since there is no tool that can accept a collection

of models, simulating this system with commercial

simulation software like ARENA will be impossible.

The method that is commonly used to model

distributed systems is to create a new equivalent

simulation model that is not distributed. This

however represents a considerable modeling effort.

For example, the complete modeling effort for our

system, including the models for control as well as

the simulation models, is cut by 72% over using a

conventional modeling tool. Using a conventional

tool would have resulted in a modeling effort

equivalent to writing models for 88 units where as

we only wrote 25 models, one for each of the 25

units. And this does not include the extra modeling

effort that goes into modeling the communications

among the controllers, which, for our system is

integrated into the tool and therefore represent no

additional modeling. If one wants to incorporate

simulation at different resolutions then this requires

additional modeling using a commercial tool. Our

tool provides all levels of resolution using the basic

set of models. One simply includes those models

whose logic we want represented.

7 CONCLUSIONS

The distributed simulation and control system was

successfully tested on our physical simulator of an

FMS consisting of 4 single processor machines, 1

double processor machine and an automated guided

vehicle system. For the sake of demonstration the

system used 6 independent computers to control the

hardware. Real-time simulations of the distributed

controller using our methodology were concurrently

executed using the same control models. The

simulations were initialized to the current state of

the hardware before starting. This allows the

simulations to produce future predictions.

We have shown an implementation of a tool that

along with a coordination object can simulate a

distributed system using the individual models. The

key issue for this implementation to work is our

distributed modeling methodology where each

individual simulation object is included into the

simulation program and the coordination function

coordinated the execution of each simulation object

to model the concurrent processing. The

coordination function uses its global event list to

organize the execution of the simulation object by

chronological order. The simulation objects in tern

only execute the immediate event and do not cycle.

One of the most important advantages of using

the same models for both simulation and control is

that the state definition is simply the data in the

variables of the models. This allows for the

simulation to be initialized with the current state of

the controller with only a trivial copying of the data

to a 2nd copy of the model. This solves a major

problem in control. That is, the state does not need

to be interpreted to meaningful information to

initialize a different model.

REFERENCES

Albus, J. S. and A. Meystel, 1997, “Behavior Generation

in Intelligent Systems,” National Institute of Standards

and Technology Internal Report, Gaithersburg, MD.

Albus, J. S. and A. Meystel, 1995, “A reference model

architecture for design and implementation of semiotic

control in large and complex systems” In

Architectures for Semiotic Modeling and Situation

Analysis in Large Complex Systems: Proceedings of

1995 ISIC Workshop, 33- 45, AdRem Press, Bala

Cynwyd, Pennsylvania.

Arango G., and R. Prieto-Diaz, 1991, “Domain analysis:

concepts and research directions,” Domain Analysis

and Software Systems Modeling, Los Alamitos, CA:

IEEE Computer Society Press, pp. 9-33.

Bodner D. A., S. A. Reveliotis, 1997, “Virtual factories:

an object-oriented simulation-based framework for

real-time FMS control,” Proceedings of the 6th

International Conference on Emerging Technologies

and Factory Automation, pp. 208 –213.

Davis W. J., D. Setterdahl, J. Macro, V. Izokaitis, and B.

Bauman, 1993, “Recent Advances in the Modeling,

Scheduling and Control of Flexible Automation,”

Proceedings of the 1993 Winter Simulation

Conference, pp. 143-155.

Davis W. J., 1998, “On-Line Simulation: Need and

Evolving Research Requirements,” Simulation

Handbook, J. Banks, ed., Wiley, pp. 465-516.

Gonzalez F. G., W. J. Davis, 1997,"A Simulation-Based

Controller for Distributed Discrete-Event Systems

with Application to Flexible Manufacturing,"

Proceedings of the 1997 Winter Simulation

Conference, pp. 845-853.

Gonzalez F. G., W. J. Davis, 1998a,"Initializing On-Line

Simulations From the State of a Distributed System,"

Proceedings of the 1998 Winter Simulation

Conference.

Gonzalez F. G., W. J. Davis, 1998b, "Developing a

Physical Emulator for a Flexible Manufacturing

System," Proceedings of the 1998 International

Conference on Systems, Man and Cybernetics.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

150

Gonzalez F. G., A. Helton, D. Helton, J. Smith, E.

Thompson, G. Walterscheild, 2000, "The Design of a

Solid-State Physical Model of an Automated System

to be used as a Test Bed for Control Applications,"

Proceedings of the 2000 Winter Simulation

Conference.

Gonzalez F. G., W. J. Davis, 2003, "A New Simulation

Tool for the Modeling and Control of Distributed

Systems," SIMULATION the Journal of the Society for

Computer Simulation International, Vol. 78, Issue 9,

Sept. 2002.

Gonzalez F. G., 2004, “Intelligent Control of Distributed

Large Scale Manufacturing Systems,” Proceedings of

the 2004 National Science Foundation Design, Service

and Manufacture and Industrial Innovation Grantees

and Research Conference.

Govindaraj T., L. F. McGinnis, C. M. Mitchell, D. A.

Bodner, S. Narayanan and U. Sreekanth, 1993,

“OOSIM: A Tool for Simulating Modern

Manufacturing Systems,” Proceedings of the 1993

National Science Foundation Grantees in Design and

Manufacturing Conference, pp. 1055-1062.

Kelton W. D., R. P. Sadowski, and D. A. Sadowski, 2001,

Simulation with ARENA, McGraw-Hill, 2nd ed.

Mize J. H., H. C. Bhuskute, and M. Kamath, 1992,

“Modeling of Integrated Manufacturing Systems,” IIE

Transactions, vol. 24, no. 3, pp.14-26.

Narayanan S. D., A. Bodner, U. Sreekanth, S. J. Dilley, T.

Govindaraj, L. F. McGinnis and C. M. Mitchell, 1992,

"Object-Oriented Simulation to Support Operator

Decision Making in Semiconductor Manufacturing,"

Proceedings of the 1992 International Conference on

Systems, Man and Cybernetics, pp. 1510-1519.

Peters B. A., J. S. Smith, J. Curry and C. LaJimodiere,

1996, “Advanced Tutorial - Simulation Based

Scheduling and Control,” Proceedings of the 1996

Winter Simulation Conference, Eds. J. M. Charnes, D.

J. Morrice, D. T. Brunner and J. J. Swain, pp. 194-198.

Smith J. S., R. A. Wysk, D. T. Sturrock, S. E.

Ramaswamy, G. D. Smith and S. B. Joshi, 1994,

“Discrete Event Simulation for Shop Floor Control,”

Proceedings of the 1994 Winter Simulation

Conference, pp. 962-969.

Smith J. S., B. A. Peters, 1998, “Simulation as a decision-

making tool for real-time control of flexible

manufacturing systems,” Proceedings of the 1998

International Conference on Robotics and

Automation, pp. 586-590.

Stecke K. E., 1985, “Design, planning Scheduling and

Control problems of flexible manufacturing systems,”

Annals of Operation Research, vol. 3.

MODEL SHARING IN THE SIMULATION AND CONTROL OF DISTRIBUTED DISCRETE-EVENT SYSTEMS

151
