A UML-Based Methodology for Secure Systems:

The Design Stage

Eduardo B. Fernandez, Tami Sorgente, and María M. Larrondo-Petrie

Department of Computer Science and Engineering, Florida Atlantic University,

777 Glades Road SE-300, Boca Raton, Florida 33431-0991 USA

Abstract. We have previously proposed a UML-based secure systems devel-

opment methodology that uses patterns and architectural layers. We studied re-

quirements and analysis aspects and combined analysis patterns with security

patterns to build secure conceptual models. Here we extend this methodology

to the design stage. Design artifacts provide a way to enforce security con-

straints. We consider the use of views, components, and distribution.

1 Introduction

In a previous paper we proposed a new type of analysis pattern, called a Semantic

Analysis Pattern (SAP) [1]. A Semantic Analysis Pattern is a pattern that describes a

small set of coherent use cases that together describe a basic generic application. The

use cases are selected in such a way that the application can fit a variety of situations.

Using SAPs we developed a methodology to build the conceptual model systemati-

cally. To use the methodology it is necessary to first have a good collection of pat-

terns. We have developed several analysis patterns, e.g., [2], [3], [4], [5], [6], and a

good number of others exist in the literature, e.g., [7], [8]. These patterns are abstrac-

tions of real applications. We have made some experiments to show that they result in

good quality conceptual models that are convenient to use when developing complex

applications. An important quality aspect is security.

Security is a serious problem, especially for complex applications. This complexity

could provide m

any opportunities for attacks. It is then important to build these appli-

cations in a systematic way. We have proposed a development approach that applies

security throughout the whole lifecycle and uses security patterns [9]. As part of this

work we have produced a variety of security patterns, e.g., [10], [11]. We showed

that we can combine SAPs and security patterns in a natural way to create authorized

SAPs, which can be converted into secure designs [12]. We start by using SAPs to

build conceptual models and the necessary security constraints are then defined. We

consider here how to carry over the security model of the analysis stage into the de-

sign stage. Design artifacts such as views, components, and distribution can be used

to enforce the security constraints defined in the conceptual model.

B. Fernandez E., Sorgente T. and M. Larrondo-Petrie M. (2005).

A UML-Based Methodology for Secure Systems: The Design Stage.

In Proceedings of the 3rd International Workshop on Security in Information Systems, pages 207-216

DOI: 10.5220/0002558102070216

 SciTePress

Section 2 introduces SAPs and security patterns. Section 3 shows how security

patterns are added to conceptual models. In Section 4 we show how these analysis

models are converted into design models. We end with some conclusions.

2 SAPs and security patterns

The development of object-oriented software starts from requirements normally ex-

pressed as use cases. The requirements are then converted during the analysis stage

into a conceptual or domain model. Analysis is a fundamental stage because the

conceptual model can be shown to satisfy the requirements and becomes the skeleton

on which the complete system is built. No good design or correct implementation is

possible without good analysis, the best programmers cannot make up for conceptual

errors. In addition, the correction of analysis errors becomes very expensive when

these errors are caught in the code.

An instance of a SAP is produced in the usual way: use cases, class and dynamic

diagrams, etc. (See [13]). We select the use cases in such a way that they include

aspects that may be common to many applications. We can then generalize the origi-

nal pattern by abstracting its components and later we may derive new patterns from

the abstract pattern by specializing it. We can also use analogy to directly apply the

original pattern to a different situation. As indicated earlier, we have developed se-

cure patterns of this type, one of which, the Patient Treatment Record, we use here to

illustrate our ideas.

The Patient Treatment Record Pattern describes the treatment or stay instance of a

patient in a hospital [5]. The hospital may be a member of a medical group. Each

patient has a primary physician, an employee of the hospital. Upon admission the

patient record is created or information is updated from previous visit(s). Inpatients

are assigned a location, nurse team and consulting doctors. This pattern realizes use

cases Admit Patient, Discharge Patient, Assign Assets to an Inpatient, and Assign

Nurse to a Location. Assets of the medical group are assigned to a patient through

associations. Figure 1 shows associations between classes Doctor, Nurse, and Loca-

tion and class Patient, which describe the corresponding assignments. In particular,

all patients are assigned a primary doctor while inpatients may also be assigned con-

sulting doctors. Locations include the room assigned to an inpatient or other places

for specific treatments. The assets of the medical group are organized in a hierarchical

arrangement that describes their physical or administrative structure. Specifically,

MedicalGroup includes some Hospitals, and in turn each hospital includes some

Buildings. Each treatment Location is part of a building. The class Employee classi-

fies the types of personnel that are assigned to patients.

One of the most basic security patterns is the Role-Based Access Control (RBAC)

pattern [10]. In this model users join roles according to their tasks or jobs, and rights

are assigned to the roles. In this way a need-to-know policy can be applied, where

roles get only the rights they need to perform their tasks. Use cases can be used as

references to define the needed rights for each role [14]. Figure 2 shows the class

diagram for this pattern. Classes Role, ProtectionObject, and Right define the au-

thorizations for roles. A right defines an access type indicating in what manner the

208

role can access the object. An operation checkRights can be used to find the rights of

a particular role or which roles can access a given object.

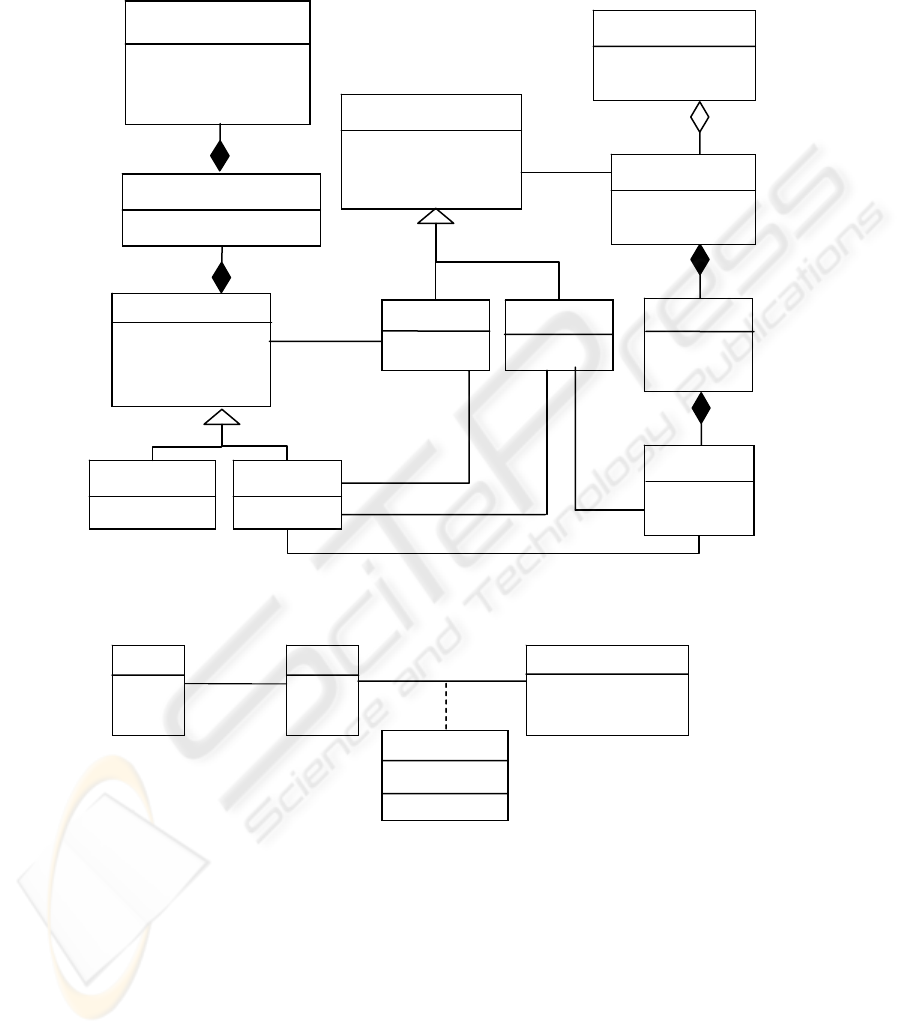

Fig. 1. Class diagram for Patient Treatment Record pattern

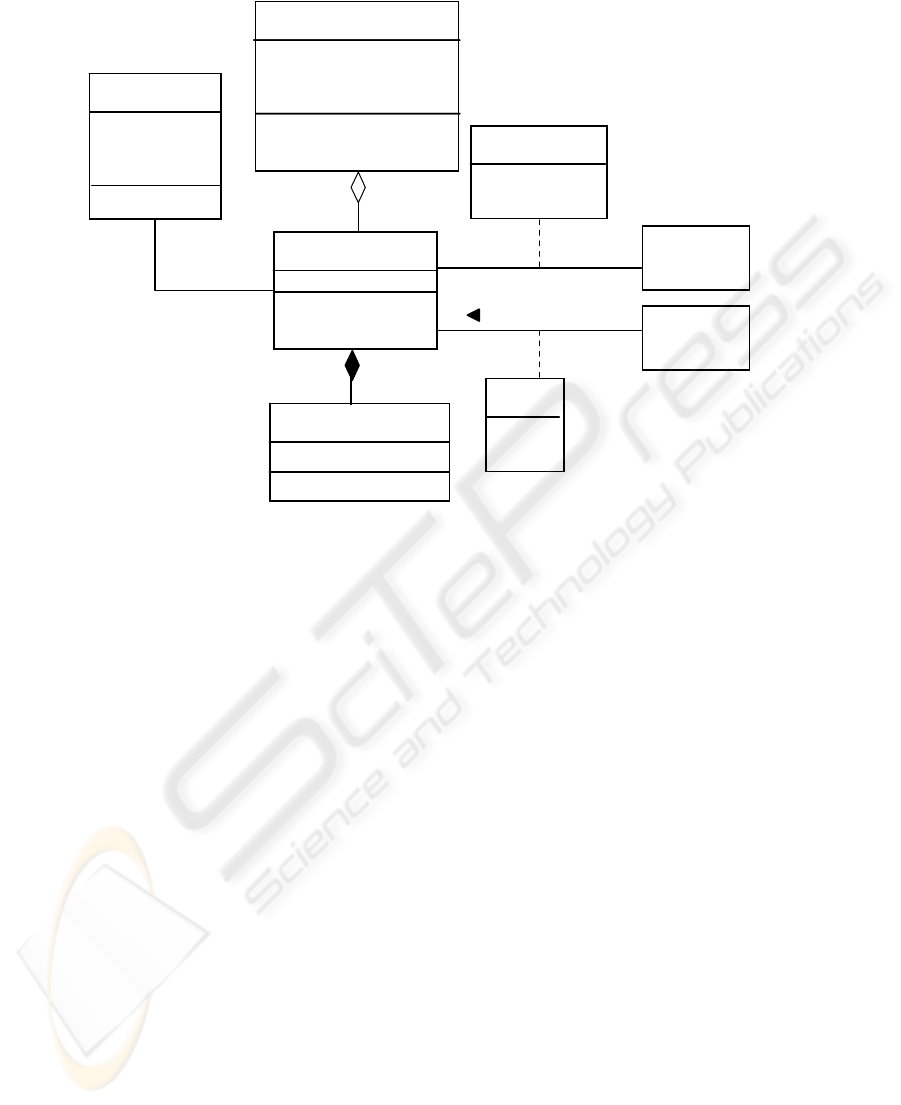

Fig. 2. The Role-Based Access Control pattern

3 The analysis stage

The use cases define all the ways to use the system and we need to give the involved

actors rights to perform their interactions [14]. Figure 3 shows a sequence diagram

isAuthorizedFor

MemberO

User

name

ProtectionObject

name

Right

accessType

checkRights

Role

name

1…*

assignedTo

consul

primary

Nurse

ecialt

Patient

TreatmentInstance

MedicalGroup

date

name

address

patientNumber

financialNumber

mainLocation

initialComplaint

MedicalHistory

instance

Outpatient

Employee

name

employeeNumber

address

Doctor

ecialt

Inpatient

Location

number

size

assignedTo

Building

Hospital

name

address

name

location

209

that implements the use case Admit Patient when we have a new patient. The admin-

istrative clerk needs rights to define a guardian and to create a patient record, patient

information, a medical history, and a treatment instance (these are implied by the

right admitPatient). She also has the right to assign assets to them. Because actors

correspond to roles in a RBAC model, the rights from Figure 3 are defined in terms of

roles. In Figure 4 we have added authorization rules to perform these functions to the

Patient Treatment pattern. This is performed by adding instances of the RBAC pat-

tern.

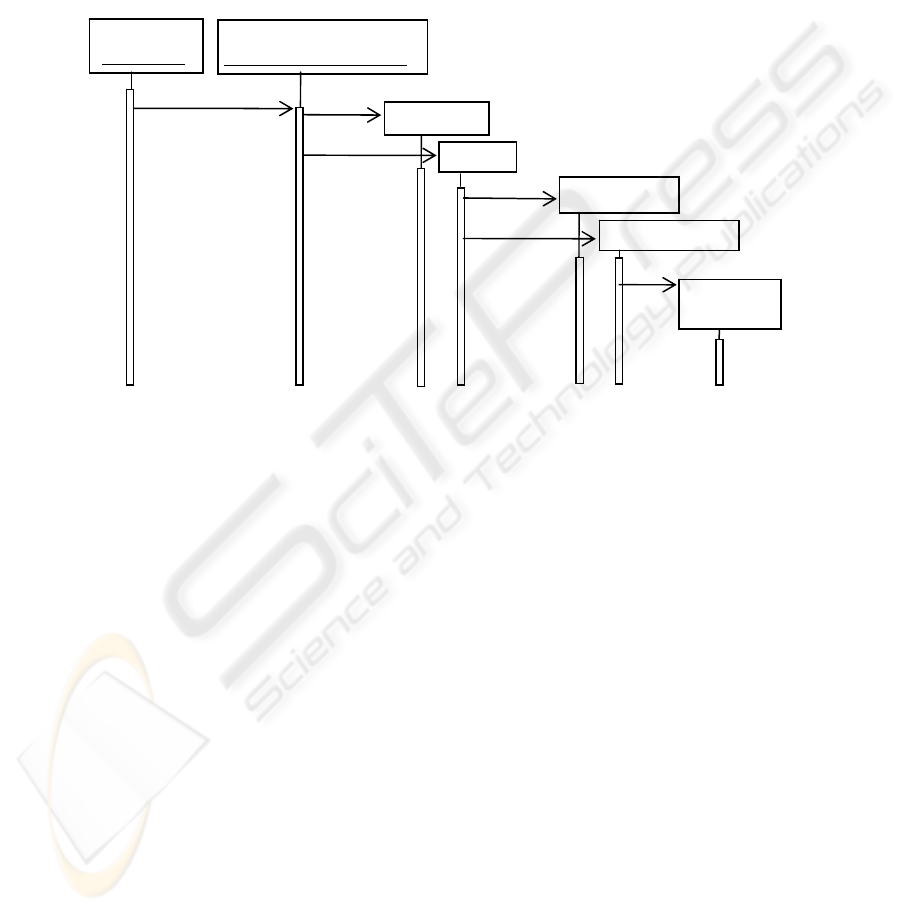

Fig. 3. Sequence diagram to admit a new patient

4 The design stage

We can now carry over the security architecture of the analysis stage to the design

stage. The authorization constraints defined by the authorized SAPs must be reflected

into specific authorizations in the design artifacts, e.g. in user interfaces, components,

and others. The design stage corresponds to the definition of software layers that

implement the conceptual modeling. We need to constrain their access according to

the restrictions defined in the conceptual model.

For example, user interfaces can be implemented by a Model View Controller

(MVC) pattern [15]. Each View corresponds to an interface for a use case and we can

enforce role rights at these interfaces. Figure 5 implements the use case Admit Pa-

tient and shows the AdministrativeClerk role as the only role with the ability to admit

patients and perform the required actions. A model like this can be made more spe-

cific by specializing it for a particular language. For example, it could be tailored for

Java and J2EE components by using classes Observable (instead of Model), Ob-

server, and Controller from the Java libraries.

<<create>>

:Patient

:MedicalHistory

:Treatment

Instance

admitPatient(info)

<<create>>

:PatientInfo

<<actor>>

anAdministrativeClerk

<<actor>>

aGuardian

<<create>>

:Guardian

210

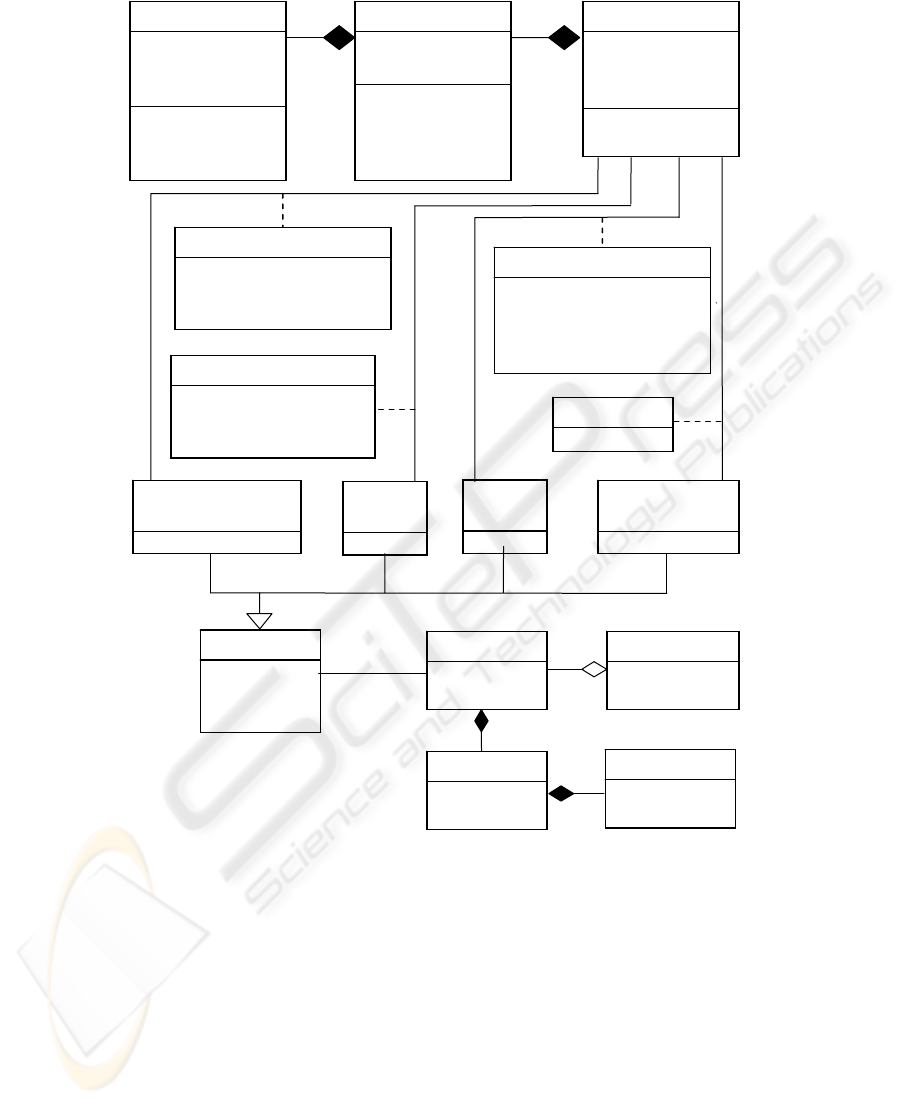

Fig. 4. Patient treatment pattern with RBAC authorizations

TreatmentInstance

date

financialNumber

initialComplaint

create ( )

update ( )

close ( )

MedicalHistory

insurance

dateRange

open()

create ( )

update ( )

close ( )

Patient

name

address

patientNumber

create ( )

update ( )

Right

hospitalAudit

Right

admitPatient

assignAssets

closeTreatmentInstance

Right

treatPatient

readTreatmentInstance

updateTreatmentInstance

Right

dischargePatient

treatPatient

readTreatmentInstance

updateTreatmentInstance

<<role>>

Doctor

ecialt

<<role>>

Nurse

ecialt

<<role>>

HospitalAuditor

<<role>>

AdministrativeClerk

MedicalGroup

name

mainLocation

Hospital

name

address

Building

name

location

Location

number

size

Employee

name

idNumber

address

211

Observer

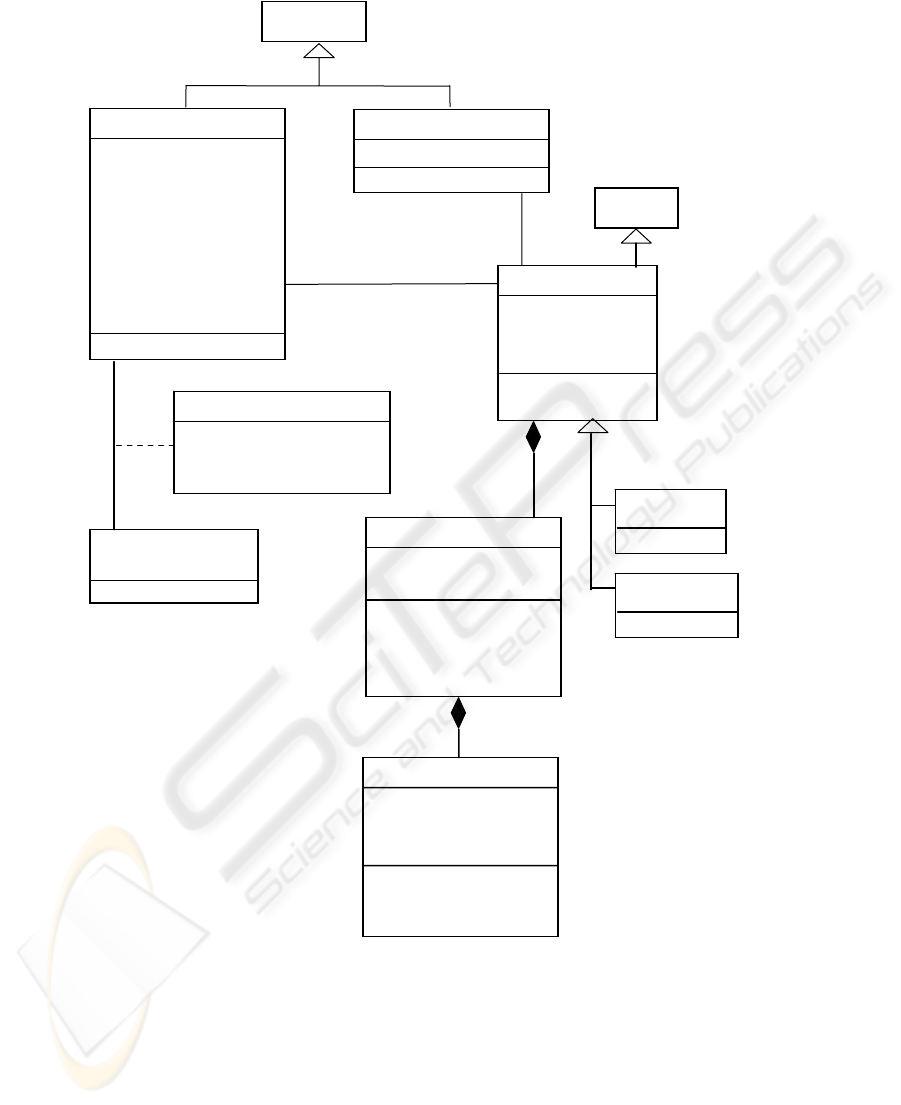

Fig. 5. Adding security enforcement through interfaces

It is also necessary to define rights in J2EE or .NET components. This security is

specified in their deployment descriptor that is written in XML [16]. Security in J2EE

is based on roles and matches well the model we are using. For example, if the Patient

class is implemented as a component, its descriptor may specify that TreatmentIn-

AdmitPatientController

+ handleEvent( )

AdmitPatientView

- newPatient

- initialComplaint

- patientNumber

- patientInformation

- chart

- medicalHistory

- inpatient

- outpatient

+ admitPatient(info)

Model

Patient

- name

- address

- patientNumber

+ create(info)

+ update(info)

Outpatient

MedicalHistory

- insurance

- dateRange

+ open()

+ create()

+ update()

+ close()

<<role>>

AdministrativeClerk

Right

treatPatient

readTreatmentInstance

updateTreatmentInstance

Inpatient

TreatmentInstance

- date

- financialNumber

- initialComplaint

+ create()

+ update()

+ close()

212

stance can only be modified by doctors. This rule is at a lower level than interface

rules and it could be considered more fundamental, and it could not be overridden,

i.e. no rule in the AdmitPatient View can give somebody who is not a doctor the right

to modify patient treatment instances. This approach adds a second line of defense

against administrator errors (the Defense in Depth principle). Similarly, components

can access persistent data in relational databases using JDBC. These relations could

include further authorizations to provide another line of defense. When we do this, it

is necessary to make sure that the rights defined in the views, components, and data-

base items do not conflict with each other. To determine possible overlappings we

need to map security constraints across architectural levels [17] [18].

Distribution is usually performed through two basic approaches:

• Distribution of objects using an Object Request Broker, e.g., CORBA, DCOM,

.NET Remoting. We can add security rules to the broker pattern to control ac-

cess to remote objects.

• Distribution of component and interfaces, e.g. web services. We can control

access to web services using an XML firewall [11].

Since distribution provides another place to perform access control it needs again

to be coordinated with the other authorizations. There are some interesting mapping

problems to study here.

5 Discussion

The steps discussed above are part of our methodology. In past work we have shown

how to derive rights for roles from use cases [14]. We have also shown the need to

relate attacks to use cases [9]. Another aspect of our work discussed how to create

secure conceptual models by combining SAPs and security patterns [12]. We showed

an example of that approach in Section 3, and Figure 6 shows a secure financial

model that applies analogy to the medical example. A related idea makes use of as-

pects [19] [20]. We have also shown how UML can be used to represent any of the

existing access control models as well as sets of security constraints that may not

follow any model [21]. SecureUML [22] uses RBAC as a metamodel for specifying

and enforcing security. They make use of Model-Driven-Architecture (MDA) [23] to

generate secure code. However, they do not consider the effect of any design con-

structs, they enforce constraints directly in the code. We consider explicitly the details

of the lower levels. The hierarchy of models that we use is still appropriate for the use

of MDA to generate automatically some aspects of the lower levels models. Other

approaches based on UML do not provide a complete lifecycle software development

but focus only on specific steps. Mouratidis and Giorgini have developed an approach

to secure software development that is also applied through all stages [24]. Their

approach uses a special methodology, Tropos, based on agents, and focuses more on

security requirements.

213

FinancialInstitution

- name

- address

Fig. 6. Financial pattern with RBAC

6 Conclusions

A good analysis model for a portion of a complex system can be abstracted and be-

come an analysis pattern that can be used in other applications. Their use can save

time and improve the quality of a system. An important advantage of SAPs is that

they can be combined easily with security patterns, resulting in authorized applica-

tions. The security defined in the conceptual model can be enforced in the design

model using security patterns at the lower architectural levels, including user inter-

faces, components, distribution, and database adapters. We are currently developing

patterns for secure Brokers and for web services. As far as we know this is the first

time a secure methodology is applied at the design stage carrying a secure model

from the analysis stage and considering the effect of the lower architectural levels.

Acknowledgements

This work was supported by a grant from DISA, administered by Pragmatics, Inc.

- idNumber

+ captureInfo()

+ exchangeInfo()

FinancialRecord

+ read()

+ invest()

FinancialAccount

- accountNumber

<<role>>

Broker

<<role>>

Investor

- name

- address

- idNumber

maintains

1..*

Right

read

Right

read

authorizeUse

1..* 1

inChargeOf

Custodian

invest

214

References

1. Fernandez, E. B., and Yuan, X.: Semantic analysis patterns. In: Proceedings of 19th Inter-

national Conference on Conceptual Modeling, (2000) 183-195. Also available from:
