Using Timed Model Checking for Verifying Workﬂows

olker Gruhn and Ralf Laue

Chair of Applied Telematics / e-Business

⋆

Computer Science Faculty, University of Leipzig, Germany

Klostergasse 3, 04109 Leipzig, Germany

Abstract. The correctness of a workﬂow speciﬁcation is critical for the automa-

tion of business processes. For this reason, errors in the speciﬁcation should be

detected and corrected as early as possible - at speciﬁcation time.

In this paper, we present a validation method for workﬂow speciﬁcations using

model-checking techniques. A formalized workﬂow speciﬁcation, its properties

and the correctness requirements are translated into a timed state machine that

can be analyzed with the UPPAAL model checker. The main contribution of this

paper is the use of timed model checking for verifying time-related properties of

workﬂow speciﬁcations.

Using only one tool (the model checker) for verifying these different kinds of

properties gives an advantage over using different specialized algorithms for ver-

ifying different kinds of properties.

1 Introduction & Related Work

In recent years, interest in business process automation has raised. One reason for this is

that the concept of web services allows integrating web-based applications using open

standards.

Developing a large system using web services starts with specifying the ﬂow of con-

trol and information between these services - the workﬂow. This task should be done

by domain experts. Different business process deﬁnition languages have been devel-

oped for specifying workﬂows, the most important ones are BPML, BPEL4WS, XPDL

and UML2 activity diagrams. An increasing number of software tools abstract from

the syntax of the business process deﬁnition language, allowing the business process

analysts who specify the workﬂow to use a graphical notation (for example BPMN).

It should be possible to eliminate errors (like deadlocks or missed deadline con-

straints) in a workﬂow speciﬁcation at speciﬁcation time. Model checkers are sophis-

ticated tools that are able to ﬁnd exactly this kind of errors for a given system. What

remains to do is to translate the workﬂow speciﬁcation and the requirement we are

interested in into the input language of a model checker.

Our paper shows how this ”translation” can be done. Similar approaches were pro-

posed by several other authors: [1] starts with an informal description of a business

process. This description is being translated into the input language of the NuSMV

model checker which can check basic properties like liveness and reachability. [2]

⋆

The Chair of Applied Telematics / e-Business is endowed by Deutsche Telekom AG

Gruhn V. and Laue R. (2005).

Using Timed Model Checking for Verifying Workﬂows.

In Proceedings of the 2nd International Workshop on Computer Supported Activity Coordination, pages 75-88

DOI: 10.5220/0002559500750088

 SciTePress

checks various properties of business process speciﬁcations modelled in Testbed, a

framework for business process reengineering. The business process speciﬁcation can

be deﬁned by business process analysts using the Testbed tool, while the model check-

ing must be done outside the tool by model checking experts. A follow-up paper [3],

identiﬁes some patterns of properties for business process speciﬁcations. Queries about

these patterns are transformed automatically into an LTL formula, allowing people who

are not familiar with the details of model checking to test properties of the business

process speciﬁcation based on these patterns. [4] translates business process models de-

ﬁned in the XPDL language into the input language of the SPIN model checker in order

to check their properties.

In all these publications, the properties than can be checked by a model checker, de-

pends on logical order between activities, not on their timing. Other than these existing

approaches, we take into account time-related properties (deadlines etc.).

We give an example for checking very different workﬂow properties: structural cor-

rectness, resource constraints, deadlines and dependences between different activities.

In the overview below, we will refer to algorithms that allow to check these different

classes of properties. The main contribution of this paper is to exploit only one tool for

checking the different properties instead of using one algorithm to check the structural

correctness, a second one for verifying the deadlines and other ones for reasoning about

deadlocks, reachability or resource conﬂicts.

Scheduling of activities under resource constraints is a well-studied problem in op-

erations research, known as Resource Constraint Project Scheduling Problem (RCPSP).

The general problem - ﬁnding a feasible schedule for a set of activities such that the

time for completing the project is minimized - has shown to be NP-hard [5], therefore

different heuristic algorithms have been suggested for solving it [6]. Finding resource

conﬂicts in a given workﬂow is much easier than solving the RCSP. [7] presents an al-

gorithm to ﬁnd such conﬂicts. (Our example workﬂow is based on the example used in

this paper.) This is done by simply ﬁnding the earliest starting time and the latest com-

pletion time of each activity. However, the dependencies between the activities are not

taken into account which leads to many false positives. Our model checking approach

gives a more accurate result than [7].

[8] discusses the use of timed automata for solving the scheduling problem, which

is also the key idea for our model-checking approach. [9] has expanded the net diagram

technique PERT to ePERT which can be used for workﬂow speciﬁcations.

Structural correctness can be veriﬁed using graph analyzing techniques [10,11],

which require the use of special-purpose nontrivial algorithms. Graph analyzing tech-

niques can also be used for answering ”basic questions” about reachability and depen-

dence between activities (”Will a receipt be sent for every order?”, ”Is it guaranteed that

no receipt can be sent if the ordered item is out of stock?” etc.)

With our model checking approach, such specialized algorithms for checking spe-

cialized requirements (resource constraints, structural correctness etc.) can be substi-

tuted by using only one tool that can be used for verifying different kinds of properties.

2 Deﬁnitions

2.1 Workﬂow Speciﬁcation

The Workﬂow Managemant Coalition deﬁnes a workﬂow as the computerized facilita-

tion or automation of a business process, in whole or part[12]. A Workﬂow Management

System (WfMS) is deﬁned as a system that completely deﬁnes, manages and executes

workﬂows through the execution of software whose order of execution is driven by a

computer representation of the workﬂow logic.

In order to be processed by a WfMS, a workﬂow has to be speciﬁed in a formal

language that can be executed by computers. This language must deﬁne the order of

activation of activities and the information ﬂow between them.

Before we give a formal deﬁnition of a workﬂow, we have to introduce the basic

concepts:

An activity is a description of a piece of work that forms one logical step within

a process[12]. Activities are scheduled by a WfMS. Their execution order is speciﬁed

by transitions. In the simple case of a (sequential) transition between activities, one

activity completes and the thread of control is passed to another one, which starts. To

be able to deﬁne more complex business cases, we further need the control structures

AND-split, OR-split, AND-join and OR-join, with the usual semantics [12].

We deﬁne a workﬂow speciﬁcation as follows:

Deﬁnition 1 A workﬂow speciﬁcation is a 4-tuple (N, n

, f, T ), where:

– N is a set of nodes which is deﬁned as the union N = A ∪ C, where A =

, . . . , a

} is a ﬁnite set of activities and C = {c

, . . . , c

} is a ﬁnite set of

control nodes. Each control node is either an AND-split, an OR-split, an AND join

or an OR-join, which is denoted by the type function type : C → {as, os, aj, oj}.

– There are two distinguished nodes: The start node n

∈ A and the end node f ∈ A.

– T ⊆ (N \ {f}) × (N \ {n

}) is a set of transitions between the nodes, where:

If (a ∈ A) ∨ (a ∈ C ∧ type(a) = as) ∨ (a ∈ C ∧ type(a) = os), then there

exists one and only one node b such that (b, a) ∈ T . (These nodes have exactly one

predecessor.)

If (a ∈ A) ∨ (a ∈ C ∧ type(a) = aj) ∨ (a ∈ C ∧ type(a) = oj), then there

exists one and only one node b such that (a, b) ∈ T . (These nodes have exactly one

successor.)

The usual semantics apply: The workﬂow starts in its start node n

. During a work-

ﬂow execution, activities are executed with respect to the transitions between them.

Split nodes allow us to specify concurrency and alternative and join nodes allow us to

specify synchronization between incoming ﬂows. Finally, the workﬂow execution stops

when the ﬁnal node f is reached.

To illustrate a workﬂow, we use a simple graphical representation with these sym-

bols:

The name OR-split in [12] is a little bit misleading: XOR-split would be a better name, because

one and only one transition to the next node is selected.

ORActivity 1 AND

AND

Activity Transition AND−Split OR−Split AND−Join OR−Join

Signature from

Manager

Payment

Request

Prepare Check

for ANZ Bank

Approval

from Finance

Director

Reject

Request

for CITIBANK

Prepare Check

AND

Signature from

Finance

Director

Transfer Funds

to US−Account

AND

Check

Issue

AND

Account

Update

Request

File

Payment

US−$

Approved

Rejected

done

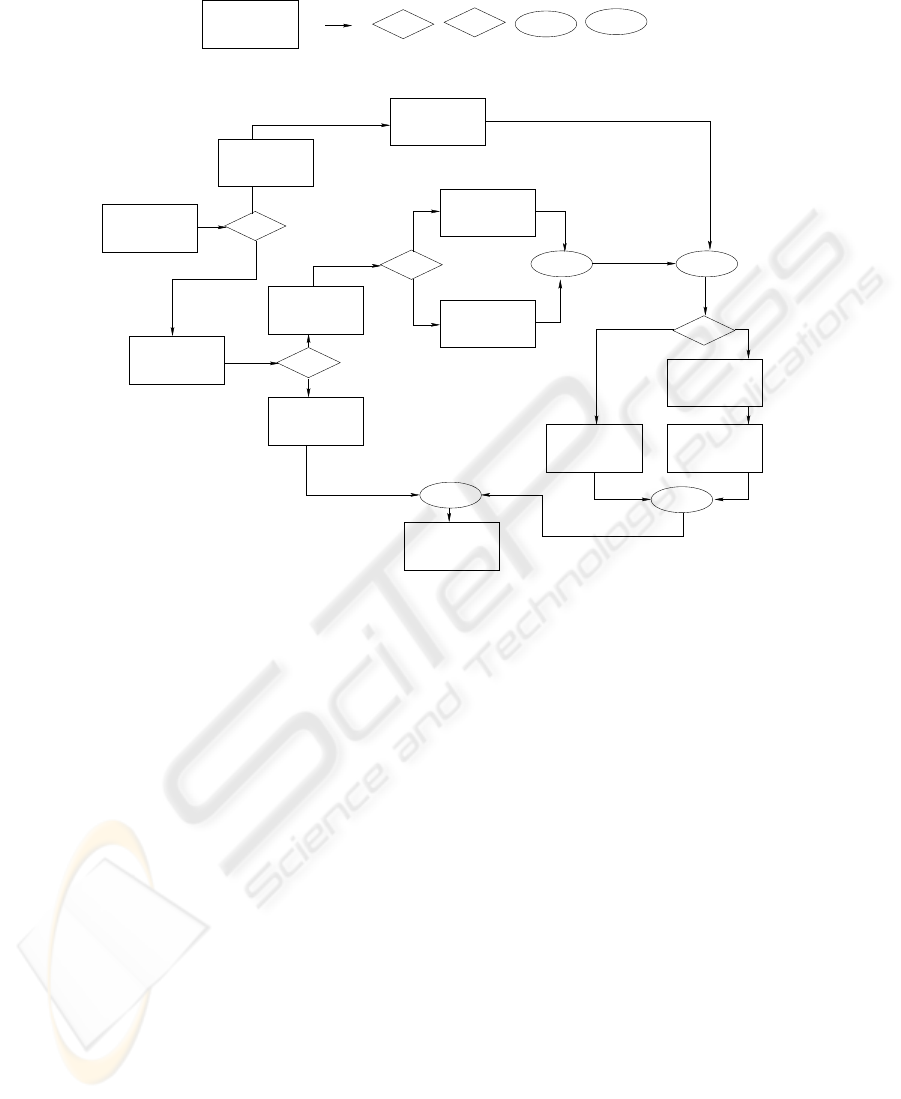

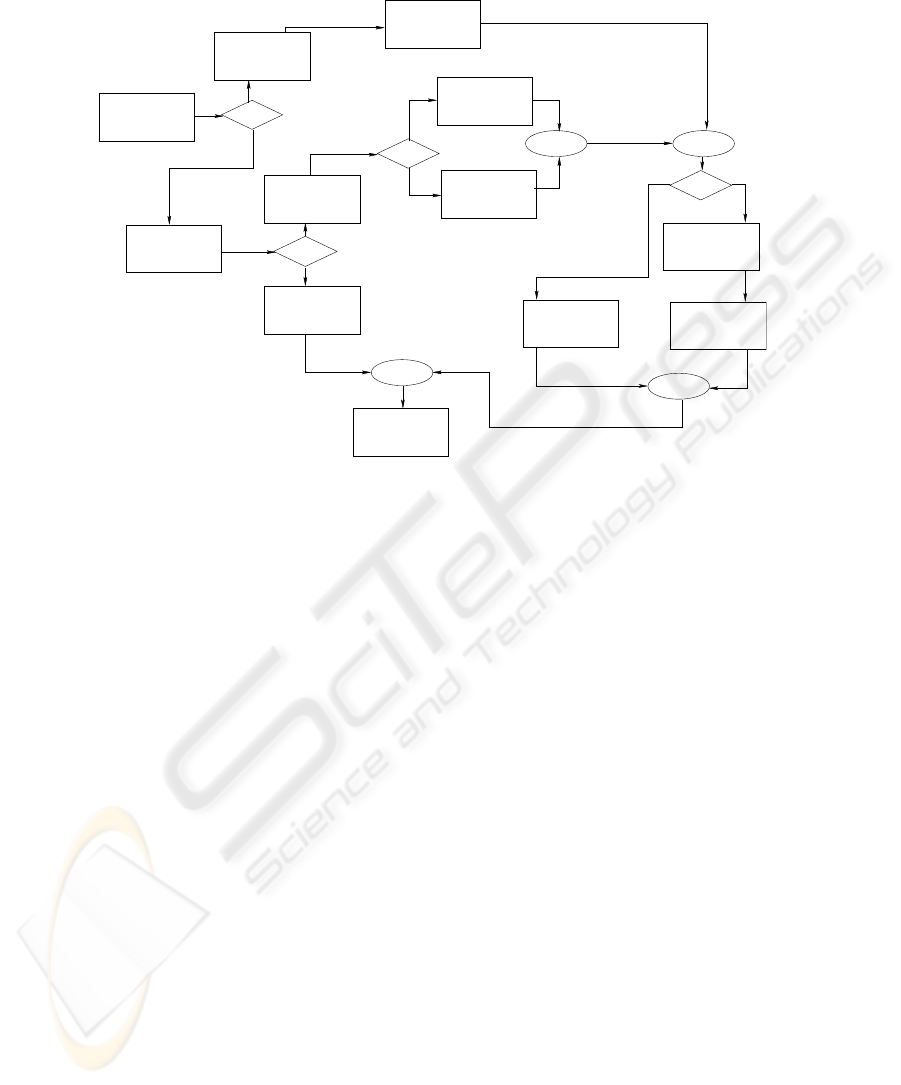

Fig.1. Sample workﬂow: Payment Requests

Split nodes have at least two outgoing transitions (arrows), while join nodes have at

least two incoming transitions. Outgoing arrows from an OR-split node can be labeled

with a short text describing a decision being made in the OR-split that leads to the

selection of one of the outgoing arrows.

Figure 1 shows an example workﬂow taken from [10] and [7]. It shows a business

process model for expense request payments with an option to differ between payment

in US-$ or in Australian $.

2.2 Structural Correctness

While def. 1 deﬁnes the syntax of a workﬂow speciﬁcation, it does not say anything

about its semantics. Not every workﬂow speciﬁcation that can be constructed using

deﬁnition 1 makes sense when the semantics for splits and joins is considered. An

example is shown in Fig. 2: Only one of the activities 2 and 3 will be performed after the

OR-split, but the following AND-join would wait for both activities being completed.

Even if the end node will be reached anyway via activity 1, it is very unlikely that this

is the behavior intended by the person who has speciﬁed the workﬂow. For this reason

it is reasonable to call such a workﬂow speciﬁcation structurally incorrect.

Activity 2

Activity 3

START NODE

Activity 1

AND

END NODE

... (part after

the AND−join

omitted)

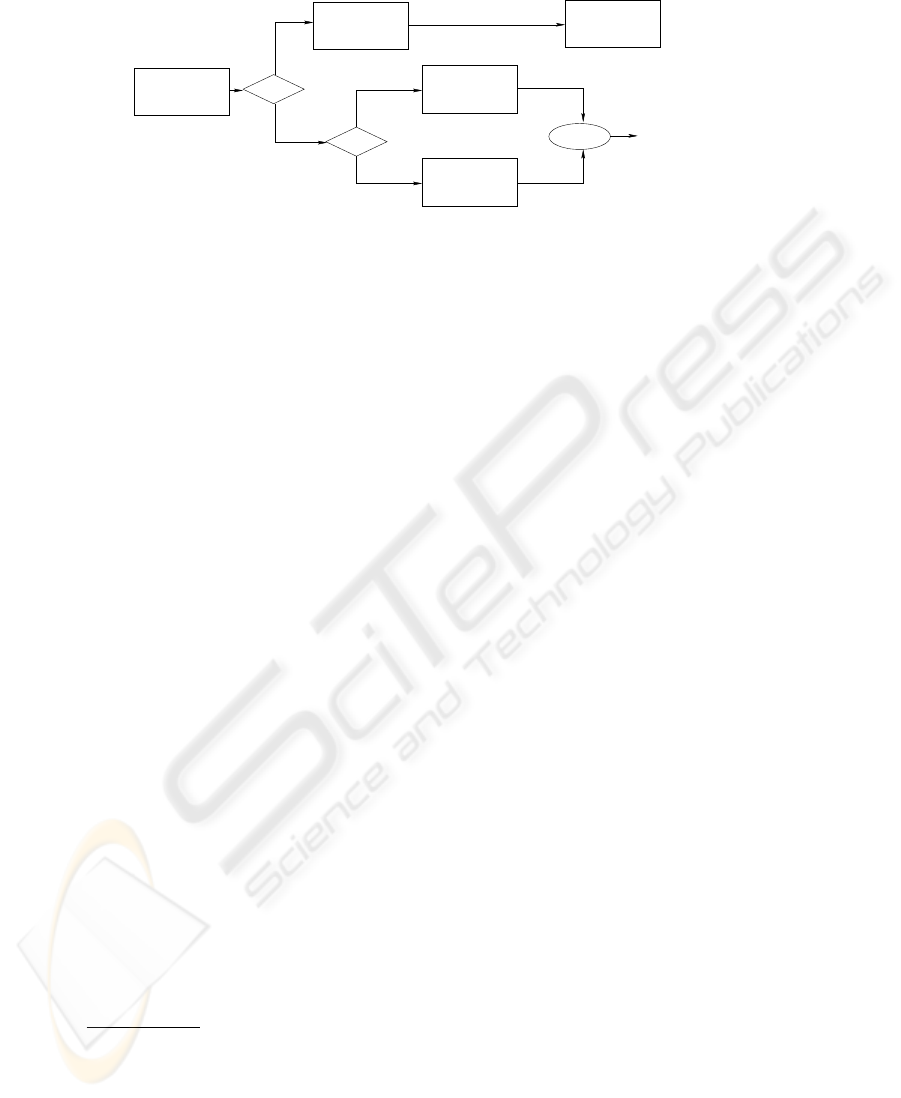

Fig.2. Semantically incorrect workﬂow

We will see later in this paper that structural correctness of a workﬂow can be de-

cided with our model checking approach. In fact, this is even possible without much

reasoning about possible sources of structural conﬂicts. We just have to take into ac-

count that the result of structural incorrectness is that either a possible execution exists

that does not reach the end node or there are still ”uncompleted things to do” when the

end node is reached. This leads us to:

Deﬁnition 2 A workﬂow speciﬁcation w = (N, n

, f, T ) is structurally correct if

– every workﬂow execution reaches the end node f after a ﬁnite number of transitions.

– when the end node is reached, all other activities that have been started before are

completed and there are no remaining join nodes waiting for incoming transitions.

Because of the limited space in this paper, we omit the formal deﬁnition of ”a workﬂow

execution” and ”taking a transition”, but it should be intuitively clear what those phrases

stand for with respect to transitions and the semantics of split- and join-nodes

. Def.

2 simply requires that every sequence of nodes and transitions ﬁnally reaches the end

node f after a ﬁnite number of transitions, and there are no remaining join nodes waiting

for an incoming ﬂow when the end node is reached. Inﬁnite loops, AND-joins waiting

for an incoming ﬂow inﬁnitely long and similar problems must not occur. Sadiq and

Orlowska [13] have identiﬁed ﬁve types of possible structural errors in a workﬂow

speciﬁcation. For all ﬁve types of errors, the workﬂow speciﬁcation will be identiﬁed as

not being correct using def. 2 or it is already disallowed by the requirements for unique

predecessors and successors in def. 1.

2.3 Timed Workﬂow Speciﬁcations with Ressource Constraints

Activities can require human, material or machine resources, for example a director

who has to sign a bill (human resource), a vehicle to transport heavy goods (material

resource) or write-access to a database (machine resource).

The only point that needs some clariﬁcation is that activities after an OR-join should not be

activated more than once if more than one incoming ﬂow reaches the OR-join. In this point,

the semantics used in this paper differs from the one used in [10]

Payment

Request

Approval

from Finance

Director

Reject

Request

for CITIBANK

Prepare Check

AND

Check

Issue

AND

Account

Update

File

Payment

Request

Prepare Check

for ANZ Bank

Signature from

Manager

Signature from

Finance

Director

AND

Transfer Funds

to US−Account

{r1, r7}

{r2, r7}

US−$

Approved

Rejected

{r1, r3, r7}

{r6, r10}

{r3, r7, r10}

{r3, r8}

[1,3]

[1,2]

[4,6]

[4,8]

[2,3]

[1,2]

{r1, r3, r7}

{r4, r8}

[1,2]

[2,3]

done

{r5, r8}

[3,8]

{r8, r9}

[1,2]

Fig.3. Workﬂow with information about time and resources

Often, these resources cannot be shared between different activities: When a work-

ﬂow is executed, only one activity can access a resource exclusively.

This leads us to another possible source of incorrect workﬂow speciﬁcations: When

one activity needs a resource that is occupied exclusively by another activity, the work-

ﬂow is deadlocked and cannot proceed. In real life, we can formulate the previous sen-

tence even more strictly: If the other activity occupies the required resource exclusively

until some deadline is reached, the workﬂow cannot be completed in time and hence

does not fulﬁll its purpose.

To ﬁnd out whether such a situation can occur, we need to know something about the

usage of resources by the activities and about the duration of the execution of activities.

Deﬁnition 3 Let R = R

, . . . R

be a set of resources, which cannot be shared between

different activities. For each activity a ∈ A, r(a) is the set of resources needed by this

activity.

Deﬁnition 4 The minimum time (expressed in some time unit like seconds, hours or

days) that will be needed to execute an activity a ∈ A is denoted by m(a), the maximum

execution time will be denoted by M(a).

We call a workﬂow speciﬁcation with the information about minimum and maxi-

mum execution time of its activities a timed workﬂow speciﬁcation. This information

about timing is rather simple, but it has been shown to be sufﬁcient for answering basic

questions about deadlines and resource conﬂicts (for example by applying the Criti-

cal Path Method [14]). Additional elements like an interrupt construct can be added if

necessary.

In Fig. 3, we add information about timing and resources to the graphical represen-

tation of the sample workﬂow. For each activity a ∈ A, m(a) and M(a) are given as

an ordered pair [m(a),M(a)] above the activity box, the set r(a) is given below the box.

Empty sets r(a) are omitted. We have taken this example from [7], with small modiﬁca-

tions.

3 Model Checking of Timed Workﬂow Speciﬁcations

3.1 The Model Checker UPPAAL

To verify properties of a workﬂow speciﬁcation, we use the real-time model checking

tool UPPAAL [15]. We show how to translate a workﬂow speciﬁcation into a timed

automata speciﬁcation that can be processed by UPPAAL.

An UPPAAL model is a set of timed automata, clocks, channels for handshake-

synchronization, variables and additional elements. Information about the syntax for

UPPAAL models can be found in [15]. Here we describe some elements only.

Each UPPAAL model is a set of processes (timed automata) which are depicted as

states (circles) and transitions (arrows) between them.

For each automaton, one state is marked as initial state (two concentric circles). A

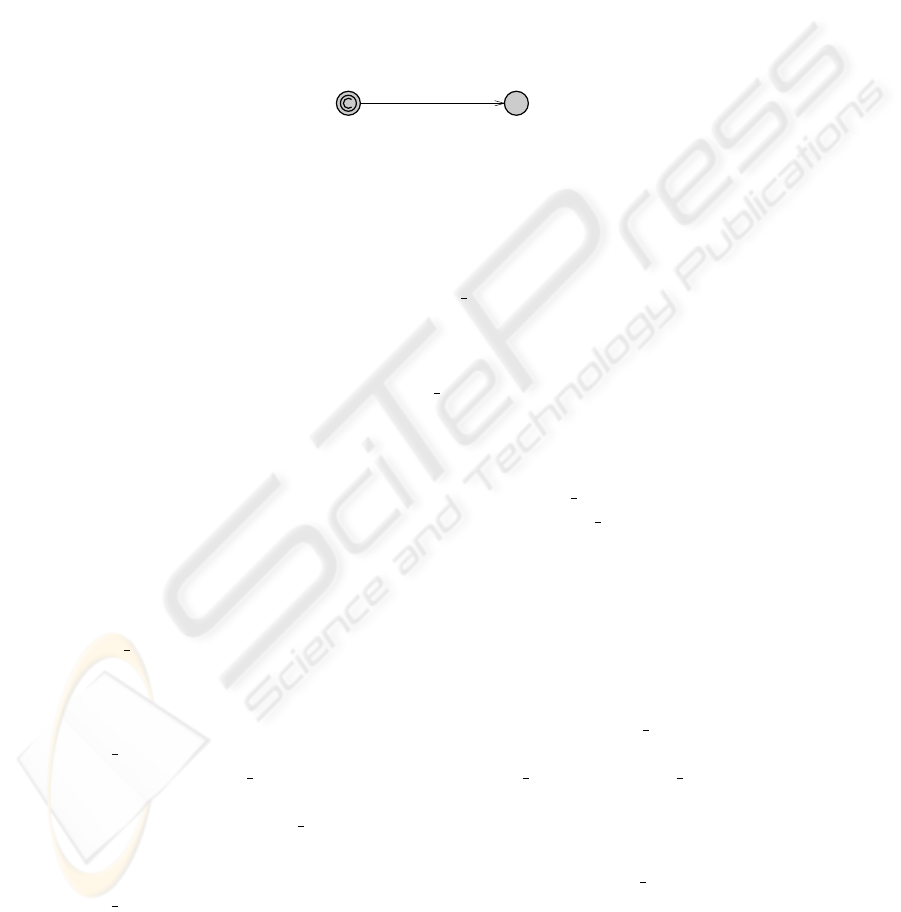

graphic representation of an UPPAAL process can look like Fig. 4:

idle

logging in transferring data abort connection

Fig.4. Simple graphic representation of a process in UPPAAL

States can have the attribute ”committed”, depicted by the letter C inside the cir-

cle. If a state is marked as ”committed, no time may pass in this state, and it must be

left immediately (i.e. no interleavings with non-committed states in other automata are

allowed).

When a transition is taken, clocks can be reset. (In Fig. 5 the clock named clock1

will be reset to 0 when the transition from ”idle” to ”logging in” is taken), and global

or local variables can be manipulated. (In Fig. 5, a variable named active is changed

when the transition from ”logging in” to ”transferring data” or from ”abort connection”

to ”idle” is taken).

Note that the meaning of an arrow in the UPPAAL model is different from the meaning of an

arrow in the graphical workﬂow representation. Also a circle in the UPPAAL model does not

stand for an activity like the rectangle in the graphical workﬂow representation does. Instead,

one UPPAAL process (depicted by some arrows and circles) stands for an activity.

idle

logging in transferring data abort connection

clock1:=0 active:=1

active:=0

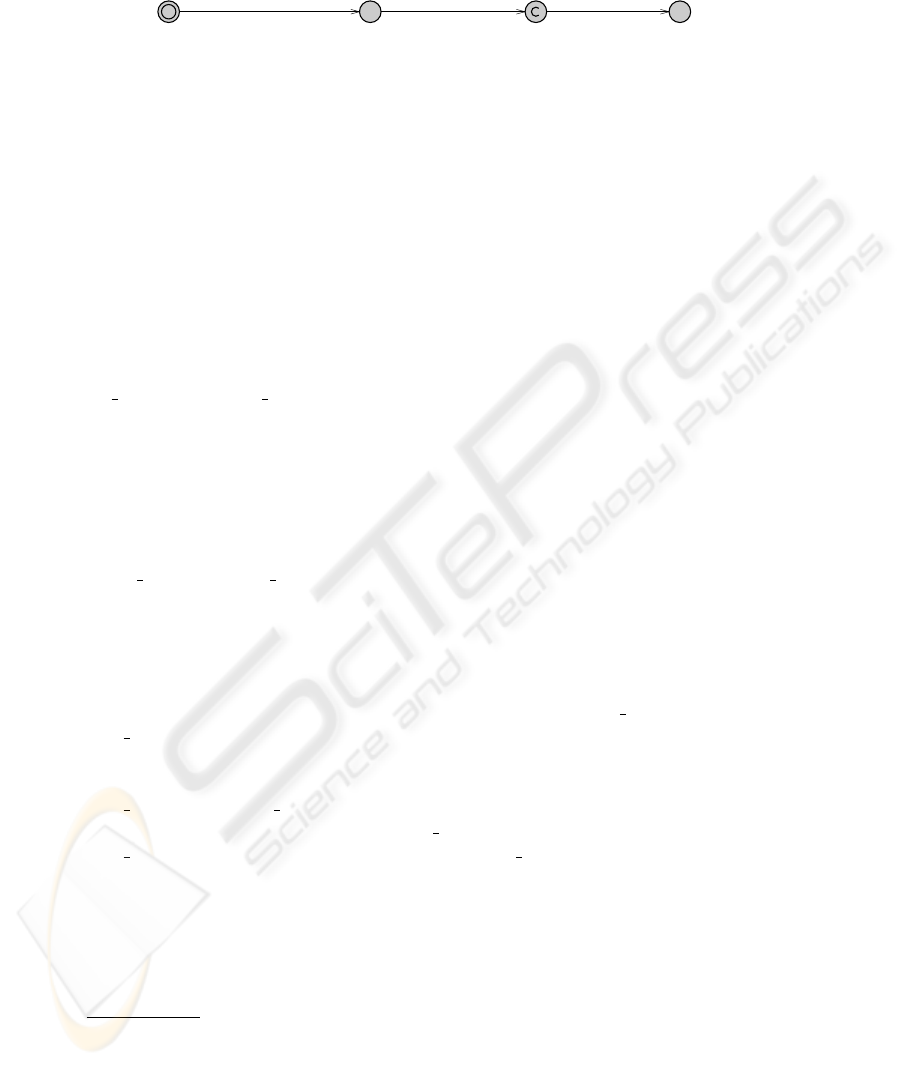

Fig.5. clocks, variables and an urgent location

Synchronization between different processes can take place using channels. When

a transition is taken, a channel can be written into (written as channelname!). To

achieve a handshake-synchronization, the corresponding reading operation (written as

channelname?) can serve as a so-called guard of another transition which can not

be taken unless reading from the channel is actually possible. If a channel is deﬁned as

urgent channel, the reading operation must be performed as soon as possible, i.e. im-

mediately and without a delay. Fig. 6 shows a synchronization between a server process

and a client process:

idle

need new data accept upload

waiting uploading

listen!

listen?

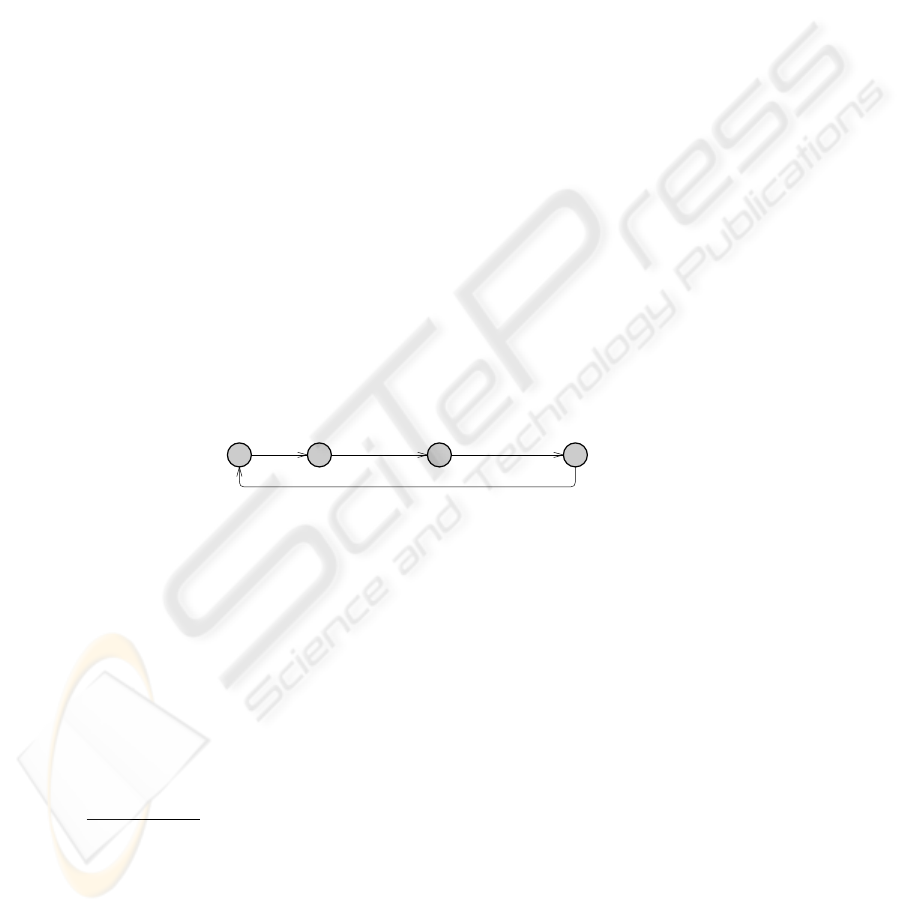

Fig.6. Using channels for handshake-synchronization

Conditions on clocks or variables can also be used as guards for transitions. This

means that a transition cannot be taken until some condition (for example an equation

for some variable) holds. Finally, invariants can be added to a state. We will use invari-

ants of the type "clock<=m" which means that the system is not allowed to remain

in this state for more than m time units. In Fig. 7, the transition will be taken when the

clock named time is in the interval [2,4] and the value of the variable active fulﬁlls

the equation active == 1.

state 1

time <= 4

state 2time >=2,

active == 1

Fig.7. Guards and invariants

3.2 Workﬂow Elements in UPPAAL

Using the elements introduced in the last section, we can deﬁne templates for the dif-

ferent kinds of nodes in a workﬂow speciﬁcation (as deﬁned in def. 1). Urgent channels

are used to model the transitions between the nodes.

Start Node The start node process does nothing else than writing into a channel

letsstart and setting the variable running (which stands for the number of cur-

rently running activities) to 0:

letsstart!

running := 0

Fig.8. Start Node

Activity Node The UPPAAL process for an activity node waits until it becomes acti-

vated by being able to read from a channel in channel. When it is activated, it sets

a local clock to 0 and increments the variable resource. The variable running (the

number of currently running activities) is incremented. After staying in the next state

for at least mintime, but not longer than maxtime, the process comes to and end which

it signalizes by writing to the channel out

channel. When the channel can be read

by another UPPAAL process, the variable running (the number of currently running

activities) is decremented.

AND-Split When activated (by the ability to read from in

channel), the UPPAAL

process for an AND-split writes repeatedly to the channel out channel, thus being

able to activate more than one following node. For AND-splits with two incoming ﬂows

as used in our deﬁnition, this happens twice.

OR-Split Other than the AND-split, an OR-split process writes to the channel

out

channel only once, thus only one following node can be activated by reading

from this channel.

AND-Join An AND-join process tries to read from two channels, in

channel1 and

channel2, and proceeds if and only if both of them are readable. (Note that it is

not required that in

channel1 is readable before in channel2. If in channel2

is the ﬁrst of the two channels being readable, it just ”waits” and the reading operation

can be performed after in channel1 became readable as well.)

OR-Join An OR-join process tries to read from two channels, in

channel1 and

channel2. It proceeds if it can read from one of them.

working

processclock <= maxtime

finishedprocessclock >= mintime

ressource--

out_channel!

running--

in_channel?

processclock := 0,

ressource++,

running++

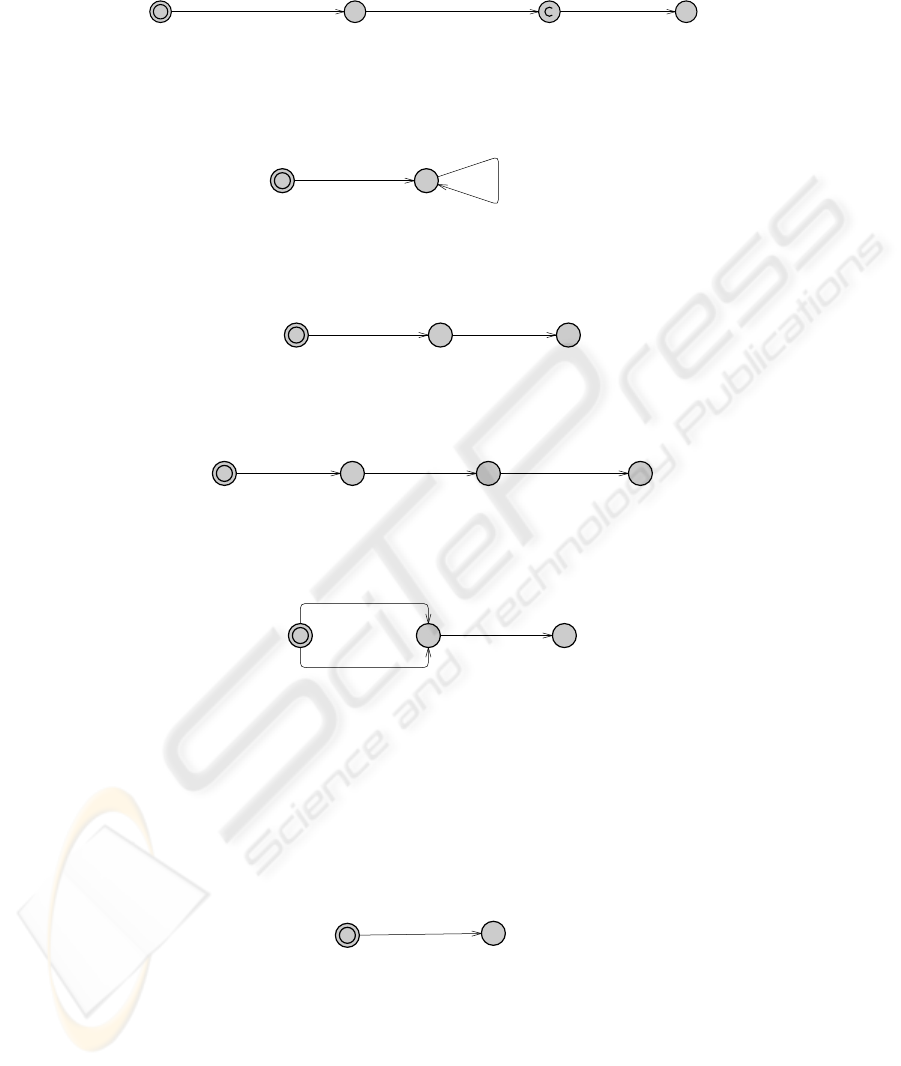

Fig.9. Activity Node

in_channel?

out_channel!

Fig.10. AND Split Node

in_channel? out_channel!

Fig.11. OR Split Node

in_channel1? in_channel2? out_channel!

Fig.12. AND Join Node

in_channel1?

in_channel2?

out_channel!

Fig.13. OR Join Node

End-node The UPPAAL process end stands for the end node. This process will reach

the status named finished at the end of the model’s execution.

finished

in_channel?

Fig.14. End Node

working

processclock <= maxtime

finishedclock9 >0 4

r8--

running--

a10_channel!

s6_channel?

clock9:=0,

r8++,

running++

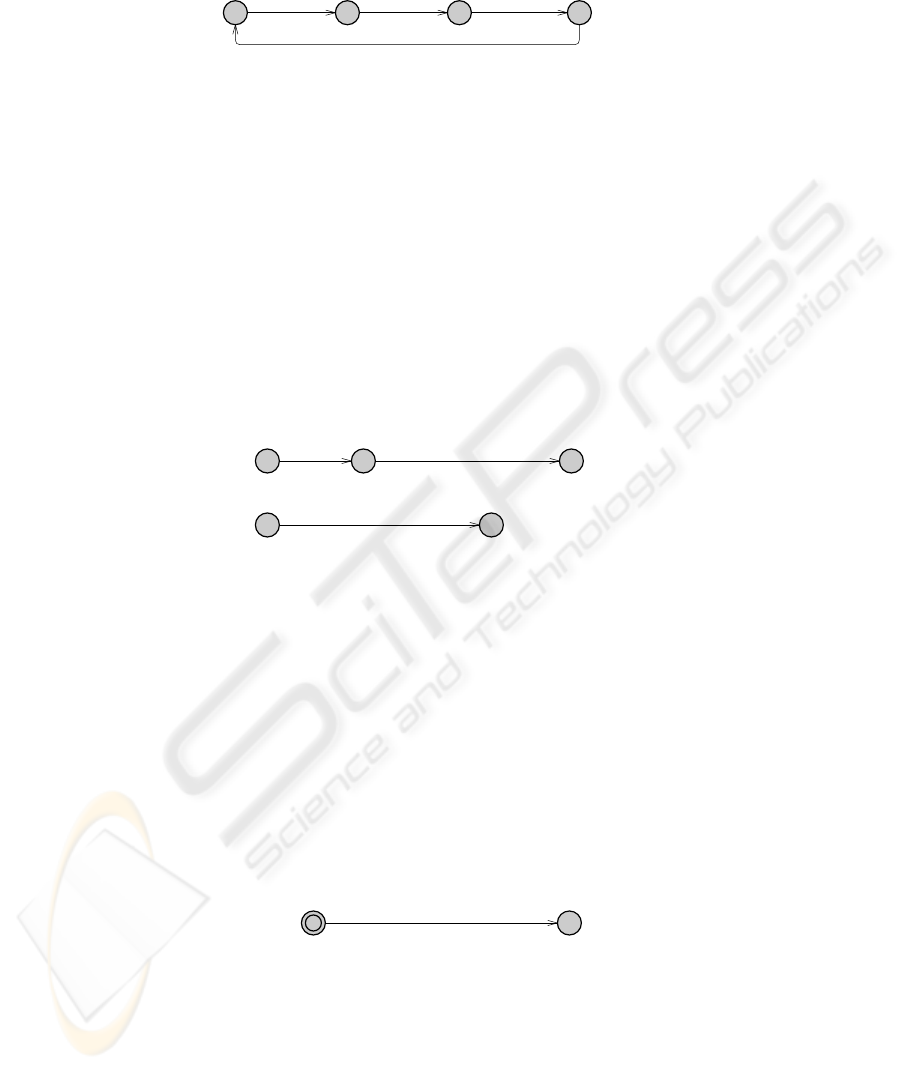

Fig.15. ”Issue Check” - an instance of the Activity template

3.3 Translating Timed Workﬂow Speciﬁcations to UPPAAL Models

In the previous section we have shown how the general elements of a workﬂow speciﬁ-

cation can be expressed as UPPAAL models. To ”translate” a special workﬂow speciﬁca-

tion into an UPPAAL model, we make use of UPPAAL templates. The UPPAAL models

of workﬂow nodes given in the last section are regarded as templates. This means that

the names for variables, clocks and channels in the UPPAAL model are placeholders

(called parameters in UPPAAL). To deﬁne an instance of an activity, we use this tem-

plate with parameters as follows:

Activity(processclock, mintime, maxtime, resource,

channel, out channel), where

– processclock is a placeholder for a local clock variable,

– mintime and maxtime are placeholders for numeric constants,

– ressource is the placeholder for a name of a single resource (For the sake of sim-

plicity, we assume that each process uses at most one resource from the resource

set R. By adding more placeholders, we can easily expand our model to the general

case.)

– in

channel and out channel are placeholders for urgent channels,

To instantiate the model for an actual workﬂow activity from the template, the place-

holders are substituted by actual variables:

For example, the deﬁnition of the activity ”Issue Check” from the example shown

in Fig. 3 can be done by deﬁning an instance of the template Activity as follows:

IssueCheck := Activity(clock9,4, 6, r8, s6

channel,

a10 channel); (compare Fig.15 with Fig.9). The activity ”File Payment Request”

can be deﬁned as:

FilePaymentRequest := Activity(clock11,1, 2, r10,

a10

channel, a11 channel); Note that synchronization between the both ac-

tivities can take place using channel a10 channel, which replaces the parameter

out

channel in the ”Issue Check” activity, but in channel in the ”File Payment

Request” activity.

Instances of control nodes can be built from the template in the same way. If a

workﬂow speciﬁcation is given according to def. 1, the translation to the UPPAAL model

can be done automatically. For each node, an instance of an UPPAAL template will

be generated. This means that in general, only one line of code will be added to the

UPPAAL model for each node in the workﬂow speciﬁcation

. Split nodes with n > 2

plus declarations of used variables, channels and clocks and the information about the fact that

the instantiated process is part of the system.

outgoing transitions or join nodes with n > 2 incoming transitions can be transformed

into a sequence of n-1 split/join nodes with two outgoing/incoming transitions.

The complete UPPAAL model of our example workﬂow can be downloaded from

ebus.informatik.uni-leipzig.de/∼laue.

3.4 Checking the Correctness of Timed Workﬂows

Having built the UPPAAL model of the workﬂow, we can use the model checker to

verify the required properties. The property speciﬁcation language used in UPPAAL is

a subset of Timed Computational Tree Logic (TCTL) ([16].) Properties that could be

checked include:

”The end node will always be reached” (part 1 of def. 2):

A<> end.finished

(The state ”ﬁnished” in the process end will always be reached). This property can be

checked to be true for our example workﬂow.

”When the end node is reached, no activities are waiting for being ﬁnished” (part 2

of def. 2):

A[] end.finished imply running == 0

This property can be checked to be true for our example workﬂow. (Note that running

will not be decremented until the outgoing channel can be written into.)

”There are no resource conﬂicts for resource r10”

A[] r10<2

Can be checked to be true. Note that this requires reasoning about time: There are

no resource conﬂicts, because ”Update Account” is always ﬁnished when the activity

”File Payment Request” starts. (Using the knowledge that ”Update Account” and ”File

Payment Request” are the only activities that use resource r10, we will get the same

veriﬁcation result by checking the property A[] UpdateAccount.working +

FilePaymentRequest.working <2. This makes use of the trick that boolean

values like UpdateAccount.working are converted to numbers (0 or 1). We would not

need the variables r1,...,r10, which helps to reduce the state space of the model.)

”There are no resource conﬂicts for resource r8”

A[] r8<2

The model checker does not only ﬁnds out that the property is violated, it also gives

a counterexample: a resource conﬂict between the activities ”Signature From Finance

Director” and ”Transfer Funds to US-Account”

”If a request has been rejected, no check will be issued.”

RejectRequest.finished --> not IssueCheck.finished

Can be checked to be true.

”The whole process will be completed in no more than 30 time units”

A<> end.finished and clock1<30

To check this deadline constraint, we use clock1, the local clock of the ﬁrst activity

”Payment Request”. It is started at the begin of the whole workﬂow. This property can

be checked to be true. If we replace ”30” by a smaller value, a counterexample of a

process that needs 29 time units to complete will be given.

3.5 Remarks

Resource Pools The approach can not only be expanded to multiple resources (if r(a)

has more than one element, the model just needs more placeholders for resources used

by activities), it can also be used for checking the usage of resource pools, for example

a database that allows up to 10 parallel connections. We would have to check a property

like resourcecounter<=10.

Abstraction The timed workﬂow speciﬁcation can be transformed automatically into

an UPPAAL model which can be used as the input of the model checker. However, a

complete translation of the workﬂow speciﬁcation, preserving all its properties, does

not necessarily have to be what we really want: Too many details in the model can lead

to too many states the model checker has to examine.

Instead of translating a work-

ﬂow speciﬁcation while preserving all its properties, it may be a good idea to do some

abstraction before by asking which parts of the system are relevant with respect to the

property being checked. If we check for resource conﬂicts for r10 in the example work-

ﬂow, information about other resources can be ignored. In fact, even only the model

built from the very last part of the workﬂow (”Issue Check”, ”Update Account” and

”File Payment Request”) is relevant. Often, this abstraction can be done automatically.

4 Conclusion

The use of only one tool for verifying different kinds of properties (with or without tim-

ing information) and the simplicity of translating workﬂow speciﬁcations to UPPAAL

models are the main beneﬁts from the results presented in our paper.

We have highlighted reasoning about structural correctness and resource constraints,

but using the given approach, various other properties of workﬂow speciﬁcations can

be checked as well. This includes the patterns identiﬁed in [3] and [17], including exis-

tence, absence, precedence and response patterns. In our further research, we will inves-

tigate such patterns, including patterns for time-related properties (see [18]). Another

direction of our work will be to enable the business architects who are responsible for

deﬁning workﬂow speciﬁcations to specify such properties without a deeper knowledge

in model checking or temporal logics.

References

1. Koehler, J., Tirenni, G., Kumaran, S.: From business process model to consistent implemen-

tation: A case for formal veriﬁcation methods. In: EDOC. (2002) 96–

2. Janssen, W., Mateescu, R., Mauw, S., Springintveld, J.: Verifying business processes using

SPIN (1998)

In general, models with a large number of clocks lead to a state-space explosion in timed model

checking. Please note, however, that this is not the case in our model (where each activity adds

a clock): When an activity is completed, its clock is not used actively in comparisons and

cannot lead to new states.

3. Janssen, W., Mateescu, R., Mauw, S., Fennema, P., van der Stappen, P.: Model checking for

managers. In: 5th and 6th International SPIN Workshops. (1999) 92–107

4. Matousek, P.: Veriﬁcation of Business Process Models. PhD thesis (2003)

5. Blazewicz, J., Lenstra, J., Kan, A.R.: Scheduling subject to resource constraints. Discrete

Appl. Math. 5 (1983) 11–24

6. Kolisch, R., Hartmann, S.: Heuristic algorithms for solving the resource-constrained project

scheduling problem: Classiﬁcation and computational analysis (1999)

7. Li, H., Yang, Y., Chen, T.Y.: Resource constraints analysis of workﬂow speciﬁcations. J.

Syst. Softw. 73 (2004) 271–285

8. Norstr

om, C., Wall, A., Yi, W.: Timed automata as task models for event-driven systems.

In: Proceedings of the Sixth International Conference on Real-Time Computing Systems and

Applications. (1999) 182

9. Pozewaunig, H., Eder, J., Liebhart, W.: ePERT: Extending PERT for workﬂow management

systems. In: First EastEuropean Symposium on Advances in Database and Information Sys-

tems ADBIS. (1997) 217–224

10. Sadiq, W., Orlowska, M.E.: Analyzing process models using graph reduction techniques.

Information Systems 25(2) (2000) 117–134

11. Onoda, S., Ikkai, Y., Kobayashi, T., Komoda, N.: Deﬁnition of deadlock patterns for busi-

ness processes workﬂow models. In: Proceedings of the 32nd Annual Hawaii International

Conference on System Sciences-Volume 5, IEEE Computer Society (1999) 5065

12. Workﬂow Management Coalition: Terminology and glossary. Technical report, Workﬂow

Management Coalition (1999)

13. Sadiq, W.: On correctness issues in conceptual modeling of workﬂows (1997)

14. Hillier, F.S., Lieberman, G.J.: Introduction to operations research. Holden-Day, Inc. (1986)

15. Larsen, K.G., Pettersson, P., Yi, W.: UPPAAL in a Nutshell. Int. Journal on Software Tools

for Technology Transfer 1 (1997) 134–152

16. Henzinger, T.A., Nicollin, X., Sifakis, J., Yovine, S.: Symbolic Model Checking for Real-

Time Systems. In: 7th. Symposium of Logics in Computer Science, IEEE Computer Scienty

Press (1992) 394–406

17. Dwyer, M.B., Avrunin, G.S., Corbett, J.C.: Property speciﬁcation patterns for ﬁnite-state

veriﬁcation. In: FMSP ’98: Proceedings of the second workshop on Formal methods in

software practice, ACM Press (1998) 7–15

18. Gruhn, V., Laue, R.: Patterns for timed property speciﬁcation. In: 3rd Int. Workshop on

Quantitative Aspects of Programming Languages (QAPL 05), Edinburgh, Scotland, April

2005, to appear. (2005)
