An Attribute-Based-Delegation-Model and Its

Extension

Chunxiao Ye

, Zhongfu Wu

, Yunqing Fu

College of Computer Science, Chongqing University, China

College of Distance Education, Chongqing University, China

Abstract. In ex

isting delegation models, delegation security entirely depends

on delegators and security administrators, for delegation constraint in these

models is only a prerequisite condition. This paper proposes an Attribute-

Based-Delegation-Model (ABDM) with an extended delegation constraint

consists of both delegation attribute expression (DAE) and delegation

prerequisite condition (CR). In ABDM, A delegatee must satisfy delegation

constraint (especially DAE) when assigned to a delegation role. With

delegation constraint, a delegator can restrict the delegatee candidates more

strictly. ABDM relieves delegators and security administrators of security

management work in delegation. In ABDM, a delegator is not allowed to

temporarily delegate his permissions to a person who does not satisfy the

delegation constraint. To guarantee its flexibility and security, an extension of

ABDM named ABDM

is proposed. In ABDM

, a delegator can delegate some

high level permissions to low level delegatee candidates temporarily, but not

permanently.

1 Introduction

Access control is one of the most important security technologies in information

systems. As an alternative to DAC and MAC, Role-Based Access Control (RBAC)

[1] security technology has gained considerable attentions [2] recently.

Delegation means a delegator can assign his /her permissions to a delegatee. There

are three type

s of situations in which delegation takes place: backup of roles,

decentralization of authority and collaboration of work [3]. Many studies have been

done in delegation [4] [5] [6], and considerable attentions are paid to human-to-

human delegation [3] [7] [8].

But there are still some problems in delegation need to be solved:

1. Because

delegation is controlled by delegator itself, a malicious user can delegate

some important permissions to low level delegatees.

2. Th

e Delegation security relies heavily on system administrator.

3. Del

egation prerequisite condition cannot restrict the scope of delegatees more

strictly.

4. It is d

ifficult for a delegator to select qualified delegatees.

In this paper we first propose a new delegation model named Attribute-Based-

Del

egation-Model (ABDM). Delegation constraint in ABDM consists of both

Ye C., Wu Z. and Fu Y. (2005).

An Attribute-Based-Delegation-Model and Its Extension.

In Proceedings of the 3rd International Workshop on Security in Information Systems, pages 146-159

DOI: 10.5220/0002560401460159

 SciTePress

delegation prerequisite condition (CR) and delegation attribute expression (DAE).

Only those delegatees whose prerequisite roles and DAE satisfy CR and DAE of

delegation constraint can be assigned to a delegation role. In ABDM, DAE and CR

form a strict delegation constraint in delegation. ABDM is a strict and secure

delegation model both in temporary and permanent delegation.

But sometimes we need a less strict delegation model in temporary delegation,

such as high level permissions temporarily be delegated to low level users. Since

ABDM does not support this kind of delegation, we propose a delegation model

named ABDM

to solve this problem, which is an extension of ABDM.

The rest of this paper is organized as follows. Section 2 presents related work. In

section 3, we introduce ABDM model. Section 4 presents the ABDM

model. Section

5 is a discussion among ABMD, ABDM

and some existing delegation models.

Conclusions and future works are presented in section 6.

2 Related Works

RBDM [7] [8] is the first delegation model based on role. In RBDM, a user can

delegate his/her role to another user. A rule-based declarative language has been

proposed in RDM2000 [9] to specify and enforce policies in delegation. The

delegation unit in RBDM and RDM2000 is “role”. In RPRDM [10], a delegator can

delegate part of his/her permissions to a delegatee by a “mask”.

PBDM [3] is a flexible delegation model that supports multi-step delegation and

revocation in role and permission level. In PBDM0, a user can delegate all or part of

his permissions to delegatees. In PBDM1 and PBDM2, the permission flow is

managed by a security administrator with delegeatable role (DBR). RDM2000 and

RBDM can be seen as special cases of PBDM.

In most cases, a delegator cannot delegate all of his/her permissions to delegatees.

Therefore, a low level user cannot be assigned to high level permissions. In some

delegation models, delegation is managed by the delegator himself. RPRDM only

addresses repeated and partial delegation, and delegation in RPRDM is also

controlled by the delegators. So is the delegation in PBDM0. In PBDM1 and PBDM2,

delegation is managed by system administrators or organization security

administrators, and a delegator cannot delegate high level permissions to low level

users.

RDM2000 and PBDM use can-delegate condition with prerequisite condition to

restrict delegates, but the prerequisite condition in these models consisits only of

prerequisite role or organization unit [11] [12] [13]. RBAC and other delegation

models overlook the differences between users who have the same roles. They are all

on the assumption that users who satisfy the prerequisite condition of a delegation

permission can be assigned to the delegation permissions, but in some cases this is not

true.

Role and user attribute has been proposed recently [14] [15] [16]. In RB-RBAC

[15] [16], users who have attribute expression will be assigned to roles dynamically

and automatically. Attribute expression in [17] indicates the user’s qualification or

ability required by a role.

147

3 ABDM Model

Delegations in ABDM are divided into two types: decided-delegatees and undecided-

delegatees. For example, when a finance manager (FM) is out of work, part of the

FM’s permissions can be delegated to a person, say Tom, if Tom has the required

qualifications or abilities. This is a decided-delegatee delegation. In other case, the

FM may want to delegate some permissions to a user who has the required

qualifications or abilities, but he does not know who has the required qualifications or

abilities. If the system can generate qualified delegatee candidates automatically, the

FM can choose one of the candidates as a delegatee. This is an undecided-delegatee

delegation. ABDM can solve these problems mentioned in section 1 and make

delegation securer and easier by decided-delegatee and undecided-delegatee

delegation.

The delegation in ABDM is similar to that in PBDM. In ABDM, a delegator must

first create a temporary delegation role, say tdr, and then assigns his/her permissions

to tdr. Finally, he/she can assign users to tdr. In delegation, the temporary delegation

role has the same function as that of DTR in PBDM. With temporary delegation role,

ABDM supports partial delegation. Unlike PBDM1 and PBDM2, there is no DBR in

ABDM, for its function in delegation can be replaced by temporary delegation role.

The delegation prerequisite condition in our delegation model consists of both

prerequisite condition (CR) [9] and delegation attributes expression (DAE). Only the

persons who satisfy both CR and DAE can be assigned to a temporary delegation role.

Users with different DAEs can be assigned to different delegation roles temporarily.

With DAE and CR, ABDM has a stricter constraint in delegation.

3.1 Concepts

Definition 1 An attribute expression, uae, is of the form ua roprt uav, where ua is an

attribute specified by system, roprt is an operator in {<,

≤ ,>, ≥ , =, ≠ } and uav is

an attribute value specified by system.

For examples, level=4, type=’S’, and total

≥ 33 are uaes.

Definition 2

uae

and uae

are said to have identical structures if and only if they

have the same uas and roprts. uae

and uae

are said comparable if they have identical

structures, otherwise they are incomparable.

For example, level=4 and level=5 are comparable, while level=4 and level≥ 5 are

incomparable.

Similar to recent studies [15] [16], we use the symbol ‘

≥

’ to denote the dominance

relations between two uaes. Here we also propose a method which is an extension of

those in recent studies [15] [16] to judge the dominance relation between two

comparable uaes:

• suppose two uaes have the form of ua ≥uav or ua > uav:

− If uav is a numeric value, then the relation of ‘

≥’ automatically follows the normal

order of uavs.

− If uav is not a numeric value, then the relation of ‘

≥’ must be manually specified.

148

• suppose two uaes have the form of ua ≤ uav or ua < uav

− If uav is a numeric value, then the relation of ‘

’ goes in reverse order of uavs. ≥

− If uav is not a numeric value, then the relation of ‘

≥’ must be manually specified.

• Suppose two uaes have the form of ua = uav or ua ≠ uav, the relation of ‘

≥ ’ must

be manually specified.

For example, we can say uae

(level>5) uae

≥

(level>4) and uae

(total≤ 20)

uae

≥

(total ≤ 20). The dominance relations between uae

(type=’S’) and uae

(type=’J’) must be manually specified.

We can say uae

dominates uae

if uae

≥

uae

. In this case, uae

is the dominant uae

and uae

is the non-dominant one.

Definition 3 A DAE is a delegation attribute expression using AND on terms of the

form uae where AND is the logic operator ‘and’ and uae is an attribute expression.

For examples, level=4, type=’S’, and total

≥ 20 AND type=’S’ are DAEs.

In some of the existing models [15] [16], only users can have attribute expression.

The substantial improvement on it made by our work is that both users and

permissions in ABDM have DAEs. User’s DAE indicates a user’s status, ability and

qualification, while permission’s DAE indicates a delegatee’s ability or qualification

required by this permission in delegation.

For convenience of understanding, we use u.DAE, p.DAE and tdr.DAE to denote

the DAE of a user u, a permission p and a temporary delegation role tdr respectively.

A temporary delegation role tdr has its own DAE, which is a combination of DAEs

of its permissions. tdr.DAE can be automatically generated by the system.

Permissions’ DAE will only be used to generate a temporary delegation role’s DAE in

delegation. So, dominance relation can only be tested between a user’s DAE and a

temporary delegation role’s DAE.

For convenience of understanding, we use UAE to denote a uae set of a DAE. For

example, the UAE of level>5 AND total≤ 20 is {level>5, total≤ 20}.

We use ’

’ to denote the dominance relation between two DAEs:

Definition 4 We say DAE

DAE

, if

∀

uae

∈ UAE

∃

uae

∈ UAE

, s.t.

uae

≥

uae

, where UAE

and UAE

are uae set of DAE

and DAE

respectively.

In this case, DAE

is the dominant DAE and DAE

is the non-dominant one.

For example, we can say DAE

(level>5 AND total≤ 20) DAE

(level>4 AND

total≤ 30) for level>5

level>4 and total≤ 20 total≤ 30. We can also say DAE

≥ ≥

(level>5 AND total≤ 20)

DAE

(level>4) according to definition 4.

We can say a user is a qualified delegatee of tdr if his/her DAE

tdr.DAE in delegation.

Here we introduce a DAE generation algorithm named DG algorithm as below:

DG (DAE Generation) Algorithm:

Input: p

…p

∈ P, where P is the permission set of tdr.

Output: DAE of tdr

Begin

UAE=Φ ;

for i=1 to n

149

UAE=UAE∪ UAE

, where UAE

is the uae set of p

.DAE

for i=1 to |UAE|

for j=1 to |UAE|

if uae

≠ uae

and uae

≥

uae

then delete uae

from UAE

Return DAE =uae

AND…AND uae

, where uae

…uae

∈ UAE,

n=|UAE|

End

In DG algorithm, comparable uaes are tested for dominance relation one by one,

and the non-dominant ones are discarded. In the end, only incomparable uaes remain

in UAE and these uaes can form the tdr.DAE. Each uae in tdr.DAE has its own

restriction on user’s corresponding uae. Because uaes in tdr.DAE have the strictest

restrictions on users, a delegator cannot delegate high level permissions to unqualified

users. So, tdr.DAE generated by DG algorithm can reflect the comprehensive

requirements of users’ DAEs required by delegation permissions and thus grantee the

security of delegation.

3.2 ABDM

Definition 5 the following is a list of ABDM components:

• R, RR, TDR, S, P, U, Ude, and Uee are set of roles, regular roles, temporary

delegation roles, sessions, permissions, users, decided-delegatee candidates and

undecided-delegatee candidates respectively.

• RH

⊆

RR× RR is a regular role hierarchy

• TDRH

⊆

TDR×TDR is a temporary delegation role hierarchy owned by a user u

• R=RR∪ TDR

• RR∩ TDR=Φ

• URA

⊆

U×RR is a user to regular role assignment relation

• UDA

⊆

Ude×TDR is a decided-delegatee to temporary delegation role assignment

relation

• UEA

⊆

Uee×TDR is a undecided-delegatee to temporary delegation role assignment

relation

• UA=URA∪ UDA∪ UEA

• PRA

⊆

P× RR is a permission to regular role assignment relation

• PDA

⊆

P× TDR is a permission to temporary delegation role assignment relation

• roles: U→ 2

is a function mapping a user to a set of roles

roles (u) = {r| (u, r)

∈ UA}

• per_r: RR

→

is a function mapping a regular role to a set of permissions

per_r(r) = {p|(

r’ r) (p, r’)∃ ≤

∈

PRA}

• per_d: U

∪

TDR

→

is a function mapping a temporary delegation role to a set of

permissions

150

per_d(u,tdr)={p|( tdr’ tdr)((p, tdr’)∃ ≤

∈

PDA)∧ tdr∈ roles(u)}

• per_u:U

→

is a function mapping a user to a set of permissions

per_u(u)={p|(

r∈ RR)((u,r) ∈ URA∧ (p, r) ∈ PRA)}∪ {p|(∃

∃

r∈ TDR)((u,r) ∈

UDA∧ (p, r) ∈ PDA)}∪ {p|( ∃r∈ TDR)((u,r) ∈ UEA∧ (p, r) ∈ PDA)}

• Ude: TDR

→

is a function mapping a temporary delegation role to a set of users

that assigned to this role

Ude(tdr)= {u|( p∈ per_d(u, tdr))( p

∀

∉

per_u(u))∧ (u,tdr) ∈ UDA}

• Uee: TDR→ 2

is a function mapping a temporary delegation role to a set of

qualified users

Uee(tdr)={u|u.DAE tdr.DAE∧ (

∀

p∈ per_d(tdr))( p

∉

per_u(u))}

• can-delegateD

R×CR×DAE×TDR is a delegation constraint on UDA

⊆

• can-delegateU

R×CR×Uee×TDR is a delegation constraint on UEA.

⊆

For example, can-delegateD {ST, TR, level=4 and type=’S’ and total=35, tdr}

means that a delegator who has ST can assign a delegatee who must has role TR and

his DAE satisfies level=4 and type=’S’ and total=35 to tdr. can-delegateU{ST, TR,

Alex, tdr} means that a delegator who has role ST can assign Alex to tdr if Alex is a

member of qualified delegatees set of tdr and alex has role TR.

Fig. 1. ABDM model

Here some examples are given to show how ABDM works. Let us discuss the case

in figure 2. For convenience of understanding, we suppose delegatees do not have

the same permissions as those of tdr before delegation. Figure 2 also gives a example

of role hierarchy, user’s DAE and its roles, and permission’s DAE. Tom with a role ST

is supposed to want to delegate his permissions {Borrow_in_S, Read_in_S,

5_books_one_time} to someone. First, he must create a temporary delegation role tdr.

Second, he can assign permissions {Borrow_in_S, Read_in_S, 5_books_one_time} to

151

tdr. The tdr’s DAE now is generated by DG algorithm with the input of DAEs of

Borrow_in_S, Read_in_S and 5_books_one_time.

In ABDM, the system can automatically generate a Uee(tdr) with qualified

delegatee candidates after the second step. Tom can perform either decided-delegatee

or undecided-delegatee delegation.

Tom can perform a decided-delegatee delegation according to the following steps:

1. Tom selects Annie and Lucy from user set;

2. Tom assigns Annie and Lucy to tdr. Delegation failed for neither Annie nor Lucy is

a qualified delegate.

Tom can perform an undecided-delegatee delegation according to the following

steps:

1. Tom selects a user, Alex, from Uee(tdr) which is generated by system. This time,

Uee(tdr)= {Alex, John, Mike}.

2. Tom assigns Alex to tdr. Delegation is successful if Alex has role TR, otherwise

delegation failed.

Delegation revocation in ABDM is similar to that in PBDM. We believe that

delegation revocation with DAE

is an interesting topic for further study.

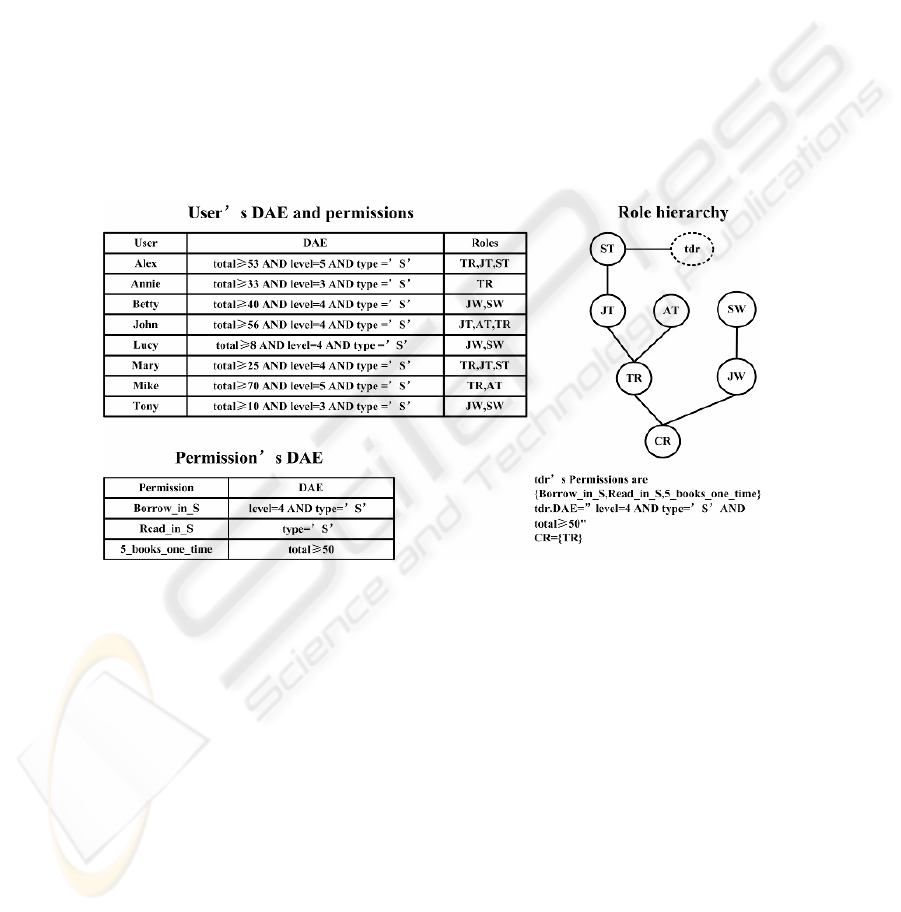

Fig. 2. Example of ABDM

4 ABDMX model

Although a securer delegation model, ABDM still has its shortcoming:

There are two types of delegations: temporary and permanent. ABDM is a

delegation model dealing with both types of delegations, and the delegation constraint

of a temporary delegation role in these two delegations is identical. But in real world,

delegation constraint of a temporary delegation role in a temporary delegation is

always less strict than that in a permanent delegation. So, with permanent delegation

constraint, a delegator sometimes cannot temporarily delegate his permissions to a

delegatee.

152

In the case in table 1, for example, if a teacher t (t has the role teacher) wants to

delegate p1 and p2 to a student s, he/she must first create a temporary delegation role

tdr, and then assigns p1, p2 to it. Now, tdr.DAE is type=’T’. In this case, suppose

DAE: type=’T’

DAE: type=’S’ and all students have the same DAE: type=’S’. t

cannot perform a decided-delegatee delegation, for s is not a qualified delegate of tdr.

Then t tries to perform an undecided-delegatee delegation. Because none of the

students satisfy tdr, he/she cannot delegate p1, p2 to a student in an undecided-

delegatee delegation either.

Table 1: Permissions and permissions’ DAE

permissions of teacher permission’s DAE

p1:reading in the teacher’s reading room Type=’T’

p2:borrow books from teacher’s reading room Type=’T’

p3:crete exams Type=’T’

p4:record results Type=’T’

In fact, there are some differences between p1, p2 and p3, p4: p1, p2 can be

temporarily delegated to a person who has not the required abilities or qualifications.

It will not cause any security problems. But they cannot be permanently delegated to

an unqualified person, for that will go against security policy. P3 and p4 can be

delegated to a person if he/she has the required abilities or qualifications both in a

temporary and permanent delegation. So, a person with a role teacher can delegate

his/her permissions p1 and p2 to a person temporarily but he/she cannot temporarily

delegate his/her permissions p3 and p4 to a person in any cases. That is, p1 and p2 can

be delegated to a low level person temporarily but not permanently.

4.1 ABDMX

To overcome this shortcoming, we introduce a model named ABDM

, which is an

extension of ABDM. In this model, there are two different types of permissions:

monotonous permission (MP) and non-monotonous permission (NMP). MP can be

temporarily or permanently delegated to a qualified person, while NMP can only be

temporarily delegated. So the delegator can temporarily delegate NMP to a low level

delegatee candidate.

Definition 6 a permission p is a MP if it has an identical restriction on delegatee’s

DAE both in a temporary and a permanent delegation. p is a NMP if it has restriction

on delegatee’s DAE only in a permanent delegation. MN (p) is a function defined as

follows:

⎩

⎨

⎧

NMP p False

MP p True

MN(p)

a is

A NMP menas it has no restriction on delegatee’s DAE in a temporary delegation.

Permission’s monotony must be specified by the system administrator or security

administrator in advance.

153

Definition 7 a user u’s temporary delegation role tdr is a monotonous role if it has

an identical restriction on delegatee’s DAE both in a temporary and a permanent

delegation. tdr is a non-monotonous role if it has restriction on delegatee’s DAE only

in a permanent delegation.. MN (tdr) is a function defined as follows:

⎪

⎩

⎪

⎨

⎧

∈∀

∈∃

FalsepMN

tdr,udperpFalse

TruepMN

tdr,udperpTrue

tdr,uMN

)(

),(_

)(

),(_

) (

That is, a non-monotonous role has no restriction on delegatee’s DAE in a

temporary delegation.

Because ABDM does not support delegation with NMPs, we must modify it to

meet this requirement.

Definition 8 the following is a list of ABDM

components:

• R, RR, TDR, S, P, P

, P

, U, Ude, Uee, TDR

,TDR

and TDR are sets of roles,

regular roles, temporary delegation roles, sessions, permissions, MPs, NMPs, users,

decided-delegatee candidates, undecided-delegatee candidates, monotonous

temporary delegation roles , non-monotonous temporary delegation roles and

temporary delegation roles respectively.

• RH

⊆

RR is a regular role hierarchy

• TDRH

⊆

TDR

TDR is a temporary delegation role hierarchy owned by a user u

• TDR= TDR

∪ TDR

• TDR

∩ TDR

=Φ

• R=RR∪ TDR

• RR

∩

TDR=

• P= P

∪ P

• P

∩ P

=Φ

• URA

⊆

U×RR is a user to regular role assignment

• UDAM

⊆

Ude×TDR

is a decided-delegatee to monotonous temporary delegation

role assignment

• UDAN

Ude × TDR

⊆

is a decided-delegatee to non-monotonous temporary

delegation role assignment

• UEA

⊆

Uee×TDR is a undecided-delegatee to temporary delegation role assignment

• UDA= UDAM

∪ UDAN

• UA=URA

∪ UDA∪ UEA

• PRA

⊆

P× RR is a permission to regular role assignment

• PDA

⊆

TDR is a permission to temporary delegation role assignment

• roles: U→ 2

is a function mapping a user to a set of roles

roles (u) = {r| (u,r)∈ UA}

• per_r: RR

→

is a function mapping a regular role to a set of permissions

154

per_r(r) = {p|( ∃ r’ ≤ )(p, r’)

∈

PRA}

• per_d: U∪ TDR

→

is a function mapping a temporary delegation role to a set of

permissions

per_d(u,tdr)={p|(

tdr’ tdr)((p, tdr’)∃ ≤

∈

PDA)∧ tdr∈ roles(u)}

• per_u:U→ 2

is a function mapping a user to a set of permissions

per_u(u)={p|(

∈

RR)((u,r) ∈ URA∧ (p, r) ∈ PRA)}∪ {p|(

∃

r∈ TDR)((u,r)

∈ UDA∧ (p, r) ∈ PDA)}∪ {p|(

∃

r∈ TDR)((u,r) ∈ UEA∧ (p, r) ∈ PDA)}

• Ude:TDR→ 2

is a function mapping a temporary delegation role to a set of users

that assigned to this role

Ude(tdr)= {u|(

∀

p∈ per_d(u, tdr))( p

∉

per_u(u))∧ (u,tdr) ∈ UDA}

• Uee: TDR→ 2

is a function mapping a temporary delegation role to a set of

qualified users

Uee(tdr)={u|MN(tdr)=True ∧ u.DAE

tdr.DAE ∧ (

∀

p ∈ per_d(tdr))

∉

per_u(u))}

• can-delegateM

⊆

R×CR×DAE×TDR

is a constraint on UDAM

• can-delegateN

⊆

R×CR×TDR

is a constraint on UDAN

• can-delegateU

R×CR×Uee×TDR

⊆

is a delegation constraint on UEA

Fig. 3. ABDM

model

can-delegateN(r,cr,tdr) means a delegator with role r can delegate a non-

monotonous temporary delegation role tdr to a delegatee who has role cr.

can-delegateM can restrict delegatees with temporary delegation role’s DAE and

delegation permission’s monotony need not to be considered, on the contrary it must

be considered in can-delegateN for it cannot restrict delegatee with temporary

155

delegation roles’ DAE. That is, can-delegateN only be used in a delegation with

NMPs while can-delegateM can be used in a delegation with both MPs and NMPs.

Because a NMP has no restriction on a delegatee’s DAE in delegation, ABDM

does

not support undecided-delegatee delegation with NMPs. We can prevent ABDM

from generating Uee (tdr) for NMPs by adding a constraint: MN (tdr) =True to the

definition of it.

Let us discuss the example presented in section 4 again to show how this extended

model works. In one case, teacher t wants to delegate his permissions p1, p2 to a

student s. He/she can delegate them according to the following steps (in table 1, p3,

p4 are MPs and p1, p2 are NMPs):

1. t creates a temporary delegation role tdr.

2. t assigns p1, p2 to tdr. That is, MN (tdr) =False for MN (p1) =False and MN (p2)

=False.

3. t must perform delegation by UDAN for tdr

∈ TDR

4. Delegation is successful for UDAN (s, tdr) satisfies can-delegateN(teacher,

student, tdr) constraint.

In the other case, t wants to delegate his/her permissions p2, p3 to s:

1. t creates a temporary delegation role tdr.

2. t assigns p2, p3 to tdr.

That is, MN (tdr) =True for MN (p1) =False and MN (p2) =True and tdr’s DAE is

type=’T’.

3. Delegator must perform delegation by UDAM for tdr∈ TDRM.

4. Delegation failed because UDAN (s, tdr) does not satisfy can-delegateN (teacher,

student, tdr) constraint.

Undecided-delegatee delegation with MP

s and delegation evocation in ABDM

are

similar to those in ABDM. Revocation in ABDM

is similar to that in ABDM.

4.2 Delegation security in ABDMX

We now discuss delegation security in ABDM

according to a temporary delegation

role tdr’s monotony

1. MN (tdr) =True

In this case, tdr has MPs and the delegator can perform delegation by UDAM.

Because can-delegateM is the delegation constraint on UDAM, a delegatee must be a

qualified one when assigned to tdr.

A delegator can delegate some NMPs to delegatees by UDAM. That means a

delegatee has those prerequisite roles and DAE which are required by can-delegateM

when assigned to tdr. This will not cause any security problems.

2. MN (tdr) =False

In this case, tdr has NMPs and the delegator can perform delegation with UDAN.

Although can-delegateN cannot restrict delegatees with DAE, there will be no

security problem in the delegation. The reason is that in fact NMPs have no

restrictions on delegatees in this type of delegation.

156

A delegator cannot delegate MPs to delegatees by UDAN. In ABDM

, can-

delegateN constraint means only NMPs can be delegated to delegatees by UDAN (tdr

∈ TDR

). This will not cause any security problems in delegation either

5 Discussion

In some existing delegation models, such as RBDM and RDM2000, delegation is

controlled by a delegator or a system administrator. There are no restrictions on

delegatee candidates except prerequisite role. These models have the highest

flexibility but lowest security in delegation. In PBDM, a delegator cannot delegate

some high level permissions to low level delegatees under the supervision of the

system administrator. PBDM has a medium flexibility and security in delegation.

ABDM has a strict delegation constraint consisting of prerequisite roles (CR) and

temporary delegation role’s attribute expression (DAE). A delegatee’s prerequisite

roles and DAE must satisfy CR and DAE of delegation constraint simultaneously

when he/she is assigned to a temporary delegation role. A delegator cannot delegate

high level permissions to an unqualified user in any case. Because delegatee

candidates are limited by delegation constraint, ABDM is believed to have the lowest

flexibility but highest security in delegation. In ABDM

, a delegator can temporarily

delegate NMPs to an unqualified low level user but cannot temporarily delegate MPs

to an unqualified delegatee in any case. In fact ABDM

does not cause any security

problems in temporary delegation for NMPs have no restrictions on delegatee

candidates’ DAEs. So, ABDM

has a medium flexibility but the same security level as

that of ABDM in delegation.

Fig. 4. Security and Flexibility of ABDM, ABDM

, PBDM, RDM2000 and RBDM.

6 Conclusion and Future Work

We propose a novel delegation model ABDM and its extension ABDM

. As a

delegation model based on permission and user’s attribute, the main feature of it is

that it uses user and permission attribute expression as a part of delegation constraint.

157

ABDM is a securer delegation model for it can restrict delegatee candidates more

strictly. ABDM

is more flexible than ABDM in delegation. For in ABDM

, a

delegator can temporarily delegate NMPs to low level users without causing any

security problems. Both ABDM and ABDM

can be used in temporary and

permanent delegation and make delegation securer and more flexible.

Further work includes supporting more constraints in ABDM and ABDM

, such

as separation of duty and cardinality, and revocation with DAE in them.

Acknowledgments

Our work is supported by The Research Fund for the Doctoral Program of Higher

Education (RFDP20040611002), China.

References

1. Ravi Sandhu, Edward Coyne, Hal Feinstein, Charles Younman, ‘Role-Based Access Control

Models’, IEEE Computer, Vol.29, 1996,pp.

38-47.

2. David F Ferraiolo, Ravi Sandhu, Serban Gavrila, ‘proposed standard for role-based access

control’, ACM Trans on information and System Security, Vol.4, 2001, pp.224-274.

3. Xinwen Zhang, Sejong Oh, Ravi Sandhu, ‘PBDM: A Flexible Delegation Model in RBAC’,

Proceedings of SACMAT’03, Como, Italy, 2003, pp.149-157.

4. Lynn Andrea Stein, ‘Delegation Is Inheritance’, proceedings Of Object-Priented

Programming Systems, Languages, and Applications (OOPSLA’87), New York, USA,

1987, pp.138-146.

5. J.D. Moffett, ‘Delegation of authority Using Domain Based Access Rules’, PhD Thesis,

Dept of Computing, Imperial College, University of London, 1990.

6. Morrie Gasser, Ellen McDermott 1990, ‘An Architecture for practical Delegation in a

Distributed System’, Proceedings of IEEE Computer Society Symposium on Research in

Security and Privacy. Oakland, USA, pp.20-30.

7. Ezedin Barka, Ravi Sandhu, ‘Framework for Role-Based Delegation Models’, Proceedings

of 16th Annual Computer Security Application Conference (ACSAC2000), New Orleans,

USA, 2000, pp.168-175

8. Ezedin Barka, Ravi Sandhu, ‘A role-based delegation model and some extensions’,

Proceedings Of 23rd National Information Systems Security Conference (NISSC),

Baltimore, USA, 2000, pp.101-114.

9. Longhua Zhang, Gail-Joon Ahn, Bei-Tseng Chu, ‘A rule-based framework for role-based

delegation’, proceedings of 6th ACM Symposium on Access Control Models and

Technologies (SACMAT), Chantilly, VA, 200, pp.153-162.

10. ZHAO Qing-Song, SUN Yu-Fang, SUN Bo, ‘RPRDM: A Repeated-and-Part-Role-Based

Delegation Model’, Journal of Computer Research and Development, Vol. 40, 2003,

pp.221-227.

11. Ravi S Sandhu, Venkata Bhamidipati, Qamar Munawerl, ‘The ARBAC97 model for role-

based administration of roles’, ACM Transaction s on Information and System Securty, Vol.

2, 1999, pp. 105-135.

12. Ravi Sandhu, Qamar Munawer, ‘the ARBAC99 model for administration of roles’,

Proceedings of the Annual Computer Security Applications Conference, Phoenix, USA,

1999.

158

13. Ravi Sandhu, Qamar Munawer, ‘A Model for Role Administration Using Organization’,

Proceedings of the Structure, SACMAT’02, Monterey, California, USA, 2002, pp.155-162.

14. Cheh Goh, Adrian Baldwin, ‘Towards a more complete model of role’, Proceedings of the

third ACM workshop on Role-based access control, Fairfax, Virginia, United States, 1998,

pp. 55 - 62.

15. M. A. Al-Kahtani, R. Sandhu, ‘A Model for Attribute-Based User-Role Assignment’,

Proceedings of the 18th Annual Computer Security Applications Conference, Las Vegas,

Nevada, USA, 2002, pp. 353-362.

16. Mohammad Abdullah Al-Kahtani, ‘A family of Models for Rule-Based User-Role

Assignment’, PhD Thesis. School of Information Technology and Engineering, George

Mason University, 2003.

17. YE Chun-Xiao, Fu Yun-Qing, WU Zhong-Fu, ‘Research on User-Role Assignment Based

on Role Restrictive Conditions’, Journal of Computer Science, Vol. 31, 2004, pp. 73-76.

159
