Architecture for an Autonomic Web Services

Environment

Wenhu Tian, Farhana Zulkernine, Jared Zebedee, Wendy Powley and Pat Martin

School of Computing,

Queen’s University, Kingston, ON Canada

Abstract. The growing complexity

of Web service platforms and their

dynamically varying workloads make manually managing their performance a

tough and time consuming task. Autonomic computing systems, that is, systems

that are self-configuring and self-managing, have emerged as a promising

approach to dealing with this increasing complexity. In this paper we propose

an architecture of an autonomic Web service environment based on reflective

programming techniques, where components at a Web service hosting site tunes

themselves and collaborate to provide a self-managed and self-optimized

system.

1 Introduction

Web services are self-contained and self-describing software components that can be

accessed over the Internet. They are now well accepted in Enterprise Application

Integration (EAI) [19] and Business to Business Integration (B2Bi) [4]. Performance

plays a crucial role in promoting the acceptance and widespread usage of Web

services. Poor performance (e.g. long response time) means the loss of customers and

revenue [14]. In the presence of a Service Level Agreement (SLA), failing to meet

performance objectives could result in serious financial penalties for the service

providers. As a result, Web service performance is of utmost importance, and recently

has gained a considerable amount of attention [3, 15, 18].

A Web service is a Web-accessible program that is described in a WSDL (Web

Ser

vice Description Language) [17] document. Web services are published or

discovered via a UDDI (Universal Description, Discovery and Integration) [16]

registry. SOAP (Simple Object Access Protocol) [13] is the most common message

passing protocol used to communicate with Web services.

A Web service hosting site typically consists of many individual components such

as HTT

P servers, application servers, Web service applications, and supporting

software such as database management systems. If any component is not properly

configured or tuned, the overall performance of the Web service suffers. For example,

if the application server is not configured with enough working threads, the system

can perform poorly when the workload surges. Typically components such as HTTP

servers, application servers or database servers are manually configured, and

manually tuned. To dynamically adjust in an ever-changing environment, these tasks

must be automated.

Tian W., Zulkernine F., Zebedee J., Powley W. and Martin P. (2005).

Architecture for an Autonomic Web Services Environment.

In Proceedings of the Joint Workshop on Web Services and Model-Driven Enterprise Information Systems, pages 54-66

DOI: 10.5220/0002561400540066

 SciTePress

Unacceptable Web service performance results from both networking and server-

side issues [10]. Most often the cause is congested applications and data servers at the

service provider’s site as these servers are poorly configured and tuned. Expert

administrators, knowledgeable in areas such as workload identification, system

modeling, capacity planning, and system tuning, are required to ensure high

performance in a Web service environment. However, these administrators face

increasingly more difficult challenges brought by the growing functionalities and

complexities of Web service systems, which stems from several sources:

• Increased emphasis on Quality of Services

Web services are beginning to provide Quality of Service features. They must

guarantee their service level in order that the overall business process goals can be

successfully achieved.

• Advances in functionality, connectivity, availability and heterogeneity

Advanced functions such as logging, security, compression, caching, and so on are

an integral part of Web service systems. Efficient management and use of these

functionalities require a high level of expertise. Additionally, Web services are

incorporating many existing heterogeneous applications such as JavaBeans,

database systems, CORBA-based applications, or Message Queuing software,

which further complicate performance tuning.

• Workload diversity and variability

Dynamic business environments that incorporate Web services bring a broad

diversity of workloads in terms of type and intensity. Web service systems must be

capable of handling the varying workloads.

• Multi-tier architecture

A typical Web service architecture is multi-tiered. Each tier is a sub-system, which

requires different tuning expertise. The dependencies among these tiers are also

factors to consider when tuning individual sub-systems.

• Service dependency

A Web service that integrates with external services becomes dependent upon

them. Poor performance of an external service can have a negative impact on the

Web service.

Autonomic Computing [7] has emerged as a solution for dealing with the

increasing complexity of managing and tuning computing environments. Computing

systems that feature the following four characteristics are referred to as Autonomic

Systems:

• Self-configuring - Define themselves on-the fly to adapt to a dynamically

changing environment.

• Self-healing - Identify and fix the failed components without introducing apparent

disruption.

• Self-optimizing - Achieve optimal performance by self-monitoring and self-tuning

resources.

• Self-protecting - Protect themselves from attacks by managing user access,

detecting intrusions and providing recovery capabilities.

In this paper we propose an architecture for an autonomic Web services

environment. We consider each component in the proposed architecture as self-

managing and thereby present a hierarchical layout of autonomic managers that

constitute a self-configuring and self-optimizing autonomic Web service system. The

remainder of the paper is structured as follows. Section 2 discusses related approaches

to Web service management. Our proposed autonomic architecture is presented in

Section 3, and a detailed scenario to illustrate how the architecture works is provided

in Section 4. Section 5 summarizes and concludes the paper.

2 Related Work

Architectural approaches based on SLA-driven Web services have been proposed by

Dan et al. [5] and Levy et al. [9]. Dan’s framework includes components for the

support of an SLA throughout its entire life-cycle as well as SLA-driven management

of services. Levy et al uses a queuing model to predict response times for different

resource allocations. In their model, the management system is transparent and

allocates server resources dynamically to maximize the expected value of a given

cluster utility function. Both of these approaches focus on service provisioning. We

focus on autonomic management rather than the provisioning aspects.

Farrell and Kreger [6] propose a number of principles for the management of Web

services including the separation of the management interface from the business

interface, pushing core metric collection down to the Web services infrastructure.

They use intermediate Web services that act as event collectors and managers. We

incorporate these ideas and expand upon them in our approach.

The insufficient reliability and lack of autonomic features in current Web services

architectures is presented by Birman et al in [2]. He proposes some extensions to the

current Web services framework in the form of more robust monitoring and reliable

messaging to achieve higher availability.

3 Autonomic Web Services Architecture

A Web services environment typically consists of a collection of components

including HTTP servers, application servers, database servers, and Web service

applications. In our proposed architecture, as shown in Figure 1, we consider each

component to be autonomic, that is, self-aware and capable of self-configuration to

maintain a specified level of performance. System-wide management of the Web

services environment is facilitated by a hierarchy of Autonomic Managers that query

other managers at the lower level to acquire current and past performance statistics,

consolidate the data from various sources, and use pre-defined policies and SLAs to

assist in system-wide tuning.

SLA

Neg otiation

Site DSite CSite B

Site E

Site A

Application

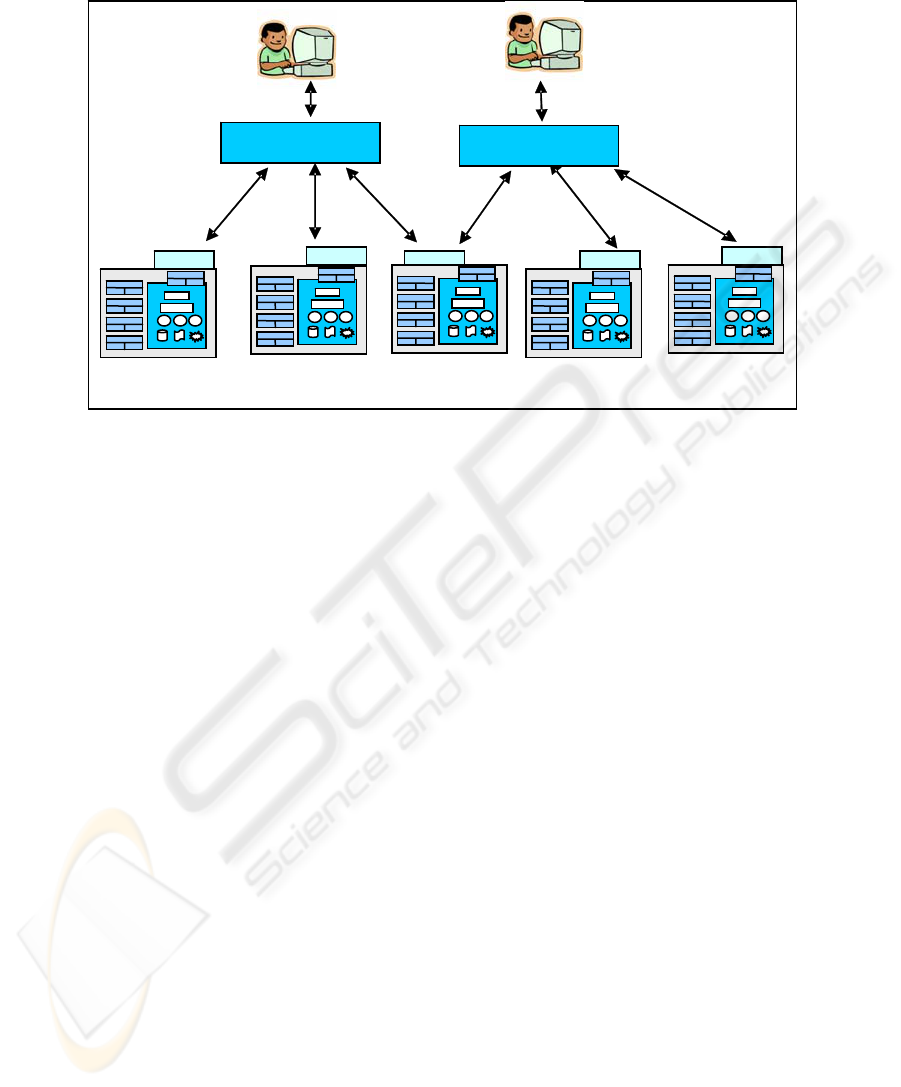

Fig. 1. Autonomic Web Services Architecture

At the lowest level in our architectural

refer to an autonomic element as a c

hierarchy are the Autonomic Elements. We

omponent augmented with self-managing

capabilities. An autonomic element is capable of monitoring the performance of its

component, or managed element, (such as a DBMS or an HTTP server), analyzing its

performance and, if required, proposing and implementing a plan for reconfiguration

of the managed element. Autonomic elements form the building blocks of our

architecture and are described in more detail in Section 3.1.

We refer to a Site as a collection of components and resources necessary for

hosting a Web service system provided by an organization. A Web services hosting

site typically consists of HTTP servers, application servers, SOAP Engines, and Web

services. Web services are basically Web accessible interfaces or applications that

can connect to other backend applications such as legacy systems, or database

management systems. Most often these backend components are located on separate

servers that are connected by a Local Area Network (LAN). A site can therefore span

multiple servers. A site manager oversees the overall performance of the site and

provides service provisioning for the components associated with the site.

An Application, as shown in Figure 1, is a special purpose client program that uses

one or more Web services, possibly from different sites. An investor application, for

a Local Area Network (LAN). A site can therefore span

multiple servers. A site manager oversees the overall performance of the site and

provides service provisioning for the components associated with the site.

An Application, as shown in Figure 1, is a special purpose client program that uses

one or more Web services, possibly from different sites. An investor application, for

example, that allows users to look up stock prices may use Web services from several

different companies. A site’s SLA Negotiator negotiates SLA agreements between

the applications and the Web services hosted by the site. Once SLA agreements are

made, the site must manage its resources to ensure the agreed level of performance.

There are two levels of management in our approach; the component level and the

site level. The component is responsible for managing its own performance to meet

ample, that allows users to look up stock prices may use Web services from several

different companies. A site’s SLA Negotiator negotiates SLA agreements between

the applications and the Web services hosted by the site. Once SLA agreements are

made, the site must manage its resources to ensure the agreed level of performance.

There are two levels of management in our approach; the component level and the

site level. The component is responsible for managing its own performance to meet

goals specified by the site manager. The site manager monitors for SLA compliance,

sets component goals, and provides resource provisioning when necessary.

als specified by the site manager. The site manager monitors for SLA compliance,

sets component goals, and provides resource provisioning when necessary.

3.1 Autonomic Elements

An autonomic element can be viewed as a feedback control loop as shown in Figure 2

[8], controlled by an Autonomic Manager. The autonomic manager oversees the

t (the Managed Element), and by analyzing the collected

statistics in light of known policies and goals, it determines whether or not the

monitoring of the componen

component performance is adequate. If necessary, a plan for reconfiguration is

generated and executed.

Managed element

Monitor

Analyze Plan

Execute

Knowledge

Autonomic manager

Management Interface

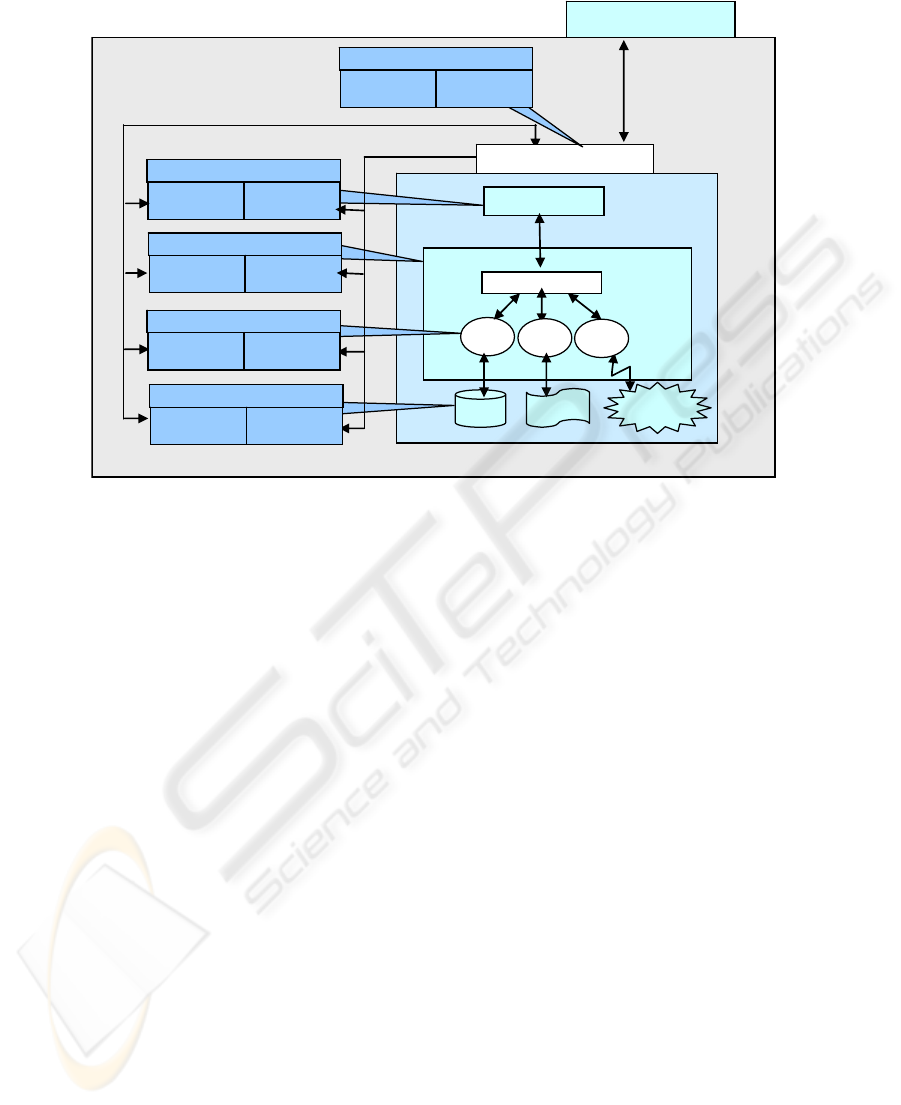

Fig. 2. Autonomic Element

One approach to building autonomic elements is based on the principles of

reflective programming [11]. A reflective system is one that can inspect an apt its

onse to changing conditions. Typically a reflective system

maintains a model of self-representation, and changes to the self-representation are

performance. This information is

sto

ements. Each component has an autonomic manager as

shown in Figure 2, augmented with a reflective Management Interface. This interface

d ad

internal behaviour in resp

tomatically reflected in the underlying system.

An example of an autonomic database management system (DBMS) based on

reflective programming techniques, was presented by Martin et al [12]. In this system,

the self-representation of the system embodies the current configuration settings and

the statistics that are collected regarding the system

red as a set of database relations that can be queried and updated. A monitoring

tool periodically takes snapshots of the DBMS performance and stores the collected

data in a data warehouse. When a new set of performance data is inserted into the

data warehouse, a database trigger is fired that calls a diagnosis function. The

diagnosis function compares current and past performance data to determine whether

or not a change in configuration is warranted based on a preset desired performance

setting. If one or more configuration parameters should be altered, a change is made

to the self-representation which in turn triggers a change to the underlying DBMS

configuration parameters.

We use this notion of reflection to implement Web components as autonomic

elements. In our architecture, all components such as the HTTP server, the application

server, the Web services and supporting applications as well as the site manager are

instances of autonomic el

his data can be accessed using the methods provided by the

sentation is accessed via Web service operations for each element. Two

Fi 3. Ma

used by higher level managers to set performance goals as per Service Level

Agreements (SLAs) for the managed element and to obtain current performance

statistics for the component. As in the example of the autonomic DBMS, a monitoring

tool periodically monitors the system performance and the analyzer compares the

current and past performance to determine whether a configuration change is

necessary to achieve the desired goal. Following the principles of reflective systems,

each autonomic element maintains a self-representation which embodies the

component’s current goal settings and its current performance statistics. Updates

made to the self-representation trigger changes to the actual system. If deemed

necessary by the analyzer, changes are made to the self-representation to reconfigure

the component.

In our proposed architecture, to ensure interoperability between autonomic

elements, a common management interface is specified for all elements to provide

access to the self-representation. Each autonomic element monitors itself to assess its

general health and the performance data is stored as part of the component’s self-

representation. T

nagement interface. Historical data may be used for performance analysis and

prediction.

The standard Web services environment already provides the tools required to

define, publish, discover, and to use APIs across platforms. These tools and methods

are exploited in our proposed architecture for communication between elements. To

implement the reflective interface, we view each component as a Web service where

the self-repre

nagement interfaces are defined for each autonomic element; the Performance

Interface and the Goal Interface. The Performance Interface exposes methods to

retrieve, query and update performance data. Each element exposes the same set of

methods, but the actual data each provides varies. Meta-data methods allow the

discovery of the type of data that is stored for each element

public interface Goal{

// retrieves a list of goals that can be set for the component

public Vector getMetaData();

// retrieves the current goal for the component

oal (String goalType);

ent

retrieves the most recent performance data

public Vector getCurrentData();

of the most recent performance

public Double getG

// set a goal for the component

public Boolean setGoal(String goalType, Double

value)

}

public interface Performance{

// retrieves a list of goals that can be set for the compon

public Vector getMetaData();

// returns a specified portion

g. nagement Interface Specifications

The Goal Interface provides methods to query and establish the goals for an

aut nomic element. Meta-data methods promote the discovery of associated goals

o asses the current health of

registry as suggested by Farrell and Kreger [6]. The self-

rep

Monitoring incurs a certain degree of overhead, so

iety of

3.2 Site Management

f Web service components and resources provided by an

organization that offers one or more Web services. The components comprising a site

d additional methods allow the retrieval of current goals. Goals for individual

components can be set only by their associated site manager. Goals for a site

manager are set by the site's SLA Negotiator component.

Component-level performance interfaces are accessed only by their associated site

manager. A site manager uses the performance interface t

ch of its components and uses the component’s goal interface to set individual goals

for each component.

Management interfaces are defined and published using WSDL and a private

management UDDI

resentation can be stored using any storage format (database, log files etc) as these

details are made transparent by the use of a Web service interface. Figure 3 shows

the interface specification of the management interfaces common to all autonomic

elements. The WSDL specification for the setGoal() method is given in the

Appendix as an example.

Each autonomic element implements a monitoring component to asses the health

of its managed element.

nitoring processes must be lightweight and invoked as infrequently as possible.

Multiple levels of monitoring allow more information to be collected depending on

the amount of detail that is desired. In some cases, it may be desirable to drill down,

collecting more detailed information to assist in problem determination. At times of

stable, acceptable performance, it may suffice to collect data less frequently.

Current HTTP servers and application servers provide rich interfaces for

monitoring tools to extract performance statistics and running status. A var

nitor tools are available on the market to visualize and analyze collected statistics,

and if necessary, to fire warnings when the pre-set thresholds are violated [20, 1].

DBMSs are rich in monitoring tools and APIs for gathering information. Monitors

can be switched on or off at will, and different levels of monitoring can be specified.

Monitoring individual Web services presents more of a challenge as each Web service

application is unique. Generic monitors can be developed that provide basic

information such as response time for the Web service, number of requests per time

unit, or average queue length.

A site is a collection o

are shown in Figure 4. A site may be distributed across many physical nodes.

Multiple instances of a component may reside on the same site and resources are

provisioned as required.

Query/Signal

HTTP Server

Application

Server

SOAP Engine

WS1

Legacy

XML

Objects

JDBC Wrapper

SOAP

HTTP Server

Goal

Interface

Performance

Interface

Application Server

Goal

Interface

Performance

Interface

Set

WS2

WS3

Web service

Goal

Interface

Performance

Interface

DB Server

Goal

Interface

Performance

Interface

Ext.WS

SLA Negotiator

Site Mana

Site Manager

Goal

Interface

Performance

Interface

Fig. 4. Autonomic Web Services Site

Applications that wish to use the Web services offered by a site negotiate a SLA

with the site’s SLA Negotiator. Details of an automated approach to SLA negotiation

is presented by Dan et al in [5], and is beyond the scope of this paper. We assume

that different SLAs can be specified for each Web service or, if a finer level of

granularity is required, SLAs can be set on a per-operation level. The site’s SLA

Negotiator translates these high level specifications into performance goals such as

response time or average throughput for each Web service or operation. The SLA

Negotiator component sets the goals for the site using the site’s management

interface.

Each site employs a Site Manager that oversees the general performance of the

components comprising the site. The site manager itself is implemented as an

autonomic element with its own autonomic manager. Conceptually, the site manager

is the autonomic manager of all the components within the scope of the site. The site

manager collects the performance statistics of each component by querying the

management interfaces of the individual components. This information, along with

the policies and goals defined for the site, is used to determine whether or not the

performance of the site is adequate. If the site is in violation of one or more of the

SLA agreements, an action plan is generated and executed. An action plan may

involve the generation and setting of new goals for particular components, or it may

involve a modification in the provisioning of resources.

The site manager is implemented as a Web service that exposes the site’s

performance interface that can be accessed by other site managers or external

components. This interface can be used by applications for error tracking, Web

service selection, or by modules handling external SLA compliance monitoring. The

performance data for a site provides summary data indicating the overall performance

of the associated components.

The site manager is responsible for monitoring the overall performance of the Web

services offered by the site. The site manager retrieves the performance data via the

components’ performance interfaces. The information required by the component for

self-management may differ from that required for overall system management by

managers at the site level. For instance, a DBMS focuses on low level resources such

as I/O and CPU usage to maximize performance. To optimize site performance, and

to monitor SLA compliance, the site manger requires higher level statistics such as

throughput or transaction response times. This information is available through the

components management interface.

4 Scenario

Functionality of the different components presented in the architecture of autonomic

Web services system can be better explained using a common example like the Stock

Quote composite Web service system shown in Fig. 5. In this system, a customer

uses an Investor application to find out the details about multiple stocks. The Investor

application invokes a Stock Broker (SB) Web service by sending a register message

containing a list of stock IDs. The Stock Broker sends accept or reject message to the

Investor in response. In case of accept, the Stock Broker sends the stock IDs received

from the customer, one by one to the Research Department (RD) Web service. The

RD finds the necessary information and sends a report directly to the Investor

application. When the Investor receives information about all the stocks, it sends an

acknowledgement message to the Stock Broker service. The Stock Broker service

then submits the bill to the Investor and notifies the Research Department about the

end of the job. The messages interchanged in this system are presented in Figure 5.

Investor Stock Broker

(SB)

(Application)

Fig. 5. Stock Broker Web Service System

The Stock Broker and Research Department Web services are located at two

different sites. Each of these sites is managed by a site manager. The site manager

receives the SLA from the SLA negotiator and monitors the performance of the

(

Web service

)

accept, reject, bill

request, terminate

Research Department

(RD)

(Web service)

report

different components at the site to provide an overall performance in compliance with

the SLA. For the Stock Broker service system, the site manager monitors the

performances of the HTTP server, application server, and other components at the site

including the Stock Broker service.

If the SLA between the Investor and the Stock Broker site is in violation, the Stock

Broker’s site manager retrieves the performance data of all the individual components

associated with this site, analyzes them, and sets new goals for the necessary

components in order to avoid violation of the SLA. For example, if the maximum

response time specified in the SLA is five seconds, and the observed response time is

close to, or beyond this threshold, the site manager tries to set new goals for specific

components to reduce the response time to five seconds or less. If the perceived

bottleneck is the HTTP server, the site manager uses the HTTP server’s goal interface

to set a new goal for this component.

Each component in the autonomic Web service system is associated with its own

autonomic manager. When new performance goals are set, the specific components

attempt to reconfigure themselves using their own autonomic managers. In our

example, the HTTP server’s autonomic manager may increase the number of threads

to improve its response time.

At the highest level, the client Investor application sets the SLA for the Stock

Broker service through the SLA negotiator before invoking the service. The SLA

negotiator conveys the same to the Stock Broker’s site manager and also to the linked

services, in this case the Research Department. When all the linked services agree to

the SLA, the Investor application can invoke the Stock Broker service. Both the

application and the site manager monitor the service performance to ensure SLA

compliance. For linked services, the site manager of the calling service does the

monitoring while the SLA negotiator plays the role of the application in doing the

SLA negotiation with the linked services.

5 Summary

Performance plays a crucial role in the eventual acceptance and widespread adoption

of the Web services model of application deployment. Web service performance,

however, is difficult to manage because of the complexity of the components and

their interactions, and the variability in demand and the environment. In this paper,

we propose autonomic computing as a solution to the problems in managing Web

service performance. We describe an architecture for an autonomic Web services

environment where each component is fully autonomic and equipped to cooperate in a

managed environment. Each component provides a management interface that

exposes a self-representation consisting of performance statistics and goal

information. Our architecture uses standard Web service tools and protocols; interface

definitions specified using WSDL and communication using SOAP over HTTP. Site

level managers oversee the overall performance of the components and ensure SLA

compliance.

We see that progress must be made in several areas before an autonomic Web

services architecture, such as the one described in this paper, can be deployed. First,

Web service components are currently not, for the most part, autonomic. In fact, in

many cases, components require a complete shut-down and restart before

configuration changes take effect, thus causing an interruption of service. Dynamic

reconfiguration support is necessary for components to fit into an autonomic

environment. As part of our research we are modifying open source Web based

components, such as the Apache HTTP server, to enable dynamic configuration.

Second, autonomic systems will require extensive monitoring, analysis and diagnosis.

Most Web components currently provide sophisticated support to accomplish these

tasks, however, ensuring that these processes do not burden the system with excessive

overhead costs will be a challenge. Third, an architecture like the one proposed here

relies on the specification of SLAs, goals and policies to determine acceptable

performance. Users require a specification language in which these high level SLAs

and policies can be expressed and SLAs must be translated into observable measures

to be used as goals for each component. We plan to use the WSLA language [5] as the

starting point and investigate how goals for individual components can be specified

and derived from Web service SLAs.

References

1. Apache Server Monitor,

http://demo.freshwater.com/SiteScope/docs/ApacheServerMon.htm.

2. Birman, K., van Renesse, R., and Vogels, W.: Adding High Availability and Autonomic

Behavior to Web Services,

26th International Conference on Software Engineering

(ICSE'04)

, May 2004, Edinburgh, Scotland, United Kingdom.

3. Chiu, K., Web Services Performance: A Survey of Issues and Solutions, 7

World

Multiconference on Systemics, Cybernetics and Informatics (SCI 2003), Orlando, USA,

July, (2003).

4. Fletcher, P., Waterhouse, M. (Eds).: Web Services Business Strategies and Architectures,

Expert Press, (2002).

5. Dan, A., Davis, D., Kearney, R., Keller, A., King, R ., Kuebler, D., Ludwig, H., Polan, M.,

Spreitzer, M. and Youssef, A.: Web Services on Demand: WSLA-driven automated

management. IBM Systems Journal, 43(1), (2004) 136 – 158.

6. J. A. Farrell, H. Kreger, Web Services Management Approaches. IBM Systems Journal,

41(2), (2002).

7. Ganek, A.G., Corbi, T.A.: The Dawning of the Autonomic Computing Era, IBM System

Journal, V(42), N(1), (2003).

8. Kephart, J.O., Chess, D.M.: The Vision of Autonomic Computing. Computer, 36(1),

(2003), 41-50.

9. Levy, R., Nagarajarao, J., Pacifici, G., Spreitzer, M., Tantawi, A.N., Youssef, A.:

Performance Management for Cluster Based Web Services, IFIP/IEEE 8

International

Symposium on Integrated Network Management (IM 2003), (2003), 247-261.

10. Loosley, C., Gimarc, R.L., Spellmann, A.C.: E-Commerce Response Time: a Reference

Model, Keynote Systems Inc., (2000).

11. Maes, P., Computational Reflection, The Knowledge Engineering Review, pp. 1-19,

(1988).

12. Martin, P., Powley, W., Benoit, D.. Using Reflection to Introduce Self-Tuning Technology

into DBMSs. Proceedings of IDEAS’04, Coimbra, Portugal, July 2004.

13. SOAP Version 1.2 Part 1: Messaging Framework, June 2004,

http://www.w3.org/TR/soap12-part1/.

14. The Impact of Web Performance on E-Retail Success, Akamai Technologies, Feb. 1,

(2004),

http://www.akamai.com/en/resources/pdf/whitepapers/Akamai_eRetail_Success_Whitepa

per.pdf

15. Tian, M., Voigt, T., Naumowicz, T., Ritter, H., and Schiller, J.: Performance Impact of

Web Services on Internet Servers, International Conference on Parallel and Distributed

Computing and Systems (

PDCS 2003), Marina Del Rey, USA, (Nov. 2003).

16. UDDI Version 3.0.1, UDDI Spec Technical Committee Specification, (Oct. 2003),

http://uddi.org/pubs/uddi_v3.htm.

17. Web Services Description Language (WSDL) 1.1, (Mar. 2001),

http://www.w3.org/TR/wsdl.

18. Weikum, G.: Self-tuning E-services: from Wishful Thinking to Viable Engineering, High

Performance Transaction Systems Workshop Submissions, (Oct. 2001).

19. Wong, S.: Web services: The Next Evolution of Application Integration,

http://www.eaiindustry.org/docs/WebServicesTheNextEvolutionofApplicationIntegration.

pdf.

20. WebSphere Application Server Monitor,

http://demo.freshwater.com/SiteScope/docs/WebSphereMon.htm.

Appendix: WSDL Sample

The following shows the WSDL generated for the setGoal routine which is part of the

Performance management interface.

<?xml version="1.0" encoding="UTF-8"?>

<wsdl:definitions

targetNamespace="http://DefaultNamespace"

xmlns="http://schemas.xmlsoap.org/wsdl/"

xmlns:apachesoap="http://xml.apache.org/xml-soap"

xmlns:impl="http://DefaultNamespace"

xmlns:intf="http://DefaultNamespace"

xmlns:soapenc="http://schemas.xmlsoap.org/soap/encoding/"

xmlns:wsdl="http://schemas.xmlsoap.org/wsdl/"

xmlns:wsdlsoap="http://schemas.xmlsoap.org/wsdl/soap/"

xmlns:xsd="http://www.w3.org/2001/XMLSchema">

<wsdl:message name="setGoalResponse">

<wsdl:part name="setGoalReturn"

type="xsd:boolean"/>

</wsdl:message>

<wsdl:message name="setGoalRequest">

<wsdl:part name="in0" type="xsd:string"/>

<wsdl:part name="in1" type="xsd:double"/>

</wsdl:message>

<wsdl:portType name="Config">

<wsdl:operation name="setGoal" parameterOrder="in0

in1">

<wsdl:input message="impl:setGoalRequest"

name="setGoalRequest"/>

<wsdl:output message="impl:setGoalResponse"

name="setGoalResponse"/>

</wsdl:operation>

</wsdl:portType>

<wsdl:binding name="ConfigSoapBinding"

type="impl:Config">

<wsdlsoap:binding style="rpc"

transport="http://schemas.xmlsoap.org/soap/http"/>

<wsdl:operation name="setGoal">

<wsdlsoap:operation soapAction=""/>

<wsdl:input name="setGoalRequest">

<wsdlsoap:body

encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"

namespace="http://DefaultNamespace" use="encoded"/>

</wsdl:input>

<wsdl:output name="setGoalResponse">

<wsdlsoap:body

encodingStyle="http://schemas.xmlsoap.org/soap/encoding/"

namespace="http://DefaultNamespace" use="encoded"/>

</wsdl:output>

</wsdl:operation>

</wsdl:binding>

<wsdl:service name="ConfigService">

<wsdl:port binding="impl:ConfigSoapBinding"

name="Config">

<wsdlsoap:address

location="http://webs2/axis/services/Config"/>

</wsdl:port>

</wsdl:service>

</wsdl:definitions>
