Stateful Design for Secure Information Systems

Thuong Doan, Laurent D. Michel, Steven A. Demurjian and T.C. Ting

Department of Computer Science and Engineering

University of Connecticut

371 Fairfield Road, Storrs, CT 06269-2155, USA

Abstract. The unified modeling language (UML) has gained wide acceptance

for the design of component-based applications via diagrams (e.g., use-case,

class, sequence, activity, etc.) for representing functional requirements. How-

ever, UML is lacking in its ability to model security requirements, an increasing

need in today's applications. This paper presents and explains techniques that

support stateful application design for secure information systems, extending

the abilities of UML with role-based access control and mandatory access con-

trol. From a security-assurance perspective, we track all of the states of a design

to insure that a new state (created from a prior state) is always free of security

inconsistencies, with respect to the privileges of users (playing roles) against

the application's components. This paper examines the theory of our approach,

along with its realization as part of the software process and as incorporated

into Borland's UML tool Together Control Center.

1 Introduction

In the design, development, and maintenance of secure information systems, we be-

lieve that security issues must be addressed early and often in order to potentially

yield more precise and accurate security requirements. To address security during the

software process, our current research [8, 9] has focused on incorporating mandatory

access control (MAC) and role-based access control (RBAC) into the elements (ac-

tors, use-cases, classes, etc.) and diagrams (use-case, class, sequence, etc.) of the uni-

fied modeling language, UML [6]. In UML, while there are parallels between security

and UML elements, direct support for security specification [16] is not provided. Our

work [8, 9] has focused on the inclusion of RBAC and MAC by aligning the concept

of role with actor, and by adding security properties to use-case, class, and sequence

diagrams to capture MAC and RBAC characteristics, and lifetimes (i.e., the legal time

intervals of access to UML elements). As justification for our efforts, we cite the

works of [1, 2, 11, 14, 15, 20, 21] who have explored security and UML, and work in

semantic and ER data models with security extensions [18, 19, 22].

Our objective in this paper focuses on capturing critical security requirements for a

UML design while simultaneously tracking all of the security design states. Towards

this end, this paper provides a framework that utilizes functional programming nota-

tion and constraints to capture and track all security requirements over time, resulting

Doan T., D. Michel L., A. Demurjian S. and C. Ting T. (2005).

Stateful Design for Secure Information Systems.

In Proceedings of the 3rd International Workshop on Security in Information Systems, pages 277-286

DOI: 10.5220/0002563802770286

 SciTePress

in an approach to stateful UML design that can be checked against the security con-

straints of an information system. In the remainder of this paper: Section 2 reviews

background on MAC/RBAC, and recasts our previous work [8, 9, 10] using a func-

tional notation; Section 3 explores stateful UML design, introduces a functional model

of the design state space and actions, and presents constraints for MAC, RBAC and

lifetimes. Section 4 examines the safety concept, provides an example of the actions

that transform the design states, and introduces design-time and post-design checking;

Section 5 reviews our prototyping effort that uses Borland's UML tool Together Con-

trol Center; Section 6 contains related work; and Section 7 concludes this paper.

2 Background Concepts

In this section, we review background concepts on RBAC/MAC, and the extension of

UML integrated with RBAC/MAC security based on our prior work [8, 9, 10]. First,

in MAC (or Lattice-Based Access Control [17]), security levels (SL’s) forming a lat-

tice structure are assigned to each subject (clearance - CLR) and each object (classifi-

cation - CLS). The permission of the subject to perform some operation on the object

depends on the relation between CLR and CLS as dictated by: Simple Security Prop-

erty ("read down - no read up'') [3]; Simple Integrity Property ("write down - no write

up'') [5]; Strict *-Property ("write equal'') [17]; and Liberal *-Property ("write up - no

write down'') [3]. For examples, we use SLs: unclassified (U), confidential (C), secret

(S), and top secret (T) where U < C < S < T (linear order) for simplicity; but our theo-

retical model is applicable for general partial orders. In RBAC [7, 12, 23], roles are

assigned to users to specify the named assignments that those users can perform in the

organization. Each role is authorized to perform some operations on certain objects.

Our extensions to UML for MAC and RBAC involve actors, use-cases, classes, and

methods as realized in use-case, class, and sequence diagrams [8, 9, 10]. To accom-

plish this, we associate, with each UML element, an identifier, element kind, minimum

and maximum security levels, and lifetime (LT) as a duration in which the usage of

that element is valid. Formally, we denote Λ

as the set of identification labels

(uniquely assigned to each element), Λ

= {A, UC, Cl, M} as the set of element kinds

(actor, use-case, class, and method, respectively), and Λ

as the set of security levels.

Let T be a set of discrete time of the form “year-month-day [hour:minute:second]” (as

a subset Cartesian product of sets of integers), a lifetime lt a time interval [st, et]

where et and st ∈ T are the start time and end time, respectively, with et ≥ st. We de-

note the set of lifetimes as I. A UML element x is a tuple (id, k, sl

min

, sl

max

, lt) ∈

×Λ

×I where id, k, sl

min

, sl

max

, and lt are its element identification, kind,

minimum and maximum security levels, and lifetime, respectively. For a class c: Cl,

we require c.sl

min

≤ c.sl

max

(since a class is a container of attributes and methods)

whereas for an element x of other kinds, we require only x.sl

min

= x.sl

max

= x.sl.

As an example, consider a Survey Institution that performs and manages public

surveys. After the raw survey data is collected, senior staff adds a survey header into

the database; senior or junior staff adds questions into the survey, may categorize

questions, or add a question category. Questions with sensitive content are restricted

to senior staff. Figure 1 depicts a use-case diagram for creating a new survey entry.

278

The actor ac1: Staff has two children ac2: Junior Staff and ac3: Senior Staff. Gener-

ally, Staff can perform uc2: Add Question which includes uc4: Categorize Question,

and can be extended to uc5: Add Question Category if a new category must be added

to the database. But, only Senior Staff can perform uc1: Add Survey Header to include

a new survey header entry and uc6: Add Special Question to include special sensitive

questions in a survey. Figure 2 illustrates a sequence diagram for Add Survey Header.

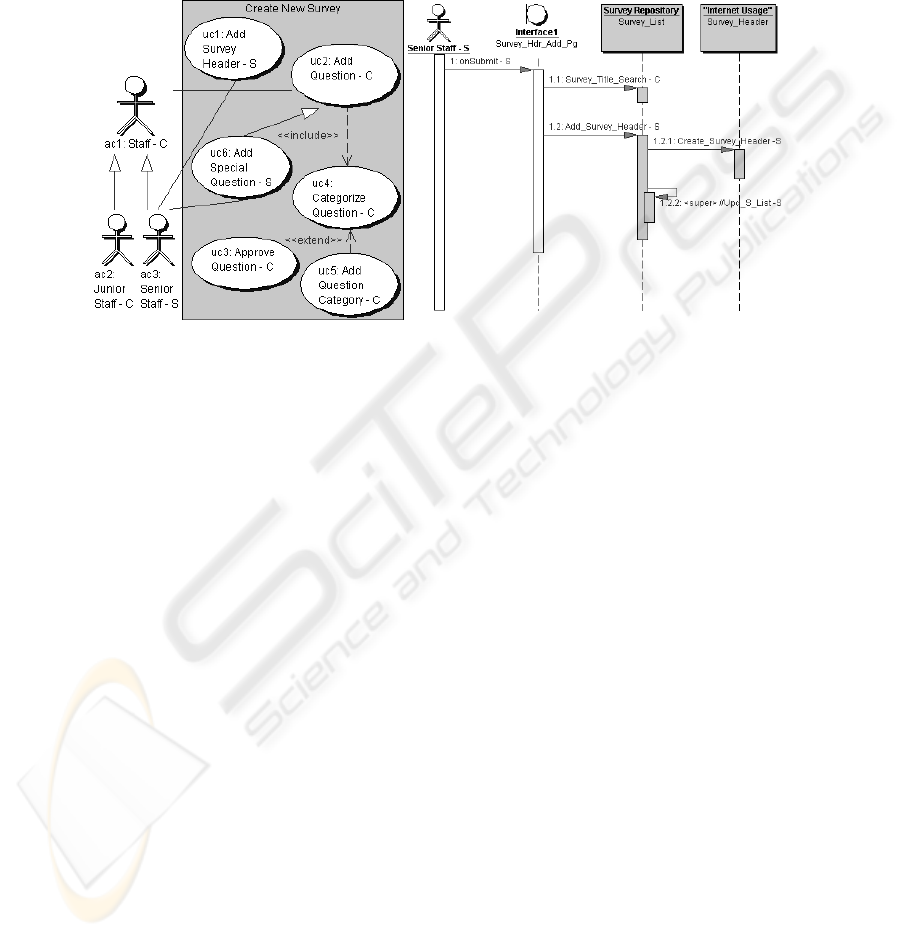

Fig. 1. UC Diagram: New Survey Entry. Fig. 2. Sequence Diagram: Add Survey Header.

To illustrate, uc1: Add Survey Header with min and max SL = Secret (S) and LT =

[“1/1/2005”, “12/31/2006”] is (uc

, UC, S, S, [“1/1/2005”, “12/31/2006”]). Formally,

we denote ∆ as the set of UML elements connected by different connection kinds, and

as the set of connection kinds between UML elements x and y [8] (assuming use-

case diagrams and class diagrams are acyclic) as:

• Actor/Use-case (in use-case diagrams): (i.1). Actor inheritance A_Ih: actor x

inherits actor y; (i.2). Actor-use-case association AU_Asc: actor x interacts with

use-case y by association; (i.3). Use-case inheritance U_Ih: use-case x inherits

use-case y; (i.4). Use-case inclusion U_Ic: use-case x includes use-case y; (i.5).

Use-case extension U_Ex: use-case y extends use-case x.

• Class/Method (in class diagrams): (ii.1). Class inheritance C_Ih: class x inherits

class y; (ii.2). Class-method defining CM_Def: the method y is defined in class x.

• Combinations (in sequence diagrams): (iii.1). Use-case-class utilization

UC_Uz: class y is utilized in use-case x related to a sequence diagram; (iii.2).

Use-case-method utilization UM_Uz: method m is utilized in use-case x related to

a sequence diagram using m; (iii.3). Actor-method utilization AM_Uz: method m

is utilized by actor x; (iii.4). Method-method calling M_Ca: method x calls

method y (via message passing in a sequence diagram).

To track the security assurance of UML diagrams, each connection of a source and

target element (actor, use-case, class, etc.) is characterized by its connection kind and

LT. Formally, a connection is a tuple (x, y

, k, lt) ∈ ∆×∆×Λ

×I where x, y, k, and lt are

the source and target UML elements, the connection kind, and connection LT. In

279

Figure 1, the connection from ac

: Senior Staff to uc1: Add Survey Header via asso-

ciation with LT=[“1/1/2005”, “12/31/2005”] is (ac

, uc

, AU_Asc, [“1/1/2005”,

“12/31/2005”]). Φ denotes the set of all UML connections for a design.

In support of RBAC, an actor (see Figure 1) represents one organizational role as

defined by the security officer. In [10], we specified three kinds of an application’s

security requirement (SR). First, Disallowed Usage (DisU) states that an element x

not allowed to use element x

. In Figure 1, the security policy prevents a junior staff

person from adding special questions and is specified with a DisU SR on the use of

use-case uc6: Add Special Question by the actor Junior Staff. Second, in Static Role-

Objects Mutual Exclusion (ME

SRO

) - the actor x

has a role prohibited from simultane-

ously using both elements x

and x

. Third, in Static Object-Roles Mutual Exclusion

(ME

SOR

) - actors x

and x

have roles prohibited from using element x

at the same

time. Let Λ

be the set of security requirement kinds, an application’s SR of some

kind k may involve in as many UML elements as needed. In this paper, we limit a SR

as a tuple (x

, x

, k) ∈ ∆×∆×∆×Λ

where Λ

= {DisU, ME

SRO

, ME

SOR

} as de-

scribed above. Θ denotes the set of SR instances.

3 Stateful UML Design

This section introduces a model that tracks states of UML elements, connections, and

security requirements (SRs) through transformations, and describe the process of

specifying security constraints for the design state. Intuitively, when the designer cre-

ates, modifies, or deletes a UML element, s/he changes the design to a new state that

only differs in its set of UML elements. Over time, a UML design can be character-

ized as the set of all states where each state represents a specific design iteration.

When the designer adds, modifies, or deletes an application’s SRs and UML connec-

tions, the design changes to a new state that differs in SRs or UML connections. A

design state is denoted by (

∆

) where

∆

and

respectively are the state

of designed UML elements, designed UML connections, and SRs.

With our approach, the design process reduces to a sequence of state transforma-

tions to add, update and/or delete UML elements, application SRs and UML connec-

tions. An action

(add, update or delete) maps state (

∆

) into state (

∆

i+1

) where the component states

∆

, and

are represented with func-

tions. Intuitively,

∆

is a function that associates each UML element and the design

time with a tuple of its name, element type, security levels, and lifetime (valid at that

the design time). The function for the initial empty component state

∆

returns null.

is a function that maps a pair of UML elements, a connection kind (for a connec-

tion), and the design time to the legality (valid or invalid) of the connection. The

function for the initial component state

returns null to report the absence of con-

nections between any two UML elements.

is a function associating a tuple of re-

lated UML elements, a SR kind (for an application’s security needs), and the design

time with the enforcement needed for that SR (at that design time). If the customer

requires enforcing that SR,

is true, else

is false (no enforcement).

for the

initial component state is false to indicate that there is no SR needed by the customer.

280

A design state is captured with a triplet of first-class functions

∆

, and

and

generated by an action based on the current state. Formally, the signatures of the three

functions are

∆

: ∆×T → Λ

×Λ

×I;

: Φ×T→ {valid, invalid, null}; and

: Θ×T → {true, false}. An action

is a meta-function that produces the triplet of

first-class functions for the next state. Design reduces to an interleaving of actions to

produce a state (

∆

) and evaluate its state function

to determine its safety.

Figure 3 illustrates the methodological concerns via the space of three design state

components and their interactions at design time. Typically, the designer first creates

UML elements (transforming

∆

). Next, s/he associates existing UML elements with

the application’s SRs (transforming

) which can include disallowing an actor to use

some class, or specifying a static mutual exclusion of an actor to utilize two use-cases

at the same time, etc. Then s/he draws connections among UML elements (transform-

ing

). The legality of a connection is checked based on the security constraints (see

Figure 4) of related UML elements, other existing connections, and the application’s

SRs at that instant of the design time.

A brief description of the constraints for MAC, RBAC, and LTs used to validate

UML connections (Figure 4) follows. Due to space limitations, only intuitive descrip-

tions of the constraints are provided.

• MAC Constraint. The MAC constraint checks the domination of the SL of the

source element x over the target element y depending on the chosen MAC proper-

ties (e.g., Simple Security). For details, please refer to our previous work [9].

• RBAC Constraint. Let (a,b) ∈ Φ

denote the existence of a connection between

UML elements a and b where Φ

is a transitive binary relation representing all of

the UML connections without concerning the connection kind and LT. Let con-

nectTo(b) denote the set of UML elements in the projection of the transitive clo-

sure of Φ

on b and connectFrom(a) denote the set of UML elements in the pro-

jection of the transitive closure of Φ

on a. The RBAC constraint for a new con-

nection x to y determines whether the application’s RBAC SRs hold between x

and y and between all the vertices w ∈ connectTo(x) and z ∈ connectFrom(y).

• Lifetime Constraint. The LT constraint for a design state at a design time t re-

quires that for any connection, t fall in the non-empty overlap of the LTs of the

connection and those of its source and target elements.

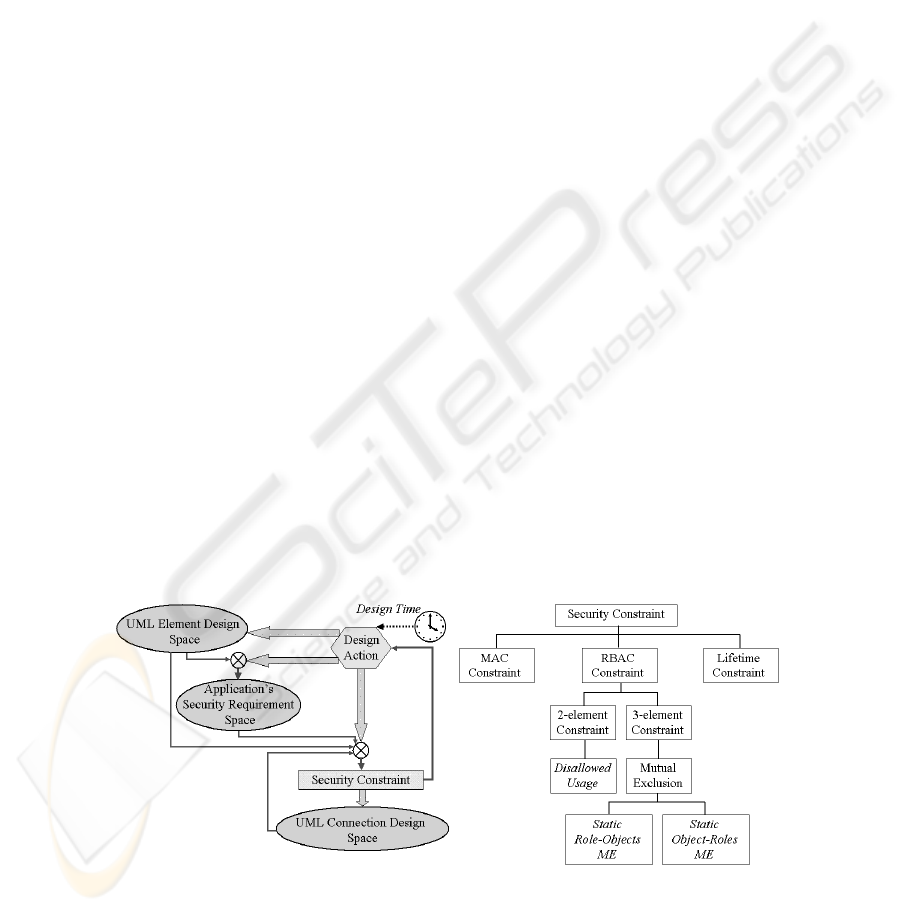

Fig. 3. Design State Space and Actions. Fig. 4. Taxonomy of Security Constraints.

281

4 Security Assurance Design Support

In this section, we demonstrate the use of the model and constraints (see Sections 2

and 3) to obtain a safe design state. We introduce the concept of safe design state and

demonstrate the way that a design state is transformed and checked against constraints

when actions are performed. The concepts are foundational for a secure assurance

design support program for checking the safety of states. The goal from a security

assurance perspective is to assist the designer in producing a safe design. A design

state (

∆

) is said to be safe at design time t if every materialized connection of

kind k in

between elements x and y in

∆

evaluates to valid under SRs in

(i.e.,

all of the connections of the design satisfy their MAC, RBAC, and LT constraints).

When a software engineer authors the use-case diagram given in Figure 1, s/he creates

new actors and use-cases and connects them with associations. Note that in our ap-

proach, the drawing of connections includes both security and functional characteris-

tics to allow us to be able to analyze security as connections are made.

To insure the absence of security errors, it is imperative that any actions taken by

the software engineer move the application from one safe design state to the next. To

illustrate this process, Table 1 provides a synopsis of the actions taken at design time t

= “06/01/2004” by a software engineer who: creates new UML elements - three use-

cases and three actors (States 1 to 6); adds SRs - a mutual exclusion (State 7); adds

two valid connections - one between actors and one between an actor and a use-case

(States 8 and 9); and fails in a connection attempt - from an actor to a use-case (State

10). The table omits the formal representation of actions, state functions, and con-

straints, to streamline the explanation and allow the reader to focus on the underlying

concepts. When the designer attempts to draw a connection from ac

to uc

, the con-

nection (ac

, uc

, AU_Asc t) evaluates to invalid in State 10 at design time t since the

application’s SR ME

SRO

has been added at State 7 (ac

is prohibited from simultane-

ously utilizing uc

and uc

). Then ac

inherits ac

(State 9) while ac

can utilize both

and uc

in State 9. So, ac

can also utilize both and that violates the application’s

security requirement ME

SRO

. Hence, State 10 is not safe since the evaluation of func-

tion

on ac

, uc

, AU_Asc, and t: (

AU_Asc t) = invalid (and the secu-

rity assurance design support system reports an error message, see Section 5).

The security assurance framework supports two modes of checking: design-time for

real-time checks as the designer alters a UML diagram (as presented in Table 1 and

discussed above) and post-design for an on-demand check of an entire design version

(iteration) across all of an application's UML diagrams. Design-time and post-design

security safety checking are realized, algorithmically, as two parts of a Security As-

surance Design Support (SADS) program. SADS has two sub-programs: dSADS for

the design-time mode and pSADS for the post-design mode. Note that the dSADS

maintains the design in the safe state by preventing the UML design tool from materi-

alizing an invalid connection (see Section 5); thus we do not need to be concerned

with incremental deletion effect that would need to reconsider other connections.

To compare our model with other efforts, we make several observations. Assume

that two actors, ac

and ac

are mutually exclusive on use-case uc, and that we first

connect ac

to uc. A subsequent attempt to connect ac

to uc causes an error. Given

this scenario, [13] only supports post-design (akin to our pSADS) by creating a locally

282

stratified logic program from the authorization specification, and as a result, there is

only one connection allowed – assume that the ac

to uc connection is chosen by rule.

The approach of [4] only supports post-design, but provides all of the relevant alterna-

tives when conflicts are identified, and the designer can either choose ac

to uc or ac

to uc. Our post-design conflict checking aligns closely to [4]; it reports the ME con-

flict which can be resolved according to the designer’s preference. Our design-time

checking is also more robust since the conflict on the second attempted connection

(ac

to uc) raises the error. The main difference with [4, 13] is their use of logic pro-

grams with a fixed set of facts/rules as an authorization specification versus our use of

state functions to dynamically track/adjust for changing design states.

Table 1. Example of a Design State Construction Process

Attempted Action New State Effect

0:(

∆

)

(The initial state)

Add uc

1:(

∆

)

∆

adds uc

Add ac

2:(

∆

)

∆

adds ac

Add uc

3:(

∆

)

∆

adds uc

Add uc

4:(

∆

)

∆

adds uc

Add ac

5:(

∆

)

∆

adds ac

Add ac

6:(

∆

)

∆

adds ac

Add a ME

SRO

to prohibit

from simultaneous

use of uc

and uc

7:(

∆

)

∆

, and

with a

Static Role-Objects Mutual Exclusion

SR on ac

with uc

and uc

Draw a connection from

to uc

8:(

∆

)

∆

with an association from

to uc

. See Note 1.

Draw a connection from

to inherit ac

9:(

∆

)

∆

with inheritance from ac

to ac

. See Note 2.

Draw a connection from

to uc

10:

(

∆

)

∆

with invalid connection,

Notes: 1. The connection (ac

, uc

, AU_Asc) is valid in State 8 (at the design time t

= “06/01/2004”) as (

AU_Asc t) yields valid - all three MAC, RBAC

and LT constraints hold at t.

2. The connection (ac

, ac

, A_Ih) is valid in State 9 as (

A_Ih t) yields

valid - all three MAC, RBAC and LT constraints hold at t.

5 Model Architecture and Prototype Effort

Over the past year, we have been working on a prototype implementation that features

a model architecture that contains a set of interacting modules (see Figure 5):

• UML Design Tool is the graphical user interface (GUI) for the designer to in-

put/edit UML diagrams. Currently, we employ Borland's Together Control Center

283

with Open APIs for Java and modular plug-in structure for UML design aug-

mented with security definition and both design-time and post-design checking.

• Internal UML Structures Storage stores in-core representations of UML struc-

tures extended with security properties and synchronously writes them to persis-

tent storage (an Oracle RDBMS) in order to improve searching capabilities and

support a multi-designer working environment.

• Security Constraint Checking Module enforces security constraints on UML

elements and connections. If a constraint is violated, it pops up an error message

and abandons the intended connection. Otherwise, the connection materializes in

the GUI UML design tool and updates the database.

Figure 6 shows a UML property dialog with a security page (enhanced with our own

custom code) that displays the clearance (CLR) for the Senior Staff actor as set to

“Secret” and lifetime. Figure 7 shows a Message Pane of the plug-in module listing

elements that have been created and SQL statements submitted to the RDBMS by

Java. Consider Figure 8 and assume that dSADS is enabled; an attempt to connect ac

Staff to uc

: Add Survey Header, triggers the display of an error message as the ac

.sl

= C < uc

.sl = S violates the MAC constraint.

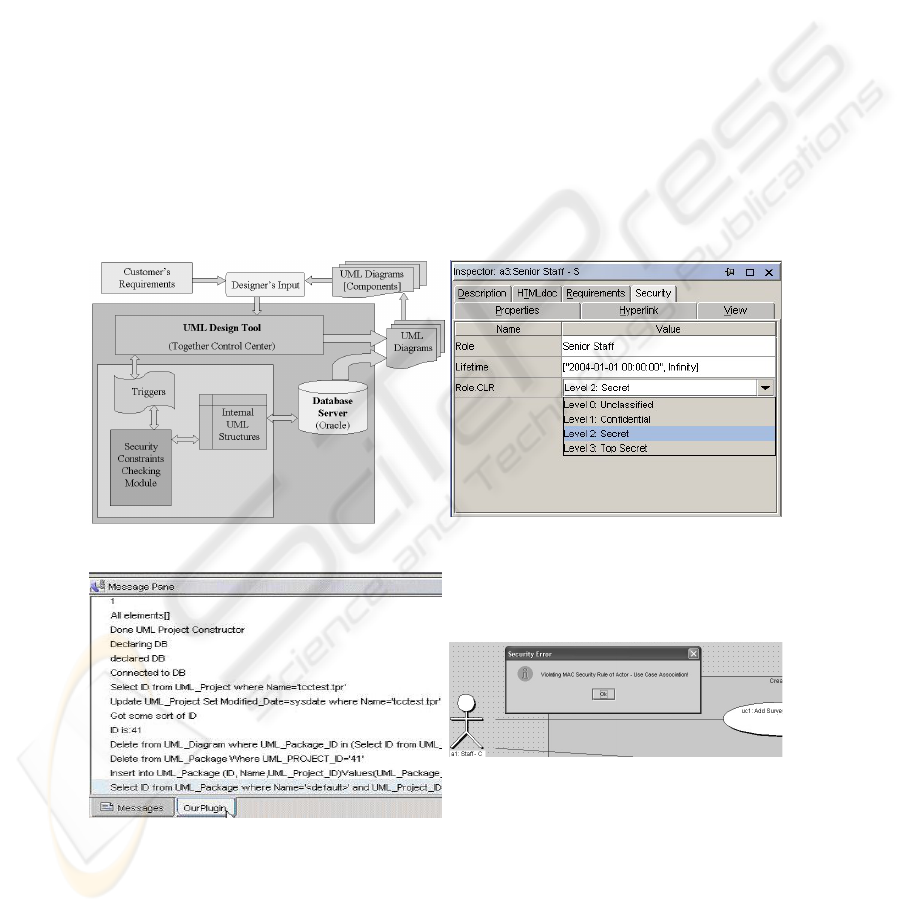

Fig. 5. Our Model Architecture. Fig. 6. Security of Senior Staff.

Fig. 7. Message Pane of our Plug-in Module. Fig. 8. MAC Constraint Error Message.

284

6 Related Work

There have been other efforts on security for UML and other data models. First, in

[11] and [21], UML is used to represent RBAC modeling and notation. Next, in [20],

UML elements are used to model MAC and RBAC based systems. Both of these ef-

forts model security with UML, which contrasts to our approach to integrate RBAC,

MAC, etc., directly into UML, allowing applications to be built with security. Third,

UMLsec is an approach on formal analyses of multi-level security (secrecy and integ-

rity) of message flows in subsystems of UML (sequence/state diagrams) and extended

elements [14]. Our work on MAC is similar to theirs, and their flow analysis is akin to

our checking. Fourth, in [15], SecureUML has extended meta-model elements (e.g.,

User, Role, and Permission) and authorization constraints expressed to generate secu-

rity infrastructure for RBAC; this is similar to our constraints and checking of consis-

tency. Fifth, [1, 2] present a framework for incorporating security into use-cases,

which is more limited than our work which includes use-case, class, and sequence

diagrams. Sixth, in [22], a semantic data model for security is proposed, with con-

straints on security levels of data entities and relationships; this work is similar to our

efforts on MAC and the constraint checking as connections are made in UML dia-

grams. For ER models, [18, 19] have proposed extensions to represent security con-

straints among entities, again, similar to our efforts on MAC and constraint checking.

The major difference between [18, 19, 22] and our work is that their efforts have fo-

cused on multi-level security for attributes in the relational database paradigm whereas

ours is from an object-oriented approach of security levels for method level (to control

the behaviors of objects) with our inclusion of RBAC and lifetimes.

7 Conclusions

This paper has proposed a formal model for design states, actions for transforming

design states, and constraints on MAC, RBAC, and lifetime for UML connections.

Sections 2 and 3 presented a functional model to represent UML elements, UML

connections, and application security requirements, checking MAC, RBAC, and life-

time security constraints as changes are made to UML designs. Section 4 introduced

the concept of safety in this context, provided an example of the material of Sections

3, and described the Security Assurance Design Support Program for design-time and

post-design checking. Finally, Section 5 briefly reviewed the ongoing prototyping

effort of this work into Borland's UML tool Together Control Center, while Section 6

contrasted our work to related efforts in UML and semantic/ER data models. Our

ongoing work is in a number of areas. First, as a design grows in size, it may be rele-

vant to consider security definition and constraint checking on “meaningful” sub-sets

of the design. If the UML elements within a sub-set are closely related in terms of

security constraints but loosely affect elements in other sub-sets, it may be possible to

compartmentalize the security analysis. Second, we are exploring additions to our

constraint taxonomy, such as the Mutual Inclusion, location and dynamic constraints.

Third, there is a companion research effort that is exploring the use of aspect-oriented

programming to generate security enforcement code from our extended UML.

285

References

1. K. Alghathbar and D. Wijesekera. AuthUML: A Three-phased Framework to model Secure

Use Cases. Proc. of the Workshop on Formal Methods in Security Engineering: From

Specifications to Code, Washington D.C., 2003.

2. K. Alghathbar and D. Wijesekera. Consistent and Complete Access Control Policies in Use

Cases. Proc. of UML 2003, San Francisco, CA, LNCS, 2003.

3. D. Bell and L. La Padula. Secure Computer Systems: Mathematical Foundations Model.

M74-244, Mitre, 1975.

4. E. Bertino et al. A Logical Framework for Reasoning about Access Control. ACM Trans.

on Info. and System Security, 6(1), Feb. 2003, pp. 71-127.

5. K. Biba. Integrity Considerations for Secure Computer Systems. TR-3153, Mitre, 1977.

6. G. Booch, et al. The Unified Modeling Language User Guide. Addison Wesley, 1999.

7. S. Demurjian, et al. A User Role-Based Security Model for a Distributed Environment.

Research Advances in Database and Information Systems Security, J. Therrien (ed.), Klu-

wer, 2001.

8. T. Doan, et al. RBAC/MAC Security for UML. Proc. of the 18th Annual IFIP WG 11.3

Working Conf. on Data and Applications Security. Sitges, Spain, 2004.

9. T. Doan, et al. “MAC and UML for Secure Software Design”. Proc. of the 2nd ACM Wksp.

on Formal Methods in Security Engineering (FMSE’04). Washington D.C., 2004.

10. T. Doan, et al. UML Design with Security Integration as First Class Citizen. Proc. of the

3rd Intl. Conf. on Computer Science, Software Engineering, Information Technology, e-

Business, and Applications (CSITeA'04). Cairo, Egypt, 2004.

11. P. Epstein and R. Sandhu. Towards A UML Based Approach to Role Engineering. Proc. of

the 4th ACM Wksp. on Role-based Access Control, 1999.

12. D. F. Ferraiolo, et al. Proposed NIST standard for role-based access control. ACM Trans.

on Information and System Security, 4 (3) August 2001.

13. S. Jajodia et al.. Flexible Support for Multiple Access Control Policies. ACM Trans. on

Database Systems, 26(2) June 2001, pp. 214-260.

14. J. Jürjens. UMLsec: Extending UML for Secure Systems Development. Proc. of UML

2002, Dresden, LNCS, 2002.

15. T. Lodderstedt, D. Basin and J. Doser. SecureUML: A UML-Based Modeling Language for

Model-Driven Security. Proc. of UML 2002, Dresden, LNCS, 2002.

16. OMG. OMG-Unified Modeling Language, v.1.5. UML Resource Page, March 2003

(www.omg.org/uml/).

17. S. Osborn, et al. Configuring Role-Based Access Control to Enforce Mandatory and Dis-

cretionary Access Control Policies. ACM Trans. on Info. and System Security. 3(2), 2000.

18. G. Pernul, et al. The Entity-Relationship Model for Multilevel Security. Proc. of the 12th

International Conference on Entity-Relationship Approach, Dallas, Texas, 1993.

19. G. Pernul, A M. Tjoa, W. Winiwarter. Modelling Data Secrecy and Integrity. Data and

Knowledge Engineering, 26(3), 1998.

20. I. Ray, et al. Using Parameterized UML to Specify and Compose Access Control Models.

Proc. of the 6th IFIP Working Conf. on Integrity & Internal Control in Info. Systems, 2003.

21. M. Shin and G. Ahn. UML-Based Representation of Role-Based Access Control. Proc. of

the 9

Intl. Wksp. on Enabling Technologies: Infrastructure for Collaborative Enterprises,

2000.

22. G. W. Smith. Modelling Security Relevant Data Semantics. IEEE Trans. on Software En-

gineering, 17(11), 1991.

23. T.C. Ting. A User-Role Based Data Security Approach. Database Security: Status and

Prospects, C. Landwehr (ed.), North-Holland, 1988.

286
