XML Schema-driven Generation of Architecture

Components

Ali El bekai

, Nick Rossiter

School of Informatics, Northumbria University,

Newcastle upon Tyne, UK

Abstract. It is possible to code by hand an XSL stylesheet that validates an

XML document against some or all constraints of an XML schema. But the

main goal of this paper introduces general techniques as a technology solution

for different problems such as (a) generation of SQL schema from

XMLSchema, (b) generating XSL stylesheet from XMLSchema, and (c)

XQuery interpreter generating. Each of the techniques proposed in this paper

works by XMLSchema-driven generation of architecture components with XSL

stylesheet. As can be seen the input is XMLSchema and XSL stylesheet and the

output is generic stylesheets. These stylesheets can be used as interpreter for

generating other types of data such as SQL queries from XQueries, SQL data,

SQL schema and HTML format. Using XSL stylesheets we present algorithms

showing how we can generate these components automatically.

1 Introduction

XML is fast emerging as the dominant standard for representing and exchanging

information over the Internet [4,2]. If data is stored and represented as XML docu-

ments, then it should be possible to query the contents of these documents in order to

extract, synthesize and analyze their contents. Also, it is possible to transform theses

data to another format and to generate a component from the XML data. Originally,

XML was created to meet the challenges of data exchange in Web applications or

between applications and users, not for data presentation purposes. To deal with pres-

entation issues, XML needs to be used in conjunction with stylesheets to be easily

viewed on the web. For this reason, eXtensible Stylesheet Language was created.

XSL (Extensible Stylesheet Language) is being developed as part of the W3C

stylesheets activity [13,14]. It has evolved from the CSS language to provide even

richer stylistic control, and to ensure consistency of implementations. It also has

document manipulation capabilities beyond styling. Of course, designing “traditional”

software transformation tools for that purpose can achieve such a task. However, the

power of having a cross-platform and XML independent language would be lost.

Precisely, isolating content from formatting needs to be considered, especially when

dealing with Web based documents. Therefore, any method of transforming XML

documents into different formats such as XML, HTML, SQL, flat files or WML

needs to be tailored so that it can be used with different platforms/languages.

El bekai A. and Rossiter N. (2005).

XML Schema-driven Generation of Architecture Components.

In Proceedings of the Joint Workshop on Web Services and Model-Driven Enterprise Information Systems, pages 159-164

DOI: 10.5220/0002564601590164

 SciTePress

This paper introduces the technological solutions for different problems such as (a)

SQL schema generation, (b) XSL stylesheet generation, and (c) XQuery interpreter

generation automatically by transforming an XMLSchema through an XSLT.2.

2 Related Work

Bourret [2] noted that XML and its surrounding technologies have many facilities in

common with real databases such as storage (XML documents), schemas (DTDs,

XML schema languages), query languages (XQuery, XPath, XQL, XML-QL,

QUILT, etc.), and programming interfaces (SAX, DOM, JDOM). On the other hand,

XML lacks efficient storage, indexes, security, transactions and data integrity, multi-

user access, triggers, queries across multiple documents, and so on. Aboulnaga et al

[1] started a discussion in the XML community about characterizing and generating

XML data. Provost [10] considered the most common patterns for document content

constraints, and finds that XML Schema validation is only the first of several neces-

sary layers. Bourret [3] summarized two different mappings. The first part of the

process, generally known as XML data binding, maps the W3C's XML Schemas to

object schemas. The second known as object-relational mapping, maps object sche-

mas to relational database schemas. In [6,11] techniques are presented for querying

XML documents using a relational database system, which enables the same query

processor to be used with most relational schema generation techniques. Norton [8]

presents an XSL as validation to validate XML document. W3C and Peterson de-

scribe a query processor that works for different schema generation techniques [12,

9]. Their work is done in the context of data integration, and the tables generated by

each relational schema generation technique are specified as materialized views over

a virtual global schema. In [5] a translation is presented of XQuery expression drawn

from a comprehensive subset of XQuery to a single equivalent SQL query using a

novel dynamic interval encoding of a collection of XML documents. In [7] an algo-

rithm is presented that translates simple path expression queries to SQL in the pres-

ences of recursion in the schema in the context of schema-based XML storage shred-

ding of XML relations.

As a result none of the approaches described above introduce an algorithm to

generate a generic XSL stylesheet for transforming XML to SQL statements or an

XSL stylesheet for transforming XQueries to SQL queries or for generating SQL

schema by using XSL. We will next introduce general algorithms to generate these

components automatically.

3 SQL Schema Generations

Basically, the DOM [12,16] is a specification that comprises a set of interfaces that

allow XML documents to be parsed and manipulated in memory. The main interfaces

for an application with DOM are: Node: the base type, representing a node in the

DOM tree; Document: representing the entire XML document as a tree of Nodes (the

DOM parser will return Document as a result of parsing the XML); Element: to rep-

160

resent the elements of the XML document; Attribute, representing an attribute of

some XML element; Interface enabling setting/getting the value of that attribute; and

Text: representing the text content of an element (i.e. the text between tags that is not

part of any child element). The DOM tree is composed of nodes, each of which repre-

sents a parsed document. Based on these interfaces, we will use the XMLSchema

parse file (DOM) as input in our algorithm to generate the components automatically.

Now we will introduce an algorithm that can be used automatically to generate the

SQL schema as output of an arbitrary XMLSchema. In particular, we present a trans-

lation algorithm that takes as input an XMLSchema and XSL stylesheet and produces

a SQL schema as the output.

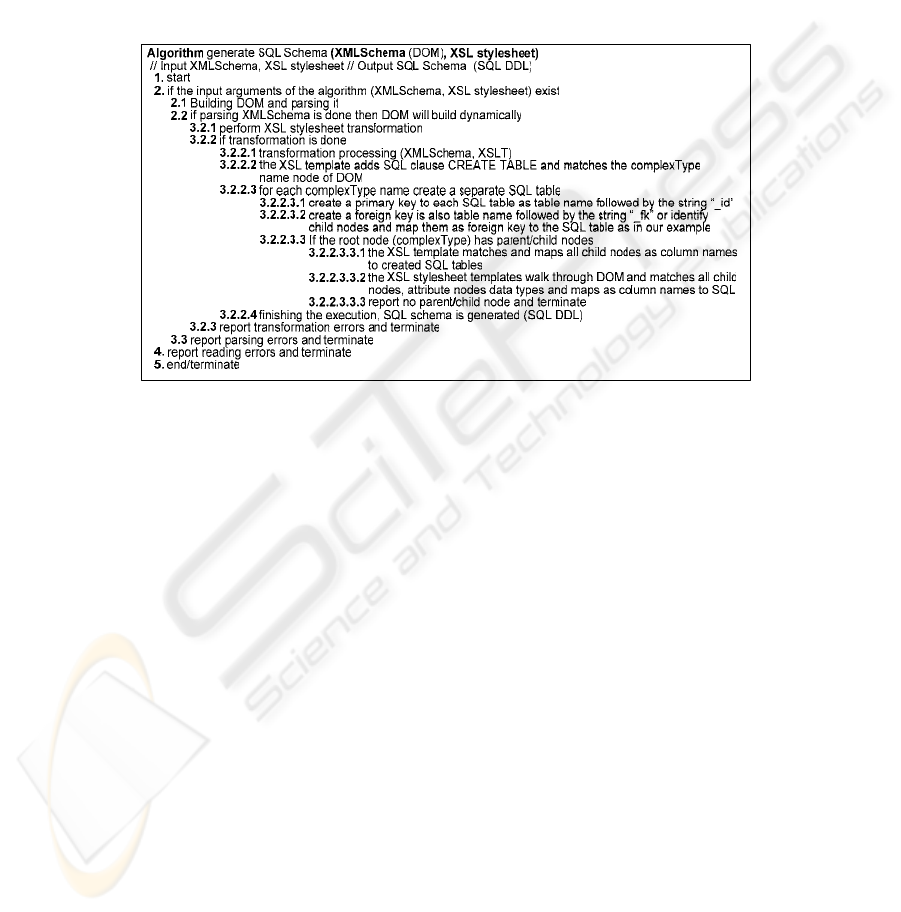

Fig.1. An algorithm for generating SQL schema from XMLSchema.

4 XSL Generations

Basically, it is possible to code by hand an XSL stylesheet that validates an XML

document against some or all constraints of an XML schema. But in this section we

introduce an algorithm as shown in Fig. 3 for generating an XSL stylesheet from an

XMLSchema parse file (DOM) and as mentioned before the DOM tree is composed

of nodes, each of which represents a parsed document. In other words this algorithm

is the technology solution to the problem of generating an XSL automatically by

transforming an XMLSchema through an XSLT. The result is a generic XSL

stylesheet providing the mechanism to transform and manipulate XML data. Also the

generated XSL stylesheet can be used to transform an XML document into another

format such as XML to SQL statements and XML to HTML document.

5 The XQuery Interpreter Generation

Basically, the XQuery [15] is a language containing one or more query expressions.

XQuery supports conditional expressions, element constructors, FOR, LET, WHERE,

161

RETURN (FLWR) expressions, expressions involving operators and function calls

and quantifiers, type checking and path expressions. Some XQuery expressions

evaluate to simple node values such as elements and attributes or atomic values such

as strings and numbers. The syntax for retrieving, filtering, and transforming records

uses

FOR, LET, WHERE and RETURN clauses. A FLWR expression creates some

bindings, applies a predicate and produces a result set. XQuery does not conform to

the same conventions as SQL. XQuery and SQL share some similar concepts. Both

languages provide keywords for projection and transformation operations (SQL

SELECT or XQuery RETURN). SQL supports joins between tables and XQuery

supports joins between multiple documents.

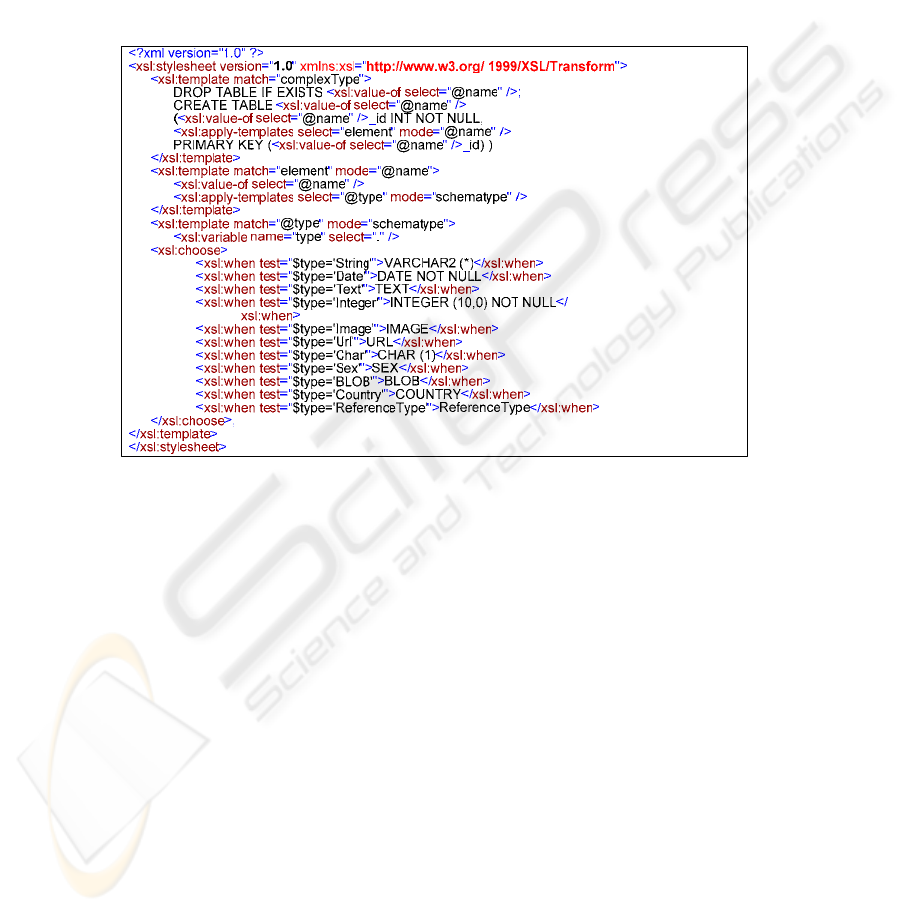

Fig. 2. The generated XSL stylesheet for generating SQL schema from XMLSchema

Here are two simple examples: one with XPath type of a query and the other with

FLWR expression. The single forward slash (/) signifies the parent-child relationship

between elements. In tracing a path through a tree the expression starts at the root

node and follows parent node and so on.

1) X / <collection>/<object>/<objectInfor>

2) For obj in <collection> do

Where obj = <object>

Return <object>

Finally in this section we introduce an algorithm for generating an XSL stylesheet

from the XMLSchema to interpret the XQuery. In other words, this is the technology

solution to the problem of generating automatically the XQuery interpreter by trans-

forming an XMLSchema through an XSLT.

162

// Input XMLSchema, XSL stylesheet // Output XSL stylesheet

1. start

2. if the input arguments (XMLSchema, XSL stylesheet) exist

2.1 Build DOM and parse it

2.2 if parsing XMLSchema is done DOM will build dynamically

2.2.1 perform XSL stylesheet (each XSL stylesheet contains templates and commands to

select and manipulate structure of data)

2.2.2 if transformation is ok

2.2.2.1 invoke the root node of DOM tree

2.2.2.2 compare the root node with template rules in the stylesheet, if it matches the

first one then map to the root node of an XSL stylesheet output (as new template)

2.2.2.3 If the root node has parent/child nodes

2.2.2.3.1 the XSL walks through DOM tree and pulls nodes from DOM tree and

places them with formatting as a new template to output

2.2.2.3.2 compare and match complexType nodes of the DOM tree with the and

XSL template, and for each a complexType name create a separate table

2.2.2.3.3 map the child nodes to the table as a column names, and also the

data type of XMLSchema mapped as values to the column names

2.2.2.3.4 iterate through the DOM tree nodes and set the keyword VALUES to the

output as new template in the XSL stylesheet

2.2.2.3.5 insert the required statement and then return all template (new XSL

stylesheet generated)

2.2.2.4 set null and terminate

2.2.3 report transformation errors and terminate

2.3 report parsing errors and terminate

3. report reading errors and terminate

4. terminate\end

Fig. 3. An algorithm for generating XSL from XMLSchema.

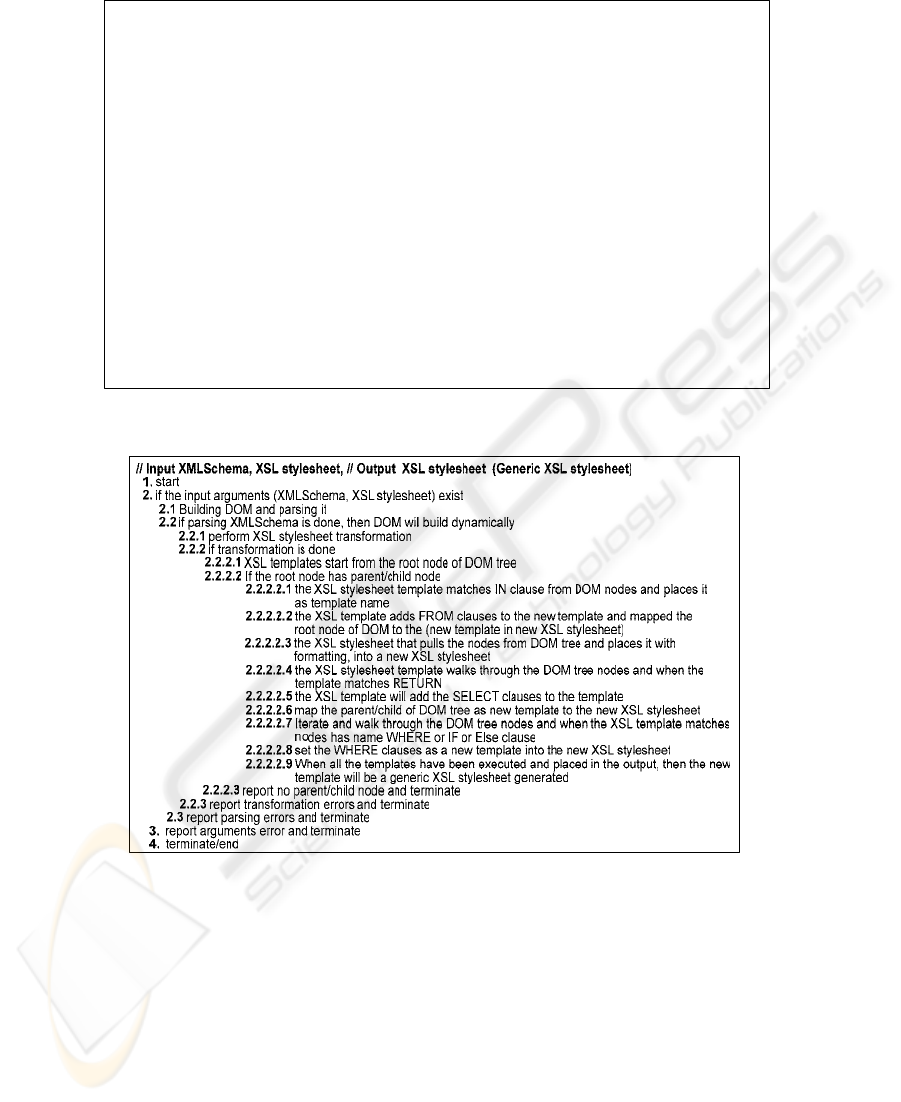

Fig. 4. Algorithm generating XSL from XMLSchema to transform XQueries to SQL queries.

6 Conclusion

The contribution of this work is that it introduces general techniques for generating

SQL schema, XSL and XQuery using XMLSchema and XSL stylesheet, which (a)

enables the use of these techniques for transforming XML data to SQL data and stor-

ing it in a relational database, (b) allows the user to present HTML format, and (c)

163

interprets XQueries (transforms XQueries to SQL queries) so that we can then re-

trieve and query data from the database. A potential cause for concern is that our

general techniques may be less overlapping in implementation thus losing some effi-

ciency.

However based on our prototype implementation in java, we have found that it is

very quick to generate XSL stylesheets as an interpreter for different types of trans-

formation such as SQL Schema and XQueries in to SQL queries. As we know it is

possible to code by hand an XSL stylesheet that validates an XML document against

some or all constraints of an XML schema and to generate an XSL stylesheet. How-

ever with our automated technique this task is easy, quick and less overlapping and

we will use these generated components to integrate the (offline and online) compo-

nents to satisfy our requirements. Also, we plan to extend these techniques to work

with Multiple XMLSchema, not just single XMLSchema.

References

1. Aboulnaga, A., Jeffrey F. Naughton, Chun Zhang. Generating Synthetic Complex-

Structured XML Data. Fourth International Workshop WebDB'2001 (2001).

2. Bourret, R, XML and Database www.rpbourret.com/xml/XMLAndDatabases.htm (2004).

3. Bourret, R, Mapping W3C Schemas to Object Schemas to Relational Schemas.,

www.rpbourret.com/xml/SchemaMap.htm March (2001).

4. Chawathe S. Describing and Manipulating XML Data, Bulletin IEEE Technical (1999).

5. DeHaan D, D. Toman, M. Consens, and M. T. Özsu, A Comprehensive XQuery to SQL

Translation using Dynamic Interval Encoding, Proc ACM Int Conf Management Data

(SIGMOD'03), San Diego, 623-634 June (2003).

6. Florescu D, D. Koaamann. Storing and Querying XML Data using an RDBMS, IEEE

Data Engineering Bulletin, 22 27-34 (1999)

7. Krishnamurthy R., Venkatesan T.Chakaravarthy, Raghav Kaushik, Jeffrey F. Naughton,

Recursive XML Schemas, Recursive XML Queries, and Relational Storage: XML-to-SQL

Query Translation, ICDE (2004)

8. Norton Francis. Generating XSL for Schema validation

http://www.redrice.com/ci/generatingXslValid, May 20, (1999)

9. Peterson David, Paul V. Biron, and Ashok Malhotra XML Schema 1.1 Part 2: Datatypes.

W3C, Working Draft WD-xmlschema11-2-20040716, July (2004)

10. Provost W, XML Validation Architecture using XML Schema, XPath, and XSLT. (2002)

11. Shanmugasundaram J., E. Shekita, J. Kiernan, R. Krishnamurthy, E. Viglas, J. Naughton

and Igor Tatarinov. A General Technique for Querying XML Documents using a Rela-

tional Database System. ACM SIGMOD Record, 30(3), (2001)

12. W3C, Document Object Model (DOM) Level 2 HTML Specification Version 1.0 W3C

Recommendation 09 January. http://www.w3.org/TR/2003/REC-DOM-Level (2003).

13. W3C. Extensible Stylesheet Language (XSL) Version 1.0, W3C Candidate Recommenda-

tion. http://www.w3.org/TR/2001/REC-xsl-20011015/ October 15, (2001)

14. W3C XSL Working Group, W3C Recommendation on XSL Transformations (XSLT)

http://www.w3.org/TR/xslt. (1999)

15. W3C.XQuery 1.0: An XML Query Language, W3C Working Draft July 23, (2004).

16. W3C.DOM Working Group, Document Object Model, http://www.w3.org/DOM/. (2004).

164
