Architectural Framework for Web Services

Authorization

Sarath Indrakanti, Vijay Varadharajan, Michael Hitchens

INSS Research Group, Department of Computing

Macquarie University, Sydney, NSW 2109, Australia

Abstract. This p

aper proposes an authorization architecture for Web services. It

describes the architectural framework, the administration and runtime aspects of

our architecture and its components for secure authorization of Web services as

well as the support for the management of authorization information. The paper

also describes authorization algorithms required to authorize a Web service

client. The architecture is currently being implemented within the .NET

framework.

1 Introduction

In general, security for Web services is a broad and complex area covering a range of

technologies. At present, there are several efforts underway that are striving to

provide security services for Web services. A variety of existing technologies can

contribute to this area such as TLS/SSL and IPSec. There are also related security

functionalities such as XML Signature and XML Encryption and their natural

extensions to integrate these security features into Web service technologies such as

SOAP [1] and WSDL [2].

WS-Security specification [3] describes enhancements to SOAP messaging to

rovide message integrity, confidentiality and authentication. The WS-Trust [4]

language uses the secure messaging mechanisms of WS-Security specification to

define additional primitives and extensions for the issuance, exchange and validation

of security tokens within different trust domains. While there is a large amount of

work on general access control and more recently on distributed authorization [5],

research in the area of authorization for Web services is still at an early stage. There is

not yet a specification or a standard for Web services authorization. There are

attempts by different research groups [6-9] to define authorization frameworks and

policies for Web services. Currently most Web service based applications, having

gone through the authentication process, make authorization decisions using

application specific access control functions that results in the practice of frequently

re-inventing the wheel. This motivated us to have a closer look at authorization

requirements for Web services and propose an authorization architecture.

In the next section, we describe our Web Services Authorization Architecture

(

WSAA). Section 3 discusses the benefits of the proposed architecture. We compare

our architecture to related work in section 4 and then give some concluding remarks

in section 5.

Indrakanti S., Varadharajan V. and Hitchens M. (2005).

Architectural Framework for Web Services Authorization.

In Proceedings of the Joint Workshop on Web Services and Model-Driven Enterprise Information Systems, pages 97-106

DOI: 10.5220/0002565800970106

 SciTePress

2 Web Services Authorization Architecture (WSAA)

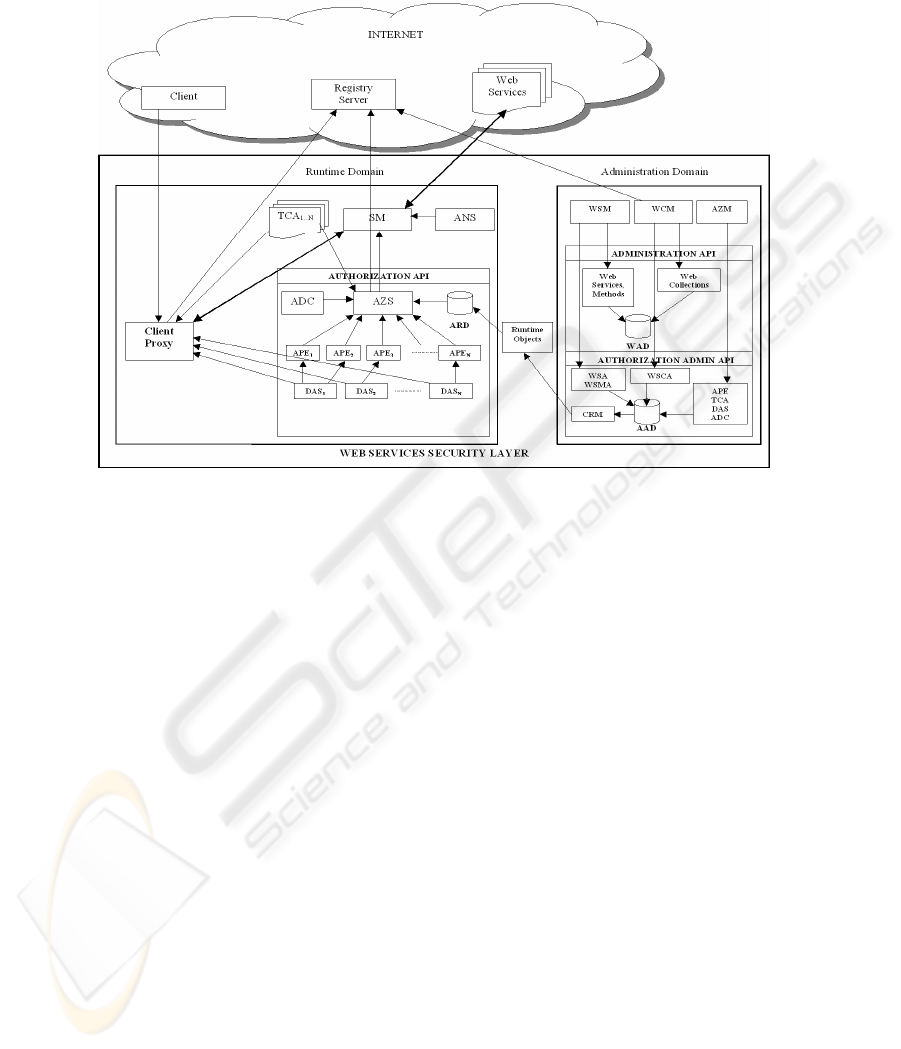

Fig. 1. Web Services Authorization Architecture (WSAA)

WSAA (figure 1) comprises of two domains - an administrative domain and a runtime

domain. We manage Web services in the administration domain by arranging them

into collections and the collections into a hierarchy. We provide administration

support to manage a collection of Web services. We also provide support for the

arrangement (adding, removing) of Web services within the collections and the

movement of Web services within collections. Authorization related components such

as authorization policy evaluators, trusted certification authorities (provide

authentication and authorization credentials) and dynamic attribute services (provide

attributes required for authorization) can be managed in the administration domain.

Also security managers can assign a set of authorization policy evaluators to authorize

requests to Web services.

To make the authorization process efficient, we have a runtime domain where the

authorization related information such as what credentials are required to invoke a

particular Web service and how to collect those credentials, is compiled and stored.

This information is automatically compiled from time to time when necessary using

the information from the administration domain and it can be readily used by

components in the runtime domain.

The Registry Server located anywhere in the Internet is responsible for maintaining

relations between services and their service providers. When a client requests the

Registry Server for a specific service, the latter responds with a list of Web services

that implement the requested service.

2.1 System Components

Client Proxy (CP) collects the required authentication and authorization credentials

from the respective authorities on behalf of the client before sending a Web service

request and handles the session on behalf of the client with a Web service’s security

manager.

Security Manager (SM) is an automated component responsible for both

authentication and authorization of the client. A client’s CP sends the necessary

authentication and authorization credentials to the SM. SM is responsible for

managing all the interactions with a client’s CP.

Authentication Server (ANS) receives the authentication credentials from SM and

uses some mechanism to authenticate the client. We treat ANS as a black box in our

architecture as our focus in this paper is on authorization of the client. We included

this component in the Web services security layer for completeness.

Authorization Server (AZS) decouples the authorization logic from application

logic. It is responsible for locating all the authorization policy evaluators involved,

sending the credentials to them and receiving the authorization decisions. Once all the

decisions come back, it uses the responsible authorization decision composers to

combine the authorization decisions. Where required, AZS also collects the

credentials and attributes on behalf of clients from the respective trusted certification

authorities and dynamic attribute services.

Authorization Policy Evaluator (APE) is responsible for making authorization

decision on one or more abstract system operations. Every APE may use a different

access control mechanism and a different policy language. However, an APE defines

an interface for the set of input parameters it expects (such as subject identification,

object information, the authorization credentials and dynamic attributes) and the

output authorization result.

Trusted Certification Authority (TCA) is responsible to provide authentication

and/or authorization credentials required to authenticate and/or authorize a client. For

example, a TCA may provide public key certificates or authorization related

certificates such as a Role Membership Certificate (RMC) [10].

Dynamic Attribute Service (DAS) provides system and/or network attributes such as

bandwidth usage and time of the day. A dynamic attribute may also express properties

of a subject that are not administered by security administrators. For example, a nurse

may only access a patient’s record if s/he is located within the hospital’s boundary. A

DAS may provide the nurse’s ‘location status’ attribute at the time of access control.

Dynamic attributes’ values change more frequently than traditional static

authorization credentials (also called privilege attributes). Unlike authorization

credentials, dynamic attributes must be obtained at the time an access decision is

required and their values may change within a session.

Authorization Decision Composer (ADC) combines the authorization decisions

from authorization policy evaluators using an algorithm that resolves authorization

decision conflicts and combines them into a final decision.

The Authorization Manager (AZM) for an organization is responsible to manage

the APEs, TCAs, DASs and ADCs. S/he uses the Authorization Administration API

for this purpose. The related data is stored in the Authorization Administration

Database (AAD). See figure 1.

2.2 Web Services Model

We consider a Web service model based on the model defined in [7], where Web

Service, Web Service Method and Web Service Collection are viewed as objects. Web

service collections are used to group together a set of related Web service objects.

Authorization related information can be managed in a convenient way if a set of

related Web service objects is grouped together in a hierarchy of collections. Figure 2

shows an example of a hierarchy of Web service collections.

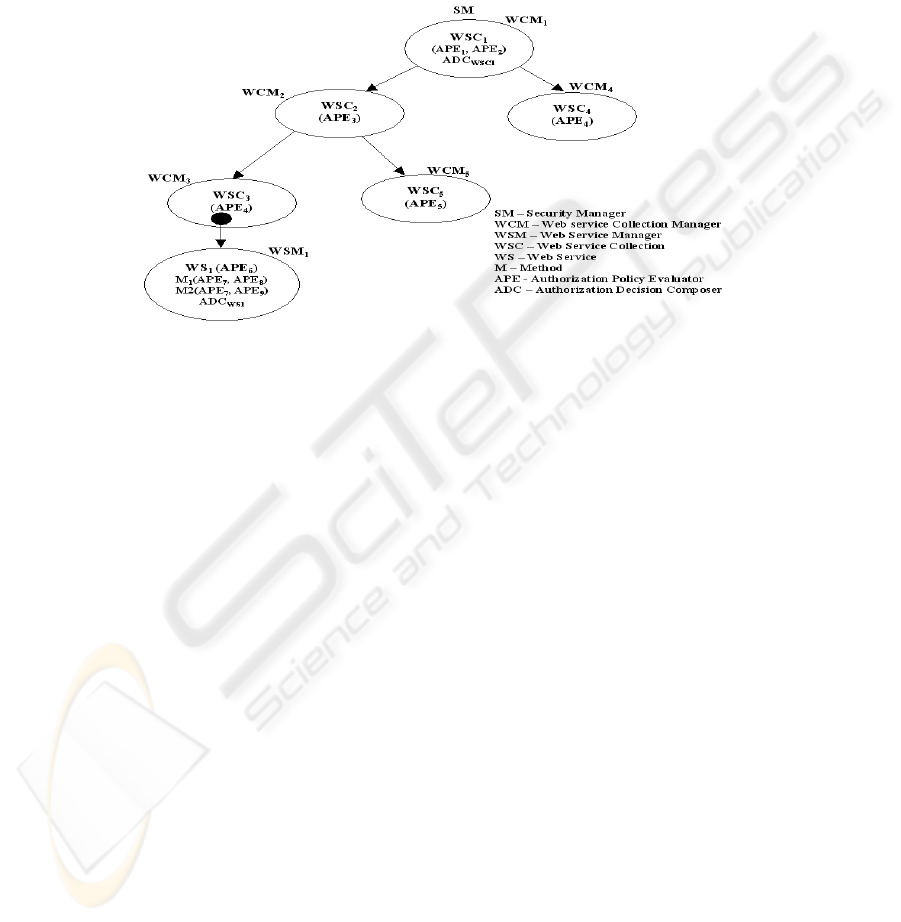

Fig. 2. Web Service Collection Hierarchy

2.3 Web Services Administration

A Web Service Manager (WSM) manages Web Services and Web Service Methods

and a Web service Collection Manager (WCM) manages Web Service Collections

using the Administration API (see figure 1). These objects are stored in the Web

service Administration Database (WAD).

To effectively manage the collections, we arrange a set of related Web Service

Collection (WSC) objects in a tree-shaped hierarchy as shown in figure 2. Each WSC

in the hierarchy has a responsible Web service Collection Manager (WCM). There is

only one Security Manager for a hierarchy of WSCs. In a WSC hierarchy tree, the

root WSC’s manager is called the Root Web service Collection Manager (RWCM). A

RWCM is responsible for providing the Security Manager details (such as its

location) in the WSDL statement of every Web service located under the collections

s/he manages.

Let us consider an organization with a single hierarchy (such as the one shown in

figure 2) of Web service collections. In figure 2, the root WSC is WSC

and the

RWCM is WCM

. We can consider a newly initiated system to simply consist of the

root WSC, WSC

and a few Web Service (WS) objects under it managed by WCM

WCM

can add new WS objects from WAD into WSC

. S/he can delete or move WS

objects within the collections s/he is responsible for. There are other issues to

consider such as 1) Who decides the location of a WS object (and how is the location

changed)? 2) Who decides the shape of the tree itself? There are various design

100

choices to consider to answer these questions. Due to space limitations, we have not

included the discussion on such design choices in this paper. We will describe these

design aspects in a separate paper.

2.4 Authorization Data Administration and Policy Evaluation

A Web Service Manager (WSM) is also responsible to manage the authorization

related information for the Web services s/he is responsible for. We consider a Web

service method to be a high-level task that is exposed to clients. Each task (method) is

made up of a number of system operations. These operations can be of different

abstract types. For instance, each method of a Purchase Order service may perform

one or more of these three operations - Web operation, Database operation and Mail

operation. Each of these operations has a responsible authorization policy evaluator. It

is reasonable to assume a WSM knows the set of tasks a Web service under his/her

control performs. Similarly a WSM knows the set of operations each of these tasks

(methods) perform. Using the authorization policy evaluator definitions from

Authorization Administration Database (AAD), WSM associates authorization policy

evaluators to Web services and their methods. This association is made in the Web

Service Authorization (WSA) and the Web Service Method Authorization (WSMA)

objects. WSM uses the Authorization Administration API to create and manage these

objects. Similarly, a Web service Collection Manager (WCM) manages (using

Authorization Administration API) authorization policy evaluator and authorization

decision composer information in a separate object called Web Services Collection

Authorization (WSCA) for all the collections s/he manages. These objects are stored

in AAD.

Similar to Web service methods, a Web service can also have one or more

authorization policy evaluators responsible for the Web service itself. Web service

level policies are first evaluated before its method level authorization policies are

evaluated. A Web service’s authorization policy evaluators evaluate Web service

level authorization policies. These policies will typically not be as fine-grained as

method level authorization policies. A WSM may choose to create a new

authorization decision composer for one or more Web services s/he manages or may

decide to use one from the set of existing authorization decision composers from

AAD if it serves the purpose.

Similar to Web services and their methods, a Web service collection can also have

one or more authorization policy evaluators responsible for authorizing access to the

collection itself. Collection level policies are first evaluated before a Web service’s

authorization policies are evaluated. A Web service collection’s authorization policy

evaluators evaluate collection level authorization policies. These policies will

typically be course-grained when compared to Web service and Web service method

level policies. Every root Web service collection has an authorization decision

composer associated with it responsible for combining the decisions from all

authorization policy evaluators involved. The coarse-grained authorization policies

for all the relevant ancestor Web service collections (of an invoked Web service) are

first evaluated, followed by the Web service level authorization policies and finally

the fine-grained Web service method level policies are evaluated. The course-grained

policies are first evaluated before the finer-grained policies as it helps reduce the

101

computing cost. If the client is not authorized by a course-grained policy, access can

be denied straight away. For example in figure 2, when a client invokes WS

’s

method M

, WSC

’s authorization policies are first evaluated by APE1 and APE2,

followed by WSC

(APE

) and then WSC

(APE

) policies. If APE

, APE

and

APE

give out a positive decision, WS

’s authorization policies are evaluated by

APE

. If APE

gives out a positive decision, then finally M1’s authorization policies

are evaluated by APE

and APE

. WS

’s authorization decision composer, ADC

WS1

combines the decisions from APE

, APE

and APE

and if the final decision is

positive, WSC

’s authorization decision composer, ADC

WSC1

combines the decisions

from APE

, APE

and ADC

WS1

If the final decision from ADC

WSC1

positive, the client will be authorized to invoke WS

’s method M

2.5 Runtime Authorization Data

We addressed who assigns (and how) authorization policy evaluators and

authorization decision composers for Web services and Web service collections. The

next question is, how does a client know, where necessary, how to obtain the required

authorization credentials and dynamic runtime attributes before invoking a Web

service? What are the responsible authorization policy evaluators (and the credentials

and attributes they require), trusted certification authorities (the credentials they

provide) and the dynamic attribute services (the attributes they provide)? How does

the Authorization Server (AZS) know what the set of responsible authorization

decision composers for a particular client request is?

To answer these questions, we have an Authorization Runtime Database (ARD) in

the runtime domain. ARD consists of the runtime authorization related information

required by clients and the Authorization Server. This information is exposed to

clients in the form of authorization assertions defined in a WS-Authorization Policy

statement attached to a Web service’s WSDL statement. We define an XML schema

for WS-Authorization Policy statement. The statement contains information about

what credentials and attributes to collect and where to collect them from. However,

we do not show the schema in this paper due to space limitation.

Credential Manager (CRM) is an automated component that creates and stores the

authorization runtime information, in the form of objects in ARD, using the

information from WAD and AAD databases. This makes the authorization process

efficient as the information in ARD is streamlined for the runtime domain. CRM is

invoked from time to time, when a Web service object is added or deleted to a

collection, moved within a hierarchy of collections or when the shape of the tree itself

changes, to update the runtime authorization information (objects) in ARD.

When a Web service object is placed and/or moved within a Web service

collection in a tree, the set of authorization policy evaluators responsible for

authorizing a client’s requests changes. Similarly, the set of trusted certification

authorities and dynamic attribute services responsible also changes. For example, in

figure 2, when WS

moves from WSC

to WSC

, the set of responsible authorization

policy evaluators for WS

’s method M2 changes from {APE

, APE

APE

, APE

} to {APE

, APE

}. Once the

change is made, CRM is automatically invoked and it updates ARD with the

necessary runtime object entries for each method of WS

. The responsible

102

authorization decision composers before and after the move will still be ADC

WSC1

and

ADC

WS1

2.6 Authorization Algorithms

WSAA supports three algorithms. The first, push-model algorithm supports

authorizations where a client’s Client Proxy, using WS-Authorization Policy, collects

and sends the required credentials (from trusted certification authorities) and

attributes (from dynamic attribute services) to a Web service’s Security Manager. The

second, pull-model algorithm supports authorizations where the Authorization Server

itself collects the required credentials from trusted certification authorities and

authorization policy evaluators collect the required attributes from dynamic attribute

services. The third, combination-model supports both the push and pull models of

collecting the required credentials and attributes.

An organization must deploy one of these algorithms depending on the access

control mechanisms used. If all the access control mechanisms used by the set of

authorization policy evaluators are based on a pull model, then the organization must

deploy the pull-model algorithm. If all the access control mechanisms used are based

on a push model, then the organization must deploy the push-model algorithm.

However, when some of an organization’s authorization policy evaluators use the

pull-model and others use the push-model, the combination-model algorithm must be

deployed.

3 Discussion - Benefits of the Proposed Architecture

Some of the key advantages of the proposed architecture are as follows:

(a) Support for various access control models: WSAA supports different access

control models including mandatory access control, discretionary access control, role-

based access control, and certificate based access control models. The access policy

requirements for each model can be specified using its own policy language. The

policies used for authorization can be fine-grained or coarse-grained depending on the

requirements. Access control mechanisms can either use the push-model or pull-

model or even a combination of both for collecting client credentials.

(b) Support for legacy applications and new Web service based applications: Existing

legacy application systems can still function and use their current access control

mechanisms when they are exposed as Web services to enable an interoperable

heterogeneous environment. Once again different access policy languages can be used

to specify the access control rules for different principals. They could adopt a push or

a pull model for collecting credentials. At the same time WSAA supports new Web

service based applications built to leverage the benefits offered by Web services. New

access control mechanisms can be implemented and used by both legacy and new

Web service applications. A new access control mechanism can itself be implemented

as a Web service. All WSAA requires is an end-point URL and interface for the

mechanism’s authorization policy evaluator.

one or more responsible authorization policy evaluators involved (each with its own

103

end-point defined) in making the authorization decision. The authorization policy

evaluators themselves can be defined as Web services specializing in authorization.

These features allow WSAA to be decentralized and distributed. Distributed

authorization architecture such as ours provides many advantages such as fault

tolerance and better scalability and outweighs its disadvantages such as more

complexity and communication overhead.

(d) Flexibility in management and administration: Using the hierarchy approach of

administering Web services and collections of Web services, authorization policies

can be specified at each level making it convenient for Web service collection

managers (WCM) and Web service managers (WSM) to manage these objects as well

as their authorization related information. Another benefit of WSAA is that the

credential manager component automatically generates runtime authorization objects.

(f) Ease of integration into platforms: Each of the entities involved both in

administration and runtime domains is fairly generic and can be implemented in any

middleware including the .NET platform as well as Java based platforms. The

administration and runtime domain related APIs can be implemented in any of the

available middleware.

(g) Enhanced security: In our architecture, every client request passes through the

Web service’s security manager and then gets authenticated and authorized. The

security manager can be placed in a firewall zone, which enhances security of

collections of Web service objects placed behind an organization’s firewall. This

enables organizations to protect their Web service based applications from outside

traffic. A firewall could be configured to accept and send only SOAP request

messages with appropriate header and body to the responsible security manager to get

authenticated and authorized.

4 Related Work

Kraft proposes a model based on a “distributed access control processor” for Web

services [7]. The main components in the authorization model are the gatekeeper,

which intercepts SOAP requests to a Web service and one or more Access Control

Processors (ACPs) that make the authorization decisions for the Web service. The

gatekeeper itself can be an ACP. It also has the responsibility of authenticating the

requesting client, combining the decisions from individual ACPs and to make the

final access control decision. The advantage of this model is it supports decentralized

and distributed architecture for access control. The model is generic enough to

support different models of access control. This model however, does not provide

support for administration of authorization related information. It also does not

provide support to manage Web service collections and their authorization related

information using standard APIs, which our architecture provides.

Yague and Troya [8] present a semantic approach for access control for Web services.

The authors define a Semantic Policy Language (SPL). SPL is used to create metadata

for resources (Secure Resource Representation (SRR)) and generic policies without

the target resource in them. A separate specification called Policy Applicability

Specification (PAS) is used to associate policies to target objects at run time

dynamically when a principal makes a request. The architecture is based on the

104

integration of a Privilege Management Infrastructure (PMI) and the SPL language

features. At run time, depending on the Source of Authorization Descriptions

(SOADs) that the Source of Authorization (SOA) in the PMI is willing to provide to

the client and the SRRs, the Policy Assistant component streamlines the SPL policies

and the PAS. What is interesting in this model is that the authorization policies can be

attached dynamically based on the metadata of the resource being accessed and also

be streamlined dynamically to the SOADs the SOA is willing to send, through the

PMI client. The disadvantage with this model is that authorization policies can only

be written in SPL and is based on one model of access control – the PMI, which

means this model is not generic enough to support different access control

mechanisms required by applications in a heterogeneous environment. This means

unlike our architecture, legacy applications (using their own access control

mechanisms) are not supported by this model. The model also does not provide

management and administration support for Web service objects.

Agarwal et al [6] define an access control model that combines DAML-S [11], an

ontology specification for describing Web services and SPKI/SDSI [12], used to

specify access control policies and to produce name and authorization certificates for

users. Access Control Lists (ACLs) are used to specify access control policies of Web

Services. Each ACL has the properties keyholder, subject, authorization, delegation

and validity. Access control is defined as a pre-condition to access a Web service.

When trying to access a Web service, a user sends the set of credentials needed to

access the Web service. The user does this by using the ACL provided in the access

control precondition of the Web service provider. The user calculates the set of

certificates needed by making use of a chain discovery algorithm. If the client is

authorized with the certificates provided, the Web service returns the functional

outputs sought by the client. This model is a certificate based access control model

and so is not generic enough to support multiple access control models. This means

legacy applications exposed using Web services cannot use different models of access

control they have already been using. The ACLs in this model are simple and one

cannot specify fine-grained and complex authorization policies using this model. The

model also does not provide management and administration support for Web service

objects.

Ziebermayr and Probst discuss their authorization framework [9] for “simple Web

services”. Their framework does not consider distributed authorization and assumes

that Web services provide access to data or sensitive information located on one

server and not distributed over the Web. The framework uses a rule based access

control model where simple rules are written for components (in which Web services

reside), Web services and parameters of a Web service method. A rule consists of a

reference to a service definition, another reference to a user and additional rule

information for parameters where necessary. When an access request comes in, the

rules at these various levels are checked and an authorization decision is made. This

framework uses simple rule based access control and so does not support different

models of access control. This means legacy applications cannot be exposed as Web

services. Another disadvantage with this framework is that it cannot support

authorizations for distributed Web services, which have access to data and/or

information over a number of Web servers. Unlike our architecture, there is no

abstraction of each Web service method’s function into a set of operations. This

abstraction makes it easy to perform authorization administration as discussed earlier.

105

5 Concluding Remarks

We proposed an authorization architecture for Web services - WSAA. We described

the architectural framework, the administration and runtime aspects of our

architecture and its components for secure authorization of Web services as well as

the support for the management of authorization information. WSAA supports push-

model, pull-model and combination-model authorization algorithms.

The architecture supports legacy applications exposed as Web services as well as

new Web service based applications built to leverage the benefits offered by Web

Services; it supports old and new access control models and mechanisms; it is

decentralized and distributed and provides flexible management and administration of

Web service objects and authorization information. We believe that the proposed

architecture is easy to integrate into existing platforms and provides enhanced security

by protecting exposed Web services from outside traffic. We are currently

implementing the proposed architecture within the .NET framework.

References

1. World Wide Web Consortium (W3C), "SOAP v1.2, http://www.w3.org/TR/SOAP/," 2003.

2. World Wide Web Consortium (W3C), "Web Services Description Language (WSDL) v1.1,

http://www.w3.org/TR/wsdl," 2001.

3. B. Atkinson et al, "Web Services Security (WS-Security) Specification, http://www-

106.ibm.com/developerworks/webservices/library/ws-secure/," 2002.

4. S. Anderson et al., "Web Services Trust Language (WS-Trust), http://www-

106.ibm.com/developerworks/library/specification/ws-trust/," 2005.

5. V. Varadharajan, "Distributed Authorization: Principles and Practice," in Coding Theory

and Cryptology, Lecture Notes Series, Institute for Mathematical Sciences, National

University of Singapore: Singapore University Press, 2002.

6. S. Agarwal, B. Sprick, and S. Wortmann, "Credential Based Access Control for Semantic

Web Services," American Association for Artificial Intelligence, 2004.

7. R. Kraft, "Designing a Distributed Access Control Processor for Network Services on the

Web," presented at ACM Workshop on XML Security, Fairfax, VA, USA, 2002.

8. M. I. Yagüe and J. M. Troya, "A Semantic Approach for Access Control in Web Services,"

presented at Euroweb 2002 Conference. The Web and the GRID: from e-science to e-

business, Oxford, UK, 2002.

9. T. Ziebermayr and S. Probst, "Web Service Authorization Framework," presented at

International Conference on Web Services (ICWS), San Diego, CA, USA, 2004.

10. J. Bacon and K. Moody, "Toward open, secure, widely distributed services,"

Communications of the ACM, vol. 45, pp. 59-64, 2002.

11. M. B. A. Ankolekar, J. R. Hobbs,O. Lassila, D. McDermott, D. Martin, S. A. McIlraith, S.

Narayanan, M. Paolucci, T. Payne, K. Sycara, "DAML-S: Web Service Description for the

Semantic Web," presented at 1st International Semantic Web Conference (ISWC), Sardinia,

Italy, 2002.

12. C. M. Ellison, B. Frantz, B. Lampson, R. L. Rivest, B. M. Thomson, and T. Ylonen, "Simple

public key certificate, http://theworld.com/~cme/html/spki.html," 1999.

106
