Natural Language Interface Put in Perspective:

Interaction of Search Method and Task Complexity

QianYing Wang, Jiang Hu and Clifford Nass

Department of Communication, Stanford University,

Stanford, California, USA

Abstract. A 2x2 mixed design experiment (N=52) was conducted to examine

the effects of search method and task complexity on users’ information-seeking

performance and affective experience in an e-commerce context. The former

factor had two within-participants conditions: keyword (KW) vs. natural lan-

guage (NL) search; the latter factor had two between-participants conditions:

simple vs. complex tasks. The results show that participants in the complex task

condition were more successful when they used KW search than NL search.

They thought the tasks were less difficult and reported more enjoyment and

confidence with KW search. In the meantime, simple task participants per-

formed better when they used NL rather than KW search. They also perceived

the tasks as easier and more enjoyable, and had higher levels of confidence

with the results, when NL was used. The findings suggest that NL search is not

the panacea for all information retrieval tasks, depending on the complexity of

task. Implications for interface design and directions for future research are dis-

cussed.

1 Introduction

From punch cards to keyboards to graphical user interface (GUI) to voice interface

(VUI), computer interfaces have evolved to allow increasingly intuitive and natural

interactions between users and computers. Among all the breakthroughs and im-

provements, the use of natural language (NL) as a means of input and output during

human-computer interaction (HCI) is one of the most researched areas. The promis-

ing future of NL-based conversational interfaces (especially with the presence of

computer agents) has been widely lauded by visionaries such as Brenda Laurel [1].

Although no one has yet to be able to claim complete success in natural language

generation and processing, progress is being made every day: from text-based soft-

ware agent (e.g., Microsoft

Clippy) to speech-recognition customer services auto-

mation (e.g., United Airlines’ flight information hotline), NL-based technologies have

advanced into our daily life.

With the explosion of information brought by the Internet and computers in differ-

t forms, information retrieval has become a hot issue that concerns researchers and

general users alike. Along with the phenomenal increase of data storage capability,

information retrieval interfaces have become a research focus that is gaining more

Wang Q., Hu J. and Nass C. (2005).

Natural Language Interface Put in Perspective: Interaction of Search Method and Task Complexity.

In Proceedings of the 2nd International Workshop on Natural Language Understanding and Cognitive Science, pages 3-12

DOI: 10.5220/0002566000030012

 SciTePress

attention than ever before. In the HCI research community, the literature about seek-

ing and interacting with information is incredibly rich with design principles and

maxims [2-11]. However, most of those usability research projects were focused on

keyword (KW) search. In the meantime, NLP researchers have focused on building

robust knowledge based system [12-16]; little attention has been given to interface

issues.

Natural language search has been made possible in some specialized areas such as

U.S. legal materials [17] as well as in everyday contexts such as askjeeves.com [18].

Users may type full sentences when natural language search is available. Boolean

search, on the other hand, has thus far been the dominant means of information re-

trieval. However, our observation and informal interviews reveal that average users

are not familiar with Boolean search. Most of the time what they use are just key-

words or key phrases without operators such as “+” and “/”. For an average user,

“Boolean search” quite possibly equals to “keyword search.”

The most relevant piece of literature to the present paper is Turtle’s [19] study

comparing natural language and Boolean query. In two experiments comparing in-

formation retrieval performance from collections of full-text legal materials, Turtle

found that searchers using a then current-generation natural language system were

more successful than expert users who relied on Boolean search. The results seem to

herald the proliferation of natural language search systems.

However, there is one major problem with Turtle’s studies: the natural language

queries were not free-will sentences made up by the searchers. Instead, all “natural

language” queries were guided by a set of issue statements made available to the

searchers. It is quite likely that these “trained” queries boomed the performance of

natural language understanding. As a result, the conclusion of Turtle’s study has to be

interpreted carefully.

In this paper, we attempt to compare natural language and keyword search within a

more everyday context: e-commerce customer support, with untrained average users.

We are also interested in how task complexity affects users’ interaction with informa-

tion retrieval interface. Our hypothesis is that increased task complexity will signifi-

cantly undercut users’ performance with natural language system, because it is diffi-

cult for users to turn complicated search requests into concise NL queries that can be

understood by the computer.

2 Method

2.1 The Two Interfaces

The natural language search interface was the AIM chat-room, with a natural lan-

guage agent created by Conversagent, Inc. [2]. Popular search interfaces such as

askjeeves.com encourages users to type keywords or questions on the same webpage.

However, we believe that online chat interfaces such as that of AIM is much more

conducive to natural language input than is a small text box on a webpage. Agents

available for AIM users included My eBay Buddy, AgentBaseball, EllegirlBuddy and

SmarterChild. My eBay Buddy answers frequently asked questions about buying and

selling on eBay. AIM users can add these agents to their buddy lists so as to chat with

them and acquire information from them.

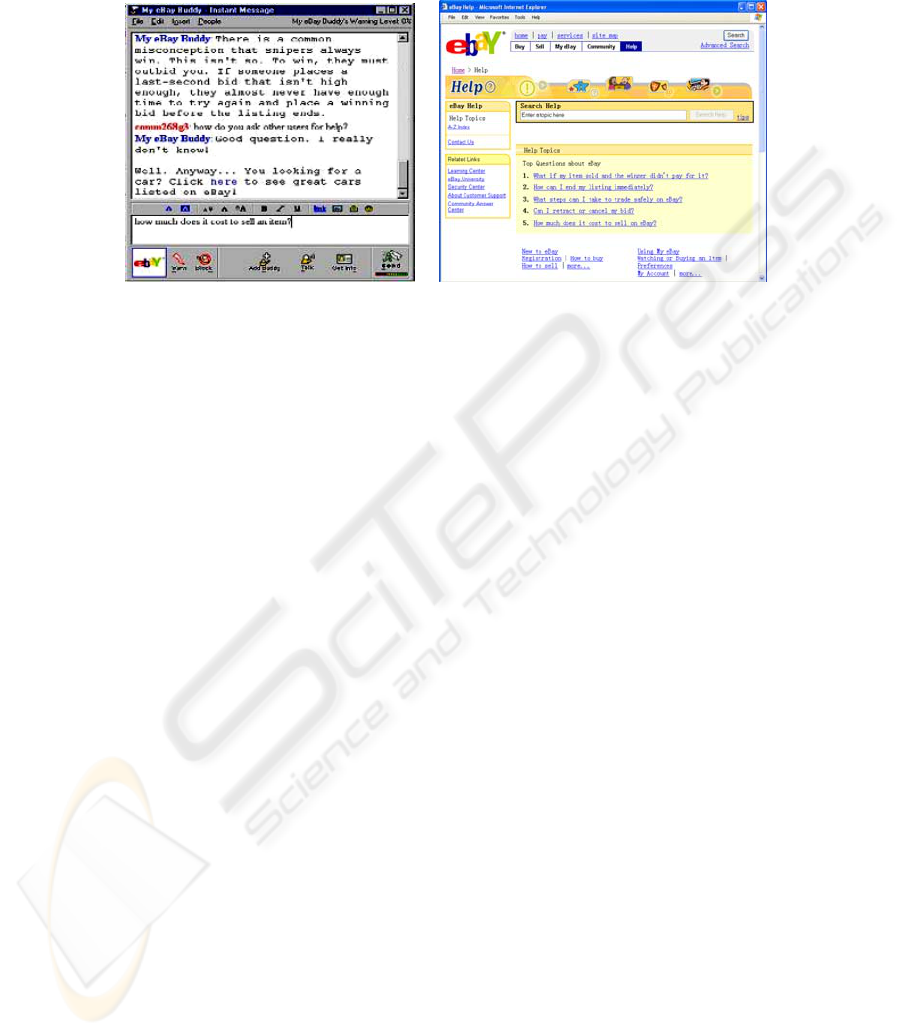

Fig. 1. Screenshots of AIM chat window with My eBay Buddy, and the eBay Help website

For the keyword search condition, we used the eBay Help website, the parallel

website to My eBay Buddy. Figure 1 shows the two interfaces side by side. Search

results provided by My eBay Buddy were presented in a conversational manner while

eBay Help website returned results in a typical list of ranked links. We are fully

aware of the differences between the two presentation formats. However, these forms

of presentation are essential parts of the two radically different interfaces and should

not be studied separately. Behind the interfaces, the eBay Help website and My eBay

Buddy shared the same database. That is to say, two identical queries with the two

interfaces would get the same information.

2.2 Search Tasks

There were two task categories: complex and simple. Complex search tasks included

eight questions concerning eBay transactions; the number of simple search tasks was

20. Compared to simple tasks, complex tasks were more difficult with either NL or

KW interface. Finishing a complex task often involved integrating information from

different aspects related to the task. For example, one complex task was to find out

how much people must pay eBay if they were selling a $35 merchandise. Users had to

find information about listing fee, final value fee, eBay picture service fee, etc., and

combine the information for a correct answer. Our pre-test indicate that people spend

about the same amount of time to finish eight complex tasks as to finish twenty sim-

ple tasks.

The following are two of the simple tasks used in the present experiment:

- Please find out what the gift icon means.

- Please find out what the different colored stars mean.

In the meantime, complex tasks look like these:

- Please find out if it is legal to place a bid right before the auction closes.

- Please find out what you should do if you don’t want a certain person to bid

on your item.

For a full list of search tasks used in the present study, please visit

http://www.stanford.edu/~wangqy/projects/tasks.htm.

2.3 Participants

All native speakers of English, 52 college students (N=52) from an introductory com-

munication class participated in the experiment for course credit. They were ran-

domly assigned to all conditions, with gender balanced across conditions. None of the

participants had ever sold anything or bought more than three items on eBay.com.

Experiences with AIM were also balanced across conditions. All participants signed

informed consent forms upon arrival at the lab and were debriefed upon the comple-

tion of the experiment.

2.4 Procedure

The experiment had a 2x2 mixed design, with search complexity (simple vs. com-

plex) as the between-participants factor and search interface (keyword vs. natural

language search) and the within-participants factor. Participants performed search

tasks in a research laboratory equipped with personal computers. Upon arrival to the

laboratory, each participant was seated and assigned to a computer with both Internet

Explorer and AIM.

After reading instructions on–line, participants were given a list of either simple or

complex tasks about buying or selling items on eBay. For half of the tasks, partici-

pants used keyword search on the eBay Help website (i.e., KW); for the other half,

participants conversed with My eBay Buddy (i.e., NL) to find the answers. Half of

the participants started with KW and the other half started with NL. Participants

typed in an answer when they thought they had found one, indicating whether they

believed that they had found the correct one. Upon finishing each task, participants

responded to several questions about the finished task.

2.5 Measures

Actual performance was computed as the percentage of questions that the user an-

swered correctly. Perceived performance was computed as the percentage of ques-

tions that the users believed that they had answered correctly. Time on task was the

average amount of time completing each search.

Questions concerning perceived task difficulty, pleasure, and confidence in work-

ing with the search interface were asked for each task. Participants used radio but-

tons to indicate their responses for these questions. Each question had an independ-

ent, 10-point Likert scale. Perceived task difficulty was an average across searches of

responses to the questionnaire item, “How difficult did you feel the search was?”

Enjoyment was an average across search questions of responses to the questionnaire

item, “How enjoyable did you find the search?” Confidence was an average across

search questions of responses to the questionnaire item, “How confident were you

with your answer?

3 Results

3.1 Manipulation Check

Time to finish complex tasks and simple tasks were recorded during the study. Con-

sistent with our manipulation, complex searches took longer than simple search for

both keyword [F(1, 24)=107.6, p<.001] and natural language [F(1,24)=55.6, p<.001;

see Table 1]. There was no statistical difference for time on task between the keyword

search and natural language search (p>.05).

Table 1. Time on task

(minutes) Using NL Using KW

Simple 1.21 1.33

Complex 3.8 4.17

3.2 Actual vs. Perceived Search Performance

Figure 2 shows results for actual and perceived performance. There was a significant

interaction between task complexity and search interface for both perceived

[F(1,50)=31.4, p<.001] and actual performance [F(1,50)=26.5, p<.001]. Complex

task participants were more successful in finding the needed information with KW

than with NL; they also perceived more success in the KW condition. Conversely,

simple task participants were more successful with NL than with KW, and they per-

ceived more success in the NL condition.

20%

40%

60%

80%

100%

Comp

lex

le/N

le/K

Per cei ved

Act ual

Fig. 2. Accuracy of search results

Simple task participants obtained [M

simple

=89%, M

complex

=62%, F(1,50)=50.1,

p<.01] and believed they obtained [M

simple

=93%, M

complex

=76%, F(1,50)=41.6, p<.01]

more correct answers than complex task participants. Not surprisingly, there was a

tendency for participants to over-estimate their actual performance. Though there was

no significant difference between the two search methods for actual success

=79%, M

=73%, F(1,51)=3.24, p>.05], participants thought they obtained

more correct answers from keyword search than from natural language queries

=80%, M

=89%, F(1,51)=7.61, p<.01].

3.3 Perception of Task Difficulty, Task Enjoyment, and Confidence with

Answers

Perceived Task Difficulty. We first analyzed participants’ perception of difficulty

without including performance results as covariates. There was a significant

interaction effect between task complexity and search interface on participants’

perception of difficulty [F(1,50)=105.0, p<.001]. Complex task participants thought

KW search was easier to work with than was NL; conversely, simple task participants

thought NL was easier to work with than was KW search (see Figure 3). High

complexity tasks were perceived to be more difficult than were low complexity tasks

simple

=3.20, M

complex

=4.95, F(1,50)=36.4, p<.001). No main effect was found for

search interface [F(1,50)=.917, p>.34].

3. 6

4. 3

2. 09

6. 3

Complex Tasks Simple Tasks

Keyword

Fig. 3. Perception of difficulty

We re-examined the perceived difficulty data with actual performance as covari-

ates. The analysis reaffirmed our finding of an interaction effect between task com-

plexity and search interface on perceived difficulty [F(1,50)=28.95, p<.001]. That is,

even after adjusting the actual performance score, keyword search was preferred for

complex tasks and natural language was preferred for simple tasks.

Task Enjoyment and Confidence with Answers. Participants’ perception of

enjoyment and confidence with the search interfaces were analyzed. Table 2 presents

the means.

Table 2. Perception of enjoyment and confidence

Complex Task Simple Task

NL KW NL KW

Enjoyment 4.07 5.43 6.9 4.84

Confidence 5.84 8.03 8.71 7.65

There was an interaction effect between interface and task complexity with respect

to task enjoyment [F(1,50)=47.6, p<.001]. Participants found the tasks to be least

enjoyable while working on complex tasks using NL and most enjoyable while work-

ing on simples tasks using NL. The effect remained after controlling for actual per-

formance [F(1,50)=19.9, p<.001]. No main effect was found for search interface on

participants’ enjoyment [F(1,50)=2.01, p>.05]. Overall, complex task participants

found the tasks to be less pleasant than simple task participants [M

simple

=5.87, M

com-

plex

=4.75, F(1,50)=5.61, p<0.05].

Consistent with participants’ perception of enjoyment, there was an interaction for

confidence with answers (even after controlling for actual performance): Participants

were least confident while working with complex tasks using NL and most confident

while working with simple tasks using NL [F(1,50)=70.9, p<.001; control:

F(1,50)=13.1, p<.001].

Participant were more confident while working with KW search than with NL que-

ries [F(1,50)=8.56, p<.01]. Interviews with participants during debrief sessions con-

cerning confidence are discussed in the following section. Not surprisingly, complex

tasks made user feel less confident than simple tasks [F(1,50)=15.4, p<.001].

4 Discussion

Results of the present study suggest that the selection of search interface has impor-

tant and systematic effects on user performance and perceptions. However, these

effects are conditioned by the complexity of search task and the nature of queries.

The general pattern we found was that NL was better (in both reality and perception)

than KW search for simple search tasks, while KW search was better (in both reality

and perception) than NL for complex search tasks. The type of search interface had

no direct effect on either perceived task difficulty or enjoyment, although participants

were more confident with KW than with NL search. During debriefing, several par-

ticipants said that they felt more confident with KW because they had browsed pages

or links that gave them peripheral affirmation. It is important to note that although

there was no difference in terms of actual search performance, participants believed

that they obtained more correct answers by using the KW interface than the NL inter-

face.

4.1 Task Complexity Effect and Implications

One clear problem with NL search is that even good NL systems have problems un-

derstanding users. This was true for almost all dialogs between complex task partici-

pants and the Buddy. When the understanding failed, My eBay Buddy revealed its

inability to understand the participant by asking questions back to the participant, thus

giving the participant an impression that he/she was engaged in a conventional con-

versation with the Buddy as if the Buddy was another person.

In a conventional (i.e., human-human) conversation, people adjust their communi-

cation strategies by asking and responding to questions in order to establish some

“common ground” so as to enhance understanding [21]. When a computer agent tries

to talk like a real person, the user would subsequently raise his/her expectations of the

agent’s ability to understand. Some previous research [22, 23] has suggested that

users may say things more freely when they have high expectations of the agent than

when they have low expectations. The freer utterances from the user consequently

impose extra burden on natural language processing system. The gap between uncon-

strained user utterances and the limited understanding capability of NL agent thus

frustrates the user and lowers user satisfaction.

When using the Buddy in the present study, participants with complex tasks in

general found it difficult to form concise questions. As a result, they had to ask more

questions than did simple task participants. Given the limited natural language proc-

essing capability of the Buddy, the more questions participants asked, the more likely

the Buddy would fail to understand. Also, the more unconstrained the questions were,

the more likely the Buddy would appear ignorant. It would be a great idea if the agent

is able to constrain user utterances by leveraging the “alignment” phenomenon ob-

served in human-human dialogs [24].

On the other hand, under the simple task condition where the NL agent was able to

understand and to offer relevant responses, user satisfaction was high. In fact, during

our debrief sections, several simple task participants mentioned that they felt the

Buddy was really smart when it asked questions back to confirm its understanding of

participants’ queries. Under such circumstances, it seemed to be acceptable for the

agent to behave like a human being.

The above findings suggest that a natural language agent should adapt its response

style according to its confidence level in understanding user input. A low confidence

level means that the agent should reduce sentential responses because large amounts

of sentential responses may mislead the user to expect the same intelligent output

from the agent as from a human conversant. The user’s increased level of expectation

may lead to a decrease in satisfaction with the agent if the agent performs poorly.

4.2 Future Research Directions

In the present study, participants were not given the freedom to choose between the

two interfaces; failure rates on complex tasks were high for both NL and KW search.

One potential direction for future research is to investigate the interchange between

KW and NL interfaces. Task performance and perceptions are likely to be different

when users are able to switch from one interface to the other if they think that the

initial interface is ineffective. The research question here is whether or not combining

two search interfaces/methods could provide better user experience with information

retrieval systems.

As noted earlier, it is important to understand how the response style of the agent

influences user behaviors and attitudes. Some earlier studies have demonstrated that

linguistic variations such as sentence length may affect users’ input by soliciting

alignment (i.e., mirroring) behaviors from them [22, 25]. However, linguistic align-

ment is a two-way process. How users would evaluate an aligning agent versus a non-

aligning agent is still to be explored. On top of that, researchers may further deter-

mine when and how a computer agent should align with the user to achieve or im-

prove user satisfaction.

4.3 Final Words

The design of search methodology requires an understanding of the complex interac-

tion between technology, psychology, and context. While one could have a reason-

able argument over whether KW search is better than NL-based information retrieval,

or vice versa, the present study shows that the “KW vs. NL” argument is inadequate

without reference to the particular task and the model of search that the user brings to

the task.

References

1. Laurel, B.: Interface Agents: Metaphors with Character. In Laurel, B. (ed.), The Art of

Human-Computer Interface Design. Addison-Wesley, Reading, MA (1990)

2. Blackmon, M.H., Polson, G.P., Kitajima, M, Lewis C.: Design Methods: Cognitive Walk-

through for the Web. Proceedings of CHI 2002. ACM Press, 463 – 470

3. Borgman, C.L., Belkin, N.J., Croft, W.B., Lesk, M.E., Landauer, T.K.: Retrieval Systems

for the Information Seeker: Can the Role of Intermediary be Automated? Proceedings of

CHI '88 (Washington, D.C.), ACM Press, 51–53

4. Card, S., Pirolli, P., Van Der Wege, M., Morrison, J., Reeder, R., Schraedley, P., Boshart,

J.: Information Scent as a Driver of Web Behavior Graphs: Results of a Protocol Analysis

Method for Web Usability. Proceedings of CHI 2001. ACM Press, 498–505

5. Chi, E., Pirolli, P., Chen, K., Pitkow, J. E.: Using Information Scent to Model User Needs

and Actions on the Web. Proceedings of CHI 2001. ACM Press, 490–497

6. Larson, K., Czerwinski, M.: Web Page Design: Implications of Memory, Structure and

Scent for Information Retrieval. Proceedings of CHI '98.

ACM Press, 25–32

7. Nielsen, J.: Designing Web Usability. New Riders, Indianapolis, IN (1999)

8. Pirolli, P.: Computational Models of Information Scent-Following in a Very Large

Browsable Text Collection. Proceedings of CHI '97. ACM Press, 3–10

9. Pirolli, P., Card, S. K.: Information Foraging. Psychological Review 106(4) (1999), 643–

675

10. Sellen A.J., Murphy R., Shaw K.L.: How Knowledge Workers Use the Web. Proceedings

of CHI 2002. ACM Press, 227–234

11. Spool, J.M., Scanlon, T., Schroeder, W., Snyder, C., DeAngelo, T.: Web Site Usability.

Morgan Kaufman, San Francisco, CA (1999)

12. Doszkocs T.: Natural Language Processing in Intelligent Information Retrieval. Proceed-

ings of the 1985 ACM Annual Conference on The Range of Computing: Mid-80's Perspec-

tive. ACM Press, 356–359

13. Guglielmo E.J., Rowe N.C.: Natural-Language Retrieval of Images Based on Descriptive

Captions. ACM Transactions on Information Systems (TOIS), July 1996, Vol. 14, Issue 3,

237–267

14. Jacob, P. S., Rau, L.F.: Natural Language Techniques for Intelligent Information Retrieval.

Proceedings of the Eleventh International Conference on Research & development in In-

formation Retrieval (1988), 85–99

15. Meng, F.: A Natural Language Interface for Information Retrieval from Forms on the

World Wide Web. Proceeding of the 20th International Conference on Information Systems

(1999), 540–545

16. Vivacqua A., Lieberman H.: Agents to Assist in Finding Help. Proceedings of CHI 2000.

ACM Press, 65–72

17. Griffith, C.: WESTLAW’s WIN: Not Only Natural, But New. Information Today, 9-11,

October 1992.

18. Ask Jeeves, Inc. http://www.ask.com

19. Turtle H.: Natural Language vs. Boolean Query Evaluation: A Comparison of Retrieval

Performance. Proceedings of the Seventeenth Annual International ACM-SIGIR Confer-

ence on Research and Development in Information Retrieval (1994), 212–220

20. Conversagent, Inc. http://www.conversagent.com

21. Clark, H.H.: Using Language. Cambridge University Press, New York (1996)

22. Brennan, S.: Conversation with and through Computers. User Modeling and User-Adapted

Interaction, 1 (1991), 67–86

23. Pearson, J., Pickering, M.J. Branigan, H.P., McLean, J.F., Nass, C.I., Hu, J.: The Influence

of Beliefs about an Interlocutor on Lexical and Syntactic Alignment: Evidence from Hu-

man-Computer Dialogues. Proceeding of the 10

Annual Architectures and Mechanisms of

Language Processing Conference (2004)

24. Nass, C.I., Hu, J., Pearson, J., Pickering, M.J., Branigan, H.P.: Linguistic Alignment in HCI

vs. CMC: Do Users Mimic Conversation Partners’ Grammar and Word Choices? Unpub-

lished manuscript (2004).

25. Zoltan-Ford, E.: How to Get People to Say and Type What Computers Can Understand.

International Journal of Man-Machine Studies, 34(4) (1991), 527-547
