Steering Model-Driven Development of Enterprise

Information System through Responsibilities

Ming-Jen Huang and Takuya Katayama

School of Information Science, Japan Advanced Institute of Science and Technology

1-1 Asahidai, Nomi-shi, Ishikawa, Japan

Abstract. OMG proposes the MDA that promotes the ideas of modeling in

UML and transforming UML models to code. But UML is not universal for

every domain and the direct translation approach of the MDA is not adequate.

In this paper, we introduce REST, an idea of using responsibilities as contextual

information to instruct machines to generate software systems. First, we give an

overview of RESTDA - a software development architecture for business based

on the concept of REST. Then we describe a domain-specific language -

Business Models. It helps developers to describe a business from a document-

processing perspective. We also introduce a rule-based validation of

consistency within Business Models. Finally, we describe the transformation

mechanism of RESTDA. Our approach provides machines higher intelligence

to generate source code for different contexts.

1 Introduction

Model Driven Architecture (MDA) proposed by OMG [1] is a software development

approach that promotes defining platform-independent models in UML and having

machines to transform them into technology-specific code [2]. Its concept is based on

two assumptions. First, UML is precise and expressive enough to describe problems

we are interested in. It is also universal enough to describe any domain of problems.

Second, all problems defined by every kind of UML modeling constructs should

imply identical contextual information. For the MDA, UML becomes the master key

to open every door to any solution.

With regard to the first assumption, different domains have different requirements.

Thus, a domain-specific language (DSL) that is customized for a specific domain is

more realistic and more productive [3]. With regard to the second assumption,

considering the following example: does the case of implementing UML models of a

car having four wheels equal to the case of a teacher having four students? By UML,

they may be drawn identically in class diagrams or even sequential diagrams. For an

effective model transformation mechanism, we do not only have to give machines

syntactic and semantic information, but also the capability of reacting according to

different contexts. To that end, we propose a conceptual idea, Responsibility-Steering

Model Transformation (REST) to augment existing model-driven approaches.

Huang M. and Katayama T. (2005).

Steering Model-Driven Development of Enterprise Information System through Responsibilities.

In Proceedings of the Joint Workshop on Web Services and Model-Driven Enterprise Information Systems, pages 165-170

DOI: 10.5220/0002566201650170

 SciTePress

REST is a conceptual idea of model transformation that is inspired by

Responsibility-Driven Design, which is proposed by Wirfs-Brock [4]. She promoted

the idea of designing a software system from responsibilities and devising role objects

to collaboratively work together to assume these responsibilities [5]. In REST, we

consider responsibilities of an abstraction level are realized by responsibilities of a

level beneath. And realization of all responsibilities of all levels, combining with

domain-specific languages, instructs machines to generate detailed implementation of

different technology-specific code. The advantages of our approach are: (1)

Responsibilities provide extra contextual information of domains under consideration.

The problems like the example of car and teacher can be avoided. (2) By defining

model transformation in terms of responsibilities of different levels, any change of

requirements can lead to easy and reliable modification to the target system. (3) By

formalizing responsibilities, the correct transformation can be ensured.

The purpose of our work is to devise a development architecture and to apply the

idea of REST to the development architecture to solve the problems of the MDA

mentioned above. In this paper, we introduce the development architecture for

business called Responsibility-Steering Development Architecture (RESTDA).

The remainder of this paper is organized as follows. Section 2 gives the overview

of RESTDA, the details of the DSL - Business Models, and the description of the

rule-based consistent validation of BM. Section 3 describes the details of REST and

its implementation in RESTDA. Section 4 gives the conclusions and future works.

2 Responsibility-Steering Development Architecture

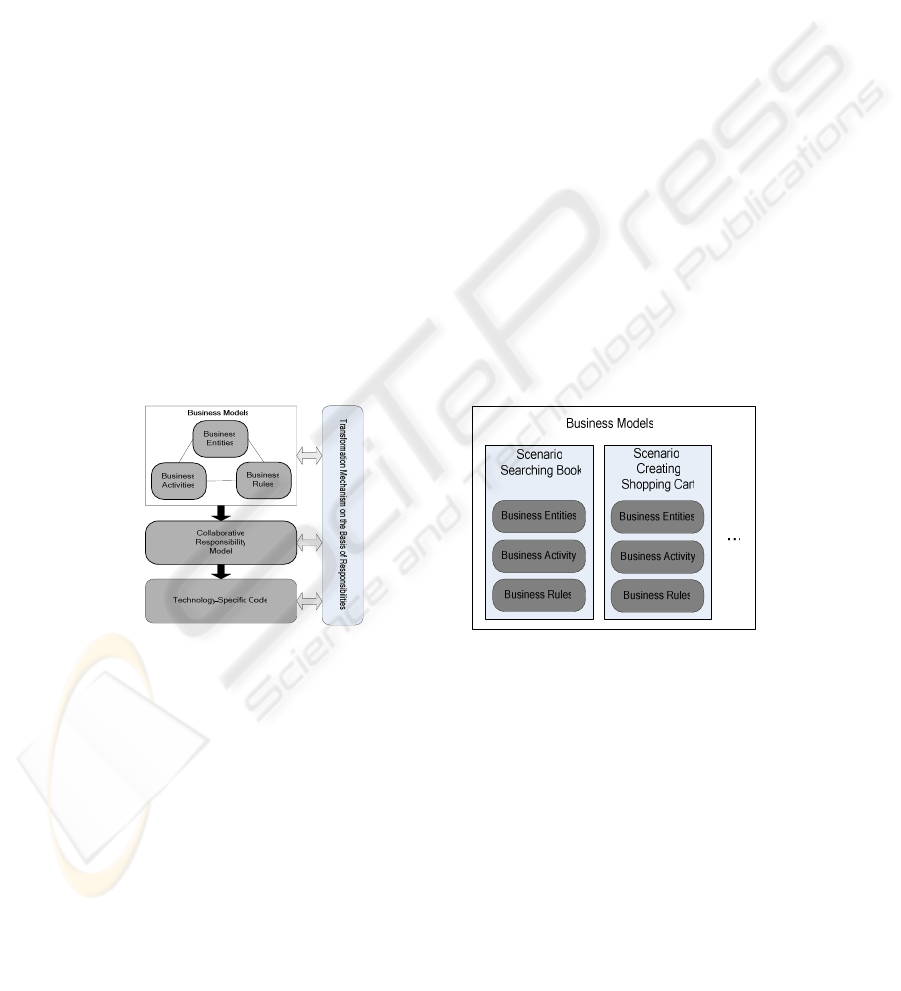

Fig. 1. Architecture of RESTDA

Fig. 2. Structure of Business Models

RESTDA is composed of a DSL to model concepts of business world and a model

transformation mechanism between models and code. Fig. 1 shows the architecture of

RESTDA. The DSL, Business Models, describes different business scenarios from the

structural, behavioral, and constraint aspect. Definition of BM of a target system is

transformed into a technology-neutral object model - Collaborative Responsibility

Model (CRM) by machines with a business scenario as a unit. CRM does not contain

details of technology-specific implementation but generalized software objects and

responsibilities of these objects. By means of CRM, a system can be divided into

many vertical-sliced parts, and each part can be transformed into different

166

technology-specific code that is most suitable to a situation. Instead of direct

translation of meta-model to code, RESTDA applies the idea of REST, using

syntactic, semantic, and contextual information, to instruct machines to transform BM

to CRM and CRM to source code.

2.1 Business Models Description

BM defines the running of a business from three different views. Business entities

describe the structural view. Business activities describe the behavioral view.

Business rules describe constraints of business entities and business activities.

Definition of BM of a target system has one or more scenarios which describe a

possible situation of document processing (see Fig. 2).

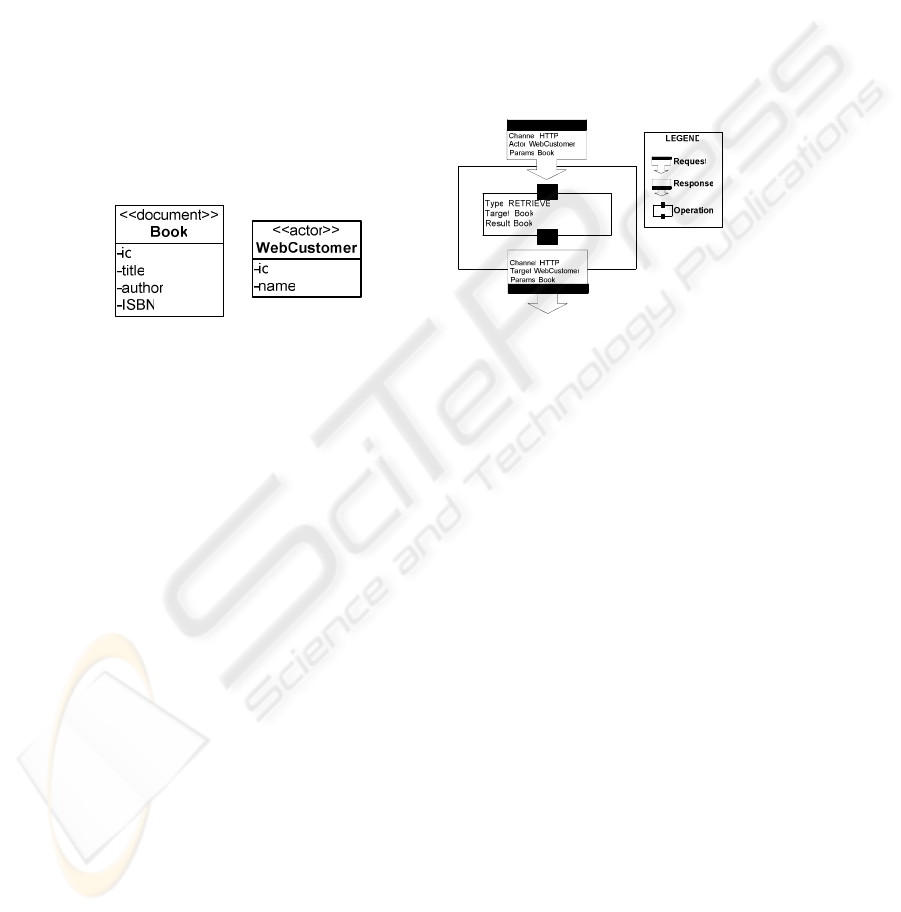

Fig. 3. A Sample of Business Entity

Diagram

Fig. 4. A Sample of Business Activity

Diagram

Business entities are roles that participate in a scenario. They are described in

business entity diagram. A sample is shown in Fig. 3. Here, we borrow the drawing

conventions from UML. There are two types of business entity, actor and document.

Actor type entity represents human role in a scenario. In the diagram, it is displayed in

stereotype <<actor>>. Document type entity is what is usually printed out as a

formal or legal document in a business. In the diagram, it is displayed in stereotype

<<document>>. Between business entities, they may have relations.

A business activity is a sequence of operations on which business documents are

processed. A business activity has three parts, request, operations, and response.

Request describes how the request is sent (Channel), who makes the request (Actor),

and what information is carried by the request (Params). A single operation is an

action operating on a document. It describes what type the operation is (Type), what

document to operate on (Target), and what information to provide after completion of

an operation (Result). There are four types of operation: CREATE, RETRIEVE,

UPDATE, and DELETE. Operations can be linked sequentially to represent

sequential operations. A business activity is described in a business activity diagram.

As the exemplar Fig. 4 shown, the request is sent via HTTP and made by

WebCustomer. WebCustomer should provide information of Book in the request.

The business activity has a single operation to RETRIEVE information of Book and

return resulting Book. The response is sent via HTTP to the WebCustomer.

WebCustomer and Book are referred to the business entities of the scenario.

167

Business rules are constraints of business entities and business activities. For a

business entity, business rules define the possible range of values of its properties. For

a business activity, they define conditions of allowable activity requests or conditions

of allowable operations, among other things.

2.2 Formalization and Implementation of Verification

The semantics of BM is formalized as predicates and implemented in a rule-based

engine to verify validity of BM. These predicates are called verification rules. They

are defined in terms of three basic constructs,

be of business entity,

attr

of entity

attribute, and

ba of business activity. The types of business entity and activity

are

ocumentType(b

ctorType(b

, and

usinessActivityType(b

. Each construct has

an identifier

D(b

D(att

, and

D(b

. Relations (own and detailedBy) between

business entities are

wn(be ,be

)

and

etailedBy(be ,be

)

. Channel, actor, params

of request are

equestChannel(ba

)

equestActor(b

, and

equestParams(b

. Type,

target, and result of operation are

perationType(n,b

perationTarget(n,ba

)

, and

perationResult(n,b

respectively (

denotes the sequence of operations). For

example,

perationType(1,b

denotes the type of the first operation. Channel, actor,

params of response are

esponseChannel(ba

)

esponseTarget(b

, and

esponseParams(b

respectively.

There are five types of verification rules within BM. In this paper, we explain only

the first type of verification rules - structural relation. In BM, business entities have

two types of relation, own and detailedBy. For example, an actor type Manager

owns a document type MonthlySalesReport and MonthlySalesReport is

detailed by a document type WeeklySalesReport. Types of entity at two ends of

a relation should be correct and they are represented as two rules:

1. Only an actor type entity can own a document type entity

be ,be Own(be ,be ) ActorType(be ) DocumentType

(

)

212 1 2

∀⇒∧

2. Only a document type entity can be detailed by a document type entity:

be ,be DetailedBy(be ,be ) DocumentType(be ) Do

umentType(be

)

212 1 2

∀⇒∧

The verification rules are implemented in a rule-based engine, Jess [6]. Jess

contains facts and rules. The collection of facts is information Jess knows. The

collection of rules in Jess is a kind of actions that triggers under certain conditions [7].

Rules in Jess can be stated as “if

then

”.

denotes a set of conditional facts.

denotes a set of actions.

is tested against all known facts. For example, if we

know (1) a verification rule states that only an actor type entity can own a document

type entity and (2) a fact states that SalesStaff (actor type) owns

PurchasingStaff (actor type). If a Jess rule states “if (1) is not satisfied against

all known facts, then displays a warning message.” Since PurchasingStaff of

(2) is not a document type, Jess would display a warning message.

168

3 Responsibility-Steering Model Transformation

REST is a conceptual idea of model transformation that uses responsibilities of

different levels as contextual information to instruct machines to transform platform-

independent models into technology-specific code. Real-world responsibilities of

structural and behavioral constructs and constraints of a DSL are

realized by

generalized object responsibilities and the generalized object responsibilities are

realized by responsibilities of technology-specific code, such as classes or

components. In RESTDA, the realization of generalized object responsibilities is pre-

defined. Developers only have to define (1) the responsibilities of BM and (2) how

generalized object responsibilities realize these responsibilities for each scenario.

First, developers have to define real-world responsibilities from BM. A

responsibility of any level always has a

holder and a receiver. A holder represents a

structural role which assumes the responsibility. A receiver represents a structural role

that is affected by the consequence of the responsibility. Responsibilities of the same

level are connected by holders and receivers. We use

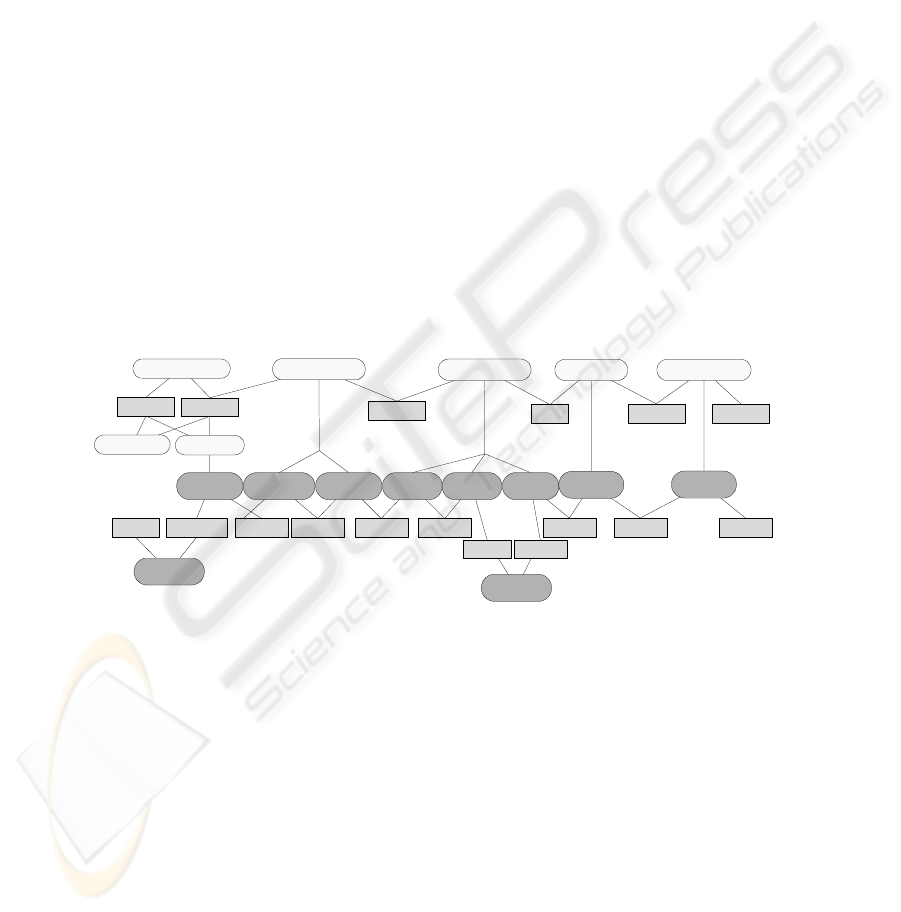

Collaborative Responsibility

Diagram

(CRD) to draw responsibilities, holders, and receiver as shown in Fig. 5. A

collaborative responsibility diagram shows the structural and behavioral aspect of

responsibility realization. To read the diagram, a rounded rectangle represents a

responsibility and a rectangle represents a role. The left-hand role of a responsibility

represents a holder and the right-hand role represents a receiver. A receiver of a

responsibility could be a holder of another responsibility. The responsibilities are

fulfilled from left to right one by one.

BW-1: Request for

searching book service

WebCustomer

TargetSystem

BW-2: Provide

request information

BW-3: Provide its

own information

BW-4: Process request

TargetSystem

BW-5: Execute

operations in turn

Book

BW-6: Provide its

own information

TargetSystem WebCustomer

Structurer

Information

holder

Interfacer Interfacer Controller Controller

Structurer

Service

provider

Information

holder

Interfacer

Information

holder

GO-1: Provide

WebCustomer’s

information

GO-2: Decode

protocol-specific

request message

GO-3: Validate

WebCustomer’s

security

GO-4: Decide

next executing

operation

GO-5: execute

next operation

GO-6: Search

book by

keywords

GO-7: Provide

Book’s

information

GO-8: Render

resultant views

GO-9: Manage

life-cycle of

service provider

GO-10: Manage

life-cycle of

service provider

BW-7: Return executing

results to response target

Fig. 5. A Sample of Collaborative Responsibility Diagram

Second, developers have to define how generalized object responsibilities realize

the real-world responsibilities. It is a process of refinement by decomposing a real-

world responsibility into smaller chunks. For example, the real-world responsibility

“Process request” is realized by two generalized object responsibilities: “Decode

protocol-specific message” and “Validate WebCustomer’s security”. Again, a holder

and a receiver are assigned to a generalized object responsibility. They come from

generalized objects. We borrow the concepts of role stereotypes from Responsibility-

Driven Design. It defines six types of role: information holder, structurer, service

provider, coordinator, controller, and interfacer [5]. A generalized software object

represents a stereotype that assumes a set of generalized responsibilities. Developers

have to contemplate types of responsibility and types of generalized object

169

simultaneously for each scenario. Responsibilities of generalized objects and their

holders and receivers form CRM that are further transformed into Java code by Jess.

RESTDA predefines how a generalized object of CRM is transformed into one or

more Java classes. The generation rules are also implemented in Jess in a code-

template-generation fashion where the data for placeholders of code templates come

from definition of CRM. These rules also define how different source code to

generate for different responsibility definitions.

4 Conclusion and Future Work

In this paper, we introduced the software development architecture for business –

RESTDA which is based on the idea of REST. The significance of the research is that

domain experts can use BM to describe the running of a business without concerning

any technology details. Instead of direct translation approach, the combination of

syntactic, semantic, and contextual information of each level offers machines higher

intelligence to generate software systems from platform-independent models.

With regard to future work, one is to formalize the concept of responsibilities

Another is to use much expressive higher-order logic to quantify over predicates and

to apply automatic theorem provers, such as HOL, to verify consistency of BM and

responsibility realization [8,9].

Acknowledgments

This research is conducted as a program for the “21

Century COE Program” by

Ministry of Education, Culture, Sports, Science and Technology.

References

1. MDA Guide Version 1.0.1. OMG. http://www.omg.org/docs/omg/03-06-01.pdf (2003)

2. Frankle, D.S.: Model Driven Architecture : Applying MDA to Enterprise Computing.

Wiley, New York (2003)

3. Thomas, D.: MDA: Revenge of the Modelers or UML Utopia? IEEE Software, Vol. 21, No.

3, pp. 15 – 17 (2004)

4. Wirfs-Brock, R.: Object-Oriented Design: a Responsibility-Driven Approach. OOPSLA ’89

Conference Proceedings, pp. 71 – 75 (1989)

5. Wirfs-Brock, R., McKean, A.: Object Design: Roles, Responsibilities, and Collaborations.

Addison-Wesley, Boston (2003)

6. Jess v7.0a4. http://herzberg.ca.sandia.gov/jess/

7. Friedman-Hill, E.: Jess in Action. Manning: rule-based systems in Java. Manning,

Greenwich, CT (2003)

8. Aoki, T., Katayama, T.: Unification and Consistency Verification of Object-Oriented

Analysis Models. Asia-Pacific Software Engineering Conference, (1998)

9. Yatake, K., Aoki, T., Katayama, T.: Collaboration-Based Cerification of Object-Oriented

Models in HOL. Verification and Validation of Enterprise Information Systems (2004)

170
