From Mapping Specification to Model Transformation

in MDA: Conceptualization and Prototyping

Slimane Hammoudi, Denivaldo Lopes

ESEO, Ecole Supérieure d’Electronique de l’Ouest

4, Rue Merlet de la Boulaye

BP 926, 49009 ANGERS cedex 01

Abstract. In this paper, we

present in the first part our proposition for a

clarification of the concepts of mapping and transformation in the context of

Model Driven Architecture (MDA), and our approach for mapping

specification and generation of transformation definition. In the second part, we

present the application of our approach from UML to C#. We propose a

metamodel for mapping specification and its implementation as a plug-in for

Eclipse. Once mappings are specified between two metamodels (e.g. UML and

C#), transformation definitions are generated automatically using

transformation languages such as Atlas Transformation Language (ATL). We

have applied this tool to edit mappings between UML and C# metamodels.

Afterwards, we aim to use these mappings to generate ATL code to achieve

transformations from UML into C#.

1 Introduction

The Object Management Group (OMG) has stimulated and promoted the adoption of

the Model Driven Architecture (MDA

) [1] to define an approach to software

development based on modeling and automated mapping of models to

implementation. In this approach, models become the hub of development, separating

platform independent characteristics (i.e. Platform-Independent Model - PIM) from

platform dependent characteristics (i.e. Platform-Specific Model - PSM).

The MDA approach promises a number of benefits including business logic is

prot

ected against the changes in technologies, systems can evolve for meeting new

requirements, old, current and new technologies can be harmonized, legacy systems

could be integrated and harmonized with new systems.

In this approach, models are applied in all steps of development up to a target

atform, providing source code, files of deployment and configuration, and so on.

MDA proposes architecture to address the complexity of software development and

maintenance, which has no precedents. It claims that software developers can create

and maintain software artifacts with little effort. However, before this becomes a

mainstream reality some issues in MDA approach need solutions such as mapping,

transformation, handling of semantic distance between metamodels [3], bidirectional

mapping [4], and so on.

Hammoudi S. and Lopes D. (2005).

From Mapping Speciﬁcation to Model Transformation in MDA: Conceptualization and Prototyping.

In Proceedings of the Joint Workshop on Web Ser vices and Model-Driven Enterprise Information Systems, pages 132-143

DOI: 10.5220/0002573001320143

 SciTePress

In this paper, we use the term mapping as a synonym for correspondence between

the elements of two metamodels, while transformation is the activity of transforming

a source model into a target model in conformity with the transformation definition.

In our approach, a transformation definition is generated from a mapping

specification. The distinction between mapping specification and transformation

definition is detailed in later sections. The objective of this paper is threefold. First,

to provide a precise definition of the concepts of mapping and transformation.

Second, to provide a general metamodel for mapping specification between two

metamodels (source and target) in the context of MDA. Third, to present a tool based

on eclipse enabling the edition of mappings and the generation of transformation

definition from mapping specifications. We will apply this tool to C# Platform from

UML as PIM.

This paper is organized in the following way. Section 2 is an overview of MDA and

the main concepts behind this framework. Section 3 presents our proposition for the

clarification of the concepts of mapping and transformation and our metamodel for

mapping specification between two metamodels in the context of MDA. Section 4

introduce briefly a formalism for mapping and shows the implementation of our

proposed metamodel through a plug-in for eclipse, and its application to C# platform

from UML PIM. Section 5 concludes this paper and presents the future directions of

our research.

2 Background

The OMG’s Model Driven Architecture (MDA) is a new approach to develop large

software systems in which the initial efforts aim to cover their functionalities and

their behavior. MDA separates the modeling task of the implementation details,

without losing the integration of the model and the development in a target platform.

The key technologies of MDA are Unified Modeling Language (UML), Meta-Object

Facility (MOF), XML Meta-Data Interchange (XMI) and Common Warehouse

Metamodel (CWM) [1]. Together, they unify and simplify the modeling, the design,

the implementation, and the integration of systems. One of the main ideas of MDA is

that each model is based on a specific meta-model. Each meta-model precisely

defines a domain specific language. Finally, all meta-models are based on a meta-

metamodel. In the MDA technological space, this is the Meta-Object Facility (MOF).

There are also standard projections on other technological spaces like XMI for

projection on XML and Java Metadata Interface (JMI) for projection on Java. MDA

also introduces other important concepts: Platform Independent Model (PIM),

Platform-Specific Model (PSM), transformation language, transformation rules and

transformation engine. These elements of MDA are depicted in figure 1.

133

MOF

transformation language

target

metamodel

transformation

rules

source

model

target

model

transformation

engine

source

metamodel

basedOn

exec

from to

source

target

basedOn

Fig. 1. Transformation in MDA

Each element presented in Figure 1 plays an important role in MDA. In our approach,

MOF is the well-established meta-meta-model used to build meta-models. The PIM

reflects the functionalities, the structure and the behavior of a system. The PSM is

more implementation-oriented and corresponds to a first binding phase of a given

PIM to a given execution platform. The PSM is not the final implementation, but has

enough information to generate interface files, a programming language code, an

interface definition language, configuration files and other details of implementation.

Mapping from PIM to PSM determines the equivalent elements between two meta-

models. Two or more elements of different meta-models are equivalents if they are

compatible and they cannot contradict each other. Model transformation is realized

by a transformation engine that executes transformation rules. Transformation rules

specify how to generate a target model (i.e. PSM) from a source model (i.e. PIM).

To transform a given model into another model, the transformation rules map the

source into the target meta-model. The transformation engine takes the source model,

executes the transformation rules, and gives the target model as output. Using one

unique formalism (e.g. MOF) to express all meta models is very important because

this allows the expression of all sorts of correspondence between models based on

separate meta-models. Transformations are one important example of such

correspondence, but there are also others like traceability, etc. In other words, given

m1(s)/Ma and m2(s)/Mb, where m1 is a model of a system s created using the meta-

model Ma, and m2 is a model of the same system s created using the meta-model Mb,

then a transformation can be de- fined as m1(s)/Ma → m2(s)/Mb. When Ma and Mb

are based on the same meta-meta-model, the transformation may be expressed in a

unique transformation language (i.e. a language independent of the meta-model).

Furthermore, the transformation language itself may be considered as a domain-

specific language. This has many interesting consequences. One of these is that a

transformation program corresponds to an MDA model. We may thus easily consider

higher-order transformations, i.e. transformations having other transformations as

input and/or producing other transformations as output. One of the most popular

meta-models is UML, but there are plenty of other meta-models being defined. For

134

example, there could be a meta-model of the Java language. Based on these two

meta-models, it is possible to express a transformation from UML 1.5 class diagrams

to Java 1.4.2 code. In fact, models have been used for a long time, but they remained

disconnected from the implementation process.

The automatic generation of code to a specific language from a UML class diagram is

not new either; some CASE tools give this support such as Poseidon for UML

(http://www.gentleware.com). However developers still have to write all the

application codes by hand. Moreover, when the application has evolved to acquire

new capabilities or adapt to new technologies, these tools cannot help the developer,

and the model is used only as documentation. An Integrated Development

Environment (IDE) provides a set of tools integrated on a single user interface that

often comprises a sophisticated text editor, a graphical editor for GUI, an editor to

database tables, a compiler and a debugger, e.g. IBM’s WebSphere Studio and

Microsoft’s Visual Studio .NET. An IDE can aid the software development, but only

in the programming phase (i.e. it is based on code-centric approach). A tool powered

with MDA will be enabled to support the system development throughout its life

cycle. The development of large software systems can take some suggested benefits

(some benefits are still not proven) from MDA:

- The same PIM can be used many times to generate models on different platforms

(PSMs) [8];

- Many views of the same system, e.g. many abstraction levels or details of

implementation. We de-fine abstraction levels as the possibility to see a system (e.g.

applications and business process) fragmented in many different and interlinked

levels, each level detaching important characteristics of the same system;

- Enhancement of the portability and of the interoperability of systems in the level of

models;

- Preservation of the business’s logic against the changes or evolution of technology ;

- An uniform manner for business models and for technologies to evolve together;

- Prevention against error-prone factors linked to manual design of systems [7];

- Increase the return on technology investments;

- Enhancement of the reengineering, i.e. it assists the recuperation of business’s logic

from source codes or from implementation environments;

- Enhancement of the interaction and of the migration between different

technological spaces.

Apart from these benefits, the approach using models forces the architects to think

about the architecture and the model behind the system in development, whereas a

code centric approach makes architects concentrated on the code, so they

consequently forget the main properties of the system. Other case studies have shown

some benefits of the MDA Approach. In [11], the authors have demonstrated that the

development of a case study (i.e. J2EE PetStore) using a MDA tool is 35% faster than

the development using a code centric approach (i.e. using a non powered-MDA tool).

135

3 Mapping and Transformation

Nowadays, MDA suffers from a lack of agreement on terminology, especially

concerning the concepts of mapping and transformation. In MOF QVT [6], mapping

is defined as specification of a mechanism for transforming the elements of a model

conforming to a particular metamodel into elements of another model that conforms

to another (possibly the same) metamodel. In MDA distilled book [13], mapping is

defined as the application or execution of a mapping function in order to transform

one model to another, and mapping function is defined as a collection of mapping

rules that defines how a particular mapping works. In both references and others

discussed in [7], the concept of mapping and transformation are not so clear, since

these terms can refer to many different concepts. Moreover, they are usually defined

without explicit distinction between them. The table 1 presented in [7], and extended

briefly here, illustrates in an obvious manner that the terminology related with the

transformation and mapping concepts is really immature.

Table 1: Equivalencies between terms according to the Transformation Pattern

Transf.

Instance

Tranf.

Function

Transf.

Model

Transf.

Program

Transf.

Progr.

Lang

Transf.

Interp

MDA Guide [2]

Transfo Mapping

Instance

Mapping Mapping

Language

MDA Distilled

[13]

Mapping Mapping

rule

Mapping

function

MDA

Explained[10]

Transfo.

Mapping

Mapping/Transf

rule

Transfo.

Definition

Transfo.

tool

QVT DSTC [6]

Tracking Transfo.

rule

Transfo. Transfo.

Engine

QVT Partners

[14]

Transfo.

Relation

Mapping

Relation

[17]

Mapping Model of

Mapping

Formalism

[18]

Transfo. Transfo.

Pattern

[19]

Transfo.

Spec

Transformer

[20]

Transfo.

Process

Transfo.

Descr

According to our vision, the concepts of mapping and transformation should be

explicitly distinguished, and together could be involved in the same process that we

denominate transformation process. In fact, in the transformation process, the

mapping specification precedes the transformation definition. A mapping

specification is a definition (the most declarative as possible) of the correspondences

between metamodels (i.e. a metamodel for building a PIM and another for building a

PSM). Transformation definition contains a minute description to transform a model

136

into another using a hypothetic or concrete transformation language. Hence, in our

approach the transformation process of a PIM into a PSM can be structured in two

stages: mapping specification and transformation definition. Finally, we define the

term transformation as the manual or automatic generation of a target model from a

source model, according to a transformation definition. From a conceptual point of

view, the explicit distinction between mapping specification and transformation

definition remains in agreement with the MDA philosophy, i.e. the separation of

concerns. Moreover, a mapping specification could be associated with different

transformation definitions, where each transformation definition is based on a giving

transformation definition metamodel. Figure 2 illustrates the different concepts of

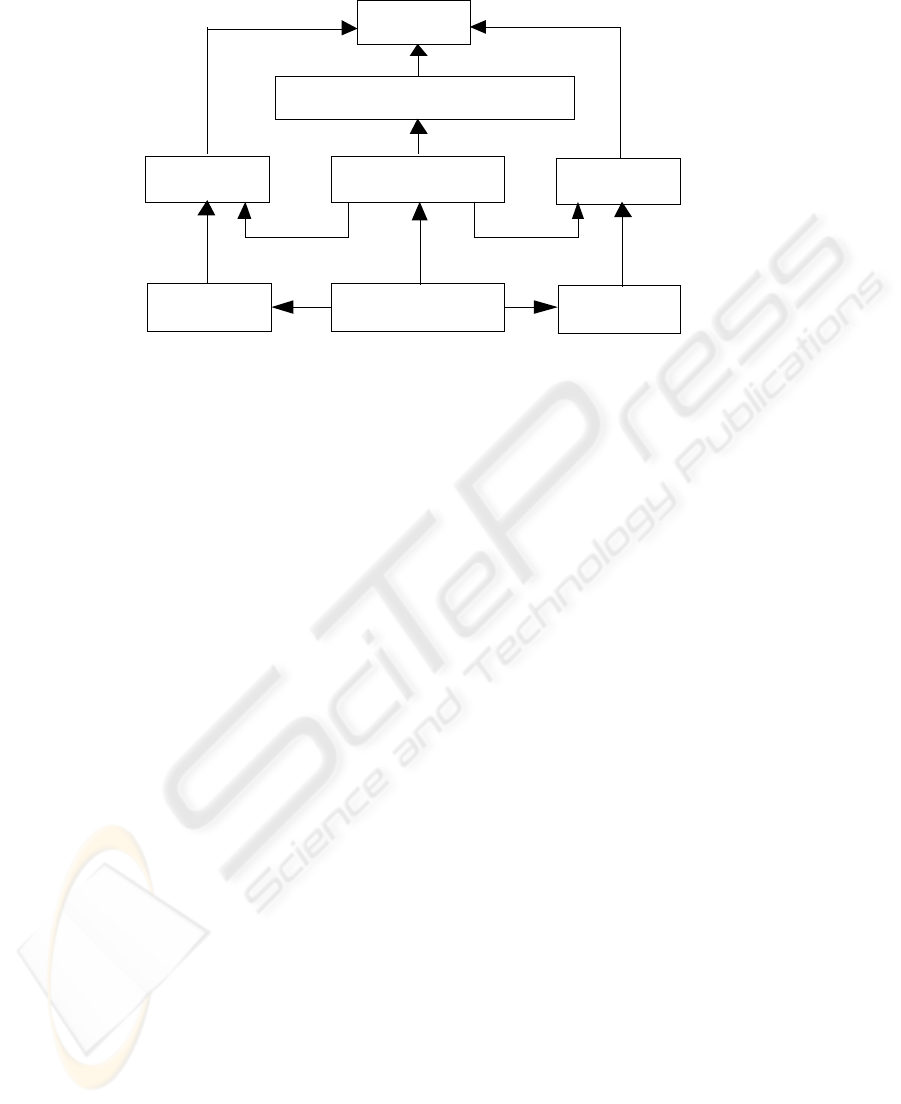

MDA according to our vision where mapping specification is a mapping model, and

transformation definition is a transformation model. In this figure, a mapping model

is based on its metamodel, and it relates two metamodels (left and right). A

transformation model is based on its transformation metamodel, and it is generated

from a mapping model. A transformation engine takes a source model as input, and it

executes the transformation program to transform this source model into the target

model.

asedOn

Transformation Tool

Source M Tar

et M Transformation M Ma

MM Tar

et MMSource MMTransformation MM

GeneratedFrom

asedOn

lef

asedOn

The MOF

MMM

asedOn

asedOnsource tar

Transformation Pro

ram

exec

MMM: metametamodel MM: metamodel M: model

Fig. 2: Transformation Process within MDA: from Mapping to Transformation

Several research projects have studied the mapping specification between

metamodels [9] [12] [18]. However, the ideas around mapping specification are not

sufficiently developed to create efficient tools to enable automatic mappings.

137

Nowadays, transformation languages are not yet very well explored to make choices

about a standard transformation language such as desired by OMG [2]. In the next

few years, the submitted propositions [6] [14] in response to QVT RFP might

converge to a standard language, which will provide a new step forward in the

evolution of MDA. However, wisdom tells us that one problem can be resolved using

different solutions, but one solution for all problems does not exist. Thus, it is clear

that this standard language will not provide a sufficient solution for all types of model

transformations around MDA. However, this will not be a limitation for applying

MDA, because a transformation language is also a model, thus one transformation

language can also be transformed into another transformation language. A priori,

transformations between transformation languages seem unnecessary and

unproductive. However, several examples such as Structured Query Language (SQL)

(i.e. a standard query language for manipulating databases) have demonstrated that a

standard is beneficial, because it establishes a unique and well-known formalism for

understanding a problem and its solution. On the one hand, SQL provides a universal

language for manipulating databases. On the other hand, SQL can be transformed

into a proprietary language for execution into a database engine. A transformation

from SQL into a proprietary language provides some benefits such as improved

performance, reduction of memory-use, and so on. Making an analogy between SQL

and a standard transformation language, we can expect that a standard transformation

language can provide some benefits without imposing severe limitations. Mapping

and transformation have been studied for a long time ago in the database domain.

However, they have taken another dimension with the sprouting of MDA. This not

means that they are well studied and done to be applied in the MDA context. In fact,

mapping specification and transformation definition are not yet an easy task.

Moreover, tools to enable the automatic creation of mapping specification and

automatic generation of transformation definition are still under development.

In the next section, we start briefly presenting a foundation for mapping and

afterwards we discuss our proposition for specifying mappings (i.e. correspondences

between metamodels). This approach for mapping is based on a metamodel and

implemented as a tool on Eclipse. This tool provides mapping support that is a

preliminary step before the generation of a transformation definition.

4 Foundations and Prototyping

In this section, we present our proposition for specifying mappings (i.e.

correspondences between metamodels). This approach for mapping is based on a

metamodel and implemented as a tool on Eclipse. This tool provides support for

mapping, which is a preliminary step before the creation of a transformation

definition, using ATL. We have applied this tool for the different cases presented

previously.

The creation of mapping specification and transformation definition is not an easy

task. In addition, the manual creation of mapping specification and transformation

definition is a labor-intensive and error-prone process [12]. Thus the creation of an

automatic process and tools for enabling them is an important issue. Some

138

propositions enabling the mapping specification have been based on heuristics [12]

(for identifying structural and naming similarities between models) and on machine

learning (for learning mappings). Other propositions enabling transformation

definition have been based on graph theory . Mapping specification is not a new issue

in computer science.

For a long time, the database domain has applied mappings between models (i.e.

schema) and transformation from different conceptual models, e.g. entity-relationship

(ER), into logical or physical models (relational-tables and SQL schema). However,

these same issues have taken a new dimension with the sprouting of MDA, because

models become the basis to generate software artifacts (including code) and in order

to transform one model into another model, mapping specification is required. So,

both mapping specification and transformation definition have been recognized as

important issues in MDA.

4.1 A metamodel for mapping

In order to define a mapping, we need a metamodel, which enables:

- Identification of what elements has similar structures and semantics to be

mapped.

- Explanation of the evolution in time of the choices taken for mapping one

element into another element.

- Bi-directional mapping. It is desirable, but is often complex [10].

- Independence of model transformation language.

- Navigation between the mapped elements.

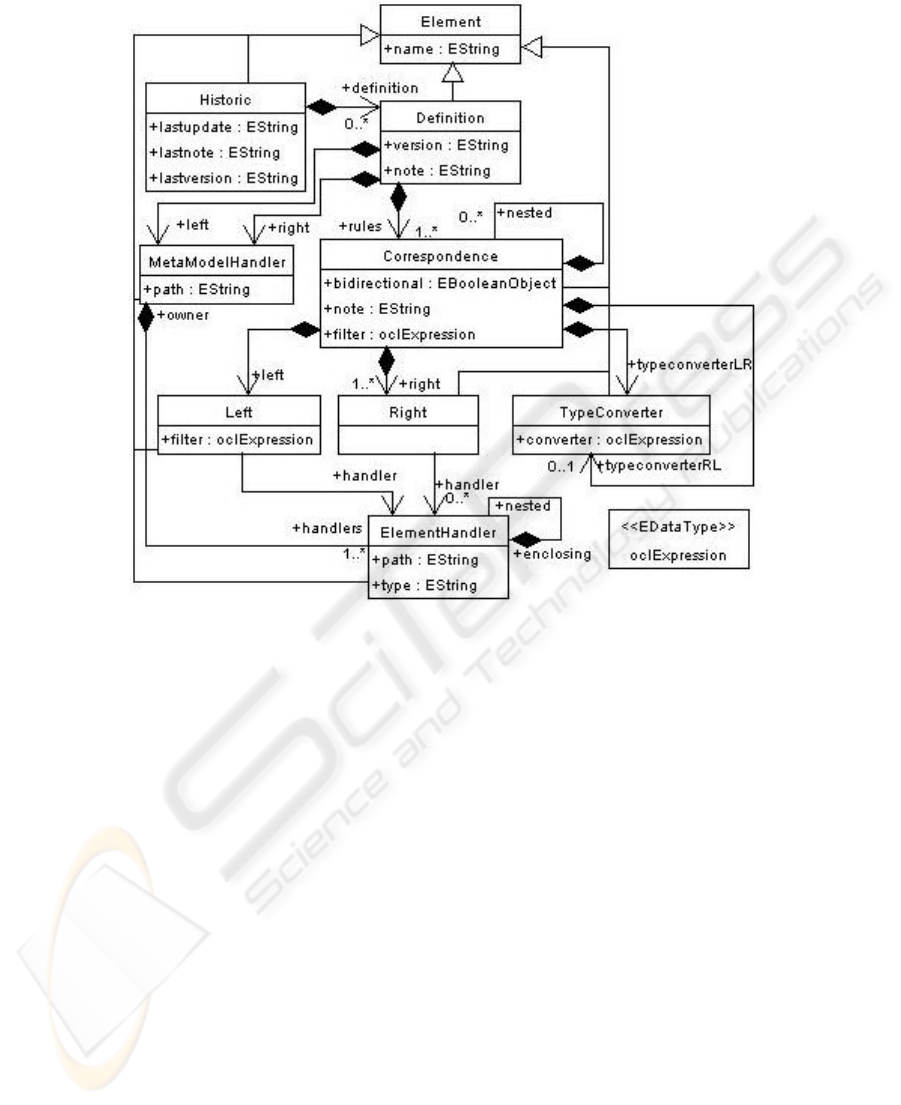

Figure 3 presents our proposition of a metamodel for mapping specification. A

complete definition of this metamodel is presented in [5].

In this metamodel, we consider that a mapping can be unidirectional or bi-directional.

In unidirectional mapping, a metamodel is mapped into another metamodel. In bi-

directional mapping, the mapping is specified in both directions. Thus, as presented

previously, we prefer refer to the two metamodels in a mapping as left or right

metamodels.

A central element in this metamodel is the element Correspondence. This

element is used to specify the correspondence between two or more elements, i.e. left

and right element. The correspondence has a filter that is an OCL expression. When

bidirectional is false, a mapping is unidirectional (i.e. left to right), and when it is

false it is bidirectional (i.e. in both directions). It has two TypeConverters

identified by typeconverterRL and typeconverterLR.

typeconverterRL enables the conversion of the elements from a right

metamodel into the elements from a left metamodel. typeconverterLR enables

the conversion of the elements from a left metamodel into the elements from a right

metamodel. We need often specify only the typeconverterLR.

139

Fig. 3. Metamodel for Mapping Specification

4.2 A Plug-in for Eclipse

Eclipse Modeling Framework (EMF) is a modeling framework and code generation

facility for supporting the creation of tools and applications driven by models [15].

EMF represents the efforts of Eclipse Tools Project to take into account the driven

model approach. In fact, MDA and EMF are similar approaches for developing

software systems, but each one has different technologies. MDA was first designed

by OMG using MOF and UML, while EMF is based on Ecore and stimulates the

creation of specific metamodels.

A tool supporting our proposed metamodel for mapping should provide:

• Simplification for visualizing mappings. In order to specify a mapping, two

metamodels are necessary. From experience, metamodels have generally a

considerable number of elements and associations. So the visualization becomes

complex, putting two metamodels so large side by side and the mapping in the

center. A tool should allow the creation of views, navigation and encapsulation

140

of details unnecessary for each mapping in order to facilitate the visualization

and comprehension of the mapping without modifying the involved metamodels.

• Creation of transformation definition from mapping specification. A mapping

specification is a model itself, and then it can also be transformed into another

model. For example, a mapping model can be transformed into a transformation

model.

Our proposed tool supports all these characteristics, except the semi-automatic

matching which is the next step for its improvement.

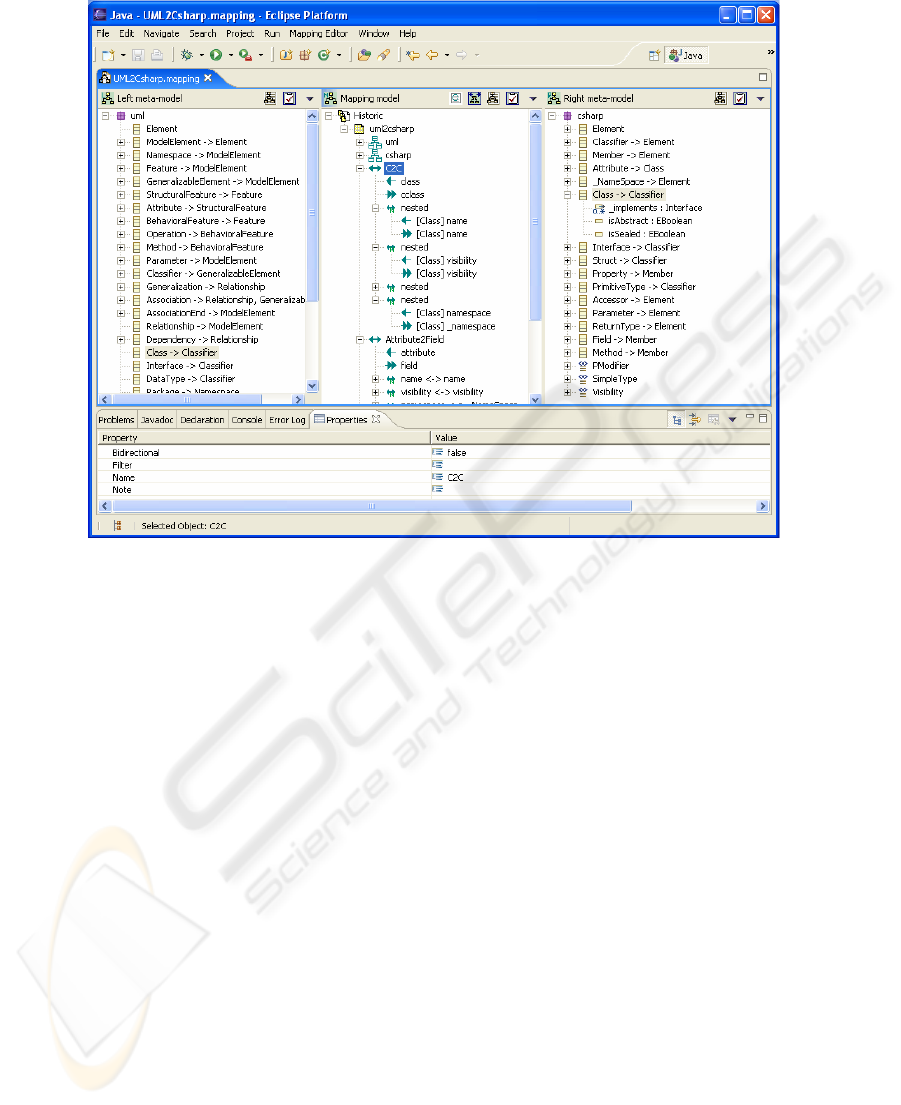

Figure 4 shows our plug-in for Eclipse. This tool is denominated mapping

Modeling Tool (MMT). The tool presents a first metamodel on the left side, a

mapping model in the center, and a second metamodel on the right. In this figure, the

UML metamodel (fragment) is mapped into a C# metamodel (fragment). At the

bottom, the property editor of mapping model is shown. A developer can use this

property editor to set the properties of a mapping model. Before specifying mapping

using our tool, we need create metamodels based on Ecore. Some tools support the

editing of a metamodel based on Ecore such as Omondo [15] or the eCore editor

provided with EMF. The application of our tool using UML and C# metamodel can

be explained in the following steps:

1. We created a project in eclipse and we imported the UML and C# metamodel

into this project.

2. We used a wizard to create a mapping model. In this step, we chose the name

for the mapping model, the encoding of the mapping file (e.g. Unicode and

UTF- 8), the metamodels files in the format XMI.

3. The UML and C# metamodels are loaded from the XMI files, and the

mapping model is initially created, containing the elements Historic,

Definition, and left and right MetamodelHandlers. For each

MetamodelHandler is also created ElementHandlers that are references to the

elements of the corresponding metamodel.

4. We edit the mapping model. First, we define the inter-relationships between

the metamodels creating correspondences between their elements. Second,

we create for each correspondence nested correspondence. Third, for each

nested correspondence, we create one Left and one or more Right elements.

In addition, each Left and Right element has a ElementHandler. If it is

necessary, the TypeConverter is created to explicit the casting between two

mapped elements.

5. The mapping model can be validated according to its metamodel, and it can

be used to generate a transformation definition (e.g. using ATL language).

This tool can export a mapping model as transformation definition. For the

moment, we have implemented a generator for ATL [8], but we envisage creating

generators to other model transformation languages such as YATL [4], in order to

evaluate the power of our proposed metamodel for mapping.

141

Fig. 4. Mapping Modelling Tool (MMT): From UML to C# metamodel

5 Conclusion

In this paper, we have discussed the MDA approach providing a detailed description

of transformation process, distinguishing mapping and transformation. If

transformation is the heart and soul of MDA [16], and transforming a PIM into a

PSM requires finding correspondences between metamodels, then mapping

specification is also another important issue within MDA context. We have proposed

a metamodel for mapping and a tool (i.e. MMT) to support mappings. To illustrate

our tool, we have specified mappings between UML as PIM and C# as PSM.

According to model management algebra, a mapping is generated using an operator

called match, which takes two metamodels as input and returns a mapping between

them. The schema matching was not yet integrated in our plugin, because, at this

stage, we are more interested in addressing the creation of mappings driven by

models.

142

References

1. OMG: Model Driven Architecture (MDA)- document number ormsc/2001-07-01. (2001)

2. OMG, « MDA Guide Version 1.0.1 », OMG/2003-06-01, June 2003.

3. Kent, S., Smith, R.: The Bidirectional Mapping Problem. Electronic Notes in Theoretical

Computer Sciences 82 (2003)

4. Patrascoiu, O.: Mapping EDOC to Web Services using YATL. 8th IEEE Enterprise

Distributed Object Computing Conference (EDOC 2004) (2004)

5. Lopes, D., Hammoudi, S. Bézivin, J, Jouault, F.: Mapping Specification in MDA: From

Theory to Practice. INTEROP-ESA'2005 Conference (February 23-25, 2005)

6. DSTC, IBM, and CBOP. MOF Query / Views / Transformations Second Revised

Submission, January 2004. ad/2004-01-06.

7. J. M. Favre. Towards a Basic Theory to Model Driven Engineering. UML 2004 - Workshop

in Software Model Engineering (WISME 2004), 2004.

8. Bézivin, J., Dupre, G., Jouault, F., Pitette, G., Rougui, J.E.: First Experiments with the

ATL Model Transformation Language: Transforming XSLT into XQuery. 2nd OOPSLA

Workshop on Generative Techniques in the context of Model Driven Architecture (2003)

9. Jan Hendrick Hausmann, S.K.: Visualizing Model Mappings in UML. ACM 2003

Symposium on Software Visualization (SOFTVIS 03) (2003) 169–178

10. A. Kleppe, J. Warmer, and W. Bast. MDA Explained: The Model Driven Architecture:

Practice and Promise. Addison-Wesley, August 2003.

11. Middleware Company: Model Driven Development for J2EE Utilizing a (MDA)

Approach.www.middleware-company.com/casestudy.

12. Madhavan, J., Bernstein, P.A., Domingos, P., Halevy, A.Y.: Representing and Reasoning

about Mappings between Domain Models. Eighteenth National Conference on Artificial

intelligence (AAAI’02) (2002) 80–86

13. S. J. Mellor, K. Scott, A. Uhl, and D. Weise. MDA Distilled: Principles of Model-Driven

Architecture. Addison-Wesley, 1st edition, March 2004.

14. QVT-Merge Group. Revised submission for MOF 2.0 Query/Views/Transformations RFP

(ad/2002-04-10), April 2004. Available at http://www.omg.org/docs/ad/04-04- 01.pdf.

15. Omondo. Omondo Eclipse UML, October 2004. Available at http://www.omondo.com.

16. Sendall S, Kozaczynski W : Model Transformation – the Heart and Soul of Model Driven

Software Development.

17. G. Caplat and J. L. Sourrouille. Model Mapping in MDA. Workshop in Software Model

Engineering (WISME2002)

, 2002.

18. S.R.Judson, R.B.France, D.L.Carver. “Specifying Model Transformation at the Metamodel

Level”, WISME 2003.

19. I Kurtev, K.Van den Berg. A synthesis based approach to Transformation in an MDA

Software Development Process.

20. M. Peltier. Techniques de Transformation de Modèles Basées sur la méta-modélisation.

Thèse de Doctorat, Université de Nantes, 2003.

143
