A Workﬂow-based Environment to manage

Software-Testing Process Executions

Duncan Dubugras A. Ruiz, Karin Becker, Bernardo Copstein,

Flavio Moreira de Oliveira, Angelina Torres de Oliveira,

Gustavo Rossarolla Forgiarini, Cristiano Rech Meneguzzi

and Rafaela Lisboa Carvalho

Computer Science Post-Graduate Program

Faculty of Informatics

Pontiﬁcal Catholic University of RS

Av. Ipiranga, 6681, Predio 16, Sala 106-FACIN

Porto Alegre - RS, Brazil

Abstract. This work describes a workﬂow-based environment that manages the

execution of software-testing processes. Testing processes require that human and

computer resources be handled as dedicated resources, previously scheduled for

testing activities, with no overlapping. Two striking features of this environment

are: a) the efﬁcient handling of resources by taking into account the capabilities

offered by resources required by testing activities, and b) it provides a broader

view of all execution steps in a software-testing plan. Hence, it enables a better

planning of software-testing process executions, as well as of human and com-

puter resources involved.

1 Introduction

Quality assurance in software products has increased the interest on software testing

processes. New software development life cycles have stressed the importance of start-

ing testing as early as possible in the software development life cycle [18]. It also de-

mands increasingly efﬁcient tools and techniques for the description and management

of testing processes, as well as qualiﬁed staff to execute them, with various proﬁles.

Testing software means running it in an effort to ﬁnd errors [6,11]. Testing a soft-

ware product implies the deﬁnition of the Software Test Plan (STP), which deﬁnes a

sufﬁciently encompassing number of test cases. According to [11], an STP should de-

scribe: (1) the computing environment in which the tests will run, (2) the capabilities

required from the testing team, and (3) the sequence of test cases execution, as well as

the procedures to handle errors. To properly execute STP, software testing centers are

composed of appropriate computing and human (testers and test engineers) resources.

Test engineers deﬁne and manage the execution of STP, and create the corresponding

test reports. Testers develop the individual test cases, according to their competences.

For a better management of the testing process, test centers usually split each STP in

blocks of test cases, referred to as test activities, which are distributedd among testers.

Dubugras A. Ruiz D., Becker K., Copstein B., Moreira de Oliveira F., Torres de Oliveira A., Rossarolla Forgiarini G., Rech Meneguzzi C. and Lisboa

Carvalho R. (2005).

A Workﬂow-based Environment to manage Software-Testing Process Executions.

In Proceedings of the 2nd International Workshop on Computer Supported Activity Coordination, pages 66-74

DOI: 10.5220/0002575300660074

 SciTePress

Independent test activities may be allocated to different testers, enabling a parallel exe-

cution of these activities, and, consequently, saving STP elapsed time.

To properly manage a test center, there must be a deep understanding of its main

characteristics: (1) resources are limited; (2) many of these resources need previous

conﬁguration or set-up before use; (3) tests described in the STP must be run in a pre-

deﬁned sequence; (4) distinct test sequences from the same STP can be executed in

parallel; (5) unexpected results in a speciﬁc test may abort the test, a sequence or the

entire test plan; and (6) delays caused by software development teams can signiﬁcantly

impact in all schedule planning of tests of the test center. As a result, the test manager

should be aware of (a) which test plans are being executed and at which test activity

each test plan is, (b) which resources are currently allocated and which are free to be

utilized; (c) what the future resource schedule is; (d) which test plans are waiting to

be run; (e) the average time taken to conﬁgure a computing system for the execution

of a test; and (f) which test plans are waiting for developer feedback before resuming

execution. All this information is important to achieve the optimized use of (limited)

resources, agility in test execution, as well as to identify bottlenecks in the process. To

achieve such level of control, it becomes necessary to provide adequate tools that allow

test engineers or process managers to manage its execution and use of resources.

An important aspect that software testing processes share with production processes

[24] is the need of full and exclusive dedication of human and computing resources to

their respective test activities, durig the whole process. The Enterprise Reference Ar-

chitecture CIMOSA

(Computer-assisted Industry Management - Open System Archi-

tecture) states that “Enterprise Activities of a particular enterprise deﬁne elementary

tasks to be performed in the enterprise which consume inputs to produce outputs and

need allocation of time and resources for the full duration of their execution”. In other

words, neither the tester nor the computing system allocated to run a test can perform

other activities concomitantly. Workﬂow management systems (WfMS) are targeted at

handling the execution business process activities [8,12].However, workﬂow technol-

ogy fail to provide support for handling human and computing resources as resources

in production-processes [4].

This paper presents a workﬂow-based environment for the management of the soft-

ware testing processes, which regards human and computing resources as production-

process resources, in the context of the CWf-Flex project. The main contributions of

this environment are: (1) the efﬁcient management of resources for the execution of test

activities in view of the competences required; (2) efﬁciency, reliability and an encom-

passing view of the entire course of the STP by a workﬂow automation standpoint; and

(3) the use of open-source software tools and solutions.

2 A Motivating Scenario

In 1999, our University and a major IT company launched a partnership which estab-

lished a software test center (STC). This center has been able to identify the speciﬁc

needs of this kind of process, like the need to work with limited resources with varied

http://cimosa.cnt.pl/Docs/Primer

capabilities. As indicated by the characteristics already mentioned, workﬂow technol-

ogy presents an advantageous solution to all these needs.

Between 1999 and 2000, an experiment was made in this test center, using a WfMS

to support test management. The WfMS chosen was Changengine [9], and the following

evaluation of the advantages and disadvantages of using a workﬂow approach showed

that WfMS did not provide two important characteristics in a test process: the support

for human and computing resources as production- process resources and the STP as

single execution instance for each process model. Before the effecting of an STP, the

computing system to be used must be conﬁgured with the proper operational system

and a clean software environment. This is necessary in order to ensure the detection

of errors happening strictly in the software being tested, and not errors in anything

unrelated with the test speciﬁcation. When identifying bugs and non-conformities, it

must be possible to isolate and replicate the error, not only by the testing team but also

by the development team. This is essential to ensure the quality of the testing. Since

it is impossible to cover all possible hardware and software conﬁgurations at the same

time in a test center, a prior setup time is frequently needed to reconﬁgure the machines

before running a different set of tests.

A study was also conducted to identify if the standards for the description of work-

ﬂows and the modeling of production-processes met the requirements of a software test

center. The result was the proposition of the conceptual reference CWf [4,20], which

merges the WfMC interface 1 [22] with the CIMOSA standard [24] in the description

of production-processes. For the design of CWf models, a UML-extension was pro-

posed to support CWf additional concepts: Workﬂow Activity Diagrams WAD [5]. The

CWf-Flex project is a direct evolution of the union of these research efforts.

3 Environment Architecture and Description

The main goal of the CWf-Flex project is to specify and implement an open, ﬂexible

environment for the description of software-testing process, and management of ex-

ecutions, providing support for deﬁnition and management of human and computing

resources. This environment is composed of three parts: (1) design module, (2) formal

description model and (3) execution environment. The design module allows to model

testing processes using WAD (Workﬂow Activity Diagram) [5] WAD is an extension

of UML-Activity diagrams and aims at supporting CWf designs. The prototype of the

design module [21] is able to generate a corresponding XML speciﬁcation from a WAD

test process modeling.

The formal description model is the standard by which the two parts (description

and execution) communicate. A test process speciﬁcation is made by using XPDL [23],

with extensions proposed by CWf [4], in the form of a XML-Schema named XCWf.

The main extensions present in XCWf are: (a) capability and capability-set, which may

be associated to activities (required capabilities) and resources (available capabilities),

(b) the deﬁnition of machines as a resource type, and (c) deﬁnition of synchronous tran-

sitions for the synchronized start of parallel activities or sub-processes. Inherited from

CIMOSA, XCWf introduces the synchronized start (S-AND-split) as an additional rout-

ing construct besides AND-split, AND-join, OR-split and OR-join. An XCWf+XPDL

Table 1. Table 1 Partial Use Case Description

Use Case Actor Description

Insert Project Test Engineer Loading of the XPDL+XCWf (text ﬁle) speciﬁcation.

Process and resource consistency is veriﬁed.

Schedule Ac-

tivities

Test Engineer Allocates and schedules testers and computing resources

for every activity of a new project. These resources should

fulﬁll the capabilities required by the activities. This

scheduling takes into account the work calendar and avail-

ability of the human participants. The activity scheduling

must abide by the sequence of their execution, as deﬁned

by the XML speciﬁcation.

Execute

Project

Test Engineer Enables the execution of the process. Activities which can

be executed are inserted in the allocated participants work-

lists.

Review

Project

Test Engineer This interface is provided to enable the managing of the

test process itself. Its progress can be checked at any time

during execution, and the engineer may view which activ-

ities are scheduled, which are ready to execute, currently

running or complete.

Review Work-

list

Tester Displays the worklist, informing which test activities are

ready to be executed and which are currently being exe-

cuted.

Review

Schedule

Tester Displays the schedule for human and computing resources

according to their planned activities.

Execute

Activities

Tester Either sets an activity for execution or notiﬁes that it is

concluded. The environment evaluates the speciﬁcation

and enables the execution of the subsequent activities.

speciﬁcation complies with XPDL using the XPDL extended-attributes option. This al-

lows an XCWf+XPDL speciﬁcation to be executable by an WfMS according to the

XPDL, Interface1 of the WfMC reference model [8]. S-AND-split can be roughly sim-

ulated by the use of AND-split plus a set of deadline constraints. In fact, this solution

does not guarantee the simultaneous start of activities.

The execution environment, described in the remaining of this section, is a workﬂow

engine that enables the management of software testing processes. Its striking feature

is the ability of effectively allocating human and computing resources, besides imple-

menting the typical routines of a STC.

3.1 Overview of the Workﬂow Execution Engine

Table 1 presents use cases representing the main functionalities of the execution work-

ﬂow engine. The maintenance of the STC basic data-sets and of human and computing

resources is not shown. Only information pertaining directly to the process is kept by

the environment, such as work schedule, capabilities (for human resources) and basic

conﬁguration (for computing systems).

Activity scheduling is a crucial functionality, since it supports the resource alloca-

tion planning activity. In the current prototype it is performed manually by the test engi-

neer, but an automated allocation tool is under consideration, based on the M-DRAP ap-

proach [3]. M-DRAP is a multi-agent resource allocation approach where every single

resource is managed by an intelligent agent, which, in turn, negotiates its commitments

to test activities with the other agents. The data model for the execution environment

was designed so as to easily perform this extension, such that only very exceptional

cases would require the assistance of a test engineer during scheduling.

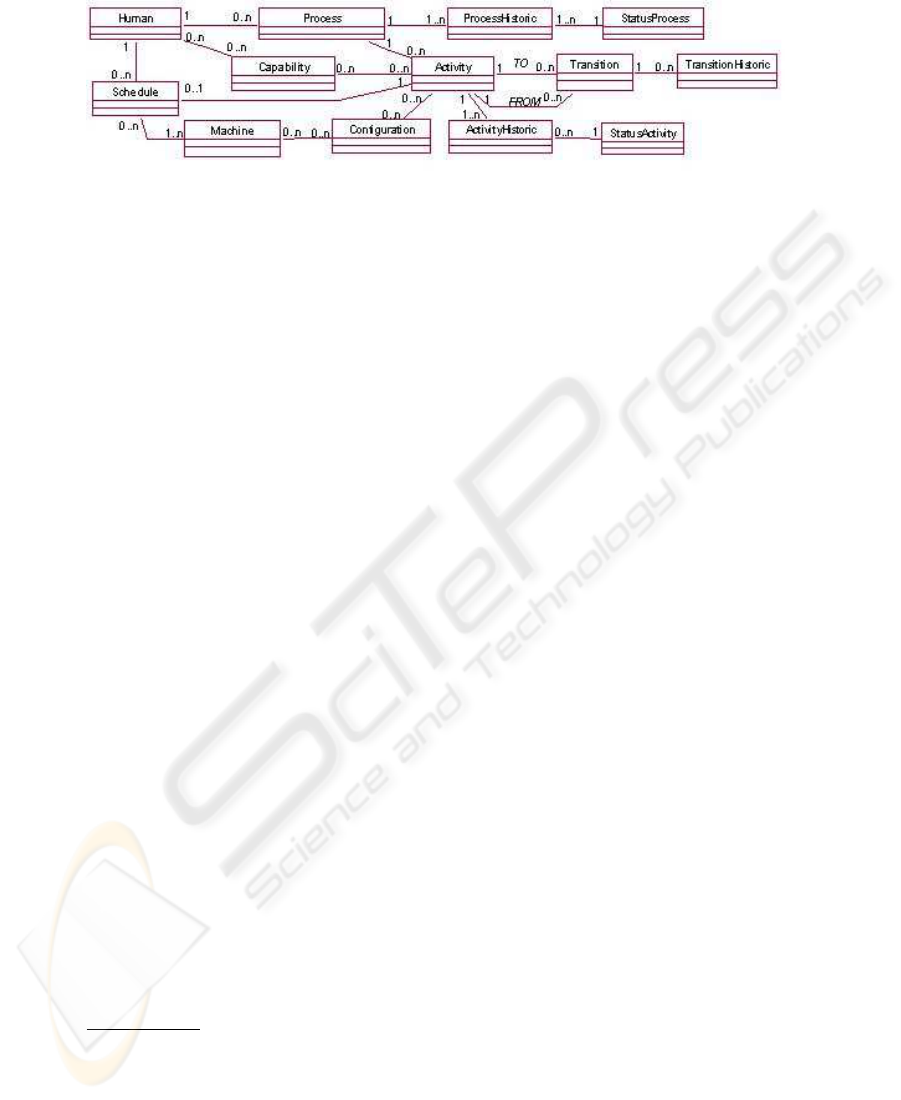

3.2 Execution Engine Data Model

The execution environment data model extends the model presented in [14] in two ways:

a) it provides support the extensions proposed by the CWf reference model, and b) to

persist data related to the work calendar of human resources, their capabilities and the

resource activity schedule. Figure 1 shows the class diagram with the main abstractions.

Human and computing resources, with their respective capabilities, are represented by

the Human, Machine, Capability and Conﬁguration classes. They represent the work

force and computational infra-structure the STC has at its disposal.

When a speciﬁcation is loaded, objects referencing the control ﬂow are created in

the Process, Activity and Transition classes. Each activity is associated to one or more

Capability, to reference the required set of capabilities from a Human, and to one or

more Conﬁguration to reference the required system conﬁgurations. Each conﬁguration

corresponds to a different machine that will be employed in the activity. There is a

special type of activity, named route activity, with no association to Capability and

Conﬁguration. It serves only to describe the control ﬂow when its description is not

possible in common activities. The activity schedule is established through the Schedule

class, where the period in which the activity will be executed is deﬁned, also associating:

a Human with all required capabilities, and one or more Machines corresponding to

each conﬁguration.

During a process execution, the ProcessHistoric and ActivityHistoric classes store

all state transitions of Process and Activity, including the starting states when a speci-

ﬁcation is loaded. The TransitionHistoric class stores the actual passage of the process

through a transition in the model. The state diagrams adopted for Process and Activity

are described in [8,12]. Activities ready to be executed are made available to their re-

spective participants through their worklists, taken from the activity states and schedul-

ing, which are stored in Schedule. Every time an activity is completed, the execution

environment checks what are the next activities to be executed, according to the corre-

sponding speciﬁcation. Each process has its set of relevant data, visible to the execution

environment, to select which paths are enabled on an Or-splitting activity.

3.3 Implementation Architecture

A client-server architecture has been adopted, where the client is a Java-enabled In-

ternet browser, and the server side is composed of three tiers: presentation, business

rules and data persistence. The J2EE technology has been used in the development of

environment as a whole. The presentation and business rules layers are enclosed in the

Fig.1. Partial Class Diagram

Web server, along with the Java Server Pages (JSP). The presentation layer is based

on the Model-View-Controller standard. The WebWork

framework has been used in

this layer, mainly because it offers better functionalities for the validation and conver-

sion of types when compared to other solutions. For the business rules, the Hibernate

framework was adopted because it provides abstraction mechanisms for database ac-

cess, which allows an easier migration among data persistence tools. The use of these

frameworks has made possible a better standardization in the source code, and also

allowed greater efﬁciency and quality in the development process. For the data persis-

tence layer, the PostresSQL

DBMS was chosen for both its transaction support and

level of conformity to the SQL standard.

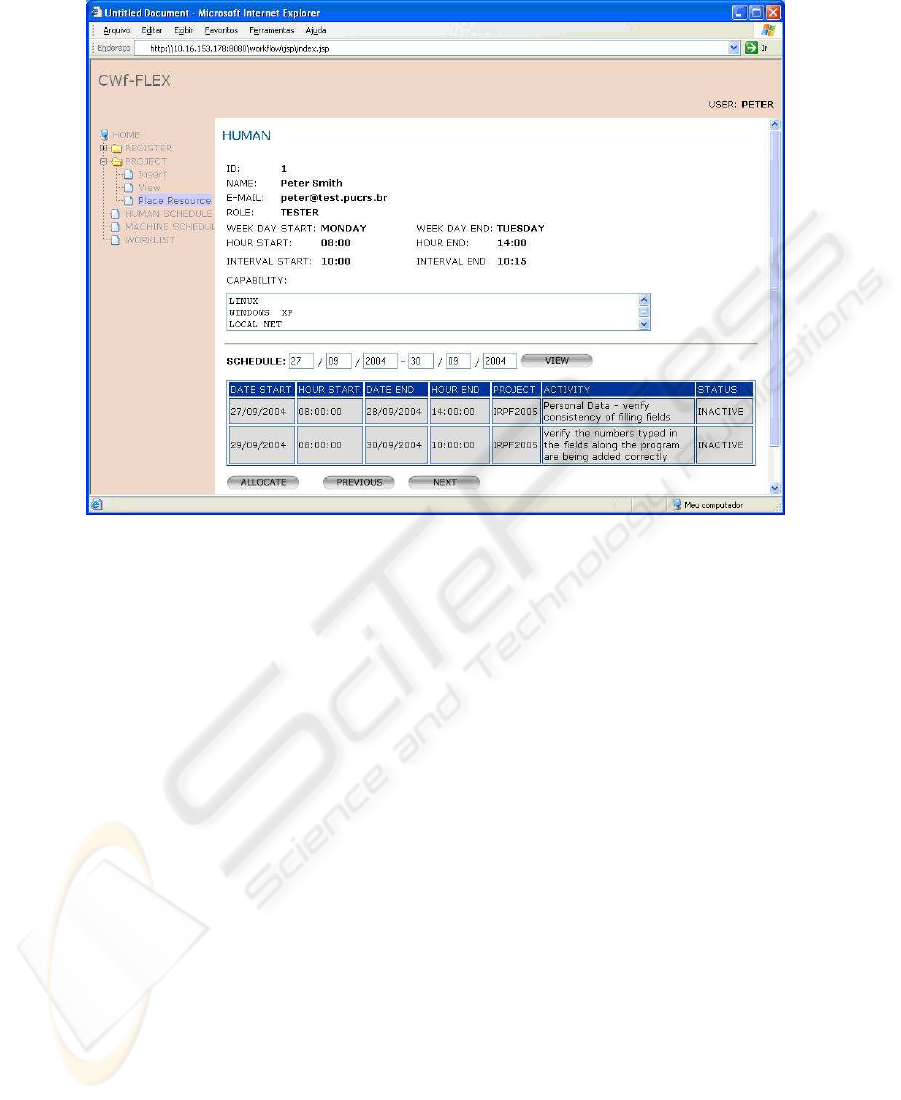

Figure 2 shows a typical Web page, the commitments of a tester, with the visual

standard adopted. The upper menu in the screen belongs to the browser being used. The

left side menu presents a hierarchic structure consistent with the modeled functionali-

ties, and allows the easy access to the different system functions. These menus options

may vary from user to user, depending on the logged users proﬁle. Through this menu,

all data relevant to the STP may be retrieved, including test plans being executed and

completed, and resource commitments to the STP (by reviewing participants schedules

and worklists, etc).

3.4 Innovative aspects of the Execution Environment

The implementation solution presented here fulﬁlls the needs identiﬁed in section 2

above. It is a system that offers an efﬁcient management of the test processes and the

commitment of resources to these executions. In order to do that, the environment en-

ables the resource scheduling for the entire process even before it starts its execution.

Such scheduling takes into consideration testers capabilities and work calendars and

previously scheduled activities of other STP. This permits test engineers to predict the

involvement of the work force with test activities, to size up their test teams and com-

putational infra-structure and to properly plan the growing of the test center. Besides, it

guarantees the simultaneous start of activities, when speciﬁed in the model.

http://www.opensymphony.com/webwork/wikidocs/Documentation.html

http://www.hibernate.org/5.html

http://www.postgresql.org/docs/

Fig.2. Screen showing commitments of a Tester.

4 Related Work

[13] presents many WfMS development projects using open-source software, which

supports XPDL at various degrees of conformance. Our approach, based on [4], looks

at resources as production-process resources, which is not supported by the [23] and

[16] speciﬁcations. Likewise, it is not supported by either other open-source projects

such as YAWL [1] or commercial tools such as AQdevTeam [2].

TestDirector [15] is a leading workﬂow-based tool that addresses the management

of software testing processes. It support resource allocation, permitting to view resource

skills, assignments and load rates. Our approach works with exclusive use of resources

by activities and not with load rates. Testlog [17] is a tool that permits the deﬁnition of

resources similar to our approach: testers, hardware platforms, test conﬁgurations, etc.

In addition, it permits the assignment of resources to test cases. However, it supports

neither the testers capability description nor resource scheduling, as opposed to what

our approach proposes.

[19] introduces a multi-agent approach for the modeling and scheduling of resources

in activity coordination. Two types of resources are discussed, schedulable and not

schedulable. An abstract resource model and four basic operations for its manipula-

tion are presented: identiﬁcation, reservation, acquisition and release. Even though the

schedulable resources are adequately typiﬁed, the authors do not explore them fully.

They state that even in a process with a previously deﬁned order, the agents will manage

their appointments and execute activities at their own discretion. Our solution keeps the

global scheduling of activities e supervises their execution, according to the test process

speciﬁcation, which is essential to the execution of testing activities.

[7] presents a WfMS for grid computing, named GridFlow, and address the work-

ﬂow scheduling problem using a fuzzy timing technique. Similar to [3] approach, Grid-

Flow is an agent-based resource manager, but oriented to grid resources. Grid comput-

ing means the execution of multiple parallel tasks with maximum resource utilization.

[7] states that WPDL [22] is sophisticated and too generalized for grid computing. Re-

sources have different capabilities and should be allocated properly in our approach, as

opposed to GridFlow. However, the fuzzy timing technique can be useful to improve

our resource management.

5 Conclusions

This work has detailed the research made in the context of the CWf-Flex project, for the

speciﬁcation and implementation of the execution environment. The characteristics and

problems of test process management were described, and, in particular, the necessity

to adequately support human and computing resources, especially during test activity

scheduling. Besides that, it also references the adoption of the XPDL standard for work-

ﬂow description, along with the extensions proposed by [4], such as the procedures for

test process speciﬁcations exchange. The environment was developed using only open-

source software tools, which allows its portability to different operational systems. The

addition of new modules is to be considered for future versions. The main contributions

are (1) the previous scheduling of resources to the activities, even before the execution

of the test process, (2) the consideration of the capabilities of testers when selecting

activities for them, (3) the control of collisions in the schedule, and (4) the beforehand

knowledge of resource commitment in the test center.

The project’s current stage is the installation of the environment in an STC, with the

intention of assessing requirements compliance, accessible use and the quality of gener-

ated productivity information. Apart from that, the implementation of the [3] dynamic

resource allocation approach in the project core, as well as a method for the deﬁnition

of workﬂow processes, with resource allocation, is being considered in a near future.

This method will be based on the description and execution environment speciﬁcation

and the formalization of the description model.

Acknowledgment

This work has been supported by CNPq - Conselho Nacional de Desenvolvimento Cien-

tíﬁco e Tecnológico, a Brazilian Federal Research Agency.

References

1. Aalst, W.M.P.v.d.; Aldred, L.; Dumas, M.; Hofstede, A. (2003) Design and Implementation

of the YAWL System. Queensland University of Technology (FIT-TR-2003-07).

2. AutomatedQA Corp. (2004) AQdevTeam. http://www.automatedqa.com /prod-

ucts/aqdevteam.asp

3. Bastos, R. M., Oliveira, F. M., Oliveira, J. P. M. (1998) Decentralised Resource Allocation

Planning through Negotiation In: Inteligent Systems for Manufacturing: Multi-Agent System

and Virtual Organization. Kluwer Academic Publishers, p. 67-76.

4. Bastos, R. M.; Ruiz, D. D. A. (2001) Towards an Approach to Model Business Processes

using Workﬂow Modeling Techniques in Production Systems. In: HICSS-34, Proceedings.

IEEE Computer Society.

5. Bastos, R. M.; Ruiz, D. D. A. (2002) Extending UML Activity Diagram for Workﬂow Mod-

eling in Production Systems. In: HICSS-35. Proceedings. IEEE Computer Society.

6. Beizer, B. (1990) Software Testing Techniques. New York: Van Nostrand Einhold.

7. Cao, J.; Jarvis, S.A.; Saini, S.; Nudd, G.R. (2003) GridFlow: Workﬂow Management for

Grid Computing. In: 3rd IEEE/ACM CCGrid 2003. Proceedings. IEEE Computer Society.

8. Hollingsworth, D. (1995) The Workﬂow Reference Model. Hampshire, UK: WfMC.

9. Hewlett-Packard Company. (2000) HP Process Manager: (former Changengine v. 4.2).

http://www.ice.hp.com/ cyc/af/00/index.html

10. Jacobson, I.; Booch, G.; Rumbaugh, J.(1999) The Uniﬁed Software Development Process.

Addison-Wesley.

11. Kaner, C.; Falk, J.; Nguyen, H.Q. (1999) Testing Computer Software. John-Wiley & Sons.

12. Leymann,F.; Roller,D. (2000) Production workﬂow: concepts and techniques. Prentice Hall.

13. Manageability.org (2004). Open-source workﬂow engines written in Java.

http://www.manageability.org/blog/stuff/workﬂow_in_java

14. Meneguzzi, C.R. (2002) TC-Wf: Applying Workﬂow Technology on Software-Testing Plan-

ning. Porto Alegre-RS, Brazil, PPGCC-PUCRS. (MSc. Dissertation, in Portuguese)

15. Mercury Interactive Corp. (2003) Implementing an Effective Test-Management Process.

White Paper. http://www.mercuryinteractive.com

16. Object Management Group.(2000) Workﬂow Management Facility Speciﬁcation, V1.2.

www.omg.org/docs/formal/00-05-02.pdf

17. PassMark Software (2003) Testlog User Guide. www.testlog.com/ftp/TestLogUserGuide.pdf

18. Pressman, R. S. (1997) Software Engineering A Practitioners Approach. McGraw-Hill.

19. Podorozhny, R.M.; Lerner, B.S.; Osterweil, L.J. (1999) Modeling Resources for Activity

Coordination and Scheduling. In: COORDINATION99. Proceedings. LNCS 1594.

20. Ruiz, D. D.; Bastos, R. M. (2002) C-Wf: a Model to Represent Workﬂow Business Processes

in Production Systems. Journal of Applied System Studies, Cambridged, England, v.3, n.1.

21. Velasco, L.H. (2004) Workﬂow Designer: A workﬂow-process design tool. Porto Alegre,

FACIN-PUCRS (Undergraduate conclusion project, in Portuguese).

22. Workﬂow Management Coalition. (1998) Interface 1: Process Deﬁnition Interchange Process

Model. Hampshire, UK: WfMC. (Ofﬁcial Release 7.04)

23. Workﬂow Management Coalition. (2002) Workﬂow Process Deﬁnition Interface XML

Process Deﬁnition Language. Hampshire, UK: WfMC. (TC-1025, Final Draft 1.0)

24. Zelm, M.; Vernadat, F.B.; Kosanke, K. (1995) The CIMOSA business modelling process.

Computers in Industry, v. 27, n. 2, p.123-142. October.
