Towards a Process for Web Services Security

Carlos Gutiérrez

, Eduardo Fernández-Medina

and Mario Piattini

(1) STL, Madrid (SPAIN)

(2) Alarcos Research Group. Universidad de Castilla-La Mancha.

Paseo de la Universidad 4, 13071, Ciudad Real. (SPAIN)

Abstract. Web Services (WS) security has been enormously developed by the

major organizations and consortiums of the industry during the last few years.

This has carried out the appearance of a huge number of WS security standards.

This fact has caused that organizations remain reticent about adopting

technologies based on this paradigm due to the learning curve necessary to

integrate security into their practical deployments. In this paper, we present

PWSSec (Process for Web Services Security) that enables the integration of a

set of specific security stages into the traditional phases of WS-based systems

development. PWSSec defines three stages, WSSecReq, WSSecArch and

WSSecTech that facilitate the definition of WS-specific security requirements,

the development of a WS-based security architecture and the identification of

the WS security standards that the security architecture must articulate to

implement the security services, respectively.

1 Introduction

The open Internet nature is promoting the development of Web Services (WS) as a

paradigm that enables complex business workflow integration scenarios and provides

the so-demanded and so-called hyper-connectivity inter- and intra-enterprises [1].

This standard-based quality-centered

paradigm is evolving rapidly due to its ability

of handling and addressing the heterogeneous information systems integration

challenge. In fact, according to the most recent reports from IDC, over the next years,

the market for WS-based solutions will grow steadily reaching $11 billion in 2008

[2]. Due to this fact, an enormous quantity of WS standards is being produced. This

diversity, also found in the context of WS [3] security has made us consider its

application, from a global perspective, as a very complex and hard process to

understand with a very difficult learning curve. Following, some questions that are

hard to answer for someone who is new to WS-based systems are stated:

• Giv

en a complete set of functional requirements, what WS security standards

should I choose?

• What

are the WS security requirements that should be taken into account in my

WS-based system?

• What

WS security standard from those addressing similar aspects should I

integrate in my WS-based system?

Farkas C. (2005).

Tree Automata for Schema-level Filtering of XML Associations.

In Proceedings of the 3rd International Workshop on Security in Information Systems, pages 298-308

DOI: 10.5220/0002575502980308

 SciTePress

At present, there is still a lack of a global approach that offers a methodical

development to construct security architectures for WS-based systems. For this

purpose, the main objective of this paper is to present the process PWSSec (Process

for Web Services Security). PWSSec has been created to facilitate and orientate the

development of security for WS-based systems in a way that in each one of the

traditional stages for the development of this kind of systems [4], a complementary

stage comprising security [5] can be integrated. Therefore, this process can be used

once the functional architecture of the system has been built or during the stages used

to elaborate this architecture. In both cases, the result will be a WS-based security

architecture formed by a set of coordinated security mechanisms that use the WS

security standards to fulfill the WS-based system security requirements.

In this paper we will provide a brief overview of the complete process and we will

present in a more detailed form the reference security architecture defined in the

WSSecArch stage.

The rest of the paper is organized as follows. In section 2, the PWSSec process is

introduced. In section 3, an in-depth study of the stage related to the specification of

the WS-based security architecture is presented and an example is shown. In section

4, related research works are stated, and, finally, in section 5 conclusions and points

that need to be developed in the future are enumerated.

2 PWSSec - Process for Web Services Security

In this section, we will provide an overview of the process PWSSec.

This process specifies how to define security requirements for WS-based systems,

describes a WS reference security architecture that guarantees and demonstrates its

development and provides us with facilities to obtain concrete security architectures

based on the current WS security standards. In general, the main features of the

process presented in this section are as follows:

• Iterative and incremental process: For each iteration that comprises the

development of all stages, a part (increase) of system security is analyzed,

characterized and developed.

• The two basic principles are process traceability and reusability and product

interoperability and reusability. Process reusability will allow us to apply it to

different domains in which it is necessary to develop a WS-based security

architecture whilst product reusability will guarantee shorter development cycles

based on proved solutions. Product interoperability, mainly applied in WSSecArch

and WSSecTech stages, will guarantee that WS-based security solutions agreed by

the most important industry consortiums will be taken so that systems developed

with PWSSec will present a high degree of integration and interoperability.

• Process managed by the elements and basic procedures defined for an Architecture

based on WS [6].: the basic actors are the services provider agents, the services

consumer agents and the discovery agents whilst the basic processes are

publishing, discovery, binding and invocation.

• Based on the concept and techniques developed within the scope of Security

Requirement Engineering and Risk analysis and management [7-9].

299

• Developed from the concept and techniques that allow us to implement security

into software architecture [10-12].

•

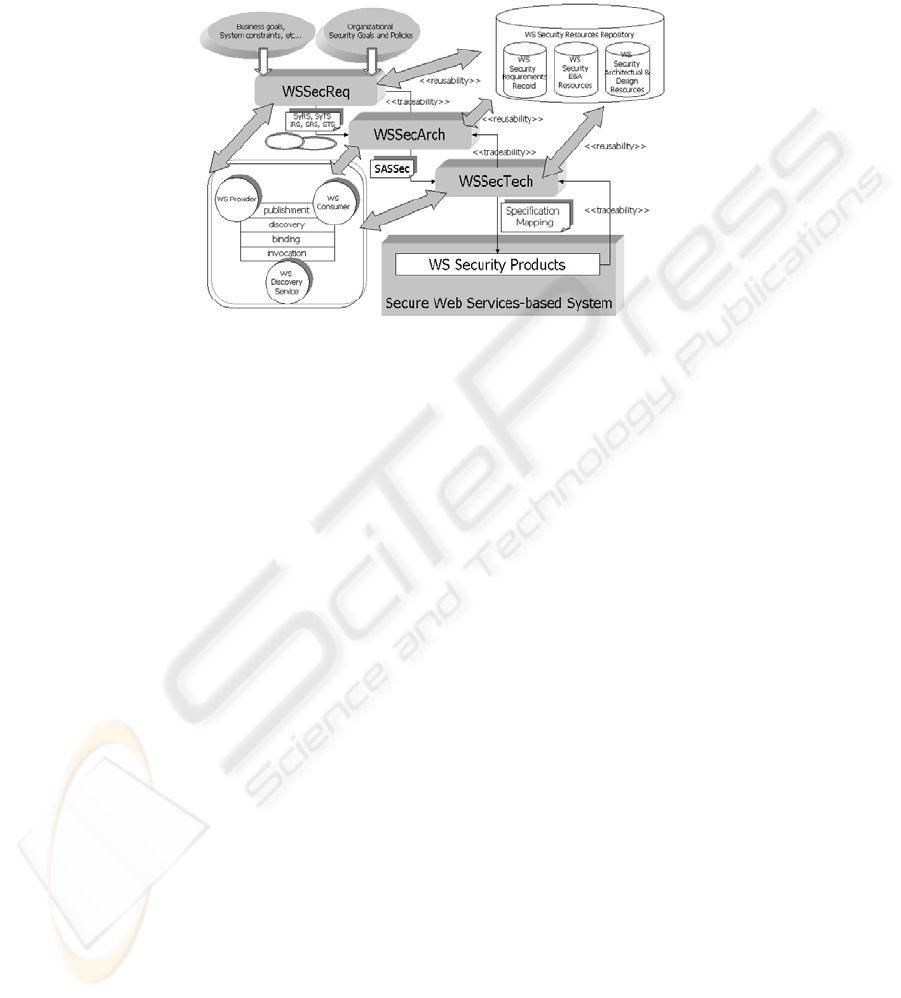

Figure 1 shows us the stages in which PWSSec process is structured.

Fig. 1. PWSSec process layout.

Each one of the stages defined by PWSSec describes its inputs, outputs,

activities, actors and sometimes, guides, good practices, tools and techniques that

complement, improve and facilitate the set of activities developed within these stages.

The PWSSec stages depicted in Figure 1 are briefly described as follows:

• WSSecReq (Web Services Security Requirements): The main purpose of this stage

is to produce a specification (or a part of it) of the security requirements of the

target WS-based system. Its input is composed by a specification of the scope that

we want to comprise during iteration (e.g.: if we have a definition of the Use Cases

available, we can select those that we want to cover and use them as an input for

iteration), the business and security goals defined for the system as well as the part

of the organizational security policy that we estimate that can impact on the system

design. The output is basically formed by the set of attack scenarios, defined

according to [13, 14] and represented according to the UML profile [9], by the set

of use cases of security according to Donald G. Firesmith [15] and by a formal

specification of the security requirement for the scope of the system based on

SIREN [16]. This stage is supported by a repository that contains attack scenarios

patterns that are grouped into attack profiles and security use cases, by a set of

reusable security requirements templates and by a basic guide for the definition of

scenarios and security requirements within systems based on WS.

• WSSecArch (Web Services Security Architecture) has as its main objective to

allocate and integrate the security requirements specified in WSSecReq stage

through the identification of the appropriate WS-based security architectural

patterns and its integration in a WS-based security architecture. We skip a brief

description of this stage because a detailed revision is developed in section 3.

• WSSecTech (Web Services Security Technologies): The main purpose of this stage

is to identify a set of WS security standards that will implement the security

300

services identified in the previous stage. Output will be a description of the set of

standards identified for each security service together with the reasoning

framework that made us select it and a concrete security architecture design. The

activities carried out in this stage are the following: i) WS Security Standards

Identification; ii) Security Policies Specification to define the Security Policy of

the Abstract Security Service Instance that implements certain standard.

3 WSSecArch – Web Services Security Architecture

WSSecArch comprises the security-related Architecture Design providing a clear

distribution of the security requirements into WS-based security mechanisms. These

WS-based security mechanisms help to mitigate those risks identified for every

business Web Service in the WSSecReq stage and complete the WS-based security

architecture.

The two principles that characterize this stage are the same than in WSSecReq:

products reusability and traceability. Architecture security solutions are taken from

architectural patterns [17] that have been successfully proved in other projects and

belonging to the most diverse domains. Thus, it has been created a repository of WS

security architectural patterns related to each one of the security factors, including the

reasoning framework that relates and justifies them [18, 19]. Nowadays, there are

different WS-based security solutions for the different security requirements that we

can identify. Up to this point we have focused our work in federation environments

including authentication, Single Sign-On and domain trust federation topics.

The considered inputs in this stage are as follows: i)Business goals of the current

iteration; ii) Organizational goals and security policies taken into account during the

current iteration; iii) The set of attack and security scenarios developed in WSSecReq;

iv) The set of security requirements specifications defined in WSSecReq stage; v) The

WS Security Architectural & Design Repository which contains a set of WS-based

architectural security patterns that will promote product reusability.

The main output of this stage is the Security Architecture Specification (SASSec in

Figure 1) that accomplishes: i) The set of security requirements solved by the

architecture; iii) The set of security architectural patterns that implement them

documented as in Attribute-Based Architectural Styles [19]; ii) The catalog of

security policies associated with the business WS and security WS; iii) A series of

views [17, 20] whose type depends on the stakeholders that will read the SASSec.

These views will demonstrate how the security architecture integrates with the

functional architecture and how the attack scenarios are addressed. Between the

security requirements, the identified security patterns and the WSSecKern (Web

Services Security Kernel) components (we will get on to this concept later), a forward

and backward navigable traceability relationship, justified by the set of design

decisions or applied reasoning, will exist.

The main actors in this stage are the Requirements Engineering Team, the

Architecture Design Team and the Security Team. The last two participate in the

Security Architectural Patterns Identification and Security Architectural Patterns

Integration stages. In the Security Architecture Validation stage the three actors

participate.

301

3.1 Activities

Security Architectural Patterns Identification

For each security requirement of each business WS belonging to the current iteration,

we must identify the WS security architectural pattern(s) that solves it. This

architectural pattern defines a set of abstract services types (since they do not define

how they must be implemented in terms of algorithms or concrete data types) as well

as a set of interactions that formally specify the security properties offered by the

pattern. The WS architectural pattern, defining it as a set of coordinated design [17],

adds a set of additional security services to which we must add a description of their

interaction (interaction between security services and between security services and

business services) in the functional services architecture. Therefore, these new

services will offer us new security functionalities that must be reevaluated, analyzed

and refined from the WSSecReq process.

As a complementary source for this stage, the WS Security Architectural & Design

Repository (see Figure 1) should be used. New identified architectural patterns will be

introduced within the repository allowing its future reuse.

Definition of Security Policy associated with every Security Architectural

Pattern

Furthermore, such architectural pattern defines, in an abstract way, the security policy

possible parameters that can govern the identified security mechanisms capabilities

and interactions.

The security policies allow Abstract Security Services and business WS to define

their preferences, requirements and capabilities [21, 22]. Each Abstract Security

Service, derived from one or more security requirements through the application of a

certain architectural pattern(s), must indicate in its security policy the possible

parameters for instancing it and the set of security requirements types it addresses

(e.g.: authentication, availability, etc.).

Integration of Security Architectural Patterns

With the purpose of obtaining a systematic method to be able to define the WS-based

architecture security, we have elaborated a WS-based security reference architecture

that shows the direct traceability of security requirements with their corresponding

implementing software components. In our work, we have developed a WS security

reference architecture which is shown in Figure 2.

302

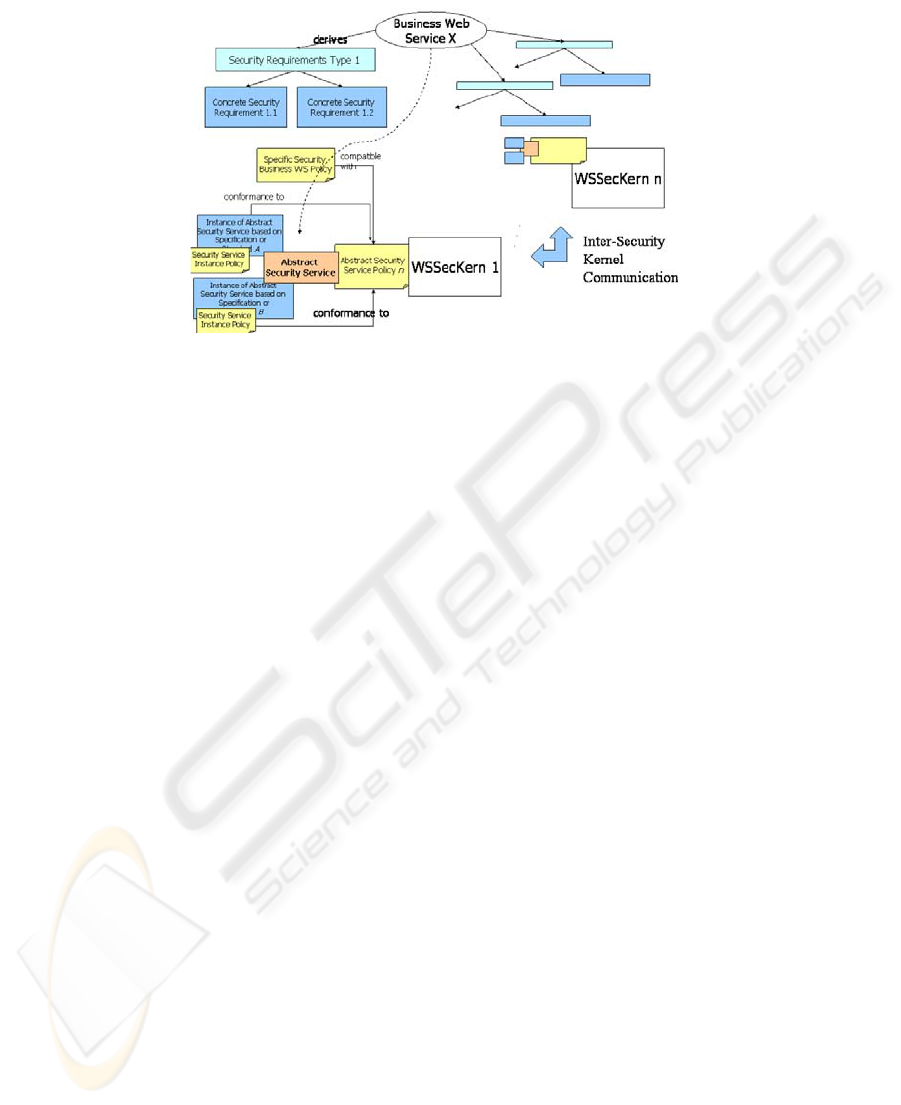

Fig. 2. WS Abstract Security Reference Architecture

Architecture Components

The basic elements used in the WS security reference architecture are:

• WS Security Kernel (WSSecKern). This is the core of our WS-based reference

security architecture. This component will manage a set of Abstract Security

Services, derived from the application of a certain set of security architectural

patterns, with the aim of supporting the security requirements of a potential set of

business Web Services. Each WSSecKern will support one or more Abstract

Security Services implemented through one or more concrete security mechanisms

in form of WS security standards (identified in the stage WSSecTech). Thus, each

WSSecKern will cover a set of security requirements by means of providing a set

of WS-based security services to certain business WS.

• Abstract Security Service that comprises certain set of security requirements types

(e.g.: security requirements related to authorization) and that can have several

instances according to the number of implementations based on the WS security

standards that will be identified in stage WSSecTech.

• Security Policy of an Abstract Security: it includes the possible parameters or

attributes with which we can define the security policies of the Abstract Security

Service potential instances as well as a description of the set of security

requirements types that the Abstract Security Service handles.

• WS Security Standard that supports a certain Abstract Security Service Instance

(indeed, this will not be defined until WSSecTech stage).

• Security Policy of an Abstract Security Service Instance in which the capabilities

supported by the used specification or standard are defined.

• Business Service Security Policy: defined by each business WS. The business WS

security policy will be registered in the WSSecKern when the business WS desires

to use the security services provided by that WSSecKern. This way, the

WSSecKern will know what security services, and how to use them, are demanded

by certain WS. The business WS defines what set of security requirements it needs

303

and what mechanisms and how they will be used (e.g.: “I would like a simple

message authentication based on X.509v3” certificates).

• Protocol of Intercommunication between WSSecKern: It allows the coordination

and interaction of the different Security Services.

Basic Interactions

• Registration/cancellation of the business WS in WSSecKern. A business WS must

Security Policy. This way the WSSecKern will know what business WS should

protect, what security services will have to apply and how.

• Execution of an operation of a Security Service Instance. When a request arrives at

a business WS, depending on the way the system is configured, this could be

intercepted by a certain WSSecKern or it could be forwarded by the business

service to a WSSecKern in a way that the security service is effectively applied.

Security Architecture Validation

Mainly, this activity consists of verifying that the attack and security scenarios for the

current iteration are covered. Besides, scenarios that have been identified so far must

be reevaluated with the purpose of checking that a conflict situation has not started.

Security Architecture Specification

This activity states, in writing, a Security Architecture Specification document

(SASSec in Figure 1) through the use of views [17, 20] that show us how the security

scenarios display, through the architecture components interactions (WSSecKern and

its Abstract Security Services, Agents WS Consumers and Agents WS Providers), as

a countermeasure to the attack scenarios shown in the current iteration. Moreover, the

specification must show the distribution of the security requirements given as input in

a way that each WSSecKern must perform one or more security requirements.

Case Study: XML Perimeter Security

As an example, the following figure shows us a concrete security architecture

covering the authentication requirements and the perimeter security [23]:

304

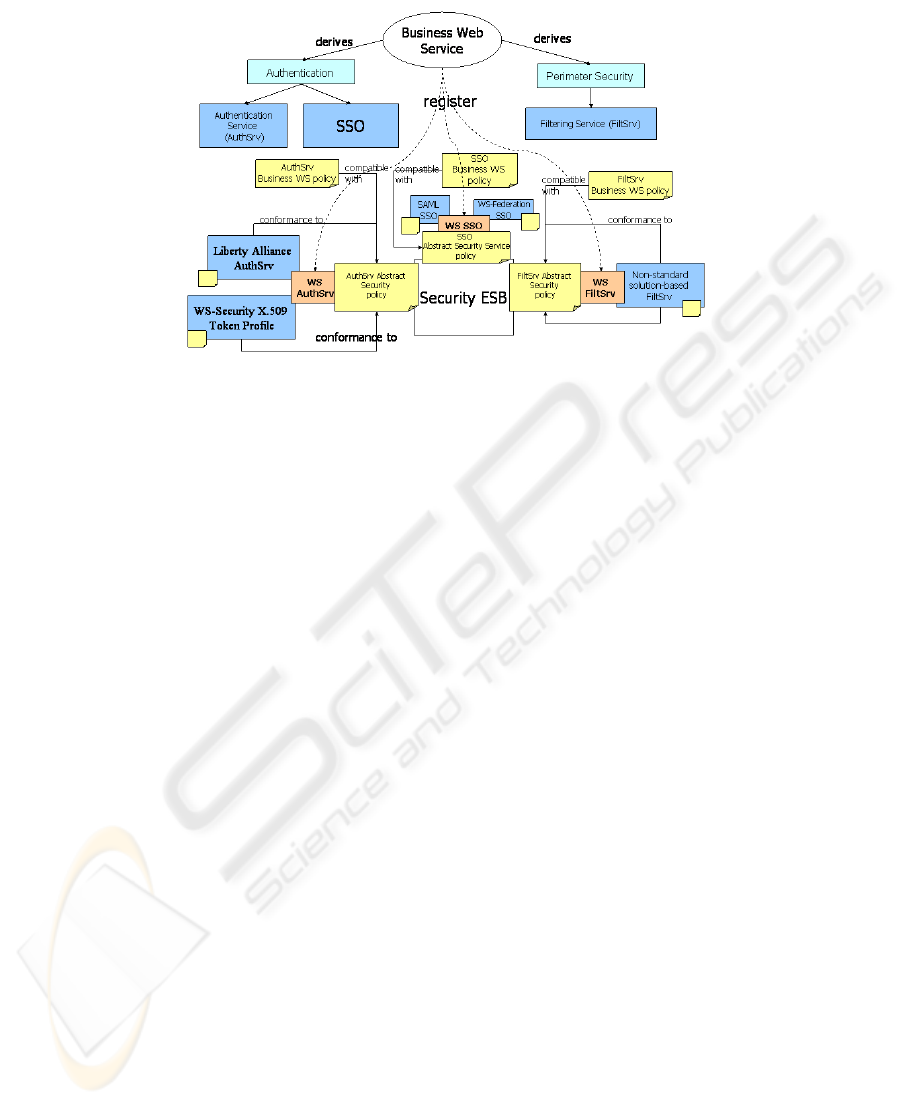

Fig. 3. Concrete WS security Architecture

In Figure 3, we can see how the security requirement “Perimeter security” defined

from the business WS analysis, can be specified in a Filtering Service whose aim is to

filter messages according to some simple syntactic rules of them defined in their

policy, and that are directed to that business service. The business service, with

respect to this R1 requirement, will indicate, in its security policy, the following

points: i) It requires Perimeter Security; ii) it requires Message Filtering; iii) it has R1

requirement associated; iv) filtering must be syntactic-based, applied to the message

payload and based on a certain XML schema, defined in the business service policy.

In this example, the WSSecKern has been implemented as an Enterprise Security

Service Bus [1] specialized in security (Security Enterprise Service Bus). The

ESBSec must implement the defined semantics for a WSSecKern and has a

WSFiltSrv Abstract Security Service associated derived from the Message Filtering

security requirement discovered when applying WSSecReq to the given business

service. WSFiltSrv defines as parameters of its policy, the definition of the formats in

which the syntactic rules can be expressed (e.g.: XML Schema, DTD, RelaxNG,

etc...). Instances of this Abstract Security Service must define what formats they

support.

Given that there is not any standard or specification being prepared to be a

standard; WSFiltSrv is implemented with priority defining in its Security Policy of

the Abstract Security Service Instance, its capability to define the syntactic rules

through the XML Schema. When the business WS is registered in ESBSec, it will

indicate that it requires Perimeter Security of Filtering Message type and it will

provide the syntactic rules in XMLSchema format as well. When ESBSec carries out

the compatibility verification task, it will note that it has an Abstract Security Service

that implements Message Filtering requirements type and that, also, and after having

analyzed the Instances security policies (only one, in this particular case), there is at

least one instance that accepts the XML Schema format for filtering syntactic rules.

As verification is correct, R1 requirement, of Perimeter Security, Message Filtering”

associated with such business service will be implemented by WSSecKern in the

shape of ESBSec. We must note how it is possible to know at the time of execution

305

what component or (sets of software components) implements a certain security

requirement. This fact will provide us with a total requirement traceability from the

security requirement to the architectural component that addresses it.

4 Related Work

At present, undoubtedly, the biggest effort is being carried out in the area of WS

security standards definition. This effort has caused the existence of a vast number of

drafts and standards that make it difficult to handle and to know them by the

organizations that would like to use them. The lack of a global vision has caused that

many organizations have been very reticent to use this method since they have

thought it was full of acronyms. Our process allows us to face this problem in an

orderly way enabling organizations to apply this method without having to know

previously what draft or standard must be put to work.

With regard to the research area, EFSOC [24] is a event-driven framework for WS-

based systems development that defines a security model that can be easily applied to

systems in which the modifiability degree is high and therefore, they require a review

and update of the authorization policies. In [25], a methodical and formal analysis

based on “formal analysis of security-critical service-based software systems” is

presented. None of these approximations puts forward a method such as PWSSec that,

from the business and system security goals, can obtain a system based on secure WS

to the standards level. Moreover, none of these methods offers us facilities for the

reusability of the generated products in a way that their practical applicability is

guaranteed.

5 Conclusion and future research

This paper has presented the process PWSSec, which allows us to provide a WS

system with security through an own process. As far as authors know, there is not in

the field of WS system research, a definition of a complete process comprising and

taking into account all the stages of its life cycle.

Nowadays, we are applying PWSSec to two case studies carried out by two state-

owned organizations. We hope that, as a result of this practical application, we could

refine the stages of the process and enrich the products generated in it.

Some of the main aspects to be developed are the following: To complete the

repository defined in WSSecReq stage with security requirements templates and

specific attack patterns that comprise more security aspects; WS security

requirements modeling and formal validation; to develop evaluation areas and

cost/benefit analysis of WSSecArch; to complete the catalog of WSSecArch standards

and specifications (nowadays, completed for authentication and perimeter security

requirements); in the process of verification of policies compatibilities executed by

WSSecKern, we still have to define if two policies are semantically equivalent.

306

Acknowledgments

This research is part of the following projects: MESSENGER (PCC-03-003-1)

financed by the “Consejería de Ciencia y Tecnología de la Junta de Comunidades de

Castilla-La Mancha” (Spain), CALIPO (TIC2003-07804-C05-03) and RETISTIC

(TIC2002-12487-E) granted by the “Dirección General de Investigación del

Ministerio de Ciencia y Tecnología” (Spain).

References

1. Nott, C., Patterns: Using Business Service Choreography In Conjuction With An Enterprise

Service Bus. IBM Redbooks Paper. 2004. 32.

2. IDC, Cautious Web Services Software Adoption Continues; IDC Expects Spending to

Reach $11 Billion by 2008. 2004.

3. Gutiérrez, C., E. Fernández-Medina, and M. Piattini, Web Services Security: is the problem

solved? Information Systems Security, 2004. 13(3): p. 22-31.

4. Endrei, M., et al., 4. Service-oriented architecture approach, in Patterns: Service-Oriented

Architecture and Web Services. 2004. p. 345.

5. Endrei, M., et al., Patterns: Services Oriented Architectures and Web Services. IBM

Redbook, ed. IBM. 2004.

6. Papazoglou, M.P. and D. Georgakopoulo, Service-Oriented Computing. Communications

of the ACM, 2003. 46(10): p. 25-28.

7. Alberts, C.J., et al., Operationally Critical Threat, Asset, and Vulnerability Evaluation

(OCTAVE) Framework, Version 1.0, in Networked Systems Survivability Program. 1999,

Carnegie Mellon. Software Engineering Institute. p. 84.

8. Smith, D.G., Common Concepts Underlying Safety, Security, and Survivability

Engineering. 2003, SEI.

9. OMG, UML Profile for Modeling Quality of Service and Fault Tolerance Characteristics

and Mechanisms. 2004.

10. Bass, L. and R. Kazman, Architecture Based Development, in Product Line Systems. April

1999, Carnegie Mellon. Software Engineering Institute. p. 36.

11. Jürjens, J., Secure Systems Development with UML. 2005: Springer. 309.

12. Yu, H., et al. Integrating Security Administration into Software Architecture Design. in

International Conference on Software Engineering and Knowledge Engineering 2004.

2004. Banff, Canada.

13. Sindre, G. and A.L. Opdahl. Eliciting Security Requirements with Misuse Cases. in 37th

International Conference on Technology of Object-Oriented Languages and Systems

(TOOLS-37'00). 2000. Sydney, Australia.

14. Alexander, I., Misuse Cases: Use Cases with Hostile Intent. IEEE Computer Software,

2003. 20(1): p. 58-66.

15. Firesmith, D.G., Security Use Cases. Journal of Object Technology, 2003. 2(3): p. 53-64.

16. Toval, A., et al., Requirements Reuse for Improving Information Systems Security: A

Practitioner's Approach. Requirements Engineering Journal, 2001. 6(4): p. 205-219.

17. Bass, L., P. Clements, and R. Kazman, Software Architecture in Practice. 2nd, ed. 2003:

Addison-Wesley. 560.

18. Ellison, R.J., et al., Security and Survivability Reasoning Frameworks and Architectural

Design Tactics. 2004, SEI.

19. Klein, M. and R. Kazman, Attribute-Based Architectural Styles, in Product Line Practice.

1999, Software Engineering Institute. p. 90.

307

20. Krutchen, P., The 4+1 View Model of Software Architecture. IEEE Software, 1995: p. 42-

50.

21. VeriSign, et al., Web Services Policy Framework (WS-Policy). 2004.

22. Anderson, A., S. Proctor, and S. Godik, OASIS XACML profile for Web-services. 2004.

23. Cremonini, M., et al. A XML-based Approach to Combine Firewalls and Web Services

Security Specifications. in ACM Workshop on XML Security. 2003. Fairfaz VA, USA.

24. Leune, K. and M. Papazaglou. Specification and Querying of Security Constraints in the

EFSOC Framework. in International Conference on Service Oriented Computing. Willem-

Jan van den Heuvel. New York City, USA.

25. Deubler, M., et al. Sound Development of Secure Service-based Systems. in ICSOC'04.

2004. New York, USA: ACM.

308
